Zhijing IC Card Reader And Writer, ID Card Reader, Card Swiping Device, USB Card Reader, Access Control Card Issuance Device, Membership Card And Gate Access Control Card Reader

Product Specifications:

Brand: Zhijing, Z Zhijing

Recognition: Awarded by CCTV, Brand Recommended by CCTV

Endorsements: National Wushu Champion Wang Zongnan, CCTV Advertising Broadcast Proof

Manufacturer: Kunshan Weikete Printing Co., Ltd.

Manufacturer ID: 2545-7982-7005-0011

Quality Endorsement: Zhijing Champion Quality Spokesperson

Product Name: Z Zhijing RFID Smart Card Reader

Key Features:

Supports IC/D card reading functions

Contactless card reading with doubled speed

Reading distance up to 8 cm

Response time less than 0.2 seconds

Built-in audible feedback (beep sound)

Model: A1

Operating Frequency: 13.56 MHz

Supported Card Types: MFS50, S70, and other 14443A protocol tags

Weight: 160g

Reading Time: <100 ms

Reading Speed: 0.2 seconds

Reading Interval: 0.5 seconds

Communication Interface: USB (no COM serial port)

Operating Temperature: -20°C to 70°C

Operating Voltage: 5V

Operating Current: 100mA

Compatible Operating Systems: Windows XP, Windows CE, Windows 7, Windows 10, Linux, Vista, Android

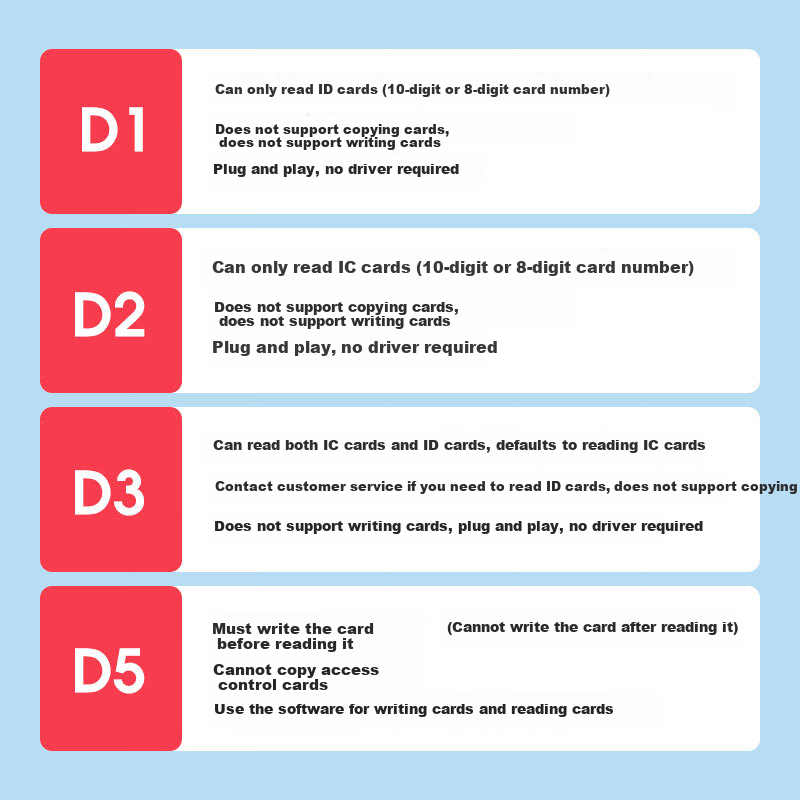

Card Compatibility:

Supports various card types including IC thick cards, clip IC cards, dip cards, IC white cards, mango white cards, and custom printed cards

Users should select the appropriate reader model based on card chip type; contact customer service if chip type is unknown

Usage Instructions:

1. Connect the device to a PC or Android system via the connection cable

2. Open a text editor such as Notepad or Word

3. Place the card above the reader for reading

Additional Notes:

Default output is the first 10 digits of the card number; for other output formats, please contact customer service

For detailed industry applications and product details, please consult customer service
