UGREEN NAS Accessories, Network Storage Expansion Enclosure Disk Array Hard Drive Cabinet, Multi-Bay Hard Drive Case (With RAID), Suitable for 2.5/3.5 SATA Mechanical And Solid State Drives

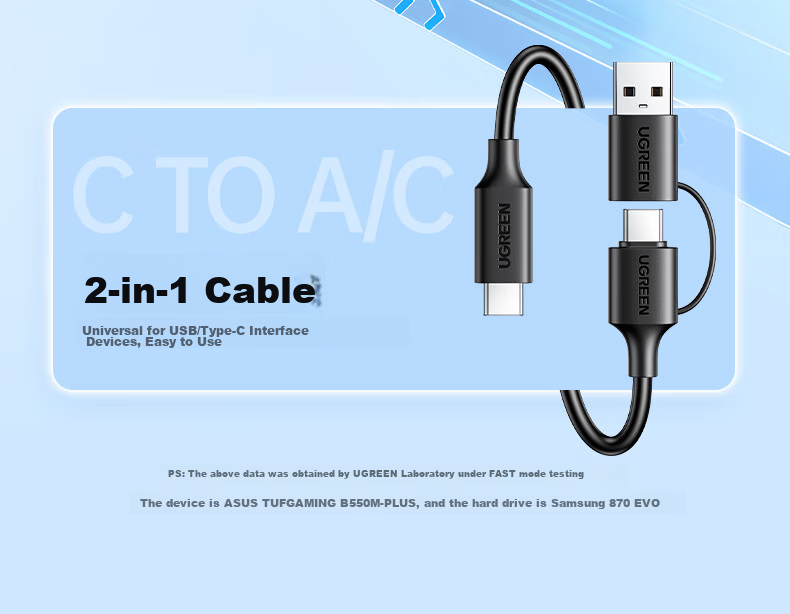

Type-C to USB-C + USB dual-head data cable (1 meter)
Compatible Systems
Windows, macOS, Linux (Plug and play, driver-free)
Supports Windows 11 and mainstream operating systems
Additional details
External Power Adapter
12V 8A, 96W max power supply
Stable multi-drive simultaneous read/write support
High-performance dual-core main controller chip for enhanced transmission speed and stability
Additional details
Theoretical transfer rate
5Gbps
Actual tested transfer speed
up to 260MB/s
1GB file transfer approximately 5 seconds
Low latency, low power consumption, stable transmission
Supports S.M.A.R.T. function for hard drive health monitoring
Intelligent variable-speed temperature-controlled silent fan
Automatic fan speed adjustment based on hard drive temperature for efficient heat dissipation and stable operation
RAID 0, 1, 3, 5, 10, PM, LARGE, CLONE
Flexible RAID configuration to meet various application needs
RAID mode switching requires data backup as drives will be formatted
RAID performance examples (approximate speeds)
Item
Detail
RAID 0
2-5 drives, high speed (~220MB/s), no redundancy
RAID 1
2 drives, data mirroring (~180MB/s), good redundancy
RAID 3
3-5 drives, parity (~180MB/s), medium redundancy
RAID 5
3-5 drives, parity (~220MB/s), medium redundancy
RAID 10
4-5 drives, striping + mirroring (~220MB/s), good redundancy
PM, LARGE, CLONE modes also supported with varying speed and redundancy
—
Intelligent sleep mode activates after 15 minutes of inactivity to reduce hard drive wear and extend lifespan
Instant wake-up upon access
Router linkage for file sharing (requires router with USB and file sharing support)

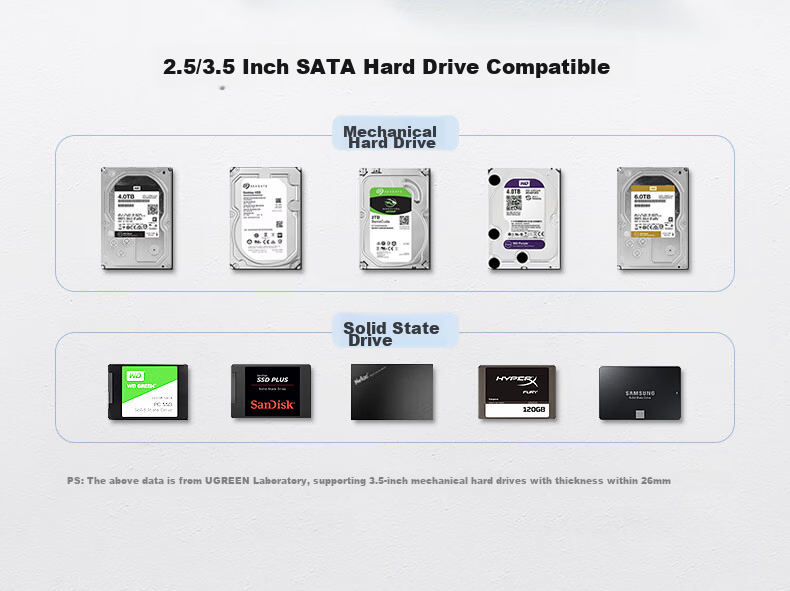

Supports both 2.5" and 3.5" SATA hard drives and SSDs
Compatible with mechanical and solid-state drives from major brands (e.g., Western Digital, SanDisk)
Supports drives up to 26mm thickness for 3.5" HDDs
Additional details
Net Weight
2.4 kg
Gross Weight (with packaging)
3.4 kg
Packaging
Stylish color box
Non-slip feet and curved elastic structure for stability

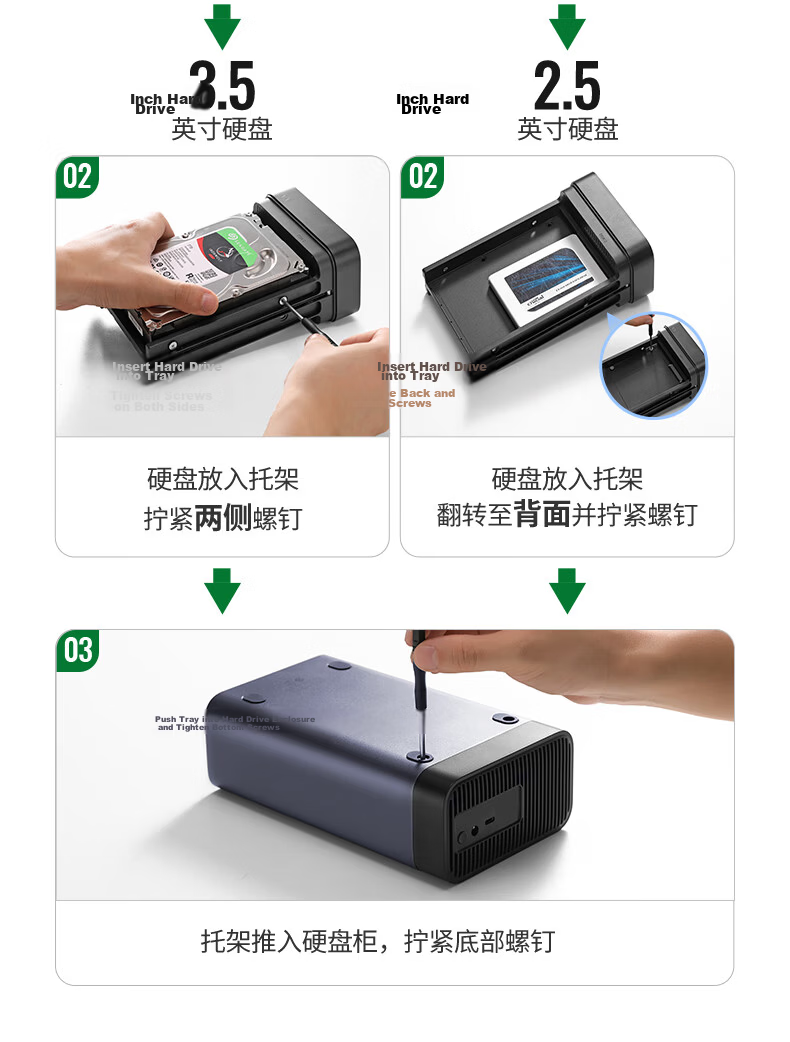

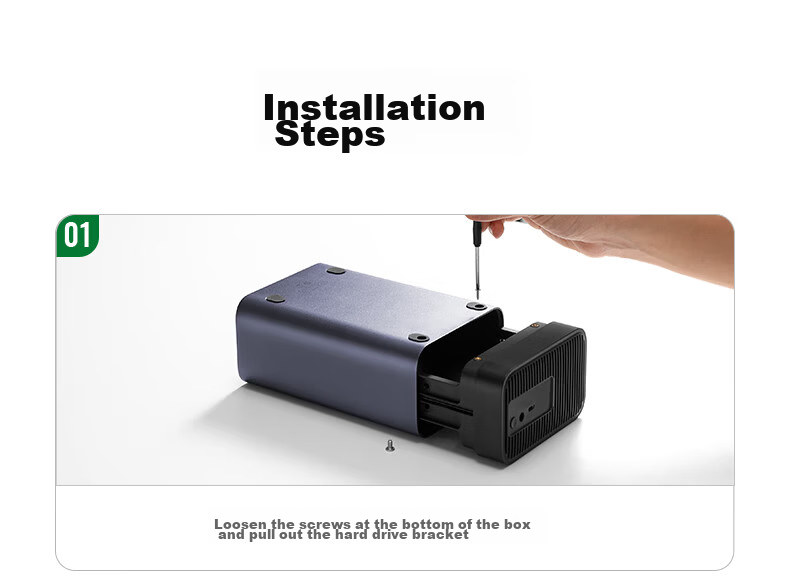

Easy tray removal by pulling the handle outward for hard drive installation
Additional details
Power on/off
Press and hold power button for 3-5 seconds with power adapter connected
RAID mode switching
Set DIP switches, press RESET and power button simultaneously for 3 seconds, release RESET after 15 seconds when indicator flashes
Data backup recommended before RAID mode switching
Additional details
Product warranty
1 year
Tested with ASUS computer and Western Digital 500GB SSD (WDCWDS500G2BOC-00PXHO)
Tested RAID performance on MacBook Air 2018 with Western Digital 1TB HDD (WD10EZEX-22MFCA0) using AJA System Test
Actual performance and capacity may vary due to hardware differences and environmental factors
Hard drives are consumable components; recommended replacement every 3-5 years to prevent data loss
Product internal structure images are schematic; actual product may vary
For disabling sleep mode or other advanced settings, contact customer service
This product is ideal for entrepreneurs, video editing, gaming, security monitoring, and general mobile storage needs, providing high-speed, stable, and flexible storage solutions.
