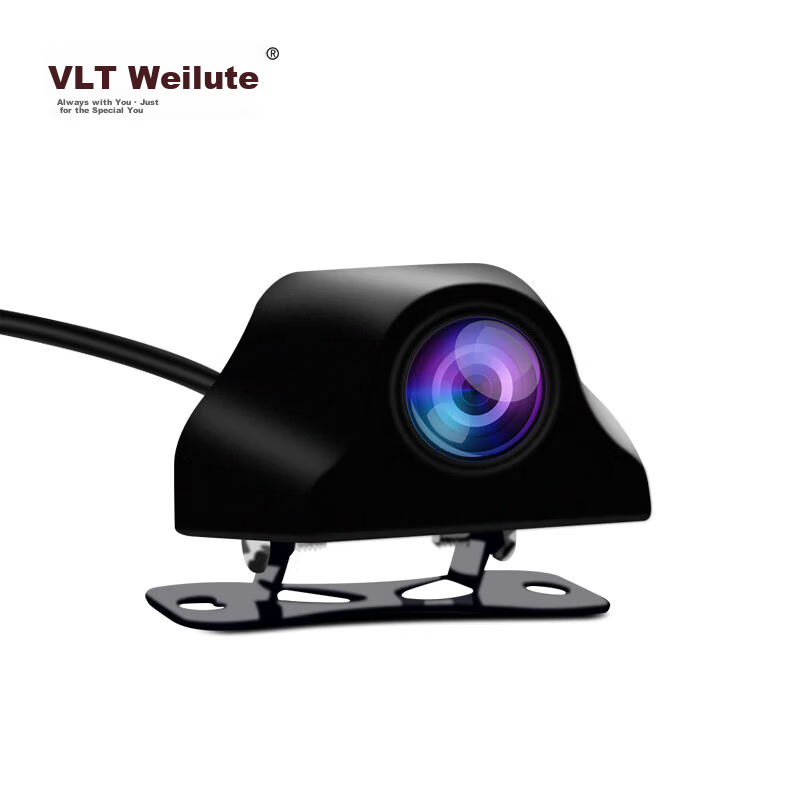

Weilute HD Night Vision Strong Light Suppression WDR Wide Dynamic Sony Sensor Streaming Rear Camera 4-Pin AHD

2. Fix near rear dome light using screws

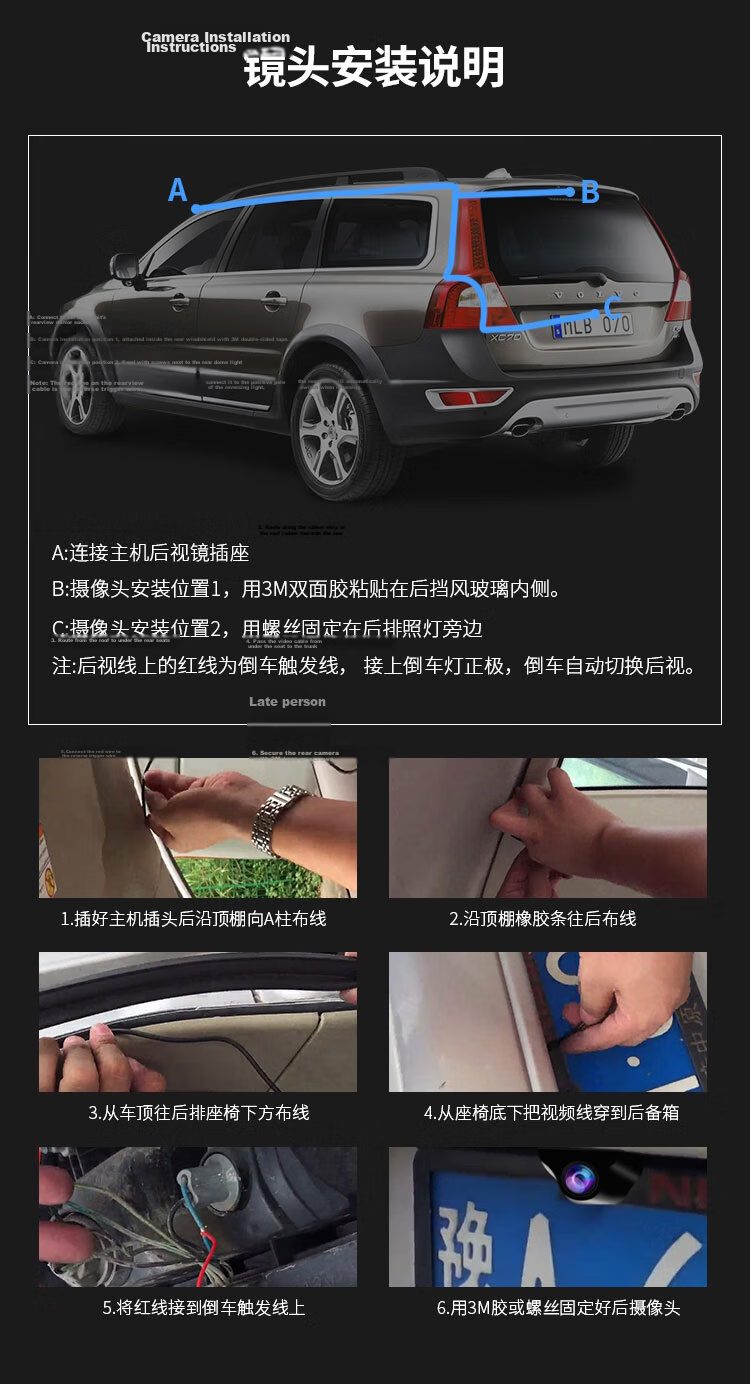

Red wire on rearview line is reverse trigger wire; connect to reverse light positive pole for automatic rearview switching when reversing

1. Route main plug along roof lining to A-pillar

2. Continue along roof rubber strip towards rear

3. Route from roof to rear seat area

4. Pass video cable under seat to trunk

5. Connect red trigger wire to reverse trigger line

6. Secure rear camera with 3M tape or screws

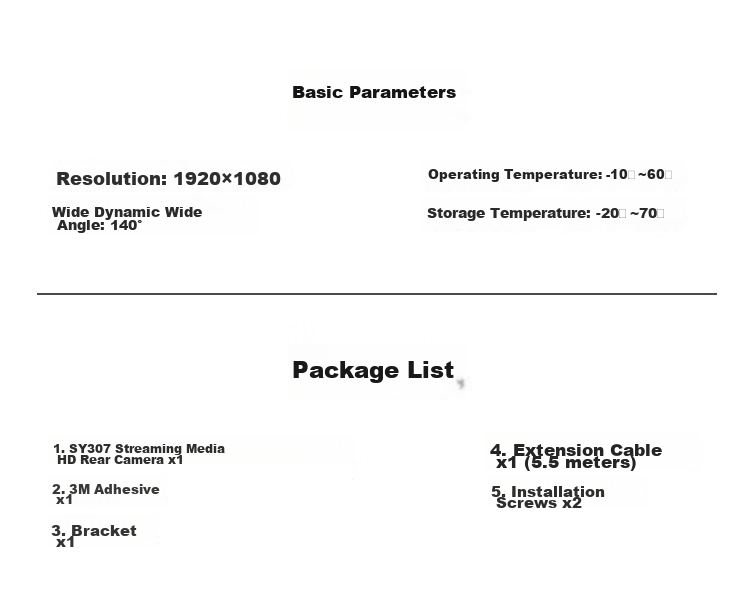

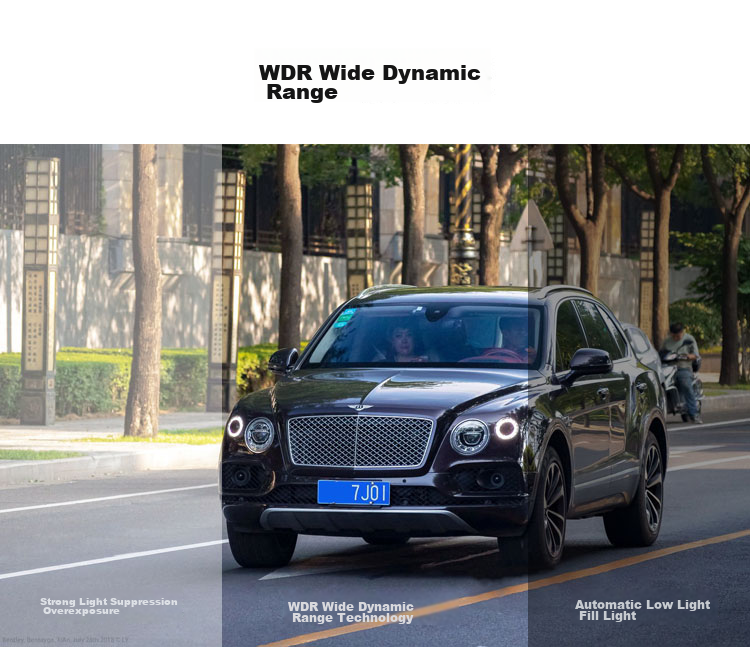

Wide Dynamic Range (WDR) with 140° wide-angle lens

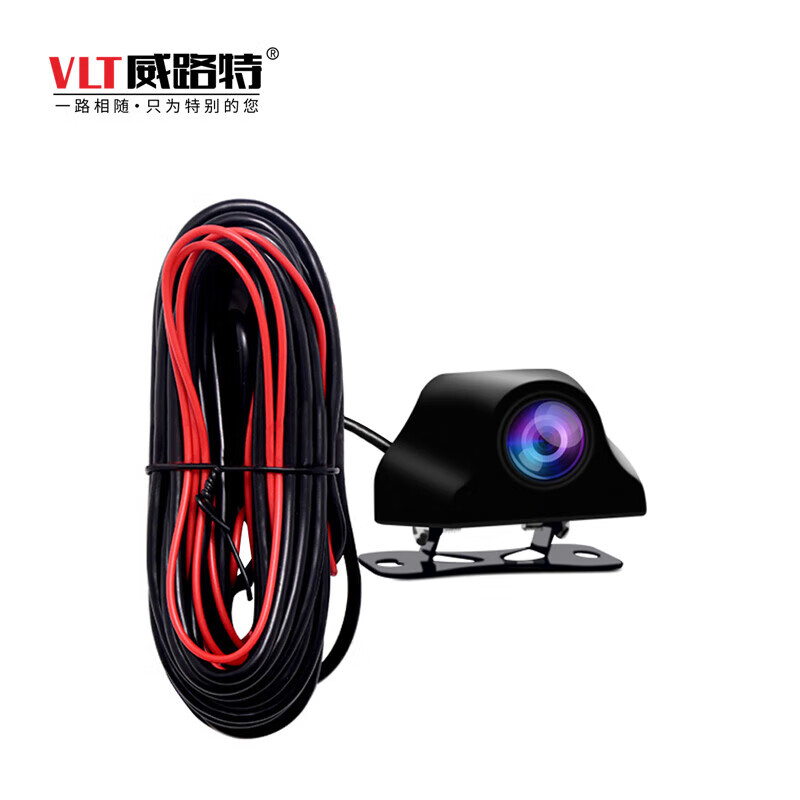

1 x SY307 Streaming HD Rear Camera

1 x 5.5-meter Extension Cable

1 x 3M Double-sided Tape

2 x Installation Screws

1 x Mounting Bracket
