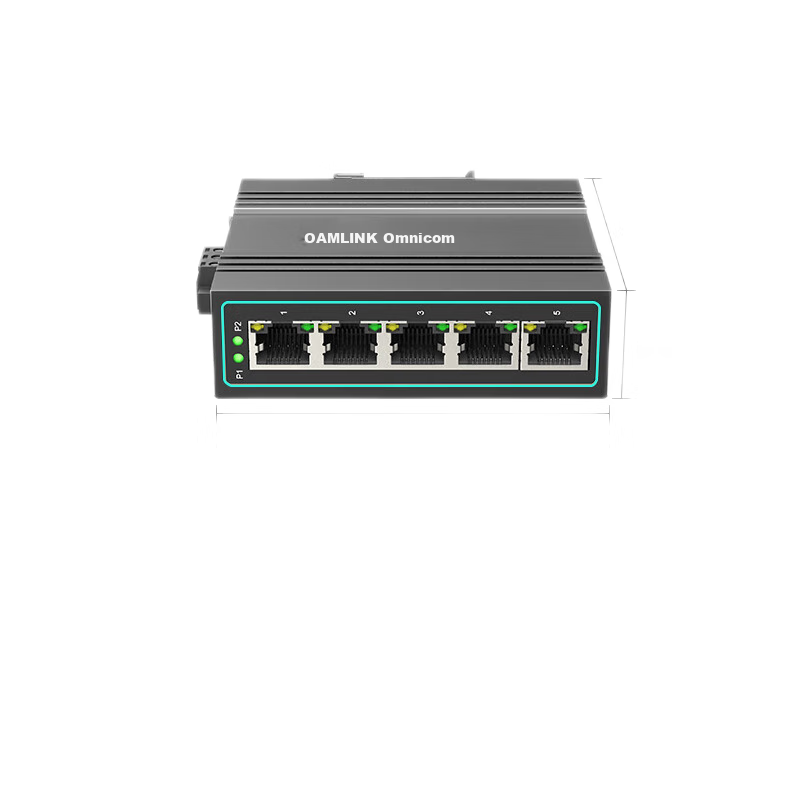

OAMLink Industrial Switch, 100Mbps, 5-Port Mini Version, Unmanaged, DIN Rail Mount, OAM-6000

CN¥109.00

SKU: 100101166256

Status:In Stock (2)

ID: 100140581546

Weight: 360.00 g

Dims:95x92x42 mm

Color: 5-Port 100Mbps Mini Version [Small Size]

Industrial switch X1 User manual X1 Certificate of conformity X1

Product Description

Brand: OAMLink

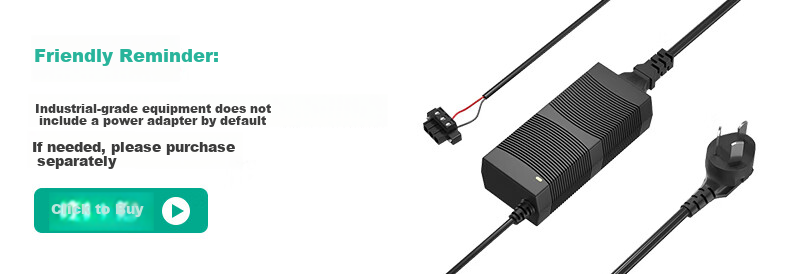

Reminder: Industrial-grade equipment does not include a power adapter by default. If needed, it can be purchased separately.

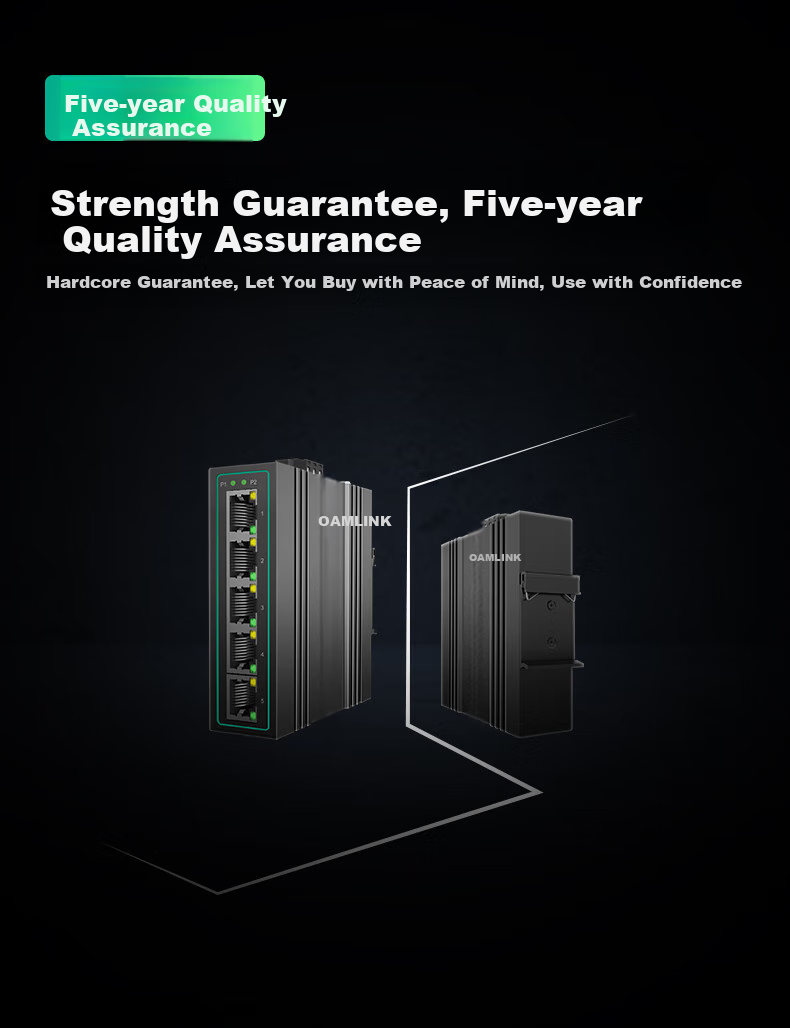

Quality Assurance: High quality, original, legitimate, 5-year warranty, genuine product, invoice, maintenance.

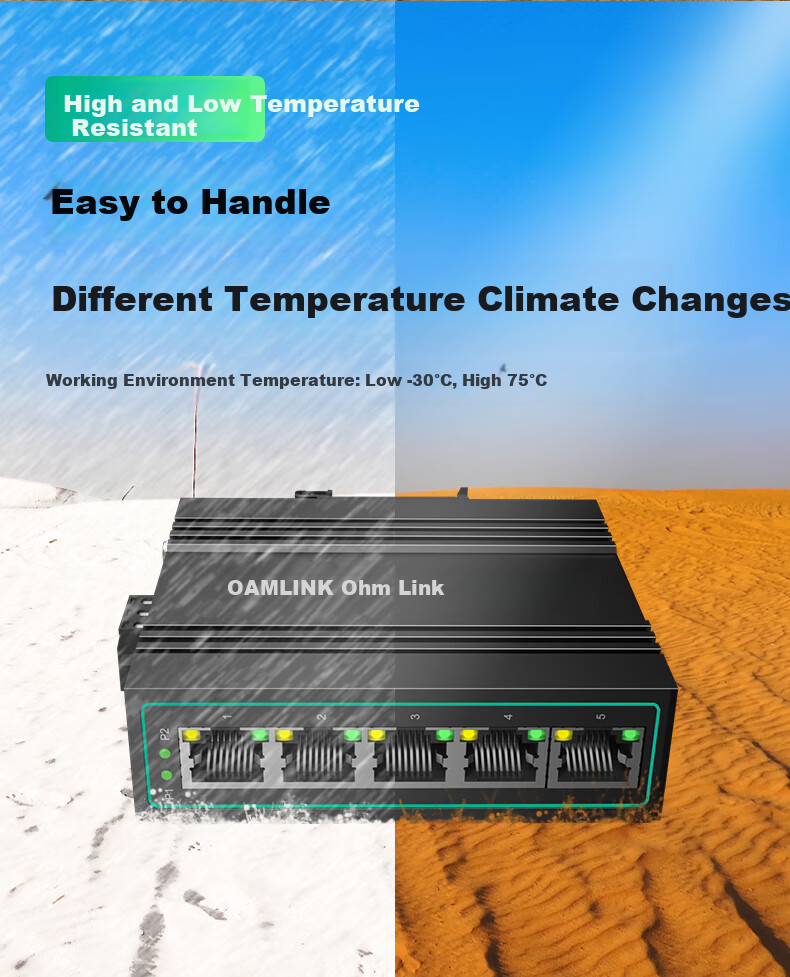

Temperature Resistance: Can withstand extreme temperatures ranging from -30°C to 75°C.

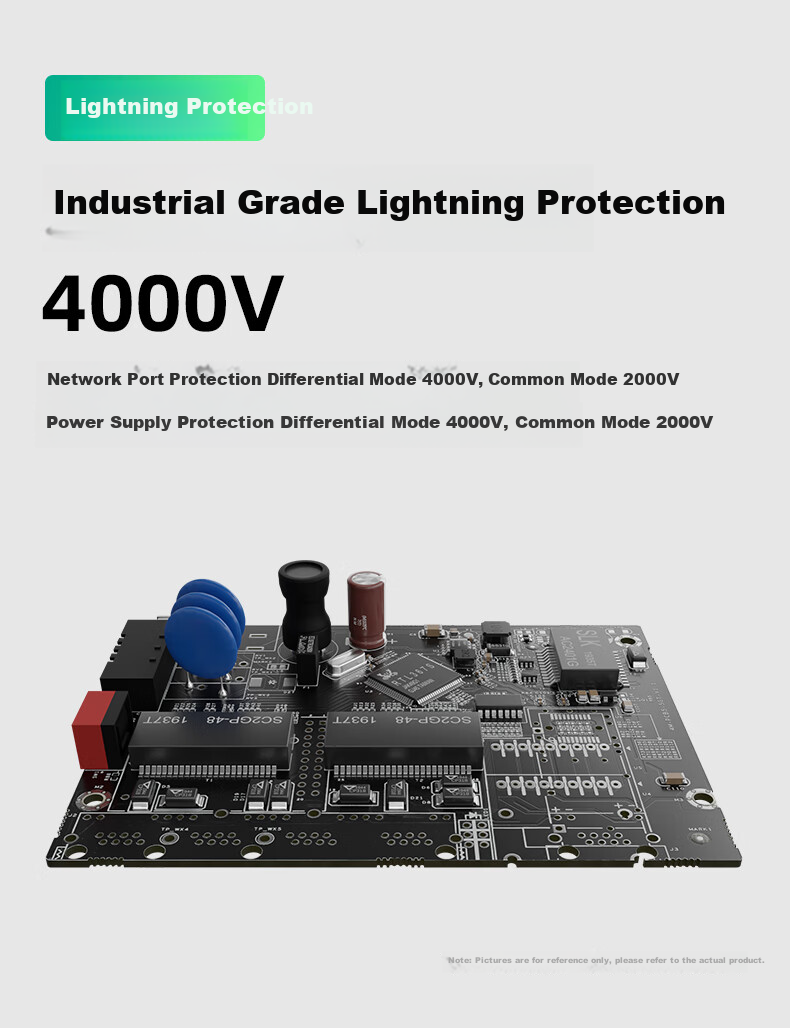

Lightning Protection: Industrial-grade lightning protection with 4000V differential mode and 2000V common mode protection for Ethernet and power ports.

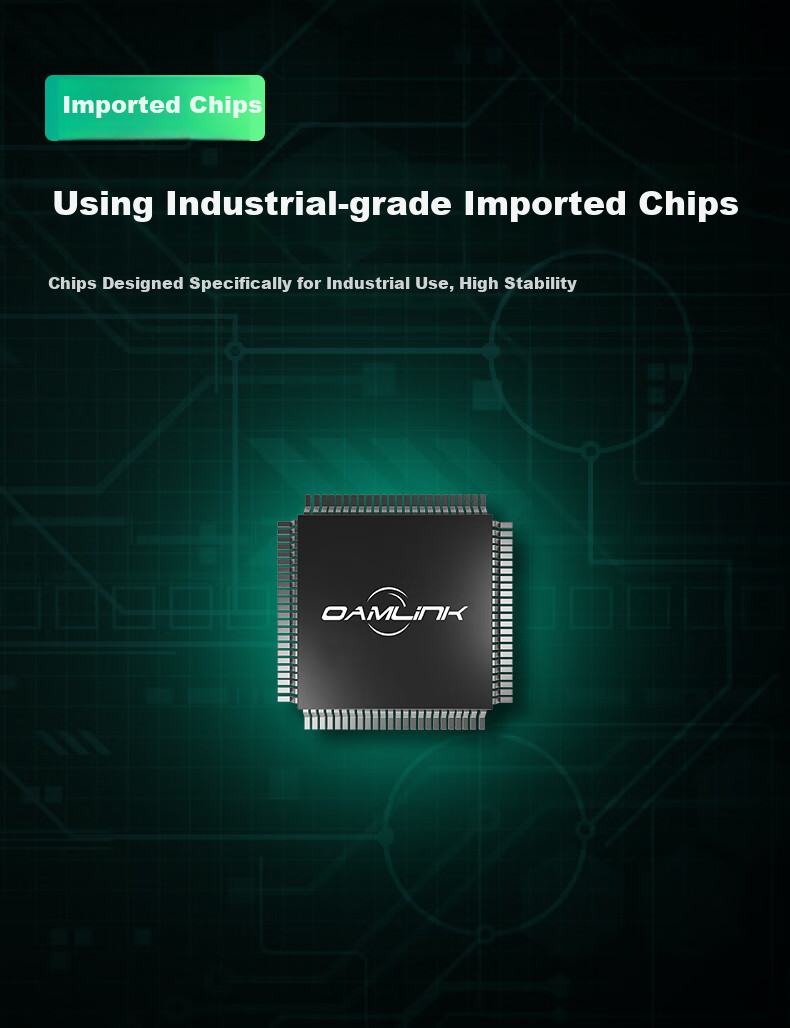

Chipset: Imported industrial-grade chipset for high stability.

In Stock

Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

In Stock

SAMZHESwitch

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

Item	Detail
Model	OAM-6000-45-5TXm
Interfaces	8 × 10/100Base-T, Phoenix terminal for power, support for CAT5e/CAT6 twisted pair cables up to 100 m.
Fiber Optic Support	Single-mode fiber supported, no support for multi-mode or dual-fiber.
Switching Capacity	1.8 G, Packet Forwarding Rate: 1.33Mpps.
MAC Address Table	2K, Buffer: 512K, Forwarding Delay: <4us, Jumbo Frame Support: 2048Byte.
Operating Temperature	-30°C to +70°C, Storage/Transport Temperature: -40°C to +85°C.
Humidity	5% to 95% non-condensing.
Heat Dissipation	Fanless design for natural cooling.
MTBF	100,000 hours, IP Rating: IP40.
Lightning Protection	IEC61000-4-5 Level 3 (4KV/2KV) for power and port.

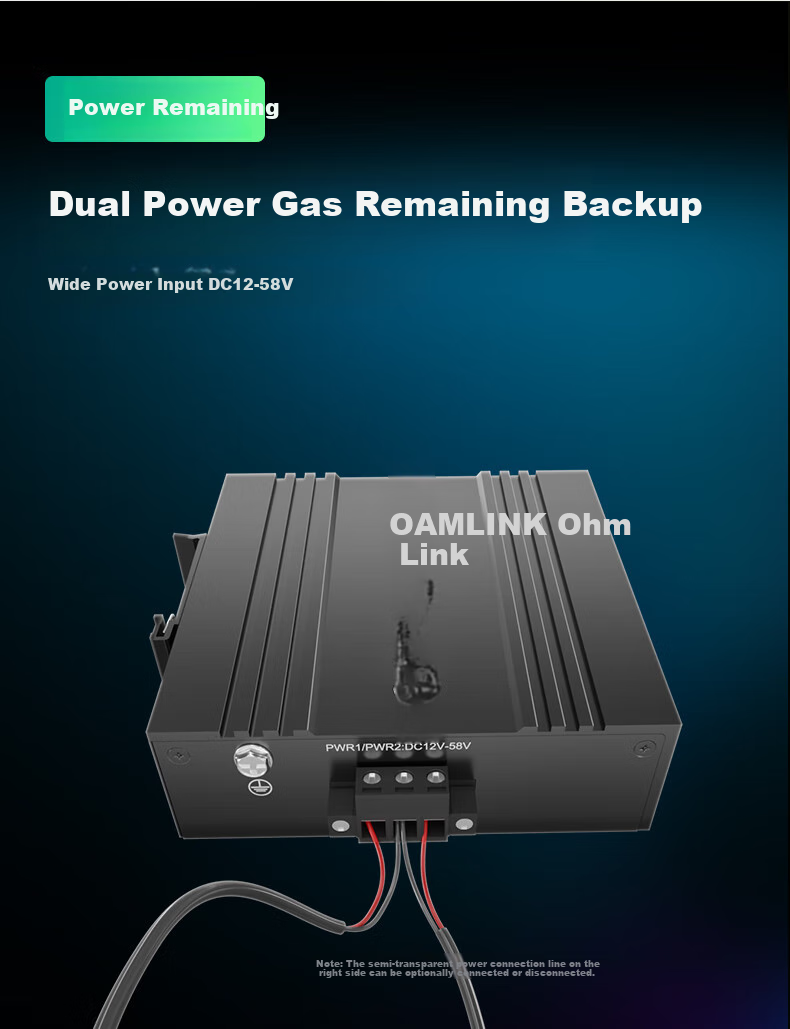

Input Voltage	DC12-58V, Power Consumption: <5W (non-PoE), <125W (PoE).

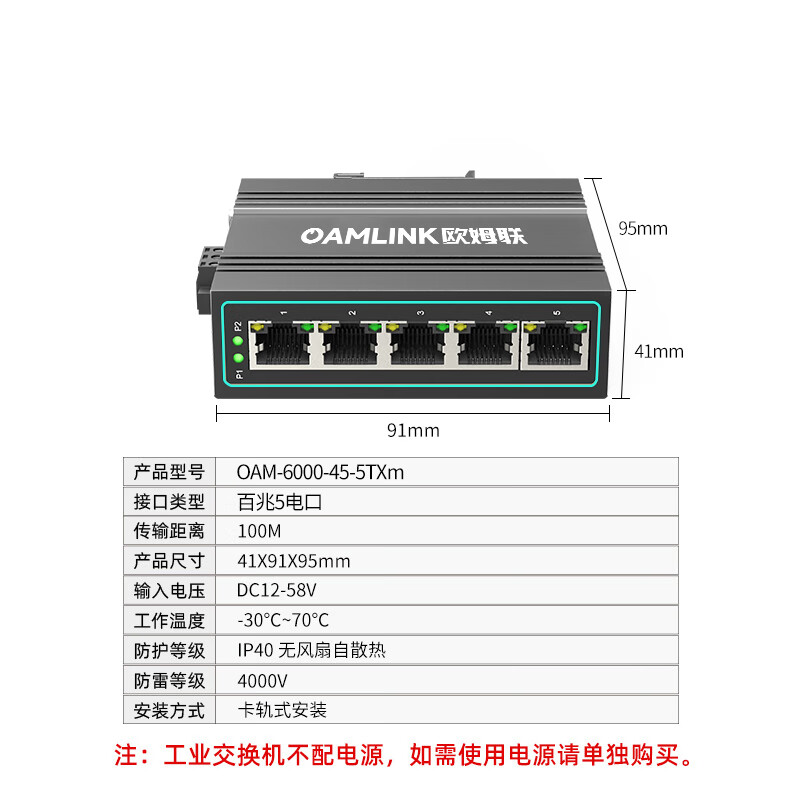

Dimensions	41 × 91 × 95 mm, Weight: Approx. 0.35 KG.
Installation	DIN rail mounting.
Package Contents	Device, terminal, certificate of compliance, user manual, power adapter (optional).
