Back to CatalogGSON Fingerprint Drawer Lock No-Drill Wardrobe Drawer Safety Lock Hidden Lock Shoe Cabinet Double Door Smart Electronic Lock
Specifications
- Lock body type
- electronic lock body
- Additional functions
- No additional functions
- Top and bottom bolts
- No support for top and bottom latch
- Lock power supply type
- Dry cell battery
- Lock cylinder level
- Class A lock core
- Unlocking method
- Semiconductor fingerprint
- Door style
- universal
- Door-style
- Sliding door
Variants / Sale Attributes
Style: Costeffective model | Requires 3 AAA batteries (not included)
Package Contents

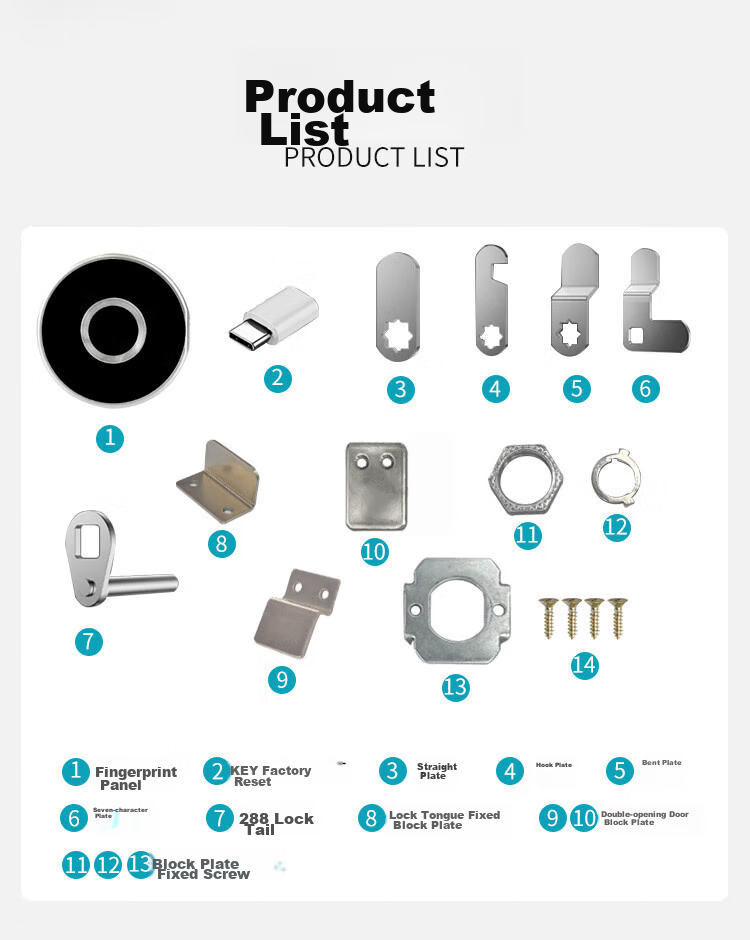

Lock body + accessory pack + instruction manual
Product Description
Overview
- Brand
- GSON
- Product Name
- Drawer Fingerprint Lock
- Model
- GSON-G86, GSON-G8
- Fingerprint Sensor Type
- Semiconductor fingerprint sensor
- Fingerprint Capacity
- 10 fingerprints (1 administrator, 9 users)
- Material Composition
- ABS / Zinc Alloy (GSON-G86), Zinc Alloy / ABS (GSON-G8)
- Working Voltage
- DC 3.6-4.5V (GSON-G86), DC 4-4.2V (GSON-G8)
Similar Products
In Stock

In Stock

Do you support the King Kong lock body?NoPower Supply3 AAA alkaline batteries (GSON-G86), Built-in lithium battery 110mAh (GSON-G8)Standby Current≤35μA (GSON-G86), ≤24μA (GSON-G8) Maximum Current≤20mA (GSON-G86), ≤150μA (GSON-G8) Operating Temperature-20°C to 70°C Installation Hole Diameter16 mm - 18 mm Panel Thickness16 mm - 18 mm False Rejection Rate (FRR)<1% User Capacity10 fingerprints (1 administrator, 9 users) Other dimensions15 mm, 10 mm, 8.5 mm, 22 mm Biometric fingerprint recognition with imported chip and custom HASH algorithm for reliable and fast identification (0.5 seconds)
Self-learning fingerprint module for high recognition accuracy
Low power consumption with long battery life (up to 6 months with 3 AAA batteries at 20 unlocks per day)

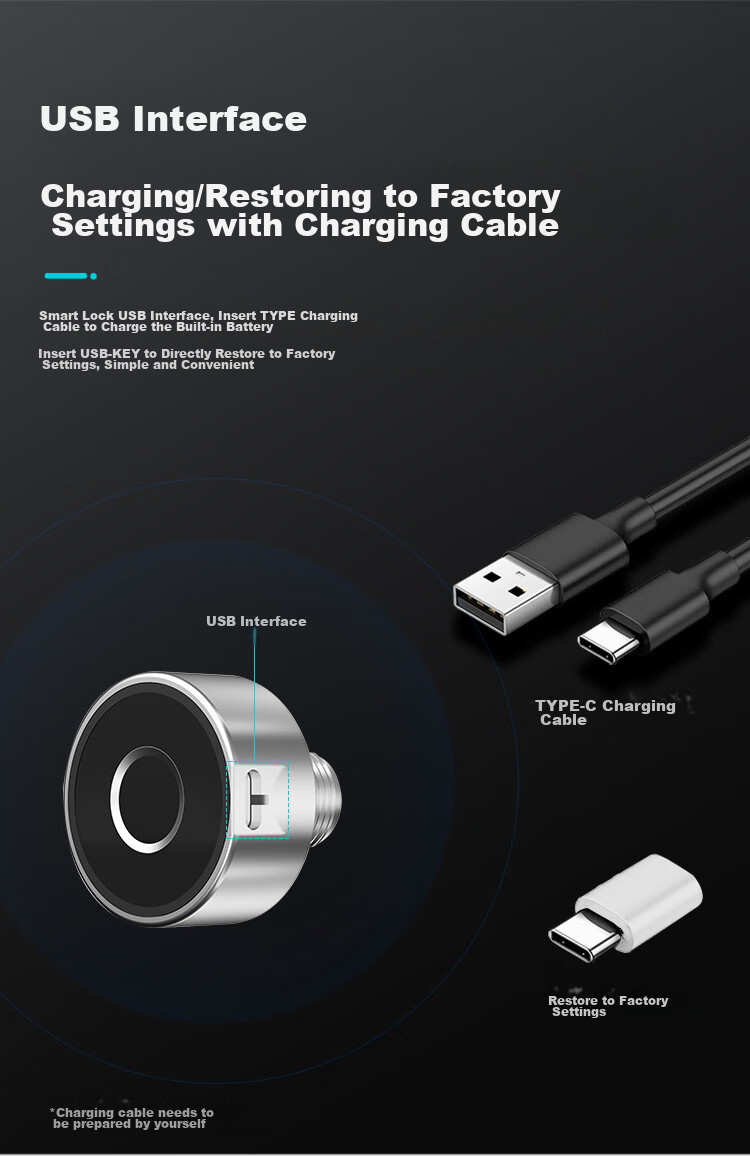

USB Type-C interface for emergency power supply and factory reset (long beep indicates successful initialization)
Voice and light indicators for operation success, errors, low battery, and alarms

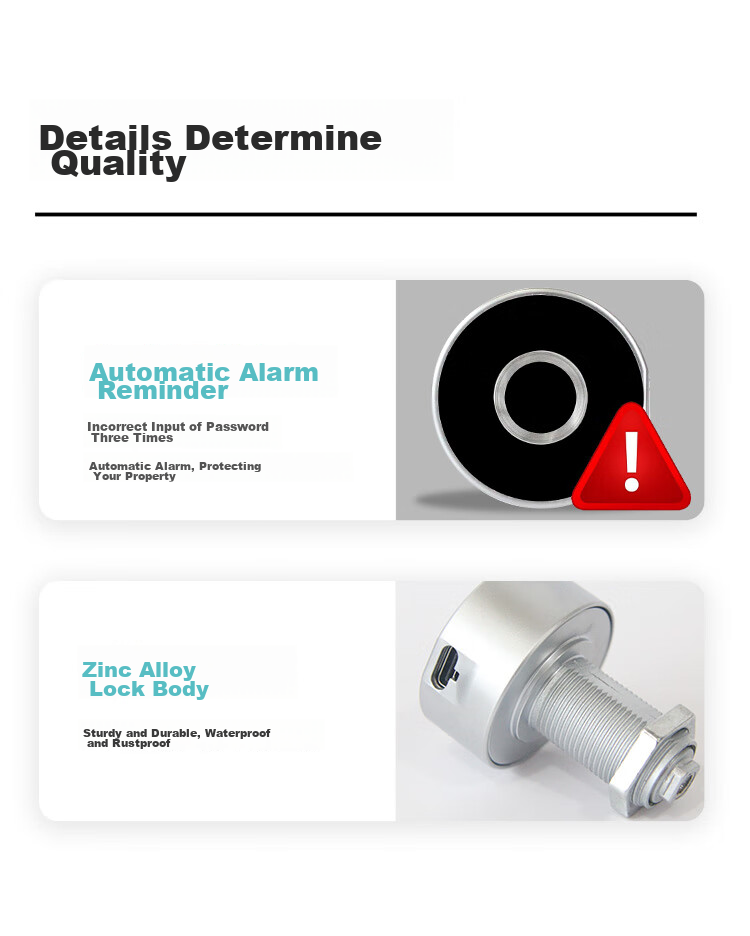

Automatic alarm triggered after three incorrect password attempts to protect property

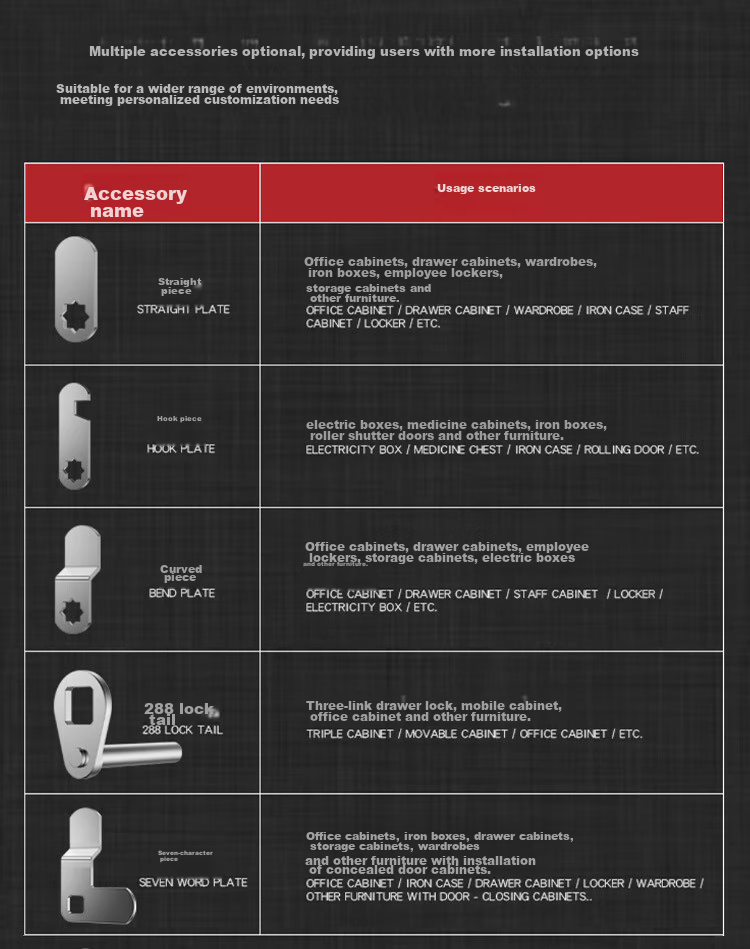

Suitable for various drawer and cabinet doors including single drawer, single cabinet door, and double cabinet doors
Compatible with wooden and steel office furniture
High corrosion resistance and durability due to ABS and zinc alloy materials

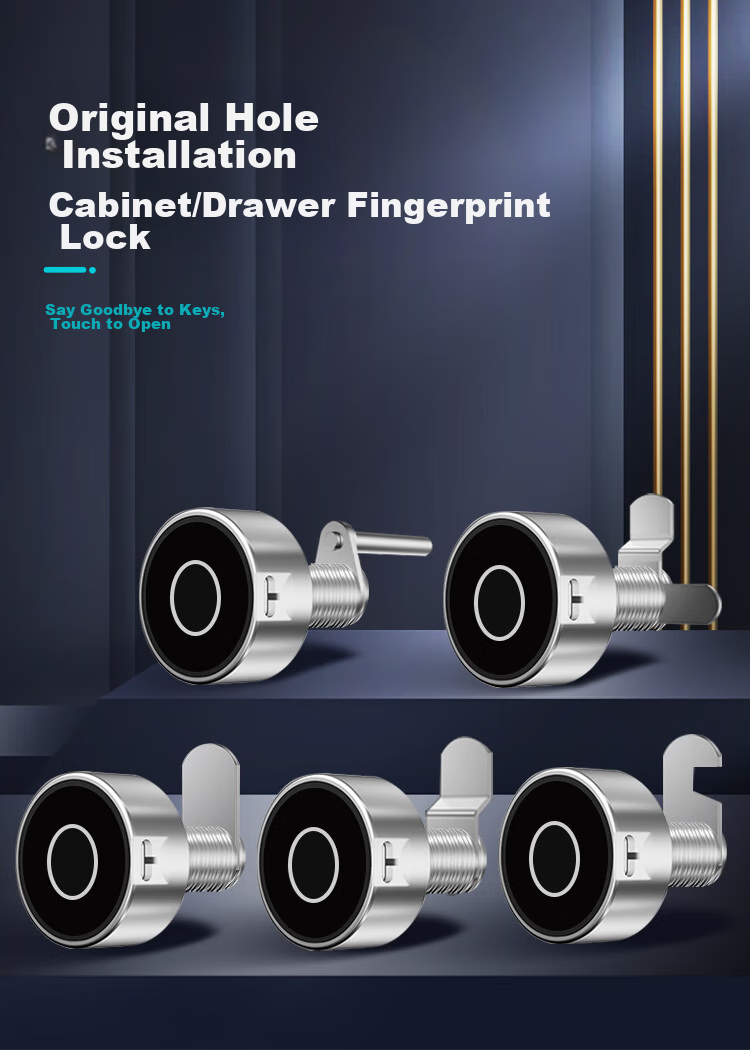

Flexible installation options with original hole mounting
Additional details
- Installation hole diameter
- 16-17 mm recommended

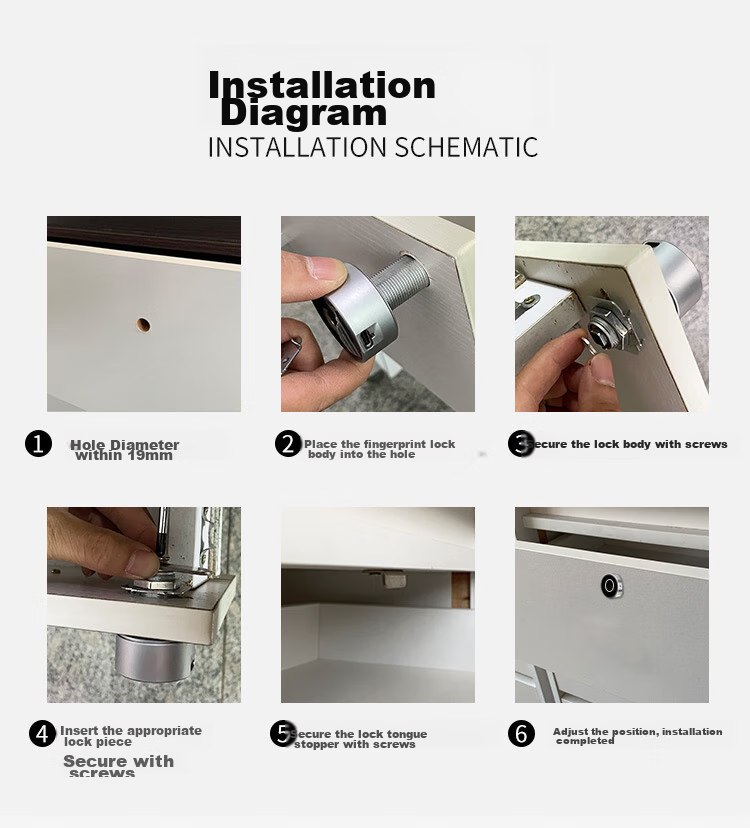

- Includes installation schematic
- fix mounting plate and fingerprint panel, connect wires, secure lock body with screws, align L-shaped latch with lock tongue, install batteries, cover, and secure L-shaped latch
Office double-door cabinets
Home double-door cabinets
Dimensions are manually measured and may have slight deviations; actual product prevails
USB KEY decoder can restore factory settings without deleting USB-KEY data
When fingerprint recognition is unresponsive, use the KEY decoder for troubleshooting
