TURBOVOLT Grease Trap Oil-Water Separator Commercial Kitchen Filter Stainless Steel 35x20x20cm Single Hole Right Outlet
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
TURBOVOLT•Other power tools

TURBOVOLT Grease Trap Oil-Water Separator Commercial Kitchen Filter Stainless Steel 35x20x20cm Single Hole Right Outlet

CN¥144.40
SKU: 100101187282
Status:In Stock (19)
ID: 100101187282
Weight: 2265.00 g
Dims:395x215x214 mm

Specifications

Power Mode
No
Rated voltage
No

Variants / Sale Attributes

Style: 201 stainless steel 35cm*20cm*20cm single hole
定制信息: 【定制】联系客服

Package Contents

Oil-water separator *1 unit

Product Description

Product Specifications

Overview

Brand
TURBOVOLT

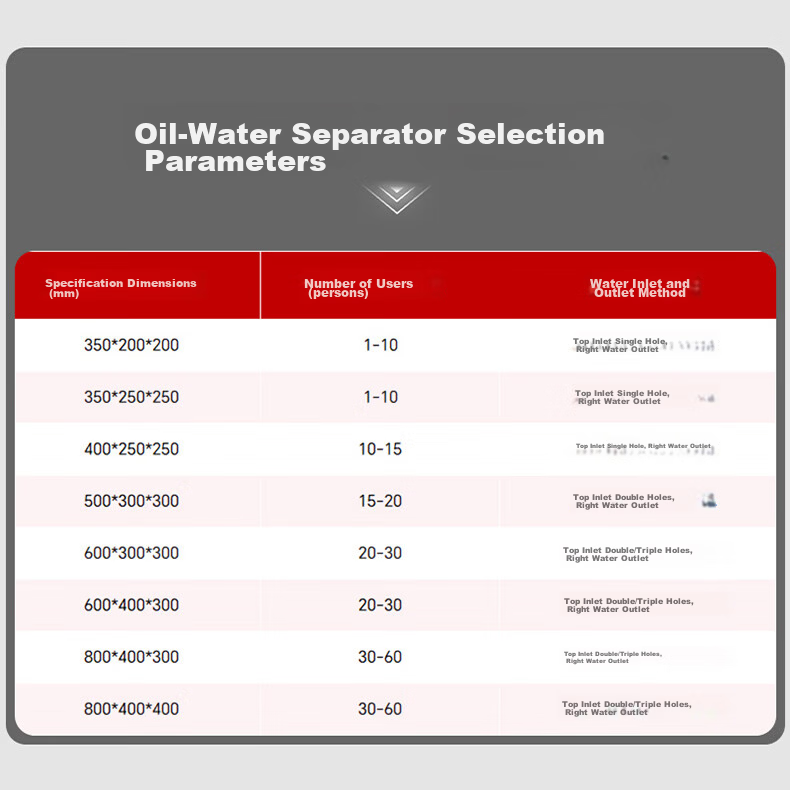

350 x 200 x 200 | Capacity
1-10 persons | Water Inlet/Outlet: Top single inlet, right outlet
350 x 250 x 250 | Capacity
1-10 persons | Water Inlet/Outlet: Top single inlet, right outlet
400 x 250 x 250 | Capacity
10-15 persons | Water Inlet/Outlet: Top single inlet, right outlet
500 x 300 x 300 | Capacity
15-20 persons | Water Inlet/Outlet: Top double inlet, right outlet
600 x 300 x 300 | Capacity
20-30 persons | Water Inlet/Outlet: Top double/triple inlet, right outlet

Similar Products

In Stock
WORX WX890 Cordless Rechargeable Hot Glue Gun Lithium Battery Wireless Hot Melt Glue Gun with Glue Sticks
WORXOther power tools

WORX WX890 Cordless Rechargeable Hot Glue Gun Lithium Battery Wireless Hot Melt Glue Gun with Glue Sticks

[750W 100mm] Hot Glue Gun WX890

CN¥219.00

View
In Stock
Dongcheng Original 20V Lithium Battery FFBL2040 for Electric Drill, Angle Grinder, and Electric Wrench
Other power tools

Dongcheng Original 20V Lithium Battery FFBL2040 for Electric Drill, Angle Grinder, and Electric Wrench

20V/4.0Ah single battery

CN¥158.00

View
In Stock
Milade 21V Lithium Battery Pack 5200mAh High Capacity 5.2Ah Long Endurance Power Tool Battery
米莱德Other power tools

Milade 21V Lithium Battery Pack 5200mAh High Capacity 5.2Ah Long Endurance Power Tool Battery

[Makita Model] 5.2Ah Lithium Battery, 20 Cells

CN¥149.00

View
600 x 400 x 300 | Capacity
20-30 persons | Water Inlet/Outlet: Top double/triple inlet, right outlet
800 x 400 x 300 | Capacity
30-60 persons | Water Inlet/Outlet: Top double/triple inlet, right outlet
800 x 400 x 400 | Capacity
30-60 persons | Water Inlet/Outlet: Top double/triple inlet, right outlet

The oily wastewater enters the device through the inlet and is separated inside the grease separator tank, which is divided into three compartments:

Additional details

1. Debris Basket
Filters out debris from the oily wastewater.
2. Separation Chamber
Utilizes the difference in oil-water density and natural flotation to separate oil from wastewater.
3. Discharge Chamber
Wastewater is discharged through the outlet pipe, and separated oil is collected in the oil collection bucket via an oil overflow valve or oil pump.

Constructed from premium stainless steel selected for corrosion resistance, high temperature tolerance, and excellent toughness. The structure is stable, rust-resistant, and capable of bearing heavy loads.

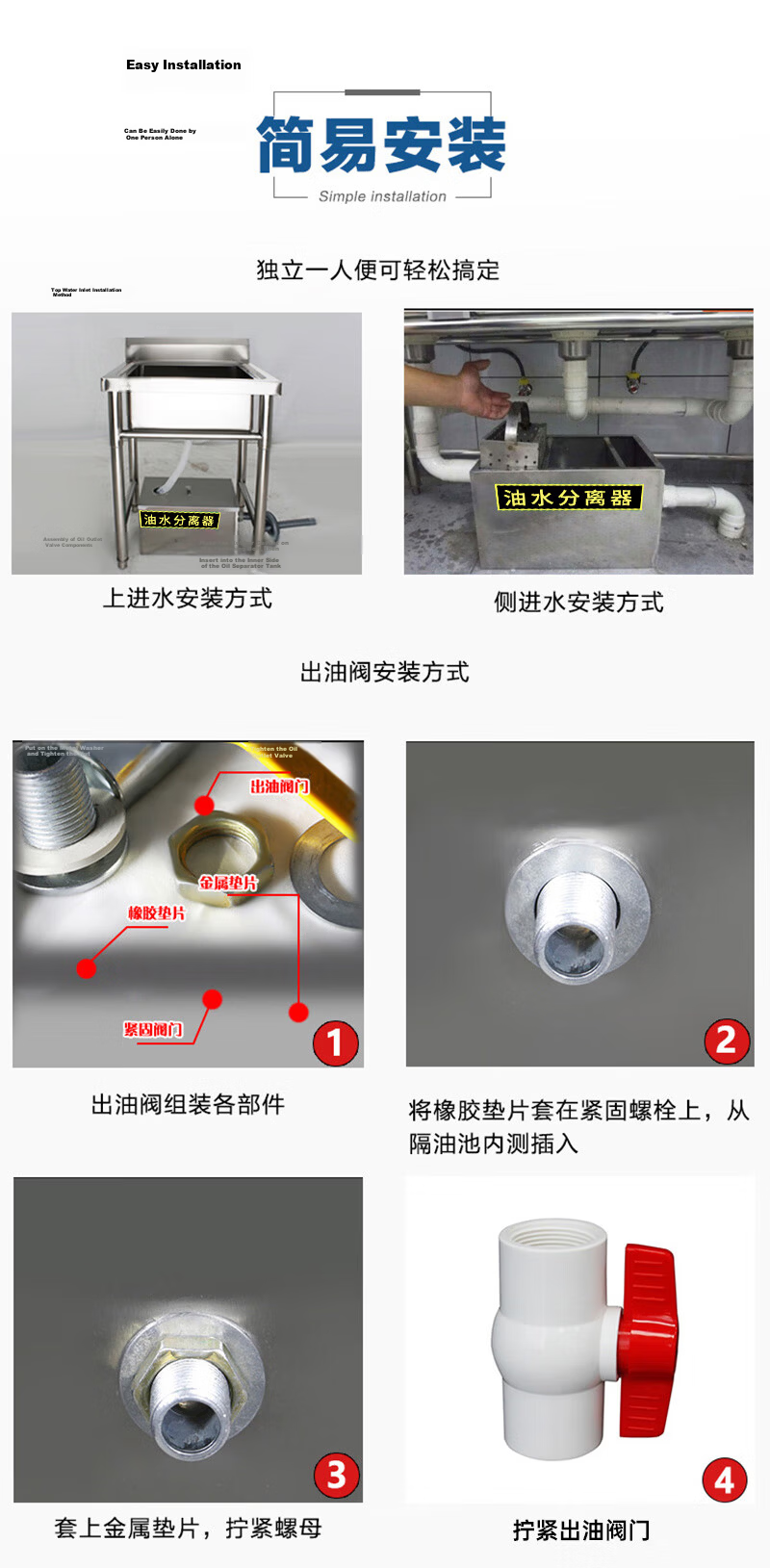

Simple installation that can be easily completed by one person. Supports top water inlet and side water inlet installation methods. The oil outlet valve assembly includes:

Rubber gasket fitted on fastening bolts inserted from inside the grease trap

Metal washers and nuts tightened to secure the oil outlet valve

Stainless steel threaded water outlet for flexible installation with various pipe types

Mold-pressed water inlet for easy installation

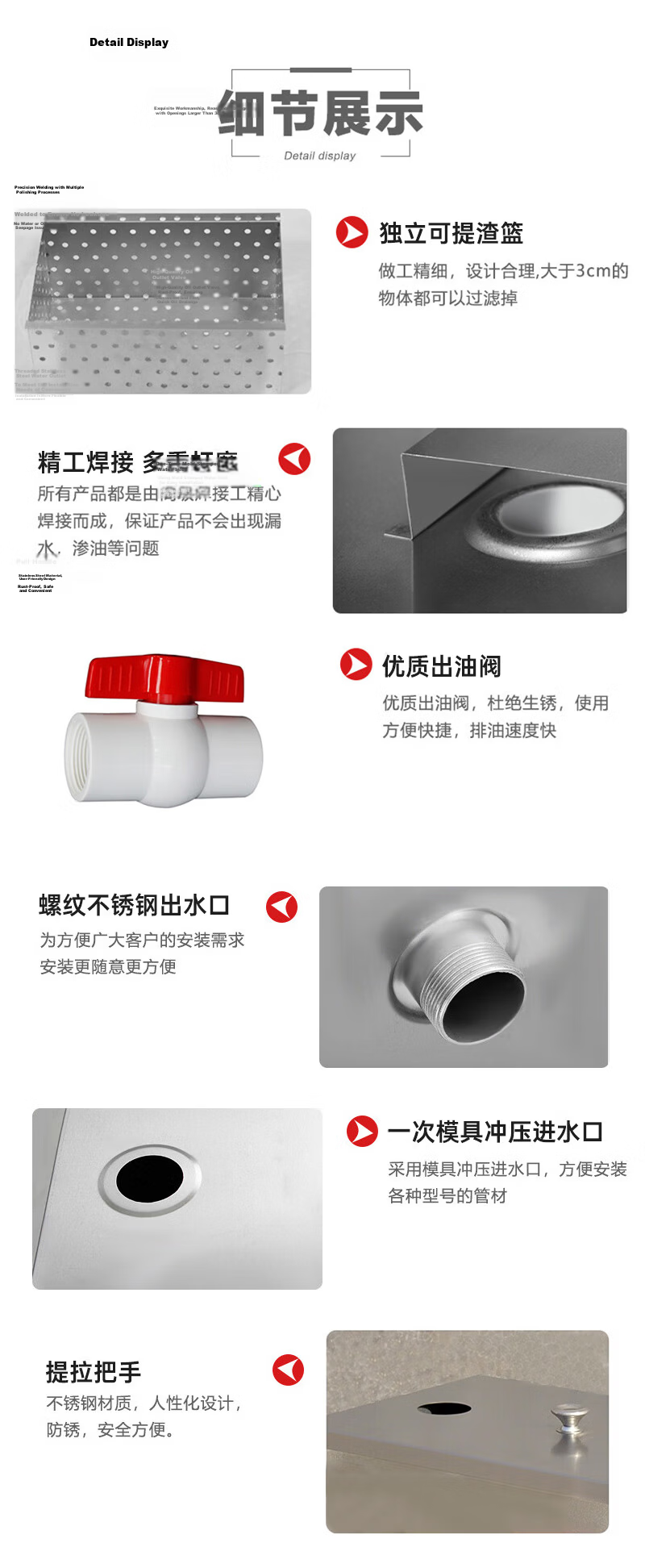

Independent removable debris basket with fine workmanship, designed to filter objects larger than 3 cm

Precision welding and multiple polishing processes ensure no water leakage or oil seepage

High-quality rust-resistant oil outlet valve for fast and convenient oil discharge

Stainless steel pull handle with ergonomic design for rust prevention and safety

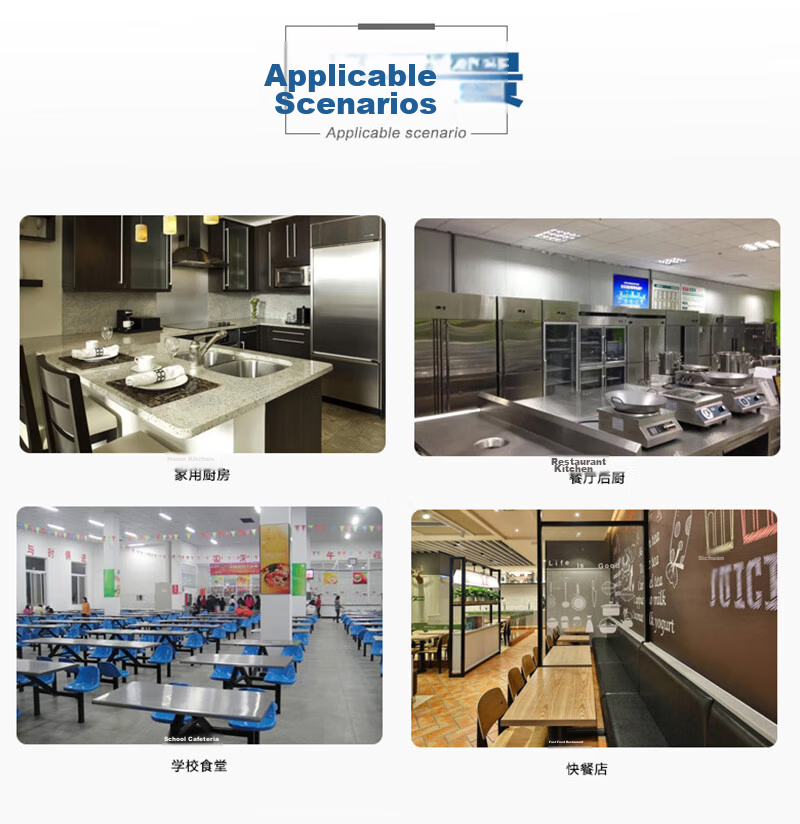

Suitable for household kitchens, restaurant kitchens, Sichuan cuisine kitchens, school cafeterias, and fast food restaurants.
