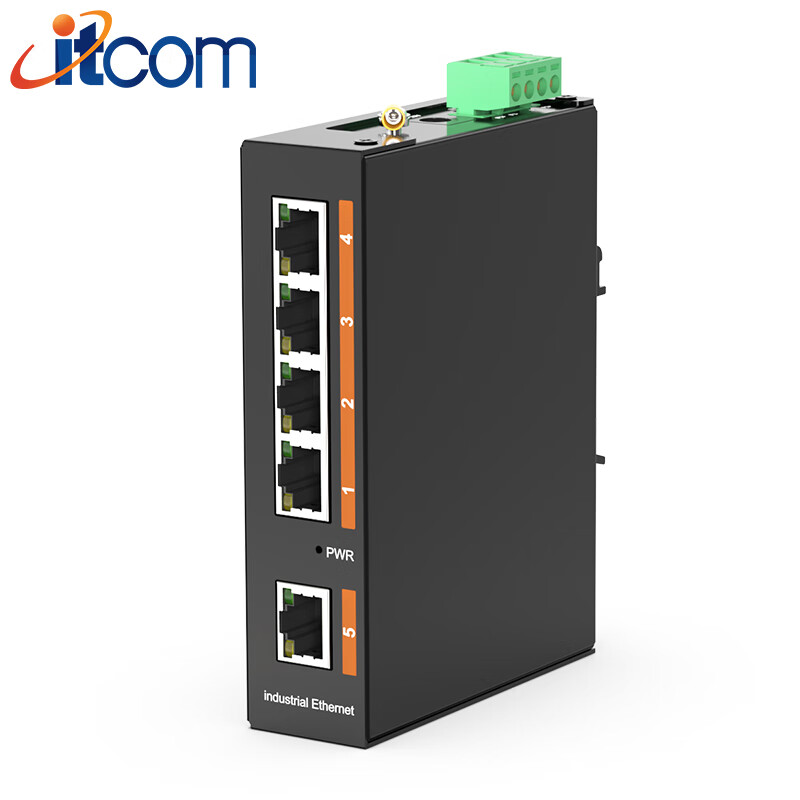

Itcom Industrial Switch, 100Mbps, 5 Ports, Security Monitoring, PLC Ethernet Network Hub, Plug And Play, DIN Rail Mount, Power Not Included, IT168-3500

itcom•Switch

Itcom Industrial Switch, 100Mbps, 5 Ports, Security Monitoring, PLC Ethernet Network Hub, Plug And Play, DIN Rail Mount, Power Not Included, IT168-3500

CN¥68.00

SKU: 100102087061

Status:In Stock (17)

ID: 100102087061

Weight: 443.00 g

Dims:170x150x65 mm

Specifications

Cloud-managed switch: Cloud management not supported
Set: Single product
Suitable Scenarios: Access switch
Number of Ports: 5 ports
Downlink Interface Type: Ethernet Switch
Cooling method: Natural heat dissipation
Uplink port rate: 100Mbps
Downlink Port Rate: 100Mbps

Variants / Sale Attributes

Color: Industrial Grade | 100Mbps 5-Port

Version: Basic version

Package Contents

ITCOM industrial Ethernet switch 100M 5-port security surveillance PLC Ethernet hub plug and play DIN rail mount without power supply IT168-3500-10-5TX

Product Description

Overview

Brand: itcom
Model: IT168-3500-10-5TX
Switching Method: Store and Forward
Switching Capacity: 1Gbps
Packet Forwarding Rate: 0.74Mpps
Ports: 10/100Base-TX*5
Port Parameters: Supports MDI/MDIX auto flip
Input Voltage: DC5-36V dual power redundancy

Similar Products

In Stock

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

View

In Stock

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

View

Electrical and optical ports

Power over Ethernet (PoE)

Non-POE power supply

Network Management Type

Non-managed

Power Parameters

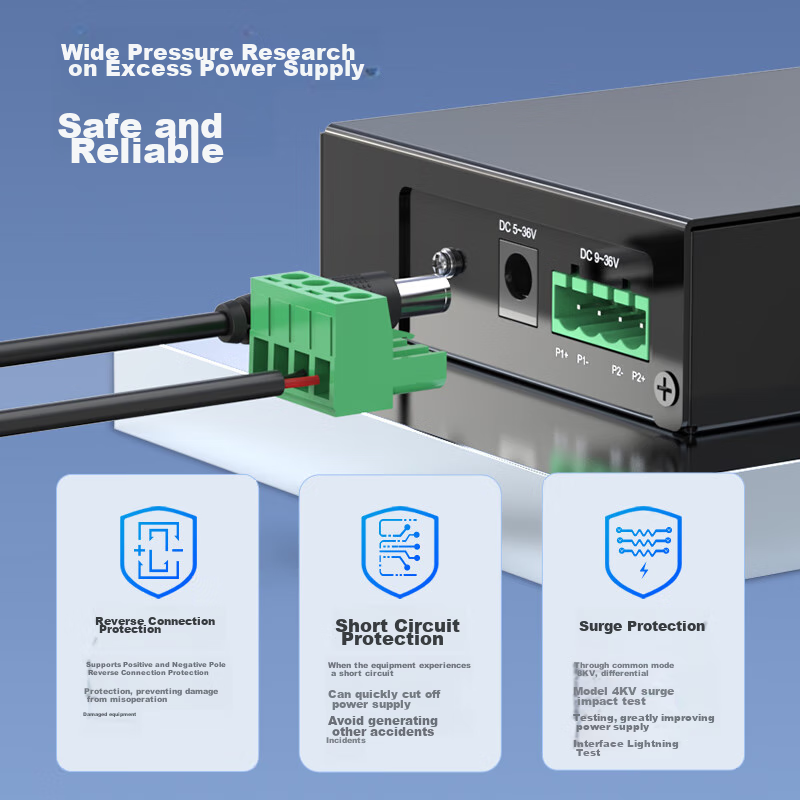

Supports reverse connection protection, overload protection

Installation

Standard 35 mm DIN rail

Mechanical Parameters

Item	Detail
Enclosure Protection	IP40
Operating Temperature	-30°C to 75°C
Storage Temperature	-40°C to 85°C
Operating Environment	Relative humidity 5%-95% non-condensing, self-cooling heat sink, Ethernet port surge protection: IEC61000-4-5 Level 4

EMC Standards

Item	Detail
Fast Pulse Group	IEC61000-4-4 Level 4
Anti-static Interference	IEC61000-4-2 Level 4

Features

Industrial-grade design with strong dust, lightning, corrosion, and electromagnetic interference resistance
IP40 protection level
Wide voltage supply, safe and reliable
Dual redundant power supply
DIN rail mounting for easy and stable installation
Supports customization
Wide temperature range: -30°C to 75°C
6KV lightning protection
Fanless design
Dual redundant power supply
Plug and play
Industrial-grade intelligent chip
High-performance chip resistant to high and low temperatures
Supports line-speed forwarding

Applications

Industrial networks
Industrial cameras
Video surveillance
Serial servers/gateways
Wireless bridges
Non-managed industrial switches
Layer 2 managed switches
Layer 2 managed + serial switches
Layer 3 switches
Industrial gateway routers
POE industrial switches

Additional details

Dimensions: 122.00 x 30.00 x 102.00 mm

The above data is sourced from itcom's product laboratory and may vary based on environmental factors. Actual specifications prevail.
