Host, manual, data cable, charging dock

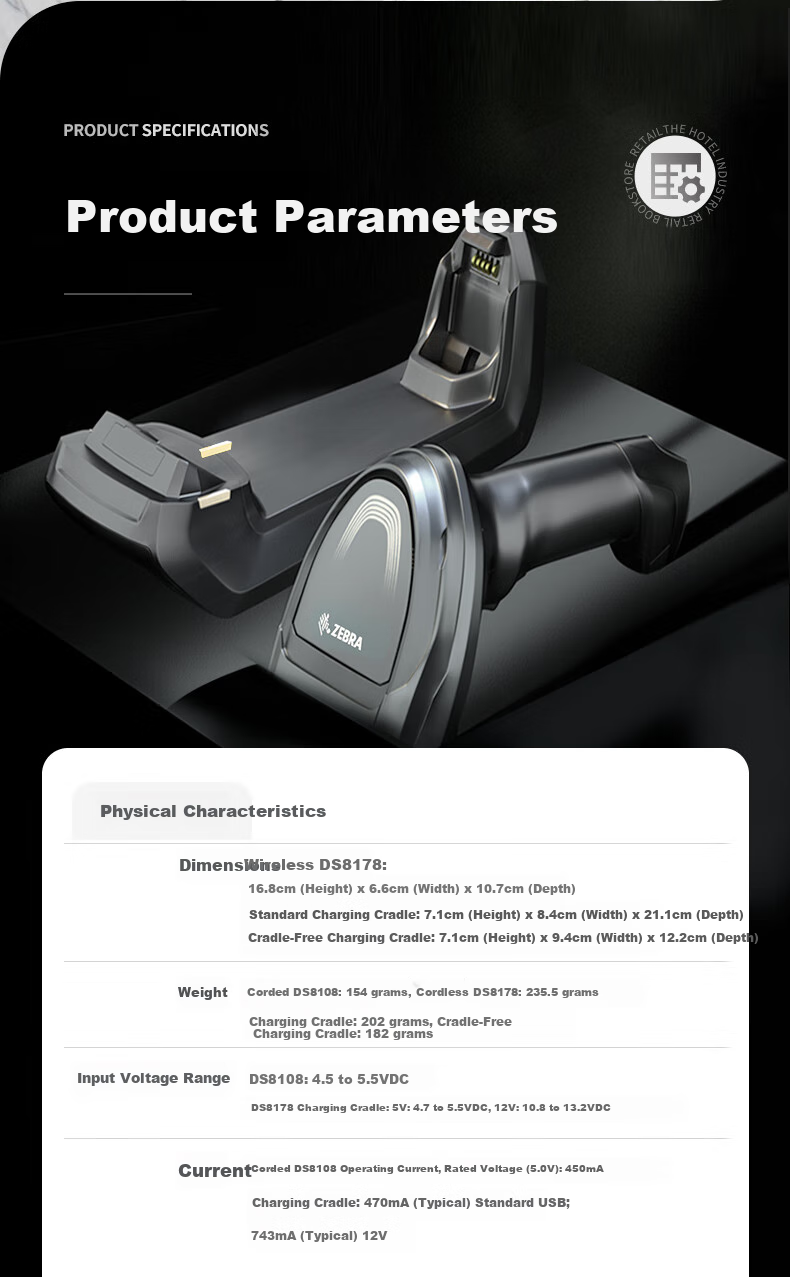

Product Specifications

wireless connection
CNÂ¥99.00

Wireless 2D Base | Paper + Screen + Medication Code
CNÂ¥264.05
| Item | Detail |
|---|---|
| Dimensions | — |
| Wireless DS8178 | 16.8 cm (H) x 6.6 cm (W) x 10.7 cm (D) |
| Standard charging cradle | 7.1 cm (H) x 8.4 cm (W) x 21.1 cm (D) |
| Hands-free presentation cradle | 7.1 cm (H) x 9.4 cm (W) x 12.2 cm (D) |
| Weight | — |
| Corded DS8108 | 154 g |
| Cordless DS8178 | 235.5 g |
| Charging cradle | 202 g |
| Hands-free presentation cradle | 182 g |
| Item | Detail |
|---|---|
| Input voltage range | DS8108: 4.5 to 5.5VDC, DS8178 charging cradle: 5V, 4.7 to 5.5VDC, 12V, 10.8-13.2VDC |
| Current | DS8108 working current: 450mA at rated voltage (5.0V), charging cradle: 470mA (typical) standard USB, 743mA (typical) 12V |

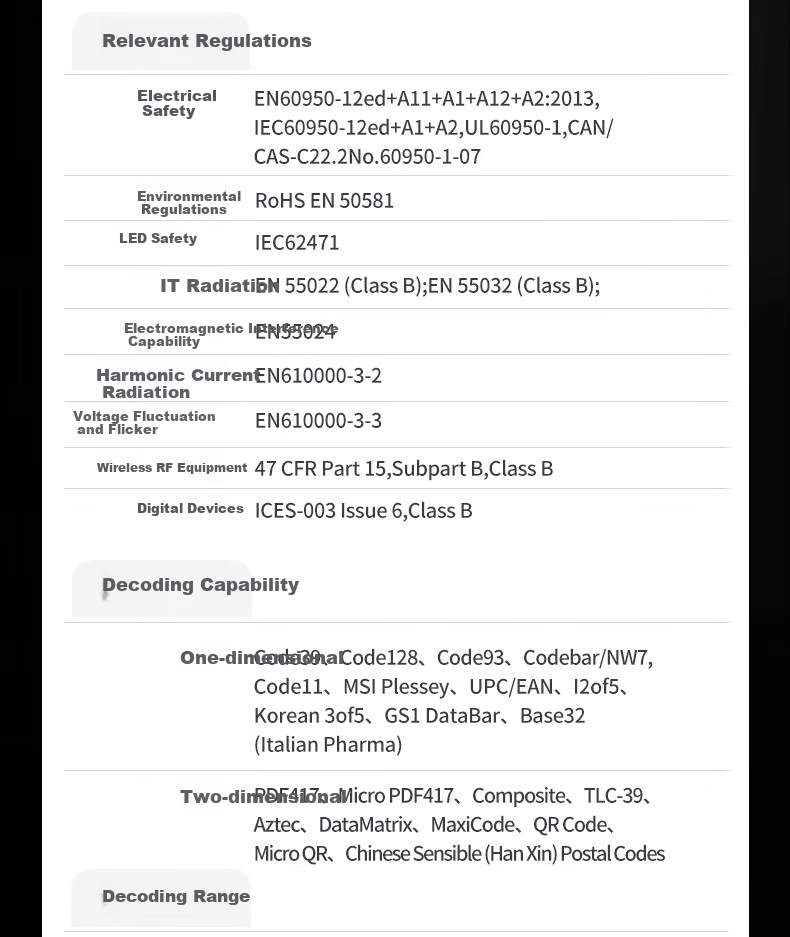

| Item | Detail |
|---|---|
| Electrical safety | EN60950-12ed+A11+A1+A12+A2:2013, IEC60950-12ed+A1+A2, UL60950-1, CAN/CSA-C22.2 No.60950-1-07 |
| Environmental regulations | RoHS EN50581, LED safety: IEC62471, IT radiation: EN55022 (Class B); EN55032 (Class B) |
| EMC immunity | EN55024, Harmonic current emissions: EN610000-3-2, Voltage fluctuations and flicker: EN610000-3-3 |
| Wireless RF devices | 47CFR Part 15, Subpart B, Class B, Digital devices: ICES-003 Issue 6, Class B |
| Item | Detail |
|---|---|
| 1D | Code39, Code128, Code93, Codebar/NW7, Code11, MSIPlessey, UPC/EAN, 12of5, Korean3of5, GS1DataBar, Base32 (ItalianPharma) |
| 2D | PDF417, MicroPDF417, Composite, TLC-39, Aztec, DataMatrix, MaxiCode, QRCode, MicroQR, Chinese Sensible (HanXin) PostalCodes |
