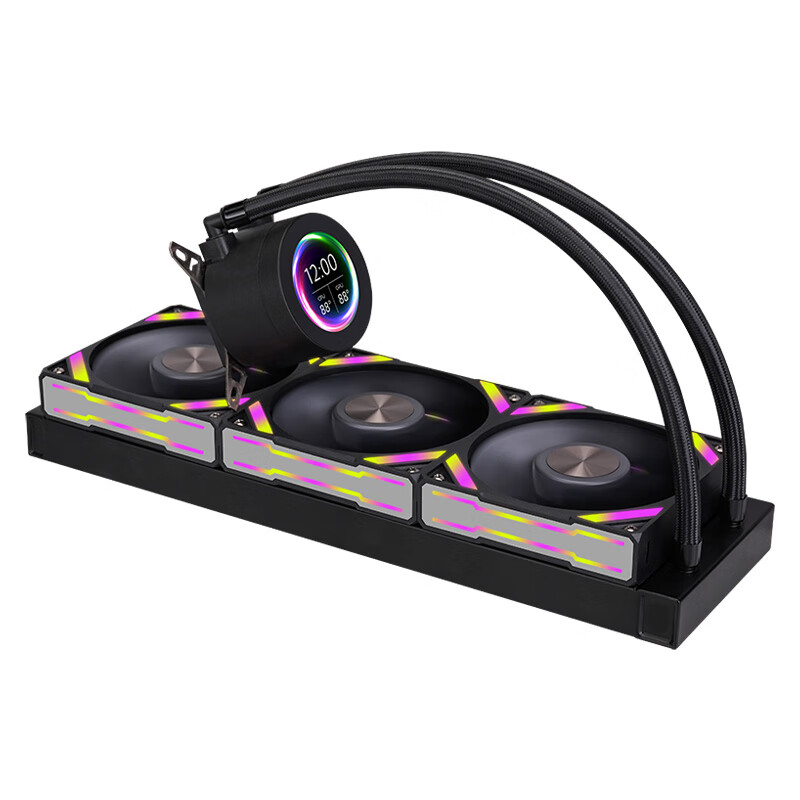

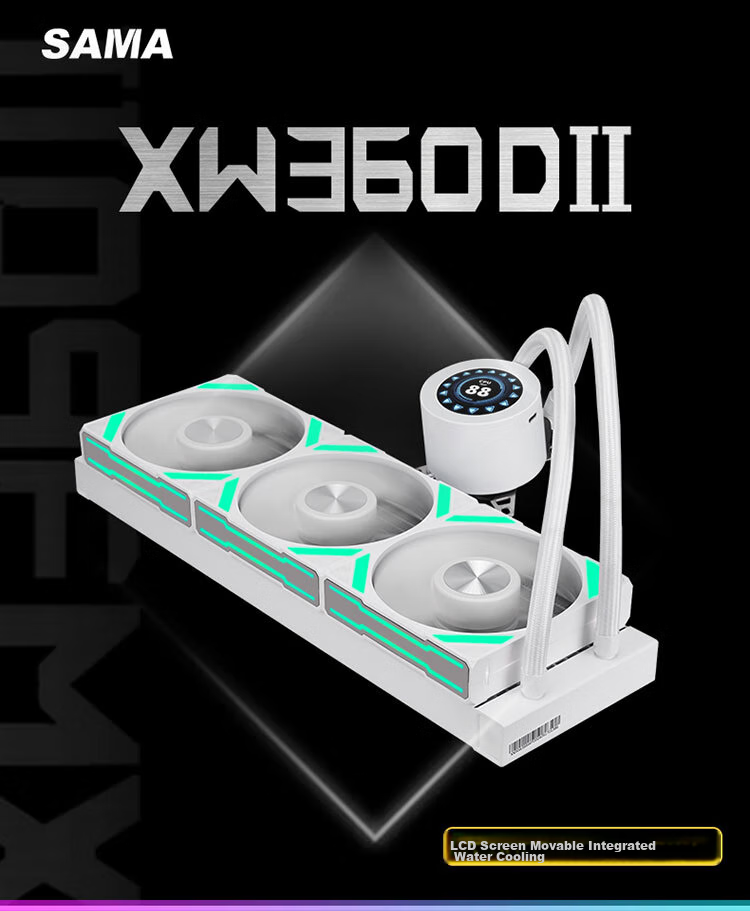

SAMA Second Generation XW360D Standard Fan Black Integrated 360 Water-Cooled CPU Cooler (2.1-Inch LCD Small Round Display)

SAMA•radiator

SAMA Second Generation XW360D Standard Fan Black Integrated 360 Water-Cooled CPU Cooler (2.1-Inch LCD Small Round Display)

CN¥659.00

SKU: 100102388221

Status:In Stock (4)

ID: 100102388221

Weight: 2450.00 g

Dims:450x210x145 mm

Specifications

Number of heat pipes: No
Cold heading type: LCD screen display
Lighting Effects: ARGB
Type: All-in-one liquid cooler
Water cooling type: 360 radiator
Compatible interface: INTEL LGA1200, INTEL LGA1700, AMD AM4, AMD AM5
Fan connection method: Wireless connection

Variants / Sale Attributes

Color: [2.1 Small Round Screen] Second Generation XW360D, Black

Package Contents

1 x 360 water cooling, 1 x accessory pack, 1 x user manual

Product Description

Overview

Brand: SAMA
Model: XW360II
Color: Black, White

Supported Platforms

Item	Detail
Intel	115X, 1200, 1700, 2011, 1851
AMD	AM4, AM5

Additional details

Material: Aluminum

Similar Products

Out of Stock

thermalrightradiator

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

AS120 VISION ARGB Black

CN¥129.90

View

In Stock

SAMAradiator

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

2.8-Inch Screen, Second-Generation XW360-P Fanless, Black

CN¥529.00

View

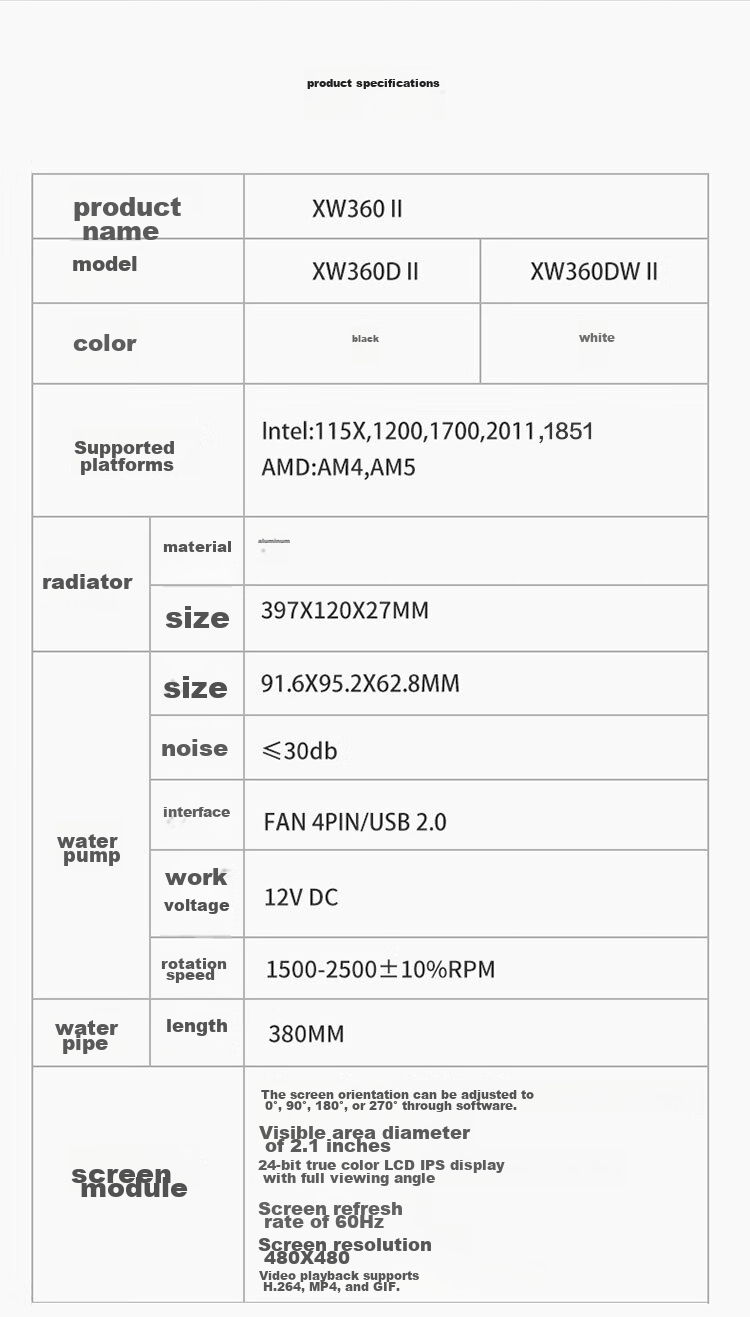

Pump Dimensions

91.6 x 95.2 x 62.8 mm

Interface

FAN 4PIN/USB 2.0

Pump

Item	Detail
Operating Voltage	12VDC
Speed	1500-2500 ±10% RPM

Additional details

Tube Length: 380 mm
Screen Orientation: Adjustable via software to 0°, 90°, 180°, 270°
Screen Size: 2.1-inch diameter

Screen Module

Item	Detail
Color	24-bit true color LCD IPS
Refresh Rate	60Hz
Resolution	480 x 480
Video Playback Support	H.264, MP4, GIF

Additional details

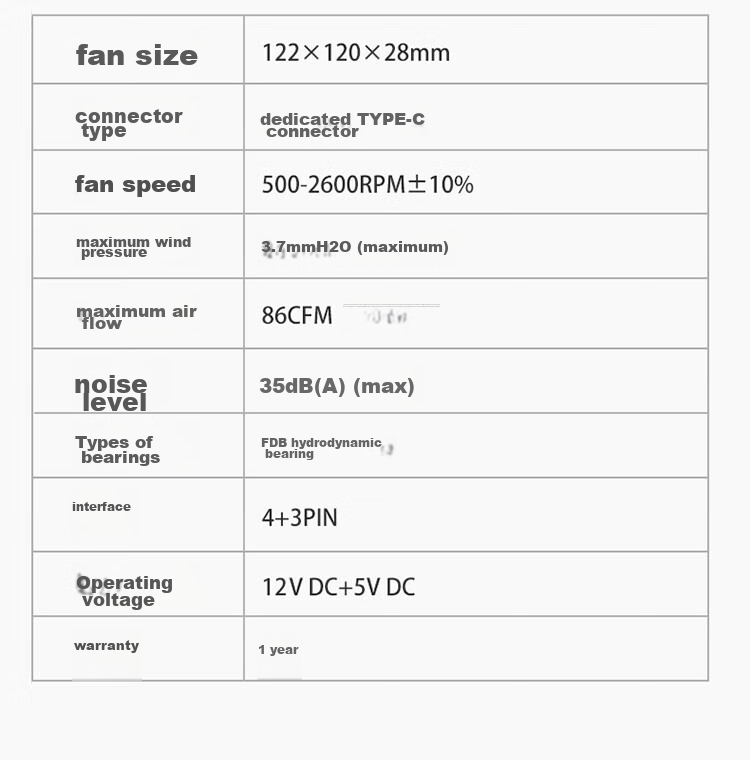

Fan Size: 122 x 120 x 28 mm
Connector Type: Dedicated TYPE-C connector
Fan Speed: 500-2600 RPM ±10%
Max Air Pressure: 3.7mmH2O (max)
Max Air Flow: 86 CFM (max)
Noise Level: 35 dB(A) (max)

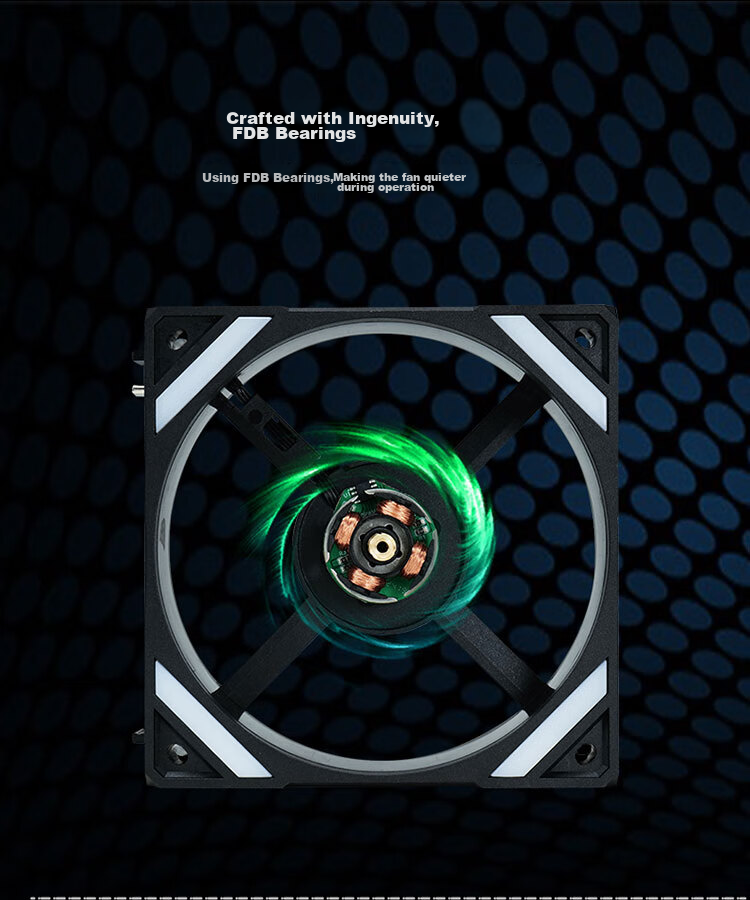

Bearing Type: FDB Hydraulic Bearing
Interface: 4+3PIN
Operating Voltage: 12VDC + 5VDC
Warranty: 1 year

LCD screen with adjustable orientation

Additional details

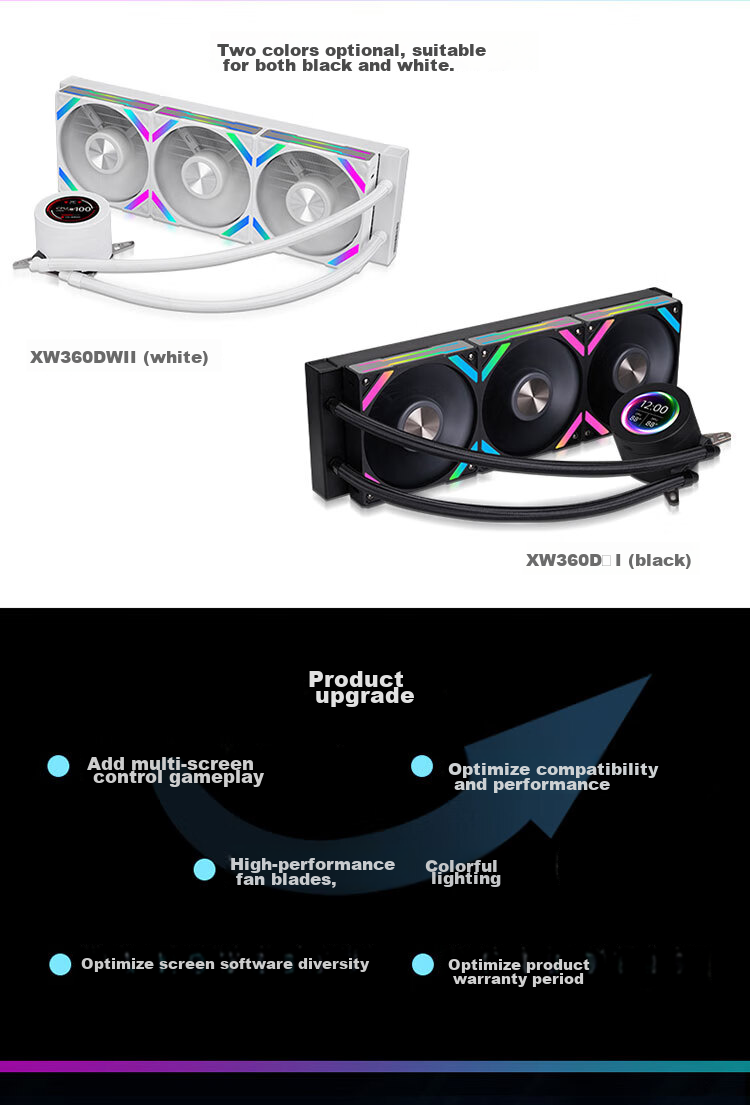

Multiple color options: Black (XW360DII), White (XW360DWII)

Upgraded product with multi-screen control gameplay

Enhanced compatibility and performance optimization

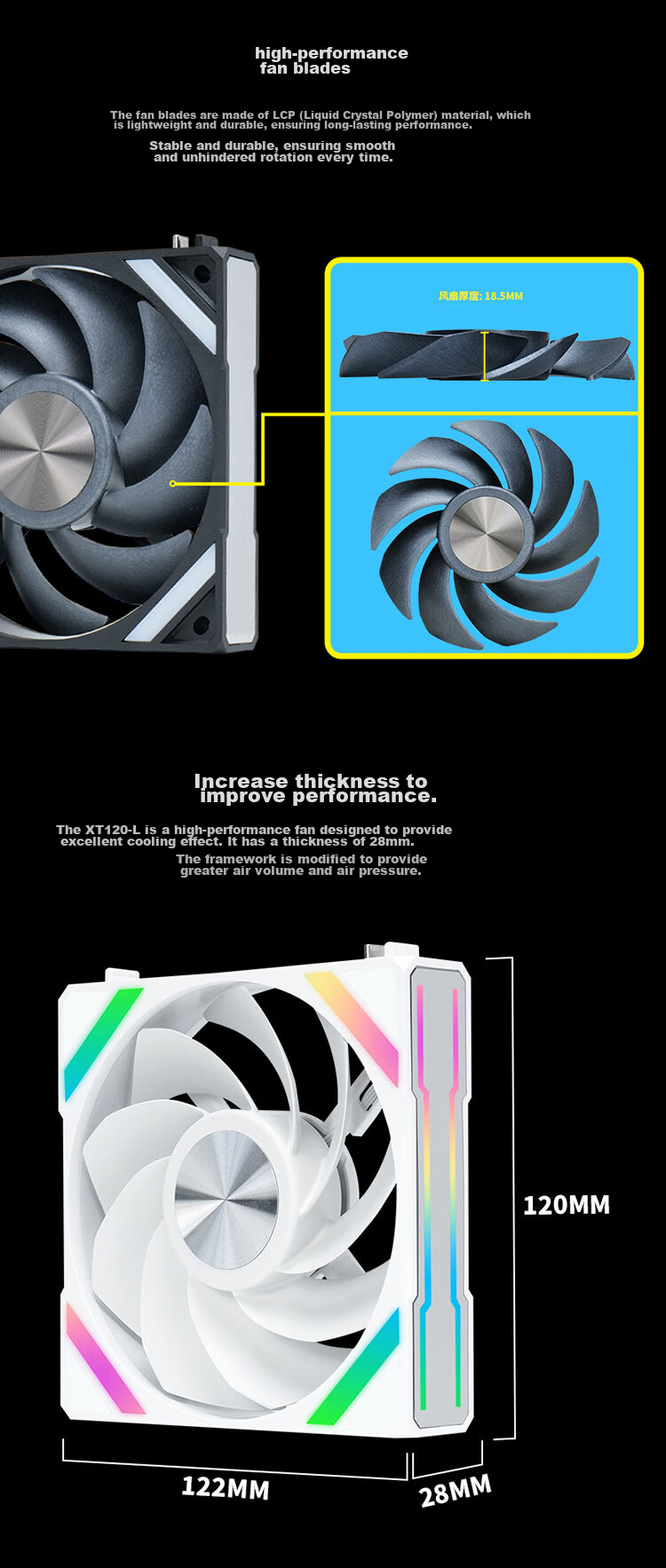

High-performance fan blades and colorful lighting effects

Modular magnetic design for easy screen removal and customization

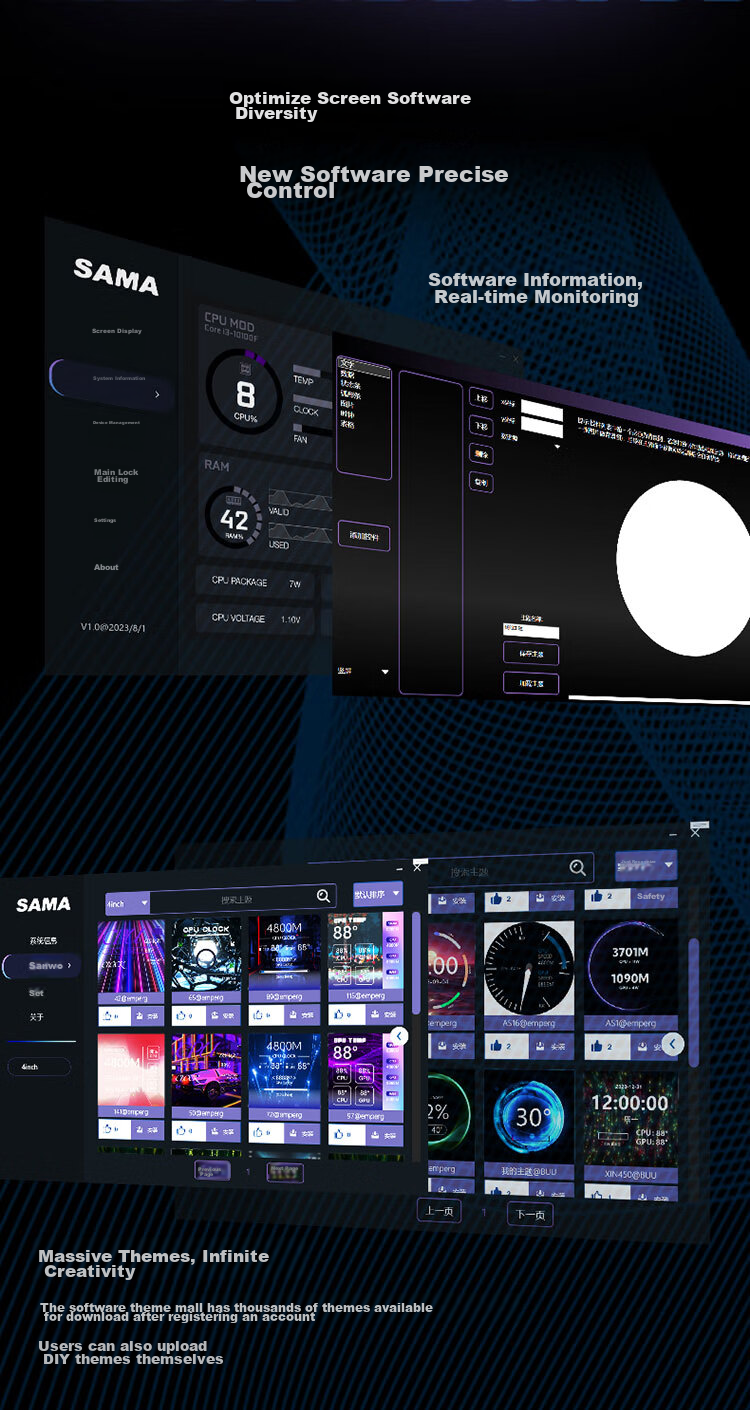

SAMA software for precise control and monitoring

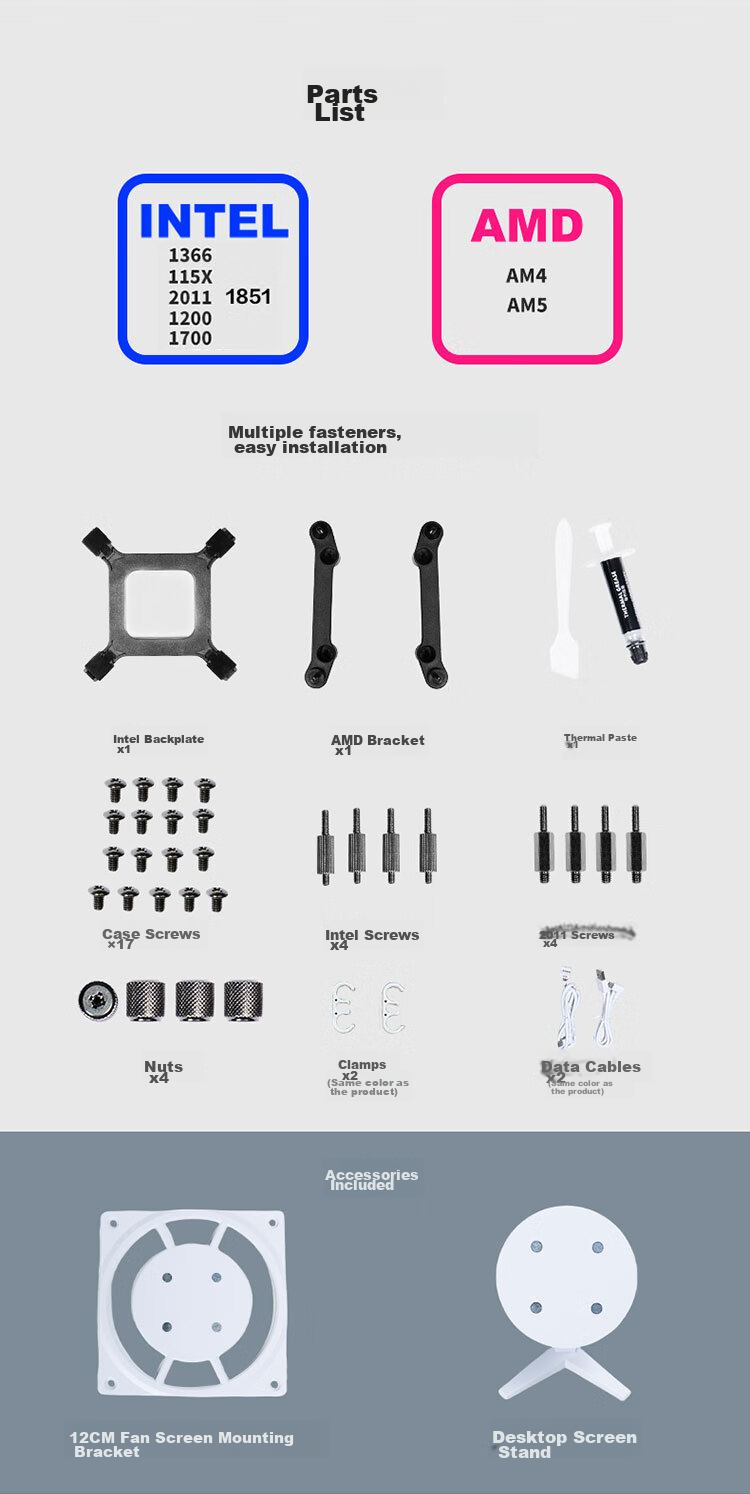

DIY-friendly installation with various mounting accessories included

Data Transfer Cables x2

12cm Fan Screen Mounting Bracket

Desktop Screen Stand

Real-time monitoring of CPU performance

Customizable screen display options

System information display

CPU overclocking settings

SAMA theme store access for personalized customization

When the screen is mounted on the water-cooling head, no additional TYPE-C cable connection is required.
