Ruijie 8-Port 100Mbps Unmanaged Lightning-Proof Switch RG-YS08, Eight-Port Network Full-Line Forwarding Data Stable Plug-And Home Business Dormitory Monitoring Splitter

Ruijie 8-Port 100Mbps Unmanaged Lightning-Proof Switch RG-YS08, Eight-Port Network Full-Line Forwarding Data Stable Plug-And Home Business Dormitory Monitoring Splitter

CN¥54.00

SKU: 100105387132

Status:In Stock (3)

ID: 100094027689

Weight: 160.00 g

Dims:132x66x60 mm

Specifications

Suitable Scenarios: Access switch
Port Type: Electrical port
Downlink Interface Type: Ethernet Switch
Network Management Type: Non-managed
Uplink port rate: 100Mbps
Cloud-managed switch: Cloud management not supported
Cooling method: Natural heat dissipation
Downlink Port Rate: 100Mbps

Variants / Sale Attributes

Color: 8-Port 100Mbps | Lightning Protection | Enterprise-Grade | RG-YS08

Package Contents

1 host, 1 power supply

Product Description

Overview

Brand: Ruijie
Model: RG-YS08

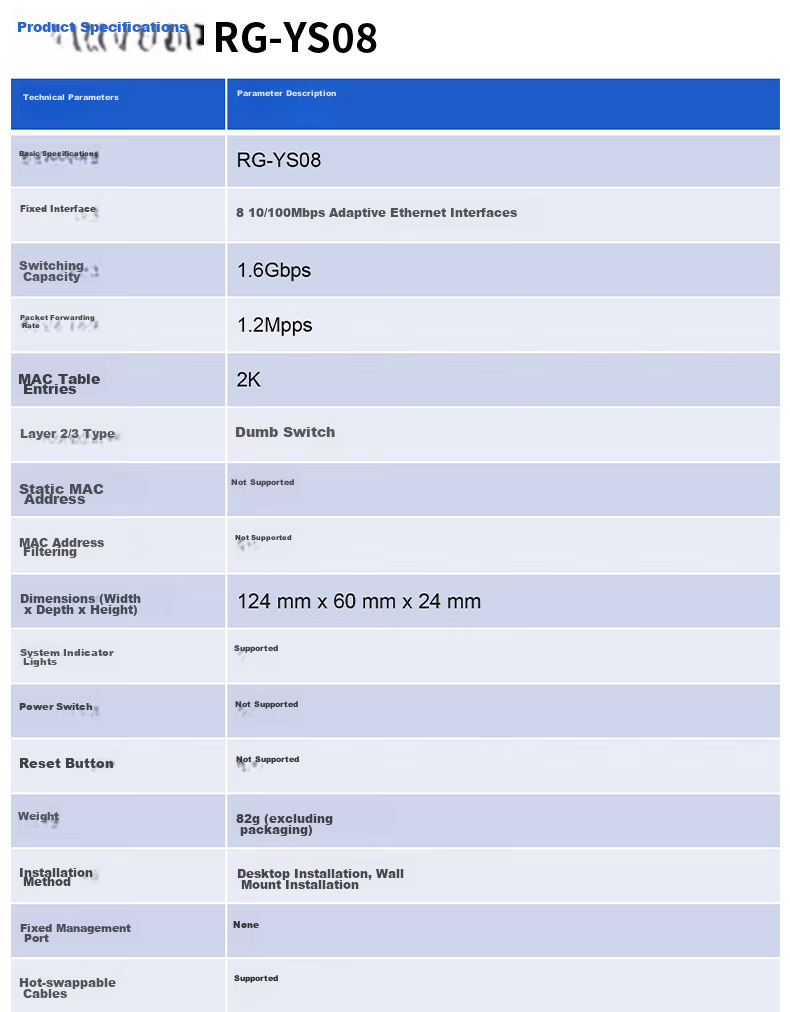

Basic Specifications

Fixed Interfaces: 8 x 10/100Mbps adaptive Ethernet interfaces
Switching Capacity: 1.6Gbps
Packet Forwarding Rate: 1.2Mpps
MAC Table Entries: 2K
Layer Type: Unmanaged switch
Static MAC Addresses: Not supported
MAC Address Filtering: Not supported
Dimensions (W x D x H): 124mm x 60mm x 24mm
System Indicator Lights: Supported
Power Switch: Not supported
Reset Button: Not supported
Weight: 82g (excluding packaging)
Installation: Desktop mount, wall mount
Fixed Management Port: None
Cable Hot Swap: Supported

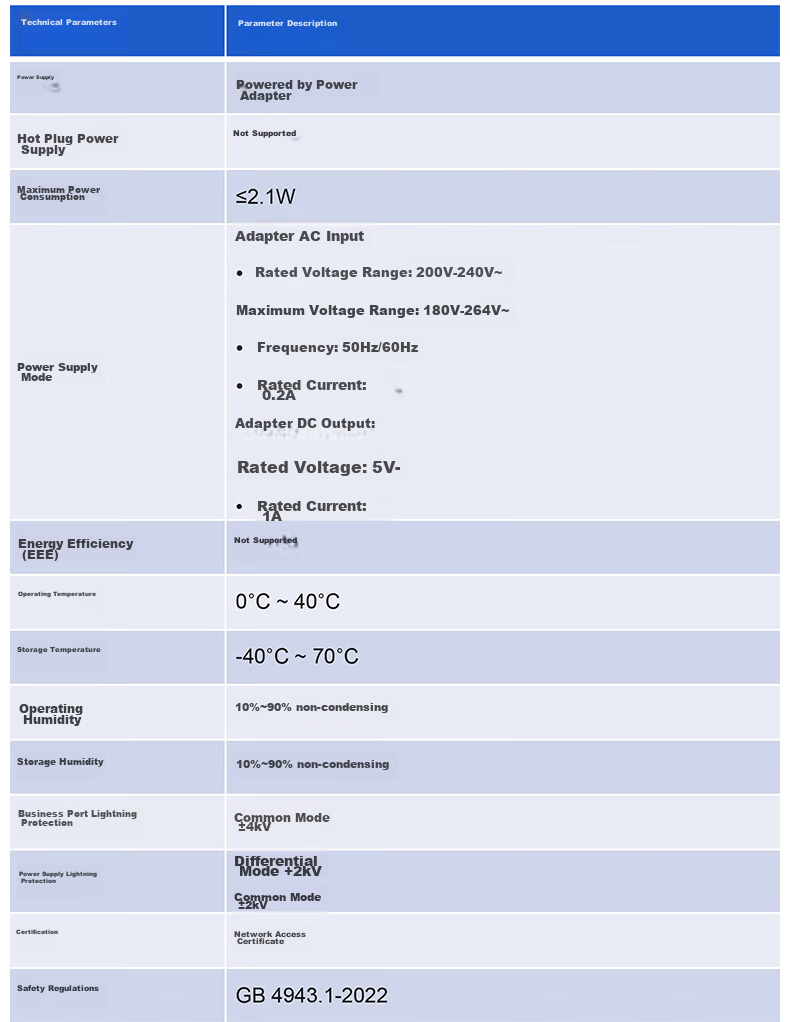

Technical Parameters

Power Supply: Power adapter
Hot Swap Power: Not supported
Maximum Power Consumption: ≤2.1W
Adapter AC Input:
Rated Voltage Range: 200V-240V~
Maximum Voltage Range: 180V-264V~
Frequency: 50Hz/60Hz

Similar Products

In Stock

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

In Stock

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

Set

Single product

Number of Ports

8 ports

Power over Ethernet (PoE)

Non-POE power supply

Power Supply Mode:

Rated Current: 0.2A

Adapter DC Output:

Rated Voltage: 5V-

Rated Current: 1A

Energy Efficiency (EEE): Not supported

Operating Temperature: 0°C~40°C

Storage Temperature: -40°C~70°C

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 10%~90% non-condensing

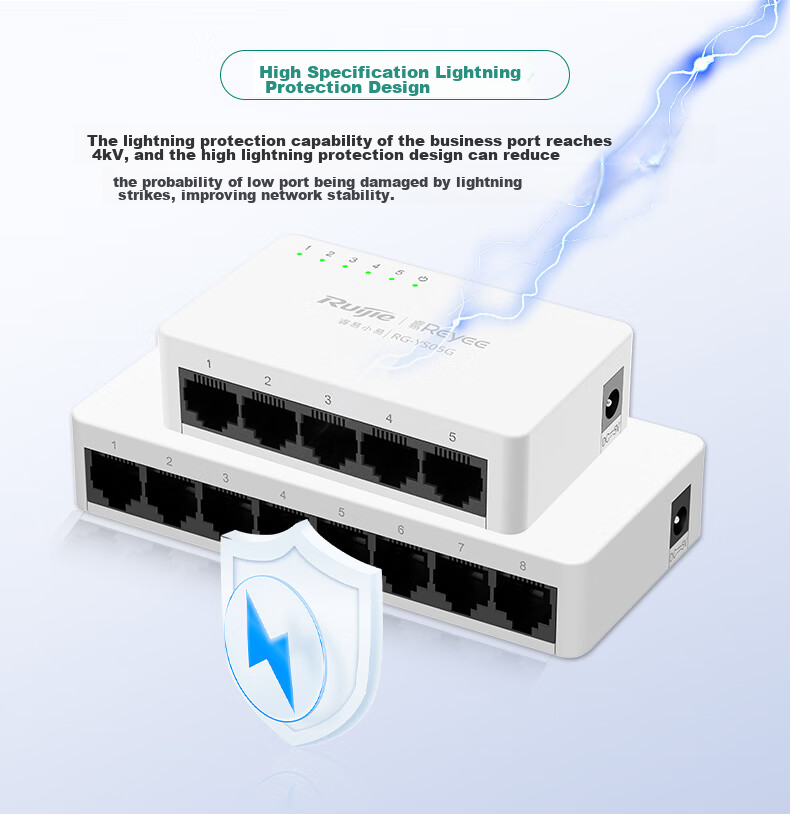

Business Port Lightning Protection:

Common Mode ±4kV

Differential Mode +2kV

Power Supply Lightning Protection:

Common Mode ±2kV

Certification: Network Access Certificate, Safety Regulations GB4943.1-2022
