LOBOROBOT 51 Microcontroller Development Board Kit Smart Car Line Tracking Obstacle Avoidance Remote Control Bluetooth Programming C51 Robot Kit

LOBOROBOT•Development board

LOBOROBOT 51 Microcontroller Development Board Kit Smart Car Line Tracking Obstacle Avoidance Remote Control Bluetooth Programming C51 Robot Kit

CN¥77.00

SKU: 100105406496

Status:Out of Stock

ID: 100105406496

Weight: 314.00 g

Dims:300x186x64 mm

Specifications

Delivery time: 0.5W

Variants / Sale Attributes

Color: C51 Microcontroller Development Board Kit

Package Contents

C51 Microcontroller Development Board Kit

Product Description

Product Specifications

Overview

Brand: LOBOROBOT

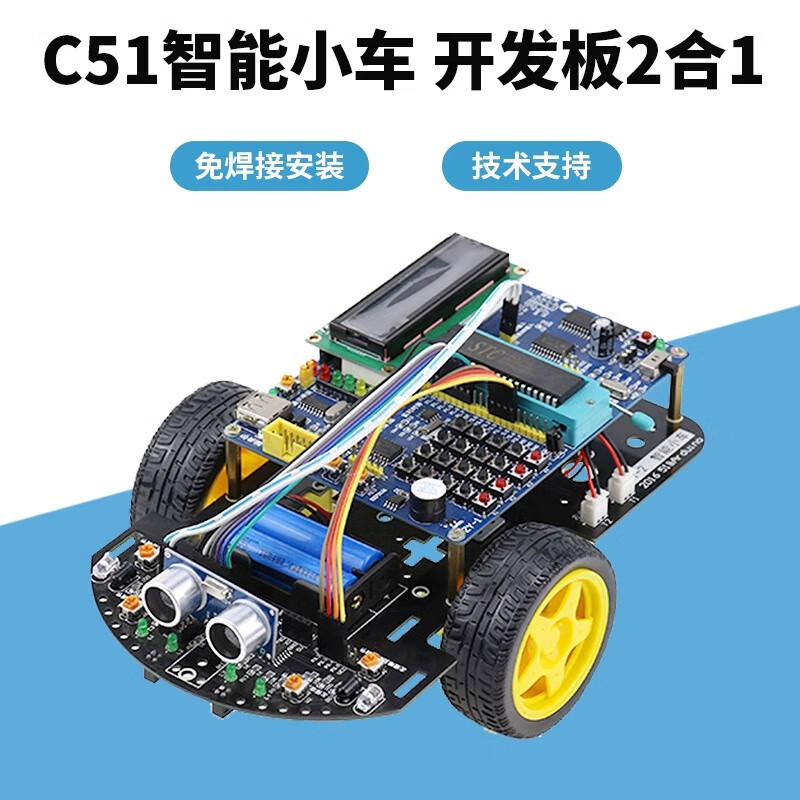

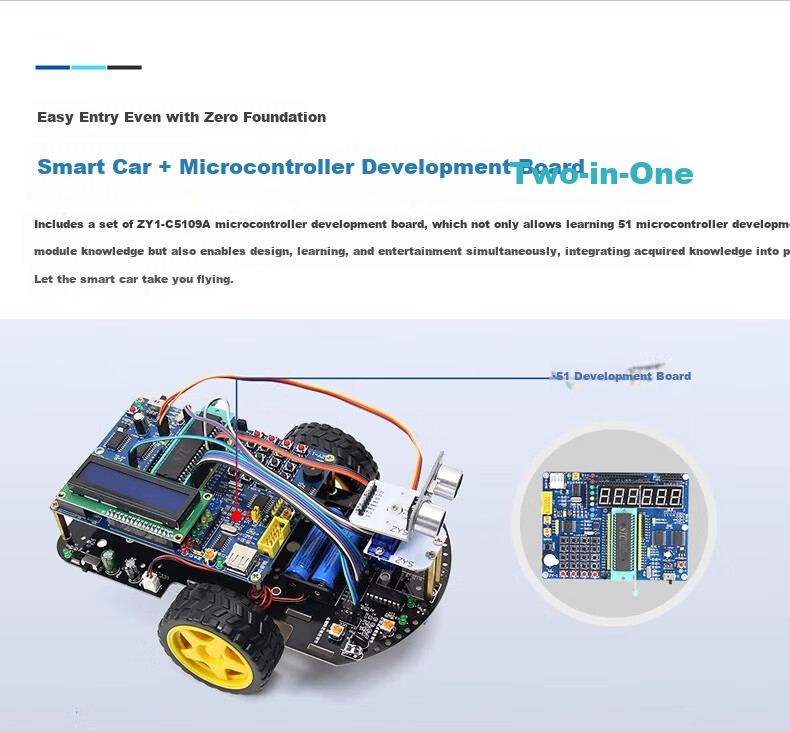

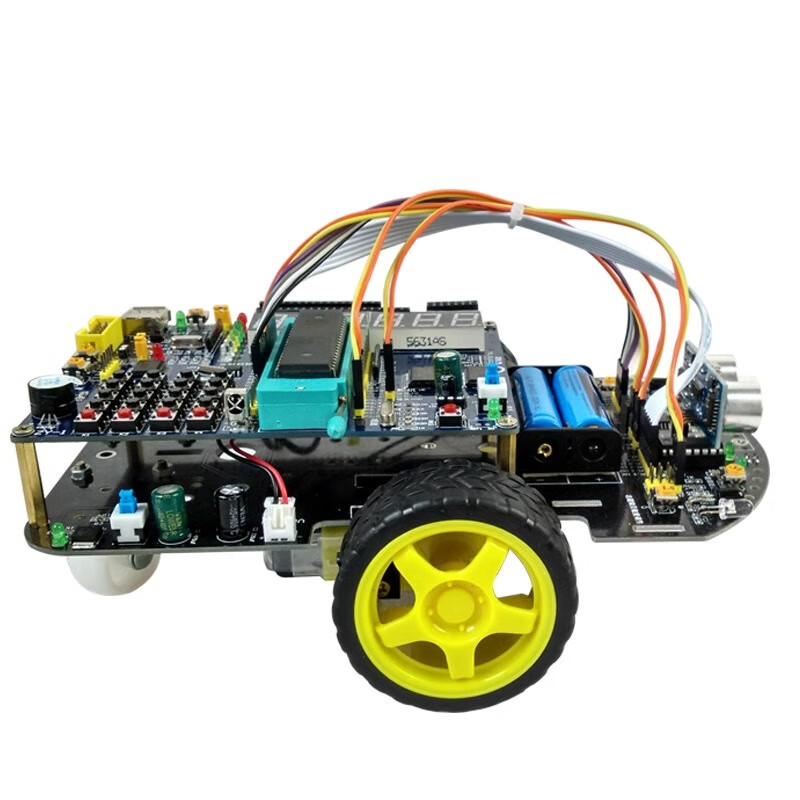

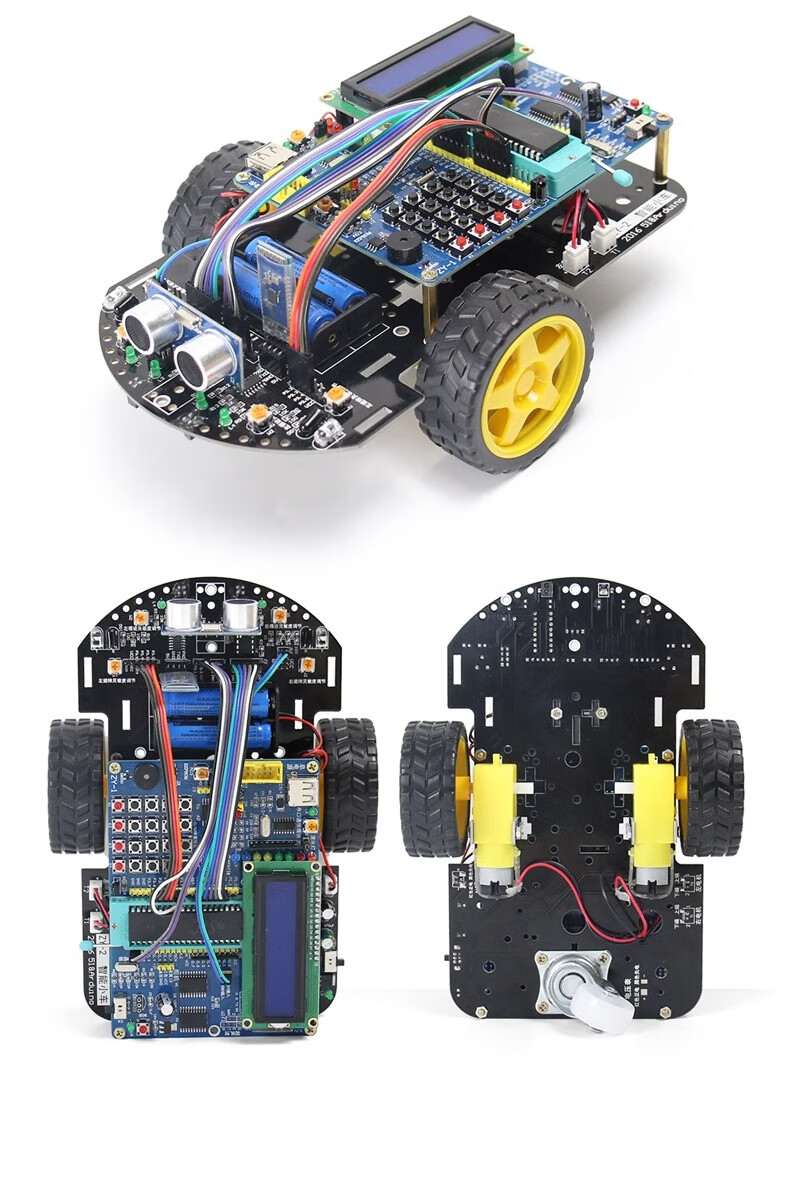

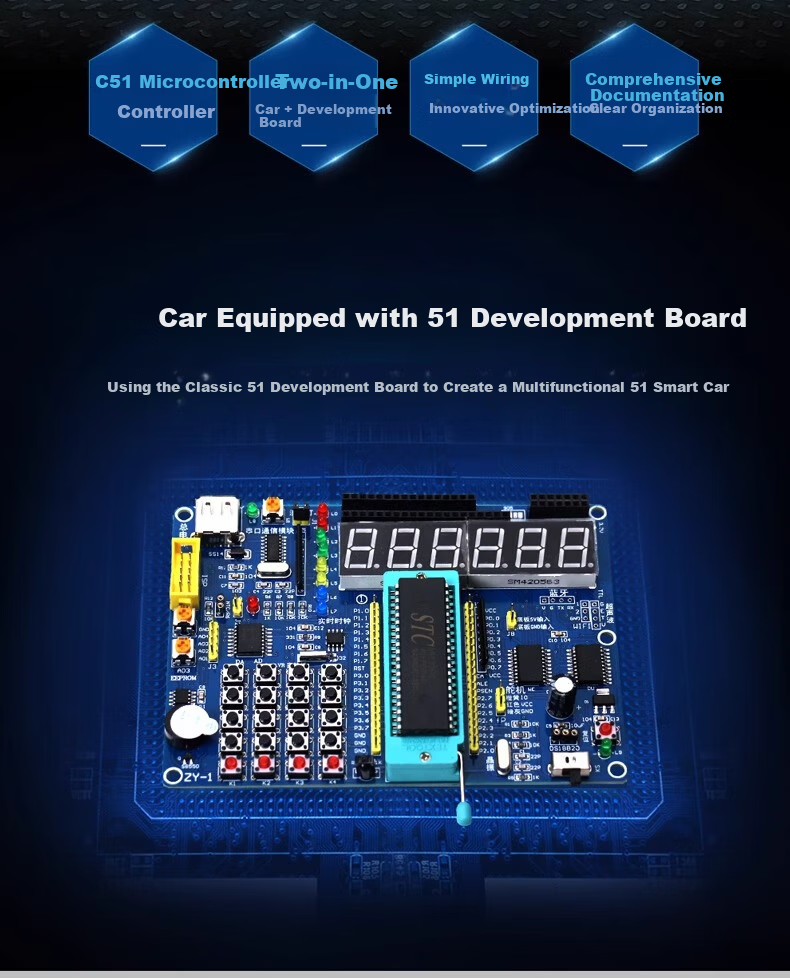

Innovative design combining a 51 intelligent car and 51 development board in one.

Equipped with classic C51 microcontroller (ZY1-C5109A) for easy wiring and comprehensive documentation.

Suitable for beginners with zero foundation to learn microcontroller development, module knowledge, and practical applications.

Multifunctional intelligent car controlled via keyboard joystick and Bluetooth/TCPIP connection.

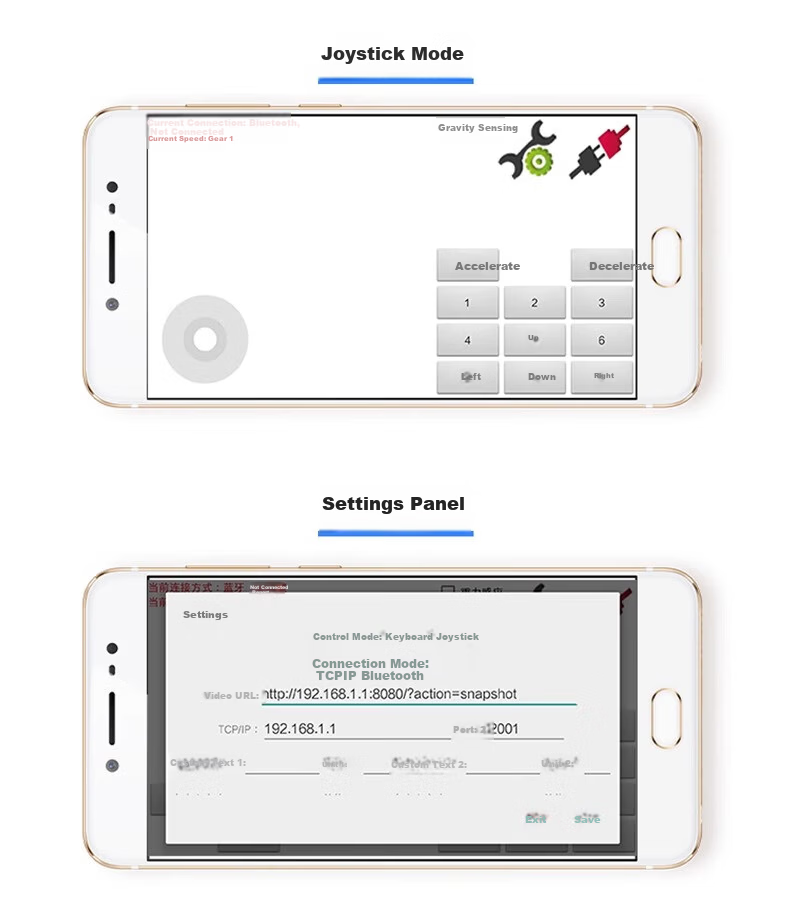

Supports multiple control modes including joystick, keyboard, gravity sensing, and speed adjustment.

Additional details

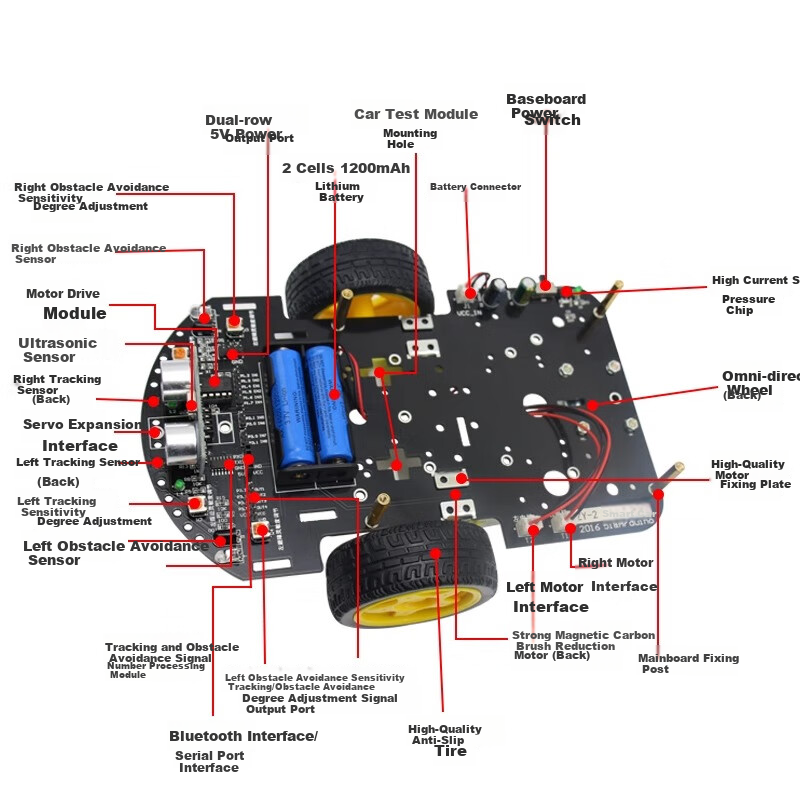

Microcontroller: ZY1-C5109A C51 single-chip microcontroller development board.

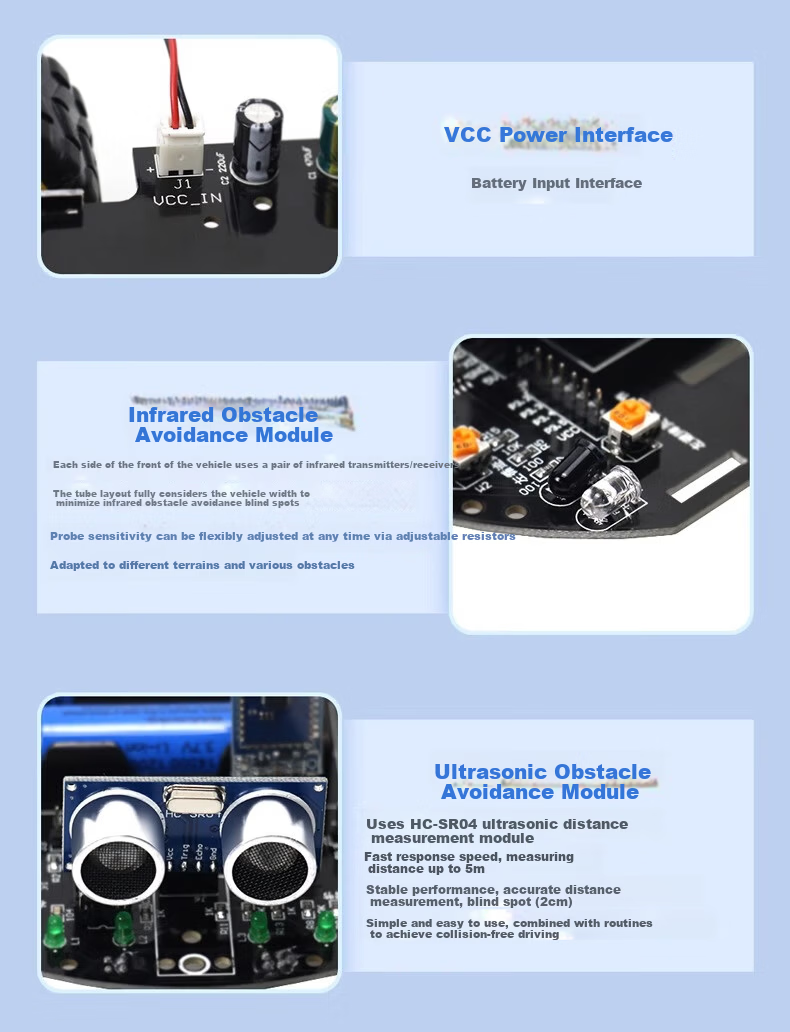

Infrared Obstacle Avoidance Module: Dual infrared transmit/receive pairs on both front sides, adjustable sensitivity via potentiometer to adapt to various terrains and obstacles.

Similar Products

In Stock

ARDUINODevelopment board

100133349236

Arduino uno r3国民套件

CN¥199.00

View

Out of Stock

ARDUINODevelopment board

100060866511

Arduino UNO R3

CN¥169.00

View

In Stock

ZAVEDevelopment board

ZAVE Arduino Nano Uno Development Board Kit TYPE-C Interface 168P Chip Solder Pin Header + Cable

TYPEC interface 168P chip soldered + cable

CN¥22.68

View

Ultrasonic Obstacle Avoidance Module

HC-SR04 ultrasonic ranging sensor with fast response, accurate measurement up to 5 meters, and 2 cm blind zone.

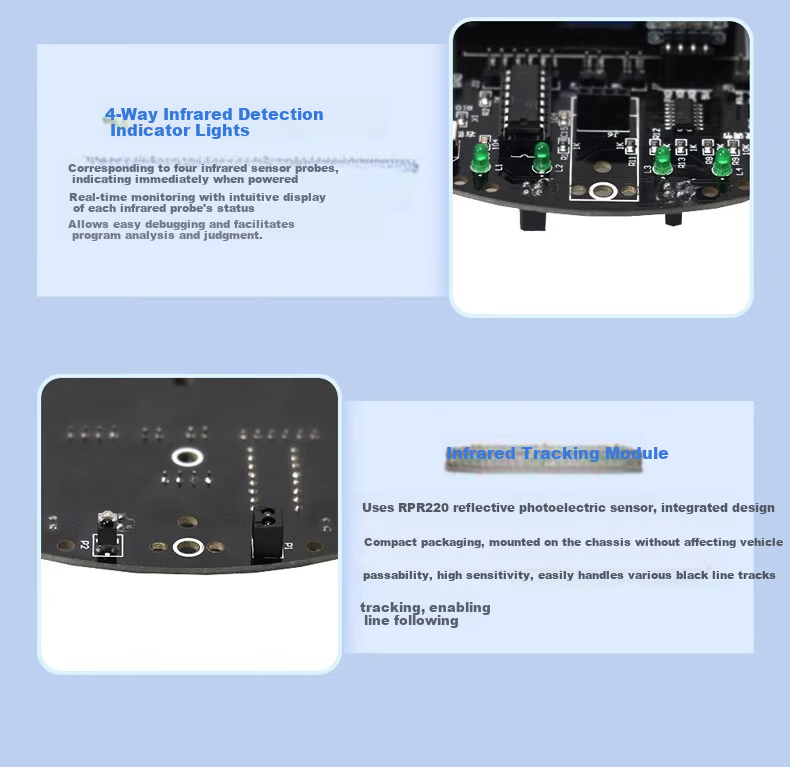

Infrared Tracking Module

RPR220 reflective photoelectric sensor integrated into chassis for high sensitivity and reliable line tracking.

Four-channel infrared detection indicator LEDs for real-time monitoring of sensor status.

Additional details

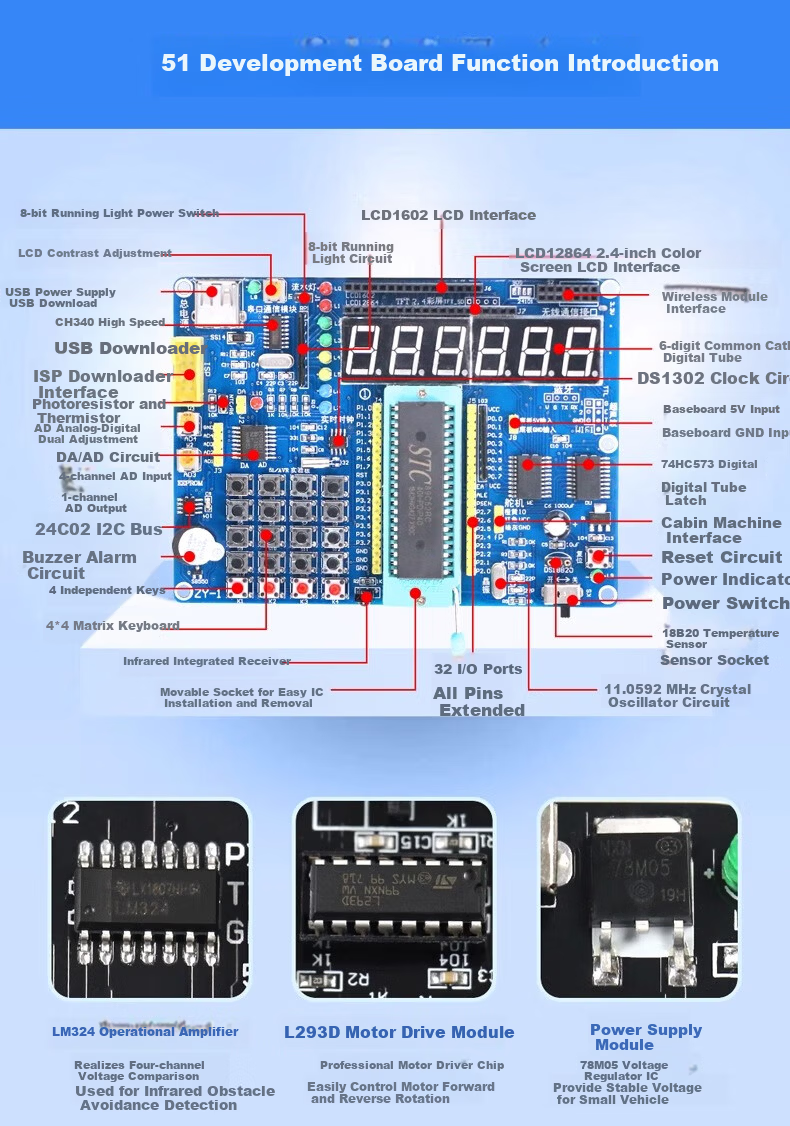

Motor Driver: L293D motor driver module with stable voltage supply via 78M05 voltage regulator IC.
Power Interfaces: VCC power input and battery input connectors.
Additional Sensors: Light-sensitive and temperature-sensitive resistors, DS18B20 temperature sensor (Bluetooth version), 18B20 temperature sensor.
Display Interfaces: LCD1602 and LCD12864 2.4-inch color screen interfaces with contrast adjustment.
Communication: USB high-speed CH340 downloader, ISP downloader interface, wireless module interface, Bluetooth and WiFi modules (optional).
Clock Circuit: DS1302 real-time clock.
Keypad: 4x4 matrix keyboard and 4 independent keys.
Other Components: 6-digit common-cathode digital tube, buzzer alarm circuit, reset circuit, 11.0592 MHz crystal oscillator, LM324 operational amplifier, 32 I/O ports, sensor sockets, removable IC sockets.

Compatible with Windows XP, 7, 8, 10 (32/64-bit).

Supports USB download and serial communication via a single USB cable.

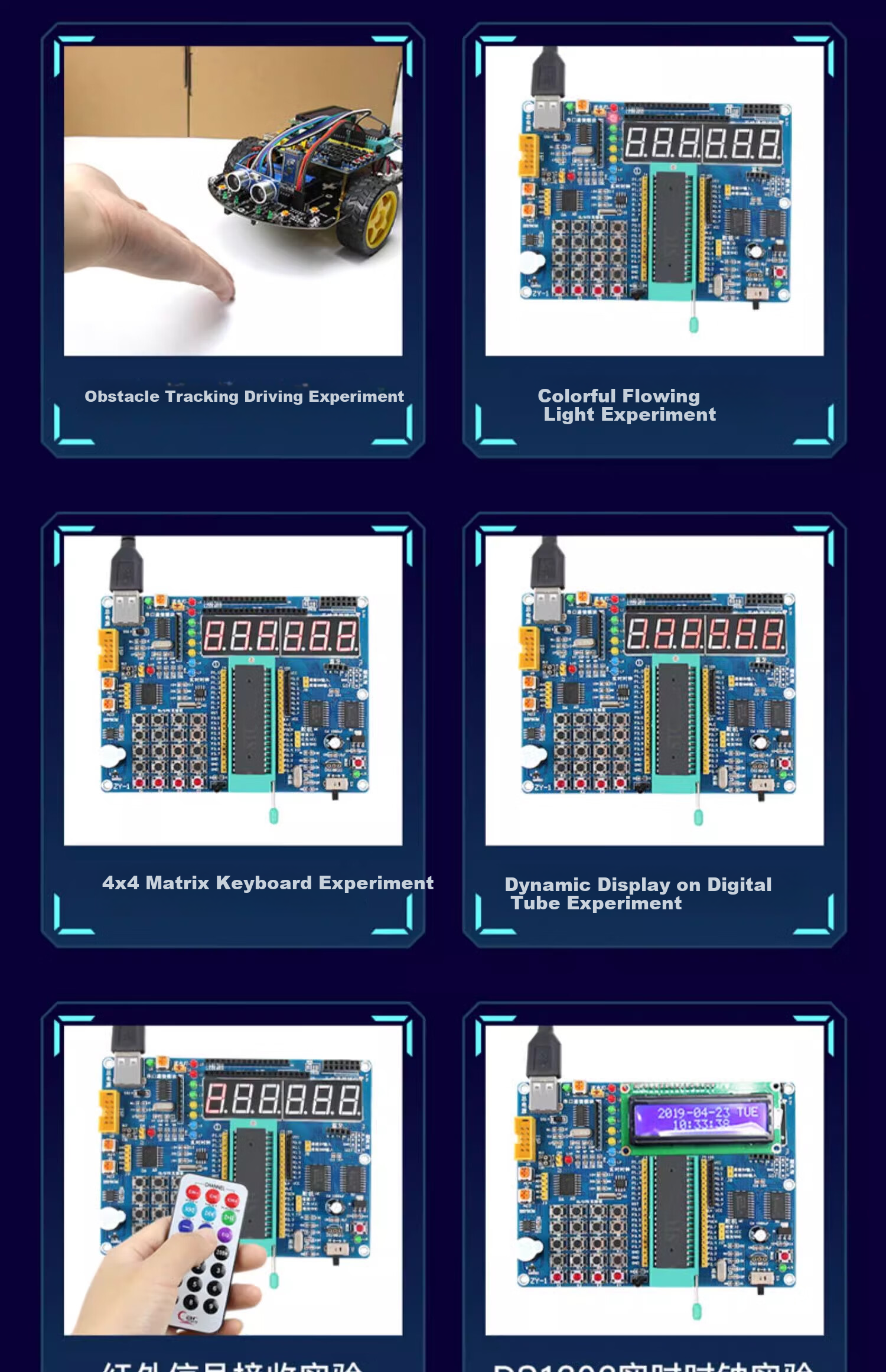

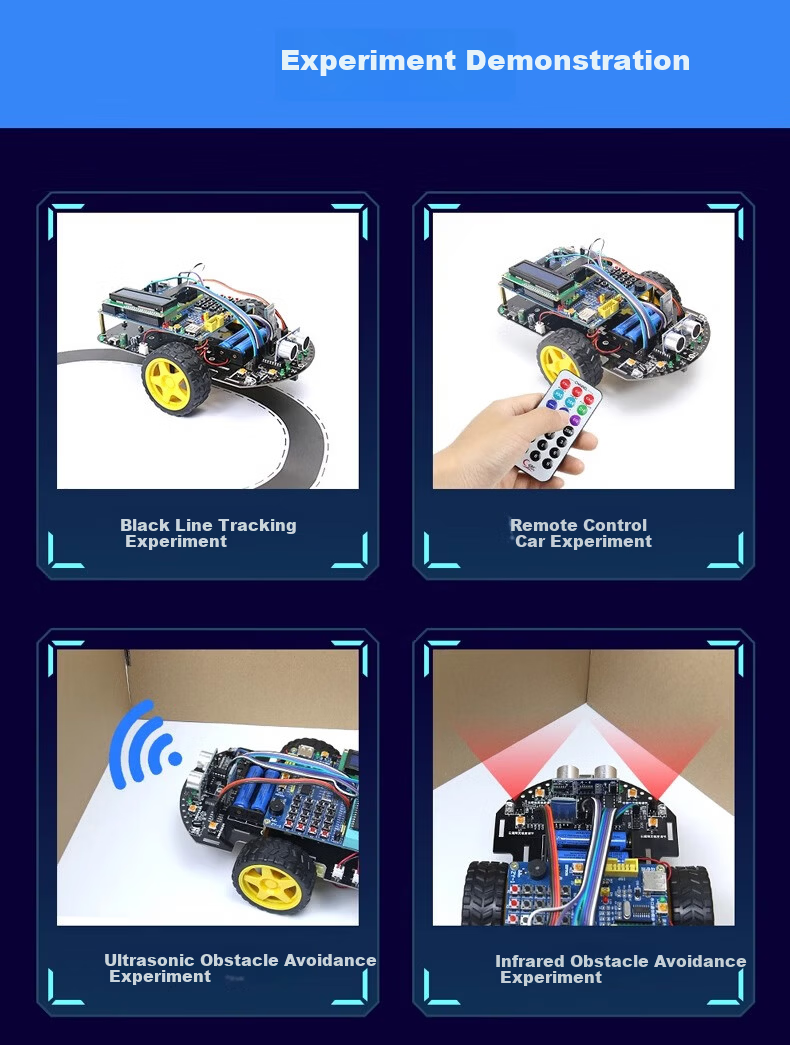

Provides example experiments including black line tracking, remote control, ultrasonic and infrared obstacle avoidance, object tracking, colorful running lights, matrix keypad, digital tube dynamic display, and real-time clock experiments.

Additional details

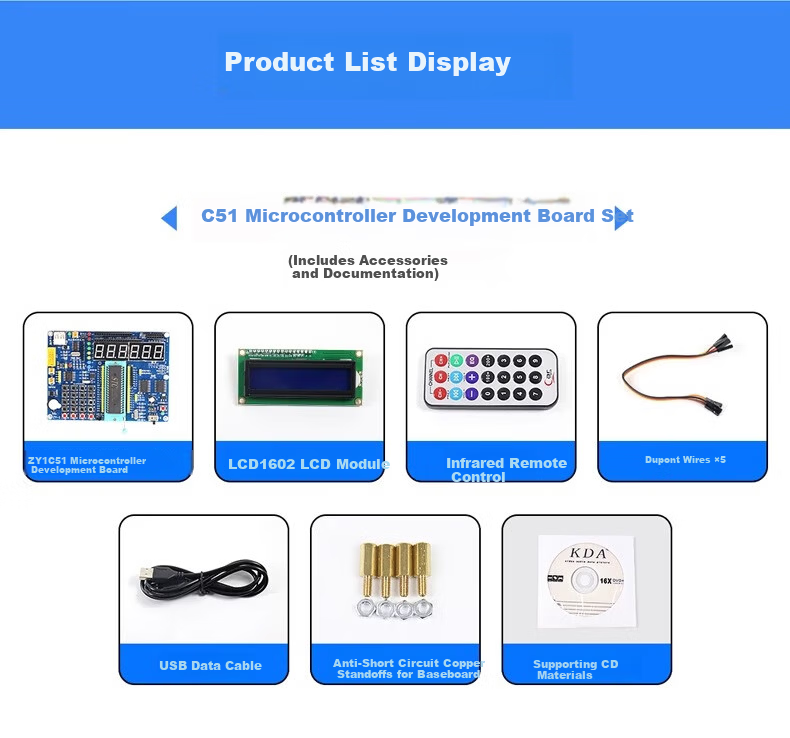

Standard C51 Development Board Package: Includes ZY1C51 development board, LCD1602 module, infrared remote control, 5 DuPont wires, USB data cable, anti-short copper pillars, and supporting documentation.

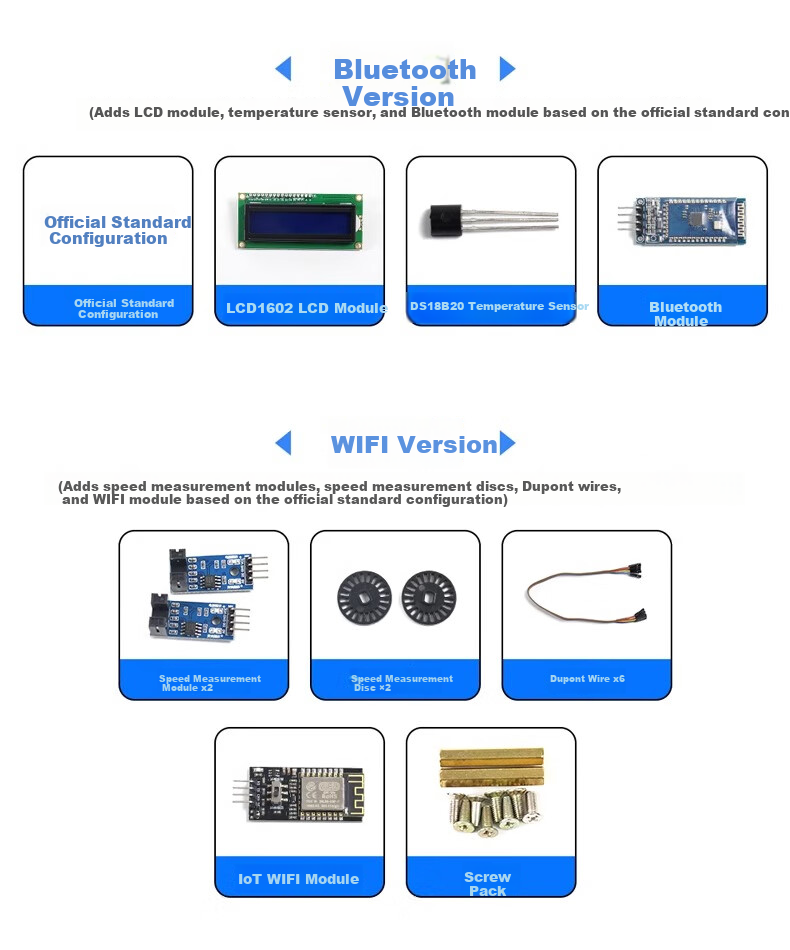

Bluetooth Version: Adds LCD1602 module, DS18B20 temperature sensor, and Bluetooth module.
WiFi Version: Adds two speed measurement modules, two speed measurement code discs, 6 DuPont wires, and IoT WiFi module.

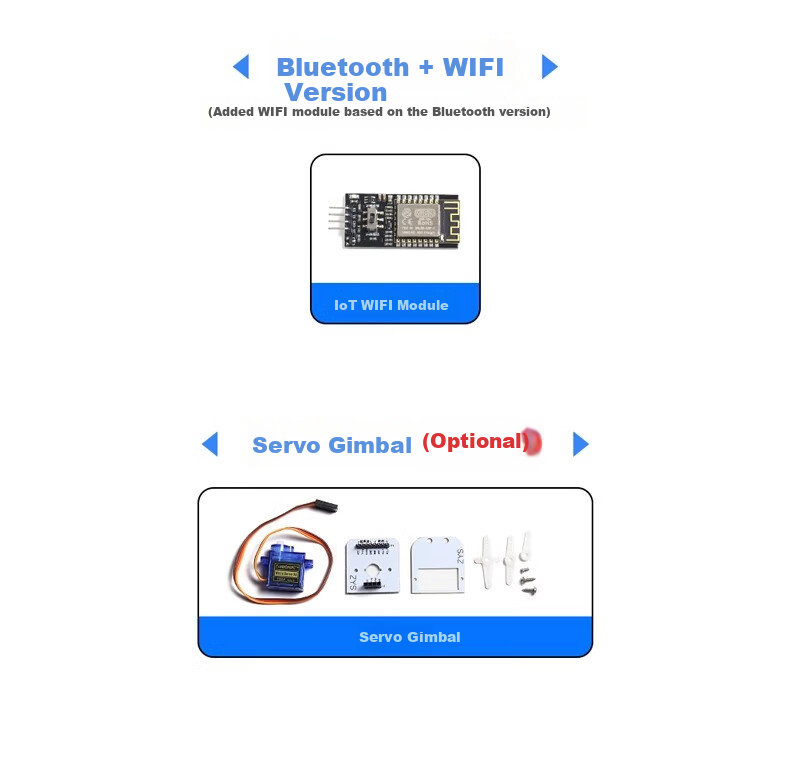

Bluetooth + WiFi Version: Combines Bluetooth version with additional WiFi module.

Optional Servo Gimbal.
