FDD Air Conditioner Water Heater Leakage Protection Switch, Household Leakage Protection Circuit Breaker Panel, 86-Type with Socket, QW-40L, Three-Hole Concealed Installation, 16A
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
FDD•socket

FDD Air Conditioner Water Heater Leakage Protection Switch, Household Leakage Protection Circuit Breaker Panel, 86-Type with Socket, QW-40L, Three-Hole Concealed Installation, 16A

CNÂ¥29.00
SKU: 100105737229
Status:In Stock (165)
ID: 100105737229
Weight: 120.00 g
Dims:92x92x56 mm

Specifications

Rated voltage
250V
Series
Leakage protection
cable length
Wireless
Rated current
16A

Variants / Sale Attributes

electric current: Three-hole concealed 16A

Package Contents

socket

Product Description

Overview

Brand
FDD
Model
QW-40L Leakage Protection Switch
Standard
GB/T28527-2012
Rated Current
40A
Manufacturer
Wenzhou Longhong Tianhe Qiwang Electrical Factory
Available Models

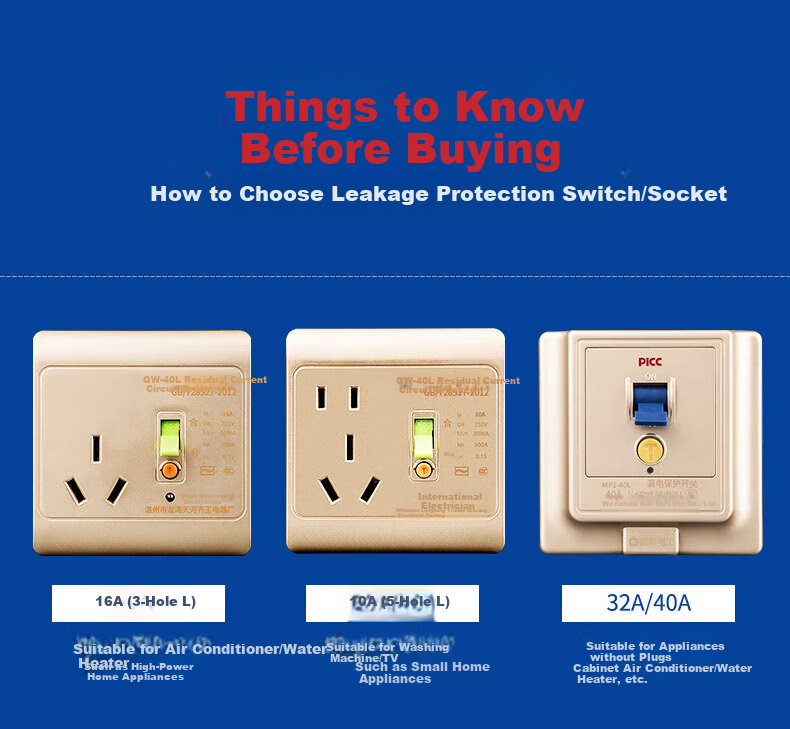

16A (3-hole L), 10A (5-hole L), 32A/40A
Suitable for
Air conditioners/water heaters, washing machines/televisions, high-power appliances without plugs, small appliances, cabinet air conditioners/water heaters, etc.

Similar Products

In Stock
FDD Outdoor Waterproof Switch Socket, Bathroom Power Supply Waterproof Box, Surface And Recessed Installation, Outdoor Storm-Proof Splash-Proof Box, Single Switch Single Control Five-Hole 10A + Waterproof Box [Surface Mounted]
FDDsocket

FDD Outdoor Waterproof Switch Socket, Bathroom Power Supply Waterproof Box, Surface And Recessed Installation, Outdoor Storm-Proof Splash-Proof Box, Single Switch Single Control Five-Hole 10A + Waterproof Box [Surface Mounted]

One Single Control Five-Hole 10A + Waterproof Box [Surface Mounted]

CNÂ¥33.57

View
In Stock
BULL Power Strip Socket Extension Cord, 6 Outlets with Master Switch, 1.8 Meters, 10A 250V GN-402, All White
BULLsocket

BULL Power Strip Socket Extension Cord, 6 Outlets with Master Switch, 1.8 Meters, 10A 250V GN-402, All White

6-digit master control 1.8 meters, all white

CNÂ¥41.58

View
In Stock
BULL Drop-Resistant And Shockproof Socket Power Strip Engineering Special Outdoor Work Yellow Socket New National Standard GN-C421X Wireless without Cord
BULLsocket

BULL Drop-Resistant And Shockproof Socket Power Strip Engineering Special Outdoor Work Yellow Socket New National Standard GN-C421X Wireless without Cord

GN-C421X [3-Outlet Wireless Socket]

CNÂ¥21.67

View

Features

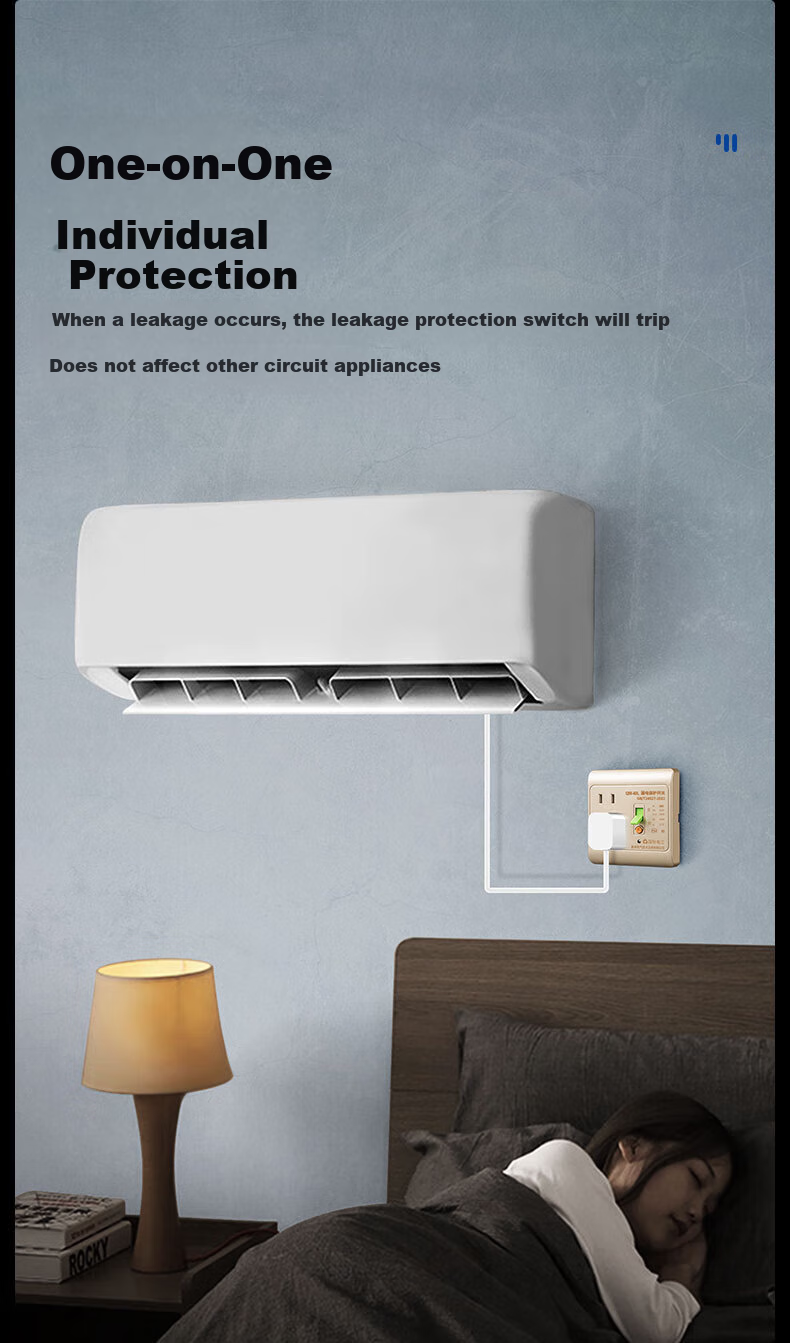

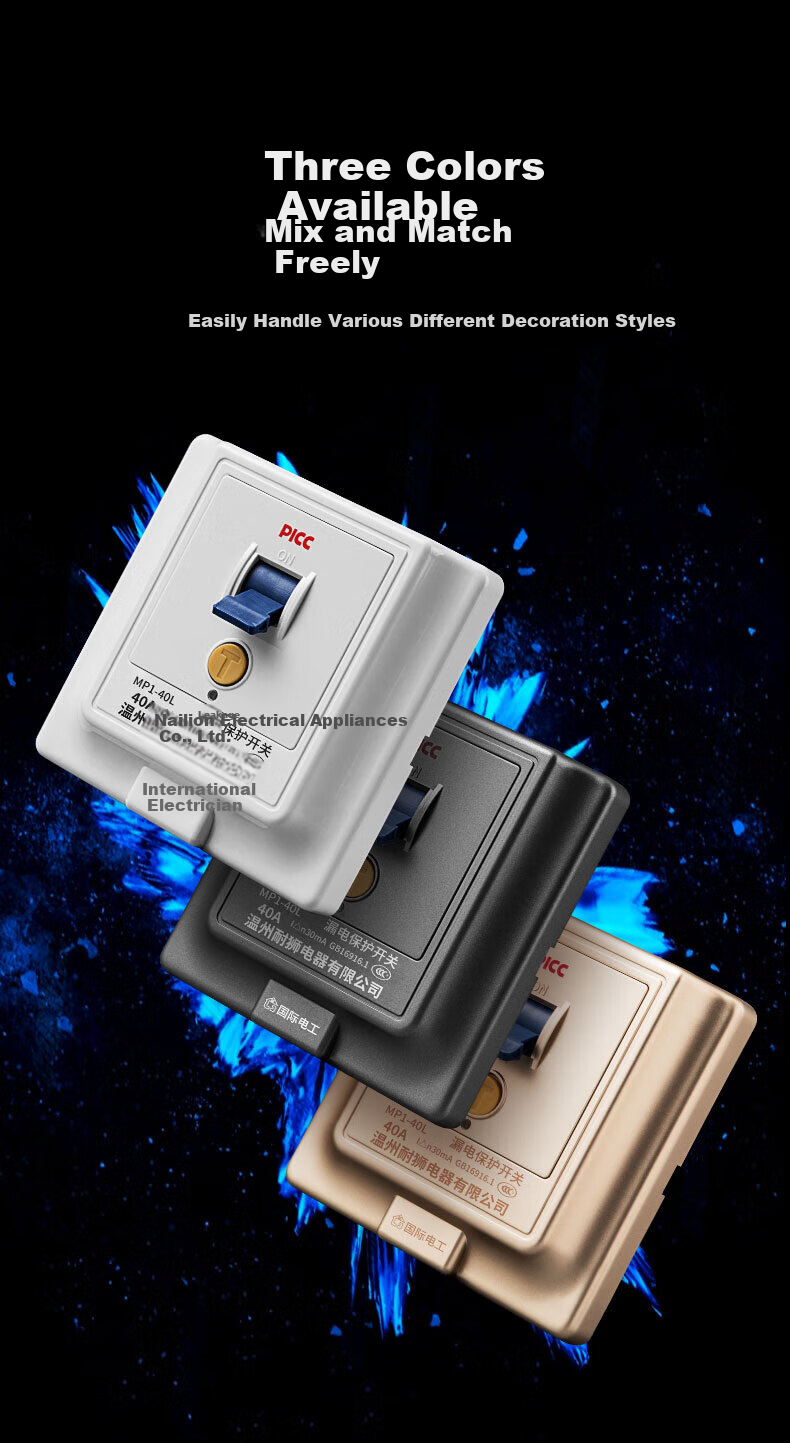

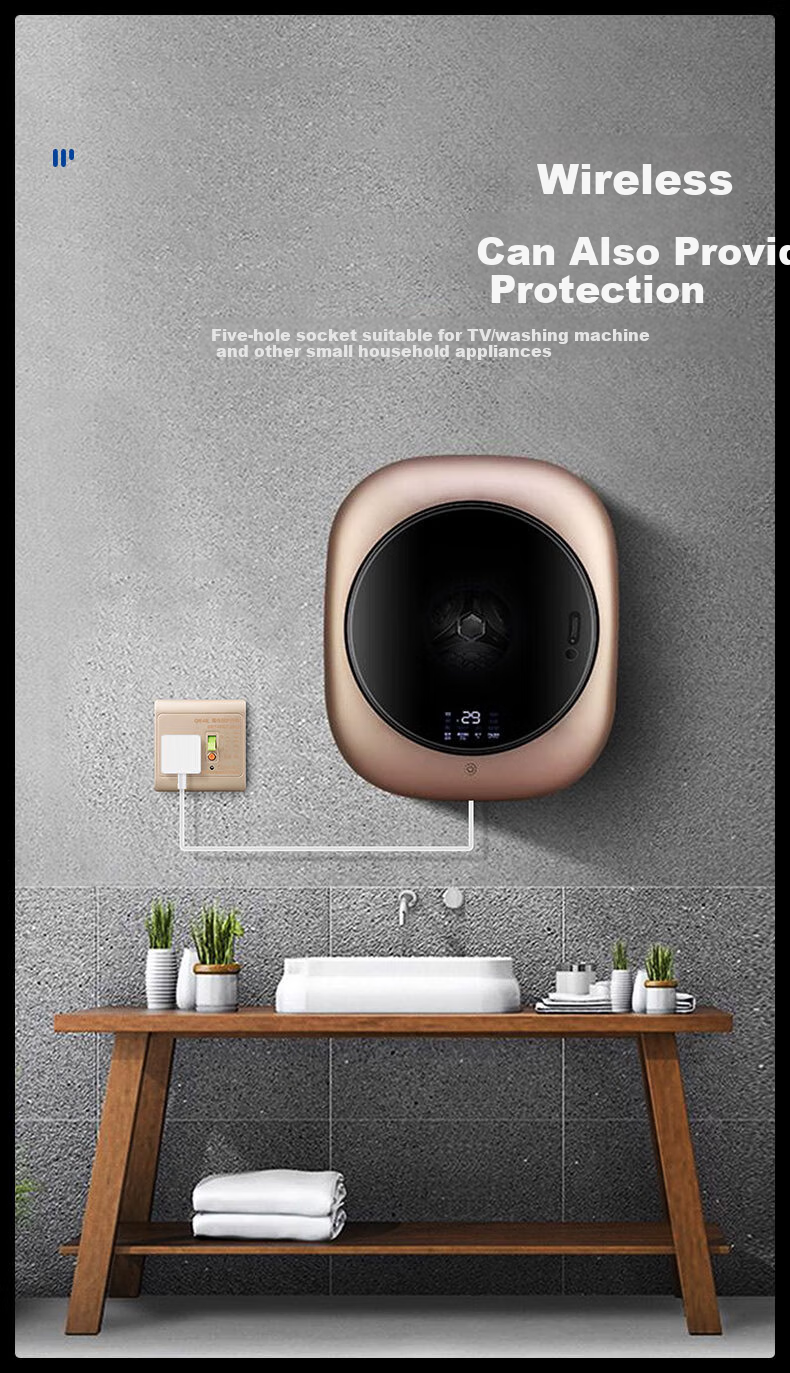

  • Three colors available for easy matching with different decoration styles. Provides individual protection when leakage occurs, tripping without affecting other circuits or appliances. Can protect appliances without grounding. Five-hole sockets suitable for televisions/washing machines and other small appliances. Fast power-off within 0.1s to eliminate leakage safety hazards.

Additional details

Brand
FDD
Model
QW-40L Leakage Protection Switch
Standard
GB/T28527-2012
Rated Current
10A
Voltage
250V
Leakage Current
30mA
Short Circuit Breaking Capacity
500A
Tripping Time
0.15s
Manufacturer
Wenzhou Longwan Tianhe Qiwang Electrical Factory
Suitable for

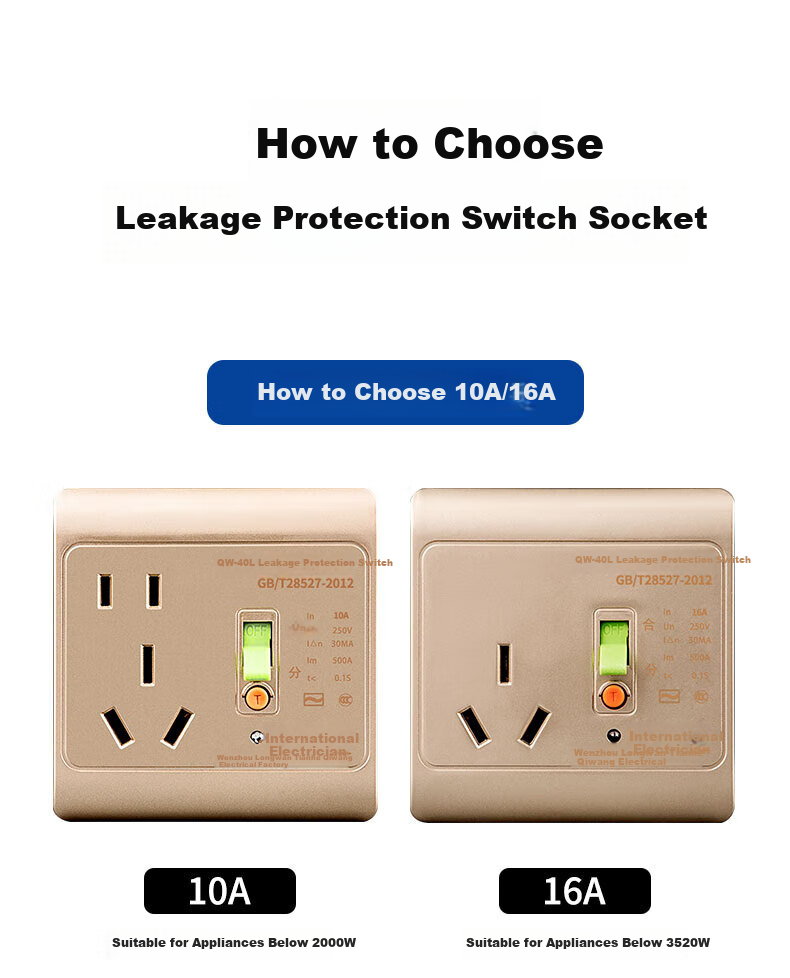

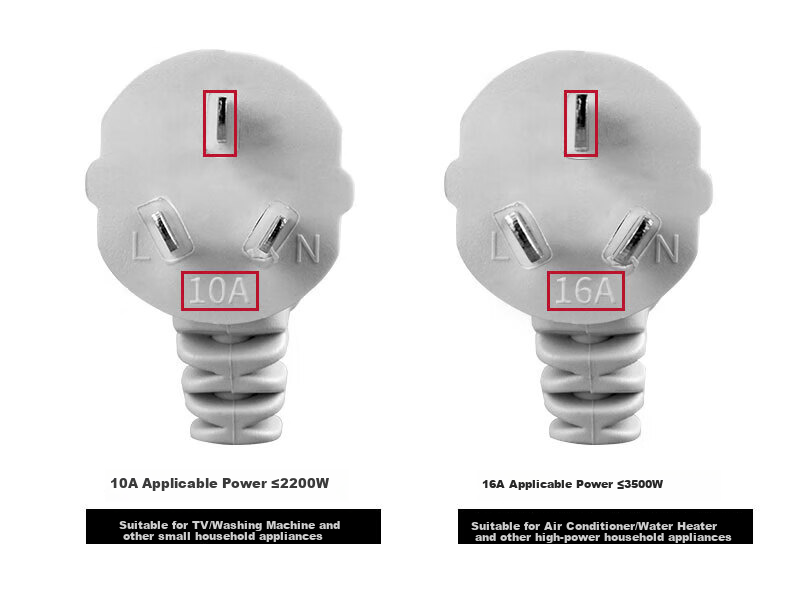

Appliances below 2000W (10A) and 3520W (16A). Suitable for televisions/washing machines and large appliances like air conditioners/water heaters.

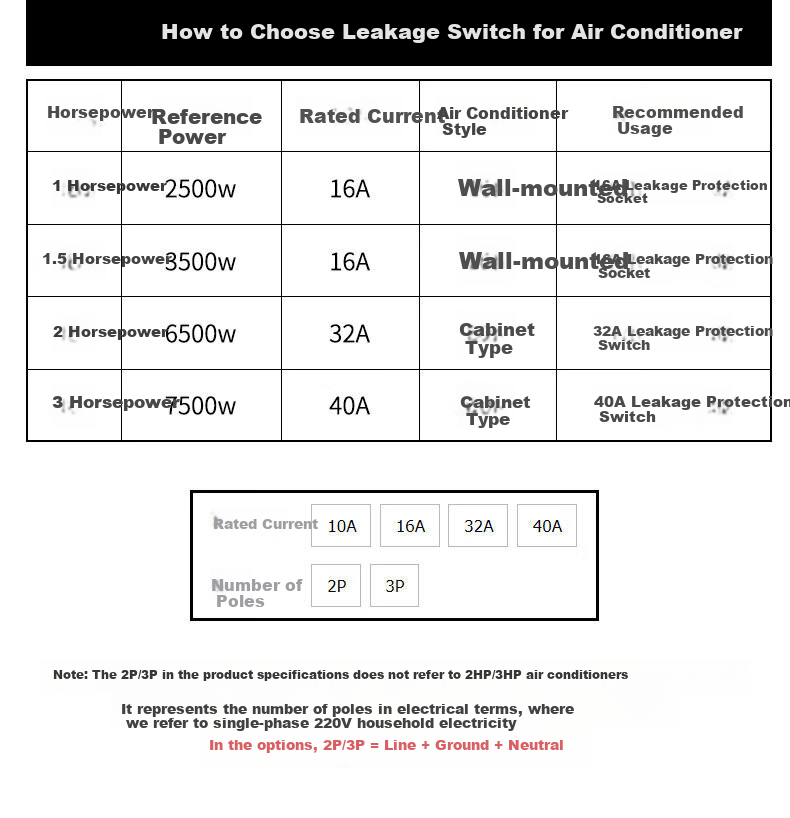

Air Conditioner Leakage Protection Switch Selection

ItemDetail
1HP2500W, 16A, Wall-mounted, 16A Leakage Protection Socket
1.5HP3500W, 16A, Wall-mounted, 16A Leakage Protection Socket
2HP6500W, 32A, Cabinet type, 32A Leakage Protection Switch
3HP7500W, 40A, Cabinet type, 40A Leakage Protection Switch
Rated Current Options10A, 16A, 32A, 40A
Number of Poles2P, 3P (Note: 2P/3P in the product specifications refer to the number of poles in electrical terminology, not the capacity for 2HP/3HP air conditioners. It represents the configuration of live wire, neutral wire, and ground wire in single-phase 220V household electricity.)

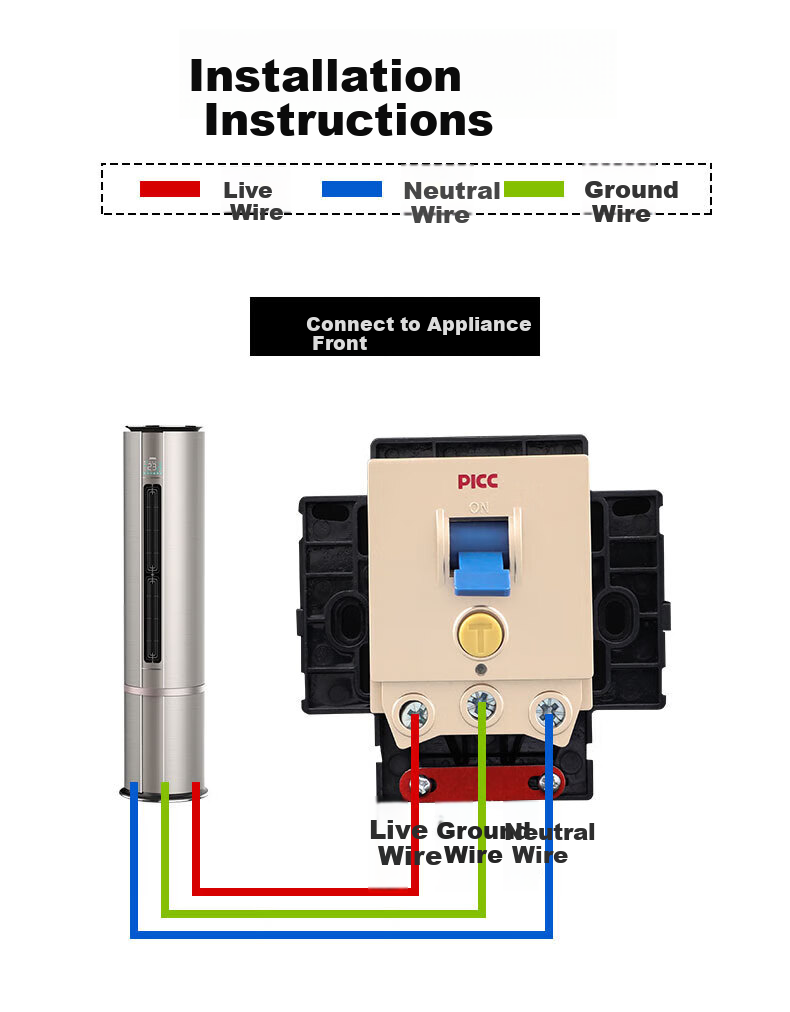

Installation Instructions

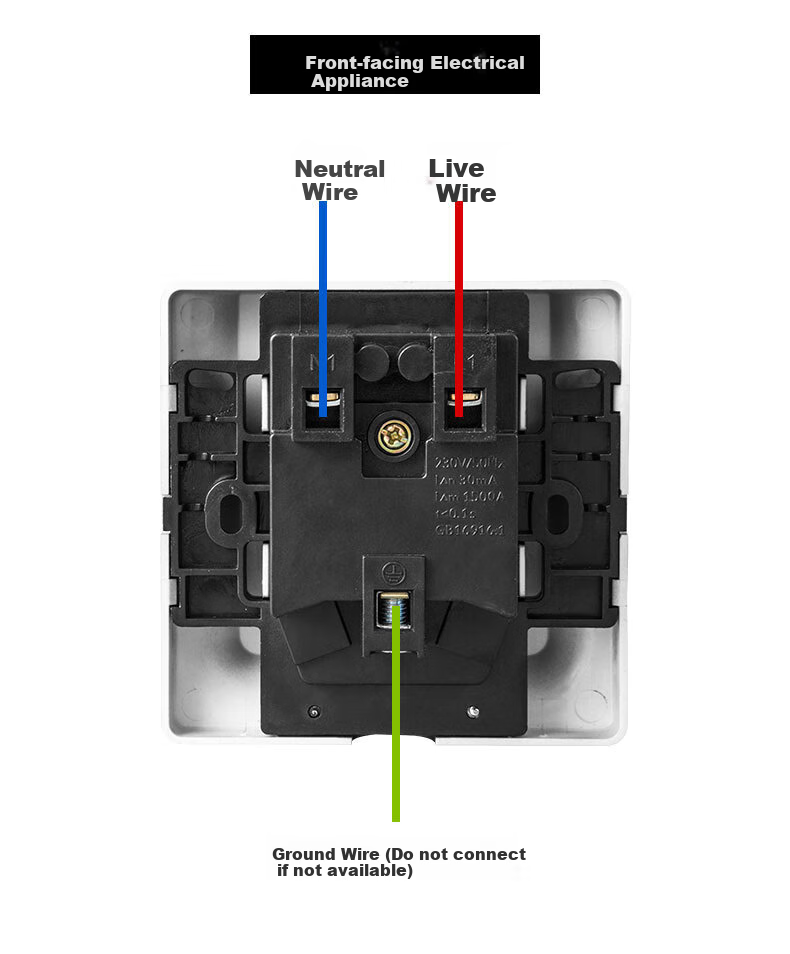

  • Connect the live wire, neutral wire, and ground wire as follows: Live wire to the appliance, neutral wire, and ground wire. Connect the neutral wire and live wire to the appliance. Connect the ground wire if available.

Additional details

Testing

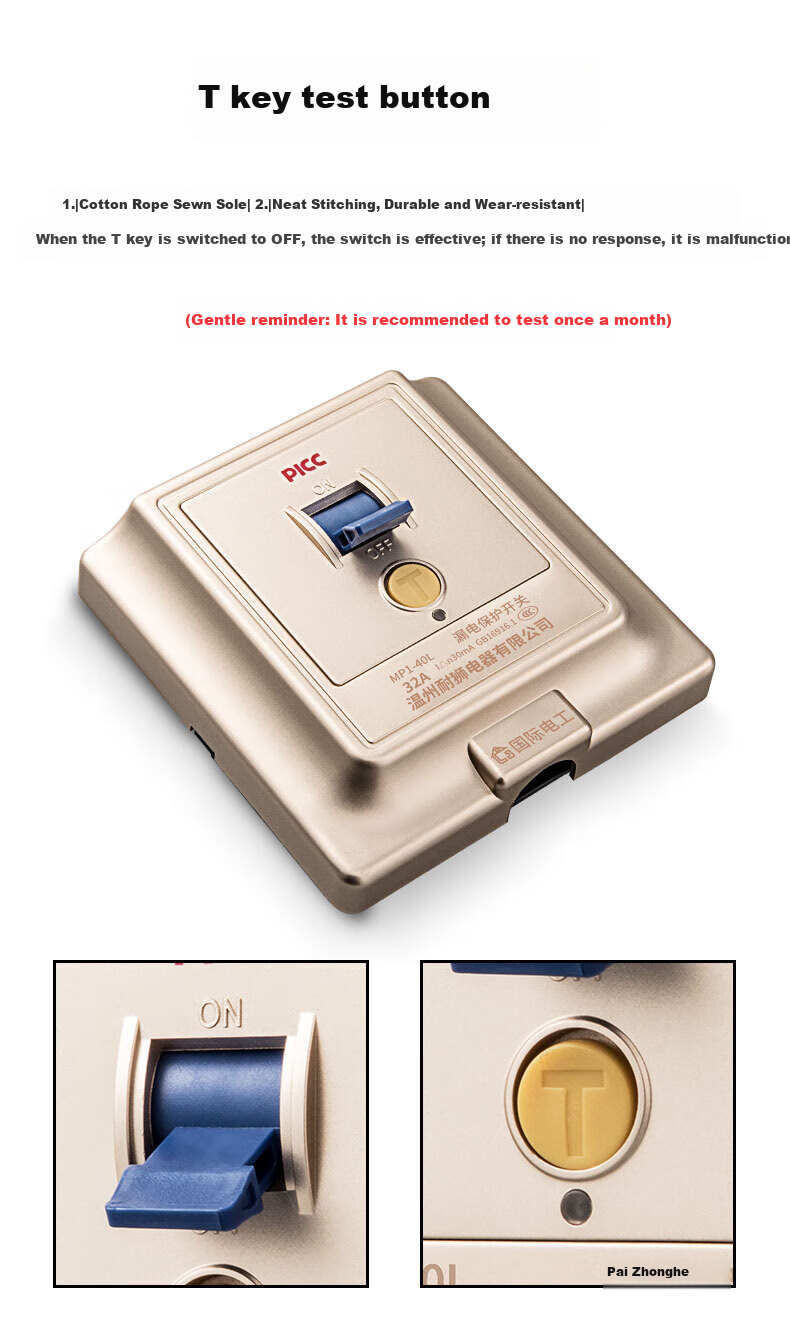

Use the T-key test button to check the effectiveness of the leakage protection. Press the T-key when the switch is ON and if it trips to OFF, the switch is effective. Test monthly for optimal performance.
Additional Information
The product complies with safety standards and regulations set by PICC, QW-40L, and GB169161.

The information provided is based on the specifications and features of the FDD brand leakage protection switches and sockets.
