Back to CatalogMOBIGARDEN Outdoor Camping Self-Standing Quick-Open Canopy Holiday Dome PO9.0 Sunshade Curtain NX24672018 Morning Mist White
Variants / Sale Attributes
Color: Canopy Sunshade Curtain Morning Mist White
Package Contents
Canopy x1 or Accessory x1
Product Description
Product Specifications

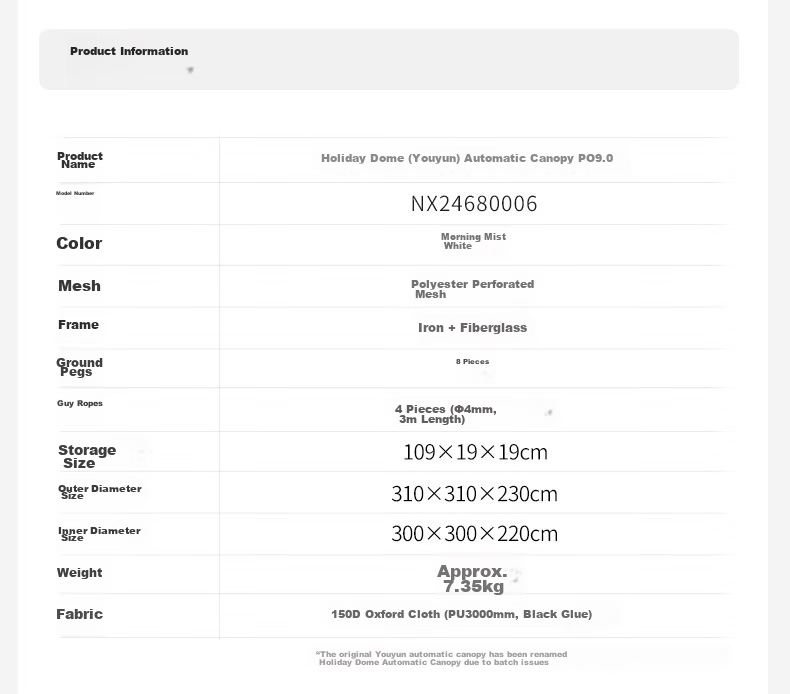

Overview
- Brand
- MOBIGARDEN
- Product Name
- Holiday Dome Automatic Canopy PO9.0 (formerly Youyun Automatic Canopy)
- Model Number
- NX24680006
- Color
- Morning Mist White
- Fabric
- 150D Oxford Cloth with PU3000 mm waterproof coating and black glue layer
- Mesh
- Polyester perforated mesh
- Frame
- Iron + Fiberglass
Similar Products
In Stock
In Stock

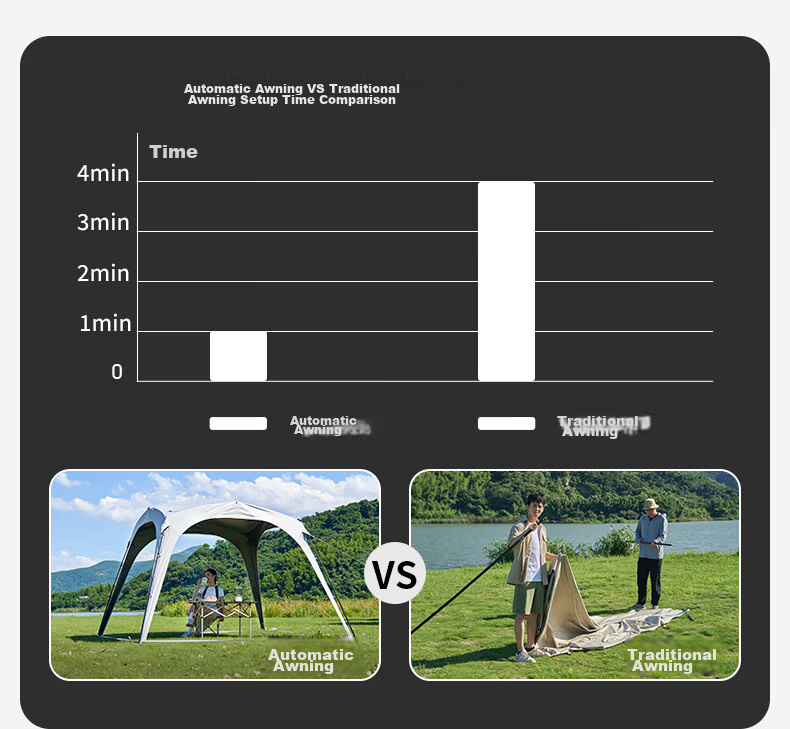

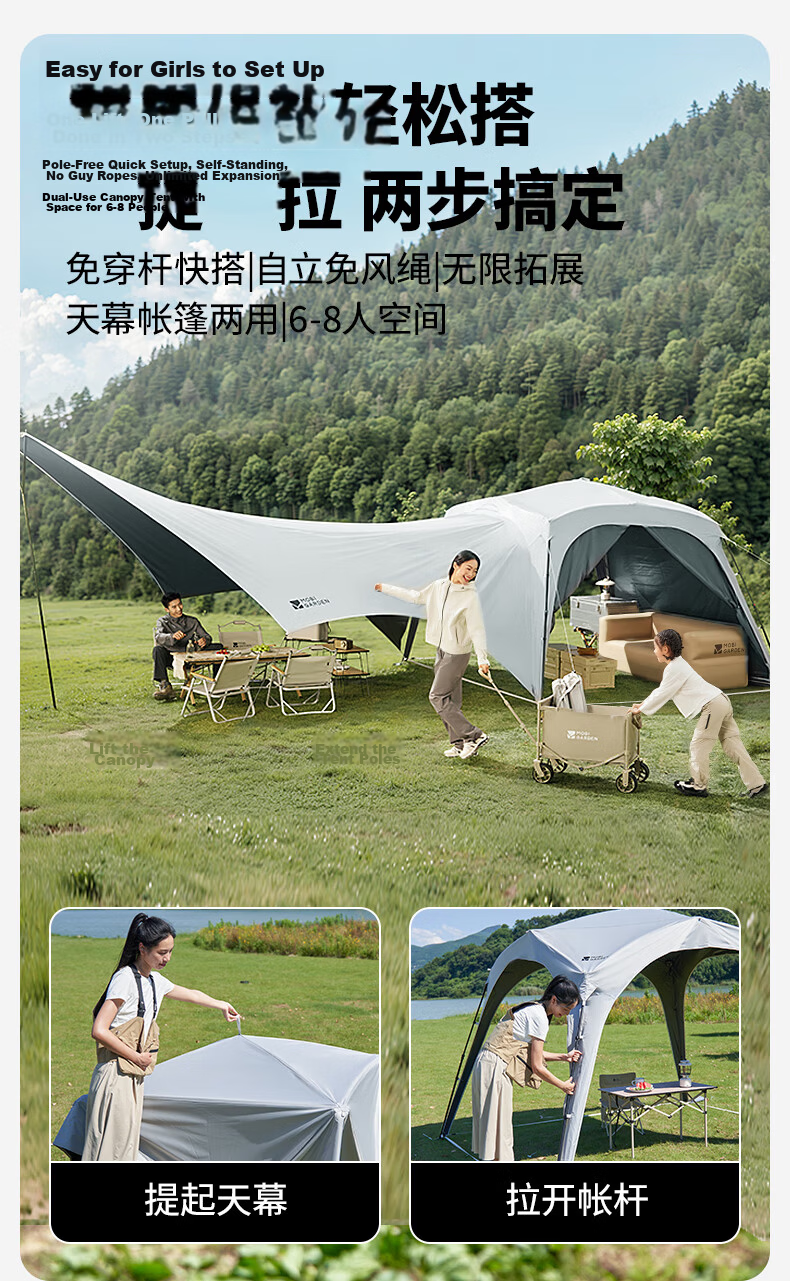

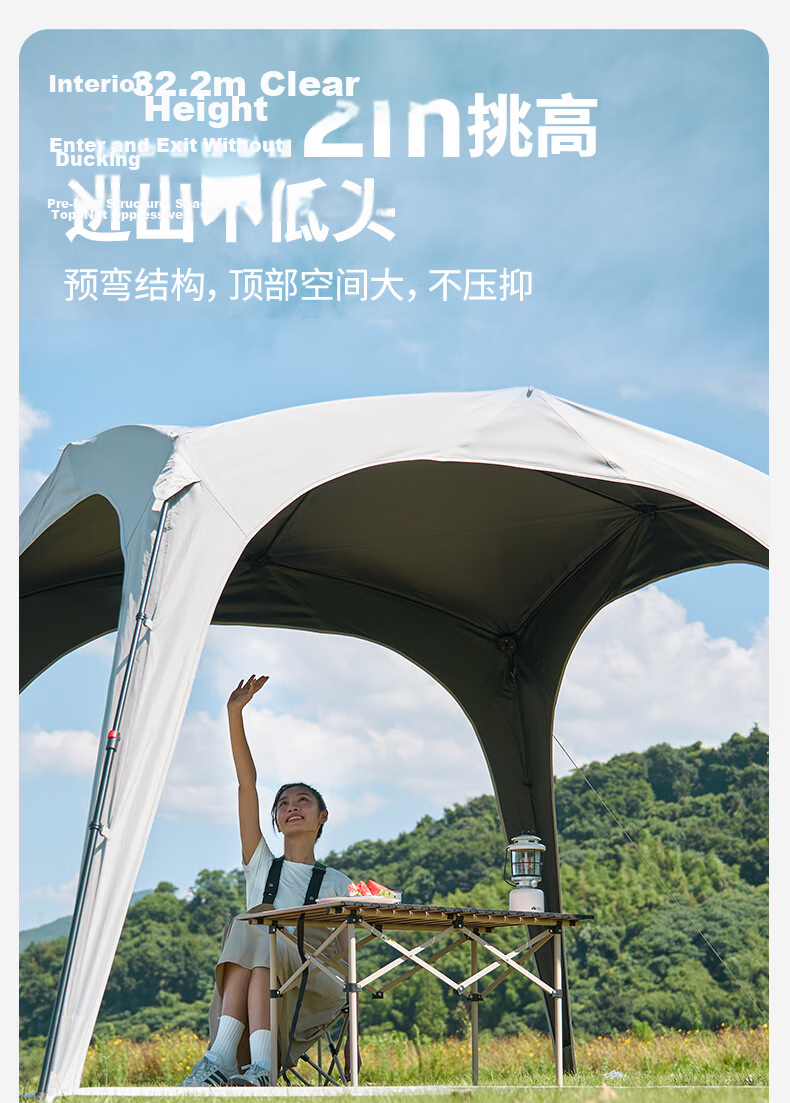

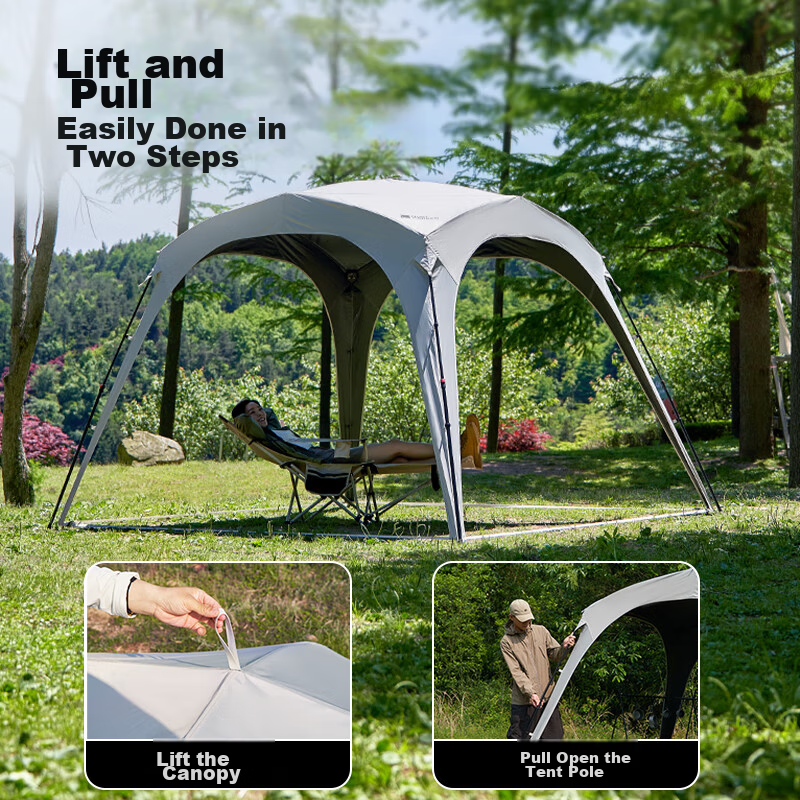

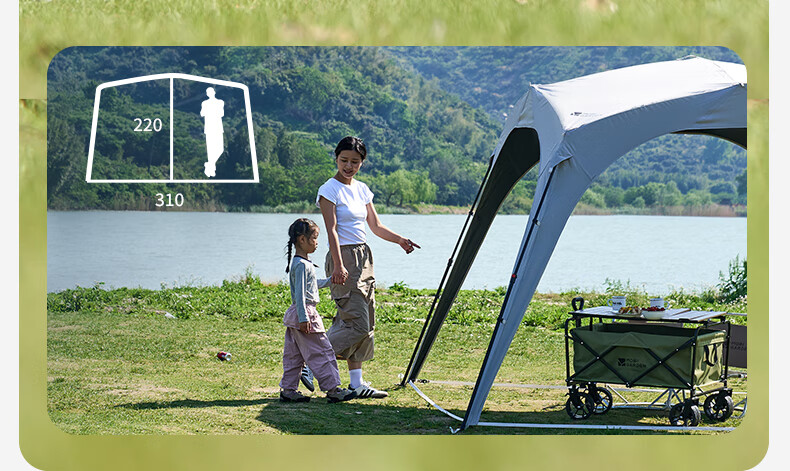

Guy Ropes4 pieces (Φ4 mm, 3 m length) Packed Size109 × 19 × 19 cm Outer Dimensions310 × 310 × 230 cm Inner Dimensions300 × 300 × 220 cm Height230 cm (peak), 32.2 m² internal area with pre-bent structure for spacious headroom Quick single-person setup in 1 minute with pull-and-lift mechanism; no pole threading required

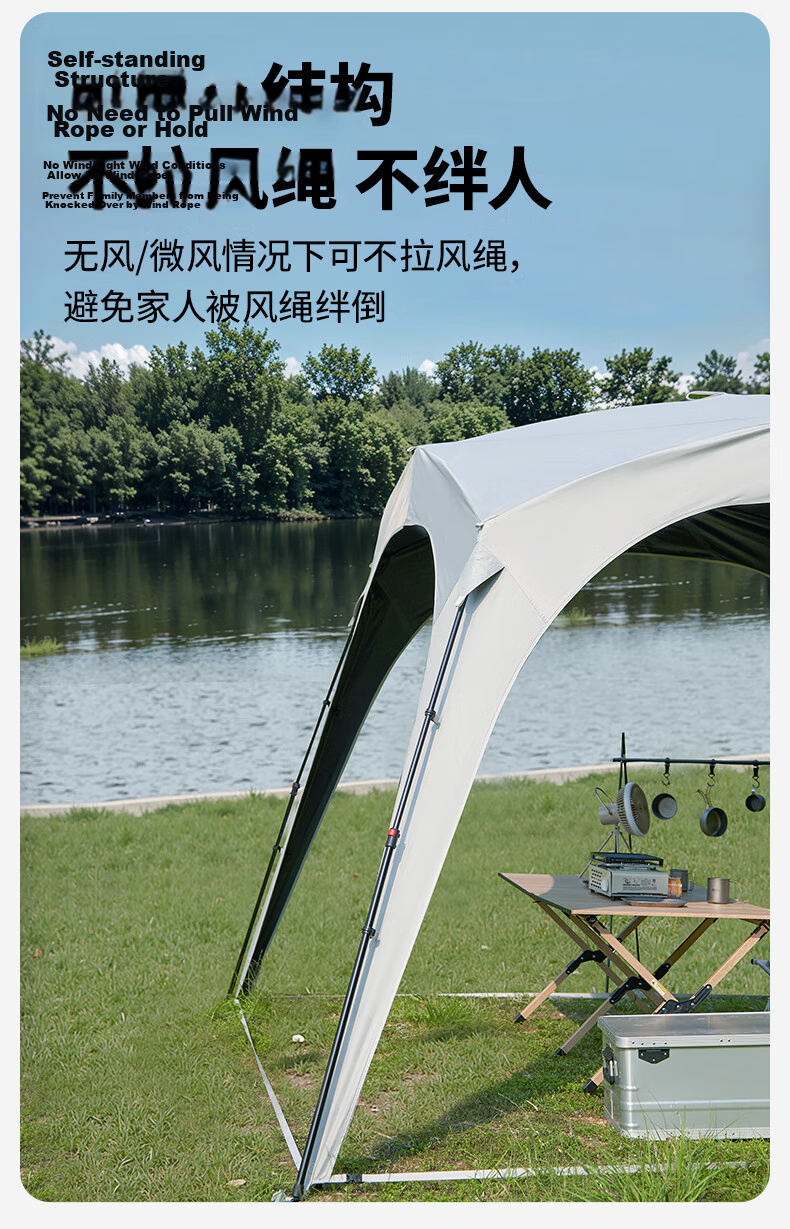

Self-supporting structure without need for guy ropes in no or light wind conditions
DIY unlimited expansion capability with compatible extension canopies and accessories
Additional details

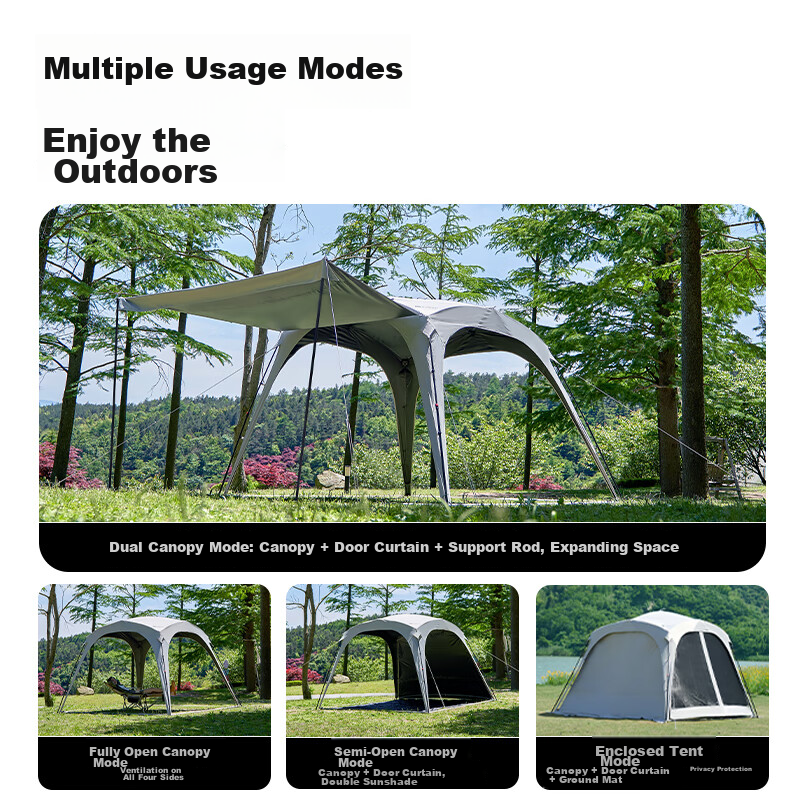

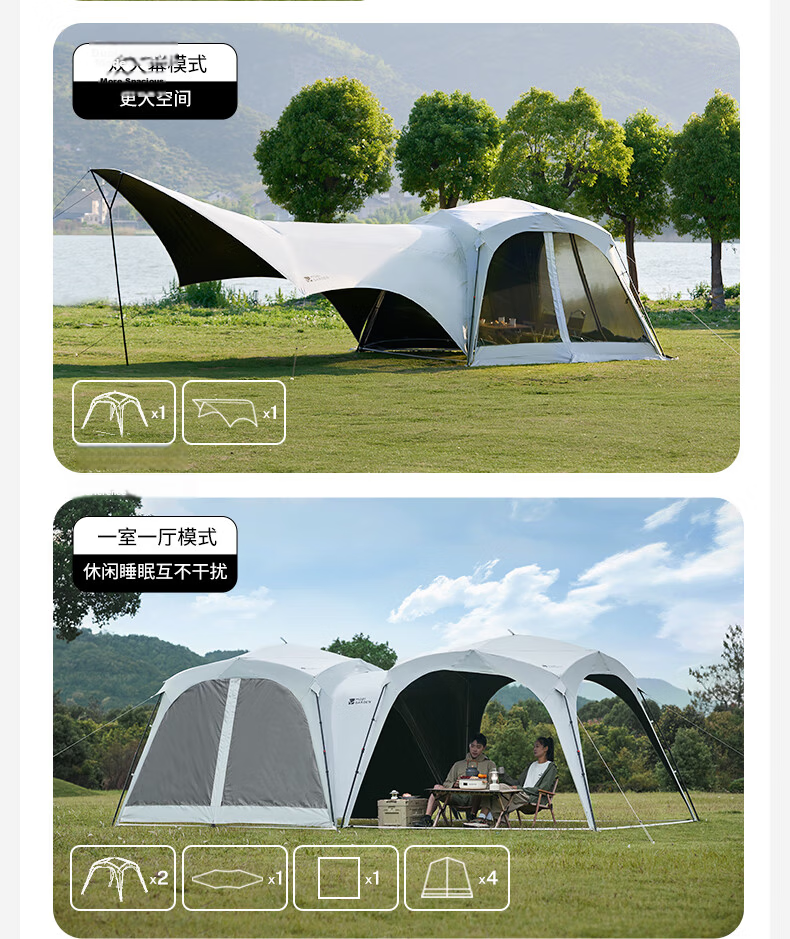

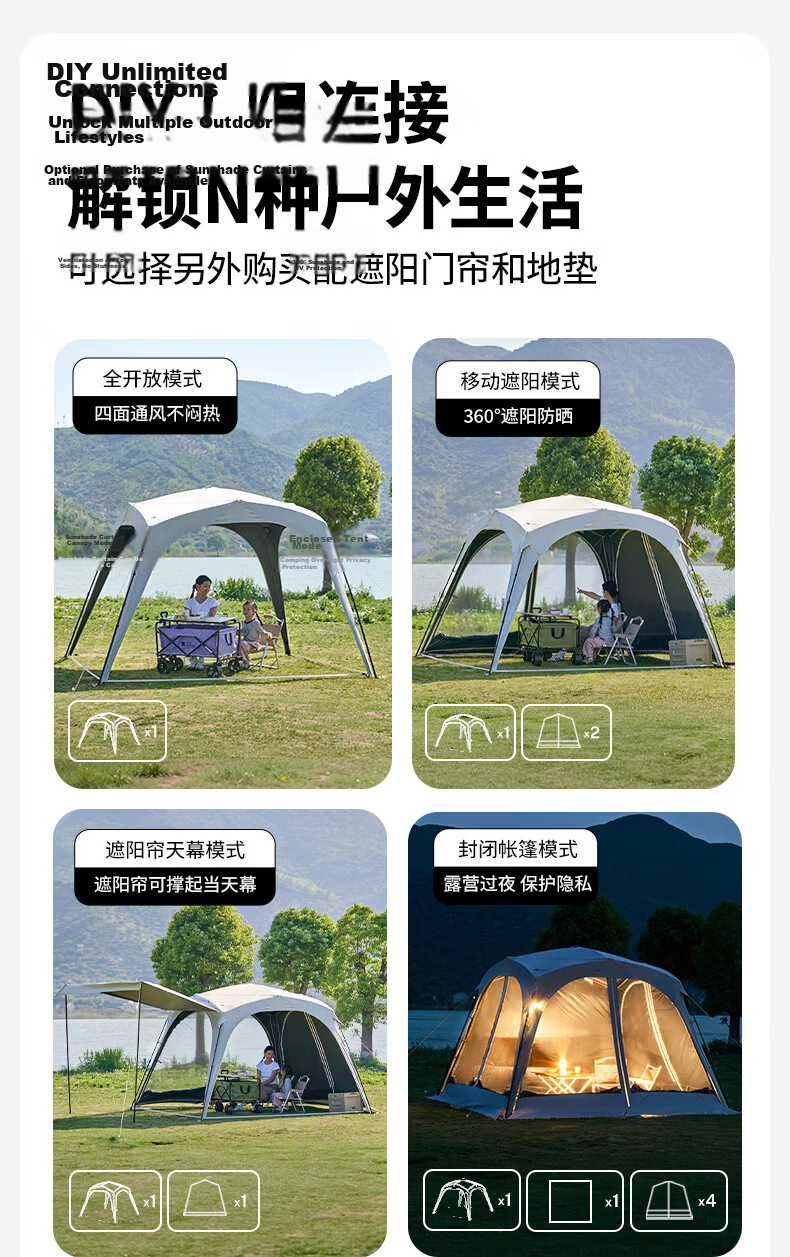

- Dual canopy mode
- one room plus one living area for separate leisure and sleeping spaces

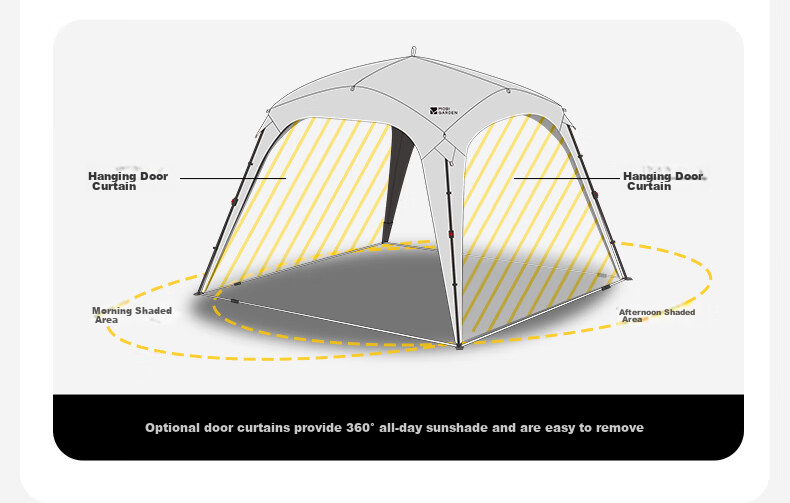

Full open mode and movable sunshade mode with 360° ventilation and sun protection
Sunshade curtain can be raised to form canopy or closed for privacy during overnight camping

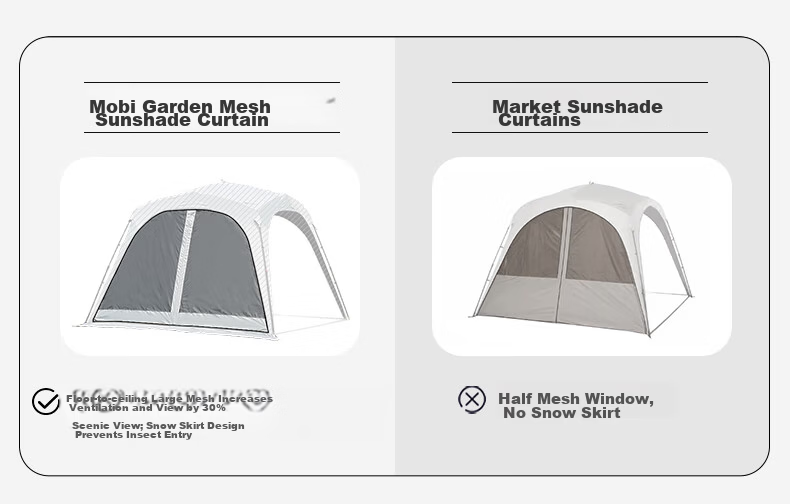

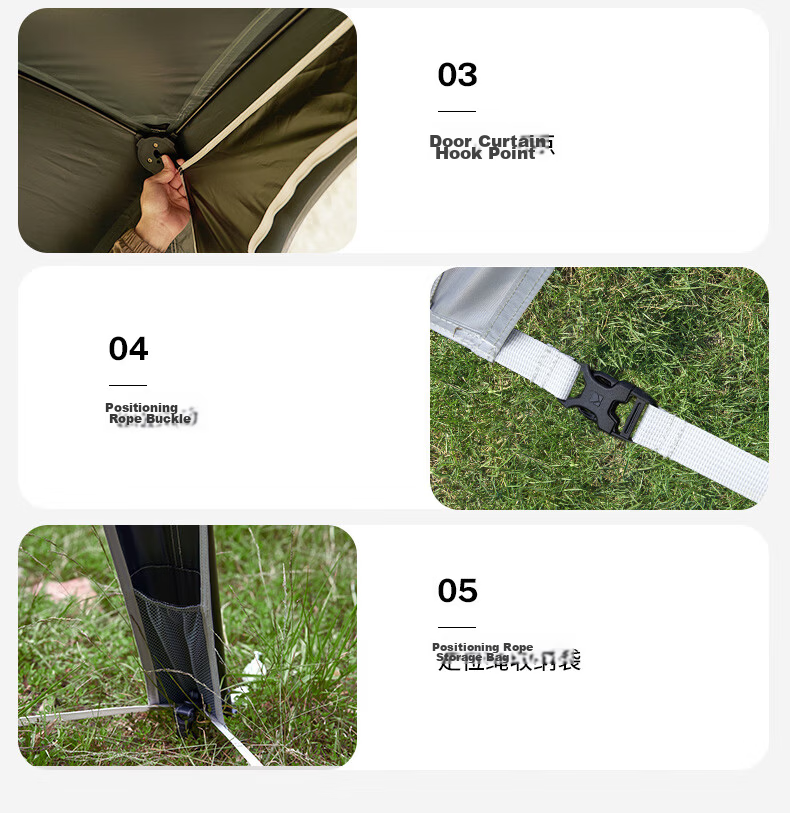

Large mesh door with zipper for ventilation, sunshade, and mosquito protection; door hooks for easy hanging
High ventilation mesh increases airflow by 30% compared to market alternatives

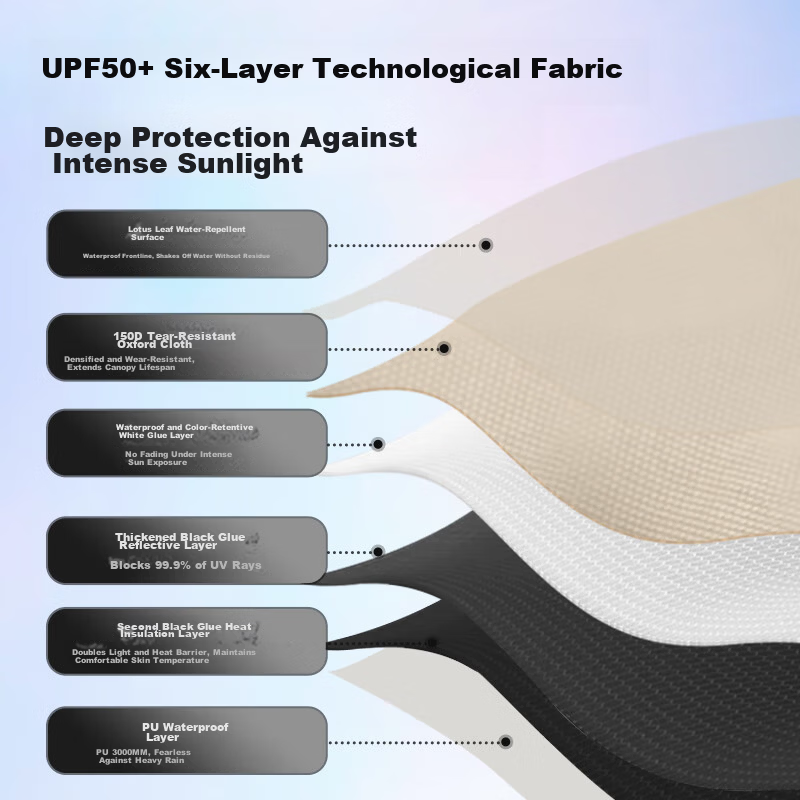

Fabric technology includes six-layer composite for sun protection, heat insulation, and waterproofing:

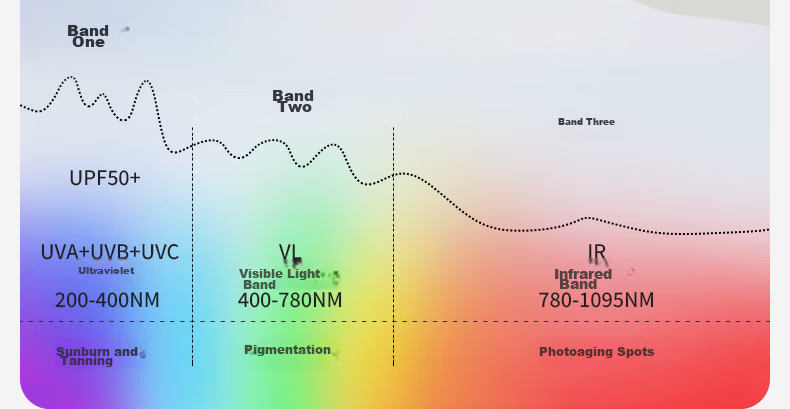

- UPF50+ blocking UVA, UVB, UVC rays
- Lotus leaf water-repellent surface
- 150D tear-resistant Oxford fabric
- Waterproof white glue layer resistant to fading
- Thick black glue reflective layer blocking 99.9% UV rays
- Double black glue heat insulation layers maintaining comfortable temperature
- PU waterproof layer rated 3000mm water column resistance
Additional details
- Heat insulation rate
- 42.2% for cool and comfortable outdoor experience
Shade area nearly 10m², suitable for 6-8 people; fits two 1.2m tables and 8 chairs under canopy
1. Automatic Canopy Ground Mat
Additional details
- Model
- NX24672021
- Color
- Night Black
- Weight
- ~950 g
- Size
- 290 × 290 cm (open), 34 × 22 × 5 cm (packed)
- Material
- 150D Oxford Cloth with PU2000 mm waterproof coating
2. Automatic Canopy Sunshade Curtain with Poles
Additional details
- Model
- NX24672017
- Color
- Morning Mist White
- Weight
- ~2.6 kg
- Size
- 290 × 193 cm (open), 63 × 10 × 10 cm (packed)
- Material
- 150D Polyester Oxford Cloth with PU3000 mm black glue
- Includes
- 4 ground stakes, 2 guy ropes, 2 iron poles (Φ22 mm, 220 cm length)

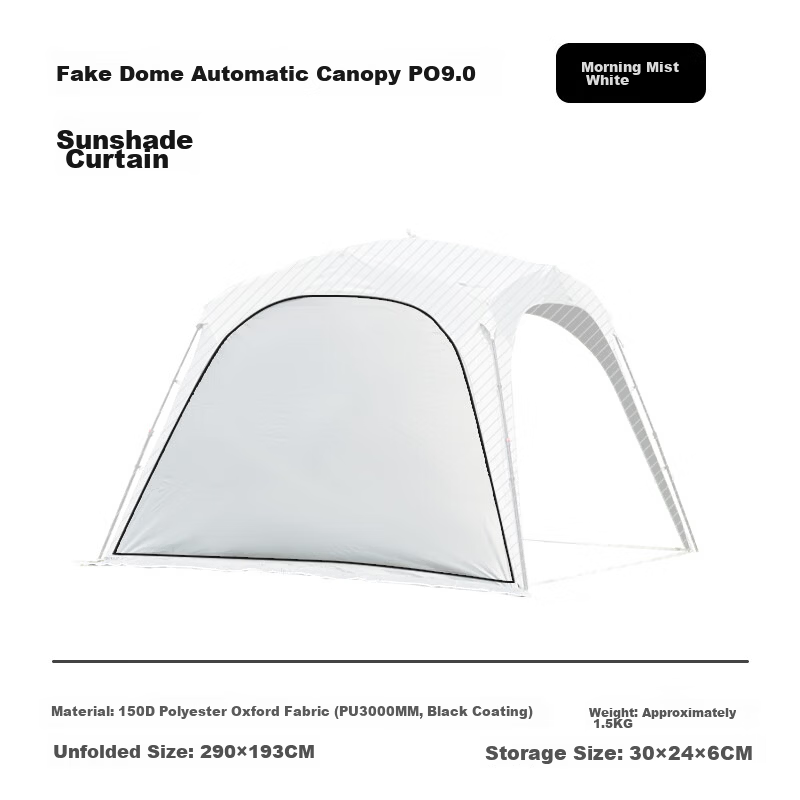

3. Automatic Canopy Sunshade Curtain (without poles)
Additional details
- Model
- NX24672018
- Color
- Morning Mist White
- Weight
- ~1.5 kg
- Size
- 290 × 193 cm (open), 30 × 24 × 6 cm (packed)
- Material
- 150D Polyester Oxford Cloth with PU3000 mm black glue
4. Automatic Canopy Mesh Door
Additional details
- Model
- NX24672019
- Color
- Morning Mist White
- Weight
- ~1.1 kg
- Size
- 290 × 193 cm (open), 30 × 24 × 6 cm (packed)
- Mesh
- B3 non-hook mesh
- Material
- 150D Polyester Oxford Cloth with PU3000 mm black glue
5. Expansion Canopies 400/500 (Oxford Black Glue Version)
Additional details
- Model
- NX24680023 (400), NX24680024 (500)
- Fabric
- 150D Oxford Cloth with PU2000 mm black glue
- Frame
- Iron poles (2.3 m for 400, 2.5 m for 500)
- Ground Stakes
- 3 pieces
- Guy Ropes
- 3 pieces
- Size
- 500 × 400 × 230 cm (400), 500 × 500 × 250 cm (500)
- Packed Size
- 76 × 12 × 12 cm
- Weight
- ~3.6 kg (400), ~4.0 kg (500)
Additional details
- Model
- NX24672030
- Color
- Morning Mist White
- Material
- 150D Oxford Cloth with PU3000 mm
- Size
- 486 × 120 cm
- Weight
- ~600 g

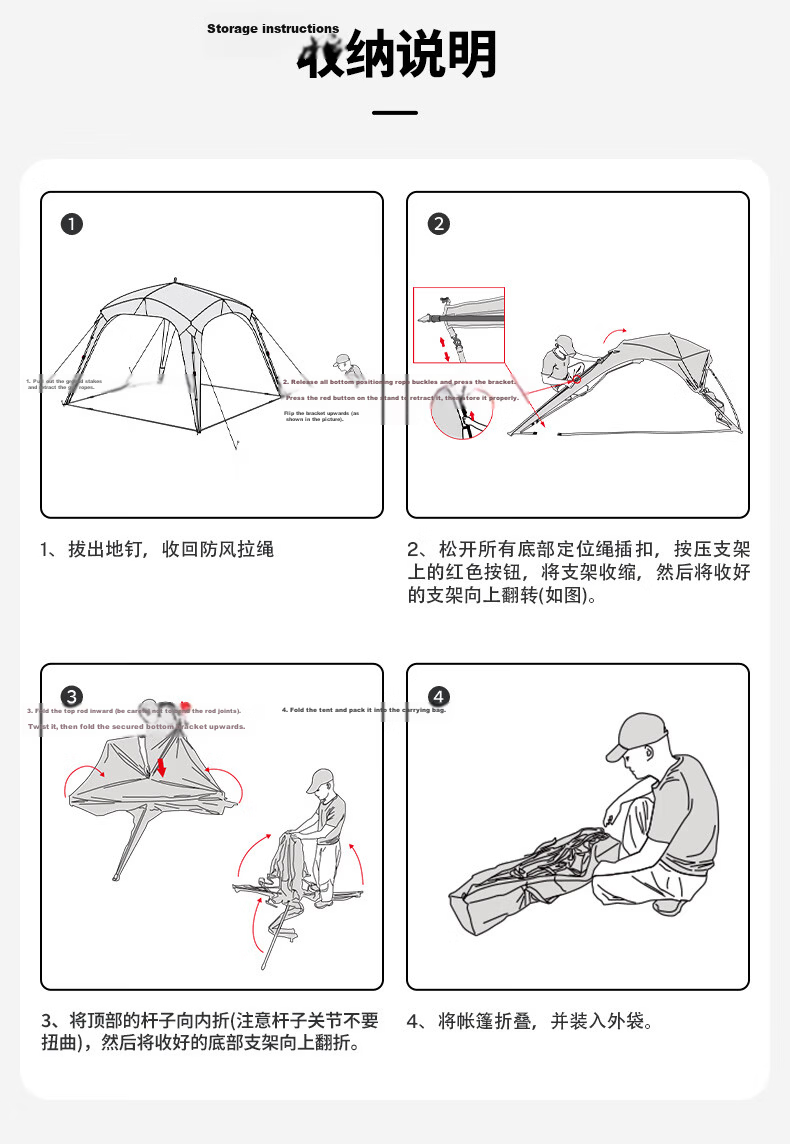

Remove ground stakes and retract guy ropes
Release all bottom positioning buckles
Press red button on frame to collapse and fold frame upwards
Fold top poles inward carefully without twisting joints
Fold tent and place into storage bag
Avoid regular folding patterns to prevent crease damage

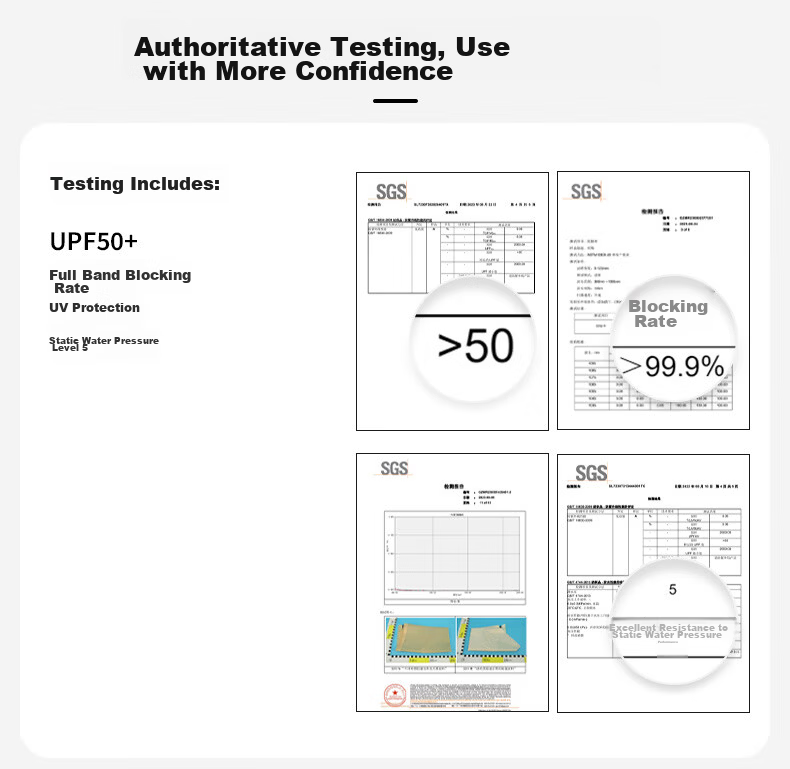

SGS tested for UPF50+ full spectrum UV protection (>50 blocking rate)
Excellent static water pressure resistance (>99.9%)
Abrasion resistance >100,000 cycles without damage
Free from harmful aromatic amine dyes, formaldehyde, and odors
Additional details

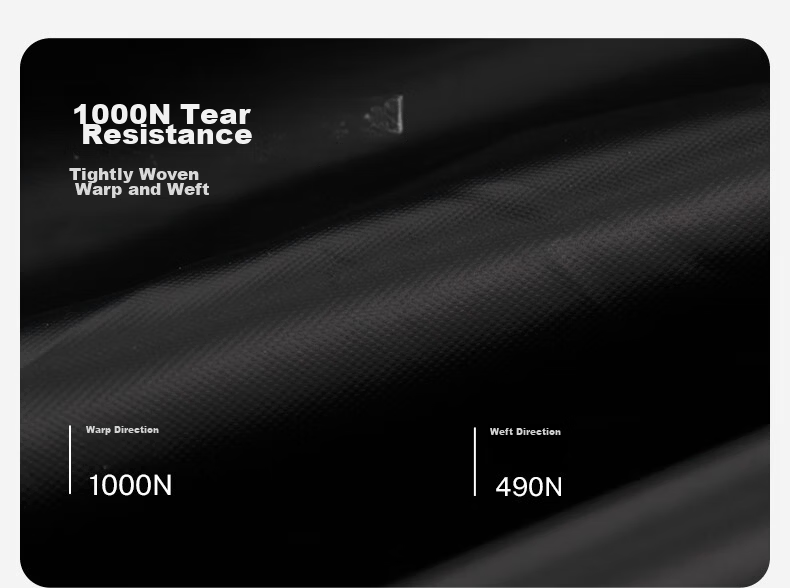

- Tensile strength
- warp 1000N, weft 490N
Clean canopy, poles, stakes after each use; remove snow, rain, dust, grass, insects
Do not machine wash; hand wash with non-alkaline detergent and rinse with water
Dry in ventilated, shaded area; avoid folding in the same pattern repeatedly
Use headlamps or lanterns for lighting; avoid open flames under canopy
Contact dealer or manufacturer for repairs of holes, zippers, or frame damage
Minor coating scratches and mesh snags are normal due to handmade production and do not affect performance
Small coating pinholes visible under light are normal and do not indicate defects
MOBIGARDEN continuously improves production technology to ensure high-quality outdoor products
Weight data may vary within ±5% due to manual manufacturing
Holiday Dome Automatic Canopy PO9.0 with frame, stakes, guy ropes, and mesh door
Outdoor camping, leisure, sunshade, and privacy protection for 6-8 people
