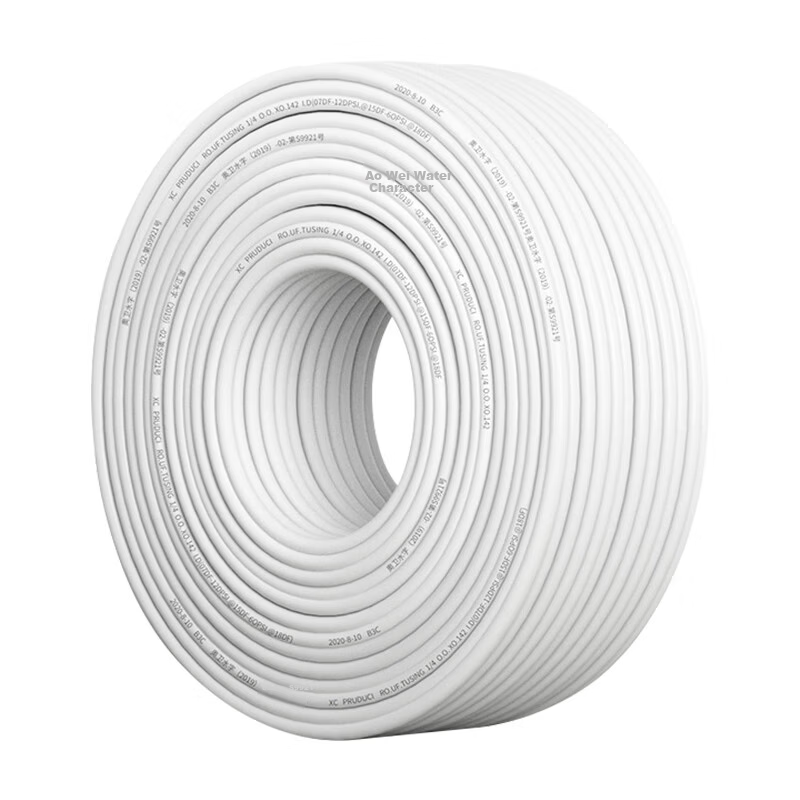

Jingwanhui Universal Water Purifier Pipe 2-Point PE Tube Compatible with Midea Mijia Haier Smith Water Purifier Soft Pipe Pure Water Machine Direct Drinking Machine Water Pipe 10m W624

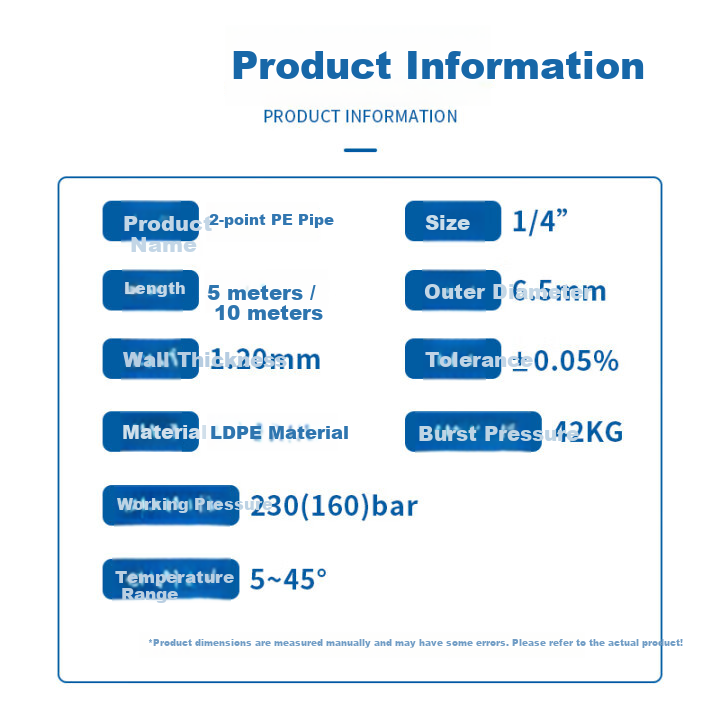

Marked on tube wall as 1/4" indicating 2-point tubing with outer diameter approximately 6.5mm

2-point tubing = 1/4" = diameter ±6.5mm

Can withstand high water pressure impact of 42KG

Use pipe cutter for smooth and even cuts to prevent leaks

Ensure tubing is fully inserted into fittings (13-15mm insertion depth) to avoid leakage

Avoid uneven cuts that can damage sealing rings and cause leaks

1. Remove the clip

2. Press the piston part of the connector and pull out the tubing

3. Complete disassembly

| Size (Metric) | Size (Inch) | Tube Outer Diameter | Thread Outer Diameter | Thread Inner Diameter |

|---------------|-------------|---------------------|-----------------------|-----------------------|

| 1-point | 1/8" | 3.2mm | 9.7mm | 8.6mm |

| 2-point | 1/4" | 6.4mm | 13.2mm | 11.4mm |

| 3-point | 3/8" | 9.5mm | 16.7mm | 15.0mm |

| 4-point | 1/2" | 12.7mm | 20.9mm | 18.6mm |

| 6-point | 3/4" | 19.1mm | 25.4mm | 23.1mm |

Thread size and tube diameter are different; for example, 2-point thread diameter is 12-12.5mm, while 2-point tube diameter is 6.0-6.5mm

All domestic water purifier tubing uses imperial size units as standard

Imperial size tubing diameter is abbreviated as O.D., thread diameter as NPTF
