Back to CatalogDELIXI ELECTRIC Digital Gauss Meter Magnetic Field Strength Tester Tesla Meter
Specifications
- Category
- electromagnetic radiation detector
Variants / Sale Attributes
Model: [Luxury Model] Level 2 Accuracy ±2%
Measuring range: official standard configuration

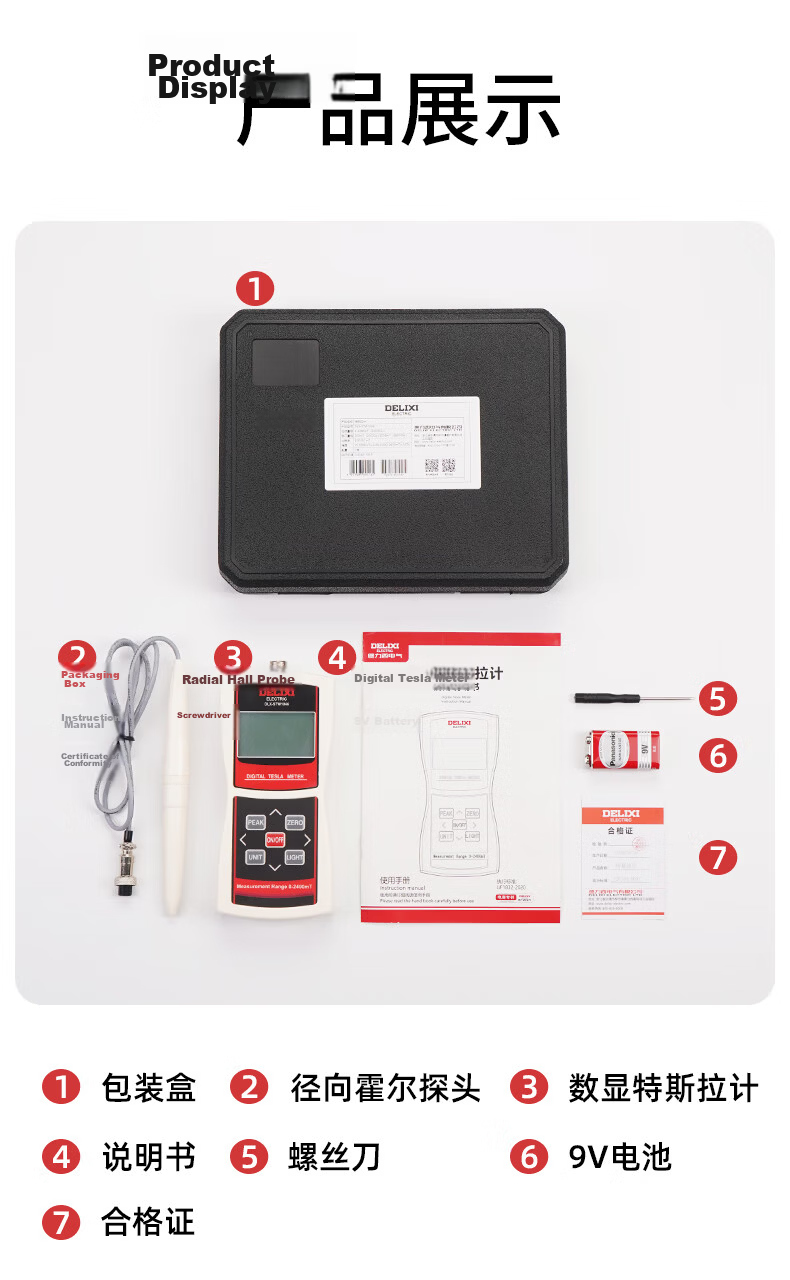

Package Contents
Product main body ×1
Product Description
Product Specifications
Overview
- Brand
- DELIXI ELECTRIC
- Model
- DLX-STW1045 / BUX-STWI046
- Product Type

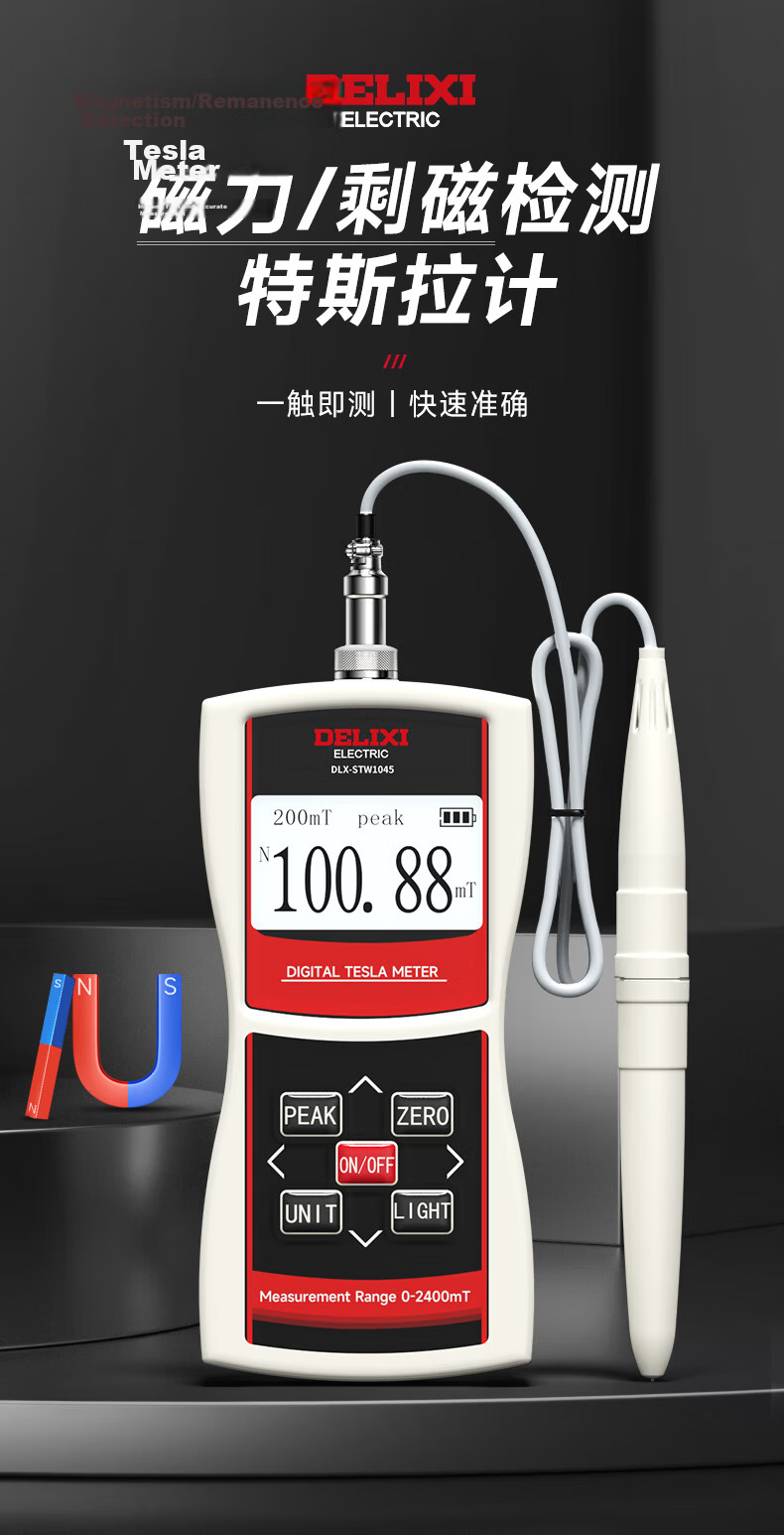

- Digital Teslameter (Magnetic Field Meter)
0 to 2400 mT (0 to 24000 Gs)

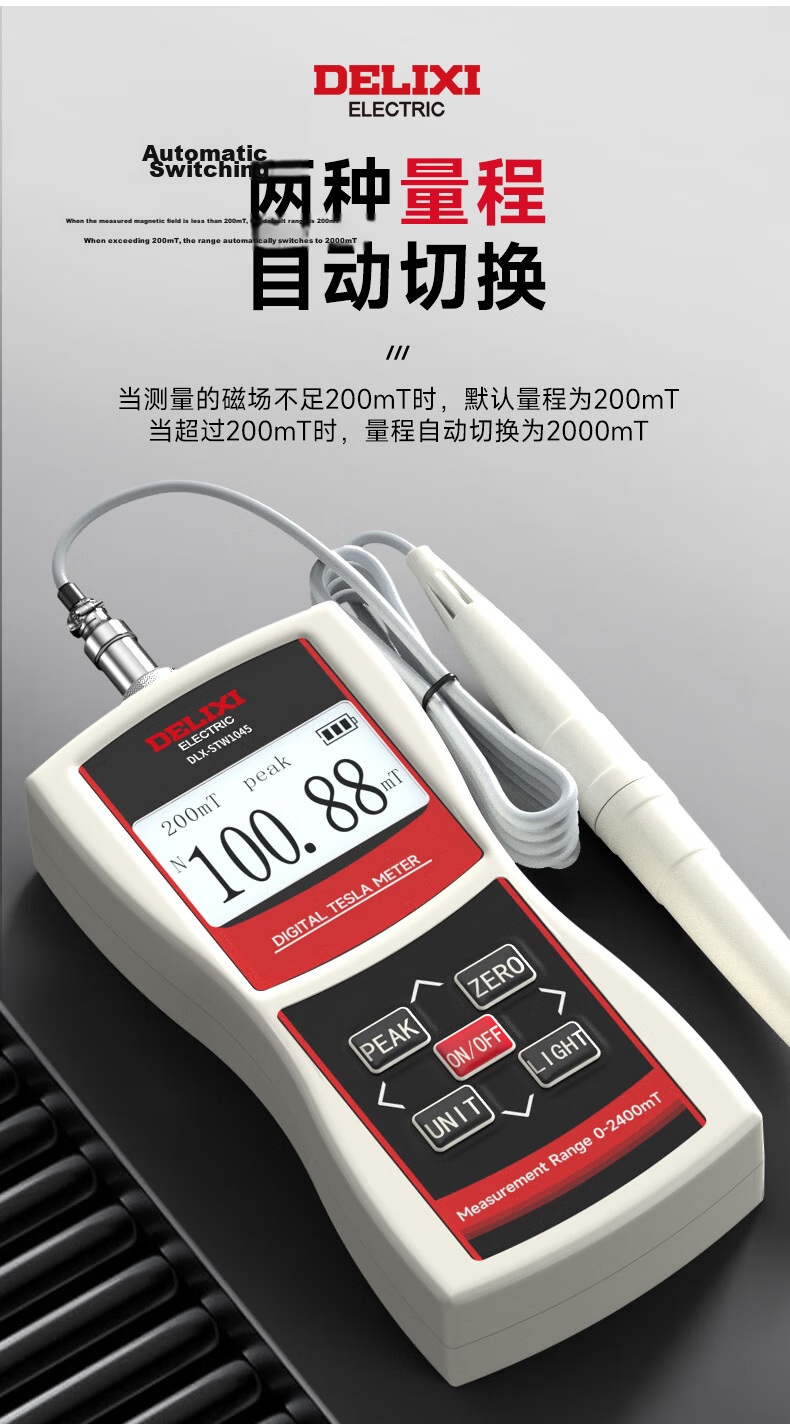

Auto-ranging between 200 mT (2000 Gs) and 2000 mT (20000 Gs)
Additional details
- Class 1
- ±1.0%
- Class 2
- ±2.0%
- Class 5
- ±2.0% (0-1000 mT), ±5.0% (1000-2400 mT)
Similar Products
In Stock
In Stock
0.01 mT (0.1 G) for 200 mT range
0.1 mT (1 G) for 2000 mT range

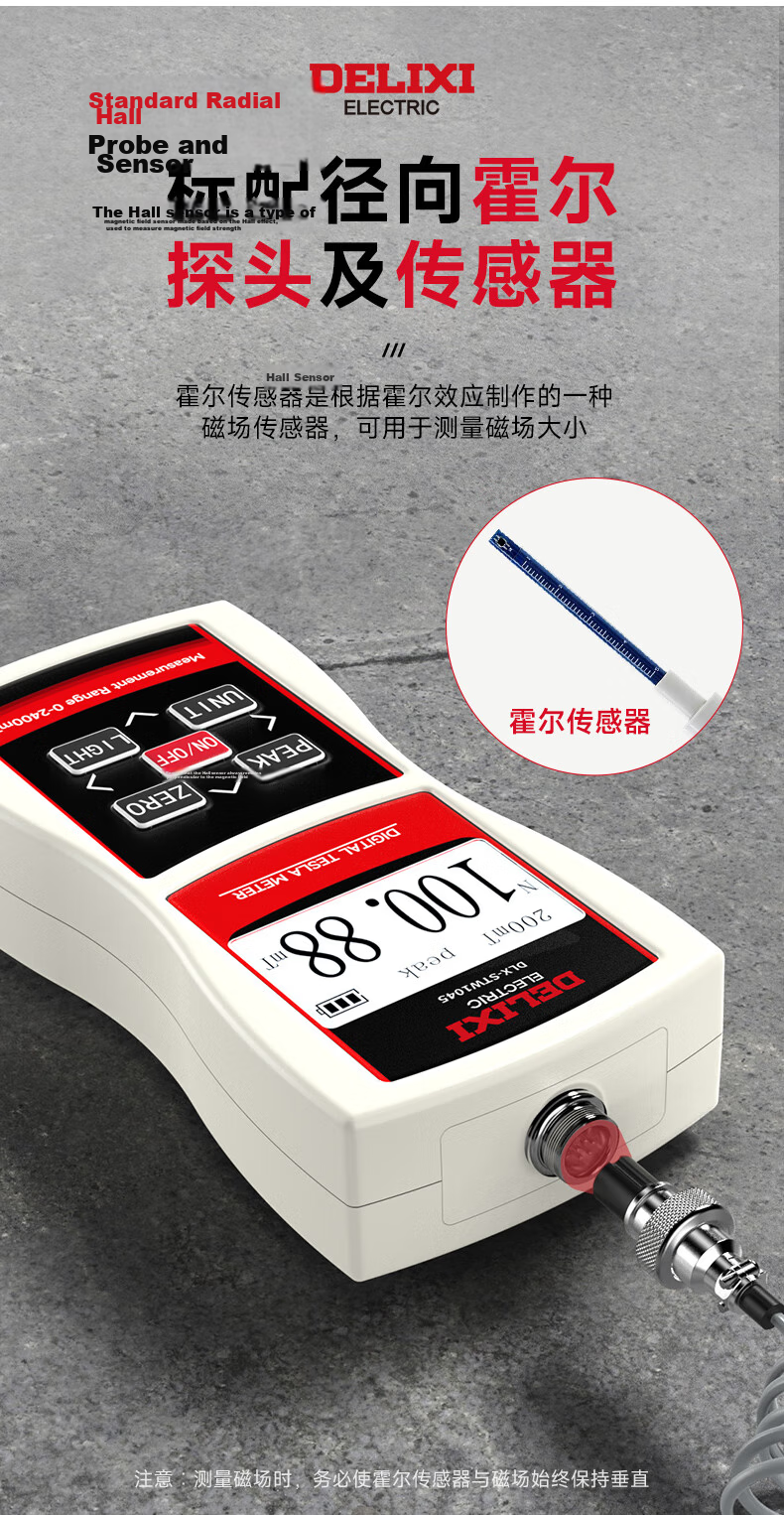

Radial Hall sensor probe (standard)
Hall effect magnetic sensor for precise magnetic field measurement
Sensor cable length approximately 1 meter

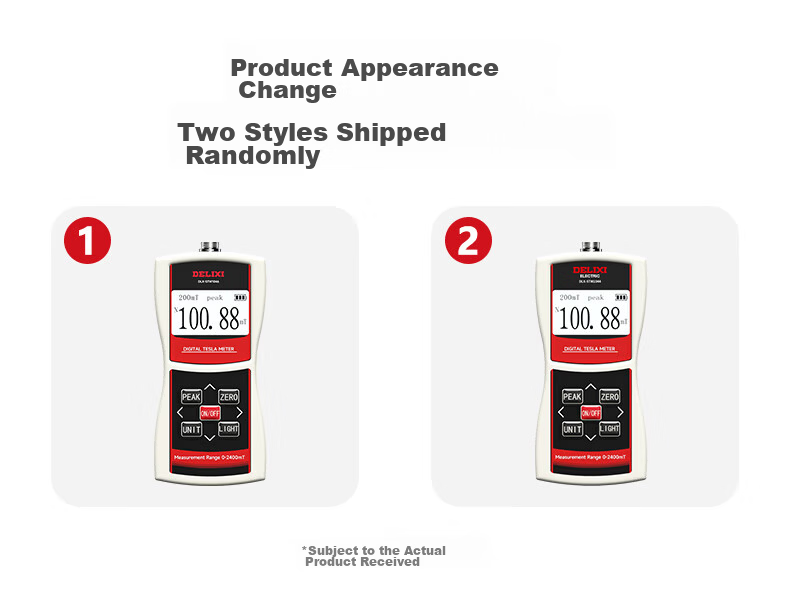

Two styles with random shipment; actual product appearance may vary
Magnetic field detection with peak and zero hold functions

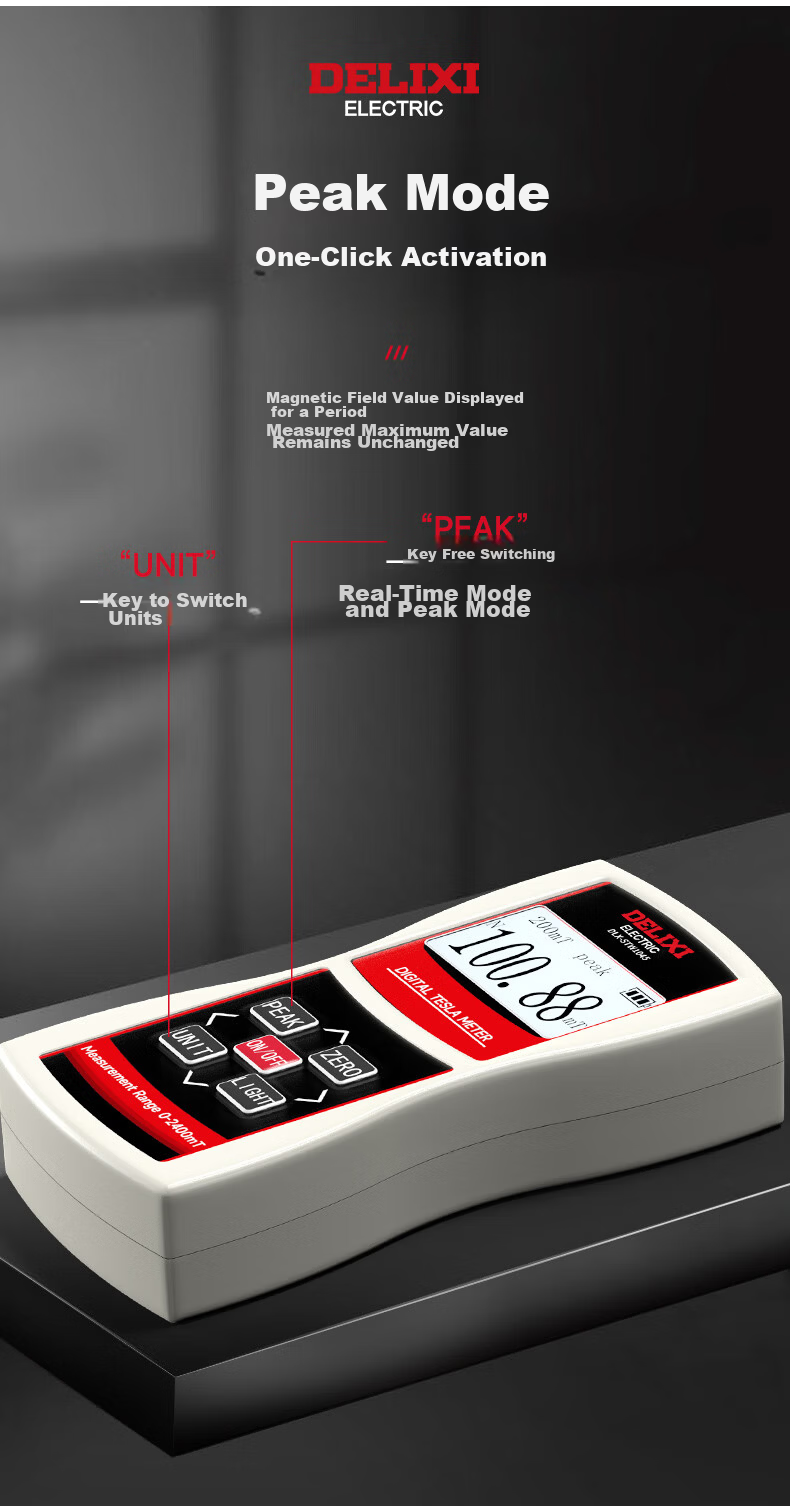

Real-time and peak mode measurement with one-button toggle
Automatic zero calibration on power-up

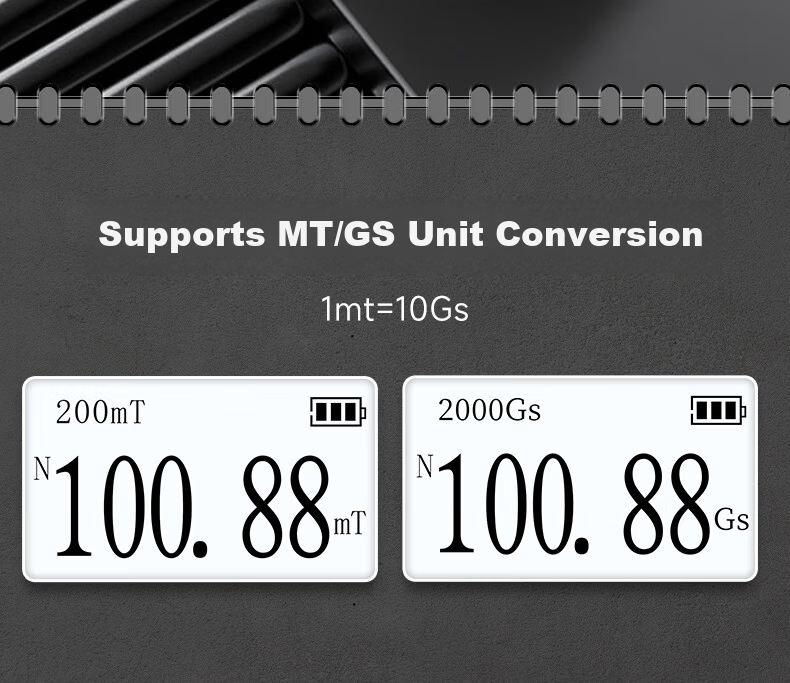

Unit conversion between mT and Gs (1 mT = 10 Gs)

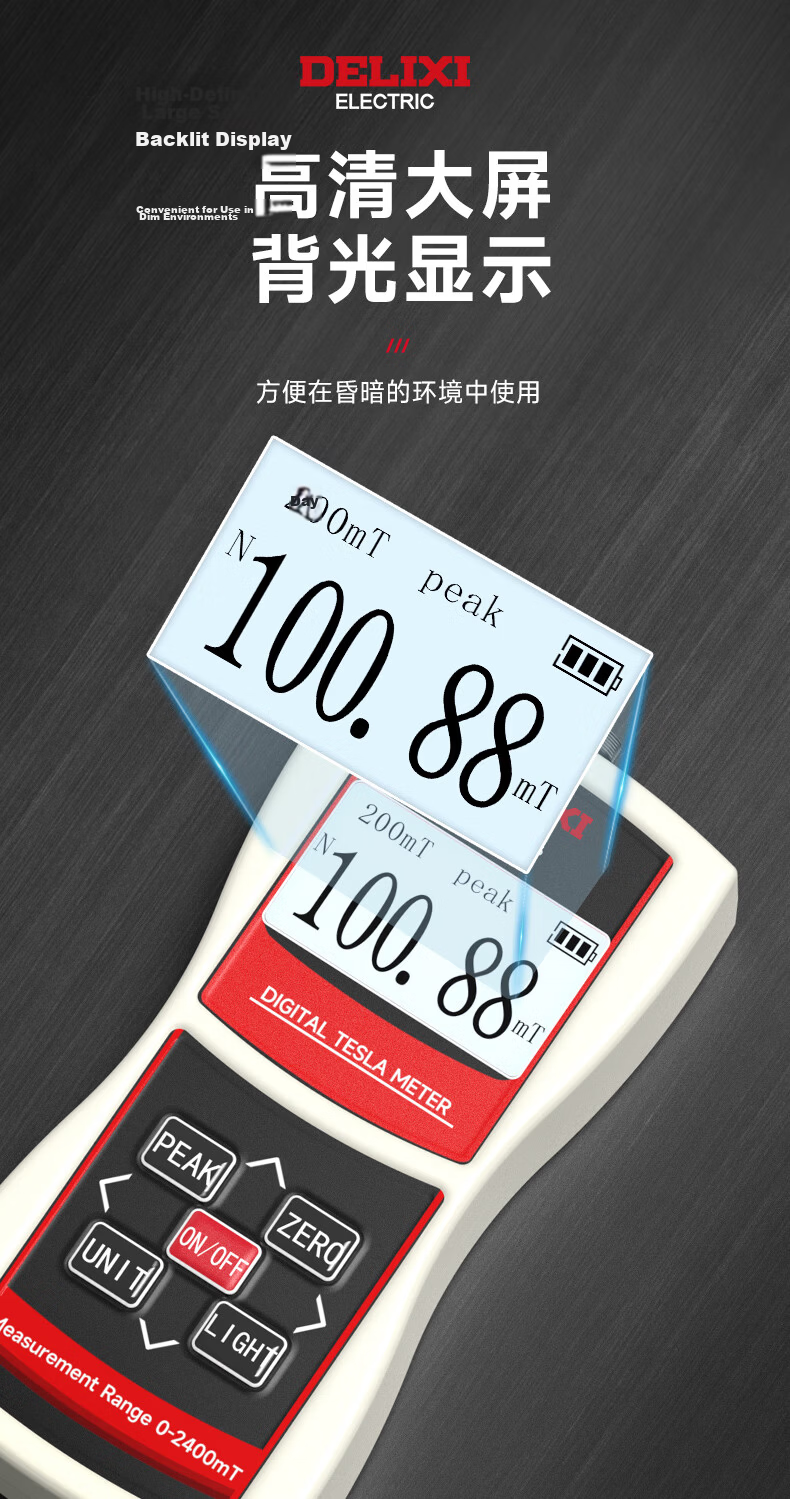

Backlit LCD display for easy reading in low light environments
Magnetic polarity detection (South/North) with automatic display of pole direction

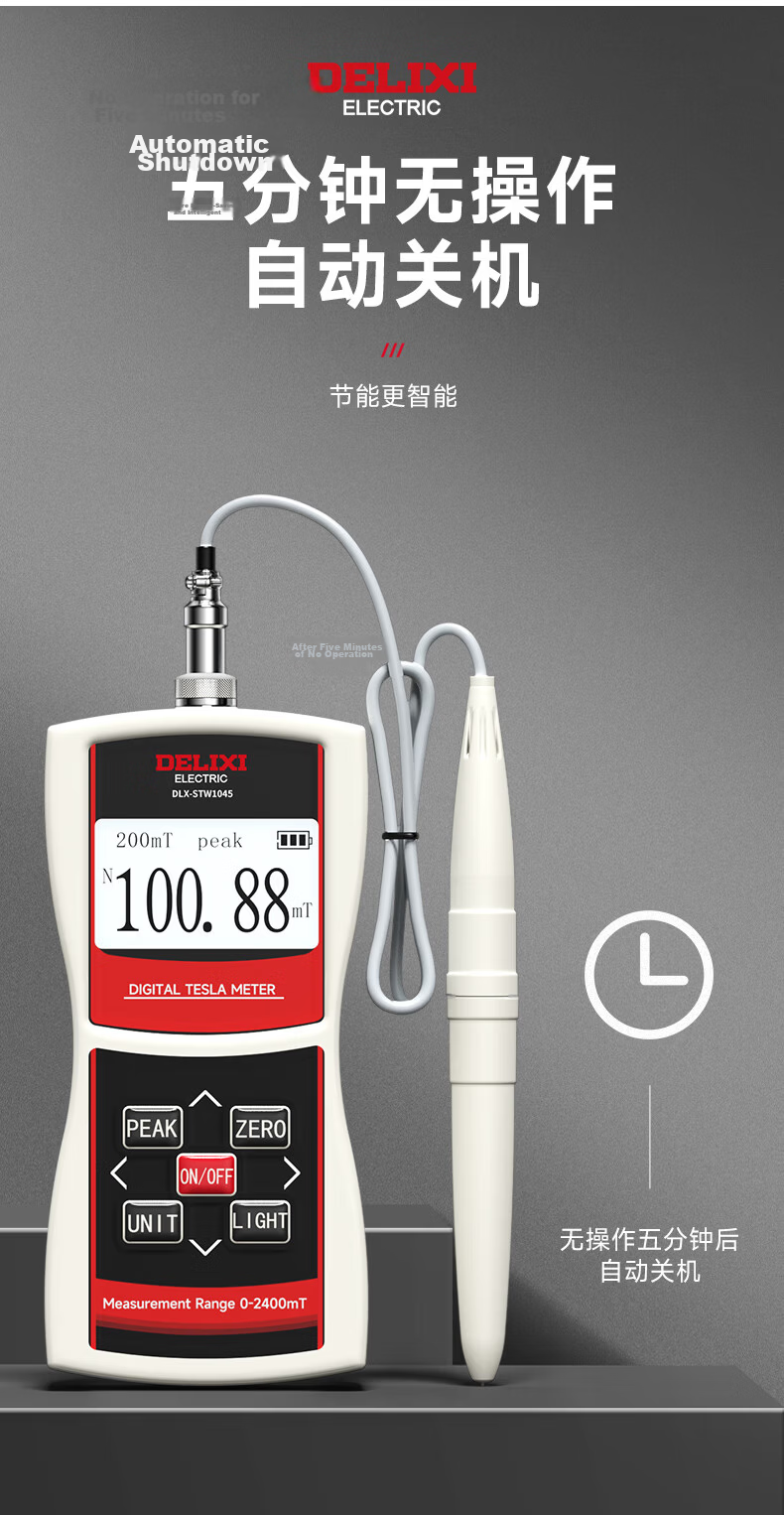

Auto power-off after 5 minutes of inactivity for energy saving

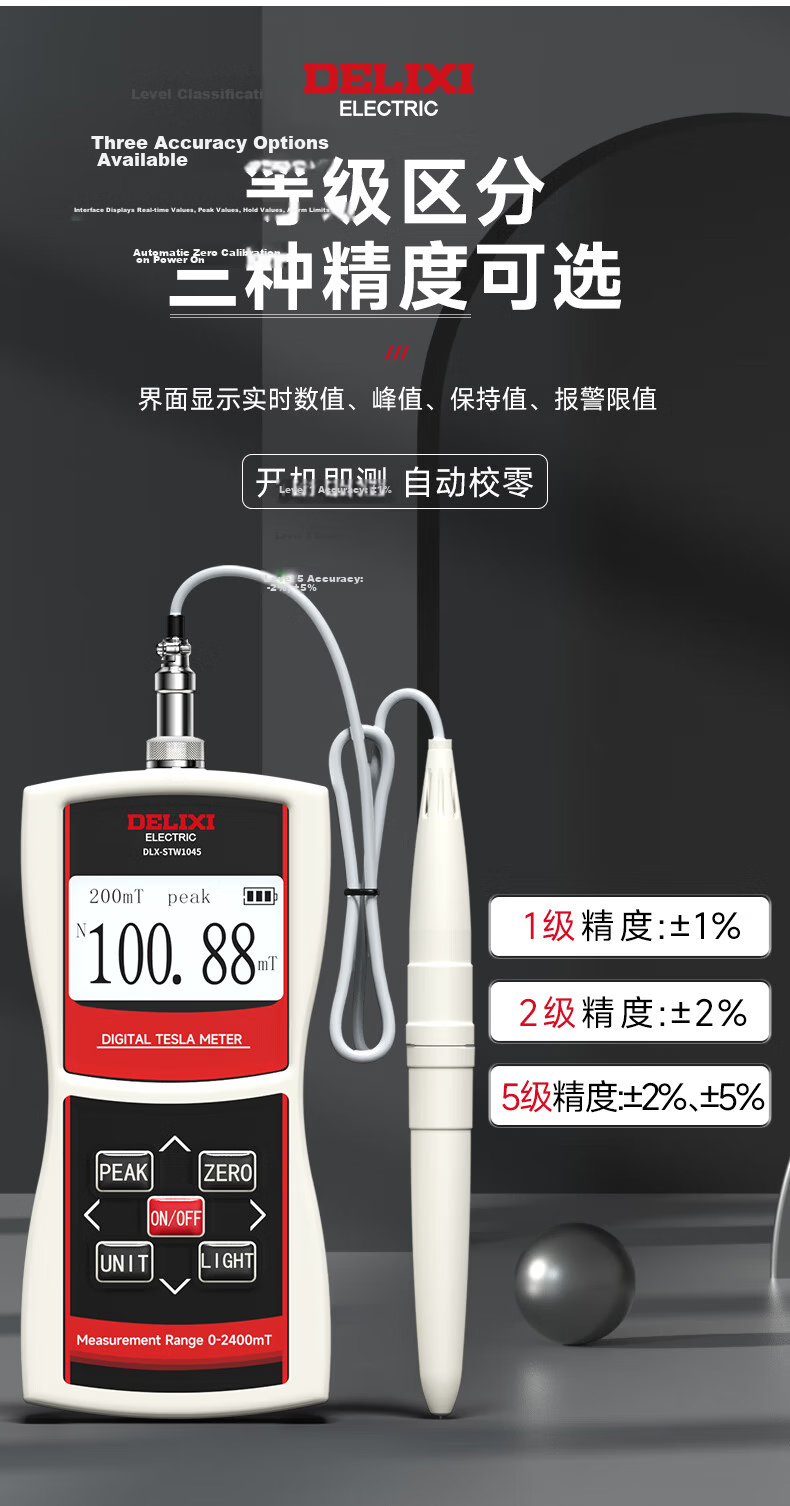

Measurement data display includes real-time value, peak value, hold value, and alarm limit
Three selectable accuracy grades for different measurement needs
Measurement range auto-switching based on magnetic field strength
Simple and quick magnetic field measurement with high accuracy
Additional details

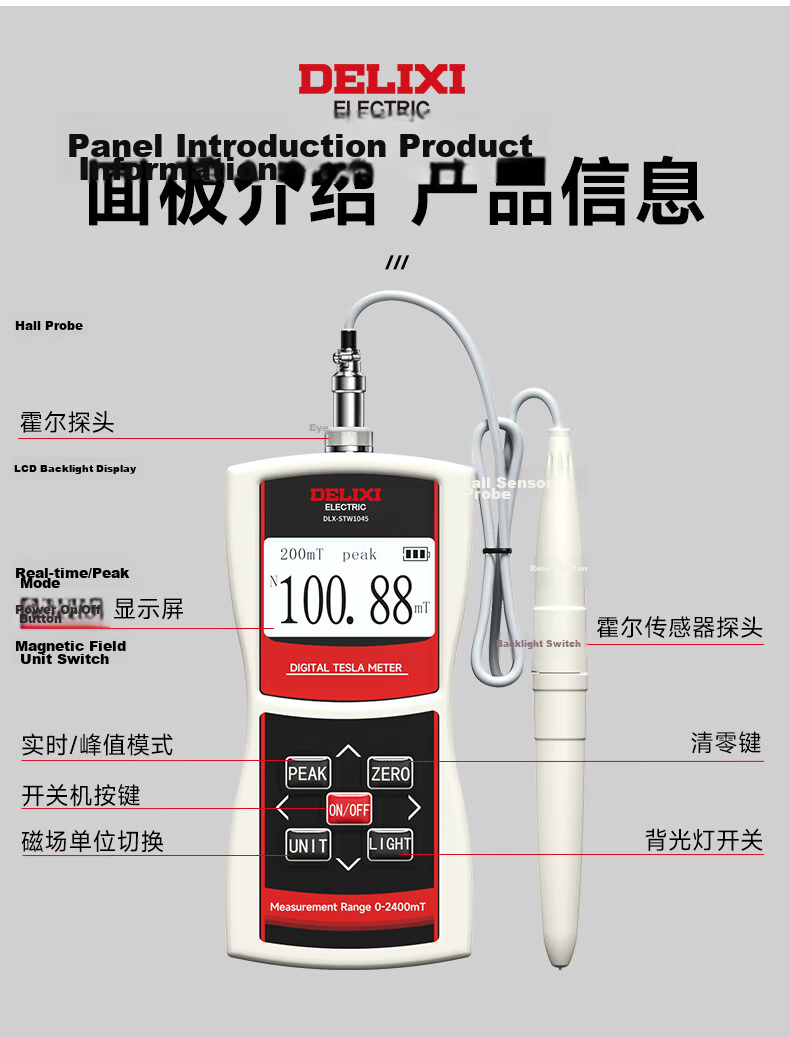

- Panel controls
- ON/OFF, PEAK, ZERO (clear), UNIT (unit switch), LIGHT (backlight toggle)
One 9V dry battery (included)
Battery installation requires correct polarity alignment
Additional details
- Temperature
- 0°C to 50°C
- Humidity
- 20% to 85% RH, non-condensing
- Temperature
- -20°C to 70°C
- Humidity
- <85% RH, non-condensing

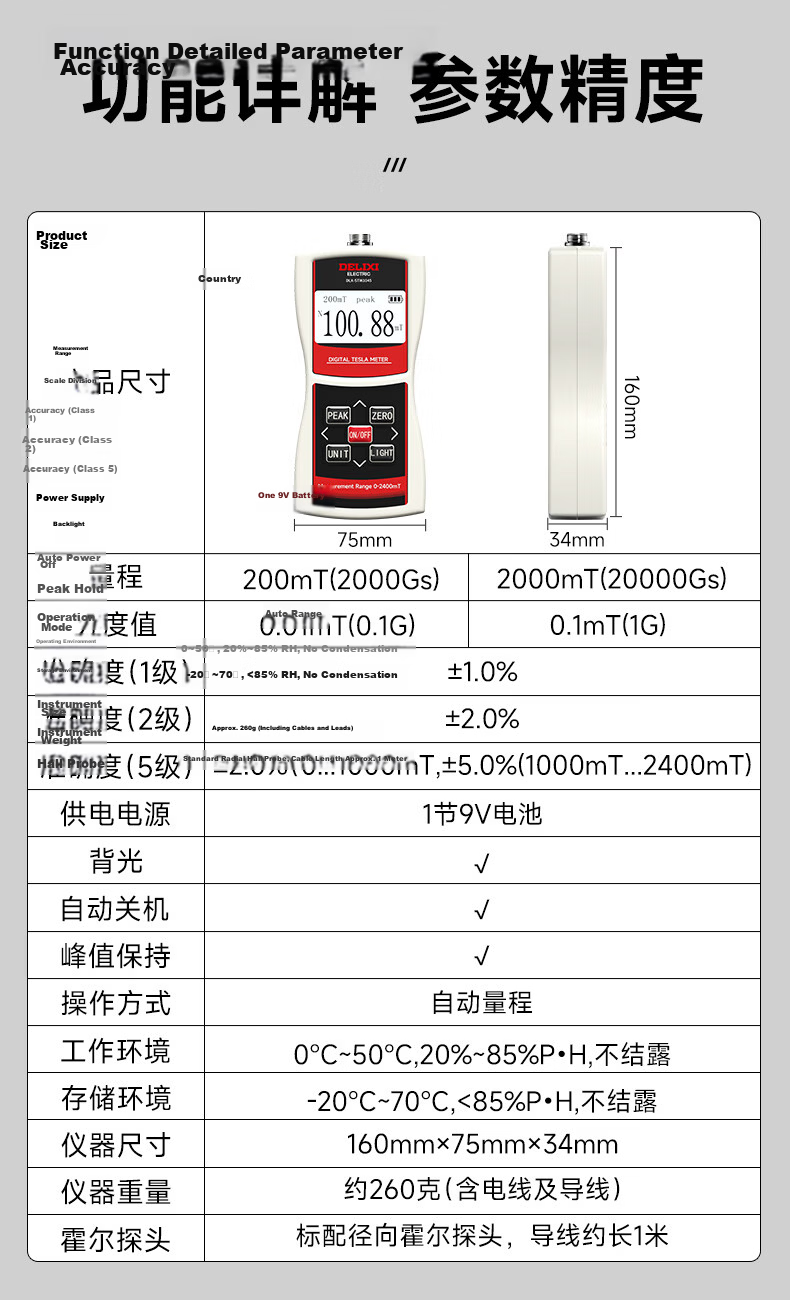

- Instrument size
- 160 mm (L) × 75 mm (W) × 34 mm (H)
- Weight
- Approx. 260 grams (including cables and probe)
Digital Teslameter main unit
Radial Hall sensor probe with cable

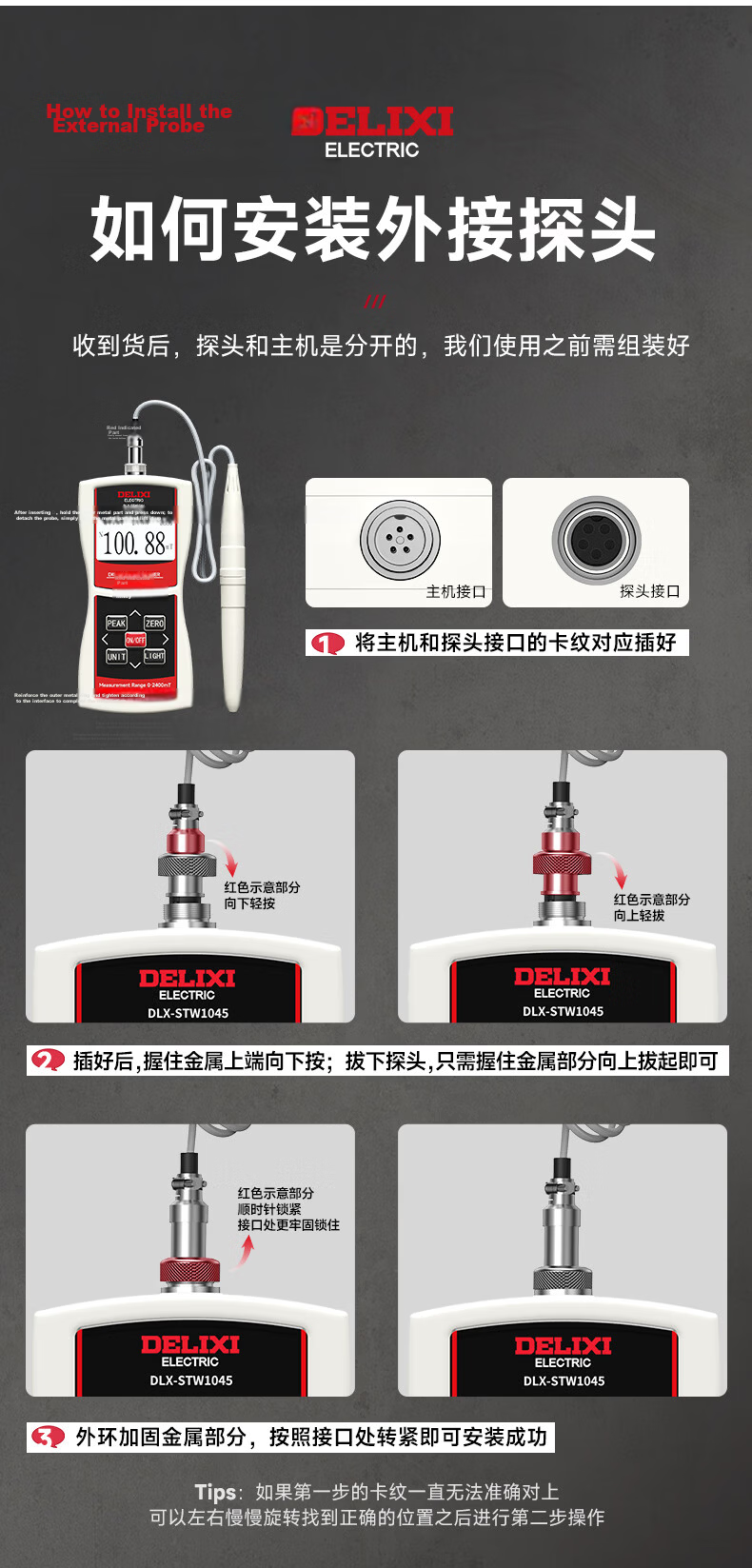

Probe and main unit are shipped separately and require assembly
Align the keyed connectors on probe and main unit before insertion
Secure the metal locking ring by rotating to ensure firm connection
If alignment is difficult, gently rotate to find correct position before locking
DELIXI ELECTRIC upgraded design with no redundant functions
High precision Hall probe available in three accuracy options
Supports magnetic field measurement in both peak and real-time modes
Automatic zero calibration ensures measurement accuracy
Backlight function enhances usability in dark environments
Magnetic polarity detection provides quick identification of South and North poles
