Ugreen Type-C Dual HDMI Triple Display Dock USB-C Dual Screen 8K Expansion Dock Multi-Display Adapter Compatible with Thunderbolt 4 Lenovo Laptop

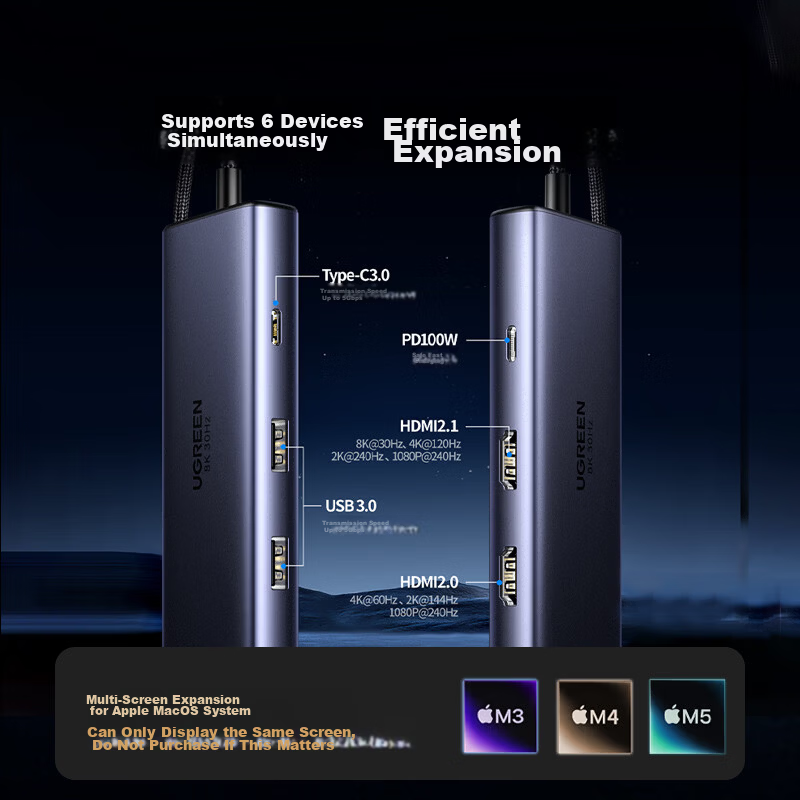

Type-C 3.0 port x1 (5Gbps data transfer rate)

USB 3.0 ports x2 (5Gbps data transfer rate)

Supports connection of mouse, keyboard, external hard drives, USB flash drives, game controllers, USB headsets (with built-in sound card), printers, and other peripherals

PD 100W power delivery input (supports up to 85W output to host device when using 100W charger)

USB-A/C ports do not support charging or video output

PD port is power input only, does not provide power output to other devices

Compatible with laptops and devices equipped with full-function Type-C ports supporting video output (Thunderbolt 3/4, USB4.0)

Tested compatible models include various Lenovo ThinkPad series, Dell XPS and Inspiron series, HP ENVY and Omen series, Huawei MateBook series, Xiaomi Book series, ASUS ProArt and ROG series, Acer Predator series, Microsoft Surface series, and more

Supports Windows and MacOS systems (note MacOS only supports mirror mode for multi-screen)

Aluminum alloy shell with anodized finish for efficient heat dissipation; normal operating temperature 40-50°C under 25°C ambient

Equipped with quad-core chip and independent chips for each interface to ensure stable and smooth multi-port operation

Protection features include over-voltage, electrostatic discharge, surge, over-current, reverse current, and short circuit protection

Supports AI software collaboration for efficient multi-screen office work

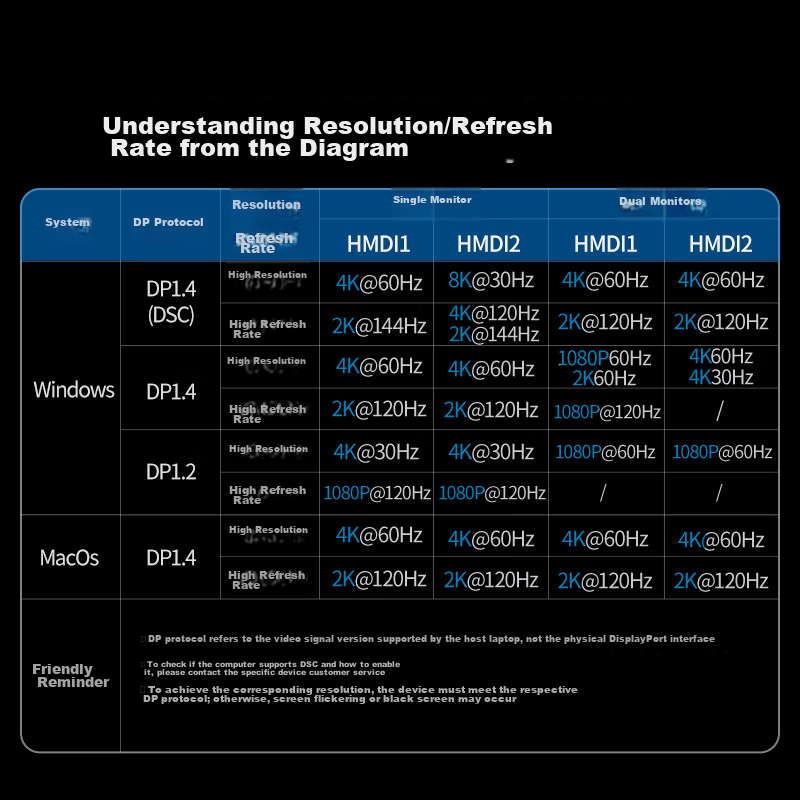

Supports simultaneous dual HDMI output with 4K resolution on both ports

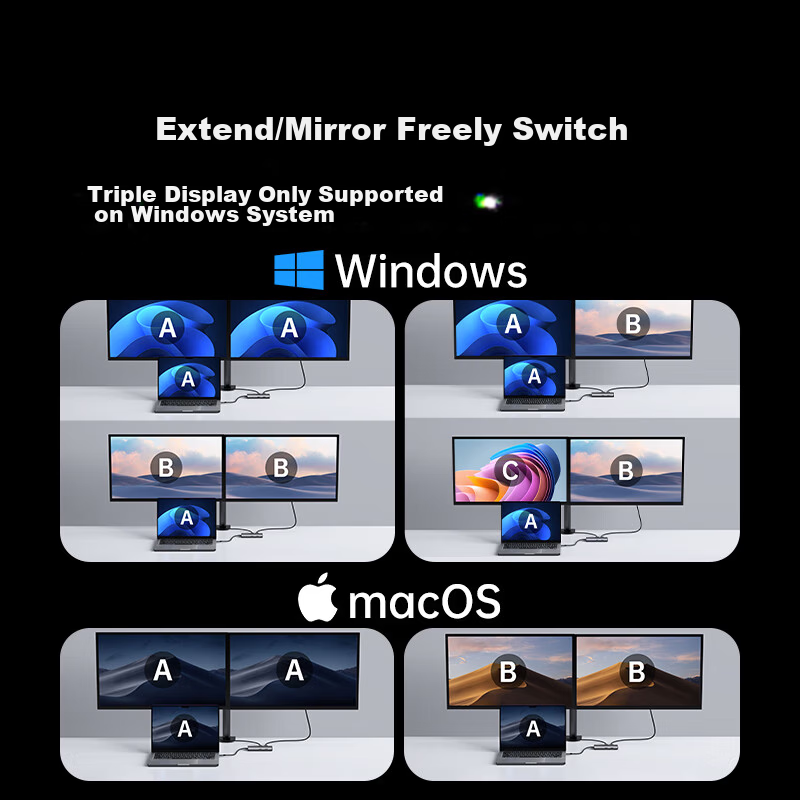

Supports same-screen and split-screen modes

Supports up to three external displays with appropriate docking station and cables

Supports 5Gbps fast data transfer and PD 100W fast charging

Approximately 20 cm

One year

Stylish color box

For MacOS users, multi-screen extended display is limited to mirror mode due to hardware restrictions

For Windows users, multi-screen extended display can be enabled via Win+P and selecting "Extend"

Ensure host device USB-C port supports video output and cables meet required specifications

If display issues occur, check resolution settings, input source selection, and try reconnecting or restarting devices

PD charging requires compatible high-power adapters (>65W recommended) and updated drivers/firmware

Disconnecting PD charger may cause temporary black screen due to power switching; this is normal

USB ports do not support charging or video output; use PD port for charging only

Actual product dimensions and weight may vary slightly due to manual measurement and batch differences

Internal chip and circuit board images are schematic and may not fully represent actual product structure
