| Item | Detail |
|---|---|

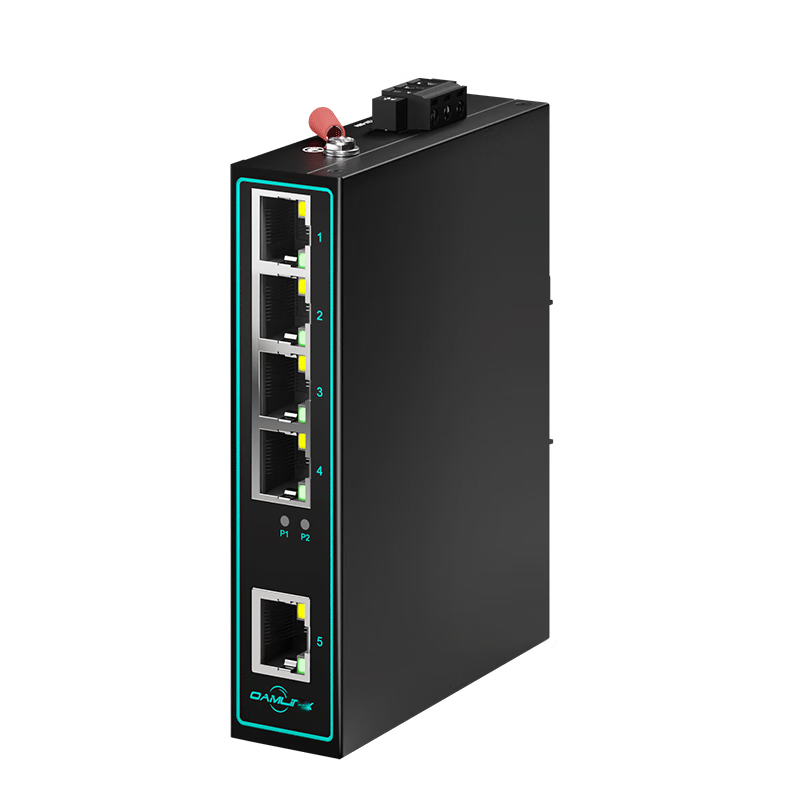

| Model | OAM-6000-35-5GT |
| Ports | 5 × 10/100/1000Base-T |
| Power Interface | Phoenix terminal, dual power redundancy |
| Transmission Distance | 0-100 m (CAT5e, CAT6) |
| Switching Capacity | 14 G |
| Forwarding Rate | 10.416Mpps |
| MAC Address Table | 2K |
| Buffer | 1 M |
| Forwarding Delay | <4us |
| Jumbo Frame Support | 9216Bytes |
| Operating Temperature | -30°C to +75°C |
| Storage/Transport Temperature | -30°C to +75°C |
| Humidity | 5% to 95% non-condensing |
| Heat Dissipation | Fanless design, natural heat dissipation |
| MTBF | 100,000 hours |
| IP Rating | IP40 |

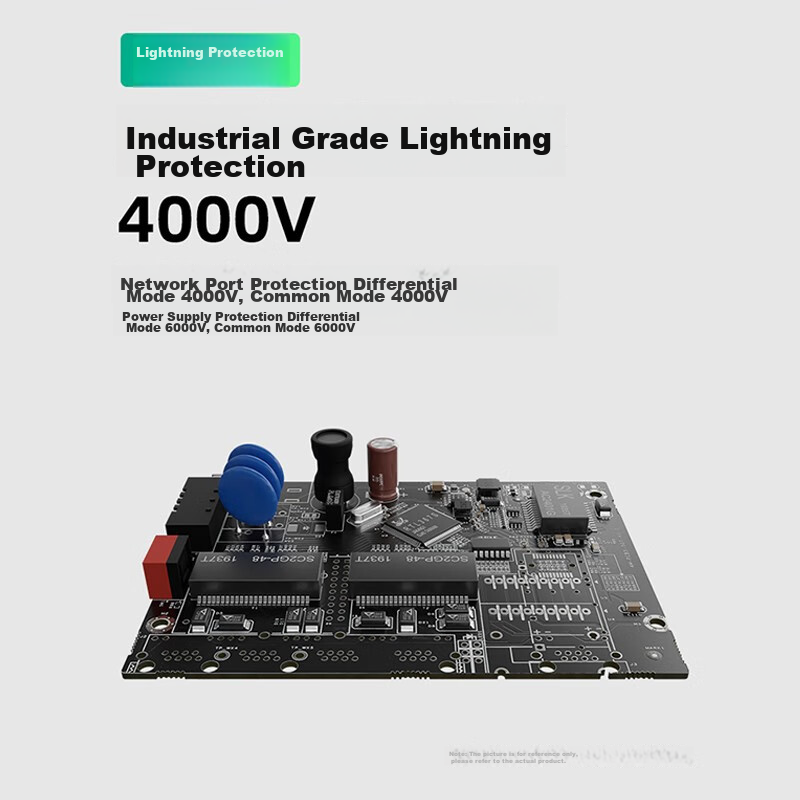

| Lightning Protection | IEC61000-4-5 Level 2 (2KV/1KV) |
| Input Voltage | DC12-58V |
| Total Power Consumption | <5W |
| Dimensions | 31 × 88 × 120 mm (W×H×D) |
| Installation | DIN rail mounting |
| Weight | 0.3 KG |
| Package Contents | Device, terminal, certificate of conformity, manual, power adapter (optional). |
