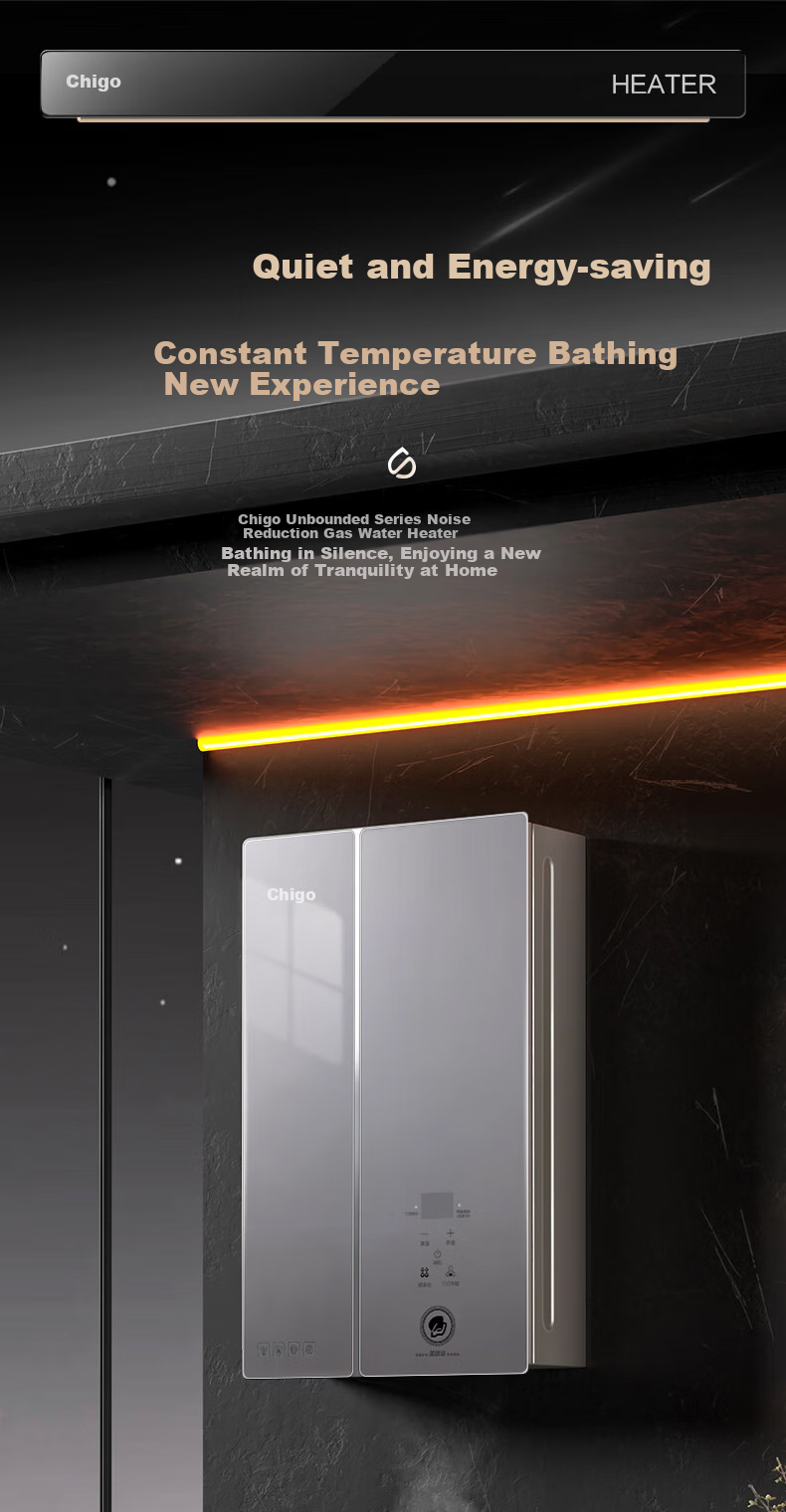

CHIGO 12L Constant Temperature Gas Water Heater Natural Gas ECO Energy Saving Inverter Fan Low Water Pressure Start with 15% Government Subsidy

CHIGO•Gas water heater

CHIGO 12L Constant Temperature Gas Water Heater Natural Gas ECO Energy Saving Inverter Fan Low Water Pressure Start with 15% Government Subsidy

CN¥589.90

SKU: 100119268715

Status:In Stock (19)

ID: 100143212770

Weight: 10350.00 g

Dims:730x490x210 mm

Specifications

Control method: Touch control
Energy efficiency rating: Grade 2 energy efficiency
Special features: Energy saving, low-voltage start, Magnetized purified water
Type: forced ranking
Hot water flow rate: 12L
Gas source: Natural gas (12T)

Variants / Sale Attributes

Model: 12L Natural Gas [One Kitchen One Bathroom] Variable Frequency Fan

Package Contents

1 gas water heater, 1 Ф60 stainless steel flue pipe, 1 shower head, 2 stainless steel corrugated pipes, 1 user manual, 1 set of installation screws and fittings

Product Description

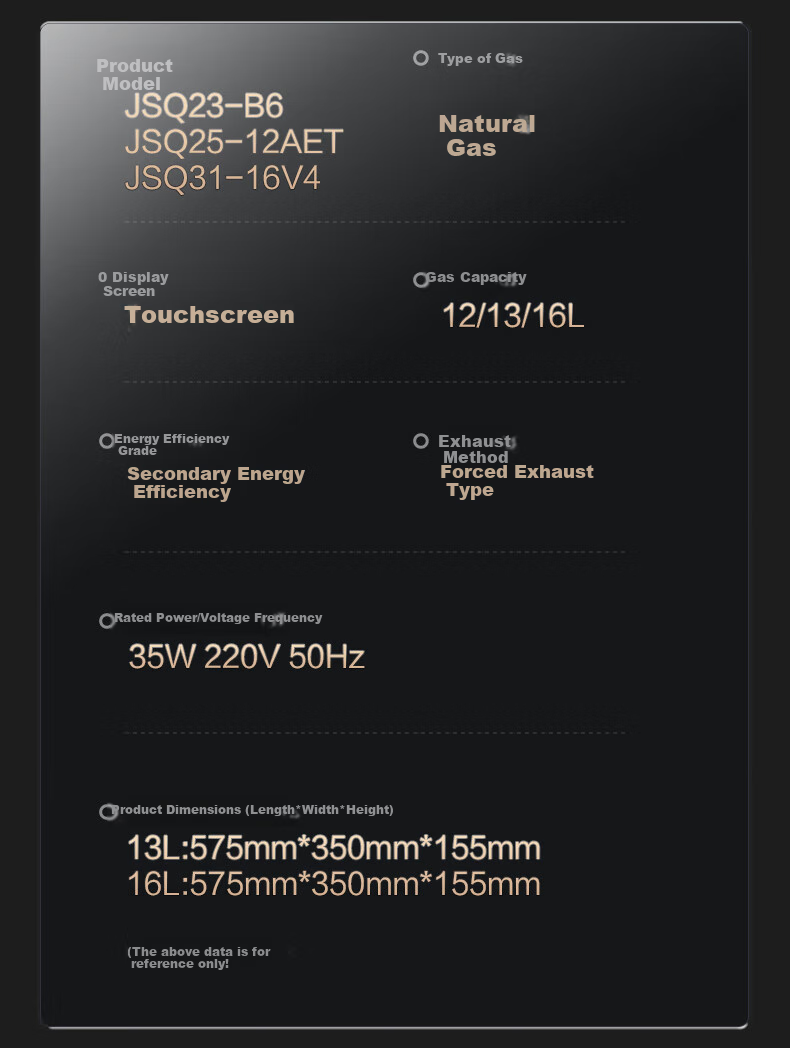

Overview

Brand: CHIGO
Product Series: Boundaryless Noise-Reduction Gas Water Heater
Model Numbers: JSQ23-B6 (12L), JSQ25-12AET (13L), JSQ31-16V4 (16L)

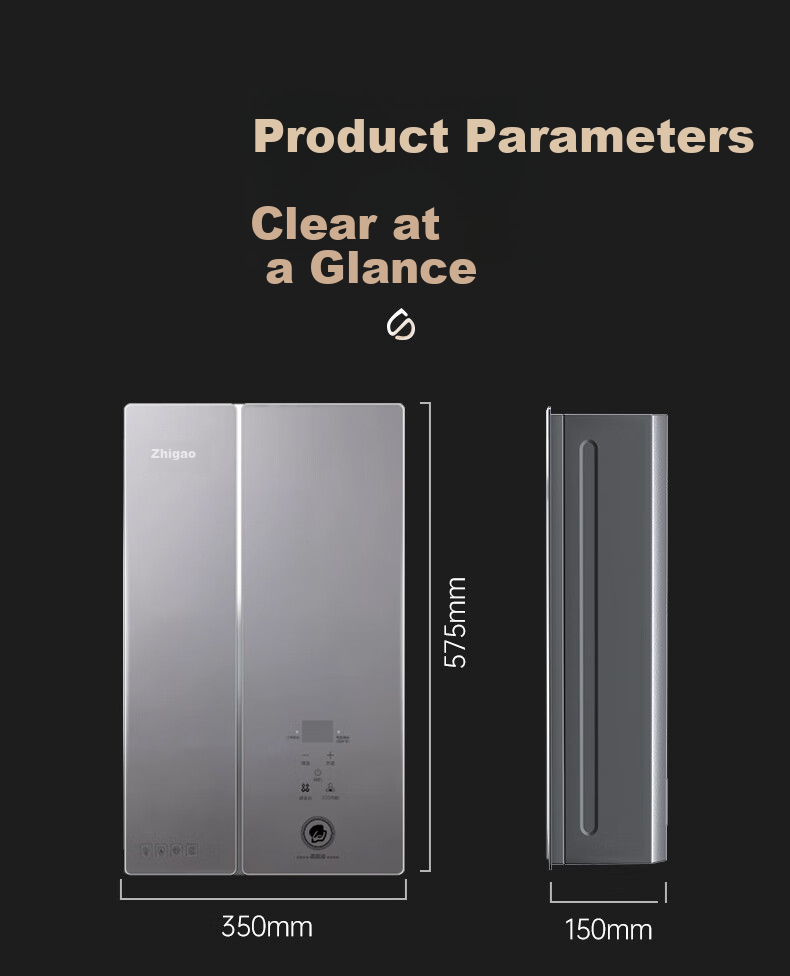

Dimensions (L x W x H): 575 mm x 350 mm x 150-155 mm
Gas Type: Natural Gas
Water Capacity: 12L, 13L, 16L
Energy Efficiency Level: Level 2

Similar Products

In Stock

Royalstar 12-Liter Gas Water Heater for Home Use, Balanced Design [For Bathroom], Constant Temperature, Precise Constant Temperature + Gas Leak Protection JSG23-HR5108 Natural Gas

RoyalstarGas water heater

Royalstar 12-Liter Gas Water Heater for Home Use, Balanced Design [For Bathroom], Constant Temperature, Precise Constant Temperature + Gas Leak Protection JSG23-HR5108 Natural Gas

12L [For Bathroom Use] Energy-Saving And Stable-Burning - Natural Gas

CN¥759.90

In Stock

Royalstar 12-Liter Gas Water Heater for Home Use, Balanced Constant Temperature [For Bathroom], Precise Constant Temperature + Leak Protection JSG23-HR5108 Liquefied Gas

RoyalstarGas water heater

Royalstar 12-Liter Gas Water Heater for Home Use, Balanced Constant Temperature [For Bathroom], Precise Constant Temperature + Leak Protection JSG23-HR5108 Liquefied Gas

12L [For Bathroom Use] Energy-Saving And Stable-Burning - Liquefied Gas

CN¥759.90

Exhaust Type

Forced Exhaust

Rated Power/Voltage/Frequency

35W / 220V / 50Hz

Display

Touchscreen large display

Forced exhaust models must not be installed inside bathrooms or open kitchens.

Additional details

Recommended installation height: Approx. 1.6 meters from the ground, aligned with user’s line of sight.

Power outlet should be installed on the side of the unit, avoiding locations prone to water splashes, heat sources, or direct sunlight.

Additional details

Minimum clearance from heater to hinge: ≥150 mm
Flue pipe diameter: approx. 60 mm; hole diameter approx. 63 mm

Reliable grounding required

Additional details

Water and gas pipe connections: G1/2 (4)

Anti-backflow device is not standard and may be required depending on region.

Additional details

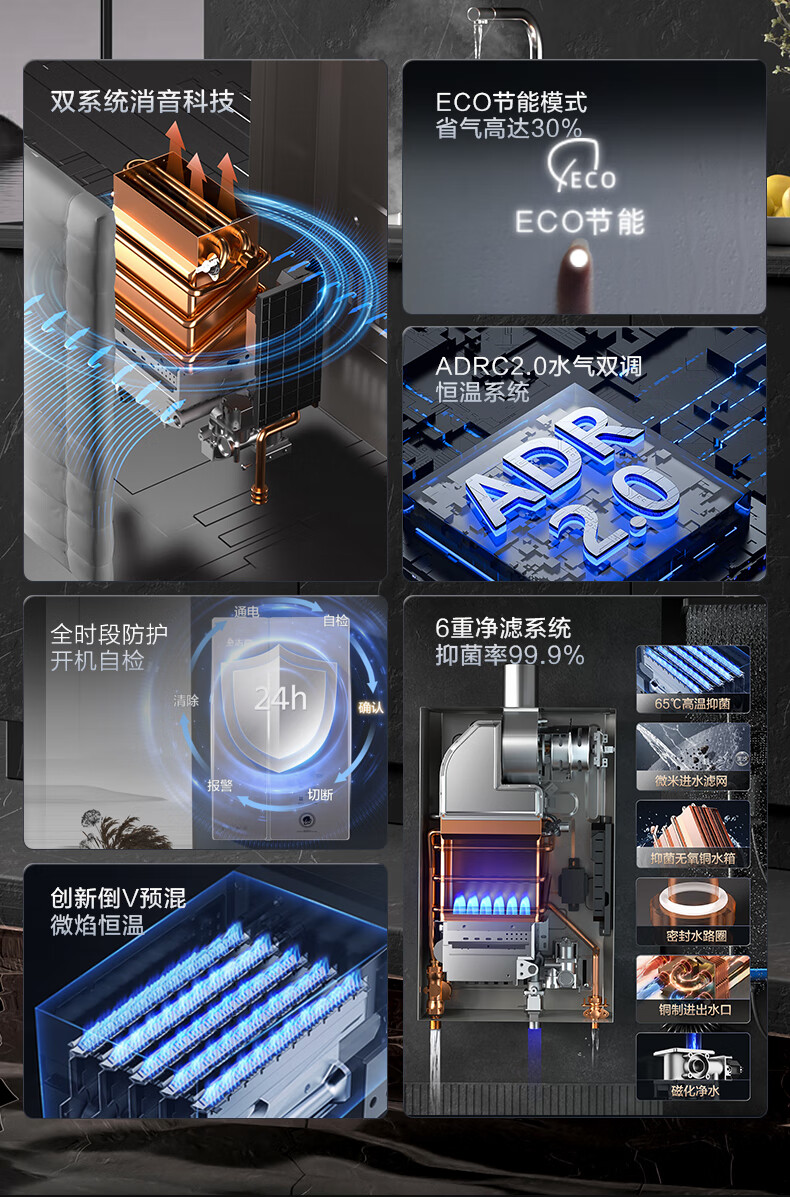

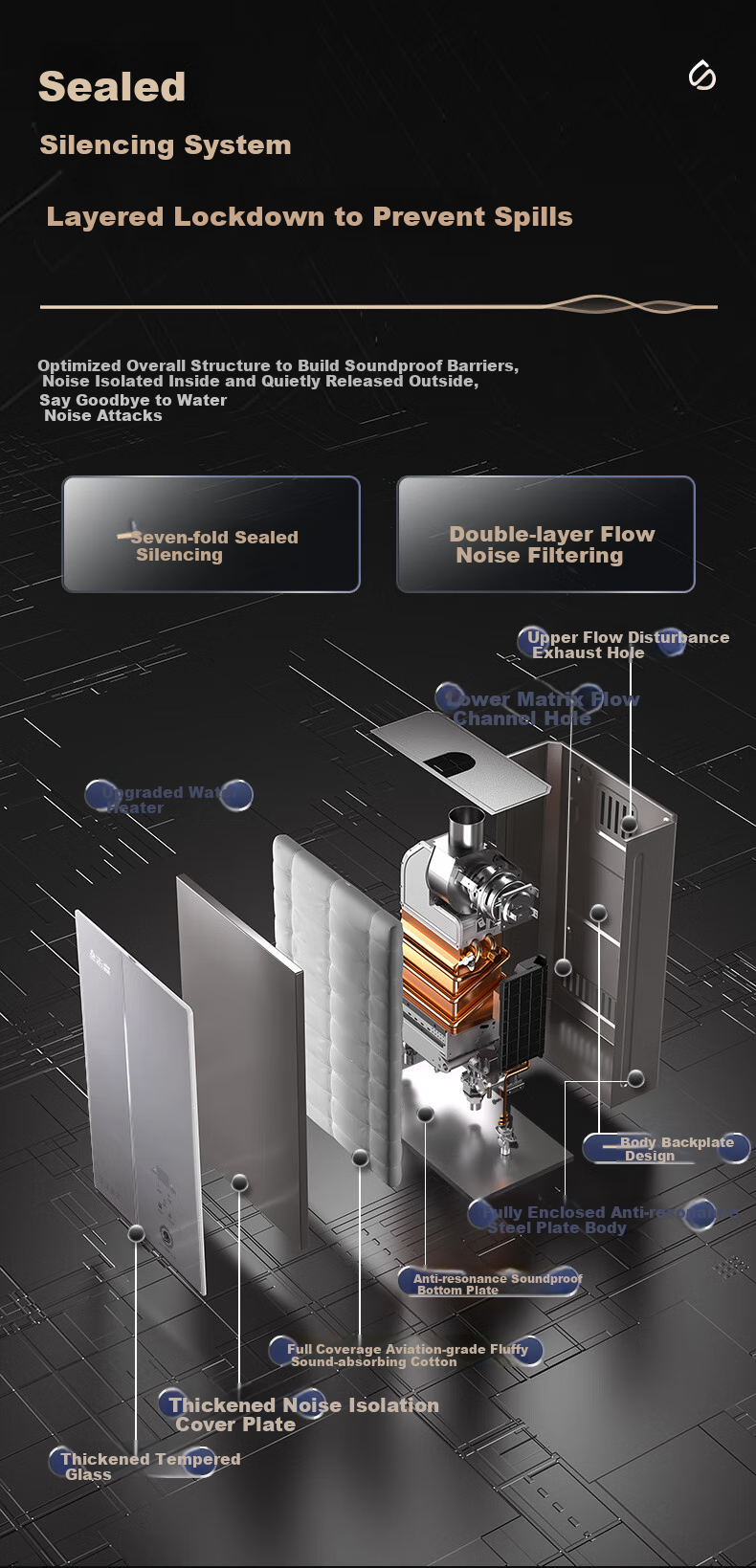

Quiet and Energy-Saving Operation: Innovative noise reduction technology with seven-layer sealed soundproofing system, including double-layer turbulence noise filters and full enclosure anti-resonance steel body with aviation-grade sound-absorbing cotton.

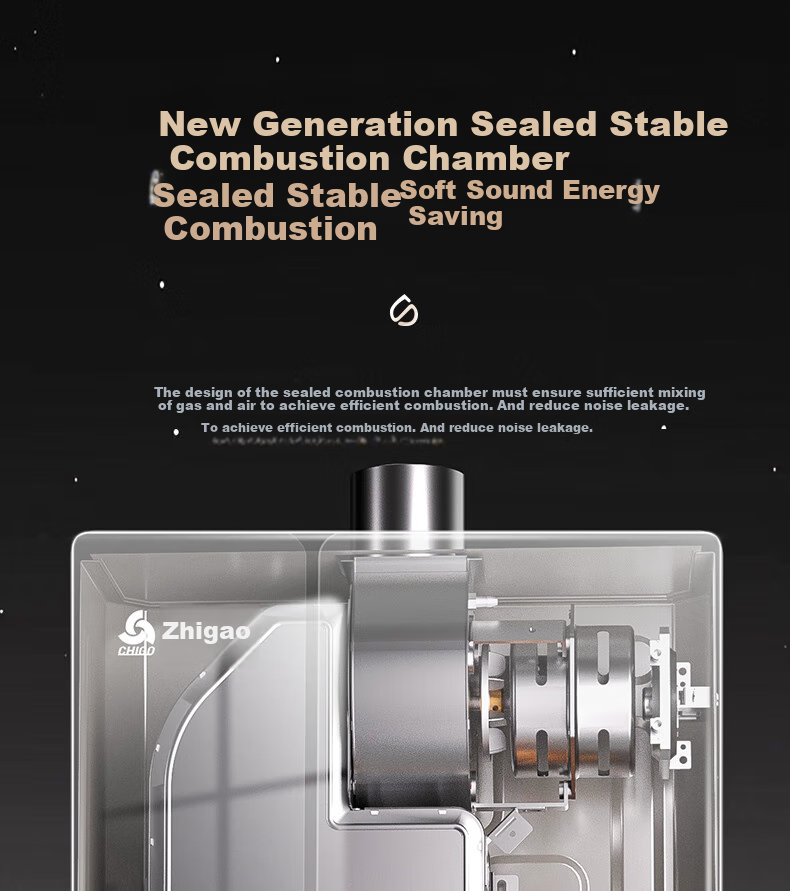

Stable Combustion: New generation sealed combustion chamber ensures full gas-air mixing for efficient and quiet burning.

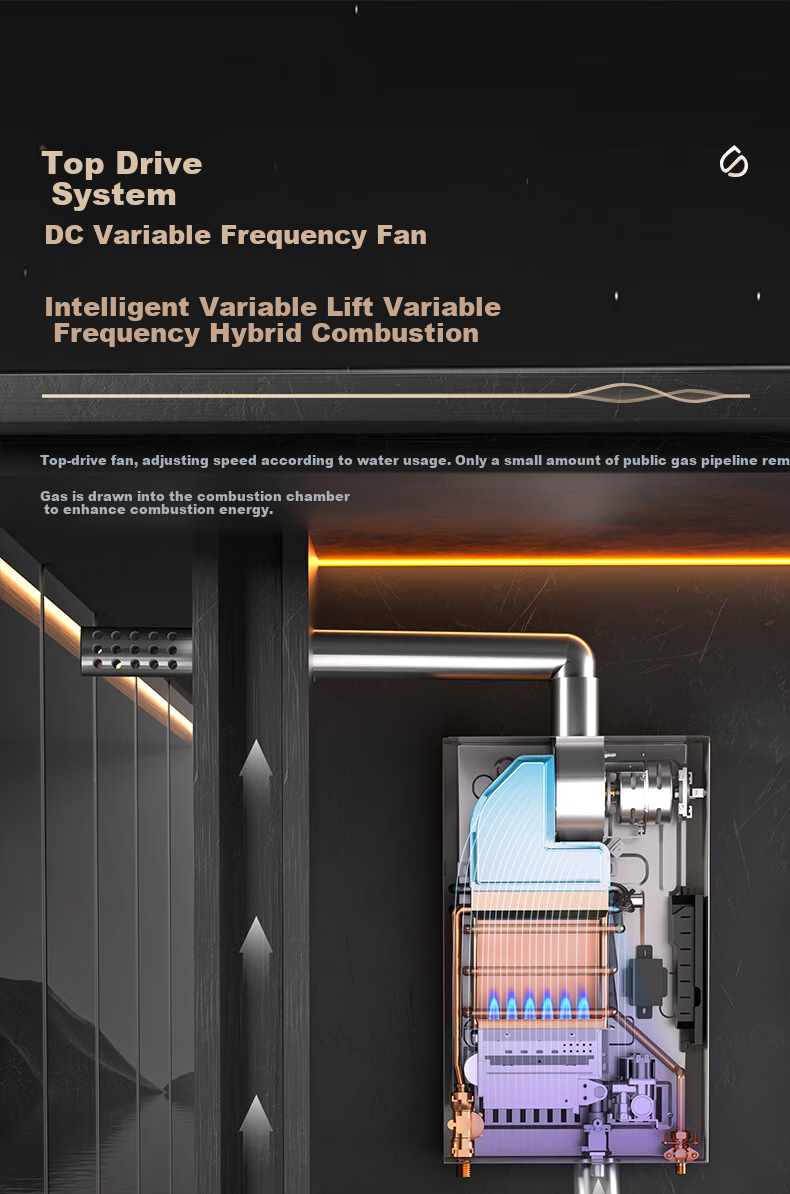

Intelligent DC Inverter Fan: Top-driven DC inverter fan adjusts speed based on water usage for optimized combustion.

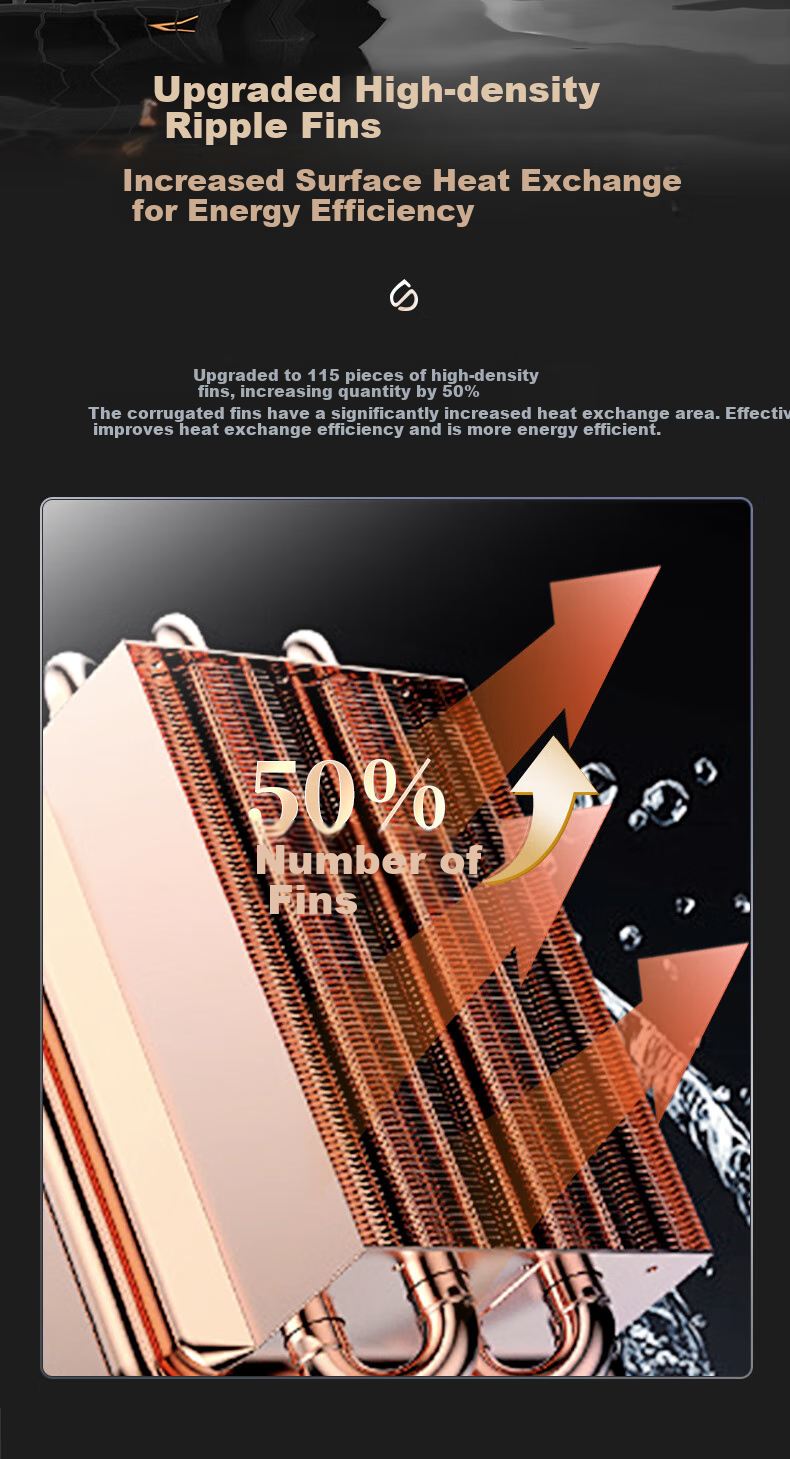

High-Efficiency Heat Exchange: Upgraded 115-piece high-density corrugated fins increase heat exchange area by 50%, improving energy efficiency.
ADRC 2.0 Dual Water-Gas Temperature Control: Dynamically adjusts water flow and gas volume based on inlet water temperature to maintain stable and comfortable temperature even during simultaneous kitchen and bathroom use.

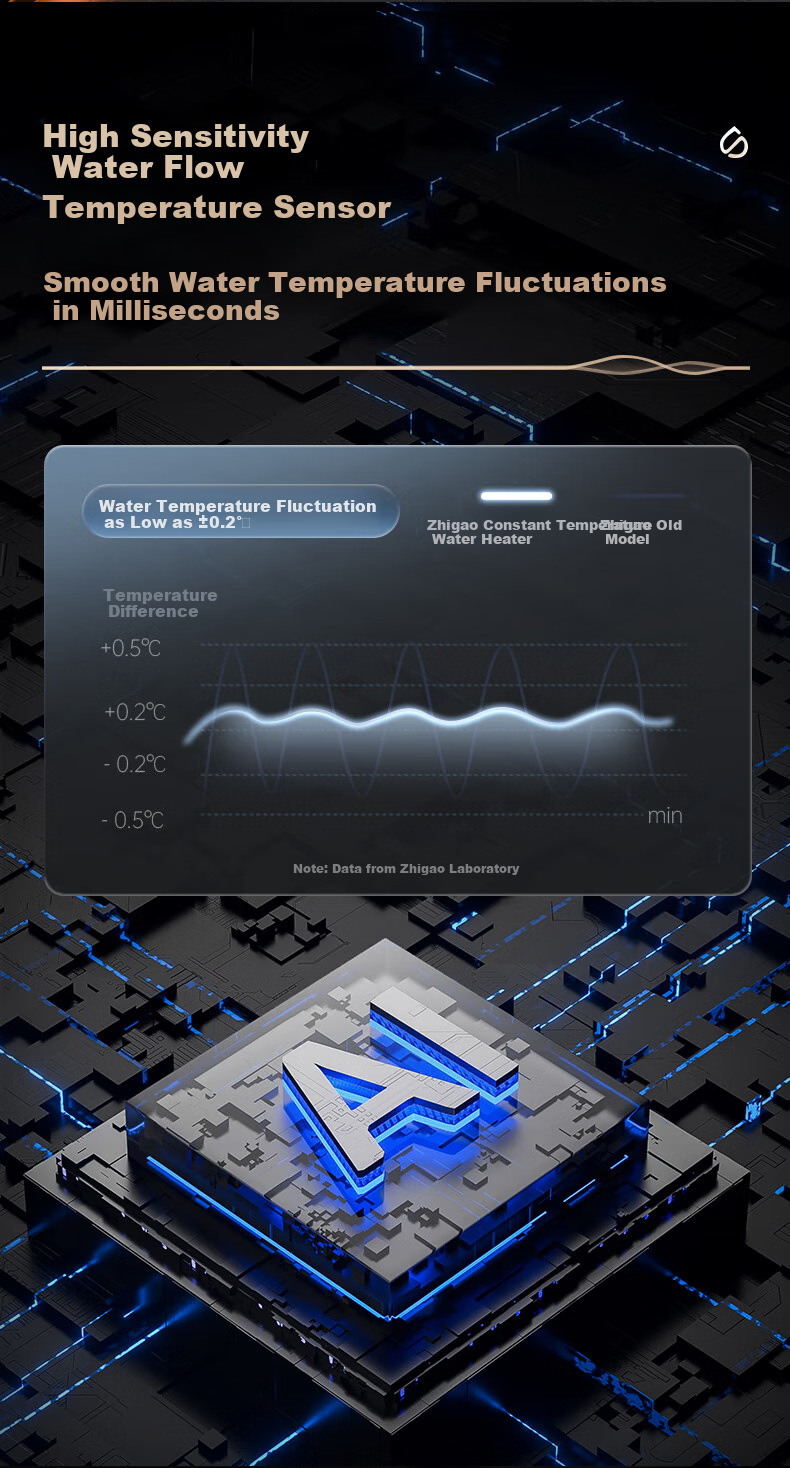

Precise Temperature Control: High-sensitivity flow and temperature sensors maintain water temperature fluctuation within ±0.2°C.
Four-Season Intelligent Temperature Adjustment: Smart chip and sensitive inlet temperature probe automatically adjust water temperature to a comfortable 43°C according to seasonal inlet water temperature (16-21°C in spring).

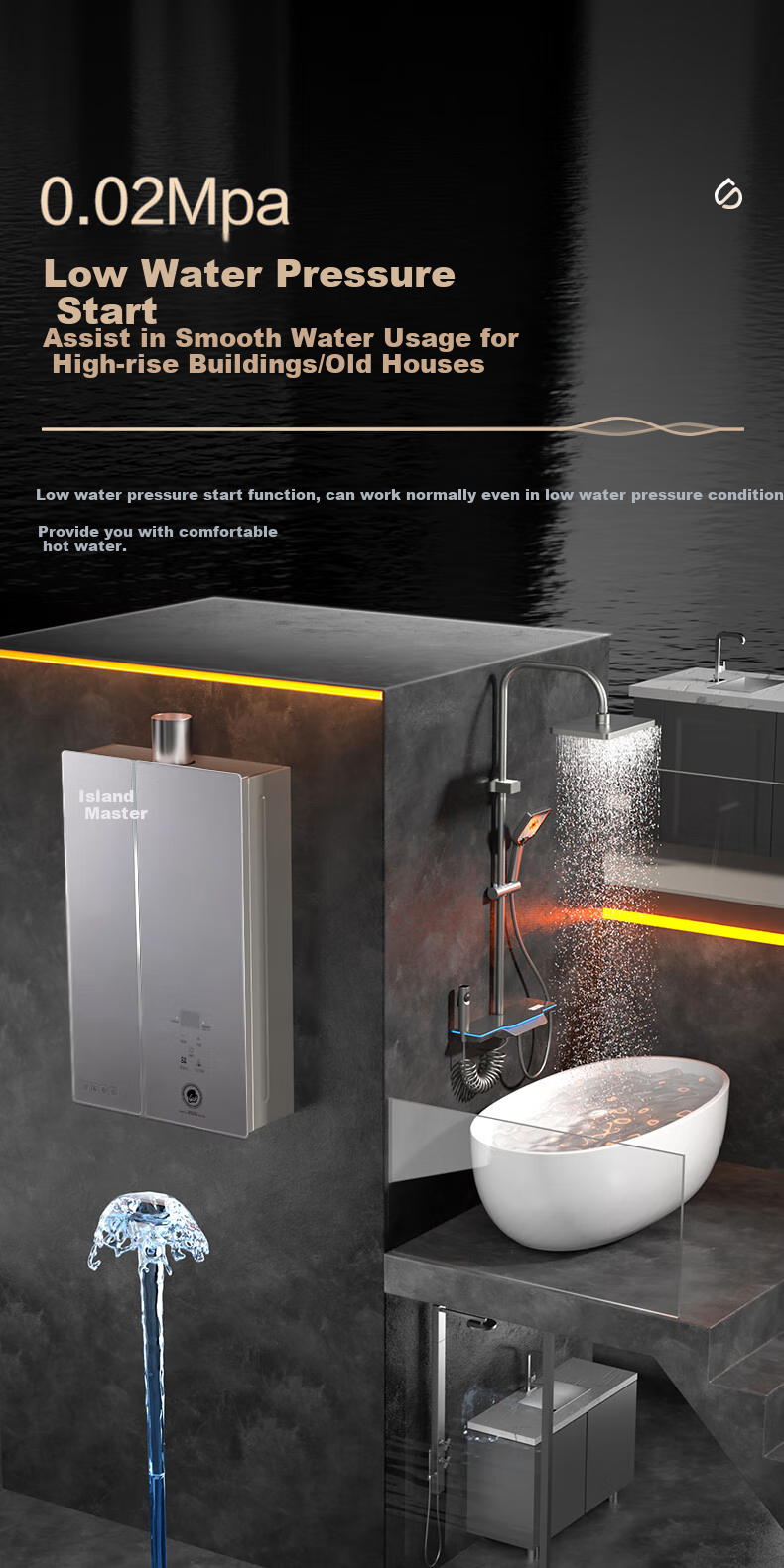

Low Water Pressure Start: Operates normally at low water pressure (as low as 0.02MPa), suitable for high-rise buildings and older homes.

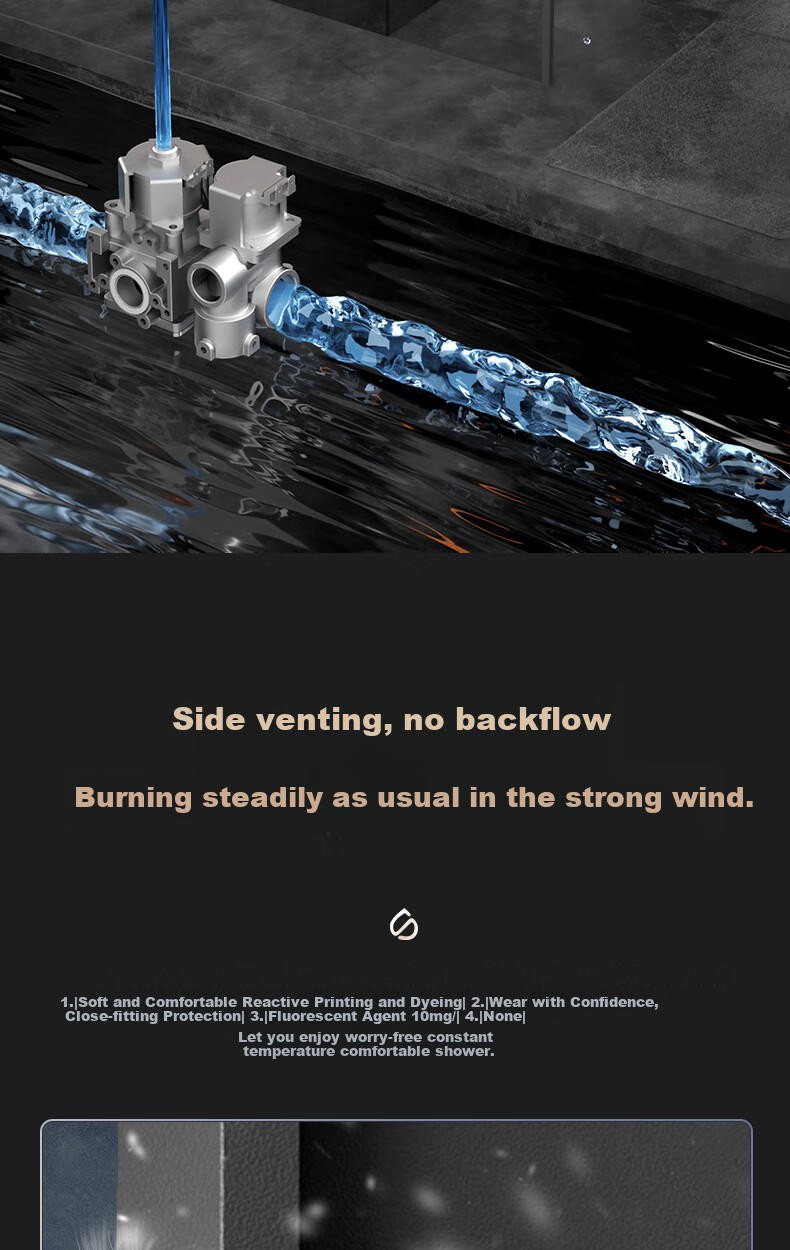

Bypass Exhaust Design: Prevents exhaust backflow during strong winds, ensuring stable combustion and consistent hot water supply.

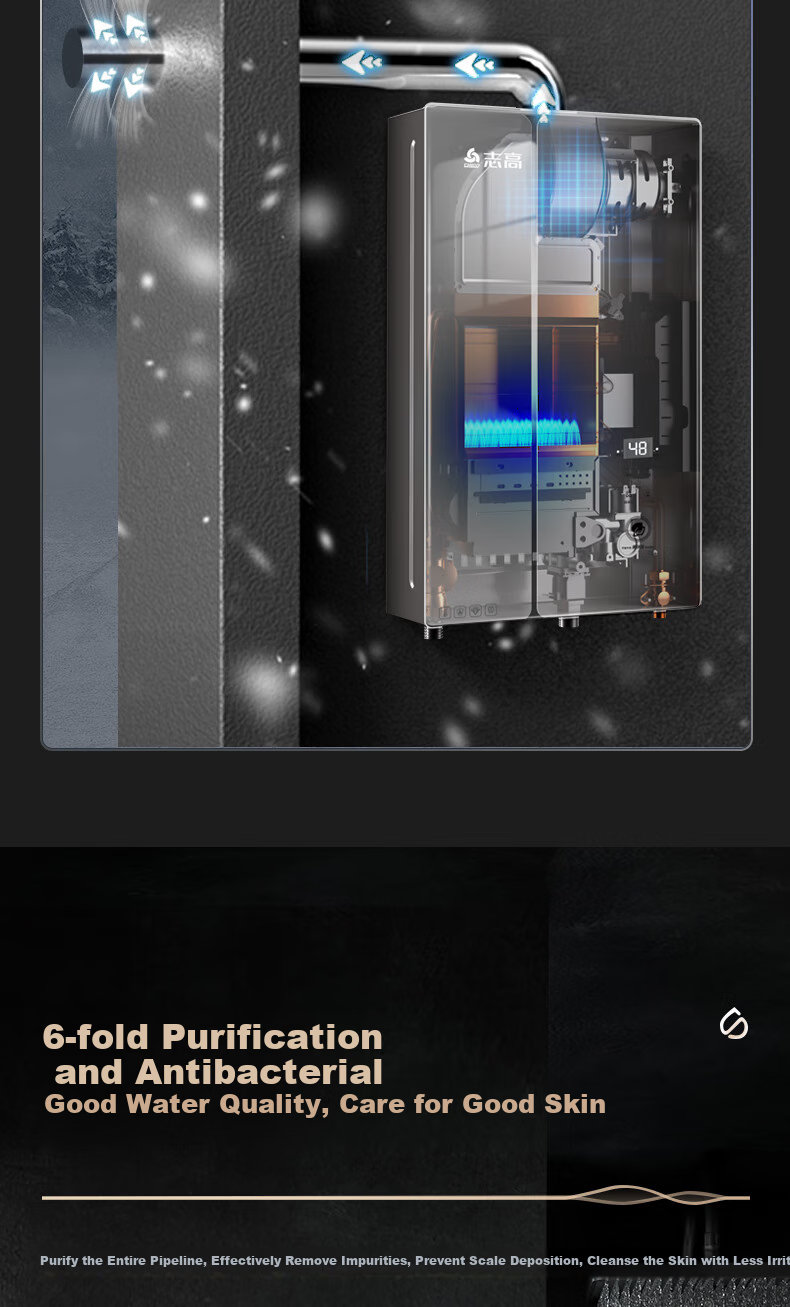

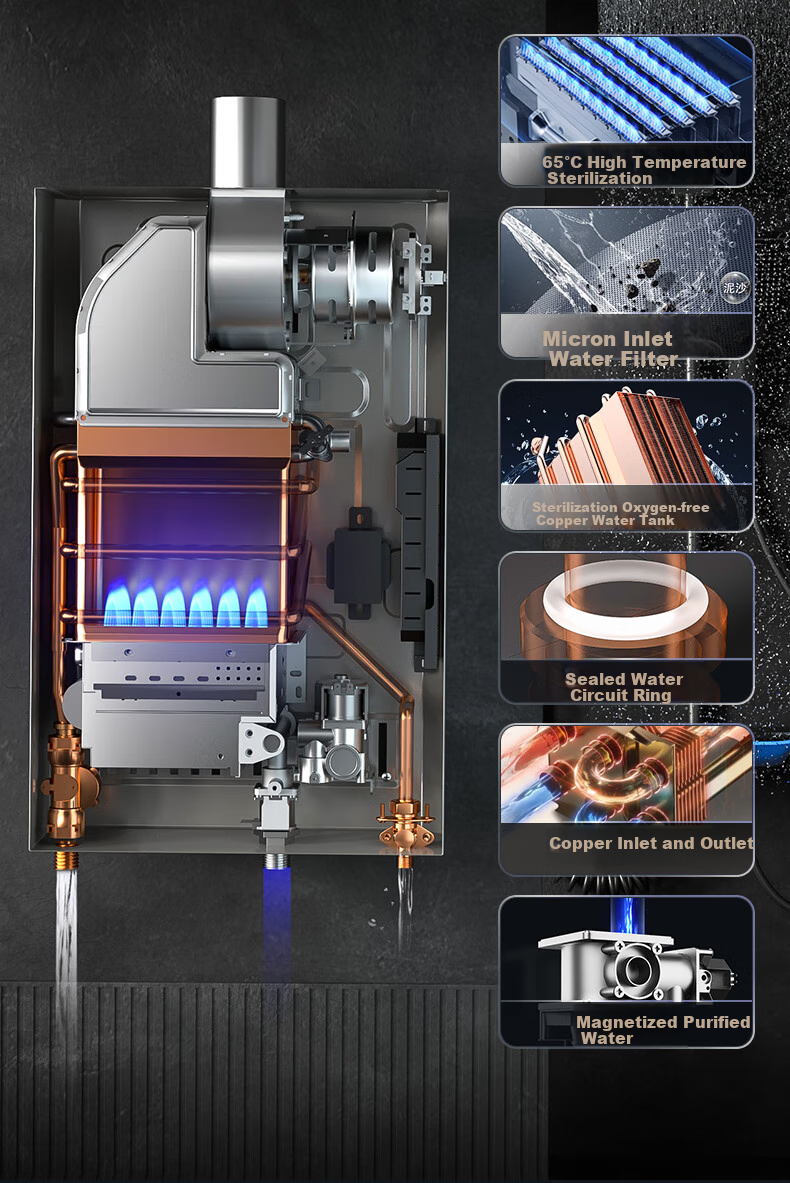

Six-Stage Water Purification and Antibacterial Protection: Full waterway purification system with micron inlet filter, antibacterial oxygen-free copper water tank, sealed water circuit, copper inlet/outlet, and magnetic water treatment to protect skin and reduce scale.

Safety Features

Full machine self-diagnosis at startup to detect faults and prevent safety hazards; automatic alarm and power cut-off.

Additional details

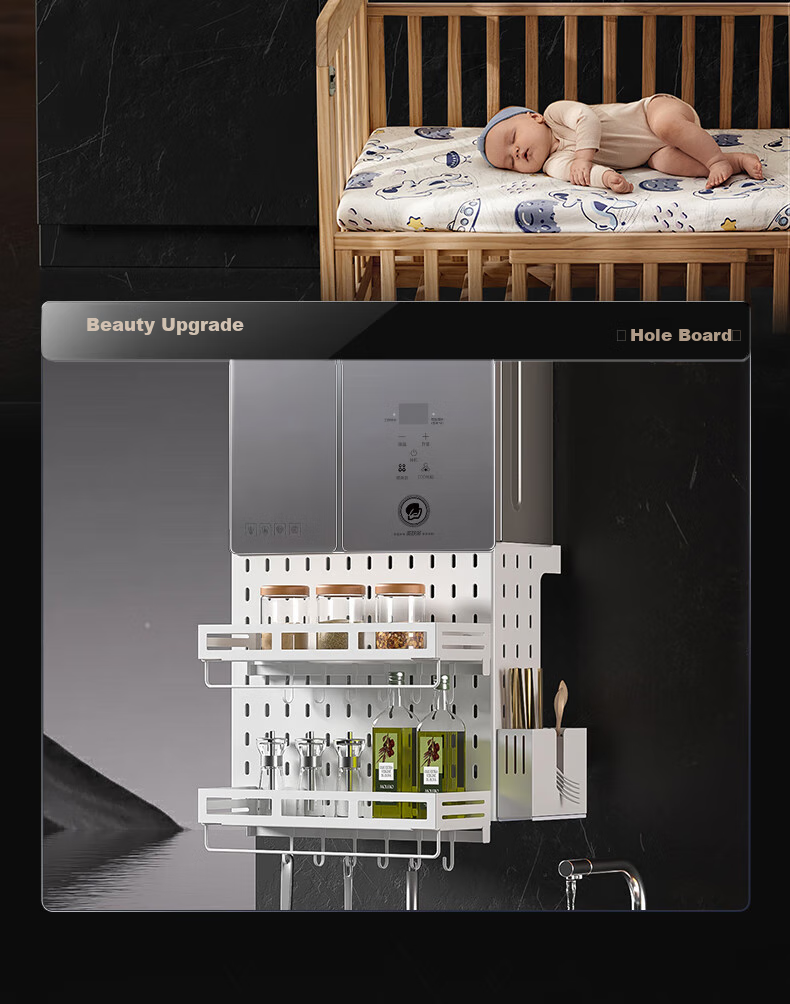

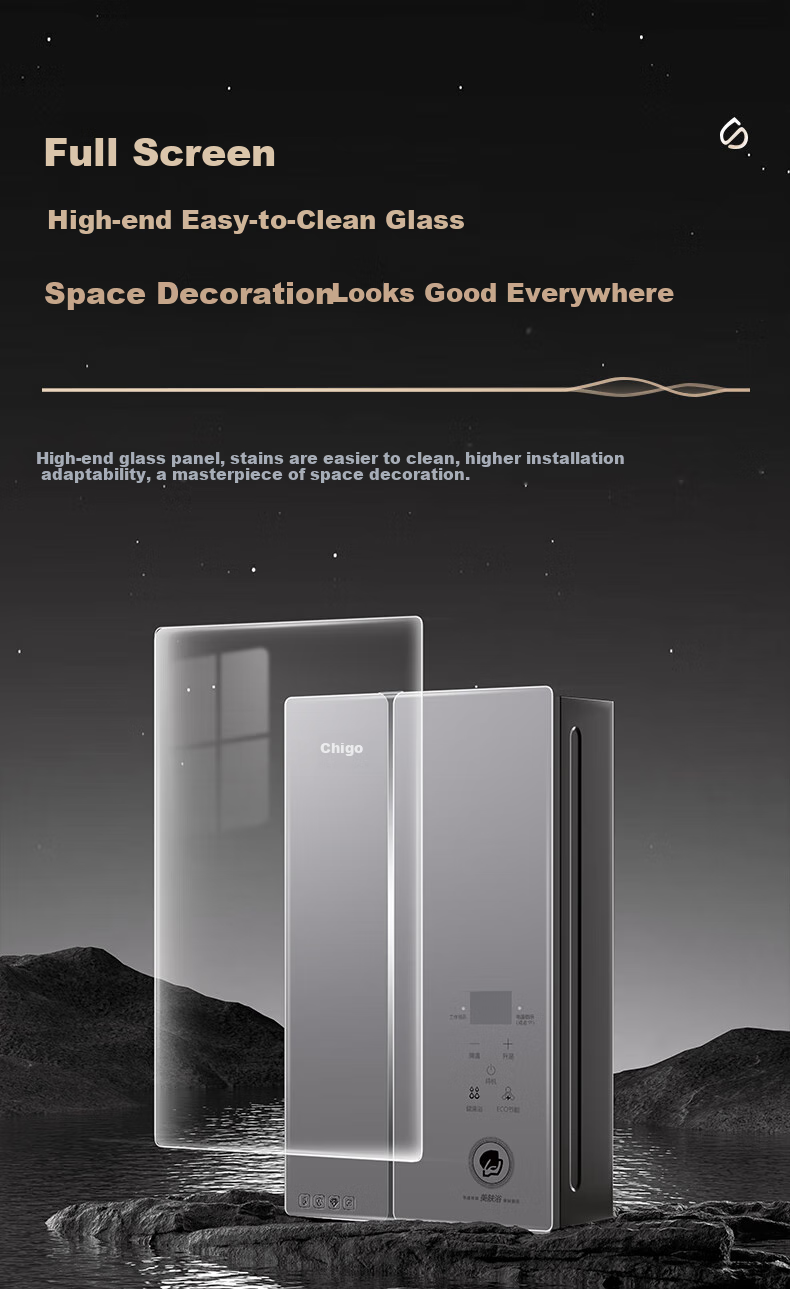

Easy-to-Clean High-End Glass Panel: Full-screen high-end glass panel with easy-to-clean surface and enhanced installation adaptability.

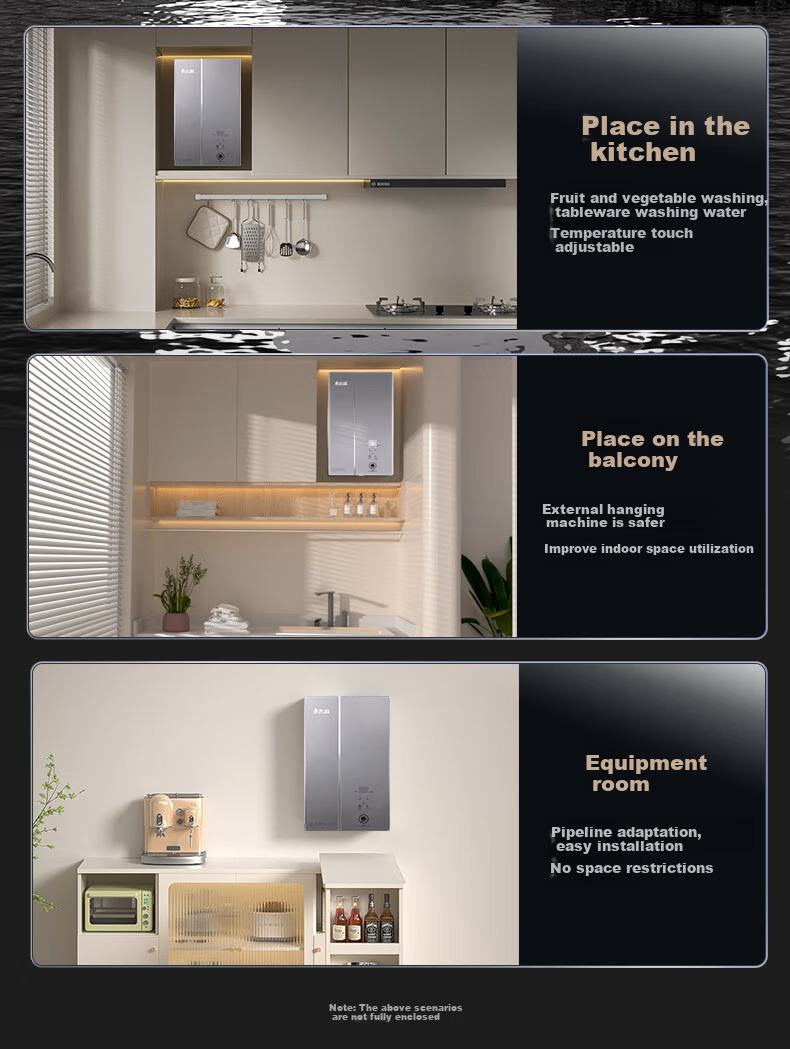

Versatile Installation: Suitable for kitchen, balcony, equipment rooms with pipe compatibility; note that these scenarios are not fully enclosed.
Dimensions and Weight: Refer to product manual for detailed installation diagrams and clearances.
Noise Level: Upgraded model reduces noise from >80dB to <45dB, achieving a quiet environment comparable to 30dB butterfly flutter.
Warranty and Service: Double compensation for any installation overcharging verified by customer service since October 1, 2023.

All data are for reference only; please refer to the official user manual for detailed instructions and safety information.
