KeepLINK KP-9000 Three-Port 100Mbps PoE Switch, Power Supply for One Input And Two Outputs, Repeater Separator/Unit

keepLINK•Switch

KeepLINK KP-9000 Three-Port 100Mbps PoE Switch, Power Supply for One Input And Two Outputs, Repeater Separator/Unit

CN¥36.00

SKU: 100119294238

Status:In Stock (9)

ID: 100062106640

Weight: 60.00 g

Dims:100x44x26 mm

Specifications

Downlink Port Rate: 100Mbps
Uplink port rate: 100Mbps
Number of Ports: 3 mouth
Network Management Type: Non-managed
Cooling method: Natural heat dissipation
Port Type: Electrical port
Power over Ethernet (PoE): POE power supply

Variants / Sale Attributes

Color: One input, two outputs | 300,000 yuan per month

Package Contents

Switch X1, Certificate X1, Manual X1

Product Description

Overview

1. Model: keepLINK, keepLiNK 01

Indoor POE Repeater
Transmits stable data over long distances without the need for 220V power supply, saving costs

2. Features

Plug and play, no external power supply required
Single port power up to 30W
Automatic recognition and usage
One-to-two connection solution for extending network range

Similar Products

In Stock

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

View

In Stock

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

View

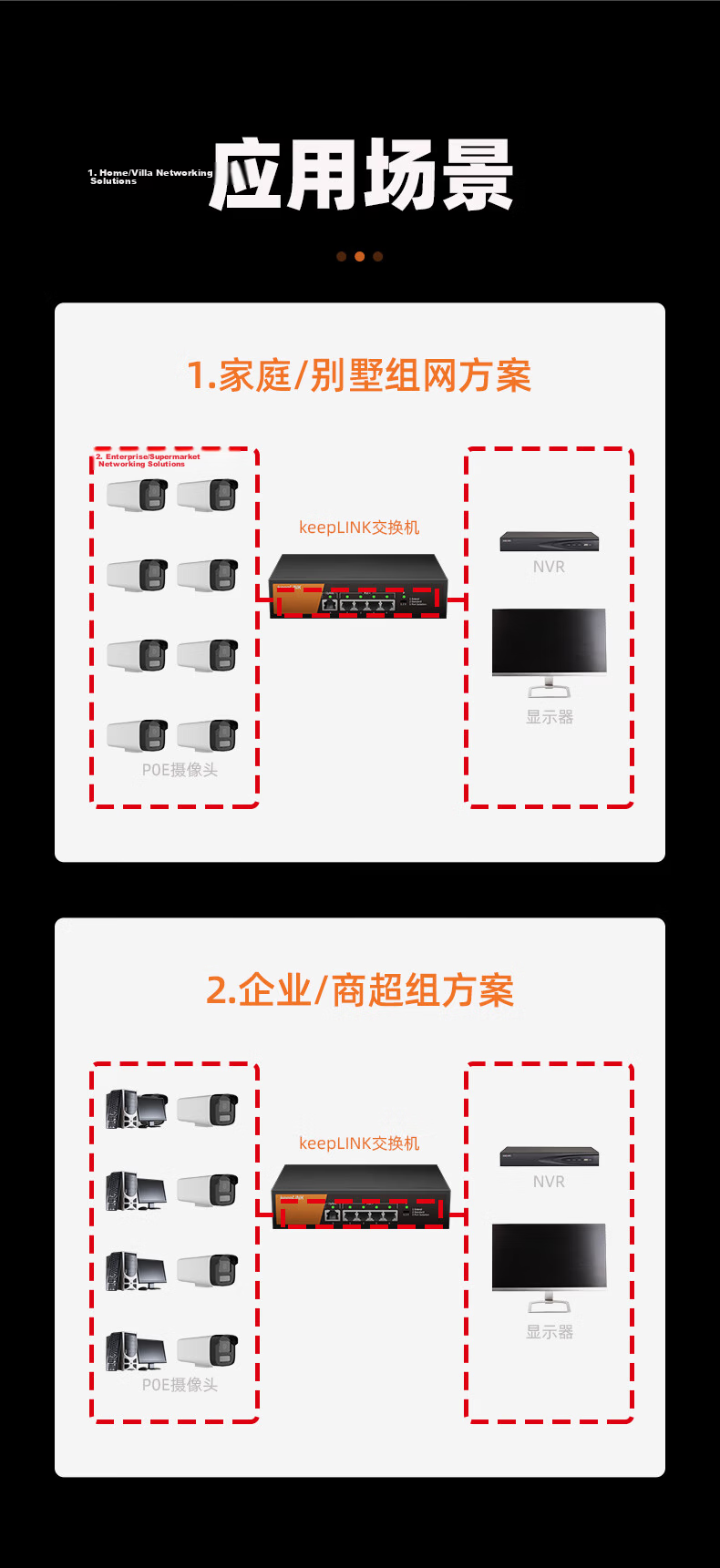

3. Applications

Suitable for elevators, workshops, malls, residential areas, transportation, hotels, etc.
Ideal for security monitoring, video conferencing, hotel surveillance, and traffic monitoring

4. Basic Specifications

Item	Detail
Ports	2 x 100Mbps POE RJ45 ports + 1 x 100Mbps powered RJ45 port
Backplane bandwidth	0.6 G
MAC address table	2K
Power input	Standard POE (12/36 or 45/78), IEEE802.3af/at up to 30W
Network media and transmission distance	100Base-TX: Cat5 or above UTP/STP (≤100 m), 10Base-TX: Cat5e or above UTP/STP (≤250 m)

5. Software Specifications

Compliant with IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
Supports IEEE802.3af/at powered devices
Features include MAC learning, flow control, and Ethernet power supply

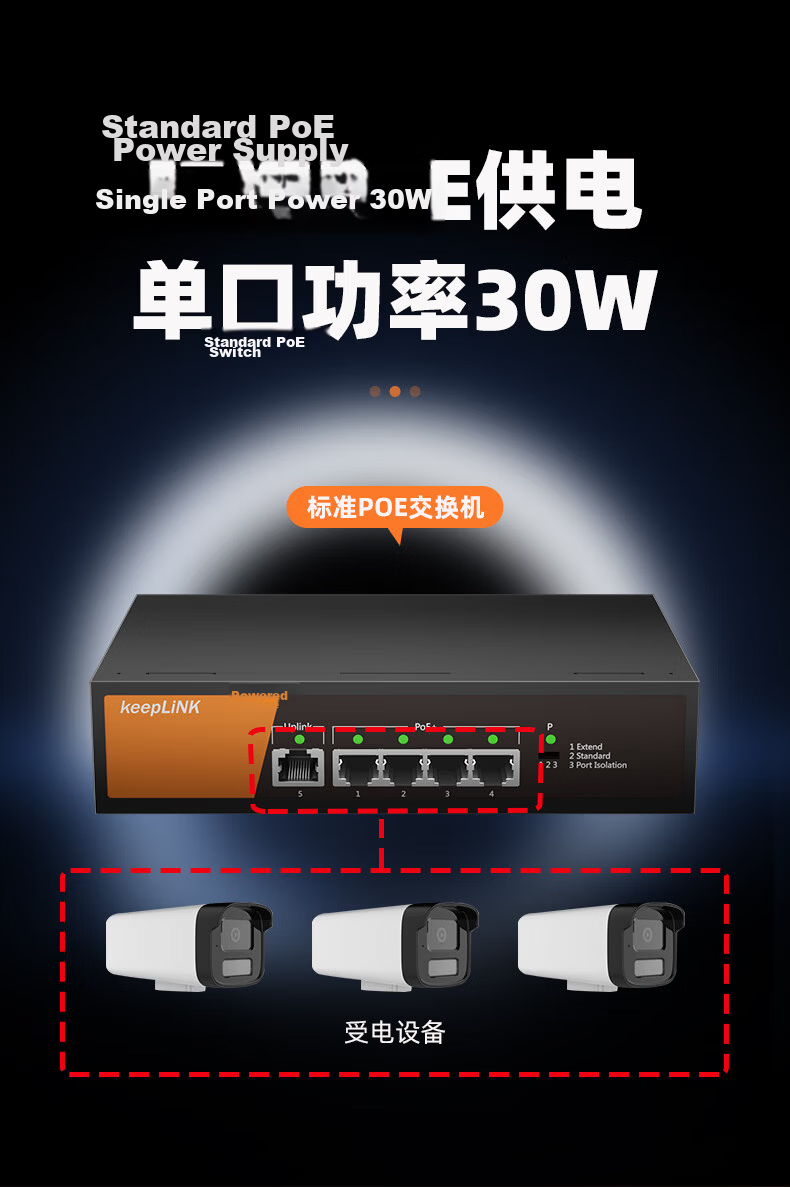

6. POE Output Performance

Supports IEEE802.3af and IEEE802.3at
Maximum port output power: 30W
Protection against overcurrent, overvoltage, and short circuits

7. Environmental Requirements

Item	Detail
Operating temperature	0°C to 40°C
Storage temperature	-40°C to 70°C
Operating humidity	10% to 90% RH non-condensing
Storage humidity	5% to 90% RH non-condensing
Altitude	Up to 6500 feet (2000 meters)

8. Weight

Item	Detail
Unit weight (excluding packaging)	Approx. 47 g
Carton weight (576PCS)	Approx. 30 kg

9. Lightning Surge Protection

Item	Detail
Differential mode	4KV
Common mode	4KV

10. Dimensions

Size	Unfolded dimensions
Housing	94 × 43 × 23 mm
Unit (neutral packaging)	98 × 43 × 25 mm
Carton (576PCS/box)	480 × 395 × 500 mm

11. Packaging, Transportation, Storage

Packaging: White blank box, high-quality cardboard carton
Packaging quantity: 576PCS/box
Transportation: Suitable for domestic express logistics, vehicle, ship, and air transport
Storage: Clean, ventilated warehouse with no corrosive gases, away from heat sources and strong mechanical vibrations
Storage period: Recommended to recheck after 2 years if stored under proper conditions for up to 1 year
