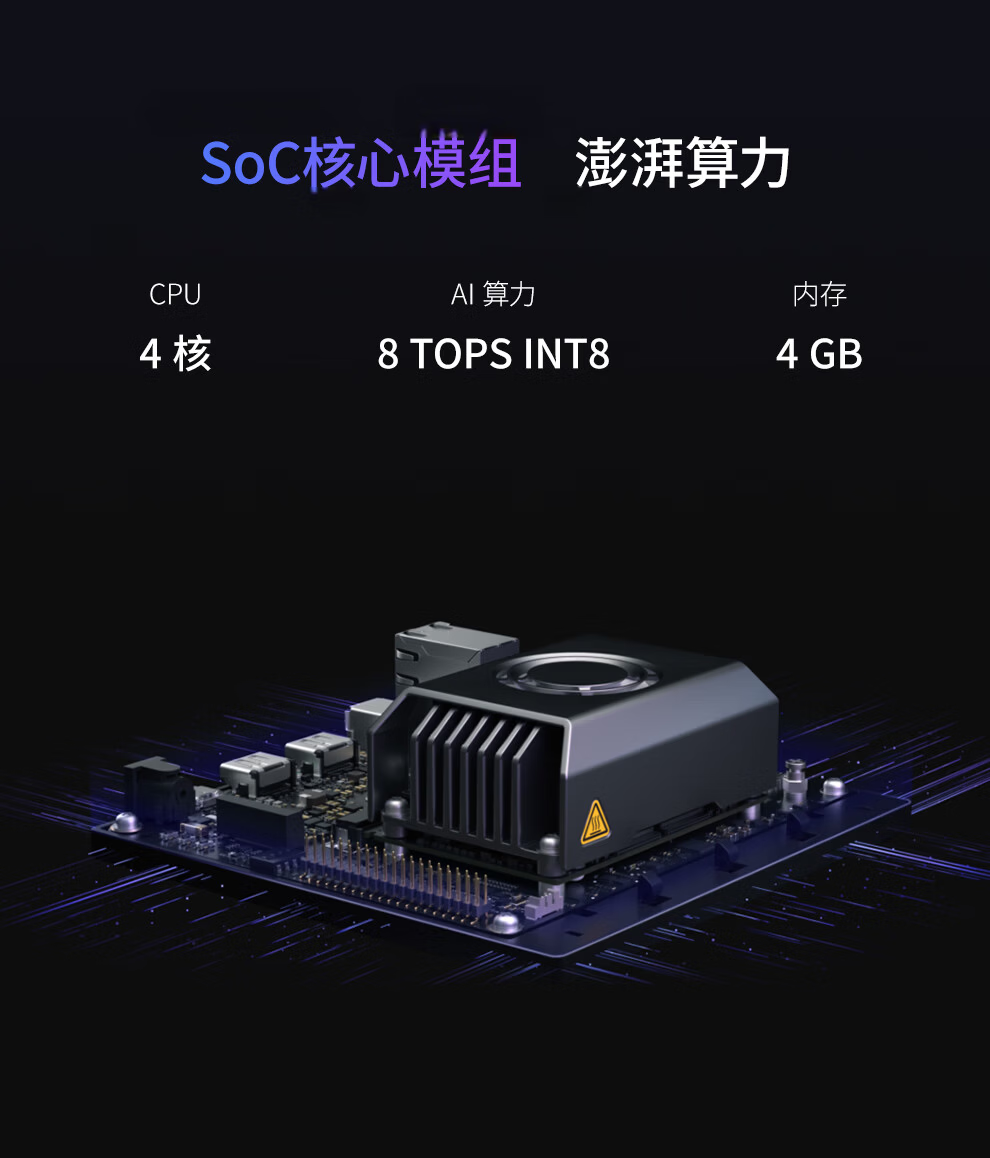

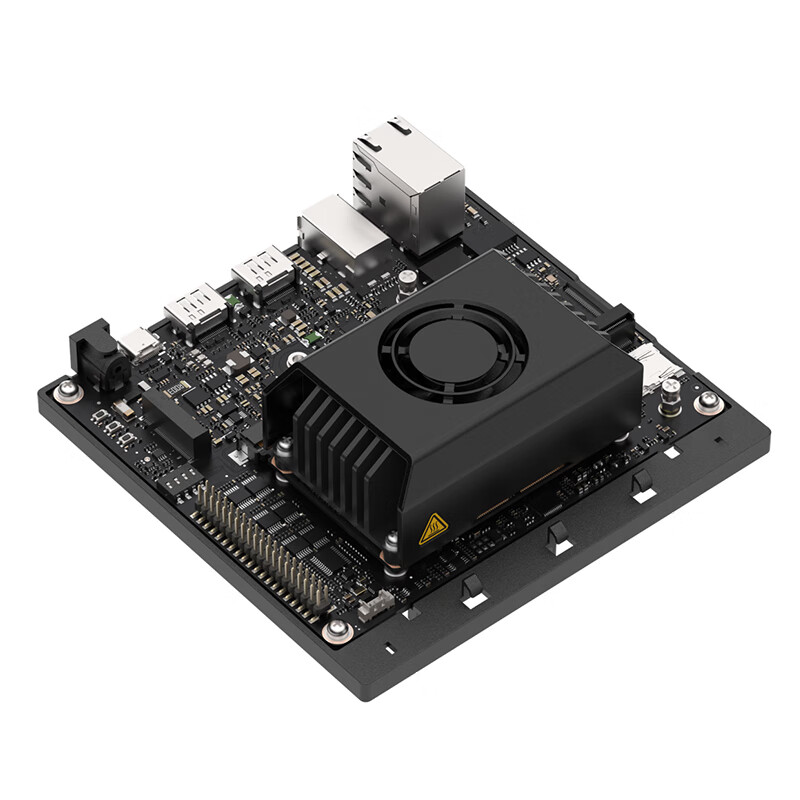

- SoC Core Module with powerful computing
- 4-core CPU @1.0 GHz, AI computing power 8 TOPS INT8, 4 TFLOPS FP16, 4GB LPDDR4X memory with ECC support
- Video codec support
- hardware decoding for H.264/H.265 up to 20 channels 1080P@30FPS, 2 channels 4K@75FPS; JPEG decoding 1080P@512FPS; encoding 1080P@256FPS; max resolution 16384×16384
- Rich software ecosystem
- over 100 reference code samples, pre-trained models covering CV, NLP, speech, and other popular AI domains
- Typical AI application demos
- intelligent voice assistant, smart car, robotic arm, real-time human keypoint detection, helmet recognition, multi-channel video capture, pedestrian attribute recognition, Chinese OCR, tracking algorithms
- High-efficiency tools for rapid development
- one-click card creation, 30 minutes to run first sample, 2 hours to complete application deployment, Windows-based model adaptation tools, one-click image burning
- Typical power consumption
- 24W

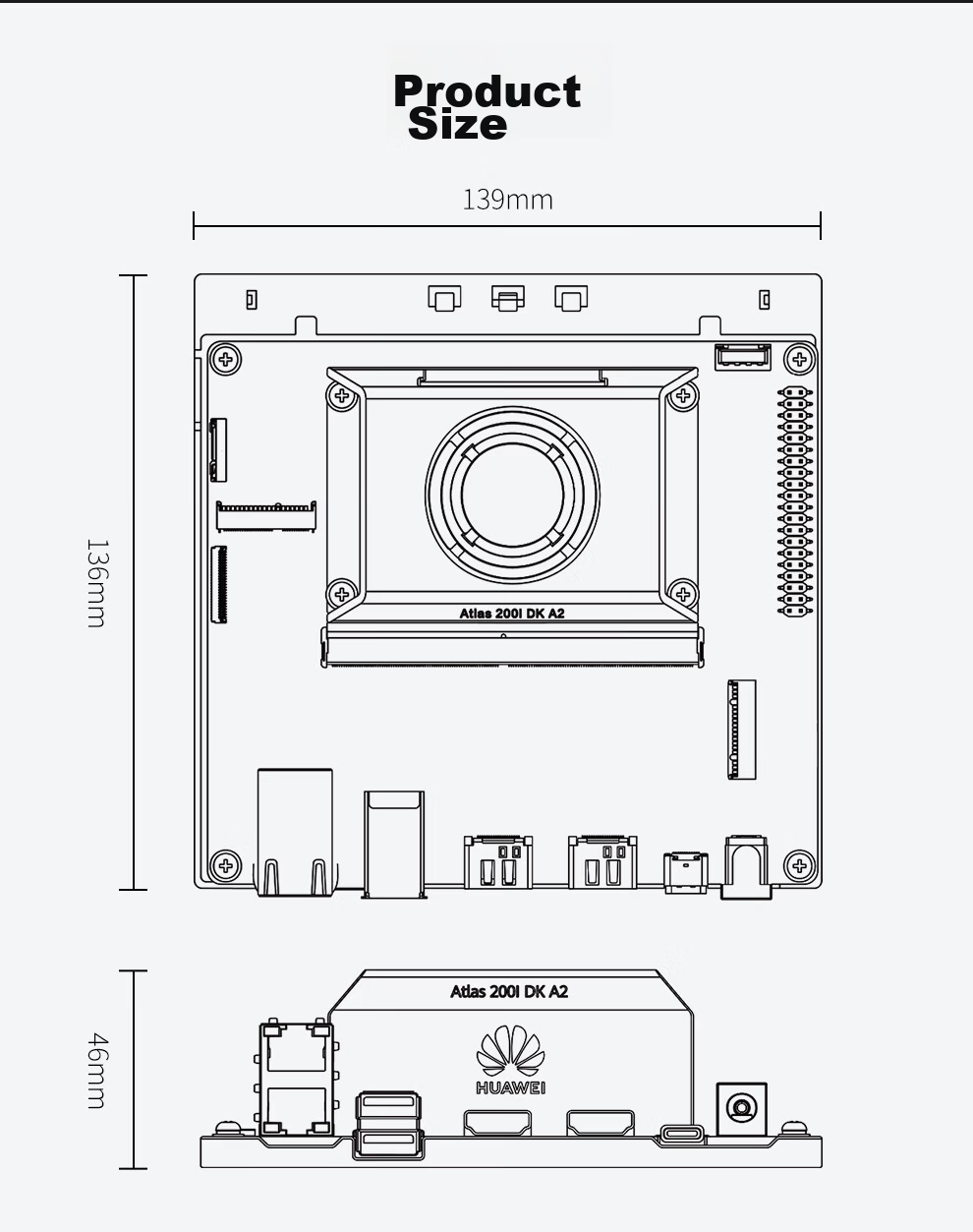

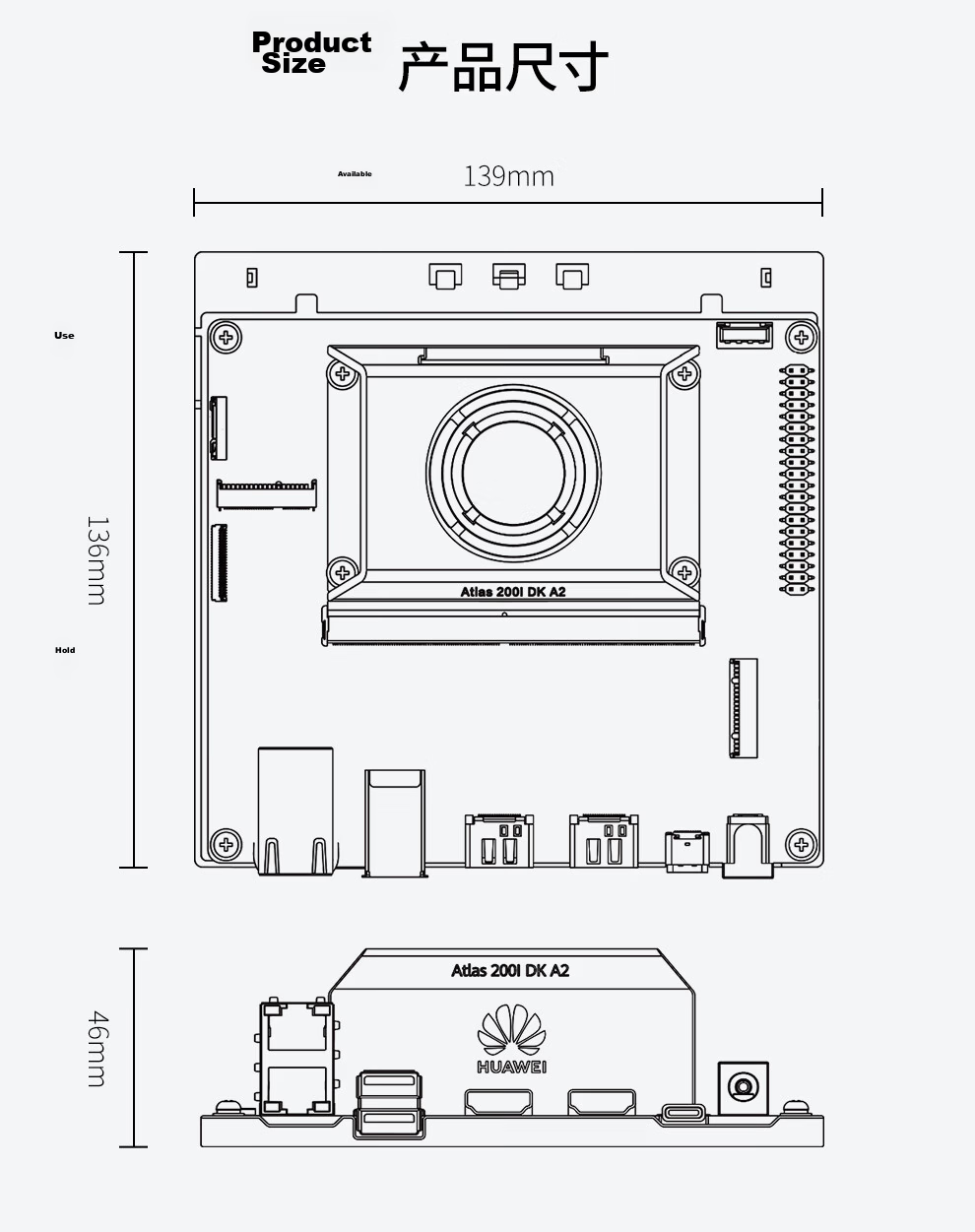

- Product dimensions
- 139 mm x 136 mm x 46 mm

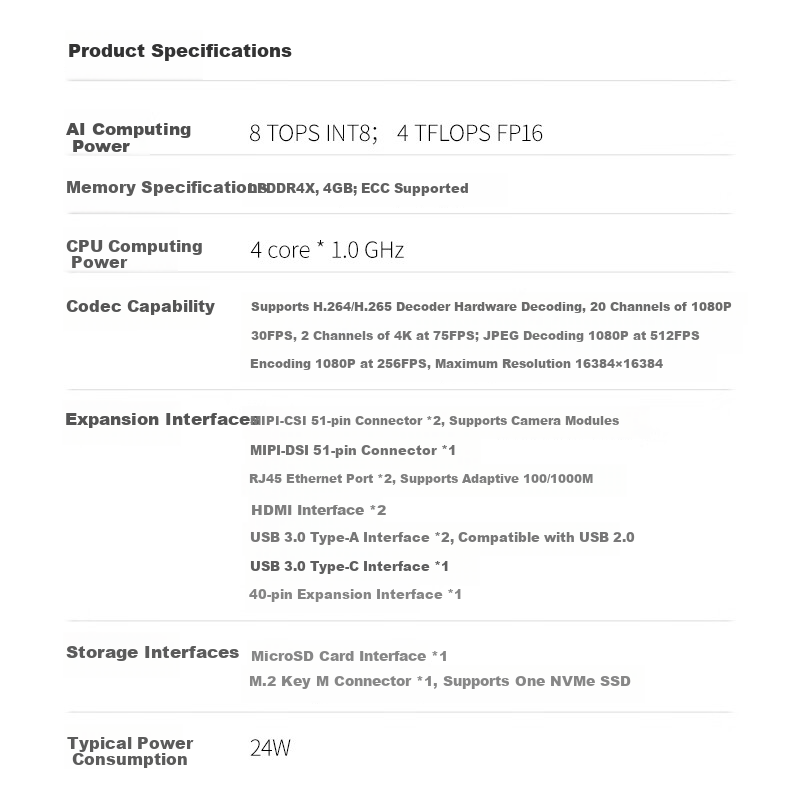

- AI Computing Power
- 8 TOPS INT8, 4 TFLOPS FP16
- Memory
- 4GB LPDDR4X, 25.6GB/s bandwidth, ECC supported
- CPU
- 4-core @1.0 GHz
- Video Codec
- H.264/H.265 hardware decoding and encoding

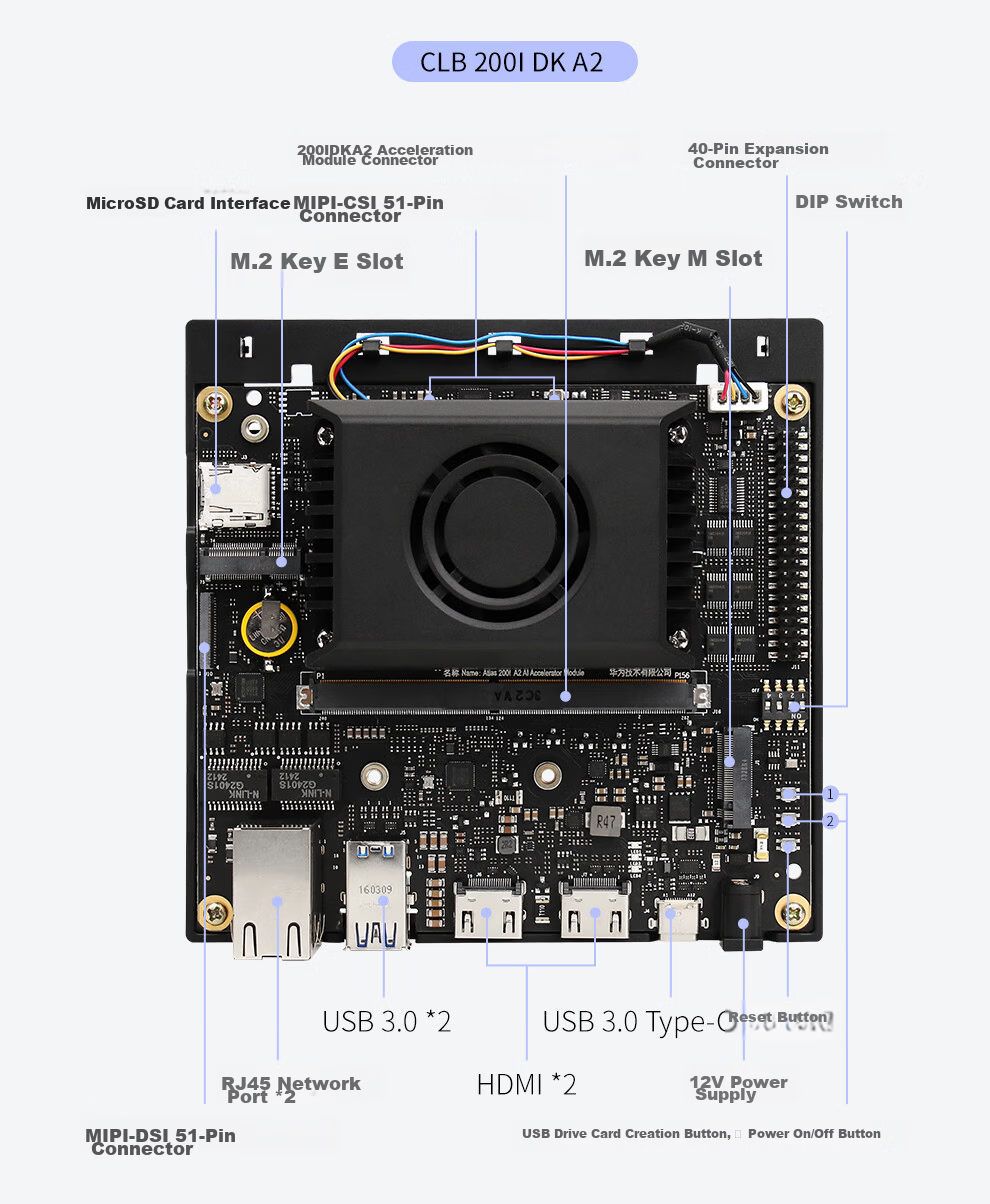

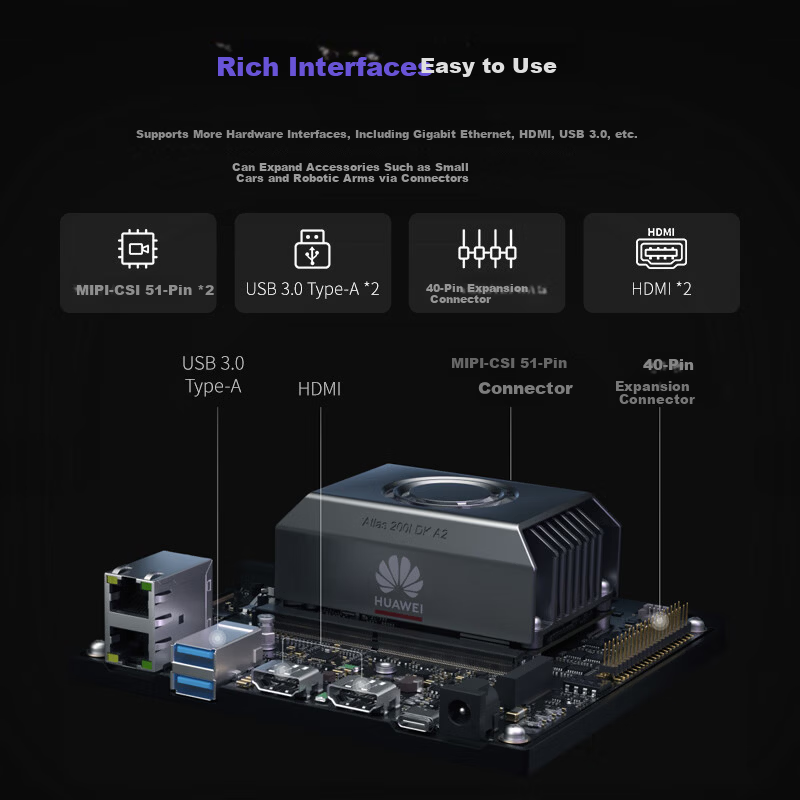

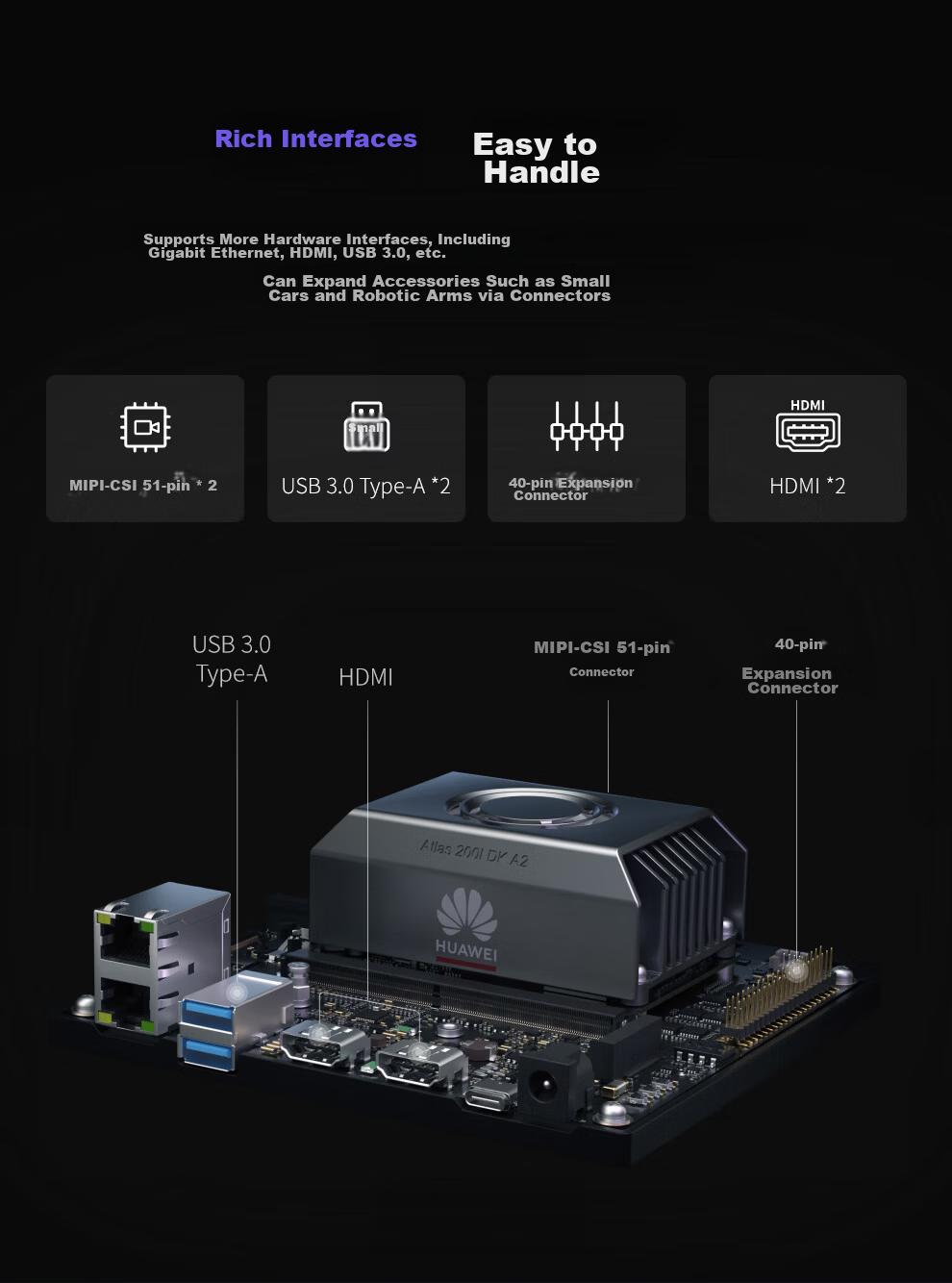

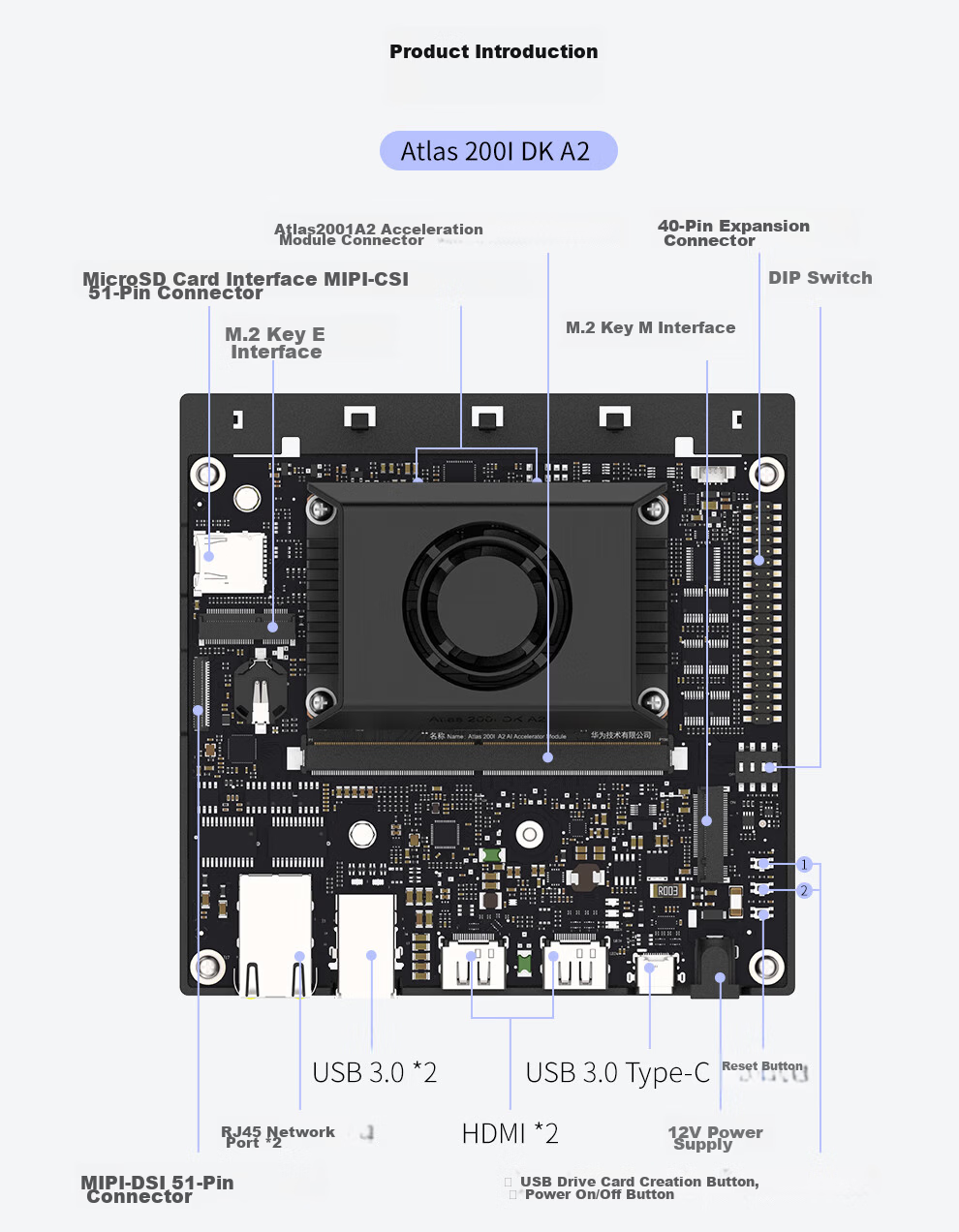

- Interfaces
- 2x MIPI-CSI 51-pin connectors, 1x MIPI-DSI 51-pin connector, 2x RJ45 (100/1000 M adaptive), 2x HDMI, 2x USB 3.0 Type-A (backward compatible with USB 2.0), 1x USB 3.0 Type-C, 1x 40-pin expansion connector, 1x MicroSD card slot, 1x M.2 Key M connector (supports 1 NVMe SSD)
- Operating Temperature
- -20°C to 80°C (-4°F to 176°F)

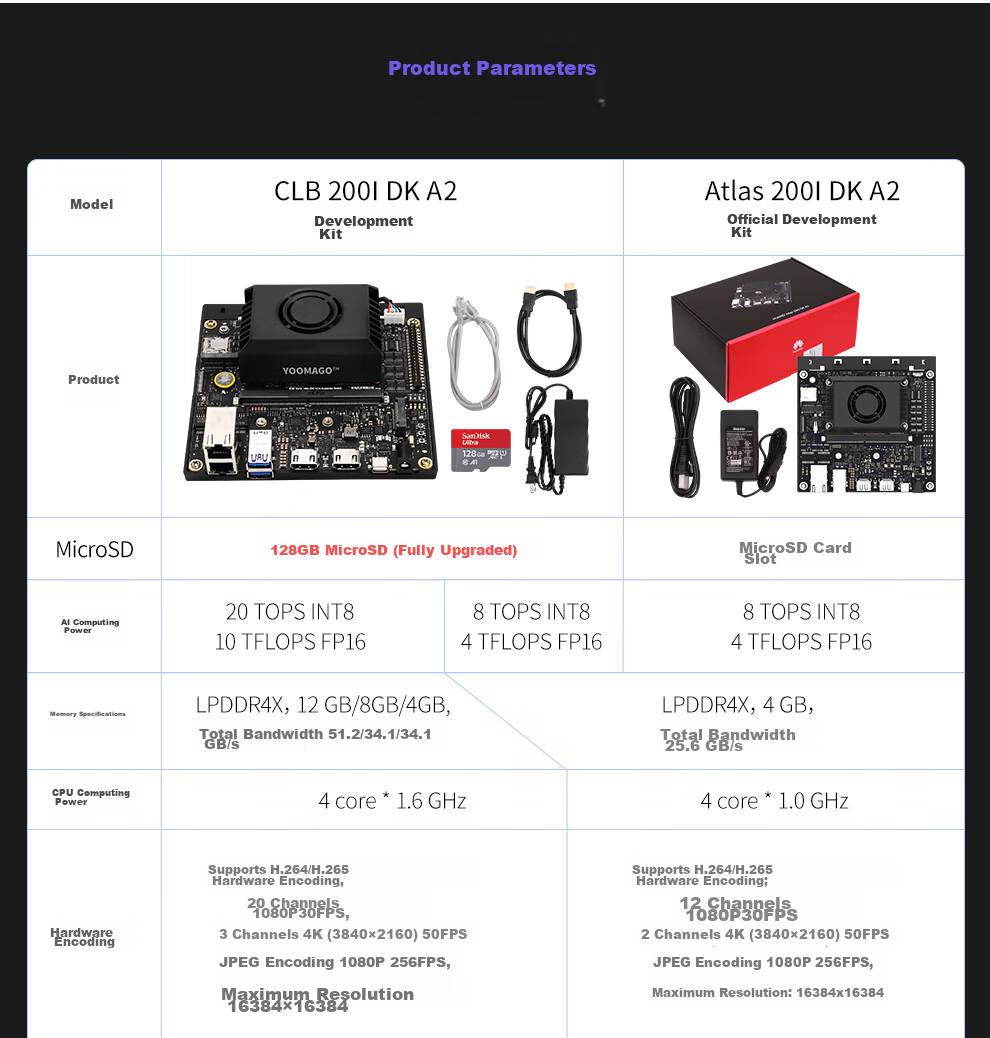

- AI Computing Power
- 20 TOPS INT8, 10 TFLOPS FP16
- Memory
- 12GB LPDDR4X, 51.2GB/s bandwidth, ECC supported
- CPU
- 4-core @1.6 GHz

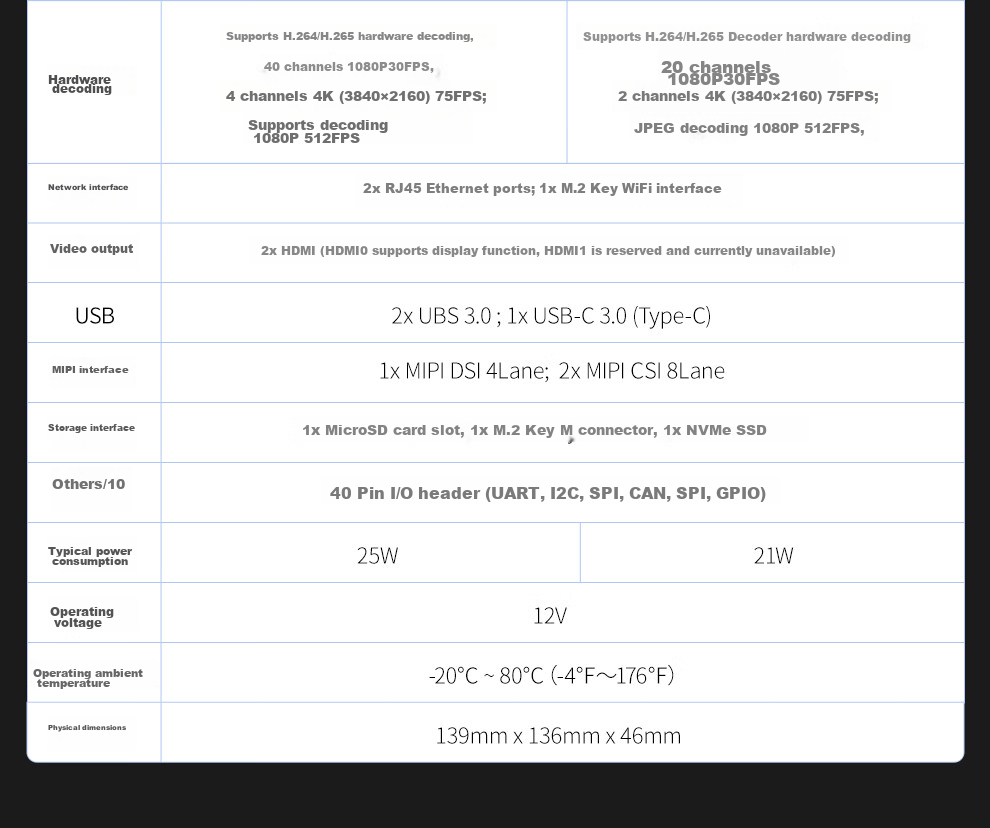

- Video Codec
- supports up to 40 channels 1080P@30FPS decoding, 4 channels 4K@75FPS decoding, 20 channels 1080P@30FPS encoding, 3 channels 4K@50FPS encoding
- Interfaces
- 8-lane PCIe 3.0 configurable, 4x SATA 3.0, 2x RGMII, 5x UART, 4x I2C, 2x SPI, 4x CAN, 2x HDMI, MIPI-CSI 8-lane, MIPI-DSI 4-lane, audio interfaces including 2x I2S and analog audio input/output
- Typical Power Consumption
- 25W
- Dimensions
- 82 mm x 60 mm x 7 mm (MXM connector form factor)
