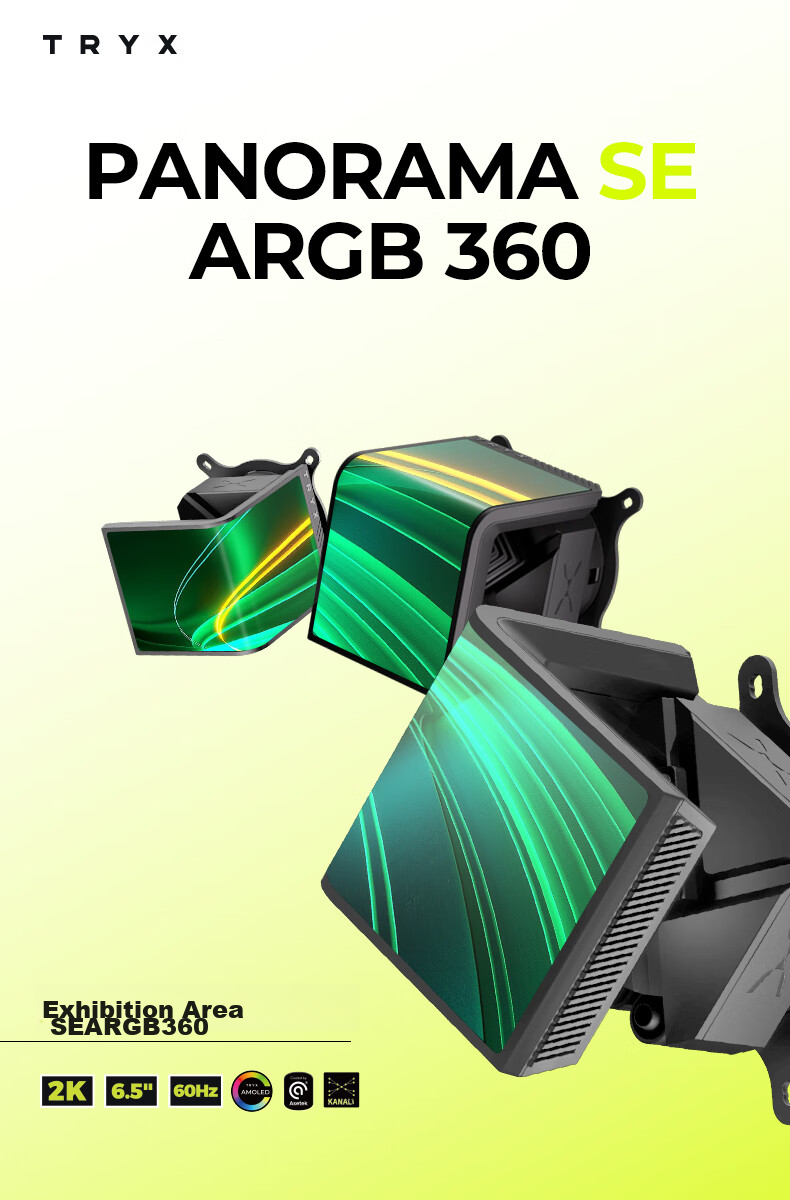

TRYX (Chuangkexingxi) PANORAMA Zheyou SE 360 Water-Cooled CPU Cooler ARGB Black, 6.67-Inch Curved Screen/Asetek/KANALI Software/Naked Eye 3D

TRYX•radiator

TRYX (Chuangkexingxi) PANORAMA Zheyou SE 360 Water-Cooled CPU Cooler ARGB Black, 6.67-Inch Curved Screen/Asetek/KANALI Software/Naked Eye 3D

CN¥1,599.00

SKU: 100120449627

Status:In Stock (31)

ID: 100120449627

Weight: 2770.00 g

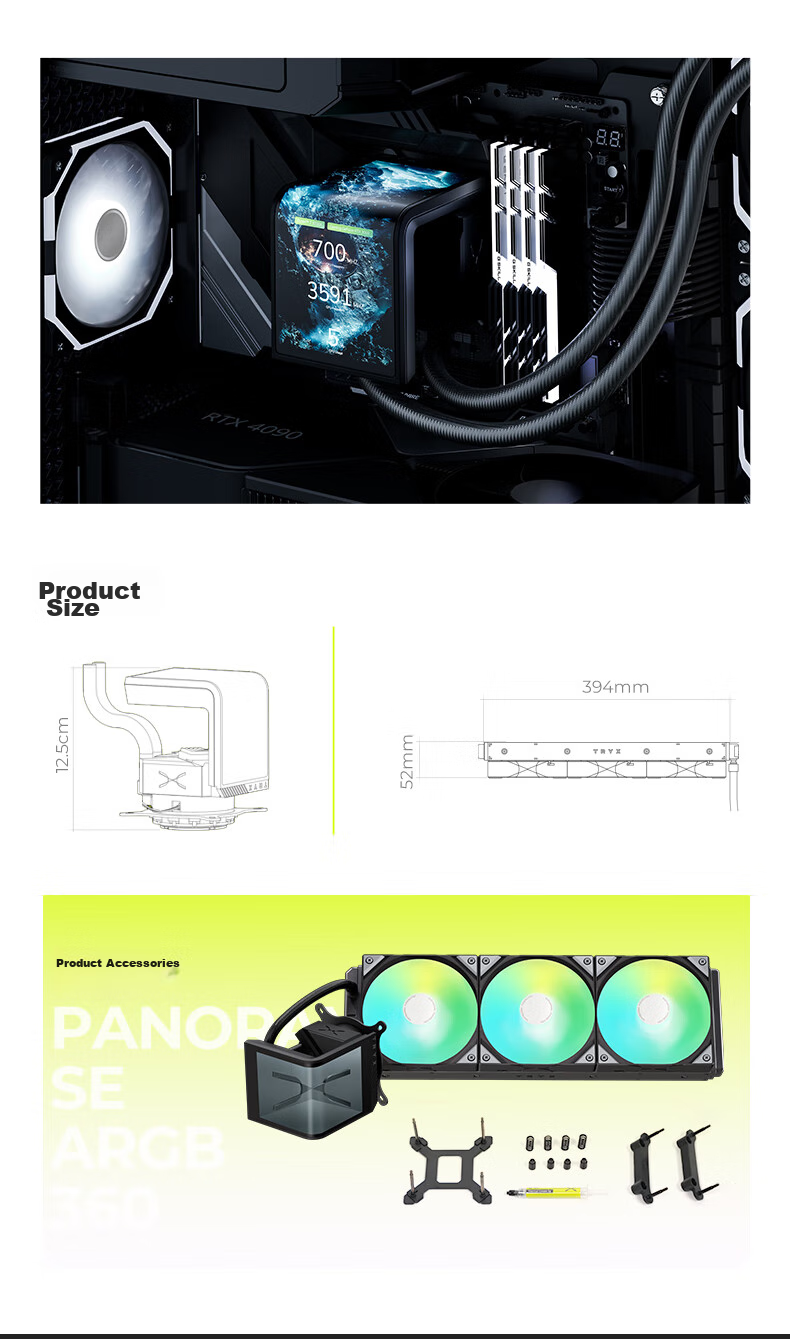

Dims:452x230x144 mm

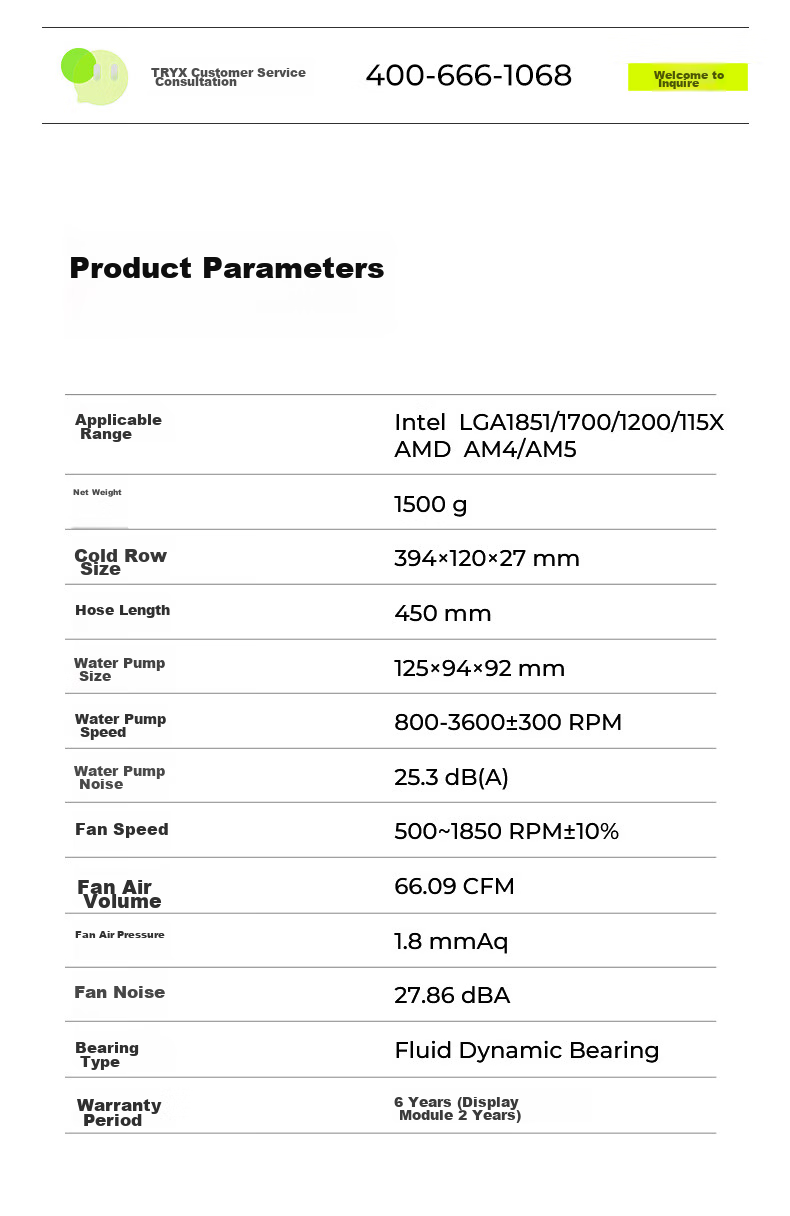

Specifications

Number of heat pipes: No
Water cooling type: 360 radiator
Compatible interface: INTEL LGA1700, AMD AM5, INTEL LGA1851, AMD AM4
Type: All-in-one liquid cooler
Cold heading type: Curved AMOLED display
Lighting Effects: ARGB

Variants / Sale Attributes

Color: Zhanyu SE360ARGB, 6.67-Inch Curved Screen, Black

Package Contents

Water cooling radiator, user manual

Product Description

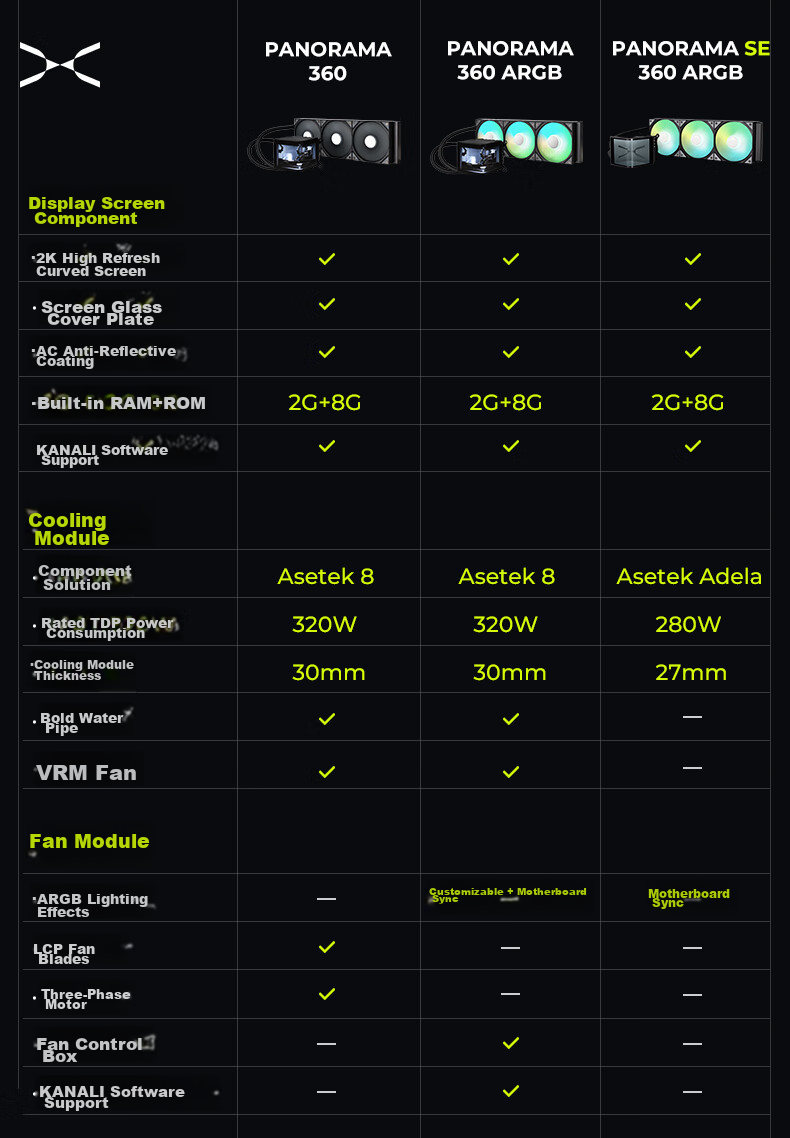

Product Specifications – TRYX PANORAMA Series

1. Display

Overview

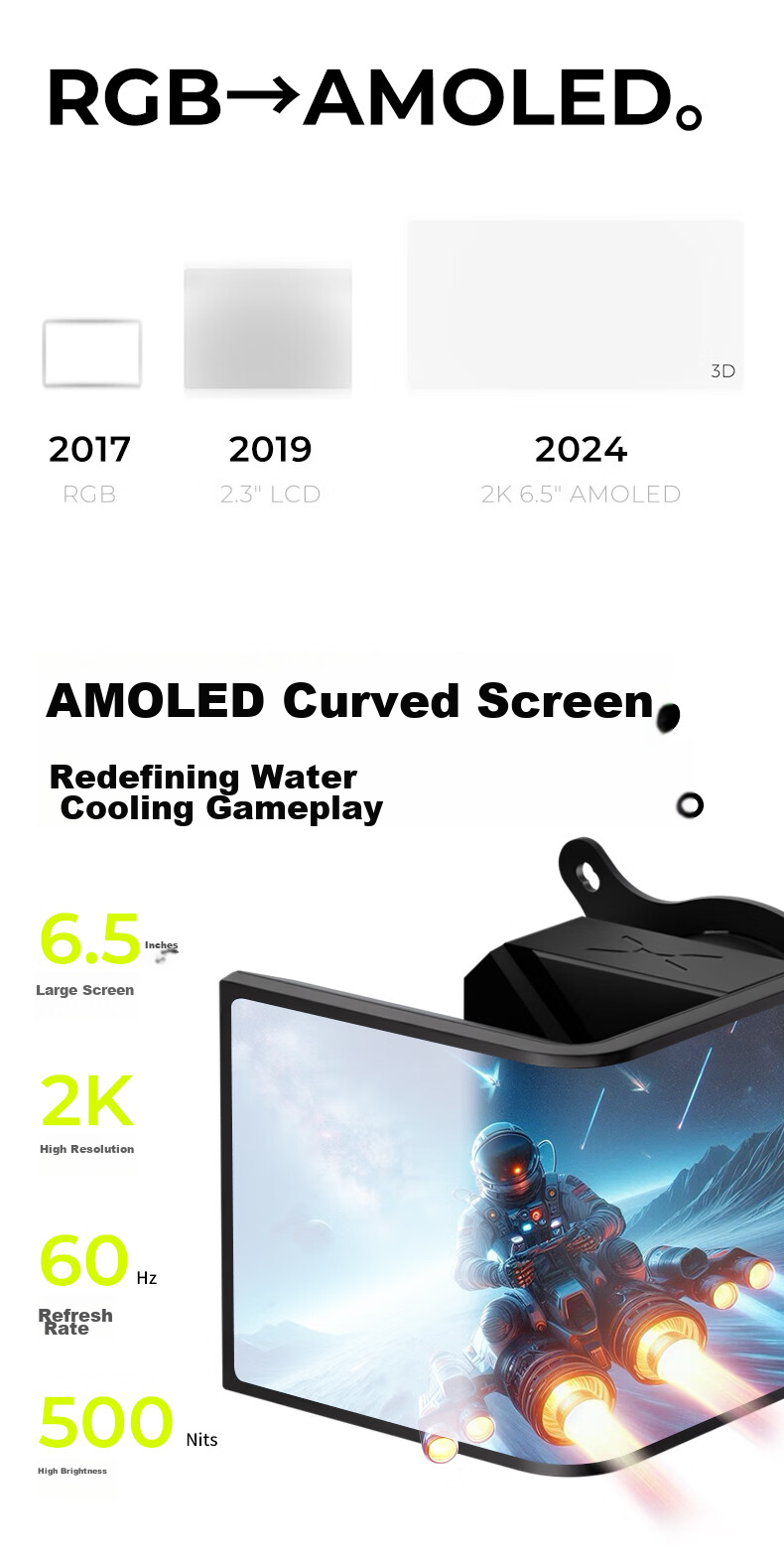

Screen Size Options: 5.0-inch HD, 6.5-inch visible area, 6.67-inch curved AMOLED screen

Screen Features

Curved screen with G2 curvature rounded corners for superior 3D viewing angles

Additional details

Resolution & Refresh Rate: 2K high refresh rate curved display

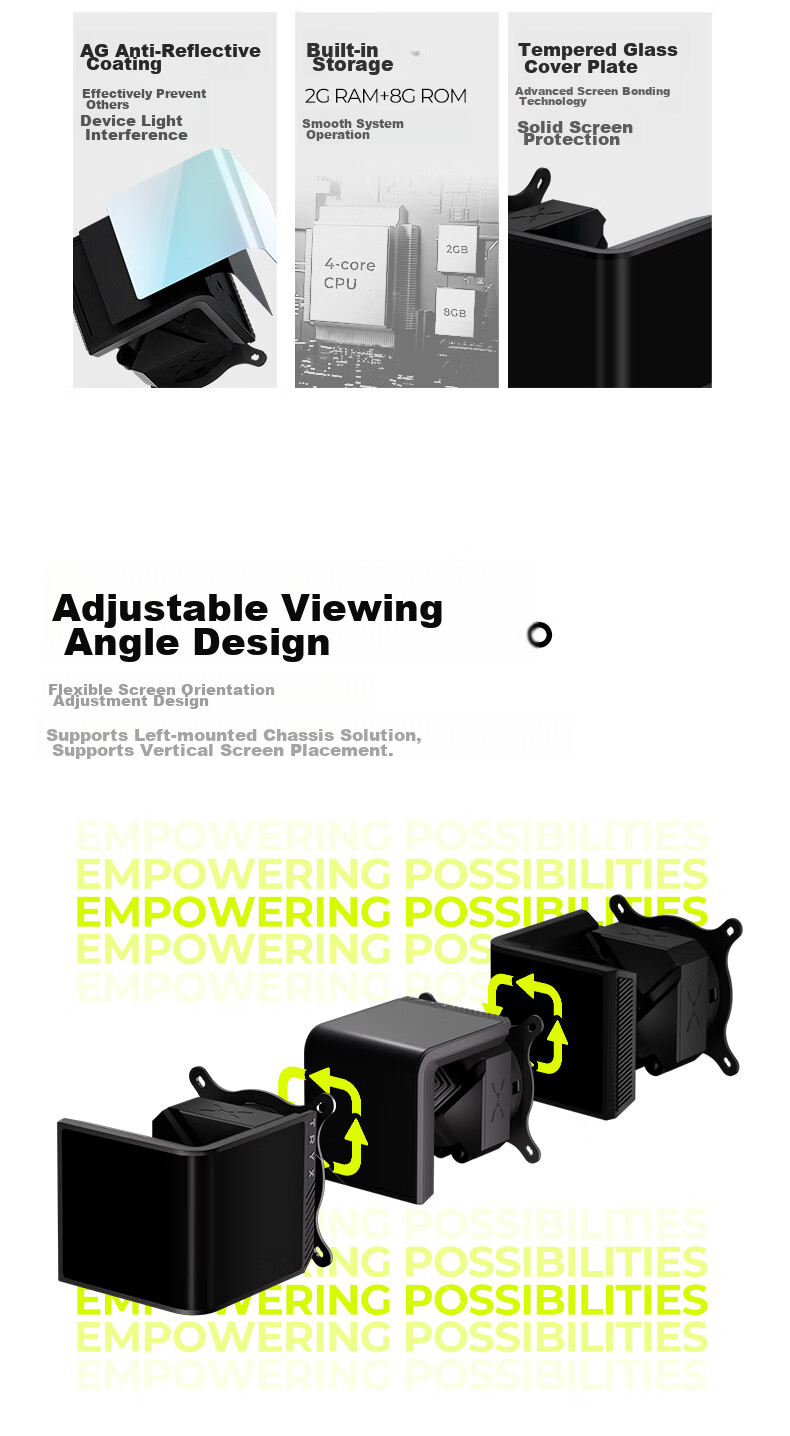

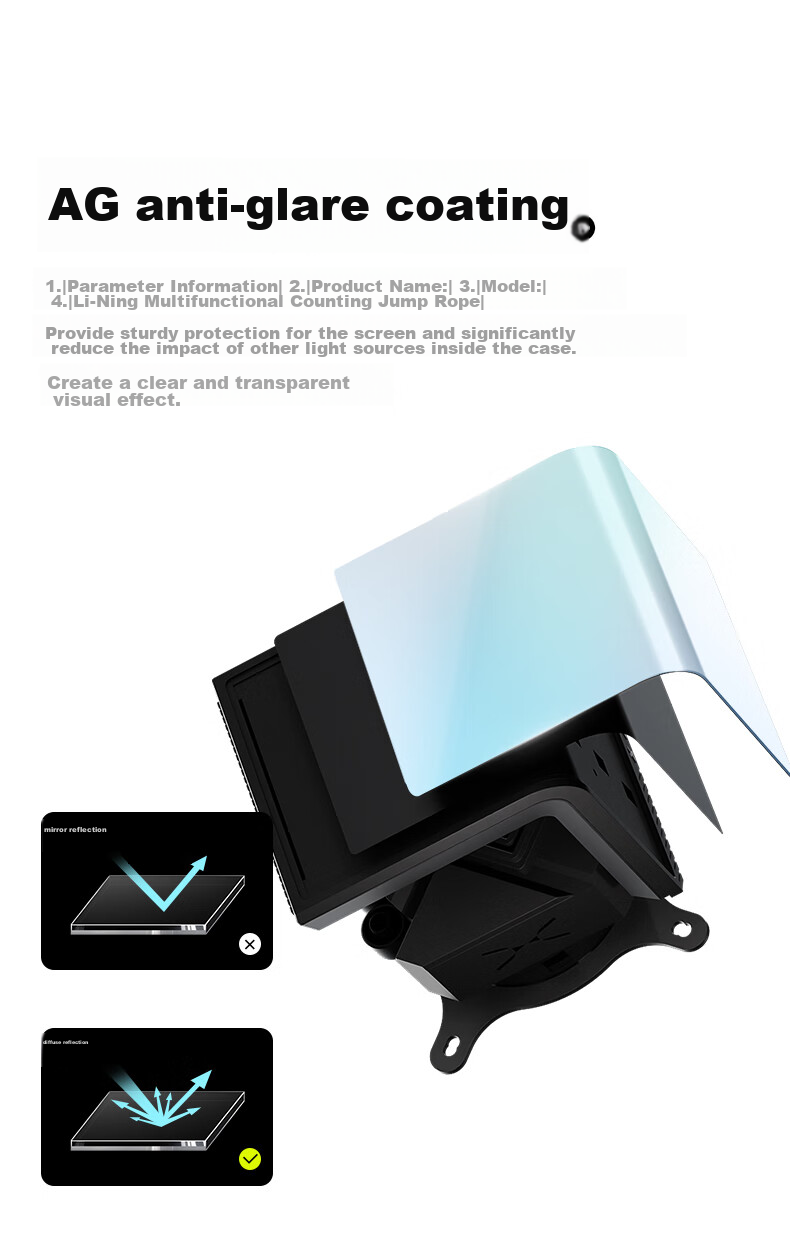

Glass: Tempered glass cover with AC anti-reflective coating

Similar Products

Out of Stock

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

thermalrightradiator

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

AS120 VISION ARGB Black

CN¥129.90

In Stock

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

SAMAradiator

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

2.8-Inch Screen, Second-Generation XW360-P Fanless, Black

CN¥529.00

Visual Effects

Naked-eye 3D holographic visual experience, holographic effects (HOLO), ARGB lighting effects (360ARGB, SE360ARGB)

Screen Orientation

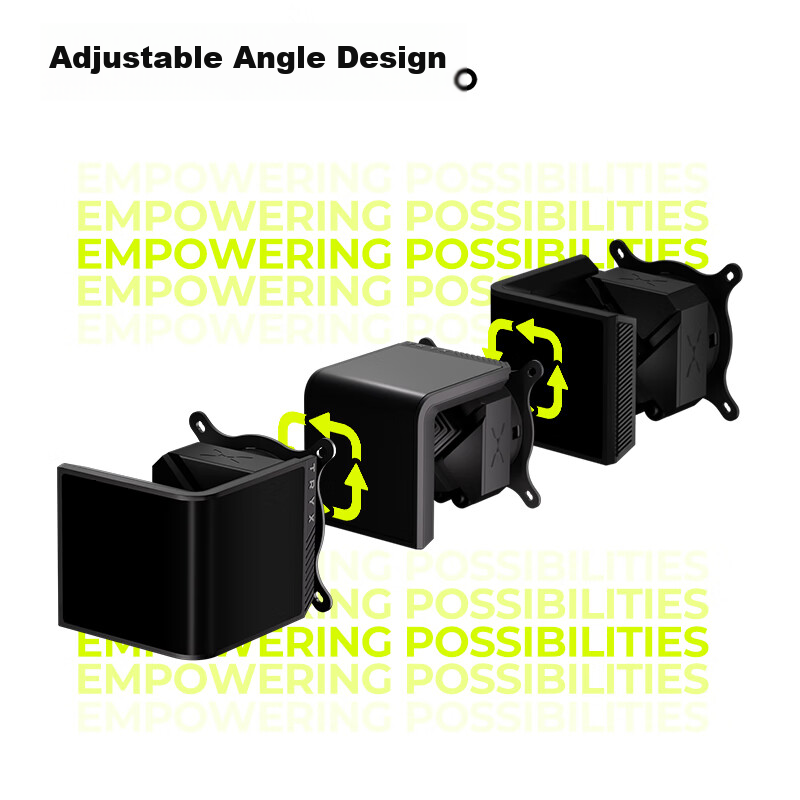

Supports variable angle back-mounting, flexible screen orientation adjustment, vertical screen placement, and left-side chassis installation

Special Modes

Dedicated waterfall mode for vertical screen display of numerical data

2. Cooling System

Additional details

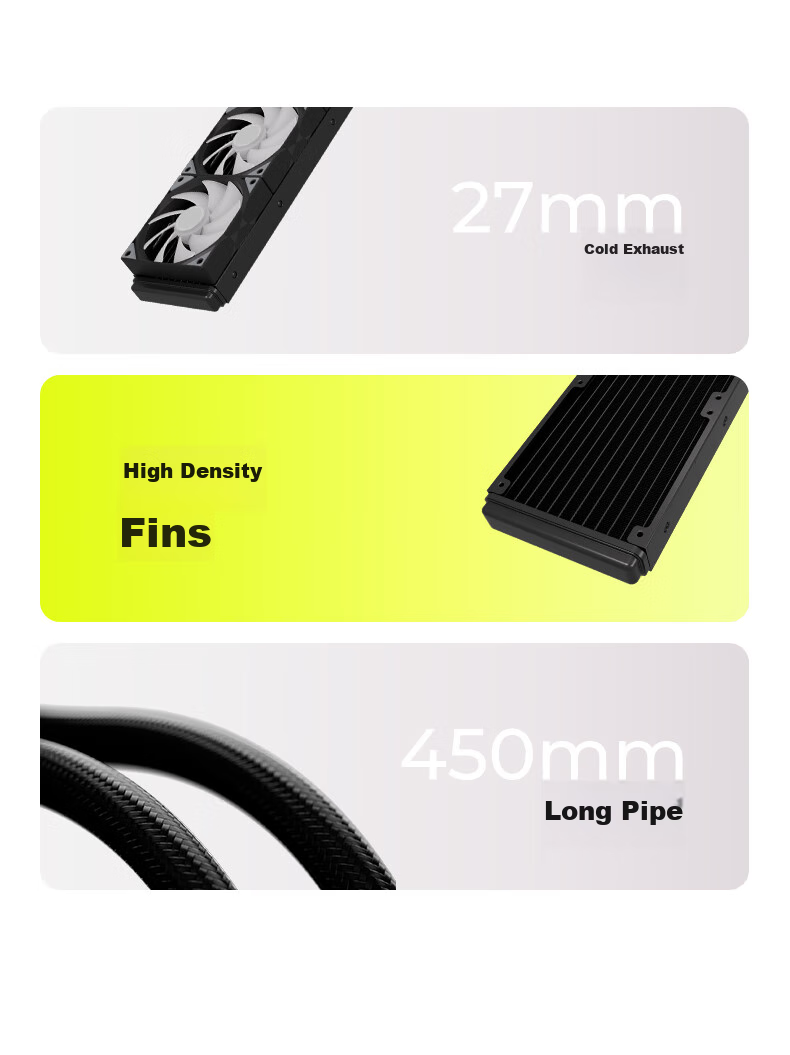

Cooling Type: Water cooling system with thickened water pipes (450 mm length)
Radiator: High-density fin radiator, thickness options 27 mm, 30 mm

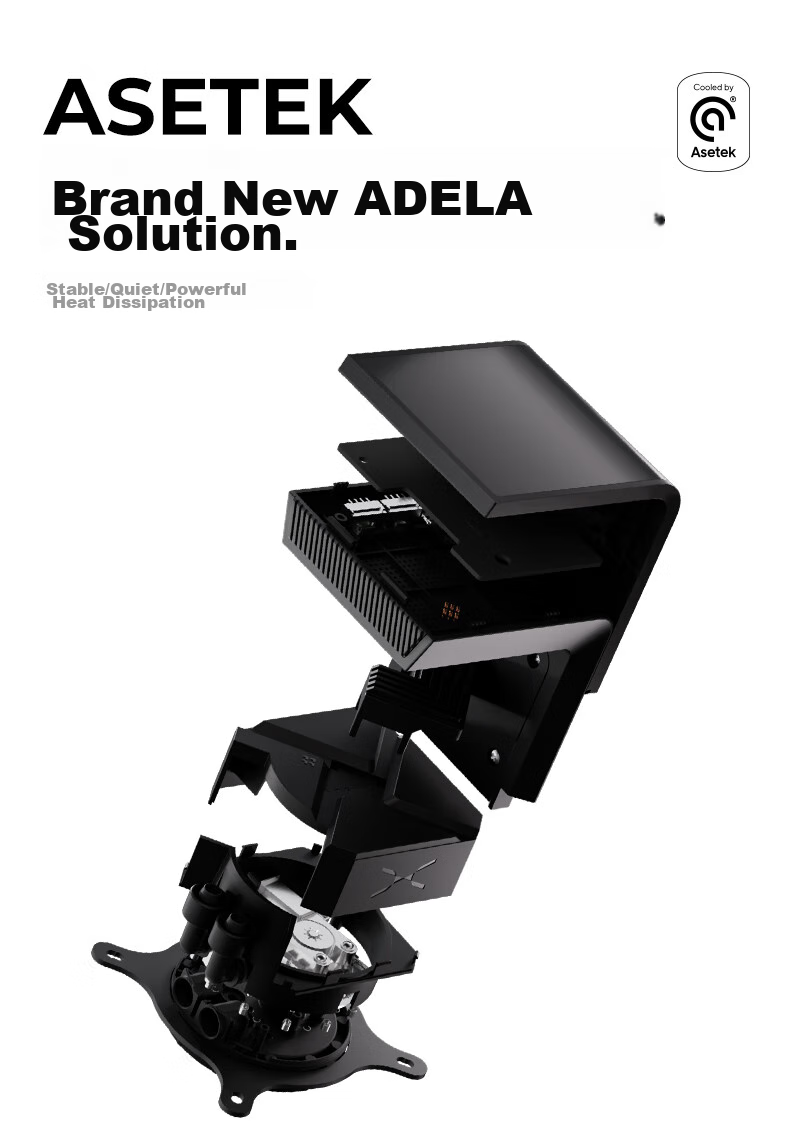

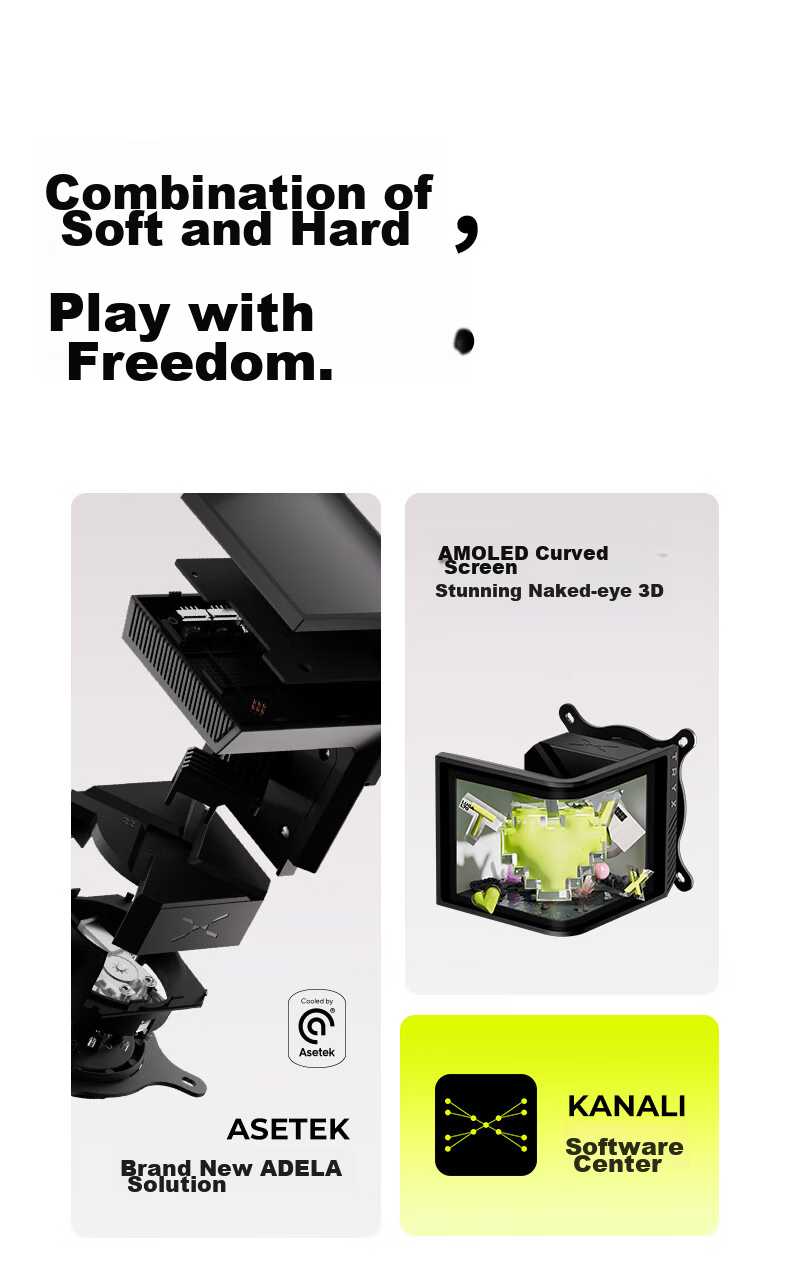

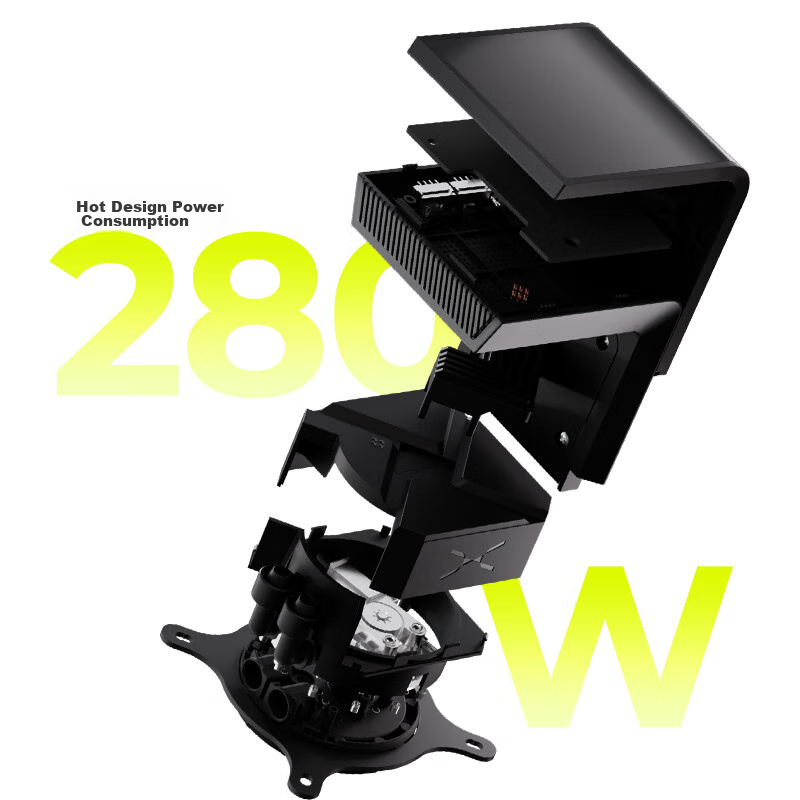

Pump: New generation Asetek Adela pump with rated TDP cooling capacity of 280W (Dynamic Thermal Power Capacity)

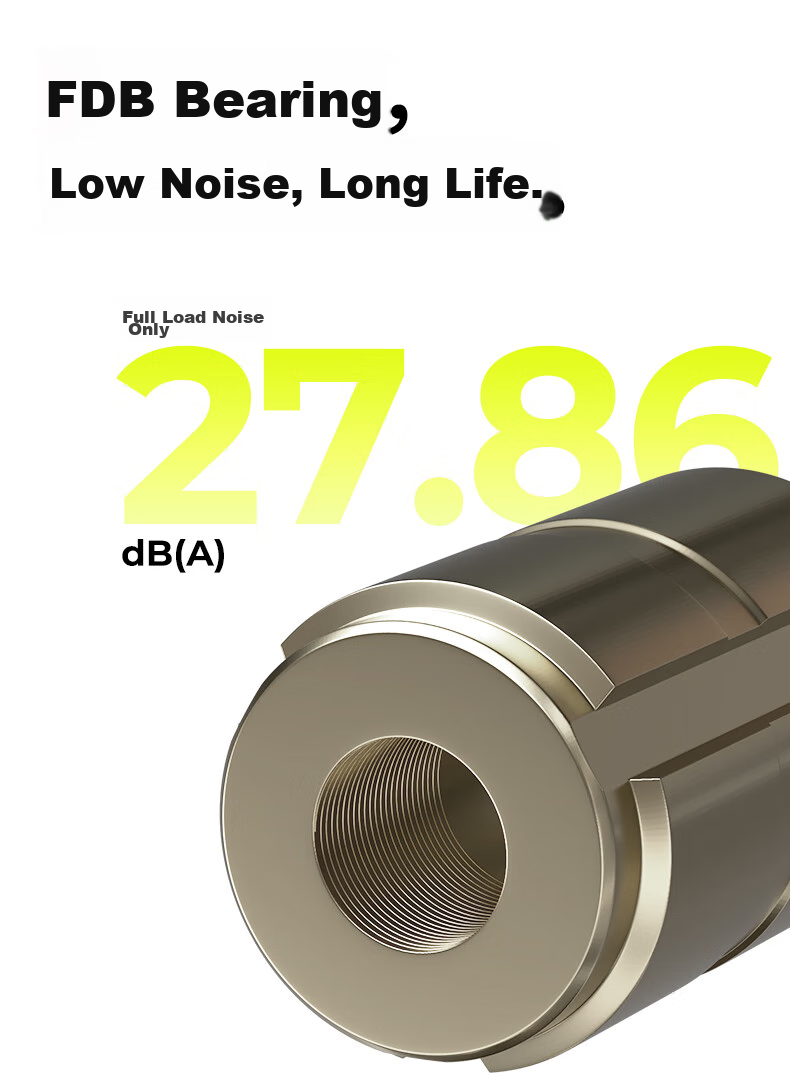

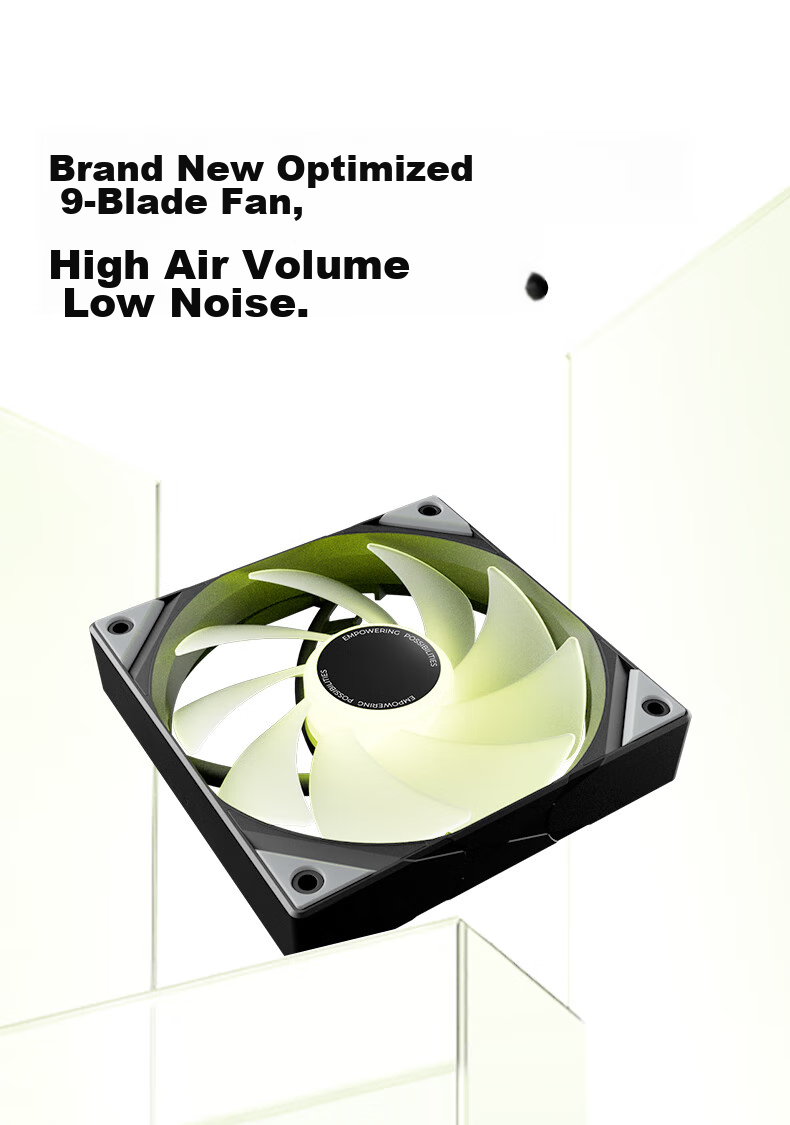

Fans: ARGB fans with LCP blades, three-phase motor, FDB bearing for low noise and long life
Noise Level: Maximum noise under full load 27.86 dB(A)
Fan Speed: Pump speed 2800-3600 RPM ±10%
Additional Cooling Components: VRM fan, fan control box, cold plate assembly

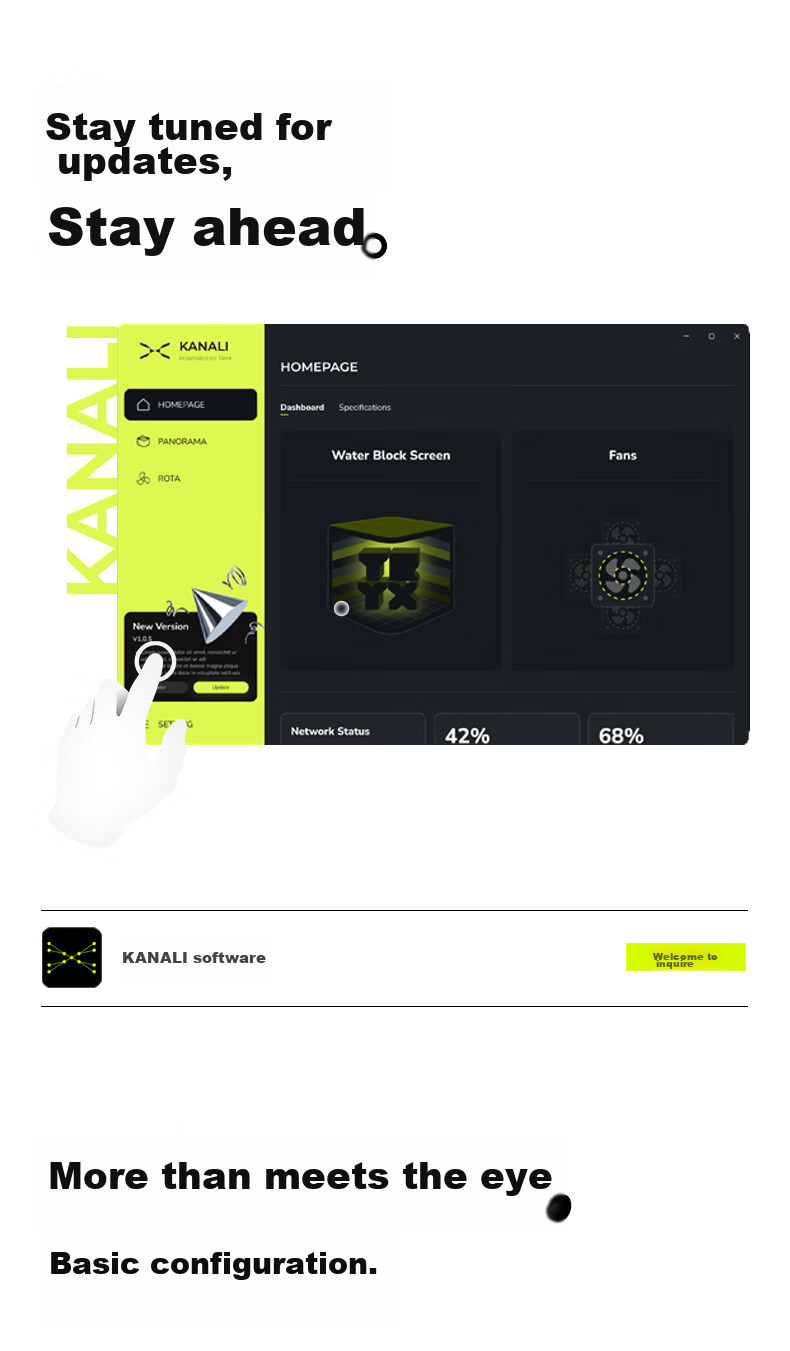

Software Support: KANALI software for fan and lighting control

3. System & Software

Additional details

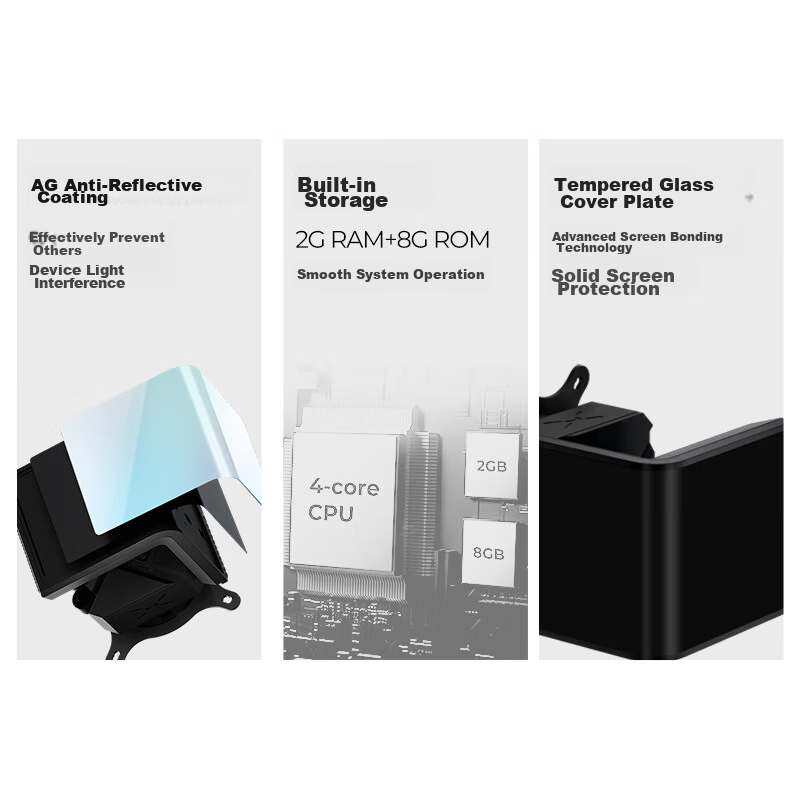

Embedded System: Independent embedded system with built-in processor and storage (RAM + ROM), zero PC resource usage

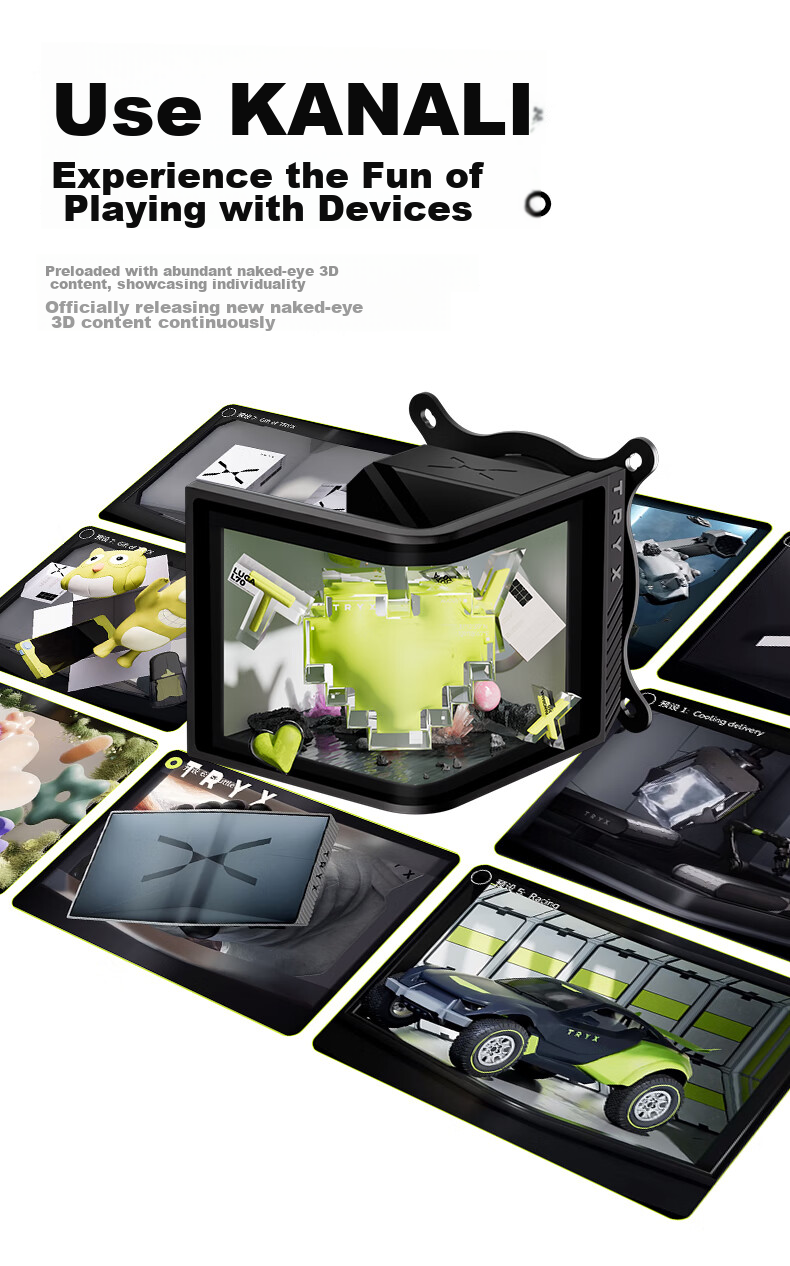

Software: KANALI software suite with extensive content library including GIPHY materials, preloaded naked-eye 3D content, and continuous updates

Features

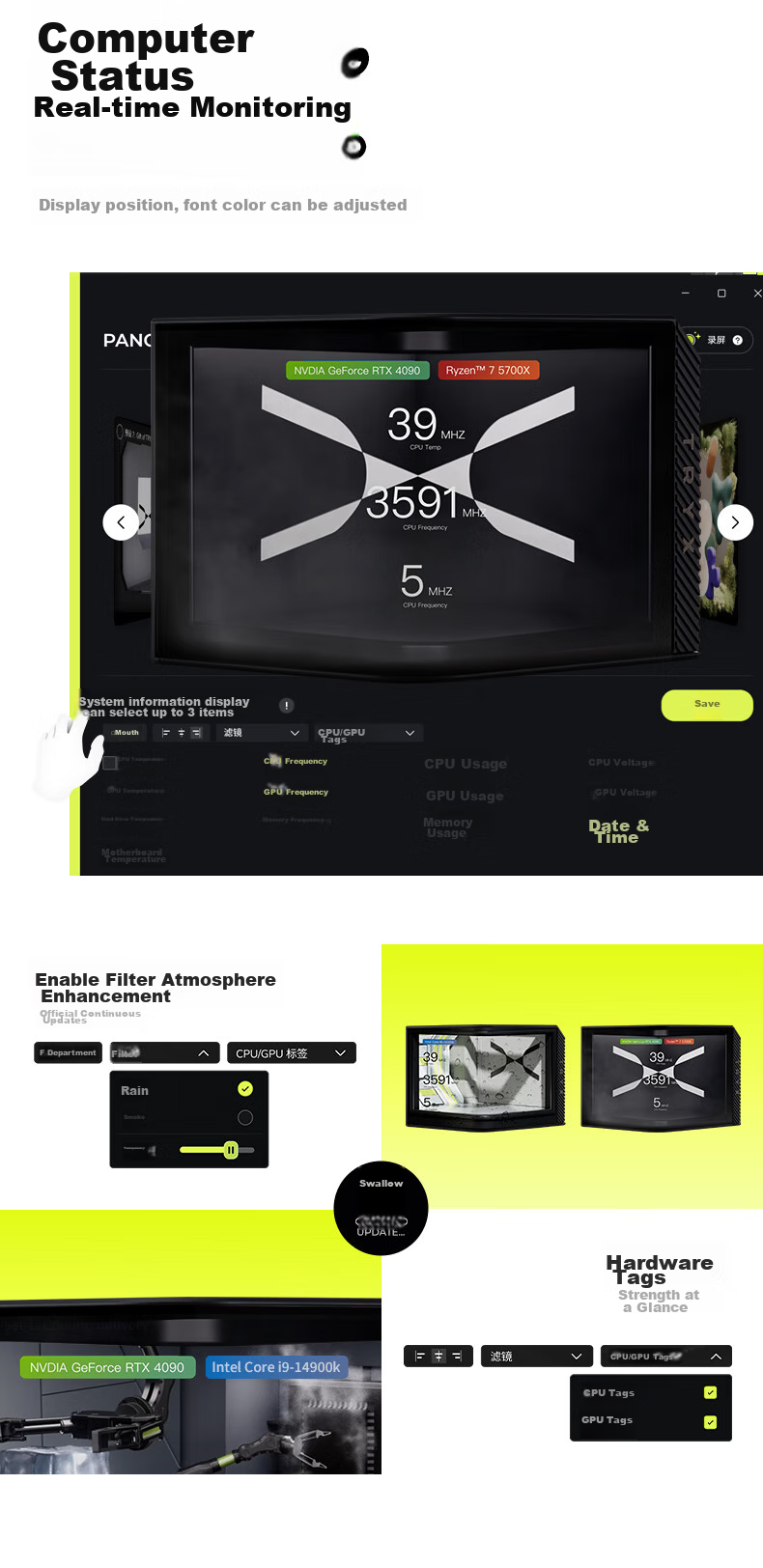

Hardware monitoring (CPU/GPU status)
Customizable display fonts and colors

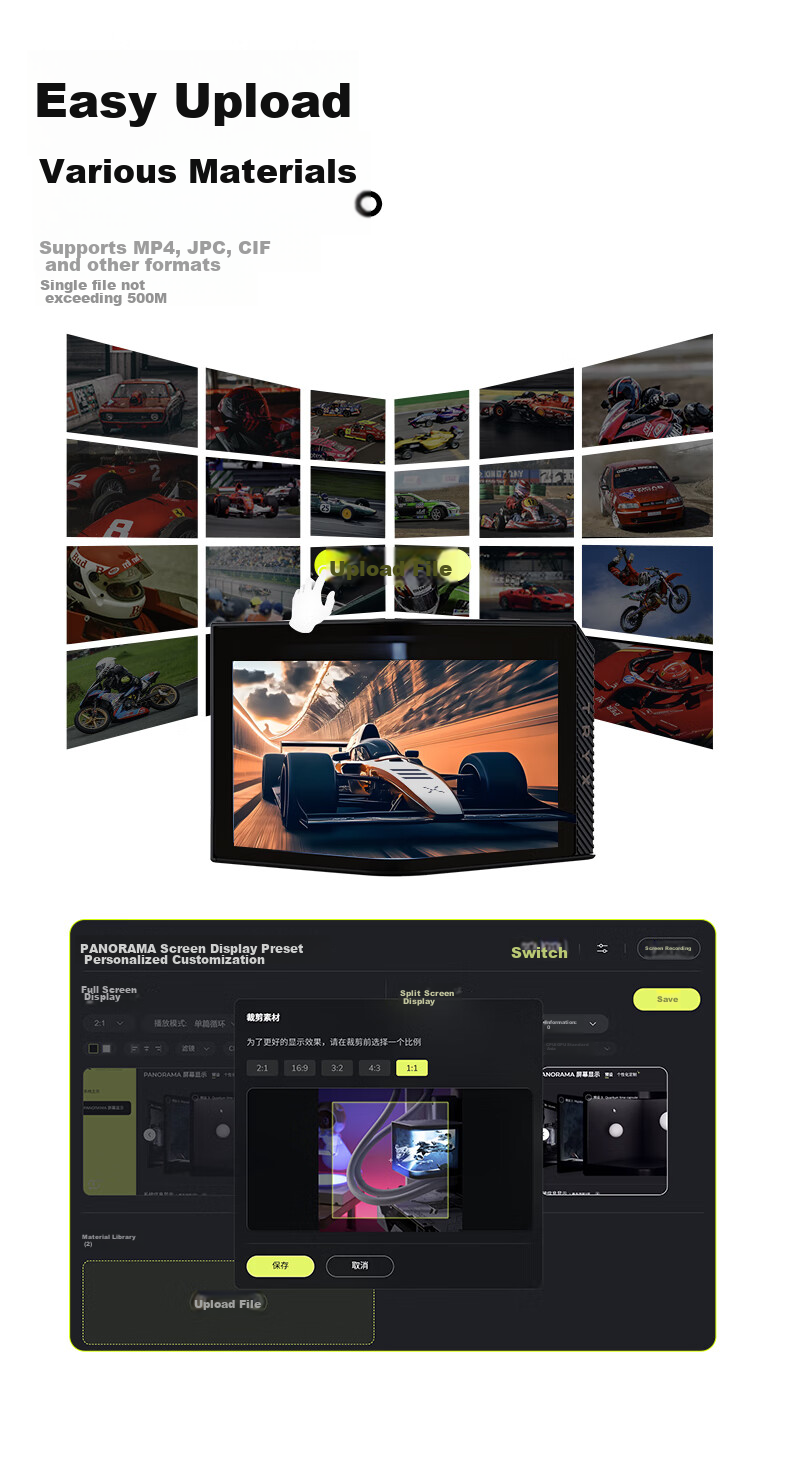

Easy upload of multimedia files (MP4
JPG
GIF up to 500MB)

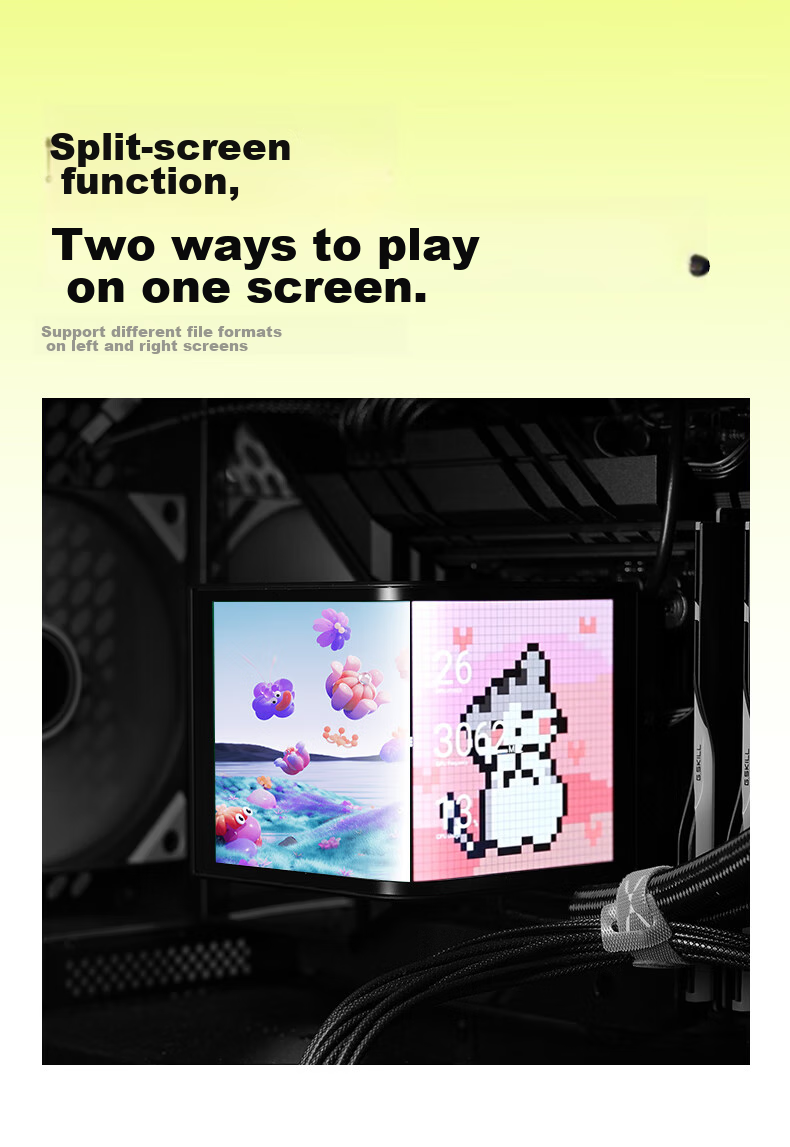

Split-screen functionality supporting different file formats on left and right screens

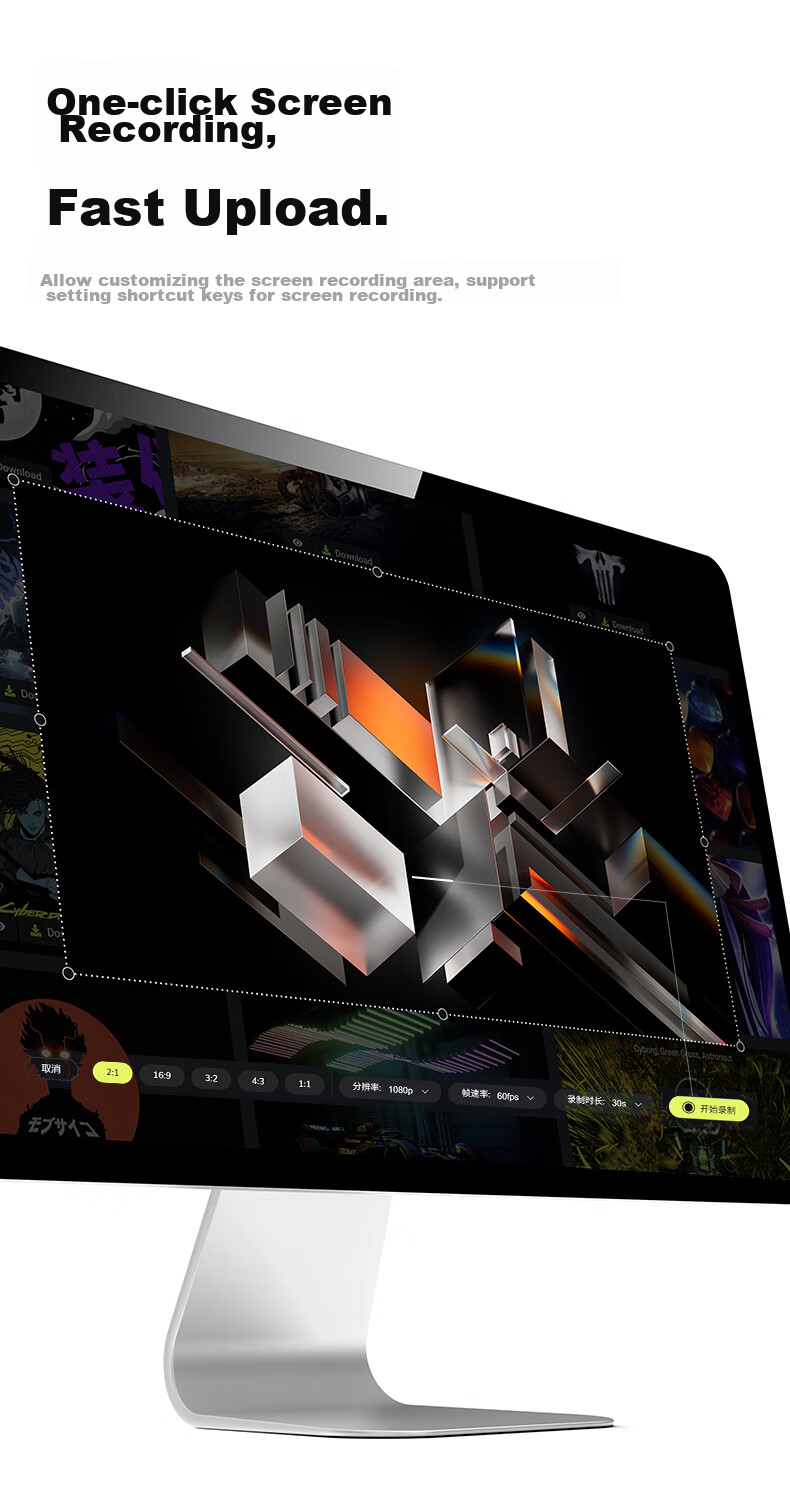

One-click screen recording with customizable recording area and hotkeys

Additional details

Compatibility: Supports Intel and AMD platforms, recommended CPU configurations Intel i7-12700 or above, AMD Ryzen 5 5600 or above

4. Design & Build

Additional details

Brand: TRYX
Original Design: Chinese original design with precision engineering

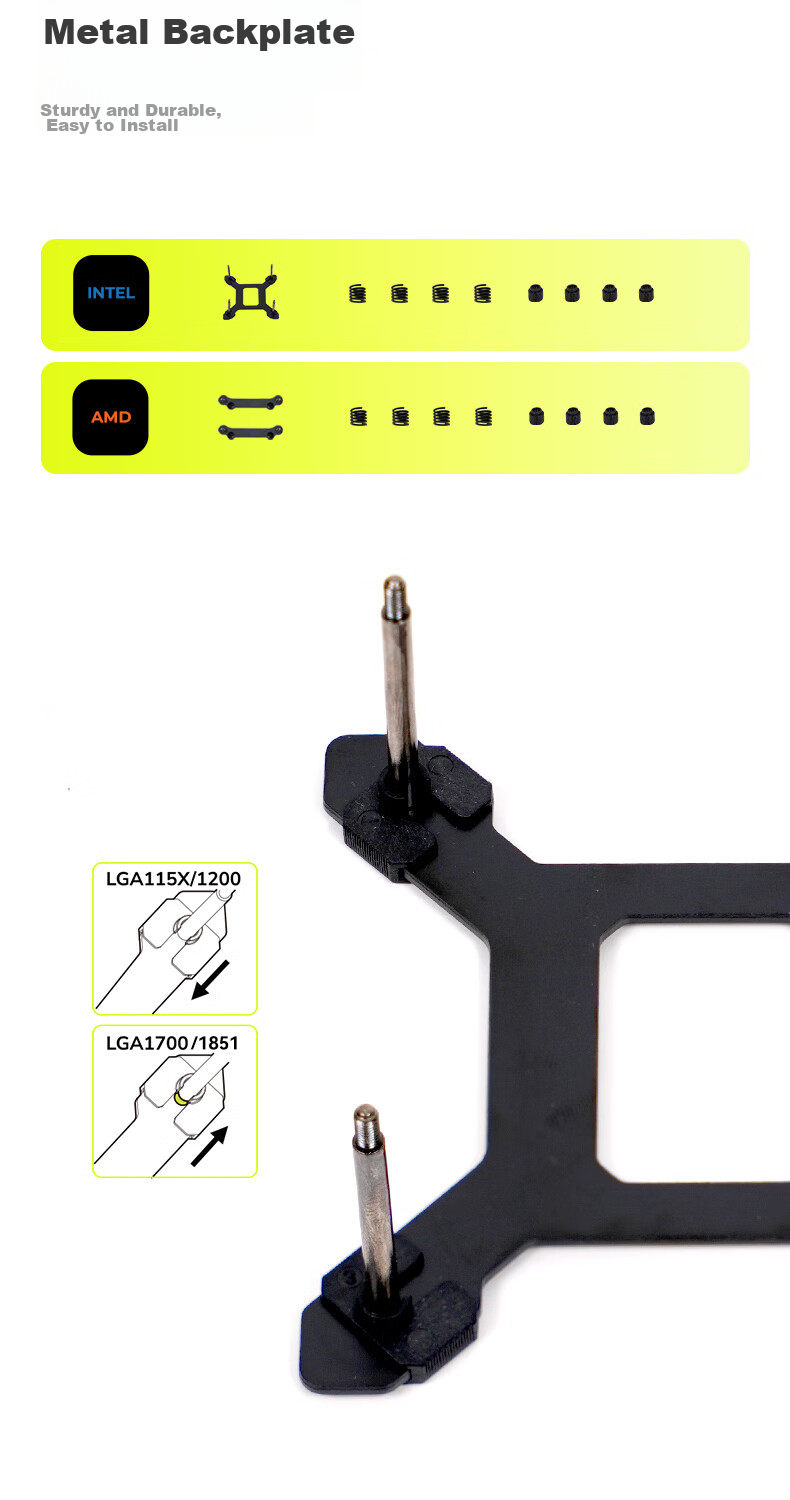

Materials: Metal backplate for sturdy and easy installation, sound-grade fabric for acoustic enhancement

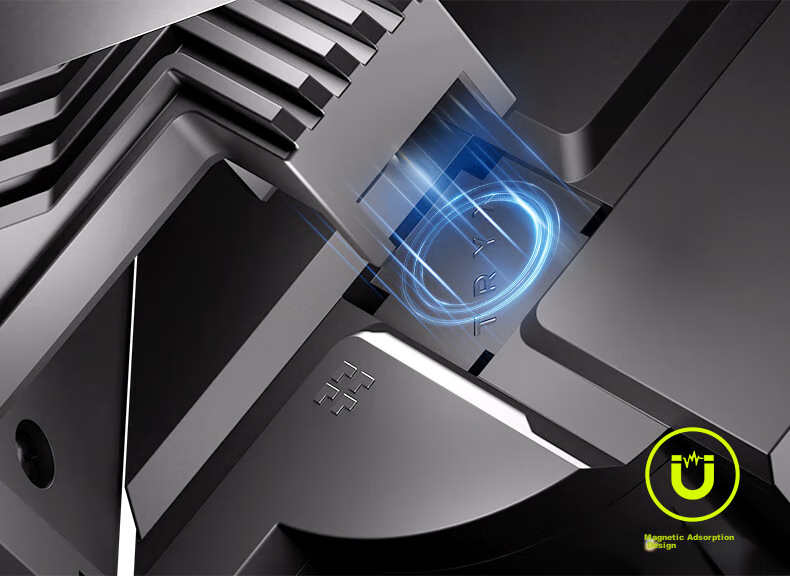

Connectivity: Magnetic cable contact transmission design for easy connection
Installation: Recommended front and back mounting options; water cooling tube back-through installation requires compatible chassis

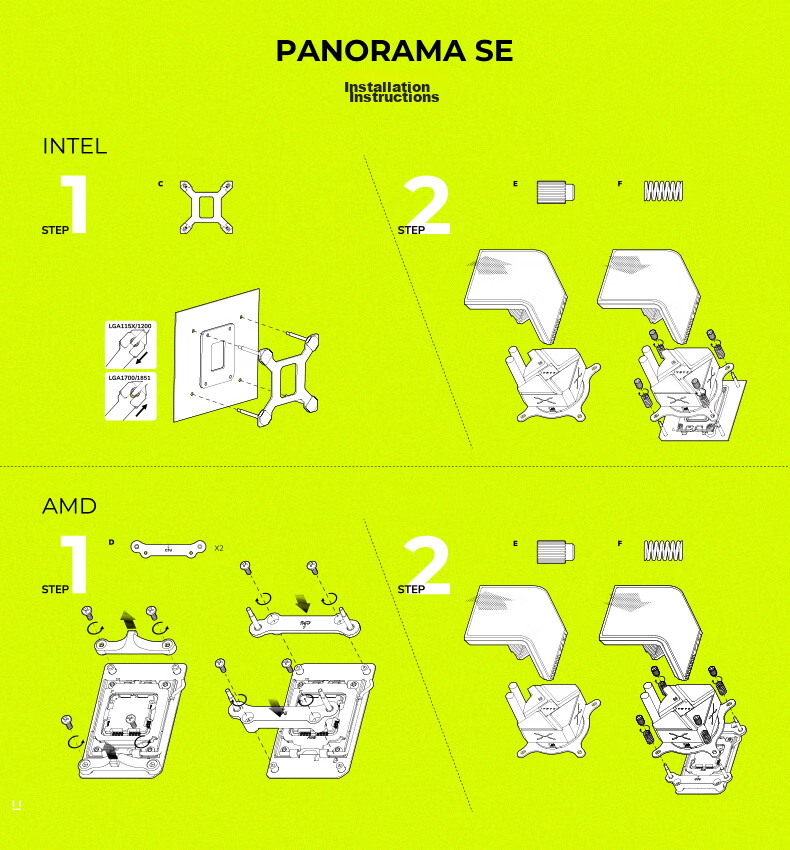

Dimensions & Accessories: Includes pre-installed thermal paste, spare thermal paste provided, installation instructions for Intel and AMD platforms

5. Performance & Compatibility

Additional details

Thermal Design Power (TDP): Up to 320W rated power consumption
Tested CPUs: Intel i9-14900K, AMD Ryzen 9 9950X
Tested GPUs: NVIDIA RTX 4080S
Motherboards: Compatible with Z790-A, X670E-E
Operating Environment: Tested at 25°C ambient temperature with BIOS settings optimized (Intel Extreme, DOCP, XMP)
Software Benchmarks: Performance validated with C4D-2024, Blender, DaVinci Resolve, Corona Renderer

6. Lighting & Customization

Additional details

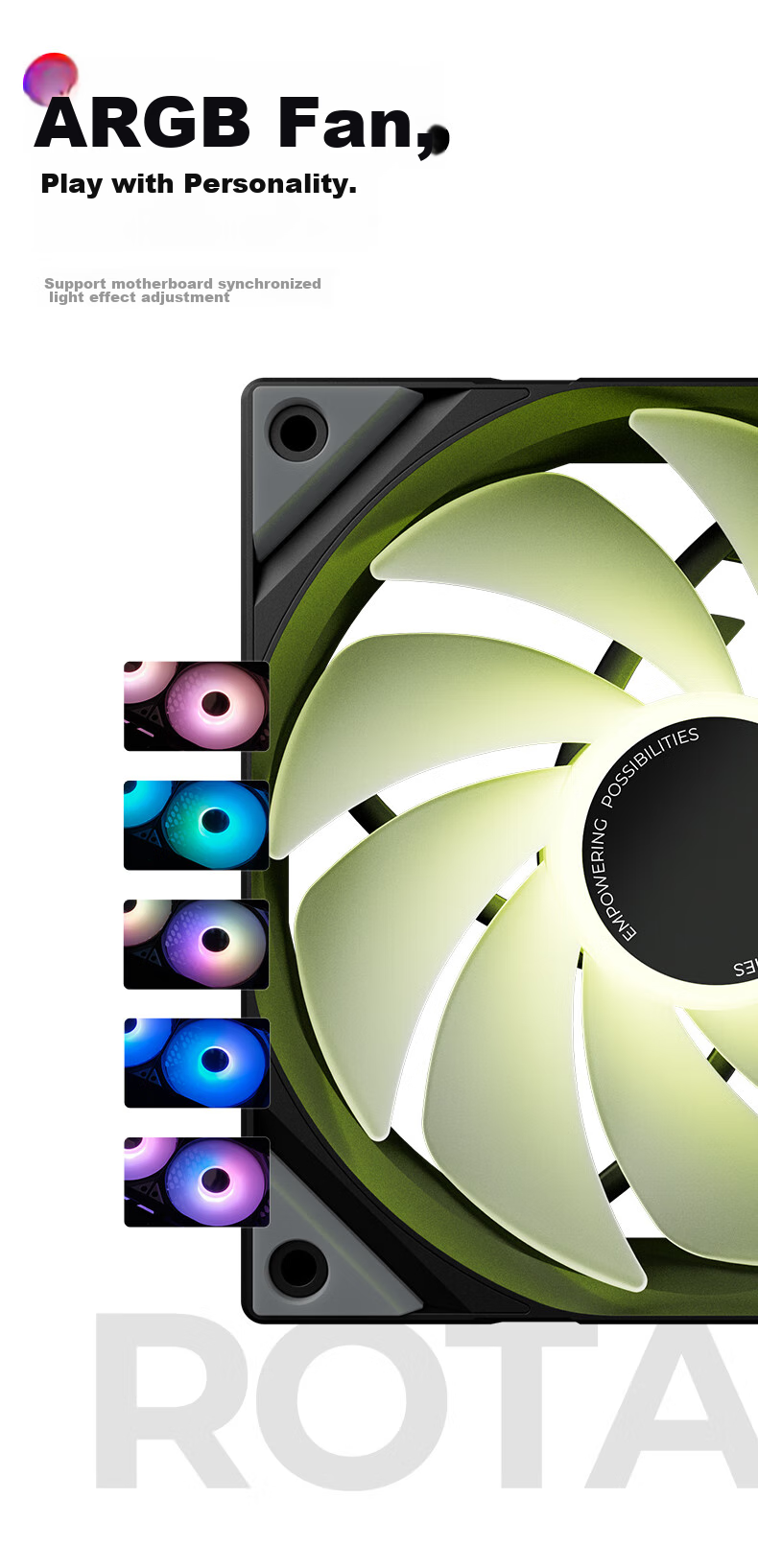

ARGB Lighting: Customizable lighting effects with motherboard synchronization support
Lighting Components: ROTA ARGB fans and ROTA dark star SLARGB reverse blades
Software Control: KANALI software enables personalized lighting and fan speed adjustments

7. Additional Features

Zero PC resource occupation due to independent embedded system

Advanced screen lamination technology for smooth system operation and solid screen protection

Supports multi-screen split and dual large 4-inch screens configurations

Official software center with continuous content and feature updates

Empowering possibilities slogan emphasizing freedom and creativity in use

All specifications are subject to change. Data provided is based on TRYX laboratory testing and is for reference only.
