UNI-T UTP05 Oscilloscope Probe Passive Probe (MHz)

UNI-T•Oscilloscope

UNI-T UTP05 Oscilloscope Probe Passive Probe (MHz)

CN¥90.20

SKU: 100122128311

Status:In Stock (11)

ID: 100147506346

Weight: 125.00 g

Dims:250x165x30 mm

Specifications

Category: digital oscilloscope
How it works: Desk-top
Number of channels: single channel
Bandwidth: 0100MHz

Variants / Sale Attributes

Model: UTP05 (with 200MHz bandwidth)

Package Contents

One probe

Product Description

Product Specifications

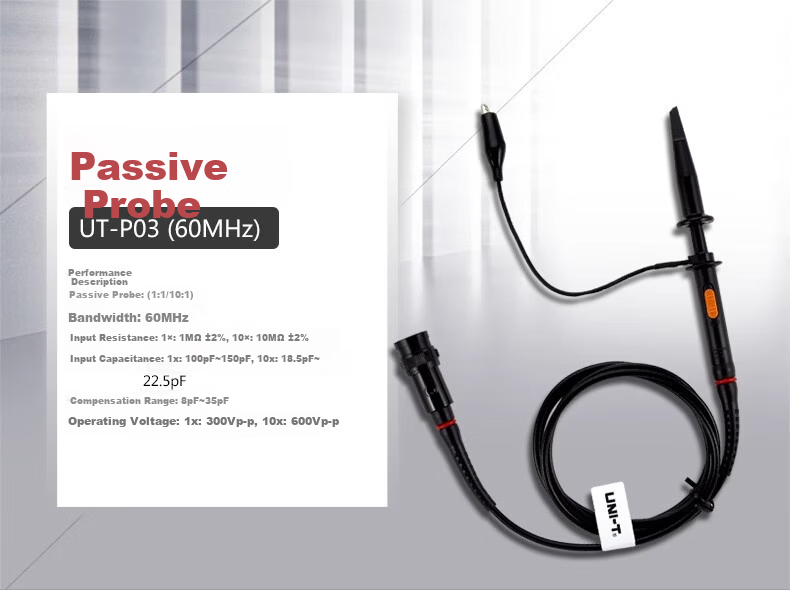

Overview

Brand: UNI-T
Model: UT-P03 Passive Probe (60MHz)
Type: Passive Probe (1:1 / 10:1 attenuation)
Bandwidth: 60 MHz
1×: 1 MΩ ± 2%
10×: 10 MΩ ± 2%
1×: 100 pF ~ 150 pF
10×: 18.5 pF ~ 22.5 pF

Similar Products

In Stock

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

FNIRSIOscilloscope

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

digital oscilloscope

CN¥549.00

In Stock

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TEKTRONIXOscilloscope

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TBS1102X (Dual Channel 100MHz)

CN¥4,099.00

In Stock

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UNI-TOscilloscope

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UT-V23

CN¥179.90

Compensation Range

8 pF ~ 35 pF

1×

300 Vp-p

10×

600 Vp-p

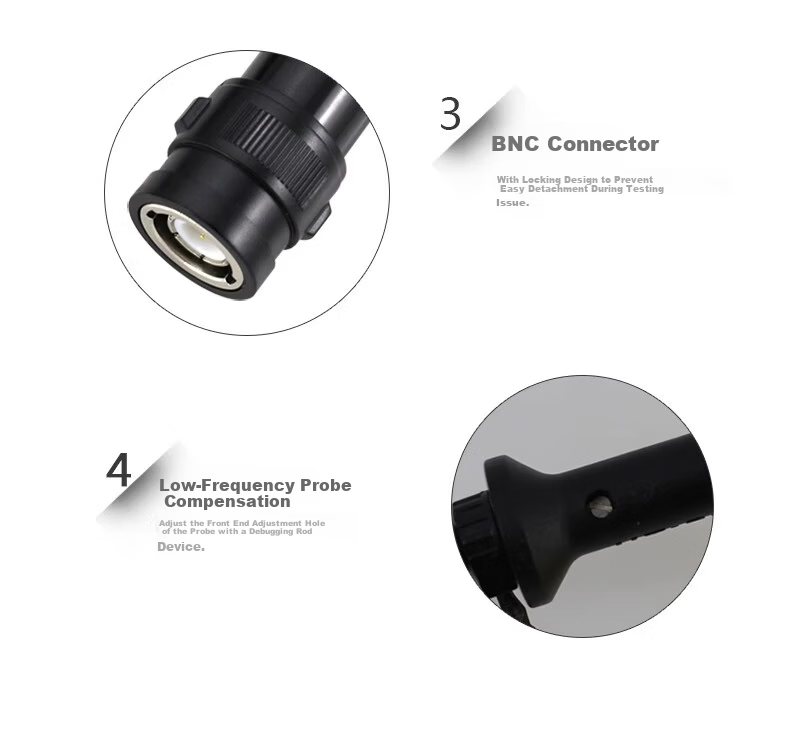

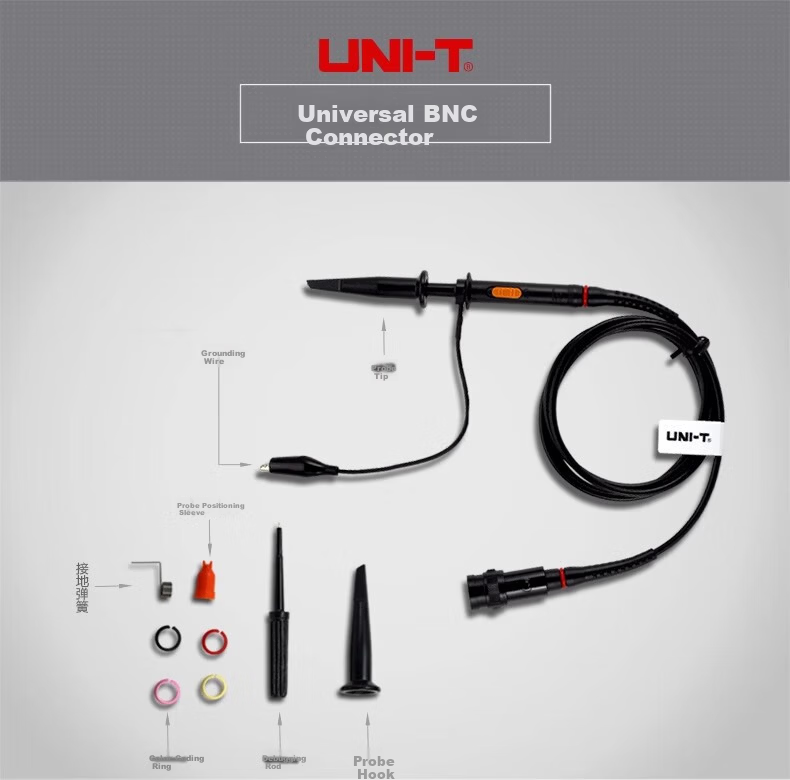

Connector

Universal BNC connector with locking design to prevent accidental disconnection during testing

Ground lead

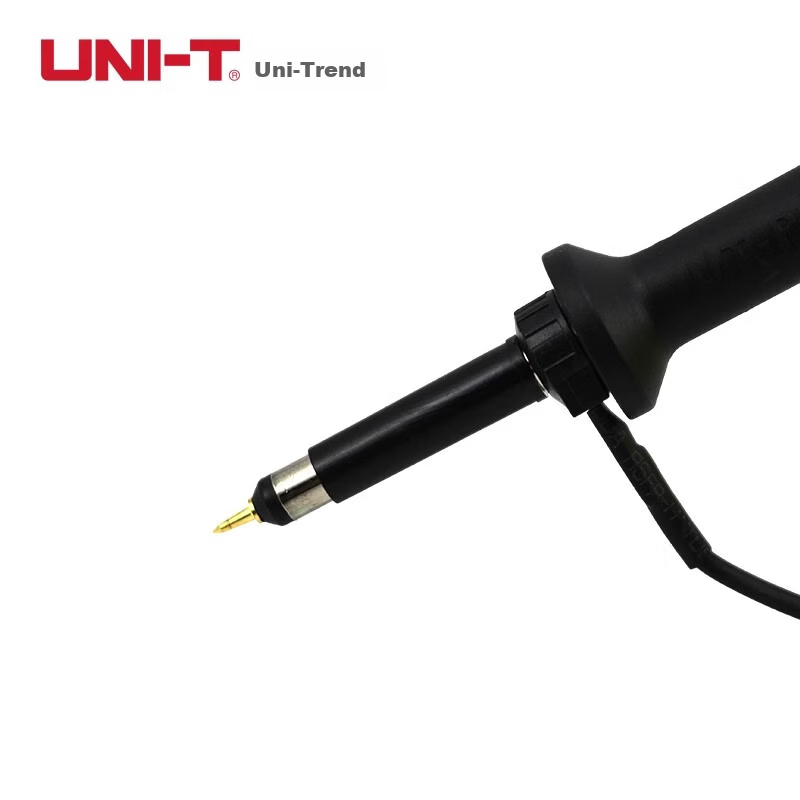

Probe tip (pure copper construction to minimize internal resistance)

Probe positioning sleeve

Color-coded rings

Adjustment tool (debugging stick)

Probe hook

Additional details

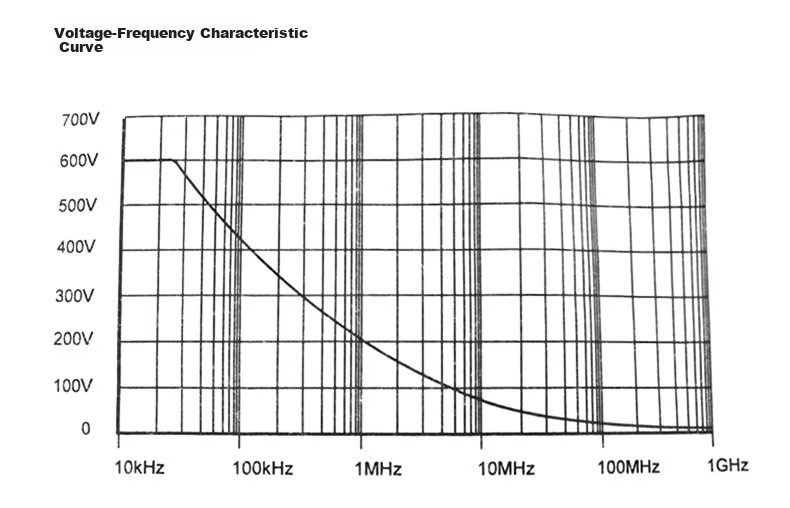

Voltage levels: 0 V to 700 V
Frequency range: 10 kHz to 1 GHz

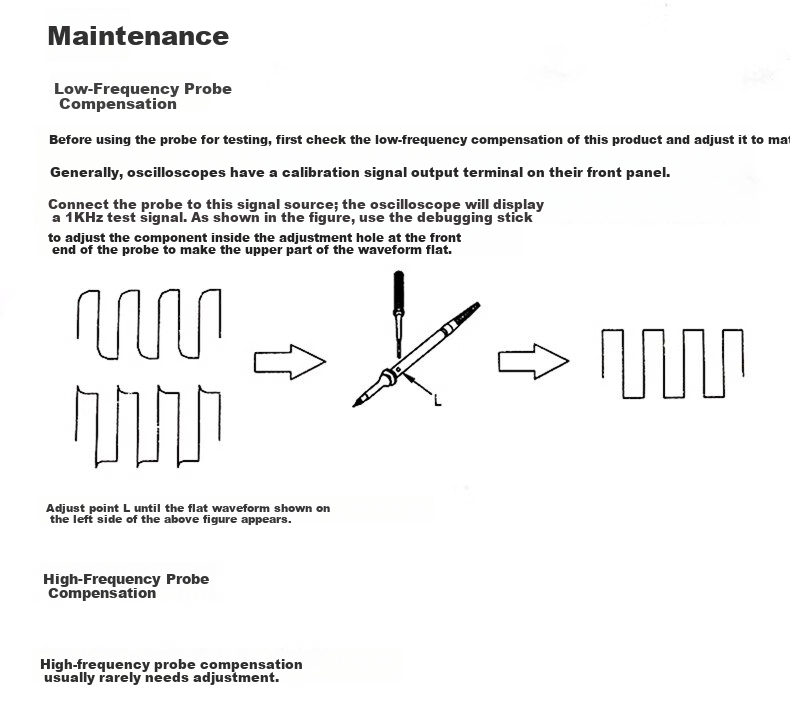

Low-frequency compensation: Before use, adjust the low-frequency compensation by connecting the probe to the oscilloscope’s calibration signal output (typically 1 kHz test signal). Use the adjustment tool to tune the component inside the probe tip adjustment hole until the waveform top is flat.
High-frequency compensation: Usually requires minimal adjustment.

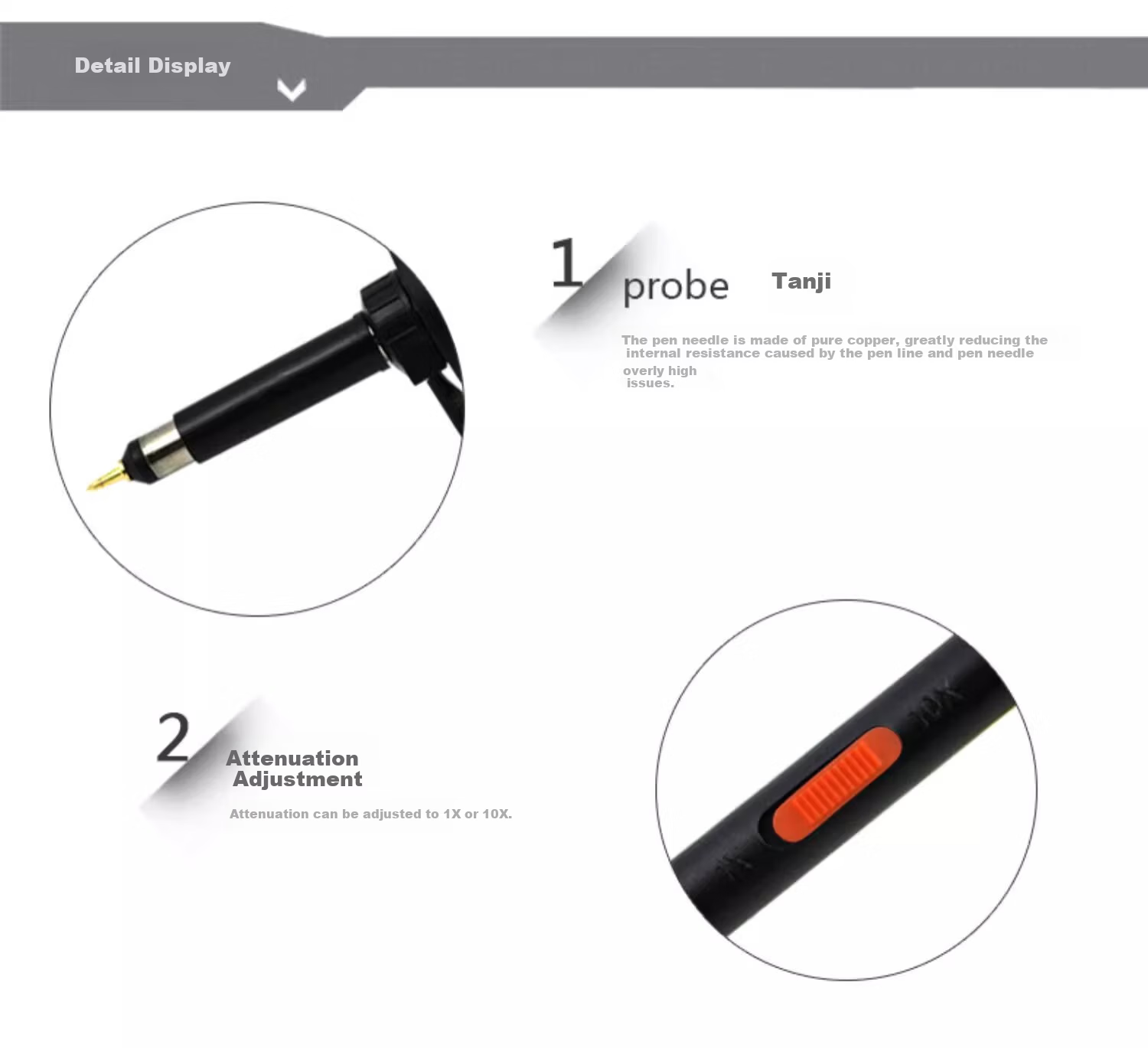

Attenuation selectable between 1× and 10×

Pure copper probe tip and needle reduce internal resistance and improve signal integrity

BNC connector with locking mechanism ensures secure connection during measurements
