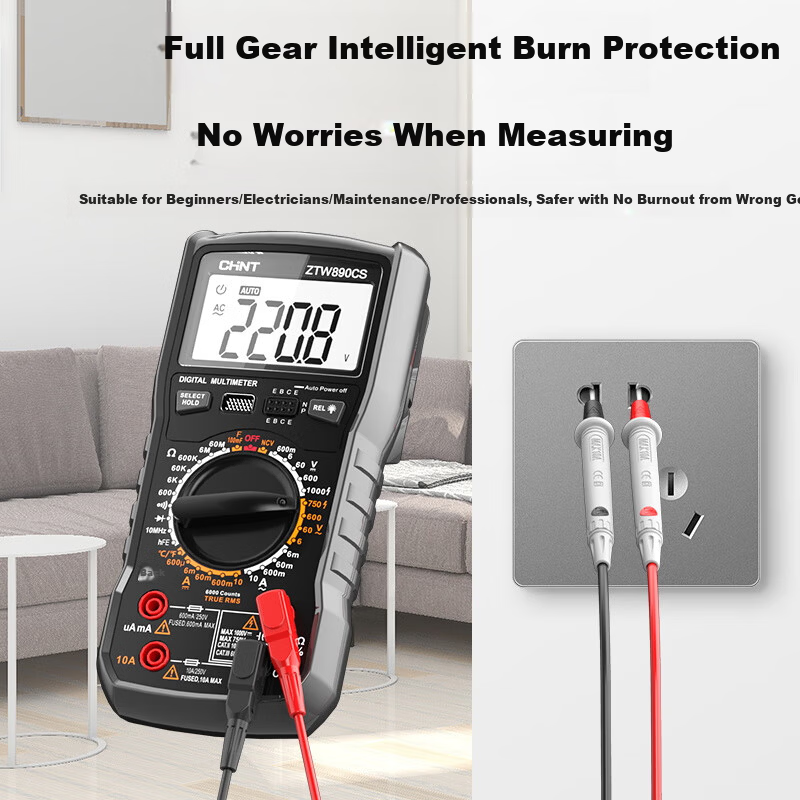

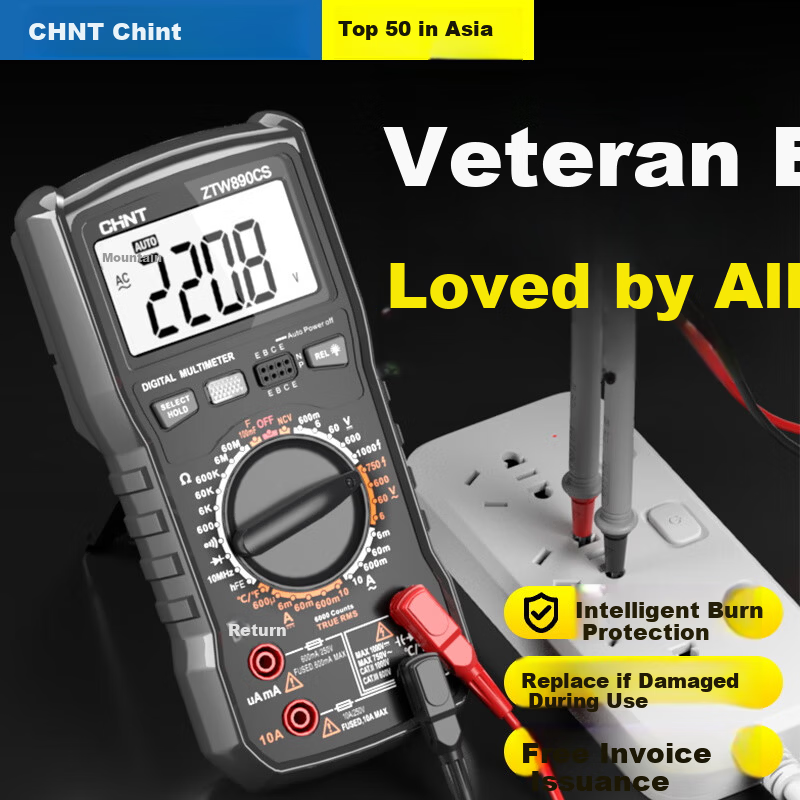

CHNT Digital Multimeter 890C/D High-Precision Smart Auto-Ranging Multifunction Electrical Tester

CHNT•Multimeter

CHNT Digital Multimeter 890C/D High-Precision Smart Auto-Ranging Multifunction Electrical Tester

CN¥122.00

SKU: 100123041307

Status:In Stock (11)

ID: 100123041307

Weight: 540.00 g

Dims:210x122x64 mm

Specifications

Category: digital multimeter
Functions: voltage, Fire line detection, duty cycle, Smart NCV, electric current, Resistor, Battery testing, inductance, Capacitance, On/Off (buzzing), backlight, Fireline judgment, diode, temperature, transistor
Measuring range: Manual range
testing principles: true effective value
Precision: three and a half

Variants / Sale Attributes

Model: ZTW890C Upgraded Version [Industrial Temperature]

Package Contents

Main unit *1, test probe *1, 9V battery *1, instruction manual *1, warranty card *1, certificate of conformity *1

Product Description

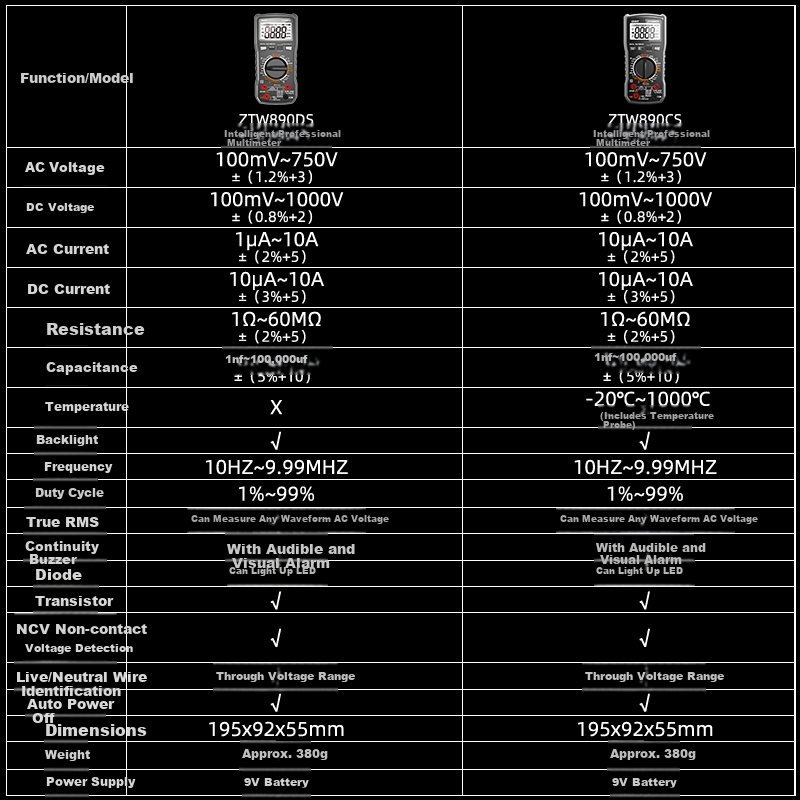

Overview

Brand: CHNT
Model: ZTW890C
Type: Intelligent Professional Digital Multimeter
Display: 6000 Counts LCD with Backlight
AC Voltage: 20mV to 750V (True RMS)
DC Voltage: 20mV to 1000V
AC Current: 50mA to 10A (True RMS)
DC Current: 10μA to 10A

Similar Products

In Stock

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

CHNTMultimeter

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

ZTW0103D Upgraded Version [LCD Backlight]

CN¥89.00

In Stock

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

CHNTMultimeter

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

ZTY0121A Standard Model [High-Definition Large Screen]

CN¥59.00

Resistance

10Ω to 60 MΩ (upgraded to 60 MΩ)

Capacitance

1nF to 100,000μF (100,000μF max)

Frequency

10Hz to 10MHz

Duty Cycle

1% to 99%

Temperature

-20°C to 1000°C (with temperature probe included)

Diode Test

Yes, with LED lighting for quick LED testing

Transistor Test

hFE measurement for bipolar transistors

Continuity Test

With audible and visual buzzer alarm

Non-Contact Voltage Detection (NCV)

Yes, with sound and light alarm

Zero Fire Line Judgment

Detects live and neutral wires similar to a voltage pen

Intelligent Anti-Burn Technology

Prevents damage from incorrect range selection

CAT I 1000V / CAT II 600V Safety Rating

Fused 10A/250V input for current measurement

High-quality rubber protective sleeve for drop resistance and durability

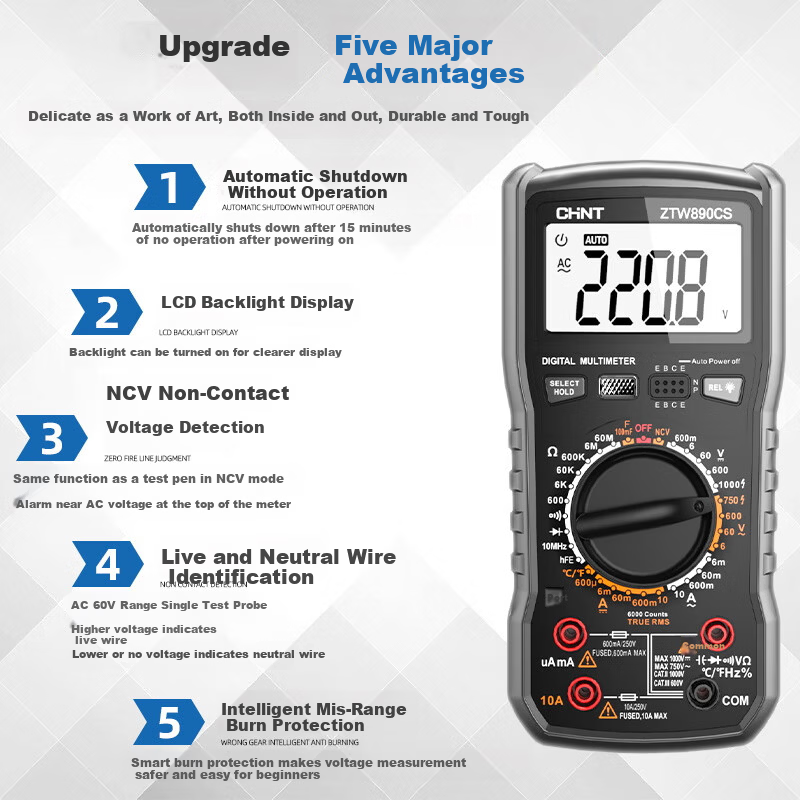

Additional details

Auto Power Off: Automatically shuts down after 15 minutes of inactivity
Data Hold Function: Freezes displayed measurement value

Relative Measurement (REL) Function

Large LCD screen with backlight for clear visibility in low light

Sound and Light Alarm for continuity and NCV detection

Multiple measurement ranges selectable via rotary switch

True RMS measurement for accurate AC readings on any waveform

LED and LCD indicators for function status

Additional details

Compact size: approx. 195 x 92 x 55 mm
Weight: approx. 380 g
Power Supply: 9V battery included
Accessories Included: Test leads, temperature probe, 9V battery, user manual, warranty card

Suitable for beginners, electricians, maintenance professionals, and industrial use

Ideal for electrical repair, troubleshooting, and precise measurement tasks

Supports measurement of voltage, current, resistance, capacitance, frequency, temperature, and transistor parameters

CHNT ZTW890C Digital Multimeter

Test Leads

Temperature Probe

9V Battery

User Manual

Warranty Card
