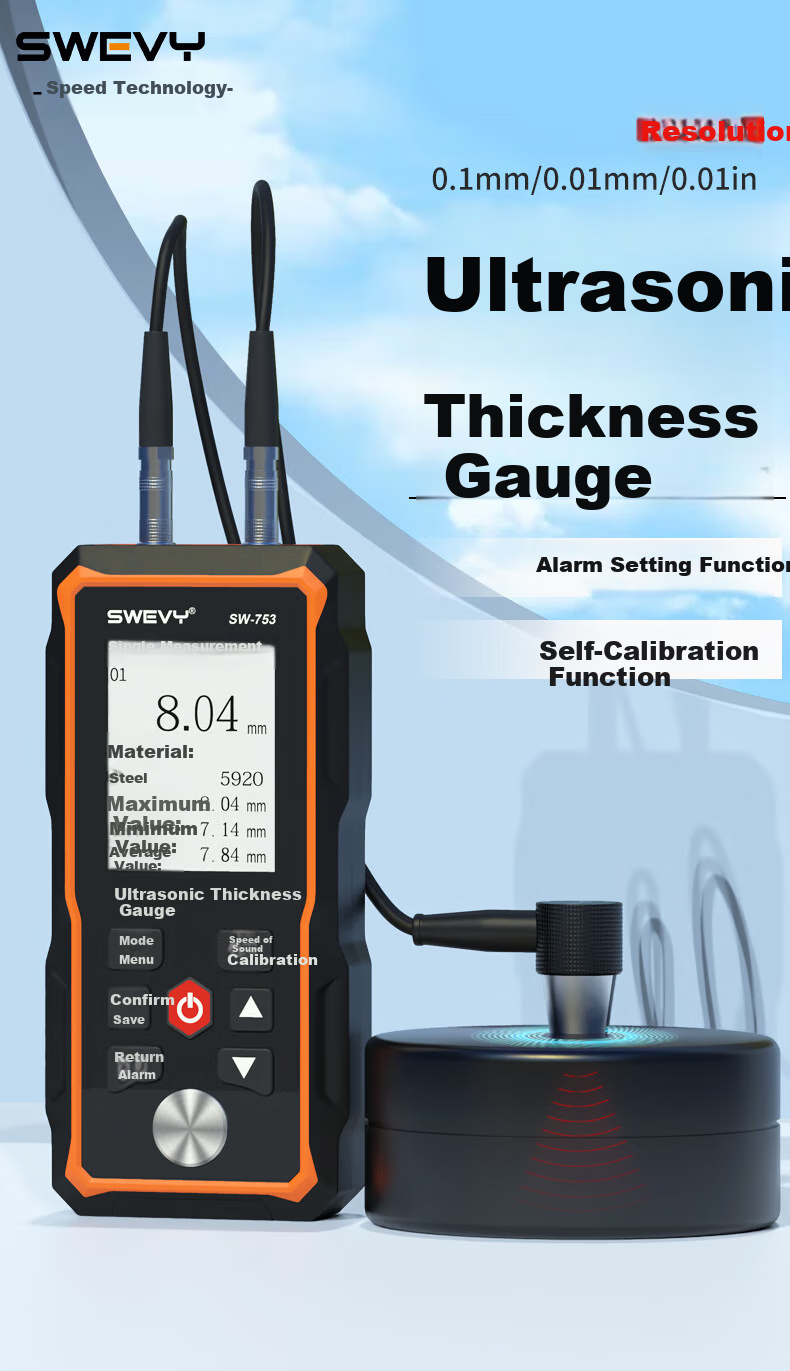

Suwei Ultrasonic Thickness Gauge High Precision Steel Plate Metal Thickness Meter Wall Thickness Measurement SW756

suwei•Thickness gauge

Suwei Ultrasonic Thickness Gauge High Precision Steel Plate Metal Thickness Meter Wall Thickness Measurement SW756

CN¥343.00

SKU: 100123257038

Status:In Stock (1)

ID: 100076108655

Weight: 675.00 g

Dims:252x211x64 mm

Specifications

How it works: Integrated/Separate
Display type: digital display
Category: Ultrasonic thickness gauge
Material measurement: Glass, Coating, Ceramic, Metal, paint, Plastic, plating, paint film

Variants / Sale Attributes

Model: [Ultrasonic Best Seller] SW756 (1~300mm)

Package Contents

SW753 accessories: instrument/colored packaging/portable bag/Chinese and English manual/warranty card/certificate of conformity/adhesive/probe/data cable

Product Description

Product Specifications

Overview

Brand: suwei
Models: SW-753, SW-756, 008, 808

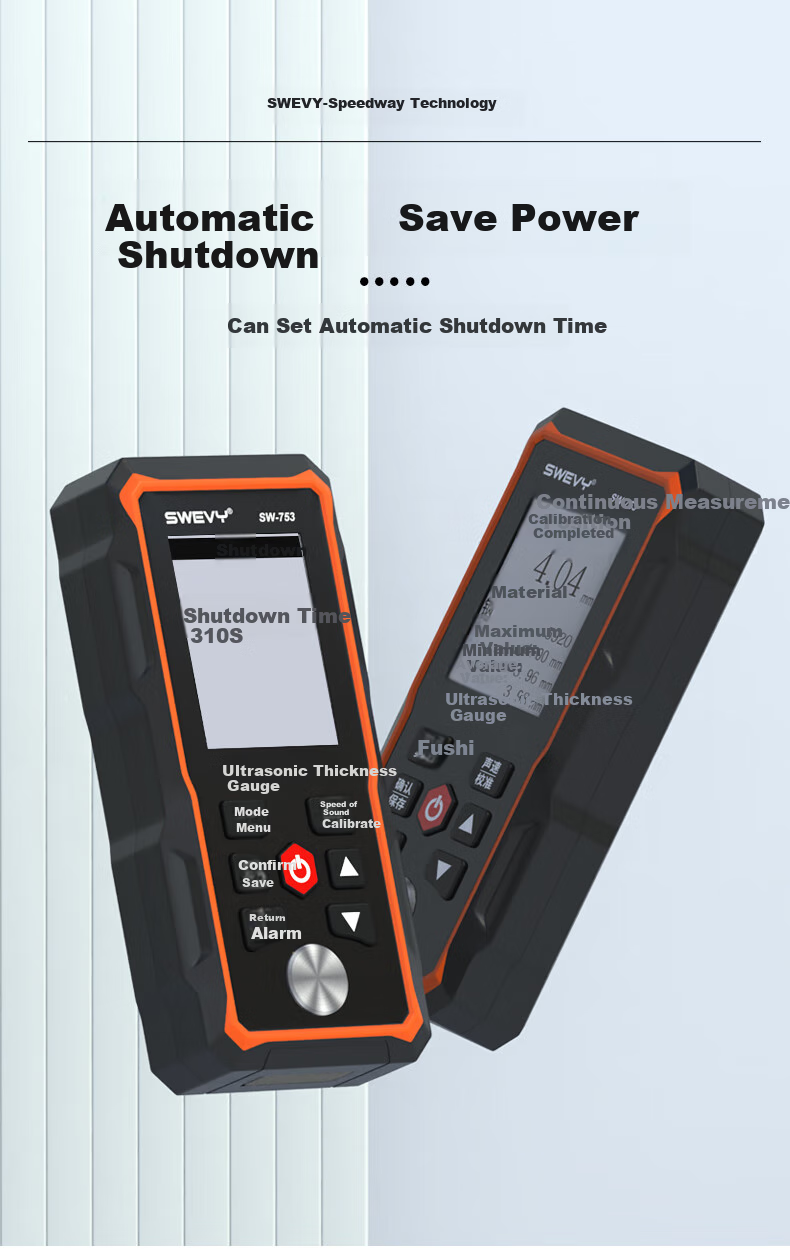

SW-753: 2.4-inch monochrome dot matrix screen with backlight
SW-756: Segment code screen with backlight
Steel: 1.00–300.00 mm (SW-753), 1–300 mm (SW-756)
Sound Velocity Range: 1000–9999 m/s
Resolution: 0.1 mm

Similar Products

In Stock

DANA Ultrasonic Thickness Gauge for Metal, Steel Plate, Glass And Plastic Thickness Measurement DN2800 Ultra-Thin Thickness Meter

DANAThickness gauge

DANA Ultrasonic Thickness Gauge for Metal, Steel Plate, Glass And Plastic Thickness Measurement DN2800 Ultra-Thin Thickness Meter

Ultrasonic Thickness Gauge

CN¥850.00

Out of Stock

SNDWAY Coating Thickness Gauge Paint Film Thickness Meter High Precision Automotive Used Car Thickness Galvanized Layer Thickness Gauge SW-6310B

SNDWAYThickness gauge

SNDWAY Coating Thickness Gauge Paint Film Thickness Meter High Precision Automotive Used Car Thickness Galvanized Layer Thickness Gauge SW-6310B

Lithium-ion voice model. Color display screen. USB data connectivity

CN¥469.00

Measurement Units

0.1 mm / 0.01 mm / 0.01 in (millimeter mm, inch inch)

1.0–9.9 mm

±0.1 mm

10.0–299.9 mm

±(1% reading + 0.1 mm)

For thickness less than 10 mm

±0.1 mm

Other indicated ranges are for reference only

Additional details

Minimum Pipe Measurement: Φ20×3 mm (steel)

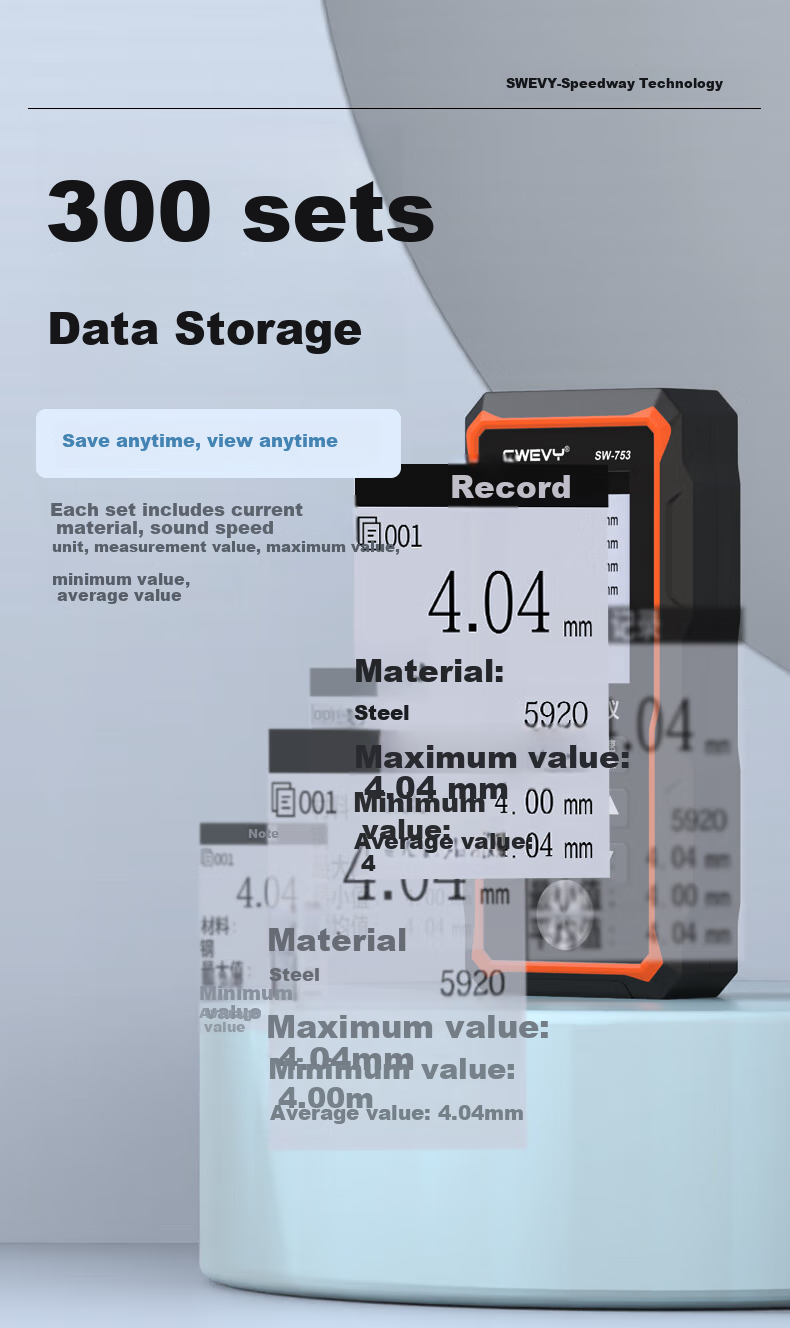

SW-753: 300 groups (each group includes current material, sound velocity)
SW-756: 60 groups (measurement value, max, average)

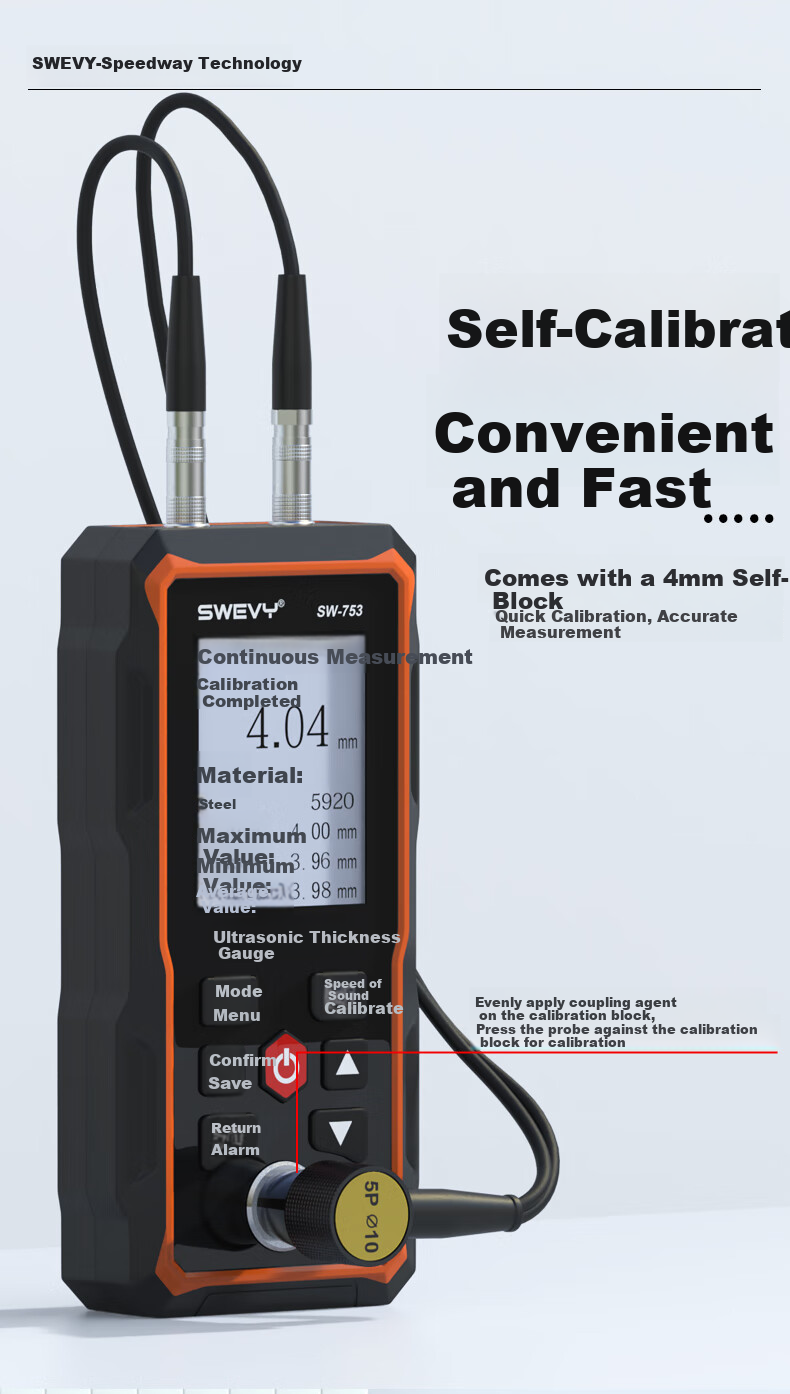

User Calibration Mode: 4 mm calibration block
Protection Level: IP40
SW-753: 140 × 66 × 28.5 mm
SW-756: 135 × 72 × 27 mm
SW-753: Built-in 3.7 V 2000 mAh lithium battery
SW-756: 3 × AAA 1.5 V alkaline batteries, USB 5V/2A (Type-C interface)
Measurement Modes: Single measurement, continuous measurement, alarm measurement

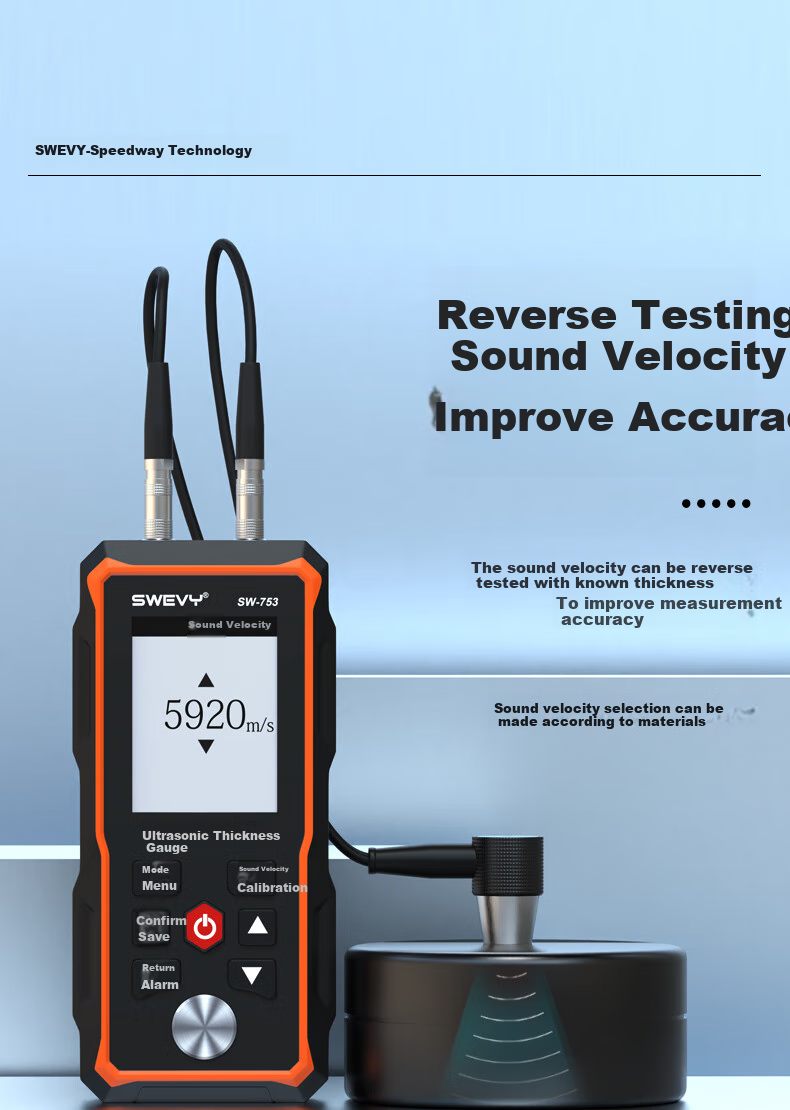

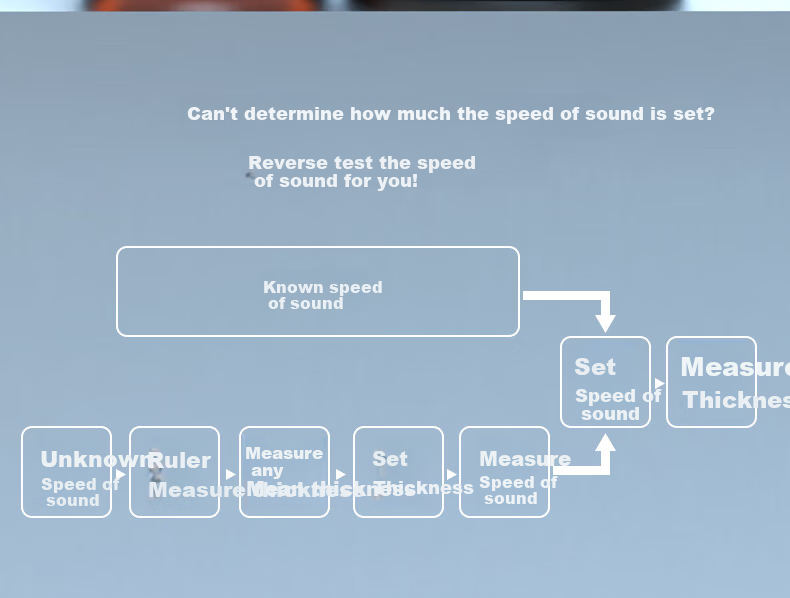

Reverse measurement of sound velocity to improve accuracy

Self-calibration function to correct probe nonlinearity

Sound velocity selection and custom setting

High and low limit alarm settings with audible and visual alerts

Unit setting (mm/inch)

Sound prompt on/off

Language setting

Data storage and viewing with max/min statistics

Backlight control

User calibration

Additional details

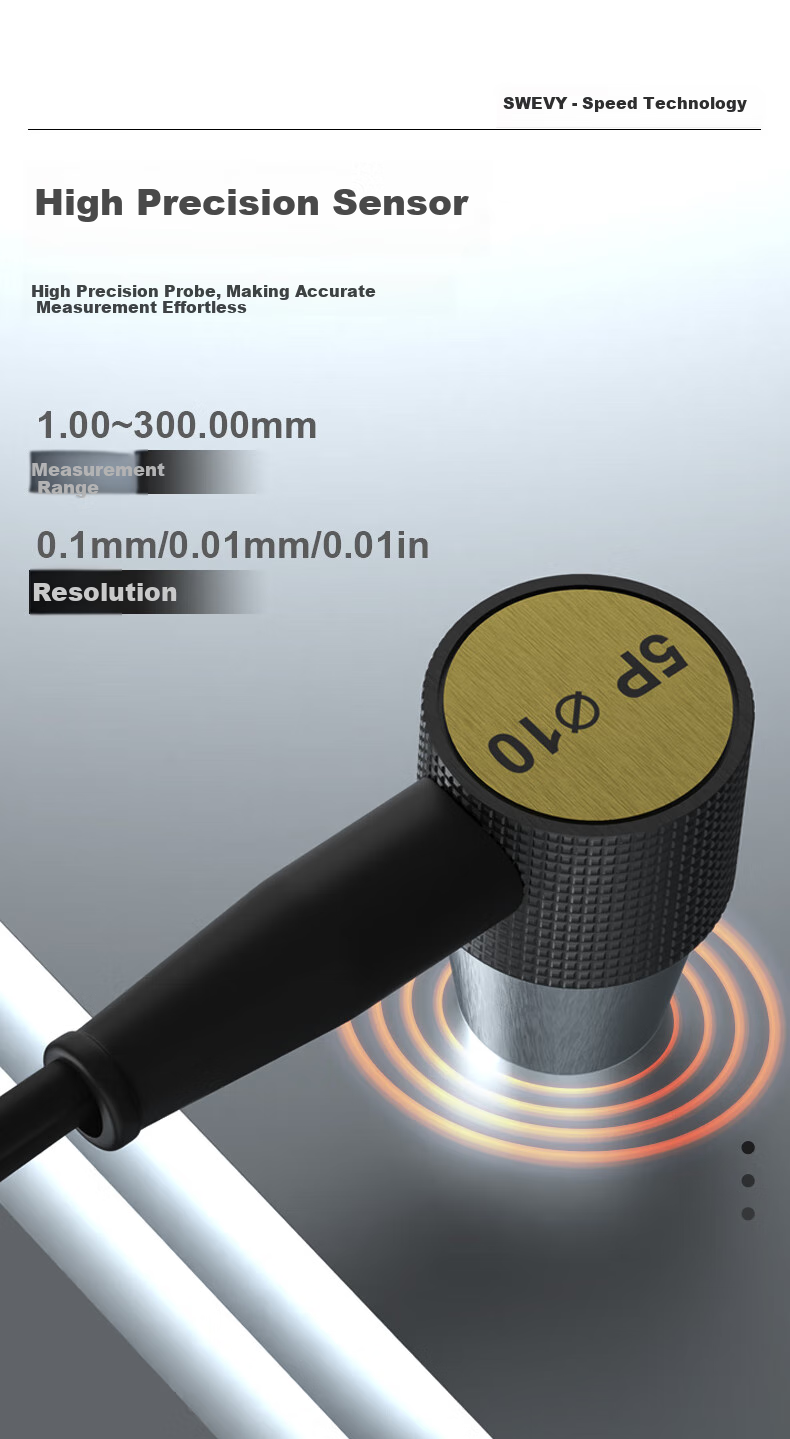

Frequency: 5 MHz
Minimum measurement area diameter: 15 mm
Cable length: approx. 1 m

Only standard probe supported

High sensitivity dual crystal probe with stainless steel housing

Additional details

Temperature: -10 to 50 °C
Humidity: ≤90% RH, non-condensing
Temperature: -20 to 60 °C
Humidity: ≤90% RH, non-condensing
Weight: Approx. 127 g (without batteries)
Shell Material: ABS

Official metrology certification by Shenzhen Sinotest Measurement Technology Co. Ltd.

CNAS laboratory accreditation

Calibration certificate available

Non-destructive thickness measurement in manufacturing, aerospace, shipbuilding, automotive, construction, and other industries

Suitable for various materials including metals, plastics, rubber, glass, and composites

Additional details

Six reasons to choose suwei: high quality, calibration function, high/low limit setting, sound velocity setting, data storage, high definition backlight, max/min value display

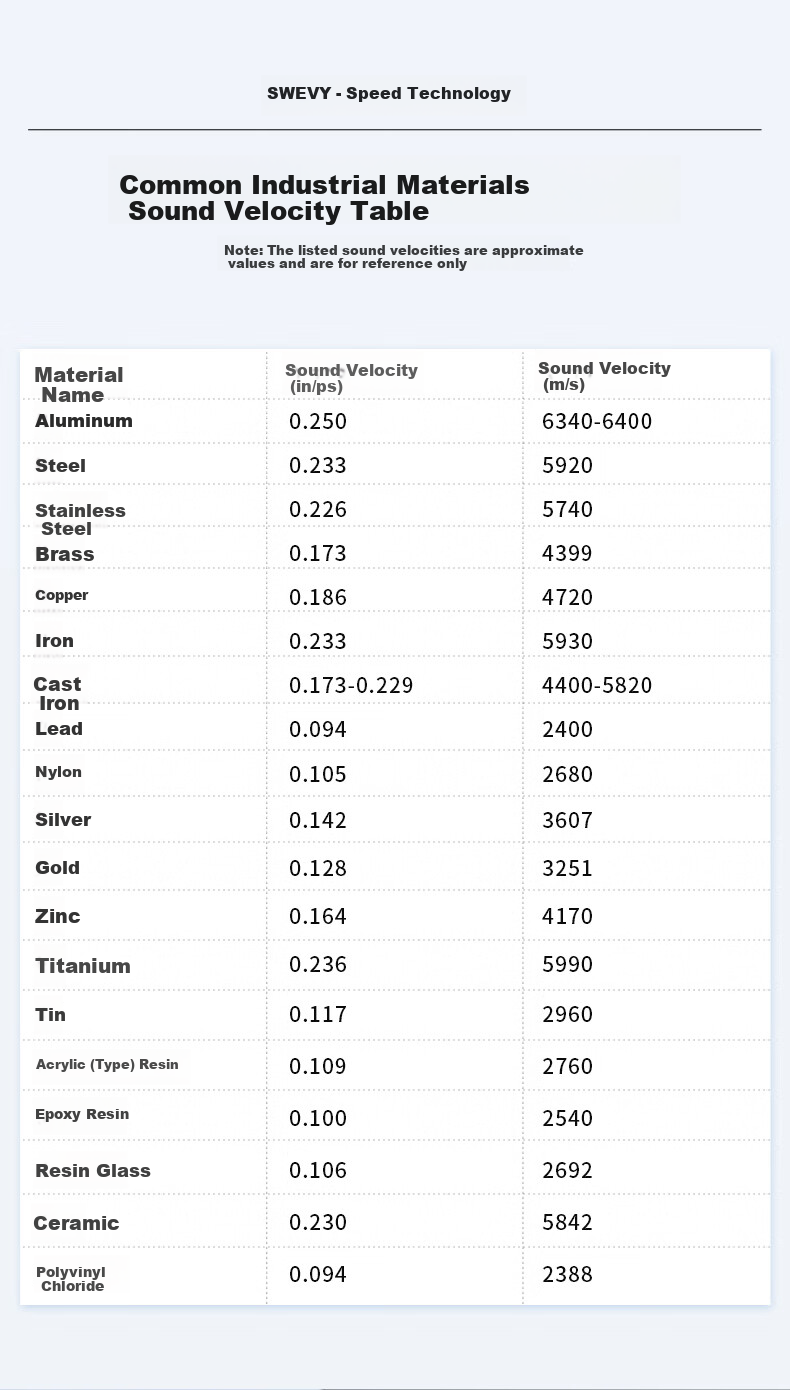

Common industrial material sound velocity reference table included

Additional details

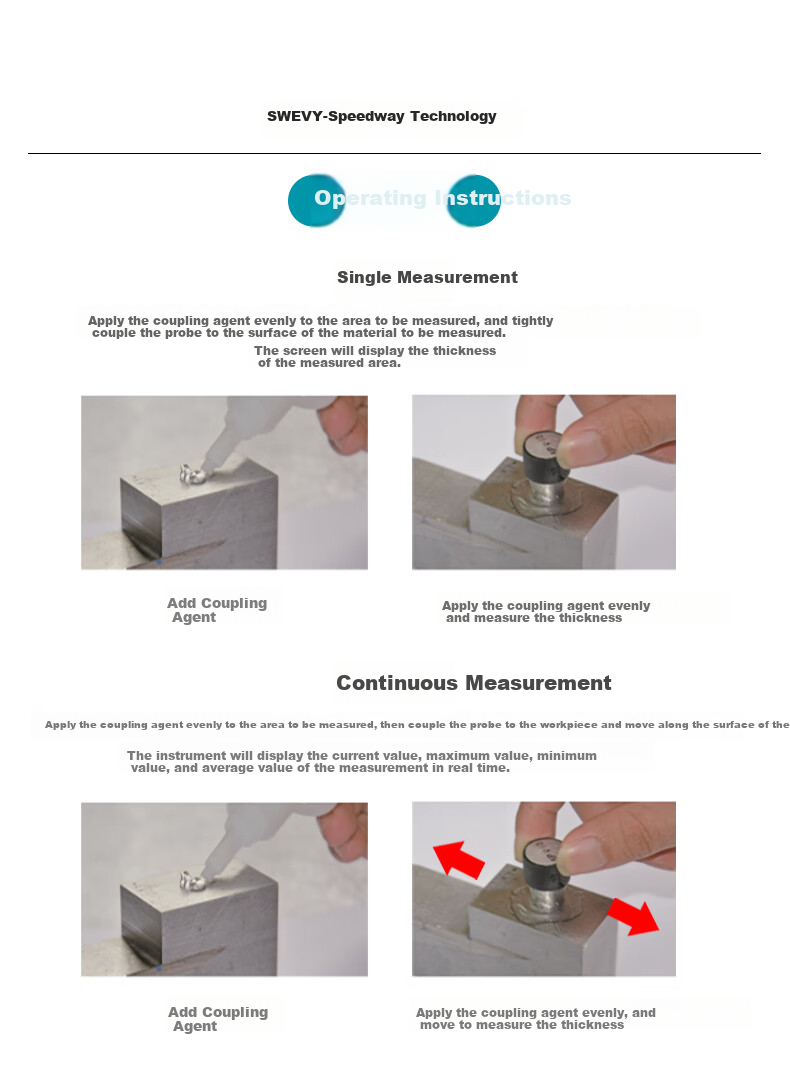

Easy operation: apply coupling agent evenly, tightly couple probe to measured surface, read thickness on display
Battery Life: Long-lasting with 3 AAA batteries or built-in lithium battery depending on model
