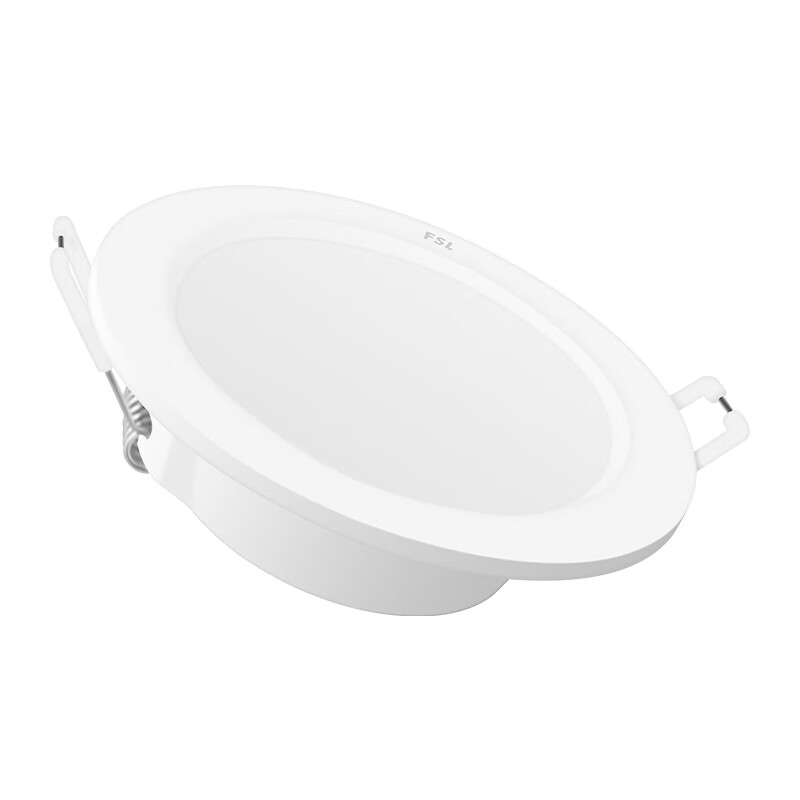

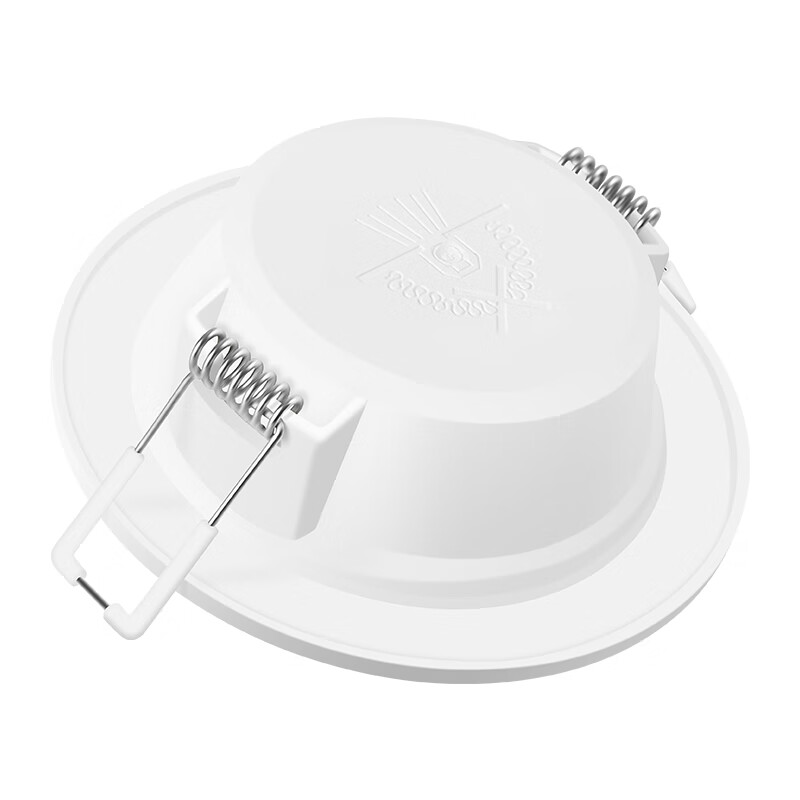

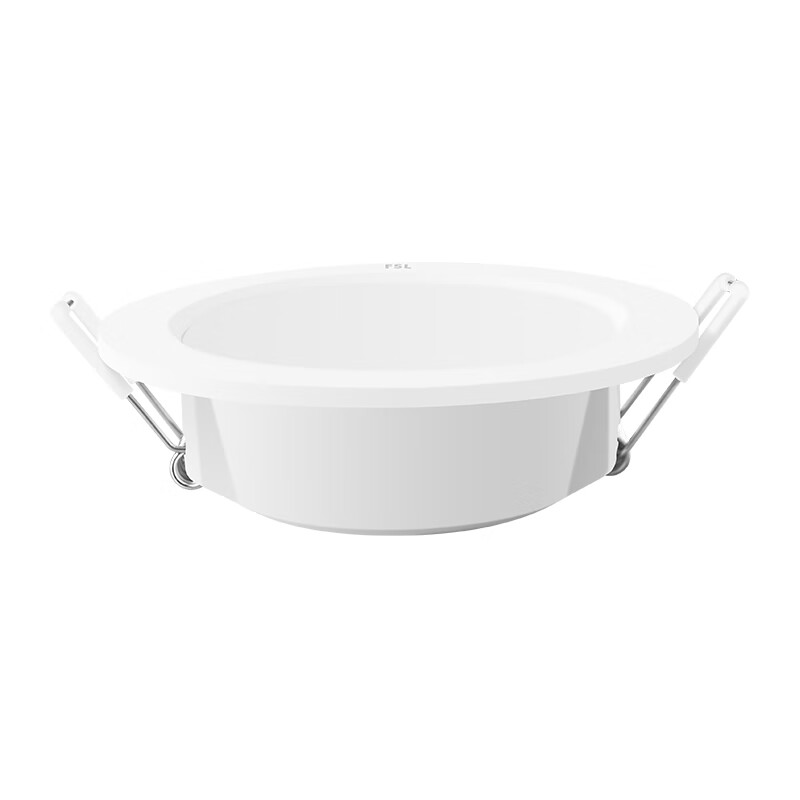

Foshan Lighting Lejia Series LED Downlight 18W*1 piece + packaging
Product Specifications

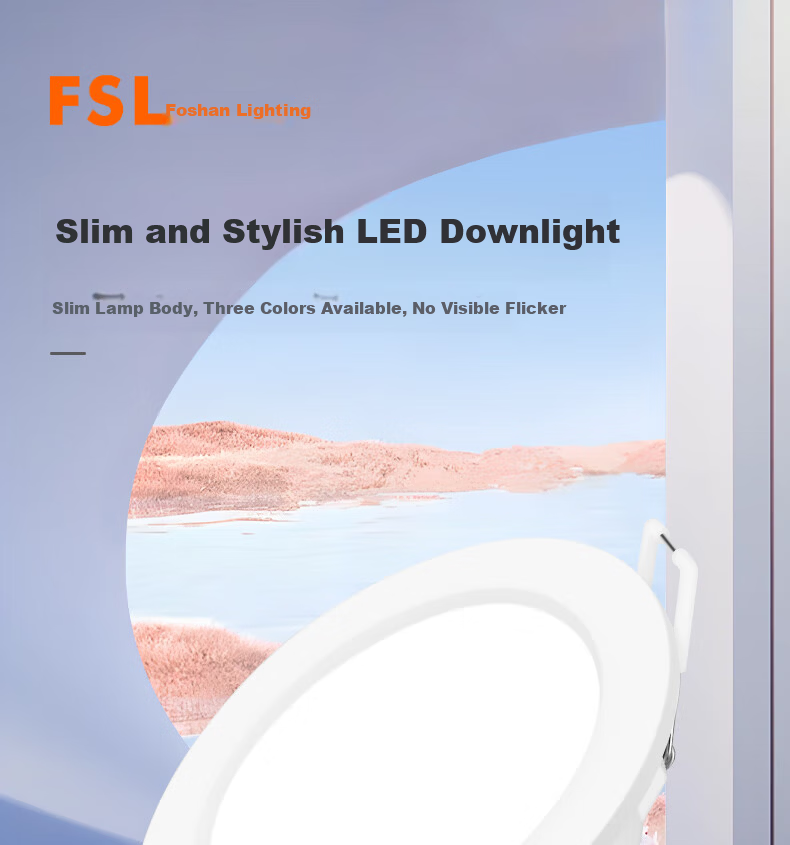

Slim lamp body design with three color options
Large luminous surface area for brighter illumination
Constant current IC driver for stable performance
Flicker-free lighting, no visible video flicker
Integrated heat dissipation for durability and extended lifespan
High light transmittance cover for uniform, comfortable, and bright light

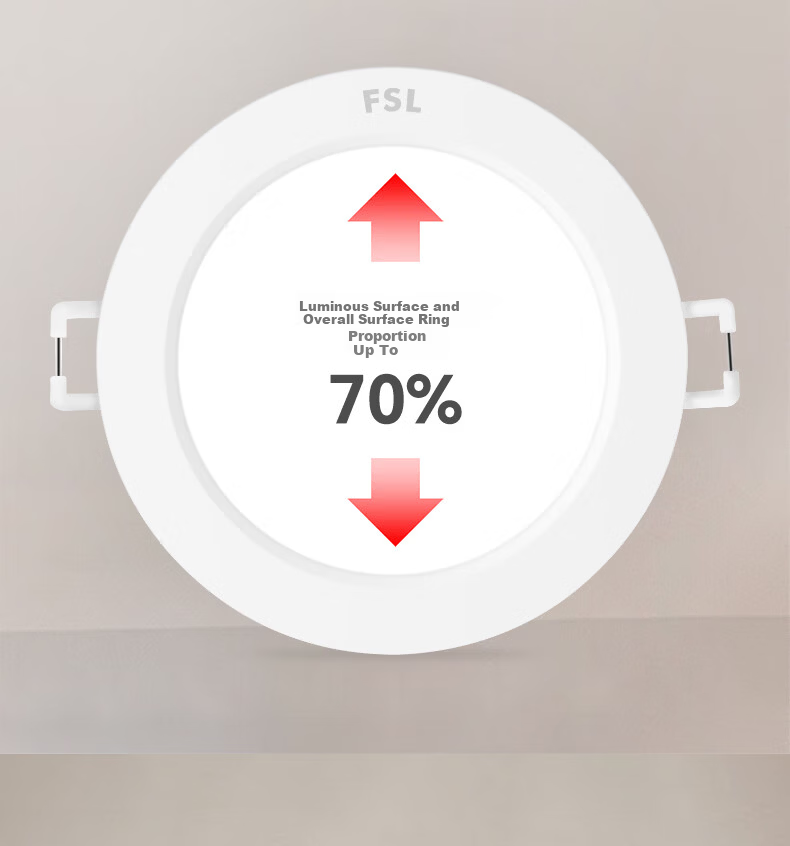

Luminous surface to overall surface ratio up to 70%

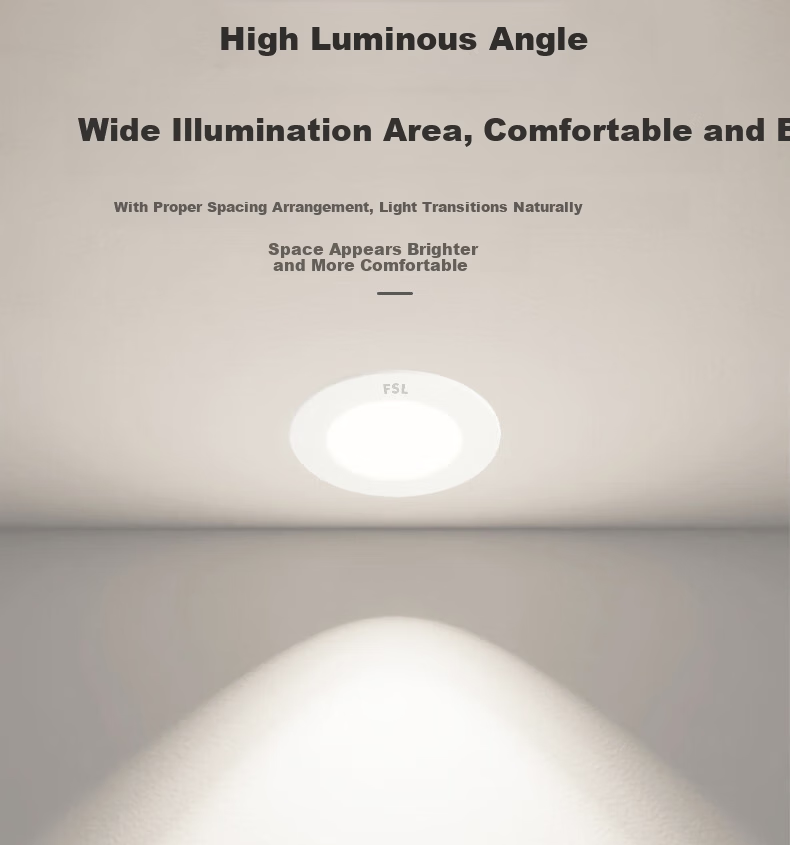

Wide luminous angle for broad and comfortable lighting coverage
LED chip quality ensures long life (~30,000 hours), energy efficiency, and bright light output

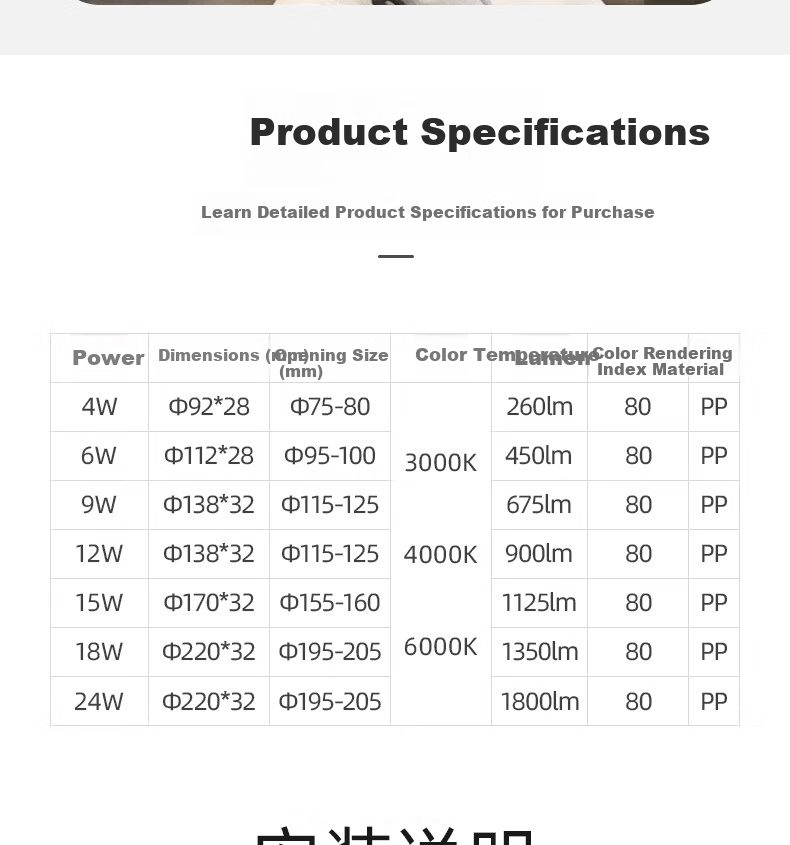

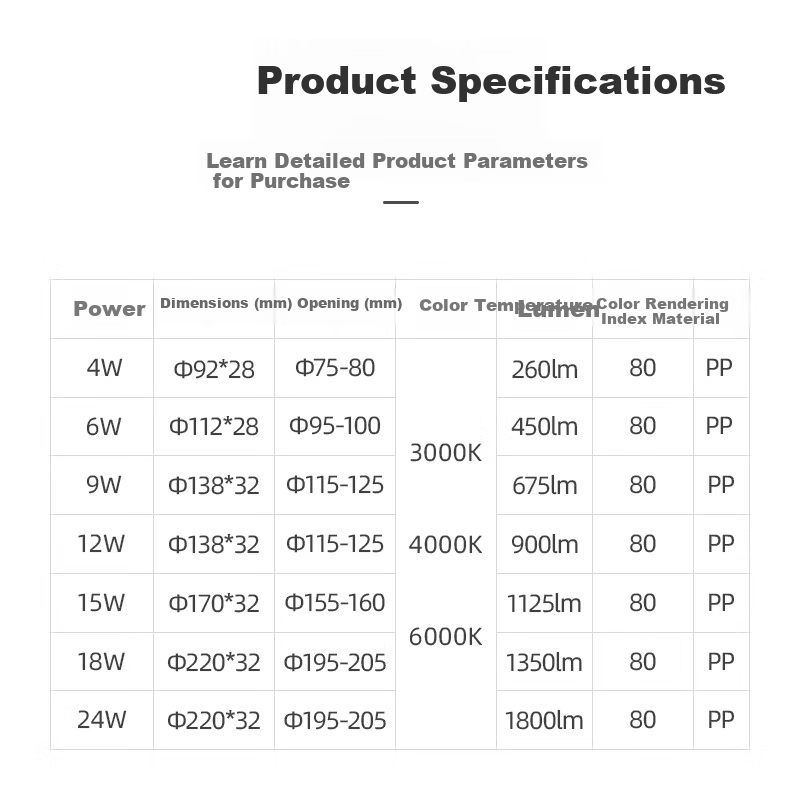

| Power | Dimensions (mm) | Cut-out Size (mm) | Color Temperature (K) | Luminous Flux (lm) | CRI | Material |
|-------|-----------------|-------------------|----------------------|--------------------|-----|----------|
| 4W | Φ92 x 28 | Φ75-80 | - | 260 | 80 | PP |
| 6W | Φ112 x 28 | Φ95-100 | 3000 | 450 | 80 | PP |

Hengliang UltraThin Model
CNÂ¥9.80

12W 4inch white light with a 125135mm cutout diameter
CNÂ¥12.80
| 9W | Φ138 x 32 | Φ115-125 | - | 675 | 80 | PP |
| 12W | Φ138 x 32 | Φ115-125 | 4000 | 900 | 80 | PP |
| 15W | Φ170 x 32 | Φ155-160 | - | 1125 | 80 | PP |
| 18W | Φ220 x 32 | Φ195-205 | 6000 | 1350 | 80 | PP |
| 24W | Φ220 x 32 | Φ195-205 | - | 1800 | 80 | PP |

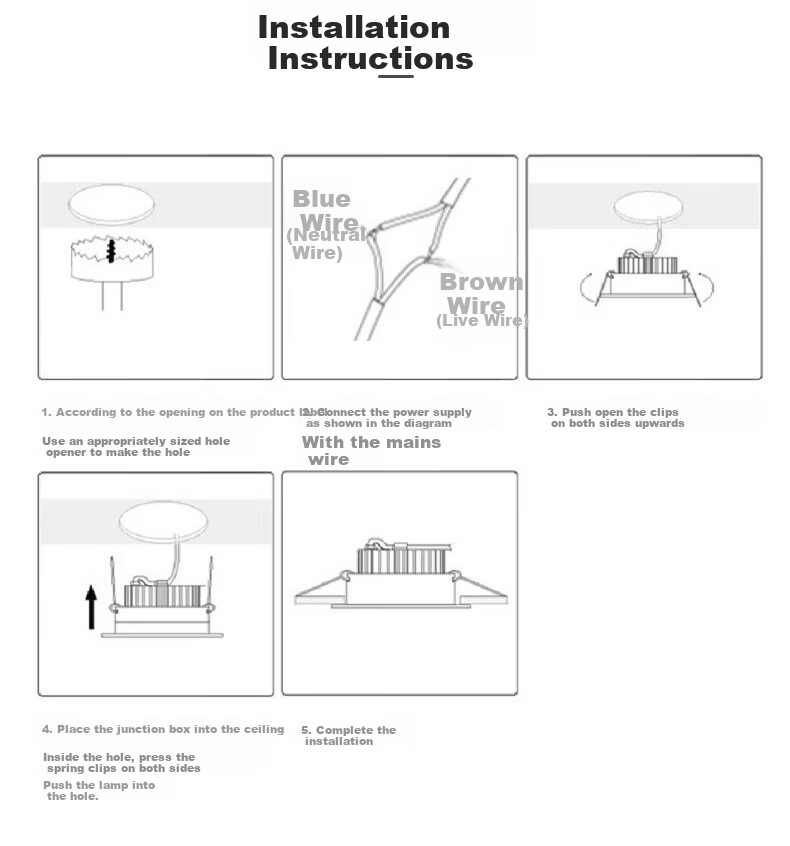

1. Prepare the cut-out hole according to the size indicated on the product label.
3. Use an appropriate hole cutter to make the cut-out in the ceiling.
4. Insert the junction box and wiring into the ceiling hole.
5. Press the spring clips on both sides and push the lamp into the hole until secured.
Ensure proper wiring and installation according to local electrical standards.
