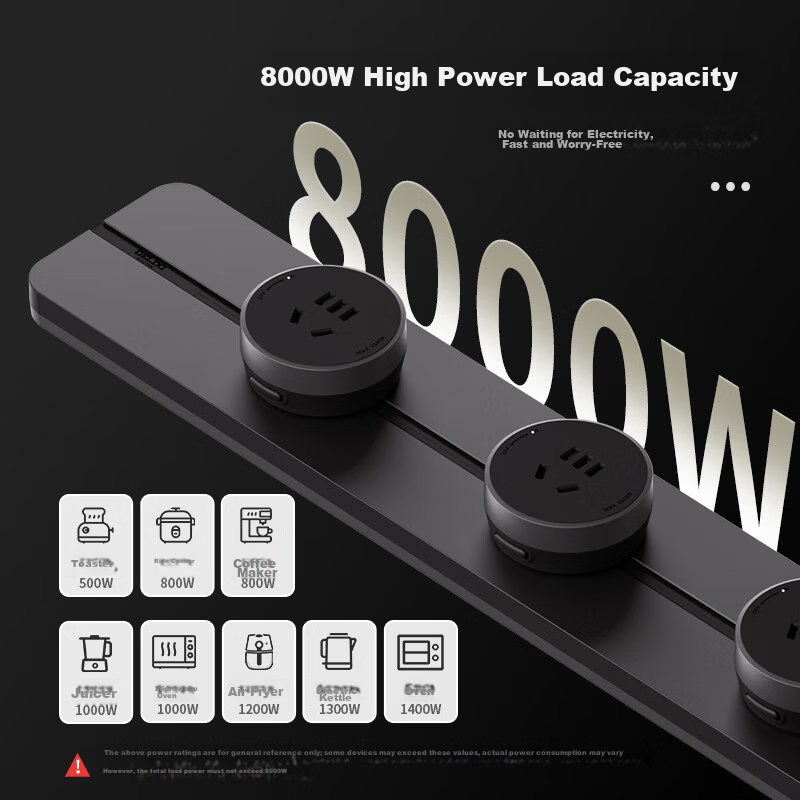

High power capacity (up to 8000W) suitable for multiple household appliances such as toaster (500W), rice cooker (800W), coffee machine (800W), juicer (1000W), microwave (1000W), air fryer (1200W), kettle (1300W), oven (1400W)
Easy installation with self-tapping screws and adjustable mounting bracket; requires level alignment of mounting holes
Additional details
Flexible wiring options
side outlet, back outlet (through hole)
Track cover with protective lid for safe wiring connection; wire stripping length recommended at 15mm
Free movement of sockets along the track without frequent plugging/unplugging, reducing wear and loosening

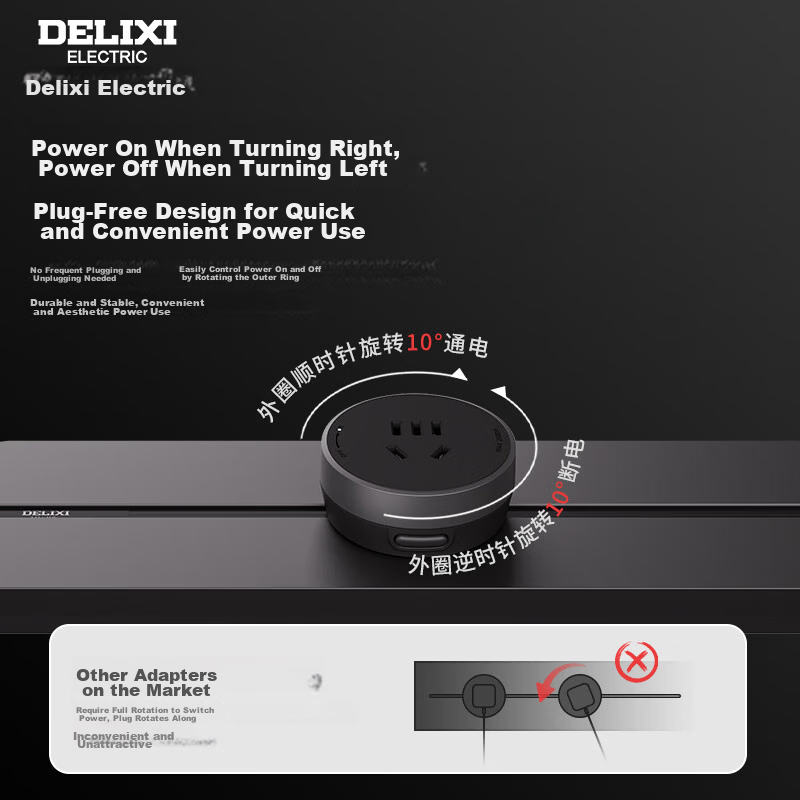

Elegant small-angle rotary switch for power on/off control
Oil-resistant and easy to clean surface; anodized aluminum material with fingerprint-resistant finish

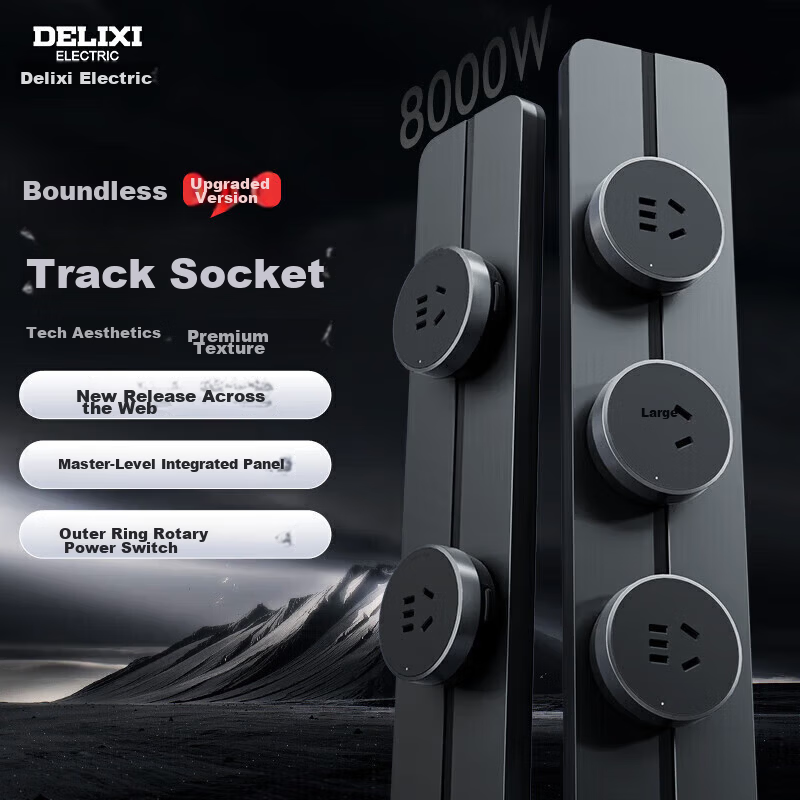

Unique boundary-free flagship design with rounded corners and integrated circular modules for modern, Nordic, light luxury, vintage, or new Chinese style aesthetics
Integrated high-quality copper busbar with no welding points for superior conductivity, stability, corrosion resistance, and durability; avoids common issues of welded copper strips such as high resistance, heating, oxidation, and breakage
Suitable for pairing with light grey sideboards (modern/Nordic style) or walnut-colored sideboards (vintage/wooden/new Chinese style)
Total load power must not exceed 8000W despite individual appliance ratings
Ensure proper wiring connections for live, neutral, and ground wires before closing protective cover
Keep installation bracket level and aligned for secure track mounting
1. Fix mounting bracket to desired position using self-tapping screws; ensure all four mounting holes are horizontally aligned
2. Route power cable to terminal block for wiring
3. Connect live, neutral, and ground wires to corresponding terminals (strip wire length 15mm)
4. Close protective cover and tidy wires
5. Snap track into mounting bracket to complete installation
