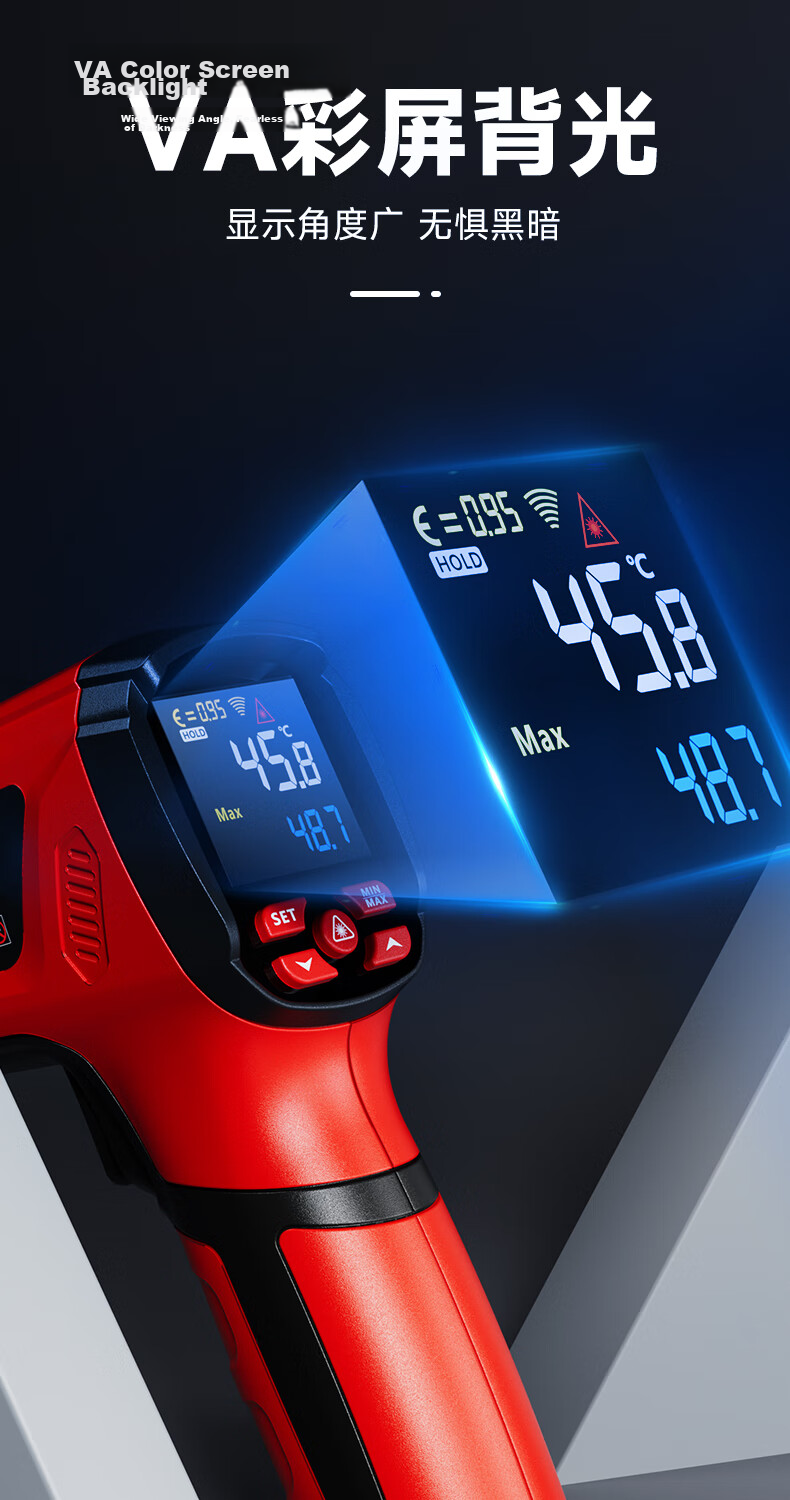

VA reverse color LCD screen with backlight, wide viewing angle, suitable for dark environments
Resolution
0.1°C / 0.1°F

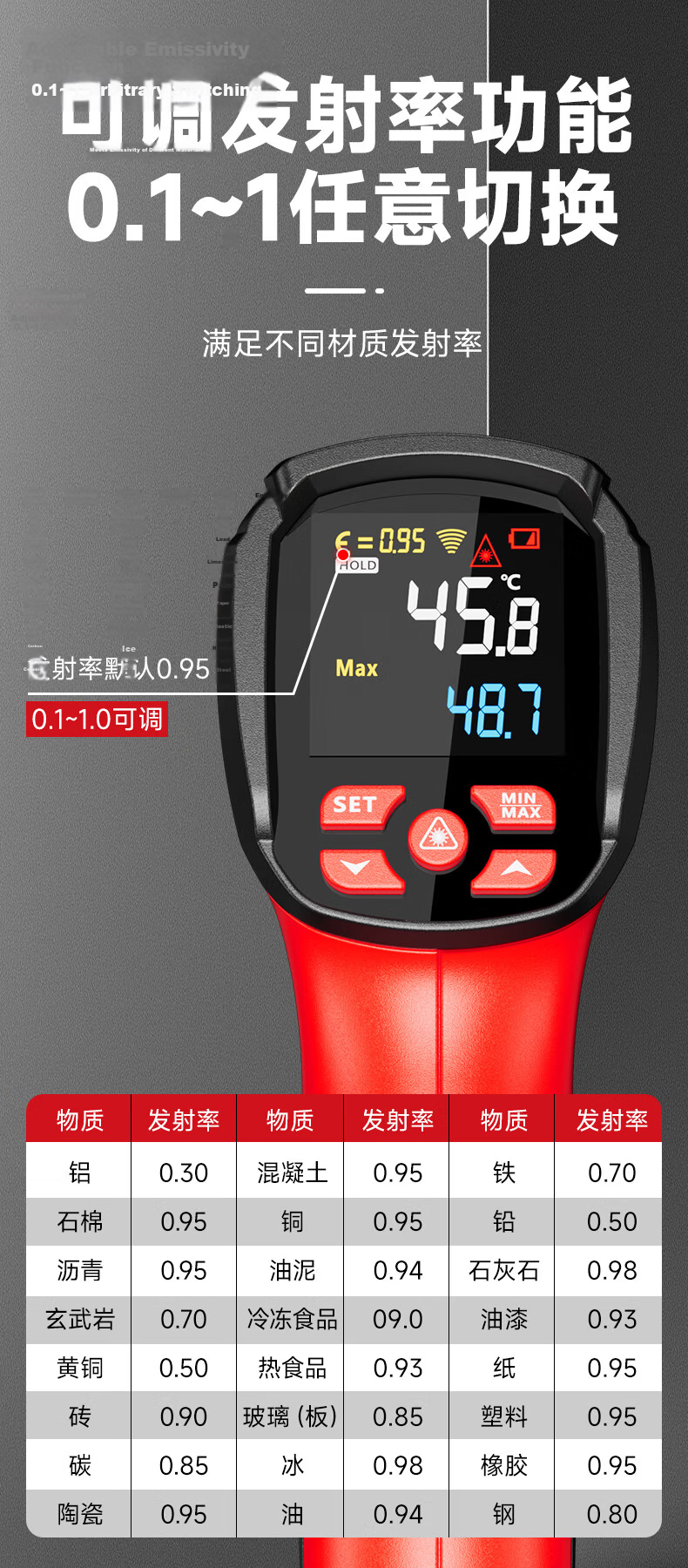

Emissivity
Adjustable from 0.1 to 1.0 (default 0.95), suitable for various materials including aluminum (0.30), concrete (0.95), iron (0.70), copper (0.95), lead (0.50), asphalt (0.95), oil sludge (0.94), limestone (0.98), basalt (0.70), frozen food (0.90), paint (0.93), brass (0.50), hot food (0.93), paper (0.95), brick (0.90), glass (0.85), plastic (0.95), carbon (0.85), ice (0.98), rubber (0.95), ceramic (0.95), oil (0.94), steel (0.80)

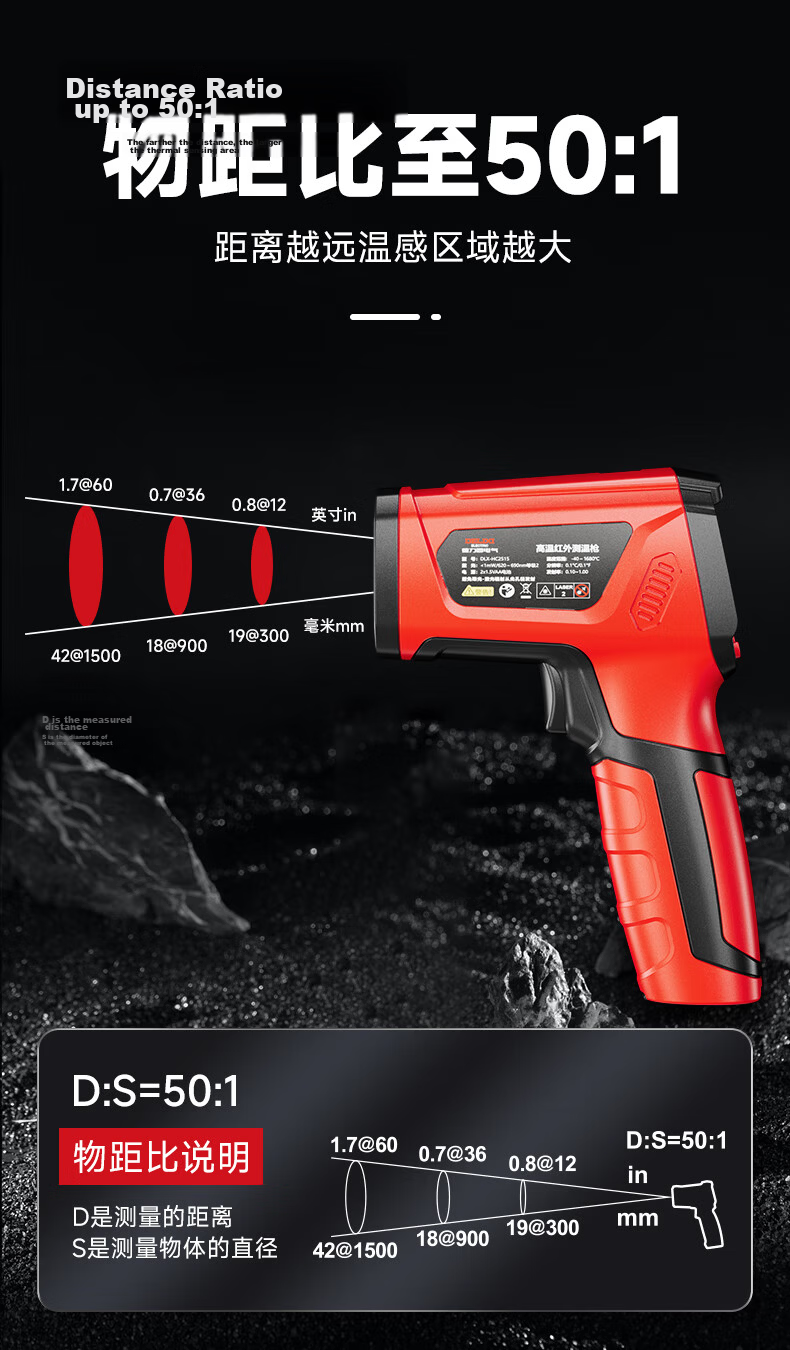

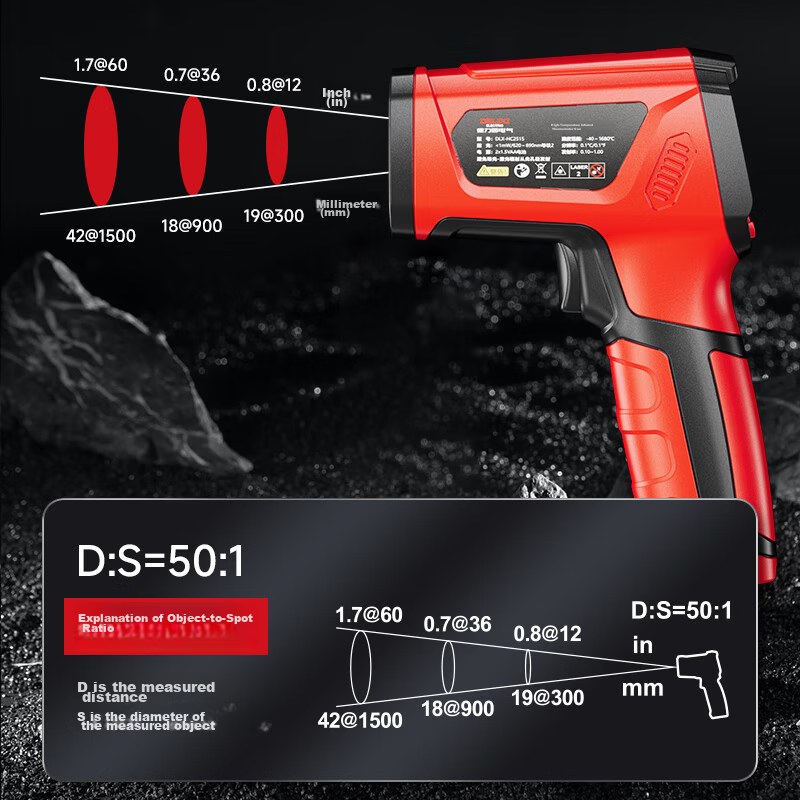

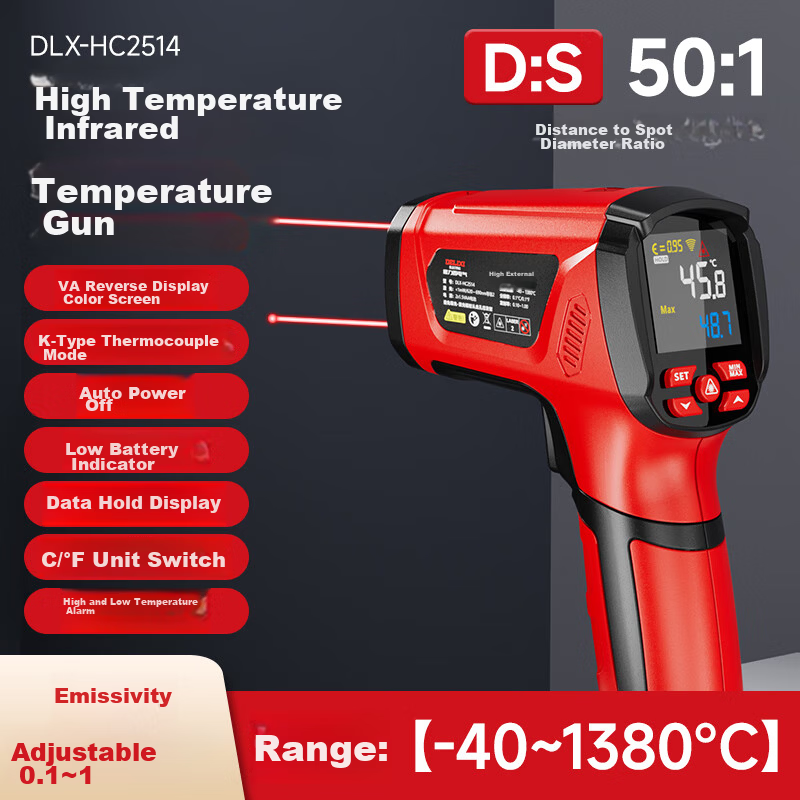

Distance-to-Spot Ratio (D
S): 50:1
Examples
1.7 inches at 60 inches, 0.7 inches at 36 inches, 0.8 inches at 12 inches
Spot size diameter increases with distance (e.g., 19 mm at 300 mm, 18 mm at 900 mm, 42 mm at 1500 mm)
Additional details

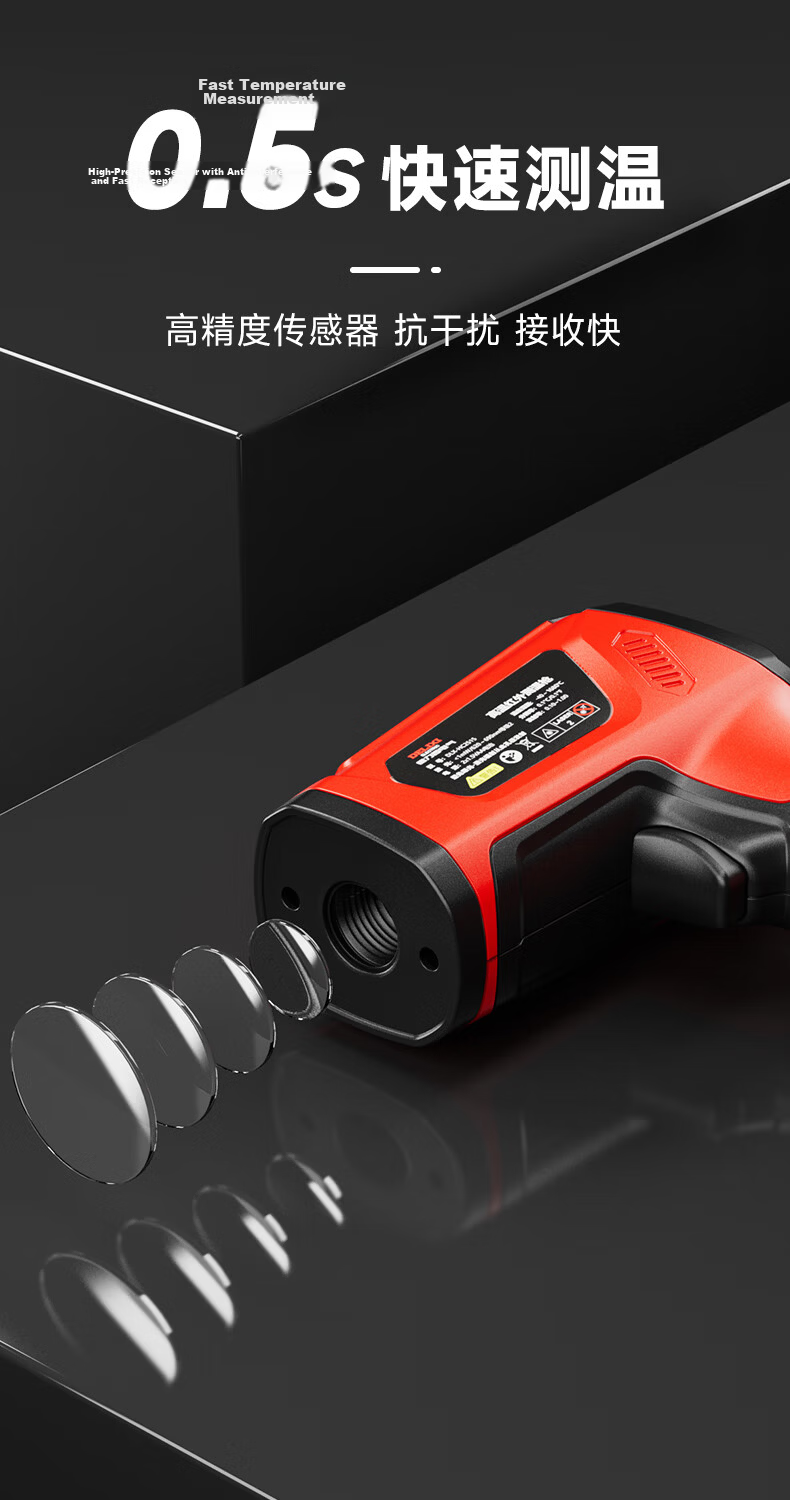

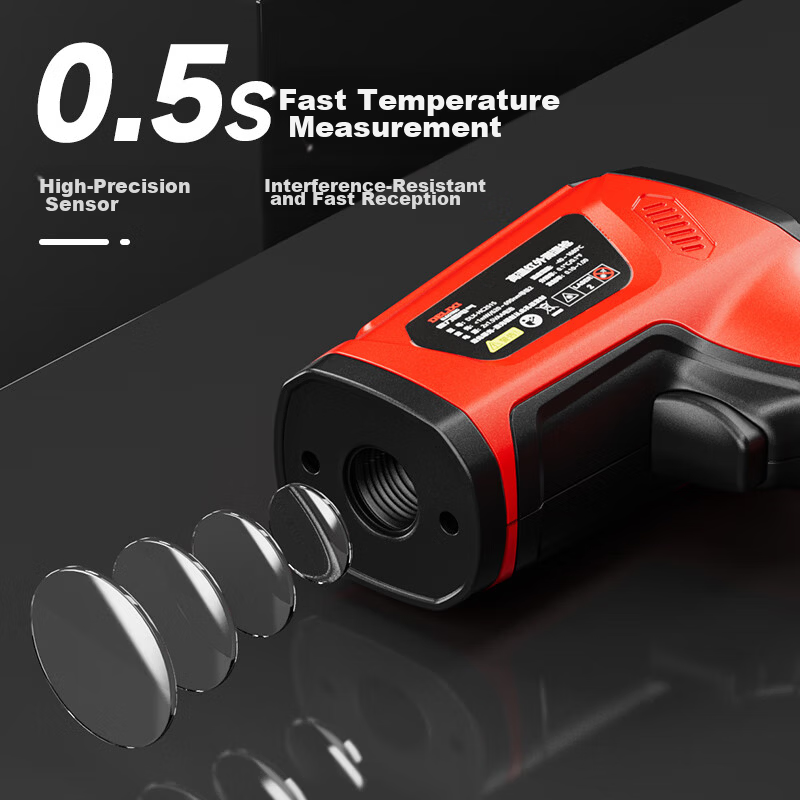

Response Time
Less than 0.5 seconds

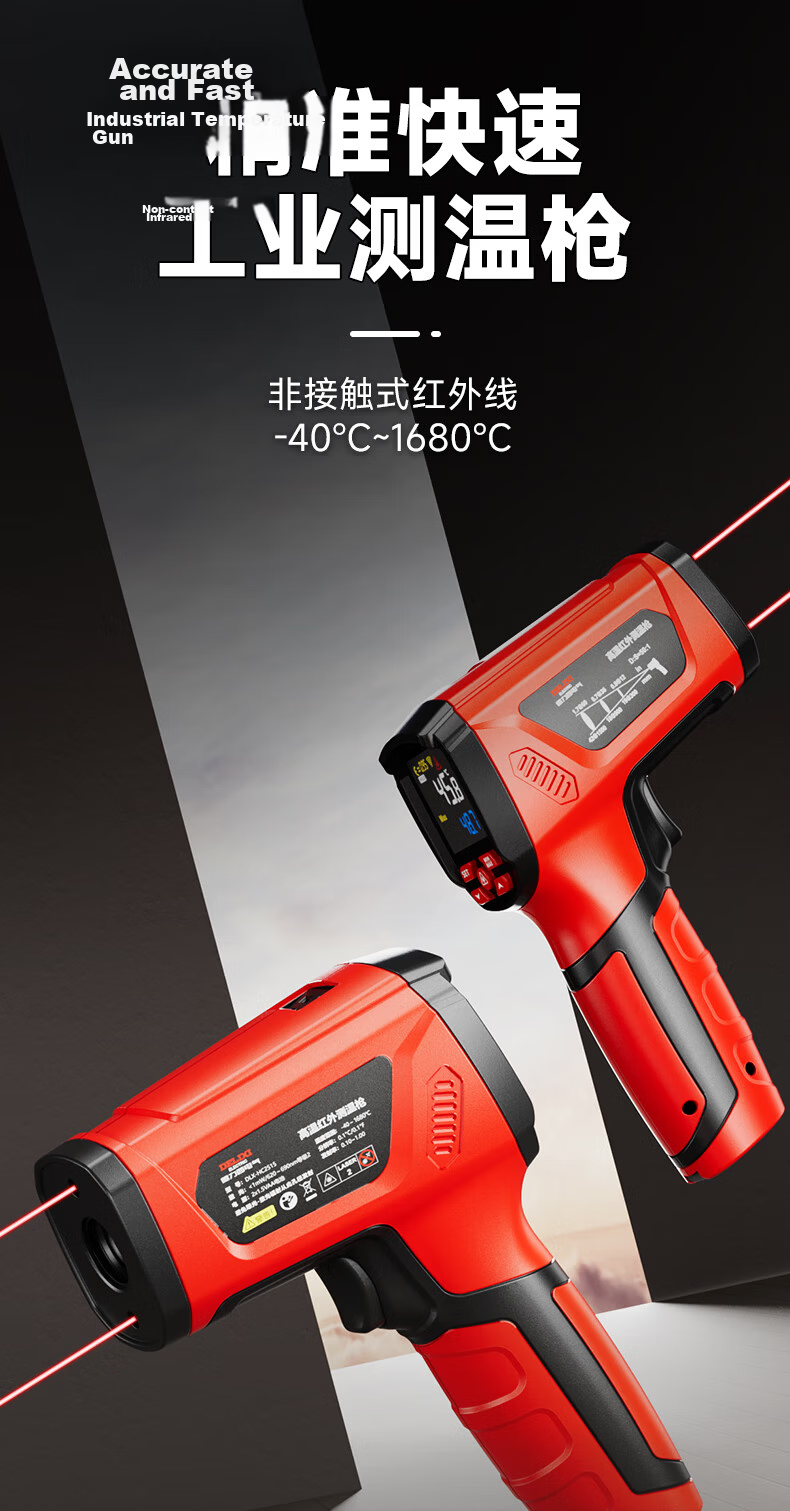

Laser Pointer
Class 2, <1mW, wavelength 620–690 nm
Temperature Units
°C / °F selectable

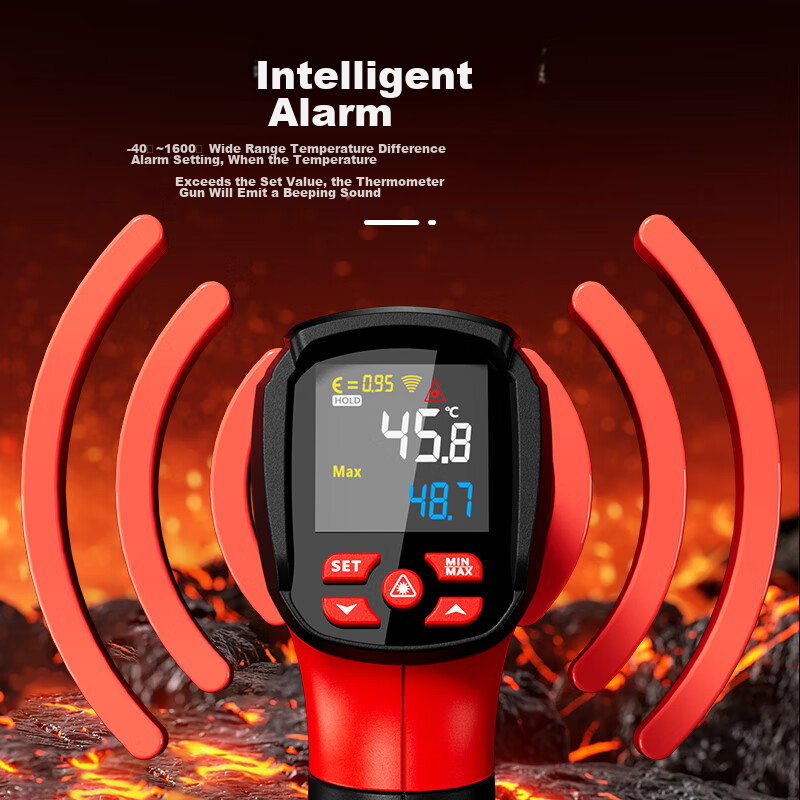

Temperature Alarm
Adjustable high/low temperature alarm range from 40°C to 1600°C with audible beep when exceeding set values
Data Hold
Yes
Auto Power Off
Approx. 35 seconds of inactivity
Low Battery Indicator
Displays battery icon when power is low
Operating Environment
0°C to 50°C, 10% to 90% relative humidity (non-condensing)
Power Supply
2 × 1.5V AA batteries

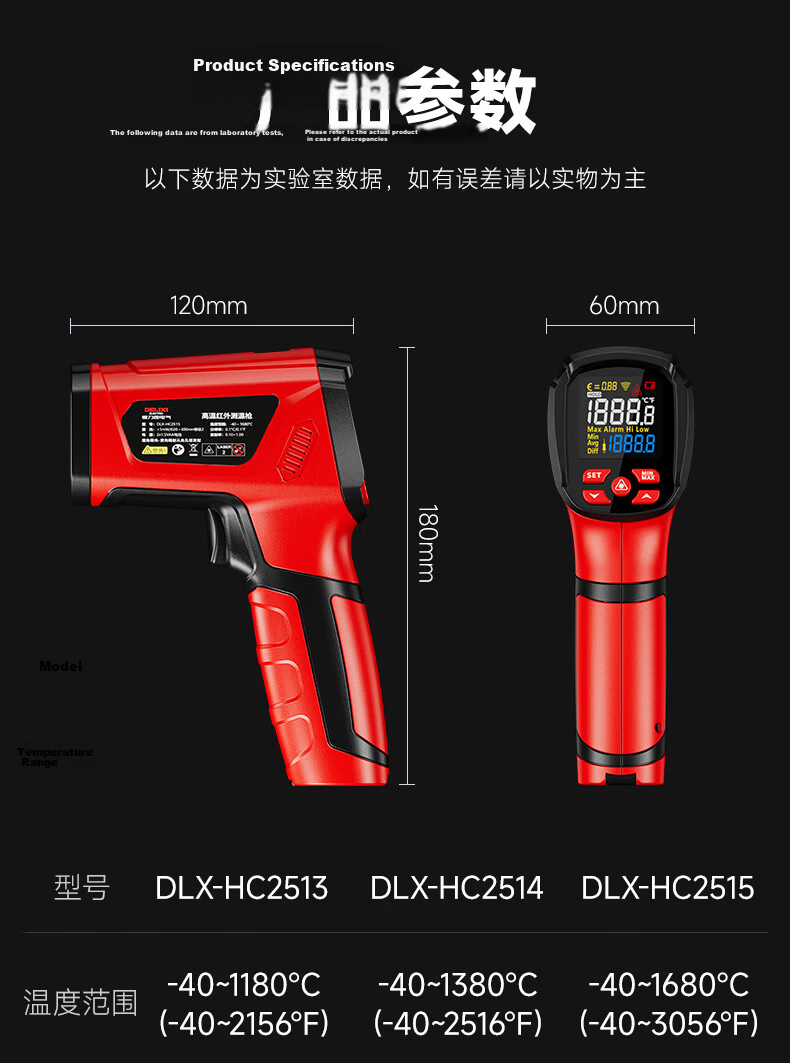

Dimensions
180 mm × 120 mm × 60 mm
Weight
Approx. 265 g (without batteries)
Construction

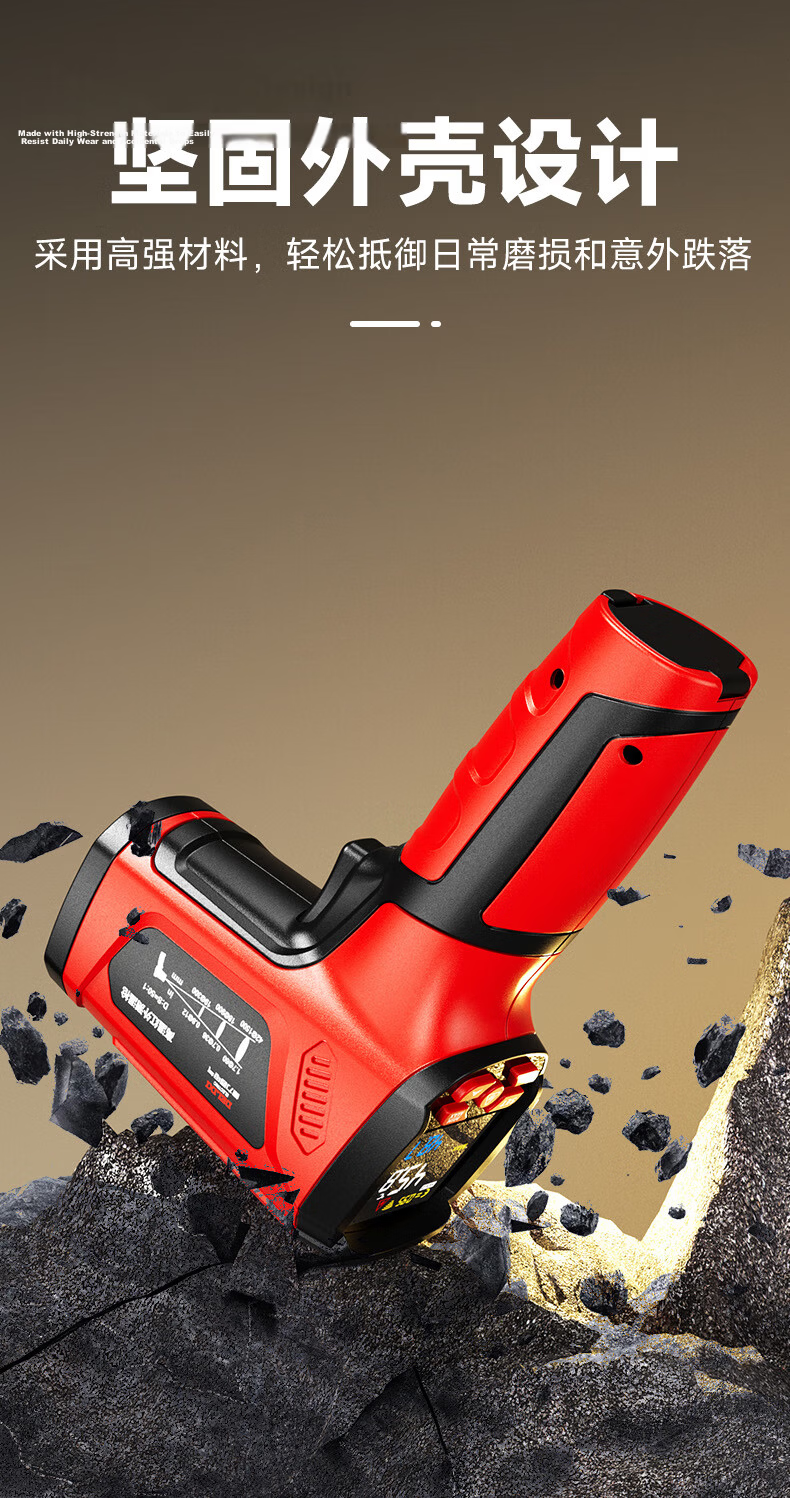

Durable housing made of high-strength materials to resist daily wear and accidental drops
High precision sensor with fast response and anti-interference capability
Adjustable emissivity for accurate measurement on different materials

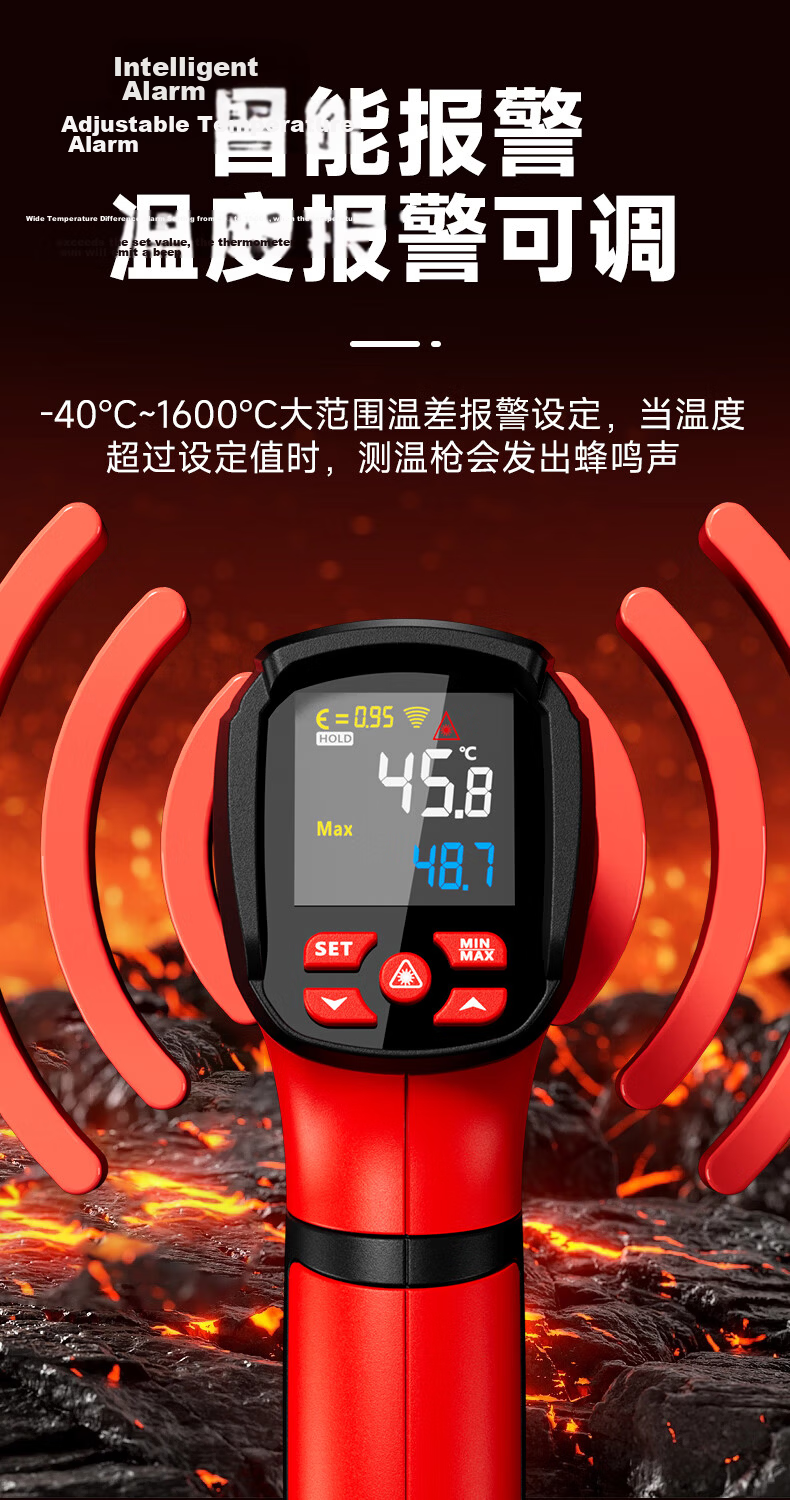

Intelligent temperature alarm with customizable thresholds

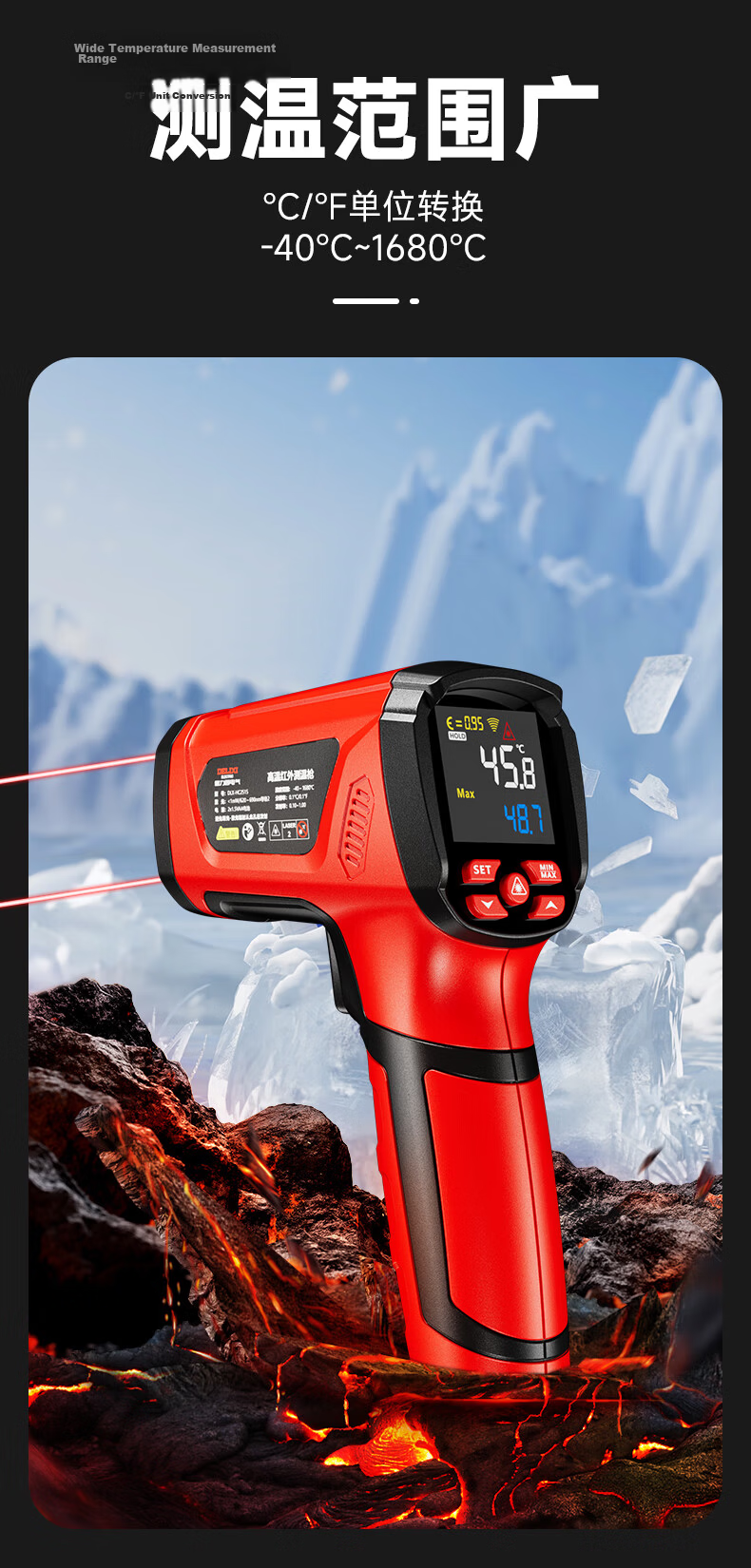

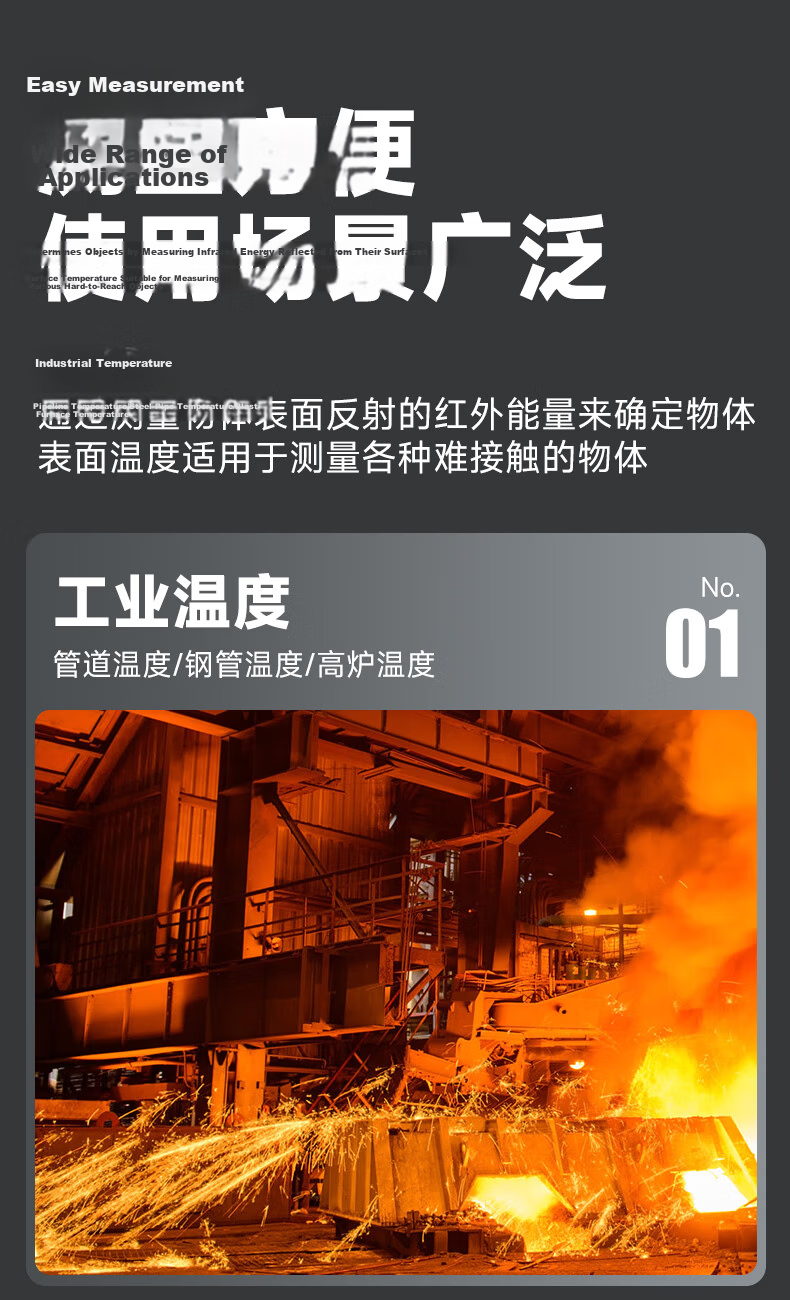

Wide temperature measurement range suitable for industrial applications such as pipe temperature, steel pipe temperature, and blast furnace temperature

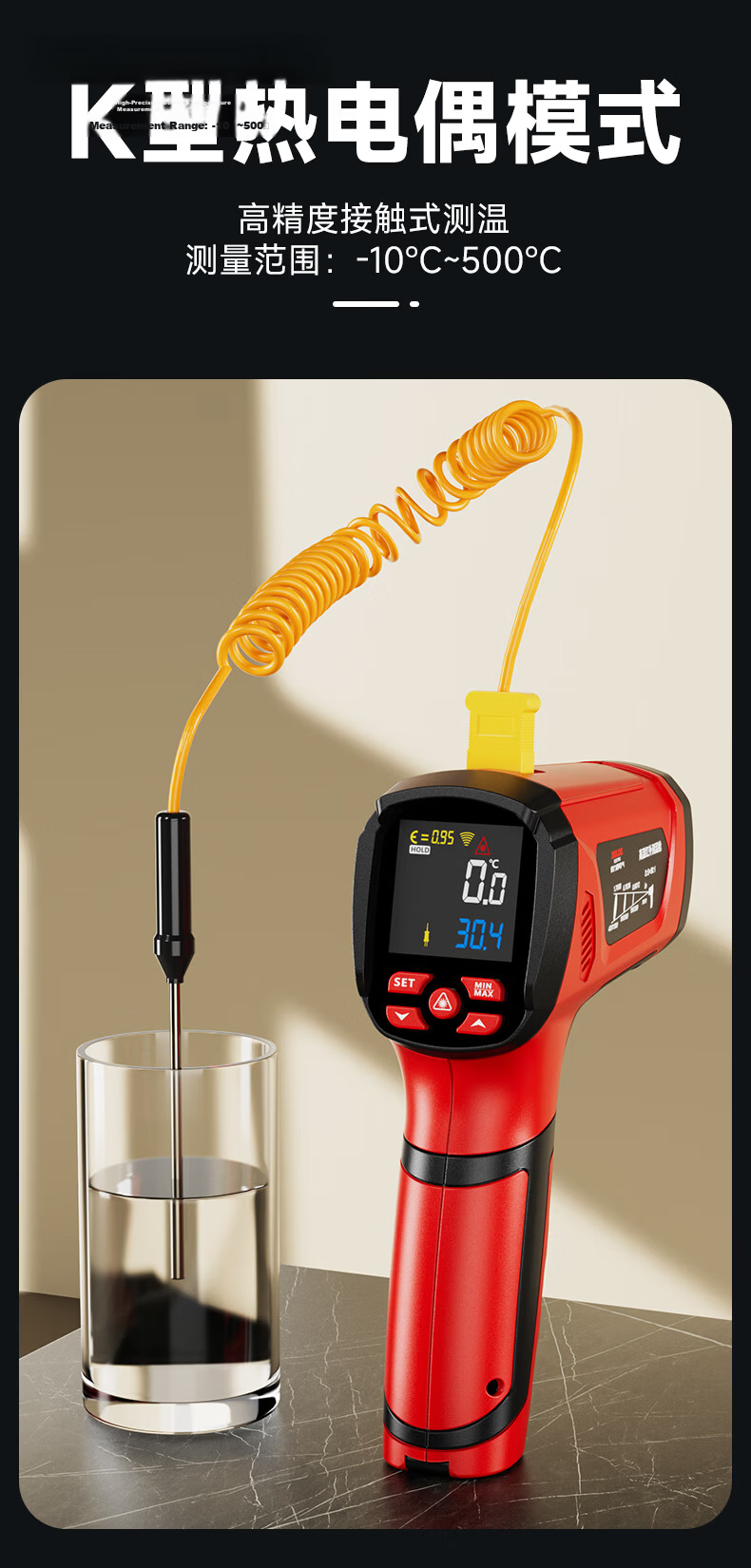

K-type thermocouple mode for contact temperature measurement

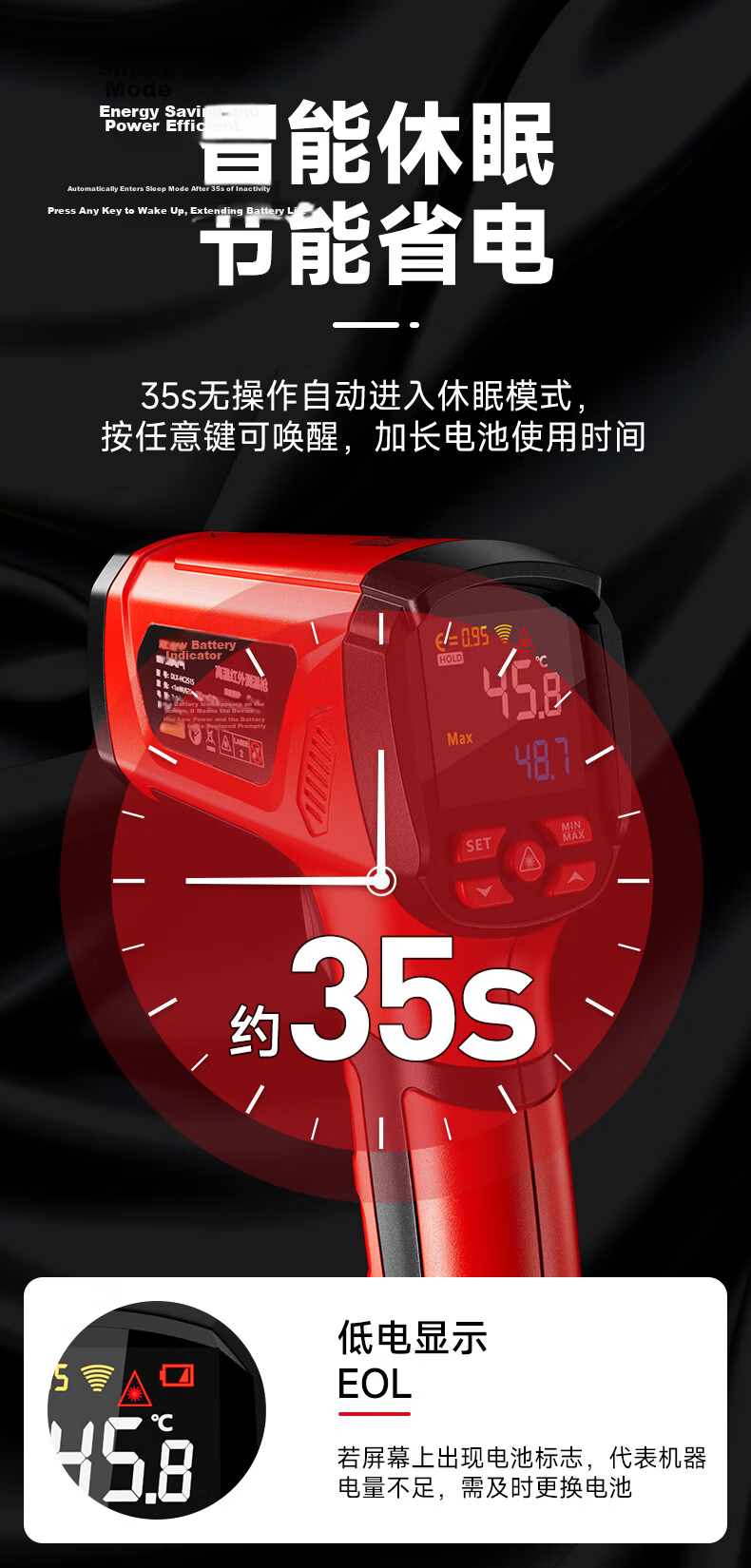

Smart sleep mode to conserve battery life, automatically enters sleep after 35 seconds of inactivity, wake-up by any key press
Additional details

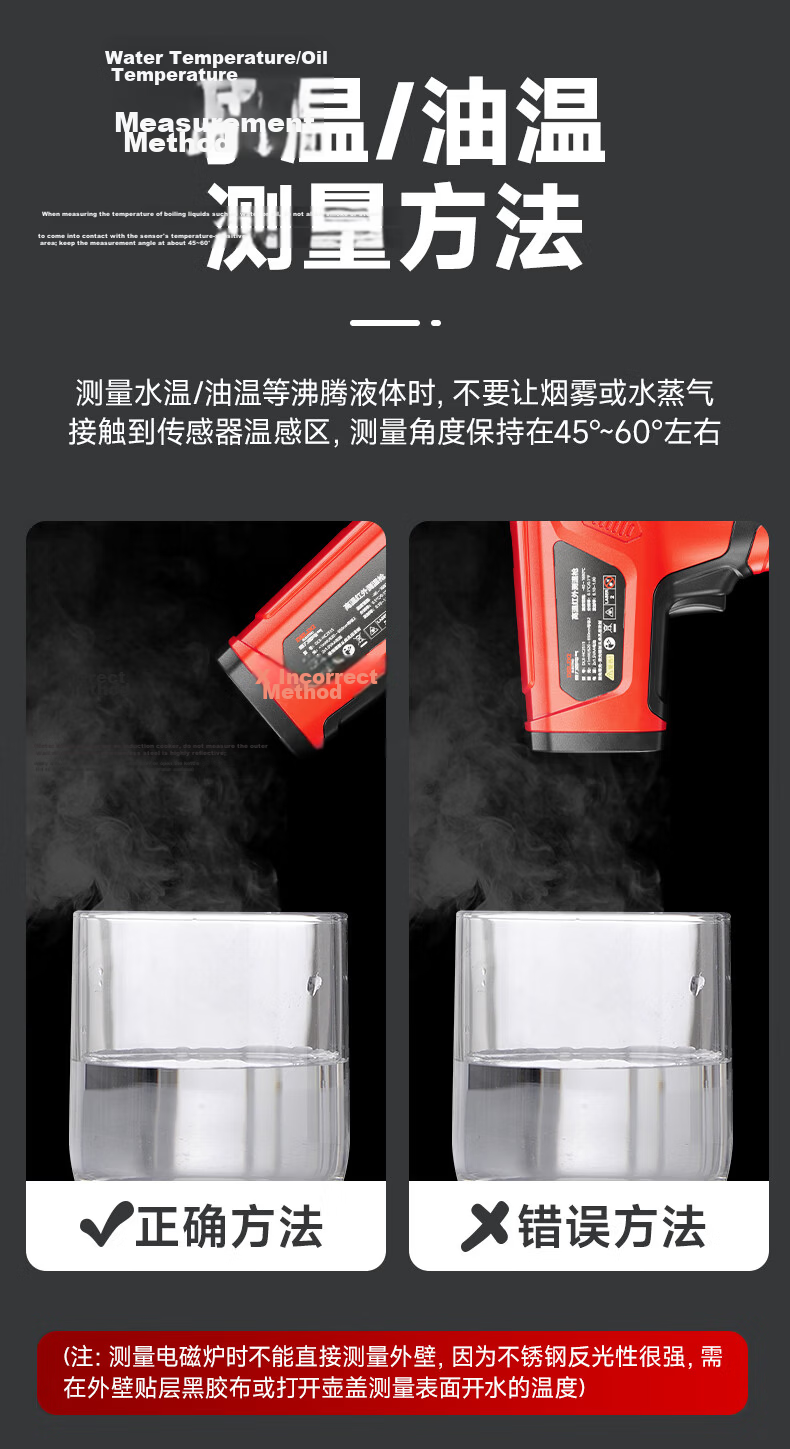

Measurement method for boiling liquids
maintain 45° to 60° angle, avoid steam contact with sensor; for electromagnetic stove measurement, use black tape on stainless steel surface or measure surface water temperature directly

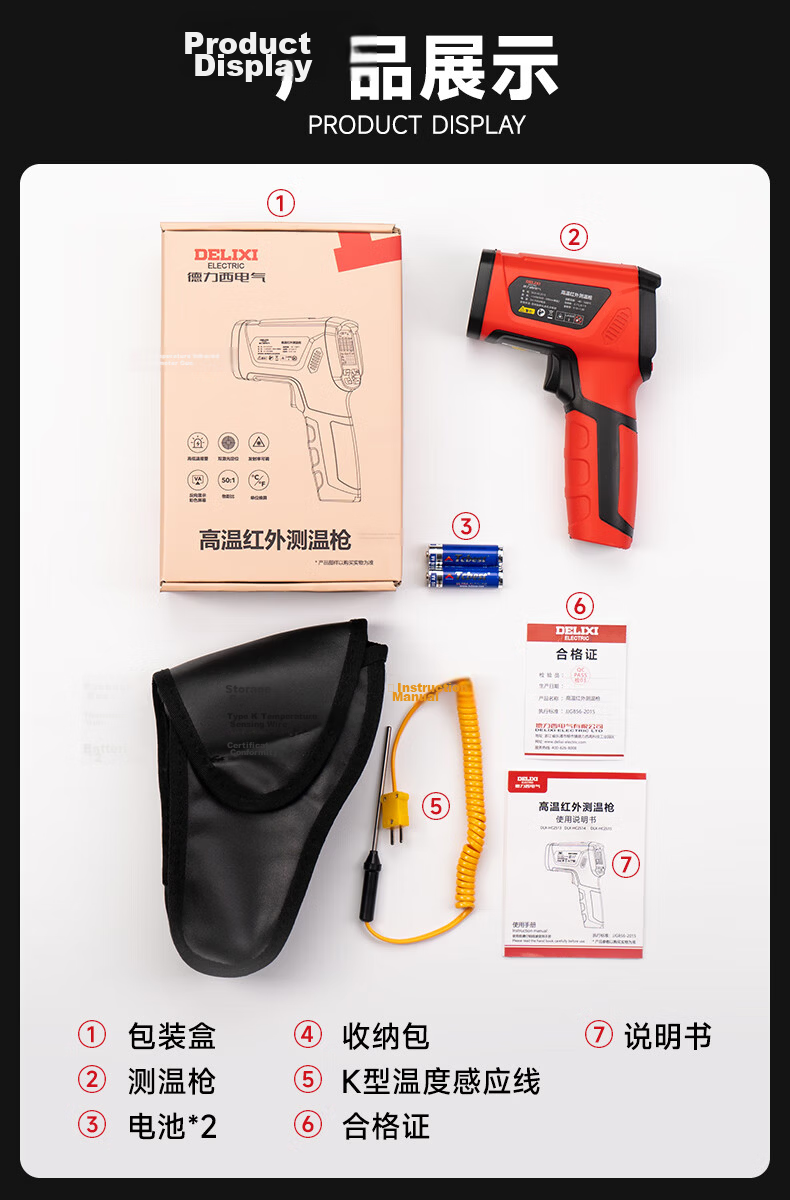

Instruction manual
K-type thermocouple probe
2 × AA batteries
Storage pouch
Certificate of conformity
Packaging box
Laboratory data may vary; actual product performance should be considered final.
