- Motor
- Dual-core motor for deep ventilation and independent blowing
- Efficiency
- High efficiency with low noise level (≤63 dB)
- Warranty
- 3 years

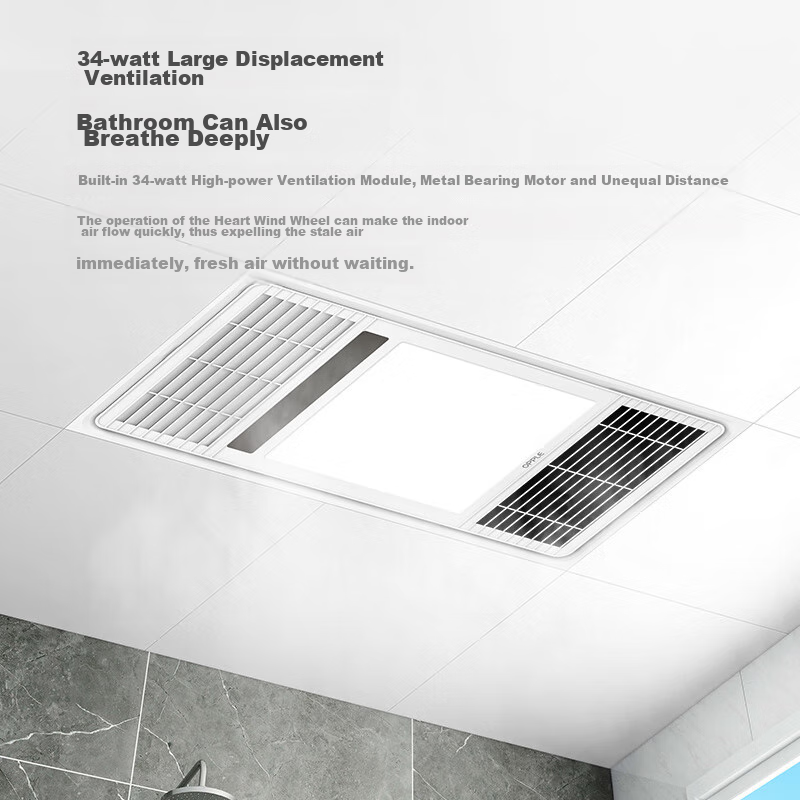

- Ventilation
- Approx. 34W high air volume ventilation for fresh air circulation
- Switch
- High-grade 4-key large panel switch with 4-in-1 functions
- Waterproof Rating
- IPX2
- Switch Requirements
- 5 wires needed for fire line, lighting, ventilation, blowing, and heating
- Switch Type
- F165-E large panel button switch
- Material
- PC flame-retardant panel + flame-retardant PP
- Panel Size
- Approx. 300x600 mm
- Weight
- Approx. 7.1 kg (including packaging)
- Motor
- Dual motor
- Dimensions
- Approx. 585x305x80 mm
- Functions

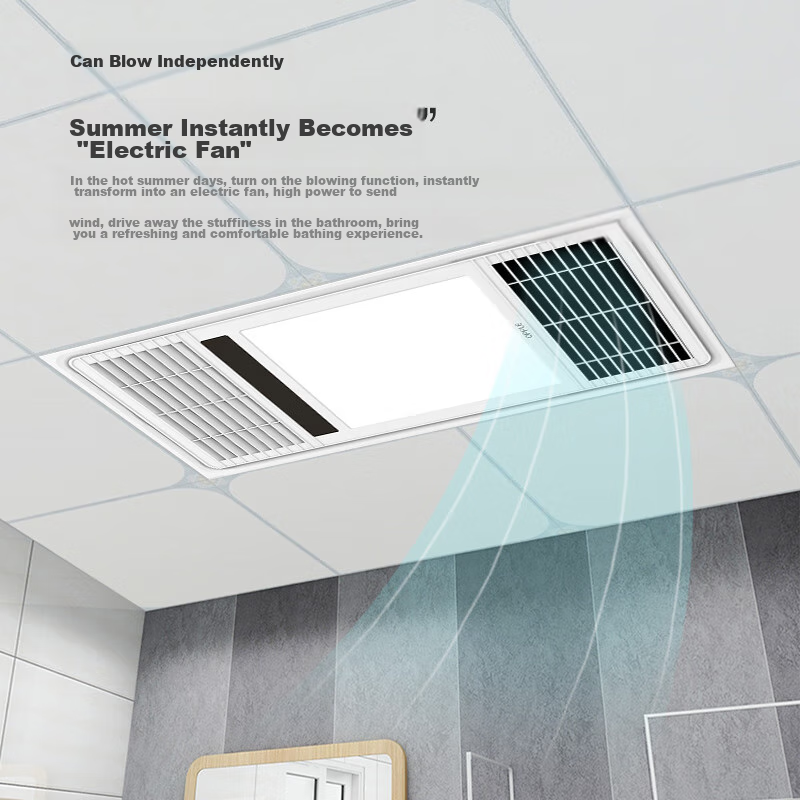

- Lighting + Heating + Ventilation + Blowing
- Power

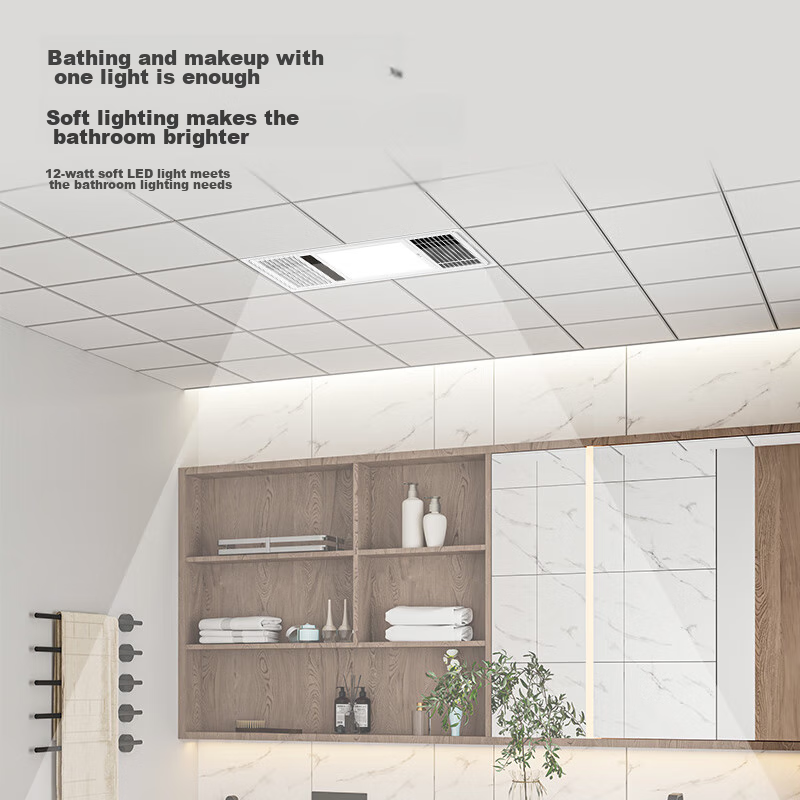

- 2580W (Heating 2500W + Blowing 34W + Ventilation 34W + Lighting 12W)
- Ceiling Type
- Integrated ceiling
- Wiring Requirements
- Switch: 5 wires (fire line + control line) Ceiling: 2 wires (fire/zero)
- Ceiling Height
- Recommended installation height: Ceiling space ≥12 cm, distance from the ground ≥2 meters (recommended 2-2.3 meters)
- Exhaust Pipe
- Diameter Approx. 10 cm, length Approx. 1.5 meters
- Accessories
- Metal clamps, installation accessories, check valve, exhaust pipe, user manual
