KeepLINK KP-9000 Full Gigabit 16-Port POE Switch + 3 Gigabit Cascading Surveillance Camera Network Switch, 240W Per Unit

keepLINK•Switch

KeepLINK KP-9000 Full Gigabit 16-Port POE Switch + 3 Gigabit Cascading Surveillance Camera Network Switch, 240W Per Unit

CN¥289.00

SKU: 100130176050

Status:In Stock (30)

ID: 100046899794

Weight: 1100.00 g

Dims:270x181x44 mm

Specifications

Cloud-managed switch: Cloud management not supported
Set: Single product
Network Management Type: Non-managed
Downlink Port Rate: Gigabit
Suitable Scenarios: Access switch
Downlink Interface Type: Ethernet Switch
Cooling method: Natural heat dissipation
Uplink port rate: Gigabit

Variants / Sale Attributes

Color: [Full Gigabit 240W] 16-Port PoE + 3-Port Uplink

Package Contents

Switch X1, Certificate X1, Manual X1

Product Description

Overview

Brand: keepLiNK
Model: KP-9000-19GP-S-MAC
Power Supply: Standard POE, single port power 30W

Features

Intelligent power protection
Strong chip
Built-in protection circuit

Additional details

Similar Products

In Stock

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

View

In Stock

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

View

Power over Ethernet (PoE)

POE power supply

Port Type

Electrical port

Plug and Play: No configuration required, supports AutoMDI/MDI-X function
MAC Learning: Automatic MAC learning and updating
Network Standards: IEEE802.3x full duplex, flow control and Backpressure half duplex flow control

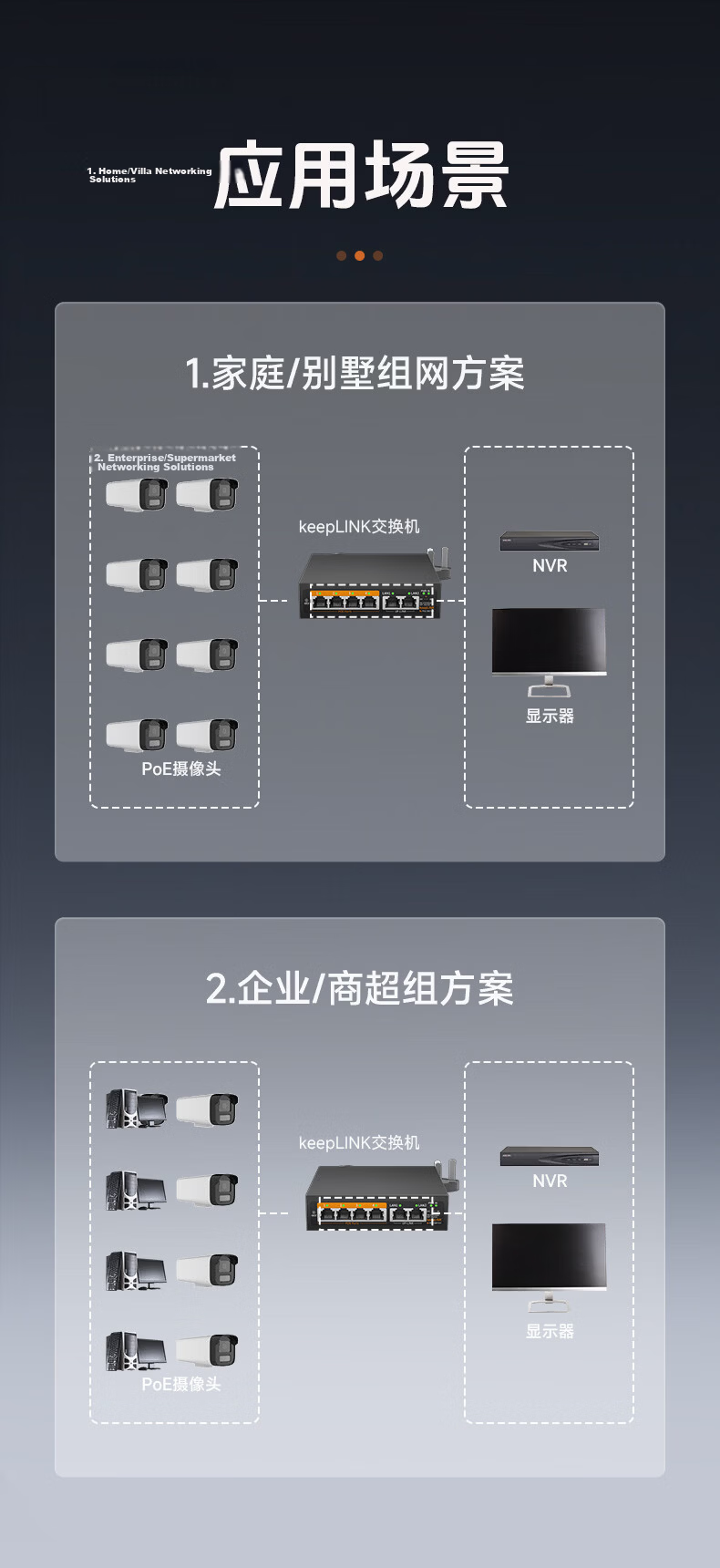

Application Scenarios: Suitable for home/villa networking solutions, enterprise/supermarket networking solutions

Interfaces

Business Interfaces: 1*1000Base-X + 18*10/100/1000Base-T
Power Interface: AC interface
LED Indicators: Power, active
Fiber Interface: SFP

Cable Types and Distances

Item	Detail
Twisted Pair	0-100 m
Single-mode Fiber	20/40/60/80/100KM
Multi-mode Fiber	550 M

Additional details

Network Topology: Supports star and bus topology, does not support ring topology

Electrical Characteristics

Item	Detail
Input Voltage	AC100~240V/50-60HZ
Total Power Consumption	≤240W
POE Support	Supports standard 802.3AF, 802.3AT

Switching Performance

Item	Detail
Switching Capacity	38Gbps
Packet Forwarding Rate	28.27Mpps
MAC Address Table	2K
Packet Buffer	1Mbit
Jumbo Frame	9Kbytes
Forwarding Delay	<10us

Environmental Conditions

Item	Detail
Operating Temperature	-10°C~+50°C
Storage/Transportation Temperature	-40°C~+70°C
Relative Humidity	10%~90% non-condensing

Mechanical Structure

Item	Detail
Dimensions	270 × 181 × 44 mm
Installation	Desktop installation
Weight	1.10 kg

Protection Features

Power Surge Protection: Common mode 4KV, differential mode 2KV
Network Surge Protection: Common mode 4KV, differential mode 2KV
ESD Protection: Contact 8K, Air 15K
Free Fall: 0.5m

Additional details

Accessories: Power cord

Standard POE vs. Non-Standard POE

Standard POE requires a handshake protocol and has built-in protection mechanisms
Non-Standard POE does not have a handshake protocol and may cause damage to devices
