HIKMICRO Thermal Imaging Camera Mobile Infrared Thermal Imager HD Power Temperature Measurement Floor Heating Inspection Leak Detector P09

Supports custom temperature measurement rules with 3 points, 1 line, and 3 boxes

Automatic capture of max, min, and center temperature points

Real-time professional analysis and temperature alarms (high and low temperature alarms supported except P20 Max)

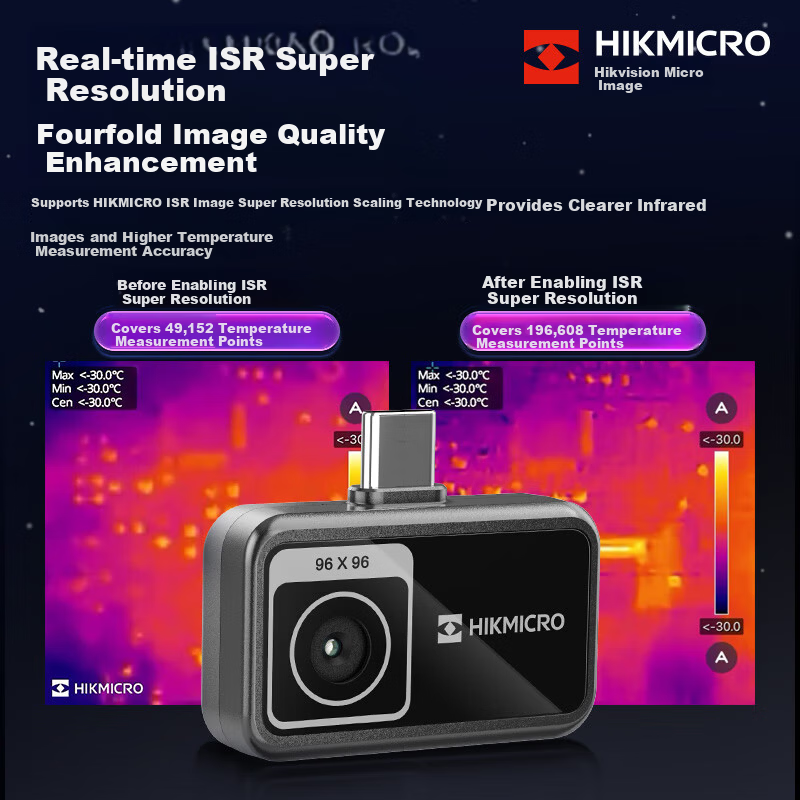

Covers up to 196,608 temperature measurement points with ISR enabled

Type-C interface with included Lightning adapter for iOS devices (except P20 Max)

Compatible with Android and iOS systems

Plug and play, no external power needed; powered by connected smartphone

Supports real-time image analysis and data export via mobile app and PC software (PC software supported on P20 Max V2 and P20 V2)

Customizable temperature measurement rules (points, lines, boxes)

Supports 15 pseudo-color modes for enhanced image readability (e.g., White Hot, Black Hot, Rainbow, Iron Red)

Adjustable brightness, contrast, sharpness, and color distribution

Video recording and photo capture synchronized with smartphone

Generates PDF thermal analysis reports

Supports image rotation, picture-in-picture mode, and manual/auto calibration

HVAC leak detection

Electrical inspection and maintenance

PCB and circuit board testing

Outdoor exploration and safety monitoring

Fire prevention and security surveillance

Automotive repair and mechanical maintenance

Pipeline leak detection and motor inspection

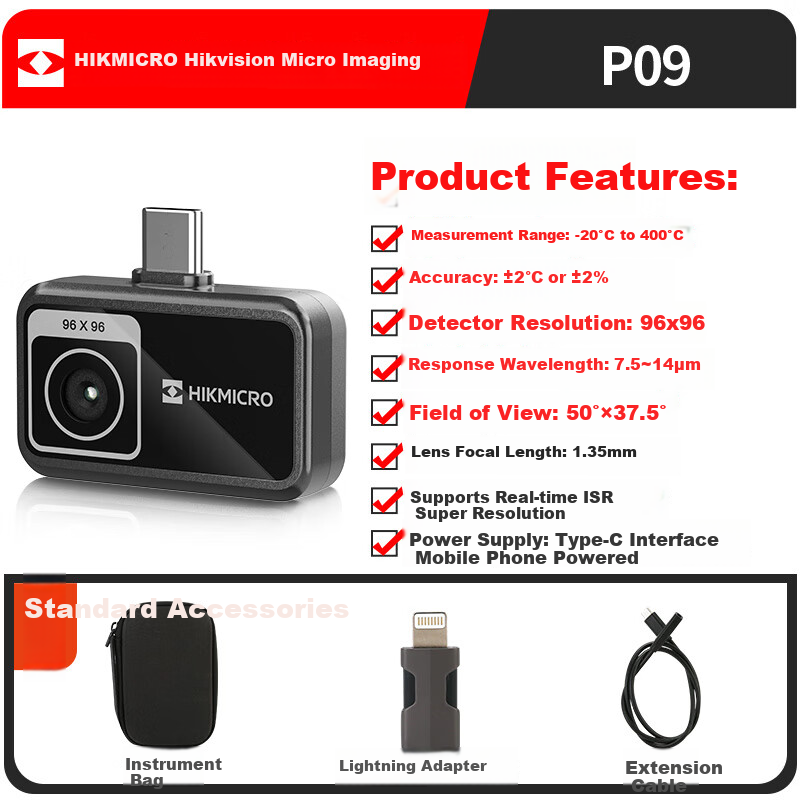

Thermal imager device

Color box packaging

Carrying case

User manual

Extension cable

Lightning adapter (except P20 Max)

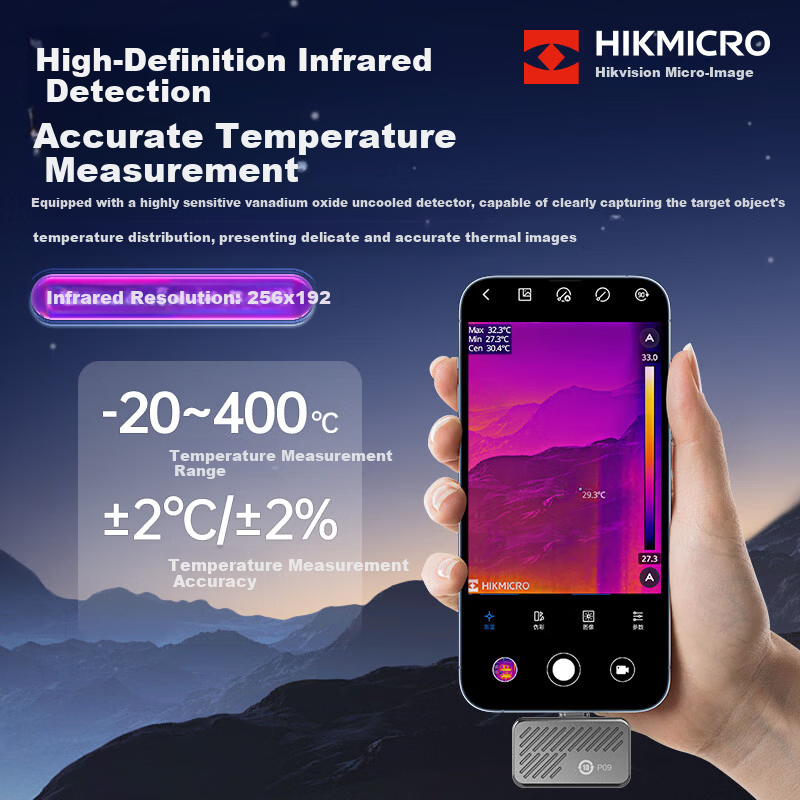

High sensitivity vanadium oxide uncooled detector for precise temperature distribution capture

Supports wireless operation and mobile app integration

Small, portable design suitable for pocket carrying

Some features such as ISR super resolution, custom measurement lines, and low temperature alarms are not supported on P20 Max model.
