HDMI 2.0 x 2 + HDMI 1.4 x 2 + 3 G-SDI x 4 + Media x 1
Supports 4K UHD input up to 2160p60 (HDMI 2.0 interface)
Supports 1080p60/59.94/50/30/29.97/25/24/23.98 and 1080i50/60 formats
Additional details
Multi-interface input
HDMI, SDI, NDI (optional), LETRAHD, 4KP60 input
HDMI PGM x 1
HDMI AUX x 1

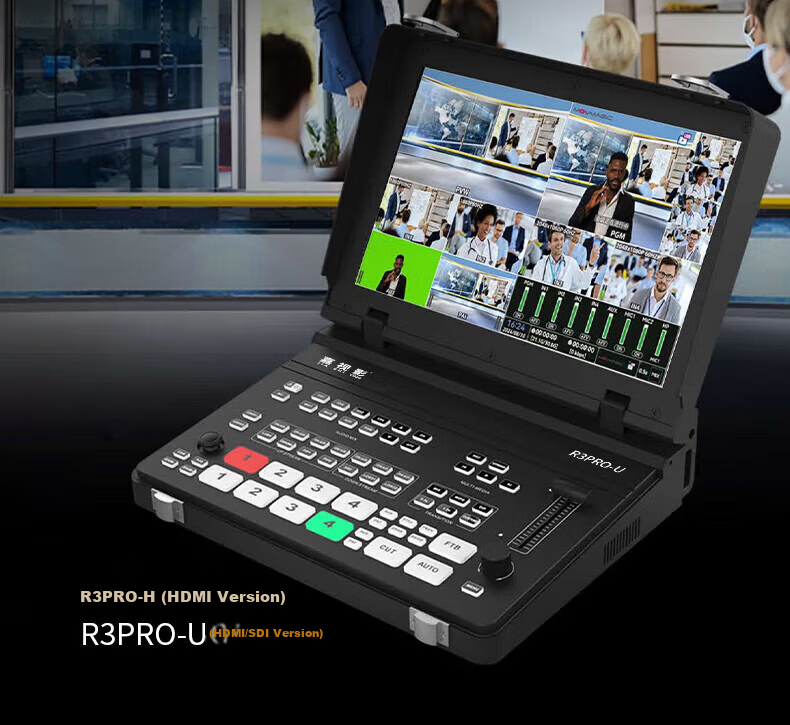

SDI PGM x 1 (R3PRO-U)
USB 3.1 Type-C x 1 (UVC output, lossless streaming)
RJ45 x 1 (LAN for streaming and control)
Additional details
Audio Input
Line-in (3.5 mm stereo) x 2, 2 channels microphone/analog audio input
Audio Output
Line-out (3.5 mm stereo) x 1, headphone output
Audio Delay
0-1 second adjustable

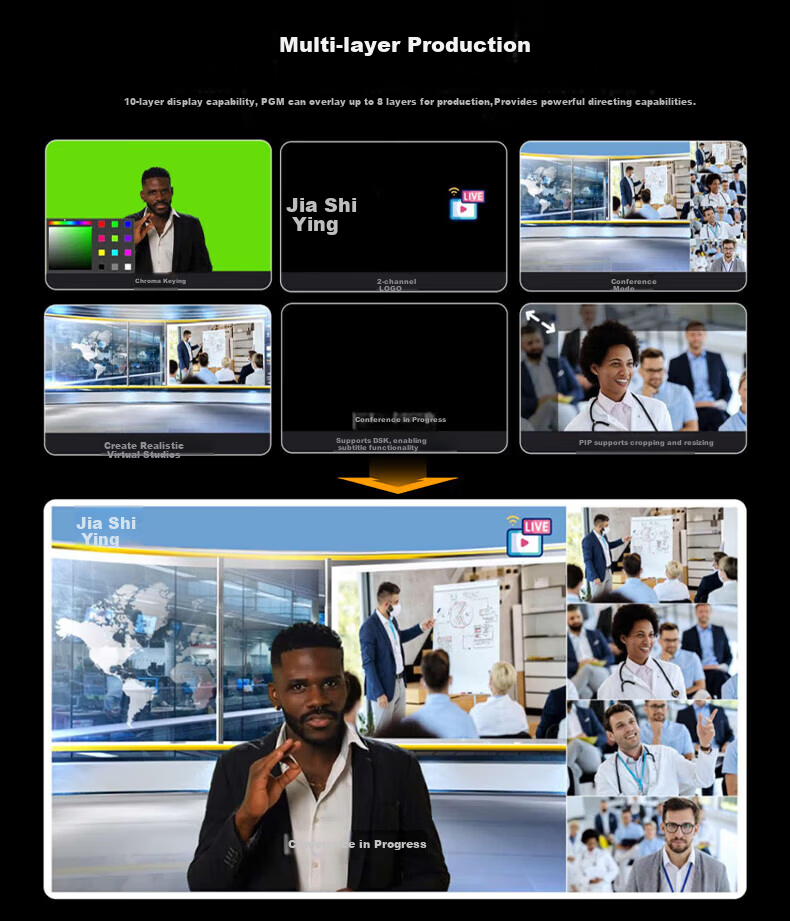

Multi-layer production
up to 10 layers, PGM supports up to 8 overlay layers
Keying
Chroma key, brightness key, upstream keys (PIP x 2, POP), downstream keys (DSK x 1, LOGO x 2)
Transition Effects
T-Bar/AUTO/CUT, WIPE (multiple patterns), MIX, DIP, transition preview, background freeze, mute, fade to black (FTB)
Supports subtitle function and realistic virtual studio creation
Supports DSK and PIP with cropping and resizing
Supports LOGO insertion with alpha transparency (PNG), max size 940x540 pixels

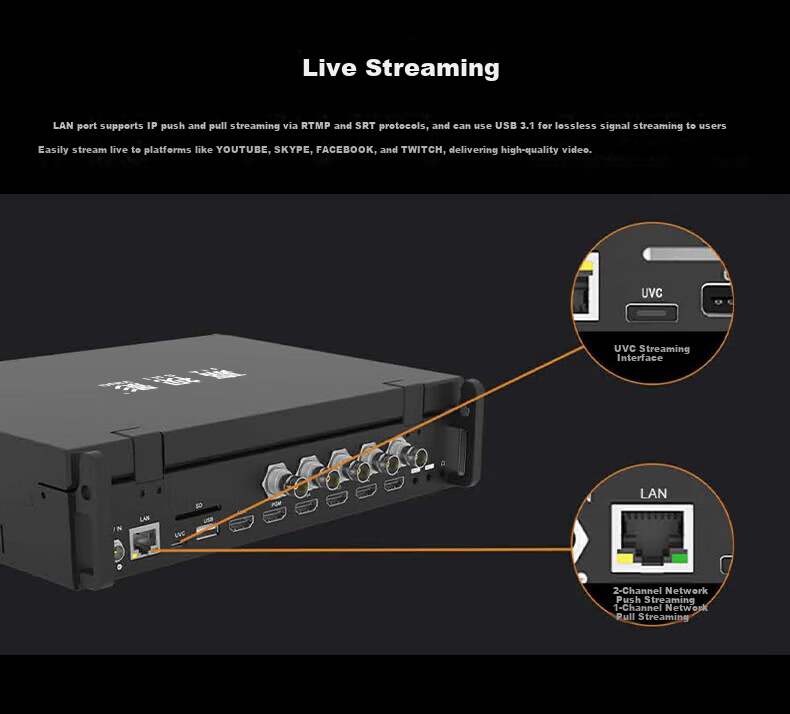

Network streaming via LAN port supporting RTMP and SRT protocols for push and pull streaming
USB 3.1 interface for lossless streaming to platforms like YouTube, Skype, Facebook, Twitch
Supports separate bitrate settings for recording and streaming

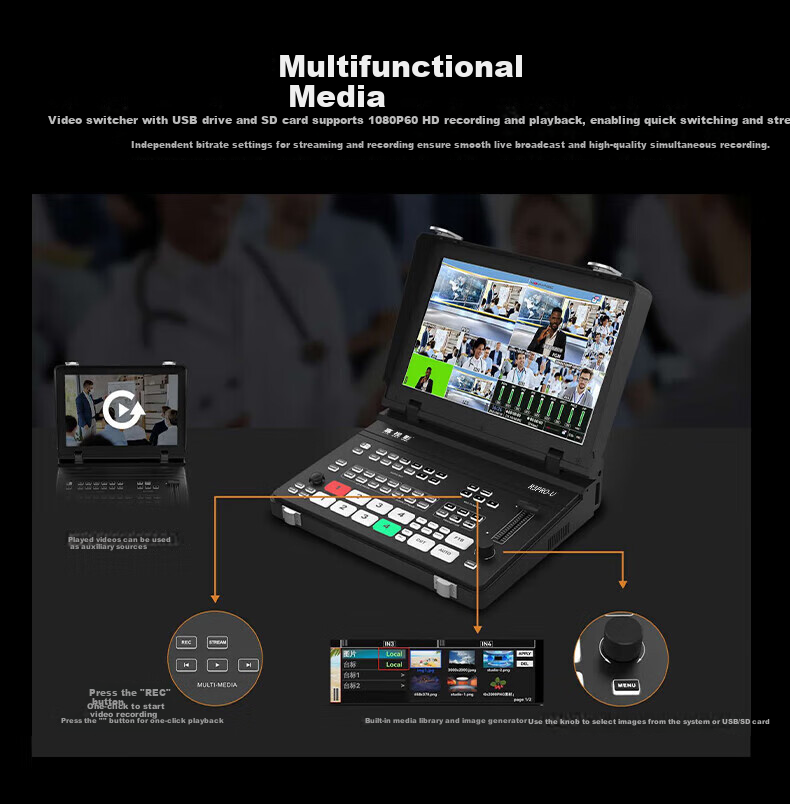

Supports recording and playback at 1080p60 on USB drives and SD cards
Built-in media library and image generator with rotary selector for system, USB, or SD card images
UVC streaming interface supported

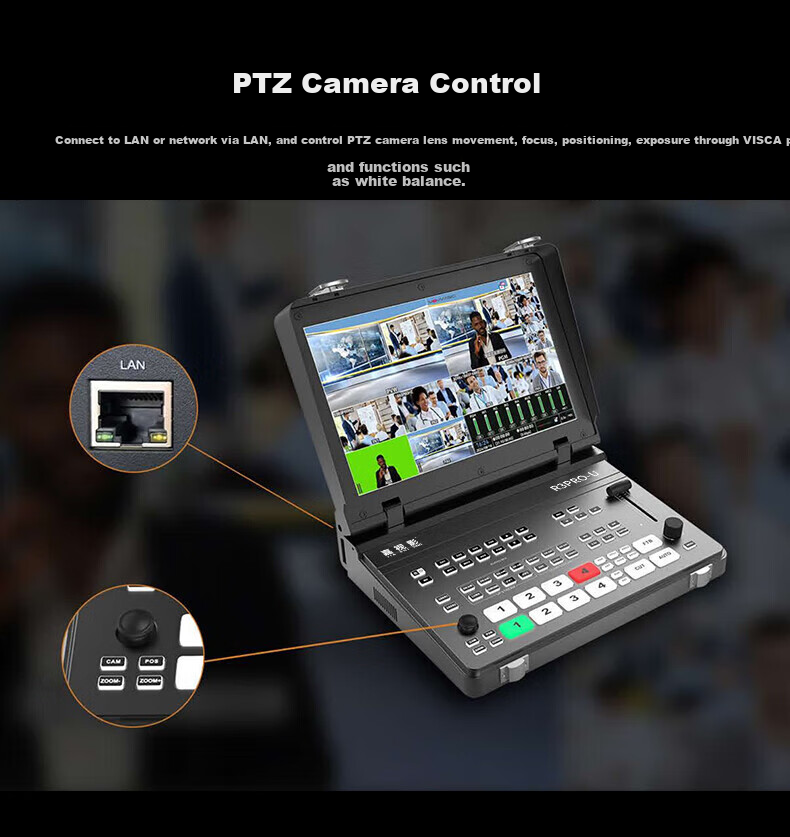

LAN interface supports VISCA IP protocol for PTZ camera control including pan, tilt, zoom, focus, exposure, white balance
Supports up to 2 LAN ports for network streaming and PTZ control
Additional details

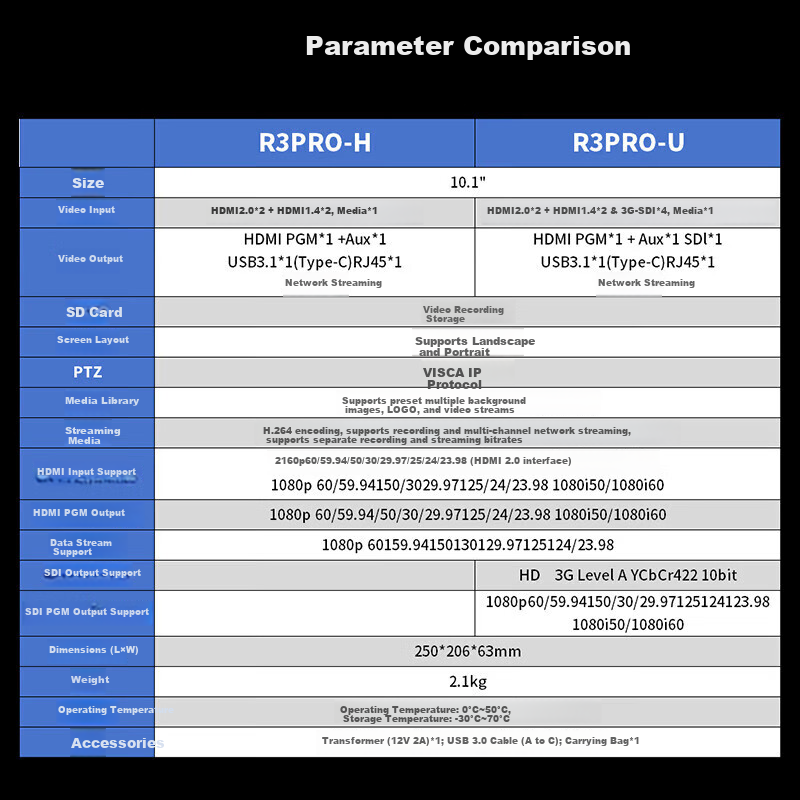

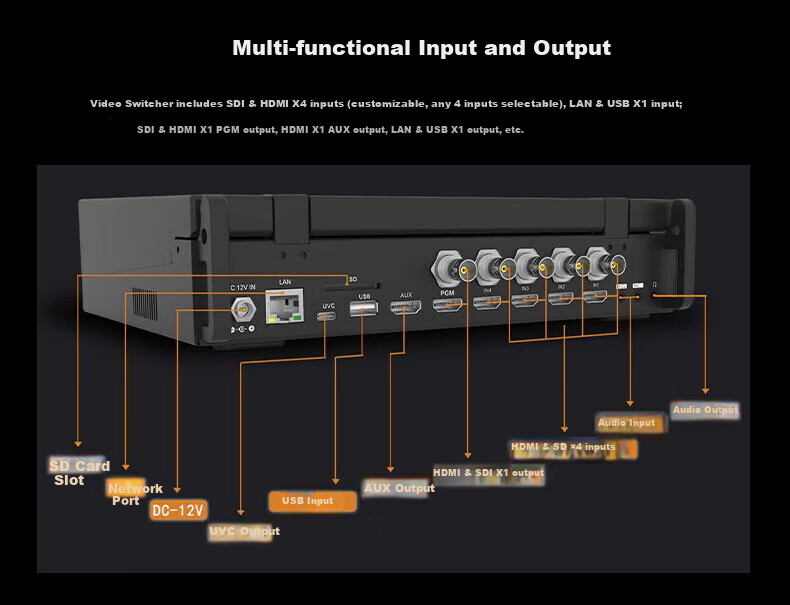

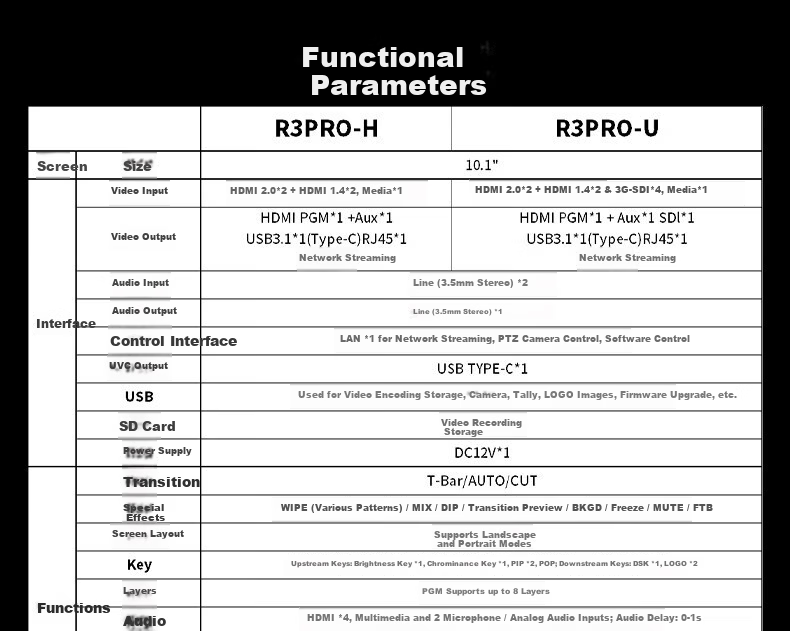

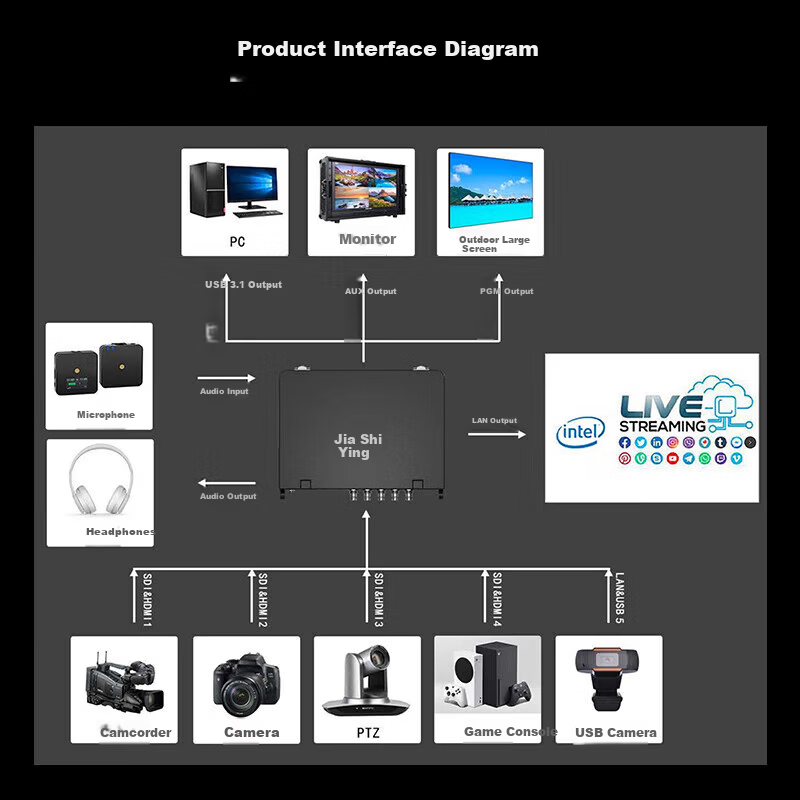

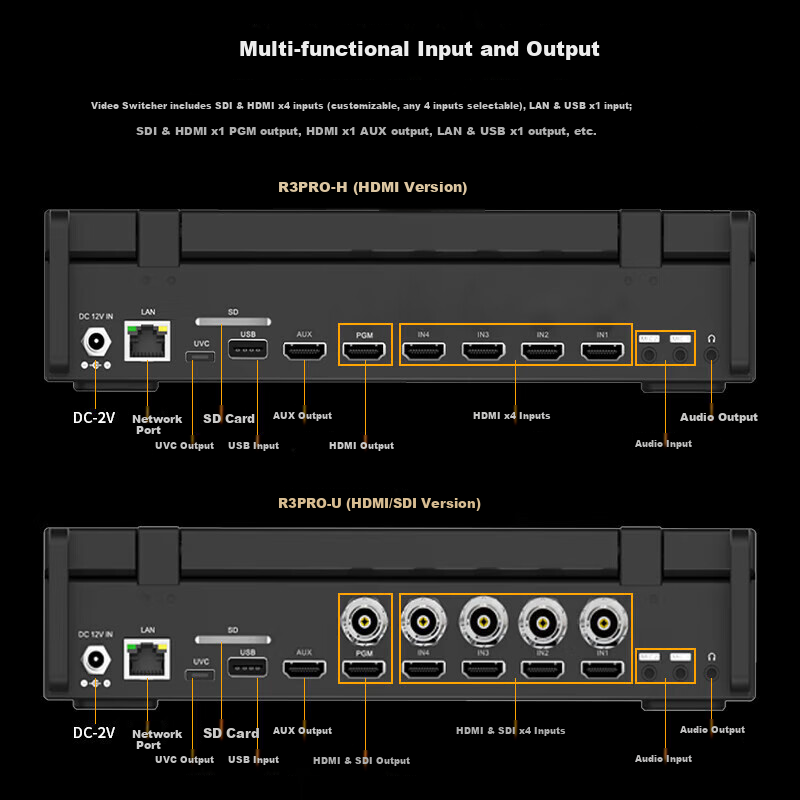

Video Inputs
HDMI x 4 (customizable 4 inputs), SDI x 4 (R3PRO-U)
Video Outputs
HDMI PGM x 1, HDMI AUX x 1, SDI PGM x 1 (R3PRO-U)
Audio Input/Output
3.5 mm stereo jacks
LAN x 2 (for streaming, PTZ control, software control)
USB Type-C x 1 (video encoding, camera, tally, logo, firmware upgrade)
SD card slot for video recording storage
DC 12V power input

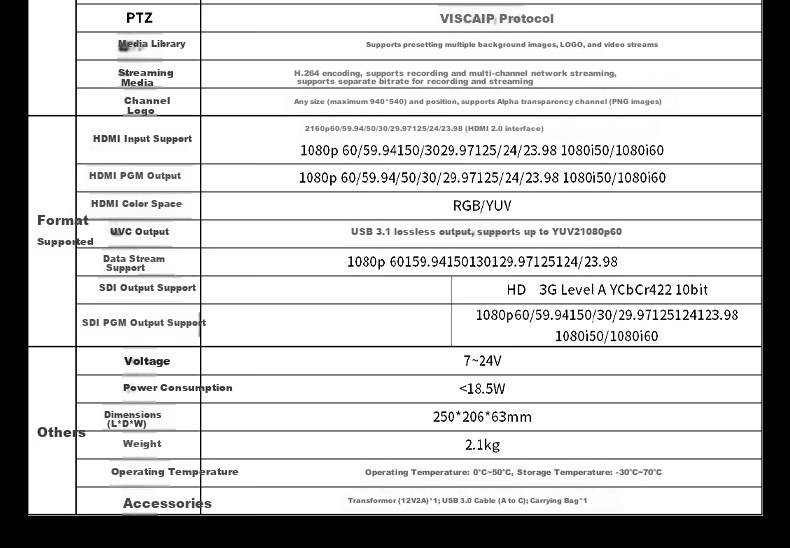

HDMI input supports 2160p60/59.94/50/30/29.97/25/24/23.98 and 1080p/i formats
HDMI output supports 1080p60/59.94/50/30/29.97/25/24/23.98 and 1080i50/60
Additional details
HDMI color space
RGB/YUV
SDI output supports HD 3G Level A YCbCr 4
2:2 10-bit
UVC output supports up to YUV 21080p60
Additional details
Power Supply
DC 12V, 2A adapter included
Power Consumption
<18.5W
Operating Temperature
0°C to 50°C
Storage Temperature
-30°C to 70°C

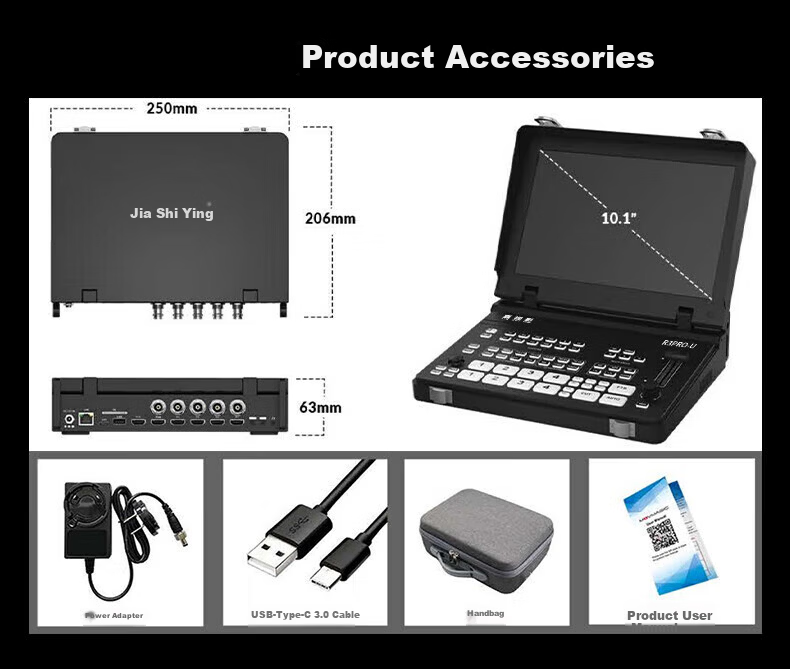

Dimensions (L x W x H)
250 mm x 206 mm x 63 mm
Weight
2.1 kg
Suitable for sports live broadcast, virtual studios, education and training, live commerce, church events, social interviews, video conferences, entertainment events, and other live event productions
Power adapter (12V 2A)
USB 3.0 cable (Type A to Type C)
Carrying bag
User manual

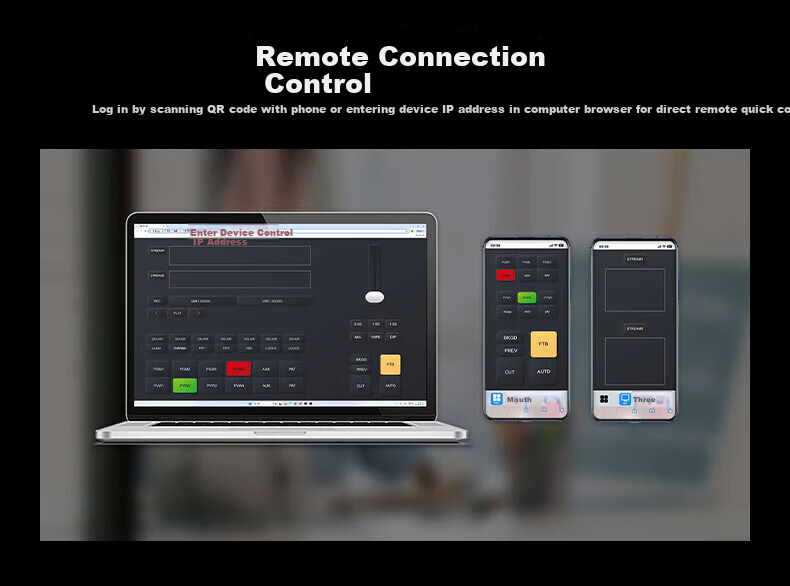

Remote control via mobile phone QR code scan or computer browser by entering device IP address
Supports multi-media playback with one-key recording and playback buttons
Supports multiple preset background images, logos, and video streams in media library
Supports Tally and LOGO image management
Supports MOVMAGIC and AUX inputs
Supports multiple transition preview and freeze frame functions
