STANLEY 1/4" Series Double Scale Torque Wrench, 5-25Nm, STMT73587-1

STANLEY•wrench

STANLEY 1/4" Series Double Scale Torque Wrench, 5-25Nm, STMT73587-1

CN¥938.99

SKU: 100134095075

Status:Out of Stock

ID: 100134095277

Weight: 850.00 g

Dims:375x120x60 mm

Specifications

Specifications: 1/4 inch
Category: Torque Wrench

Variants / Sale Attributes

Style: STMT73587-1 1/4" Series 5-25Nm

Package Contents

STMT73588-1-23× 1

Product Description

Overview

Brand: STANLEY
Model: H88
Website: STANLEYTOOLS.cn

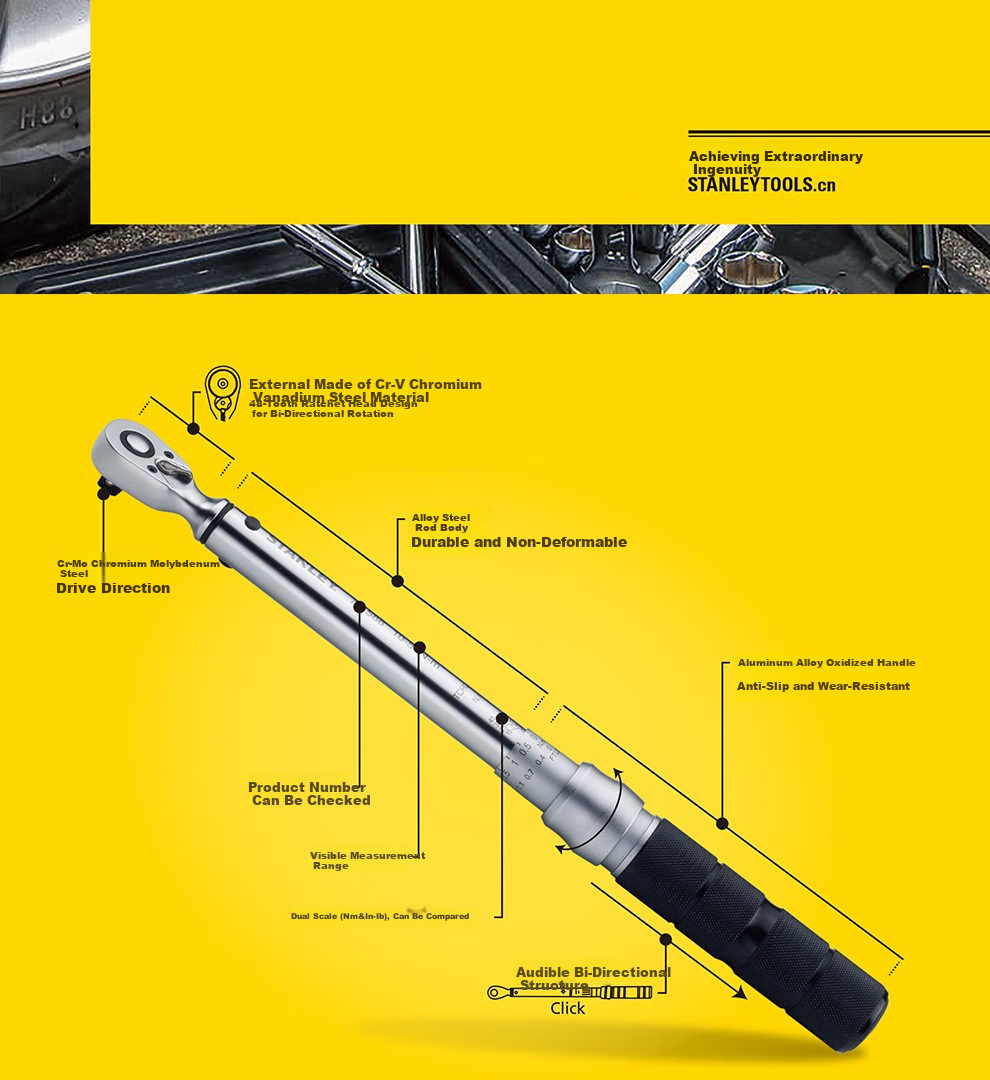

Material: External made of Cr-V chrome vanadium steel, alloy steel rod body, durable and non-deformable
Design: 48-tooth ratchet head for bidirectional rotation, Cr-Mo chrome molybdenum steel drive, aluminum alloy handle with anti-slip and wear-resistant oxidation treatment

Features

Click sound for bidirectional structure, audible and tactile indication when desired torque is reached

Similar Products

In Stock

The Great Wall Double-Ended Flare Nut Wrench Industrial Grade Quick Wrench Auto Repair Tool 32*34mm 311149

The Great Wallwrench

The Great Wall Double-Ended Flare Nut Wrench Industrial Grade Quick Wrench Auto Repair Tool 32*34mm 311149

doubleended flare nut wrench

CN¥89.00

In Stock

Factory No.1 9-Piece Electroplated Silver Hex Key Set Hex Screwdriver Wrench [Long Ball End]

wrench

Factory No.1 9-Piece Electroplated Silver Hex Key Set Hex Screwdriver Wrench [Long Ball End]

Electroplated silvercolored long ball head

CN¥19.90

In Stock

EIGHT Imported Bailey Hex Key Wrench Set Extended Ball Head Hex Screwdriver Alloy Steel 9-Piece BHS-9

EIGHTwrench

EIGHT Imported Bailey Hex Key Wrench Set Extended Ball Head Hex Screwdriver Alloy Steel 9-Piece BHS-9

BHS9 1 set

CN¥171.00

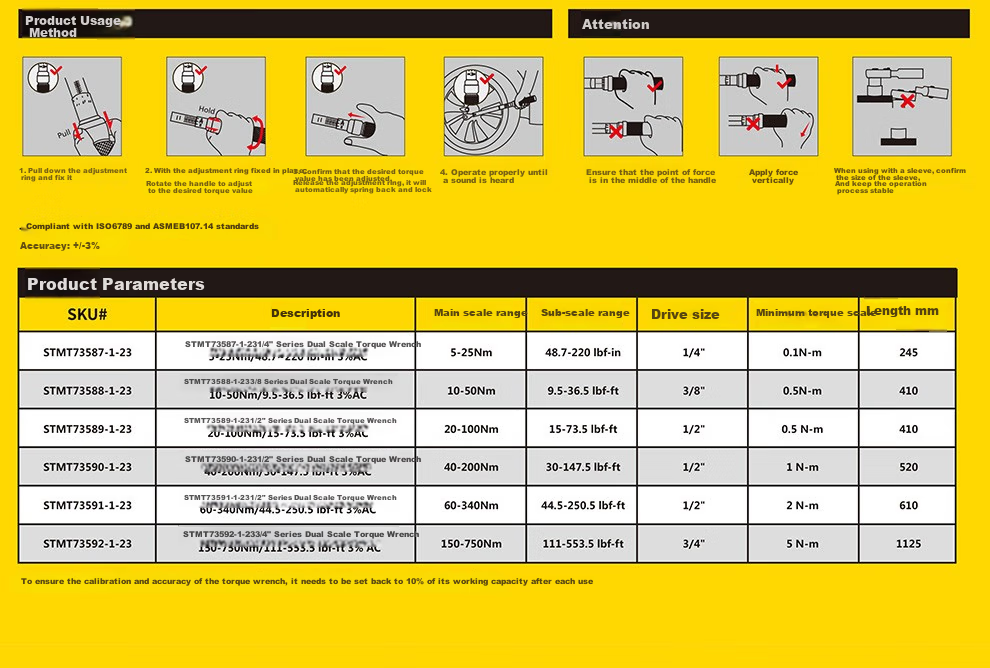

1. Pull down the adjustment ring and fix it

2. With the adjustment ring fixed, adjust to the desired torque value

3. Operate until the click sound is heard, ensuring the force point is in the middle of the handle and applying vertical force

4. When using with a socket, confirm the socket size, adjust to the desired torque value, release the adjustment ring, and maintain stability throughout the operation

Additional details

Standards: Compliant with ISO 6789 and ASME B107.14 standards, accuracy of +/-3%

Product Parameters

SKU#
Description
Main Scale Range
Secondary Scale Range
Drive Size
Minimum Torque Scale
Length (mm)

Additional details

1. STMT73587-1-23: 1/4" Series Dual Scale Torque Wrench, 5-25Nm/48.7~220Ibf-in, Length: 245 mm
2. STMT73588-1-23: 3/8" Series Dual Scale Torque Wrench, 10-50Nm/9.5-36.5Ibf-ft, Length: 410 mm
3. STMT73589-1-23: 1/2" Series Dual Scale Torque Wrench, 20-100Nm/15-73.5Ibf-ft, Length: 410 mm
4. STMT73590-1-23: 1/2" Series Dual Scale Torque Wrench, 40-200Nm/30-147.5Ibf-ft, Length: 520 mm
5. STMT73591-1-23: 1/2" Series Dual Scale Torque Wrench, 60-340Nm/44.5-250.5Ibf-ft, Length: 610 mm
6. STMT73592-1-23: 3/4" Series Dual Scale Torque Wrench, 150-750Nm/111-553.5Ibf-ft, Length: 1125 mm
Maintenance: Reset to 10% of the working capacity after each use to ensure calibration and accuracy

Additional Features

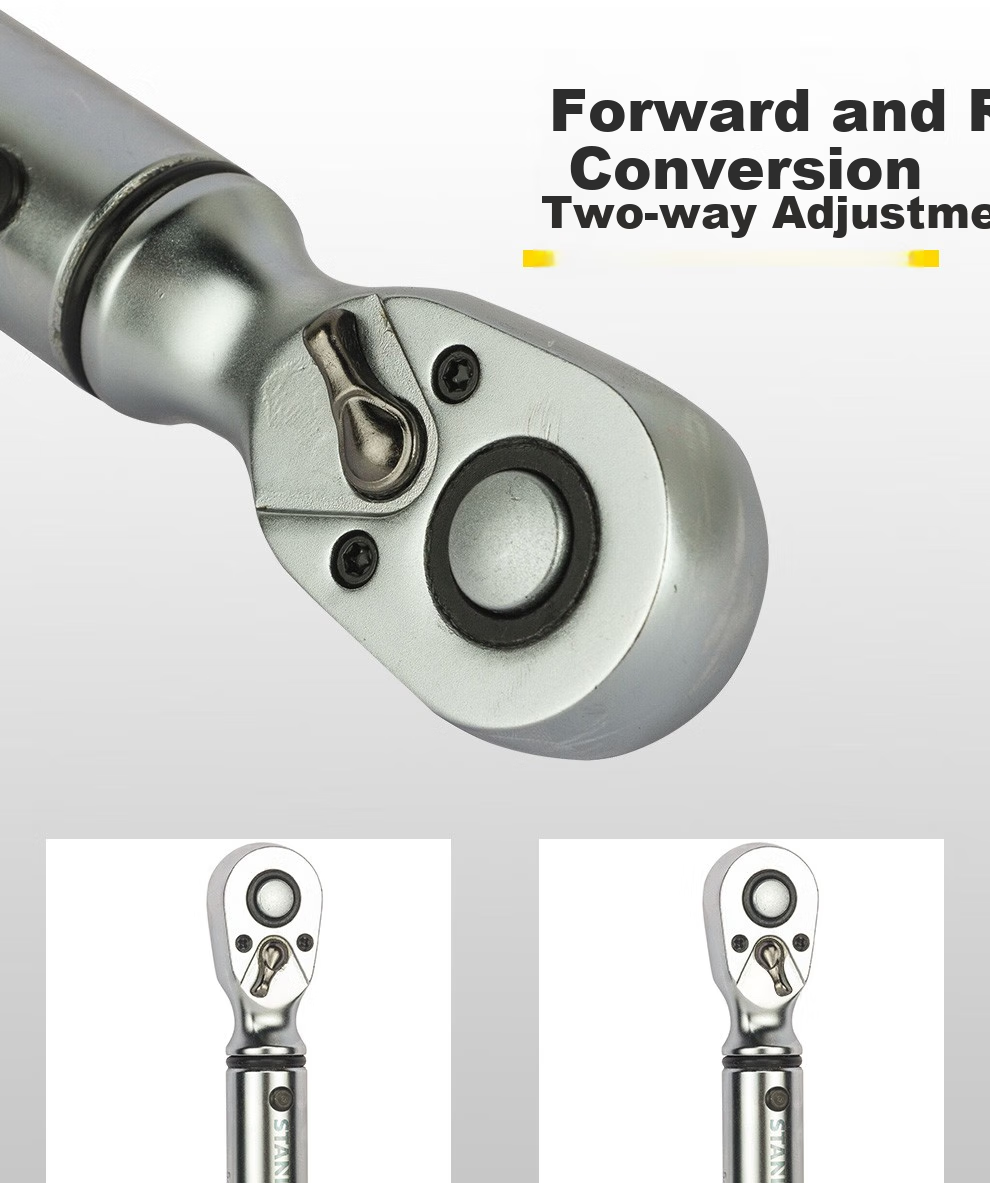

Bidirectional adjustment for forward and reverse operation

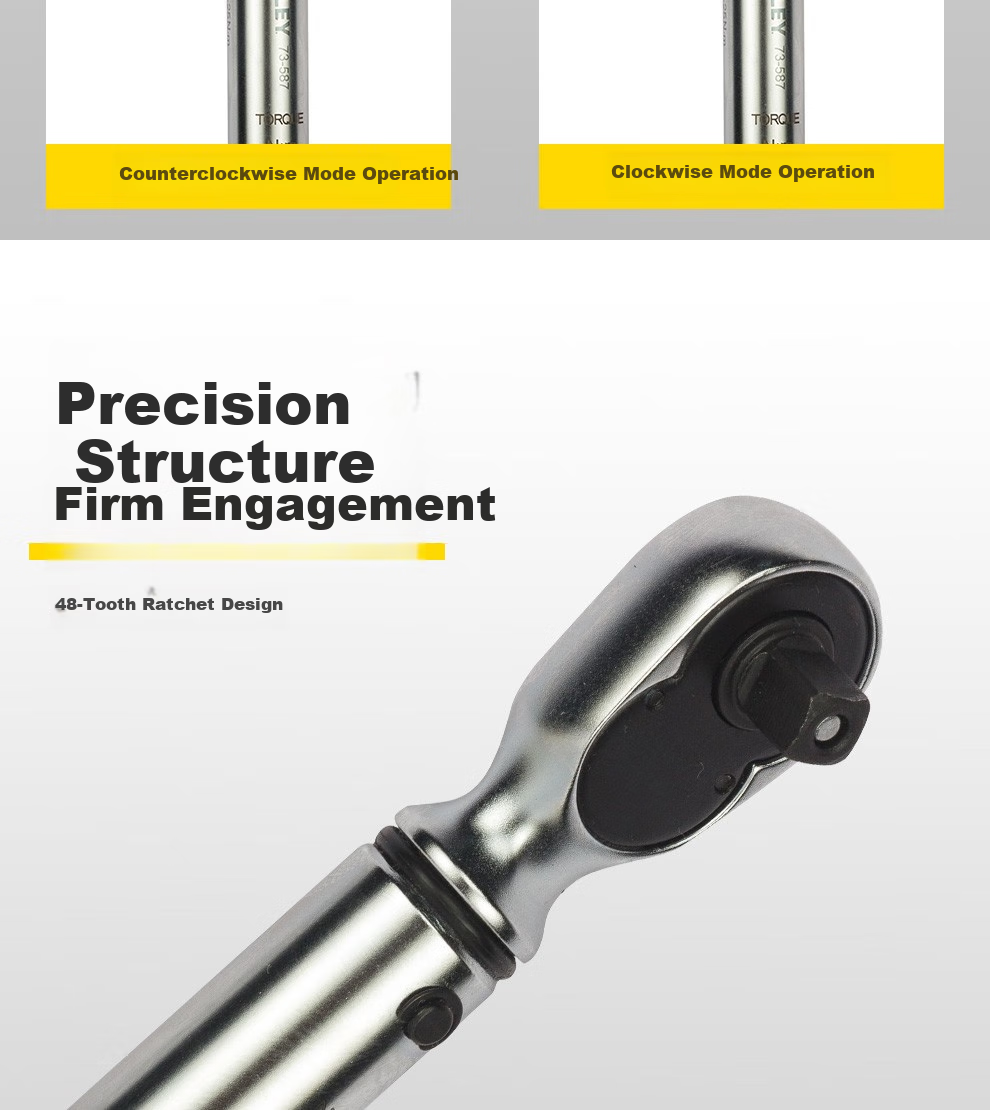

Precise 48-tooth ratchet design

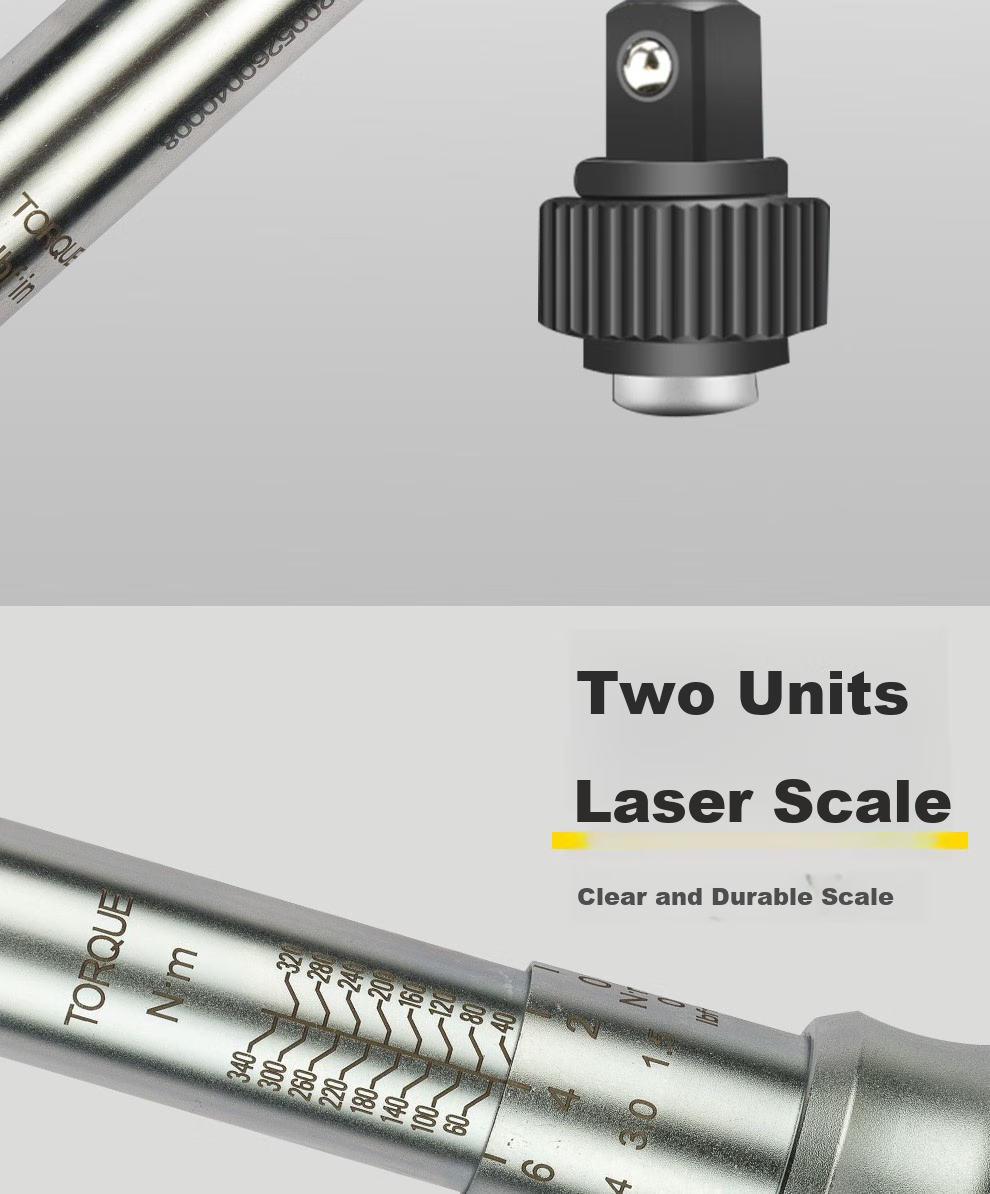

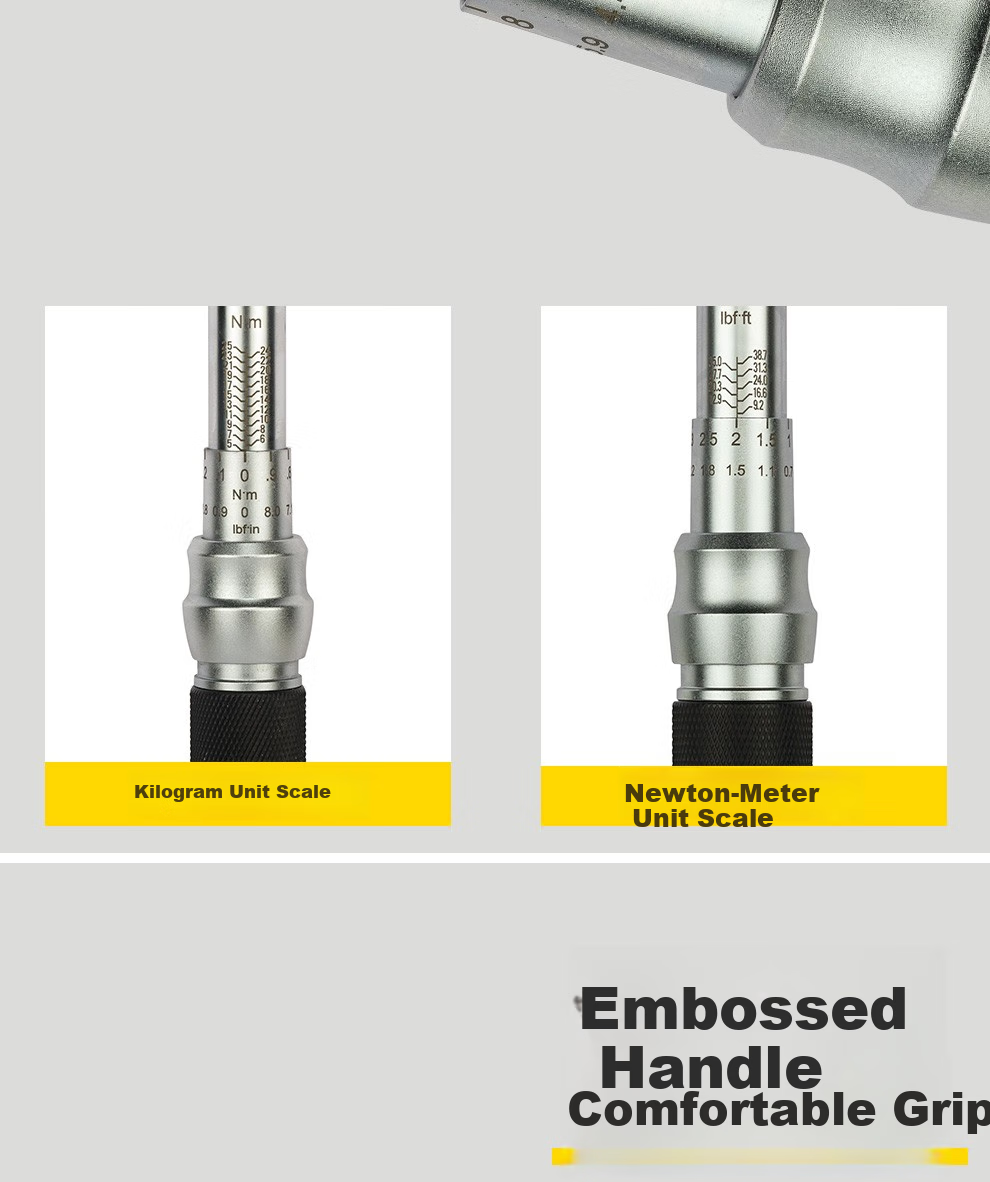

Dual units with clear and durable laser-etched scales (kg-m and N-m)

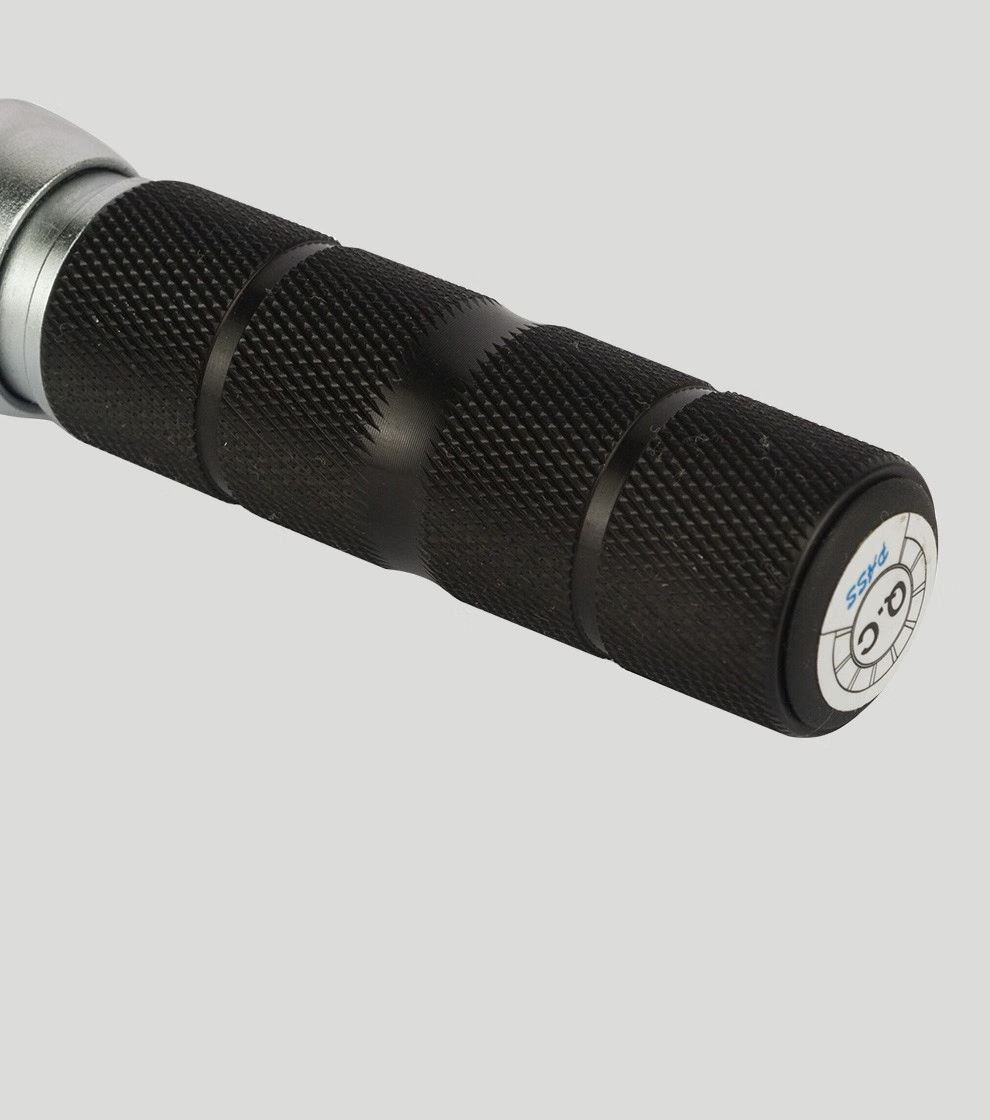

Knurled handle for comfortable grip
