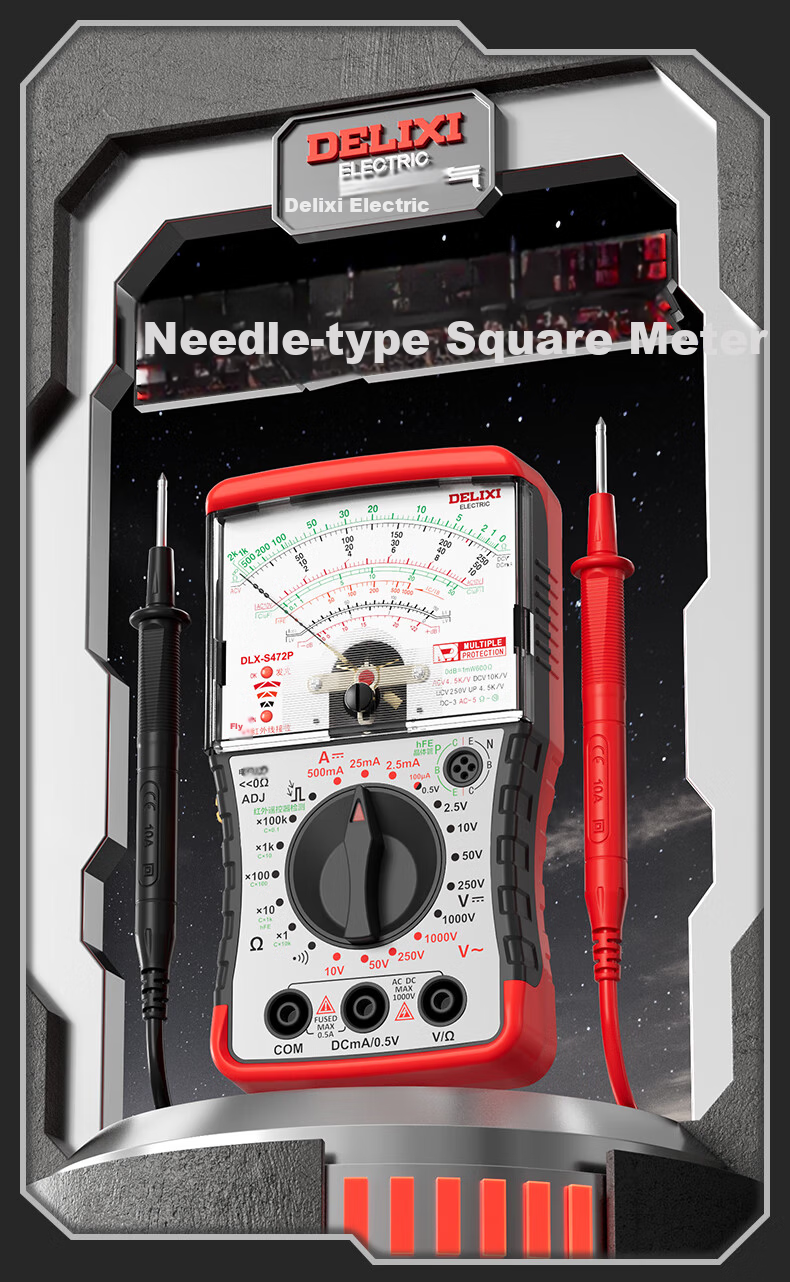

DELIXI ELECTRIC Pointer Multimeter Smart Anti-Burn Voltage Current Meter Internal Magnetic Mechanical Universal Meter Home Electrician S471P

DELIXI ELECTRIC•Multimeter

DELIXI ELECTRIC Pointer Multimeter Smart Anti-Burn Voltage Current Meter Internal Magnetic Mechanical Universal Meter Home Electrician S471P

CN¥88.00

SKU: 100134345661

Status:In Stock (25)

ID: 100134345661

Weight: 370.00 g

Dims:173x130x45 mm

Specifications

Category: multimeter
Measuring range: Manual range
Functions: voltage
Precision: Other
testing principles: average response

Variants / Sale Attributes

Model: [S471P] Burn Protection / OnOff / Voltage Resistance

Measuring range: Official standard configuration [bare device + test leads]

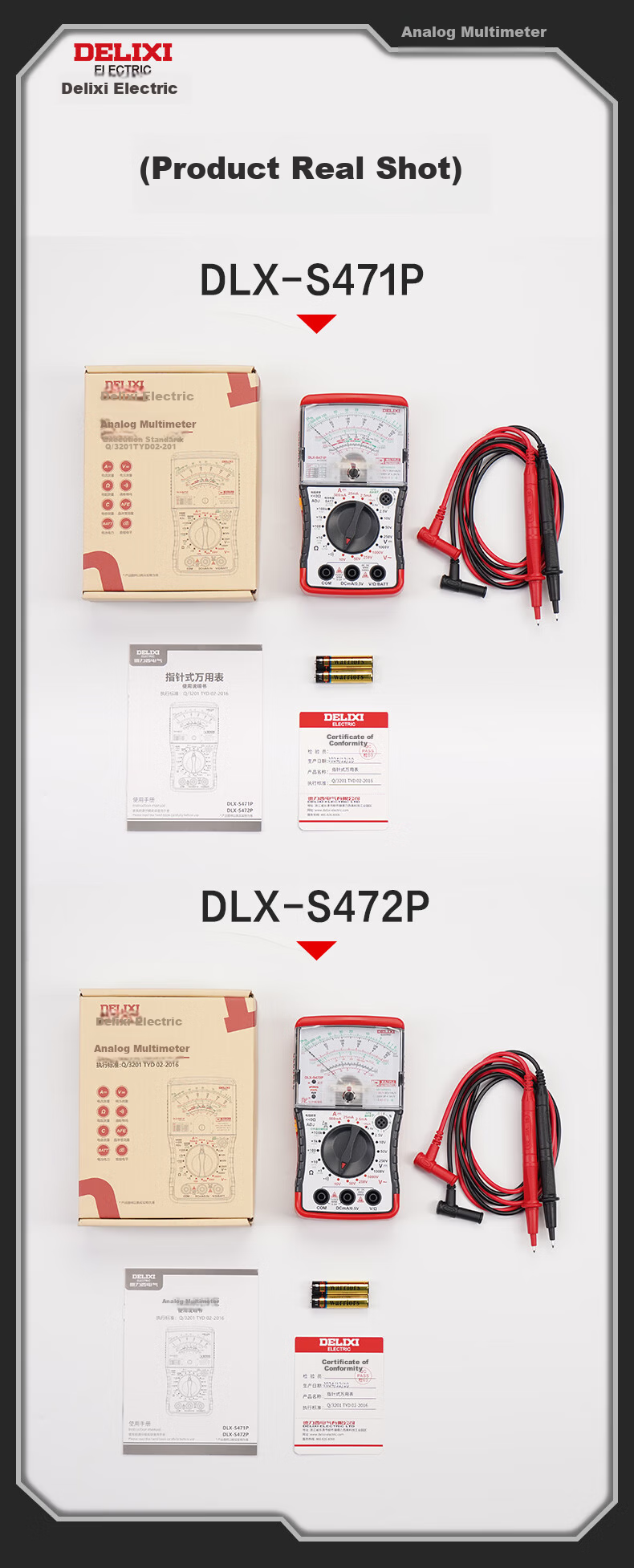

Package Contents

Main product * 1

Product Description

Product Specifications

Overview

Brand: DELIXI ELECTRIC

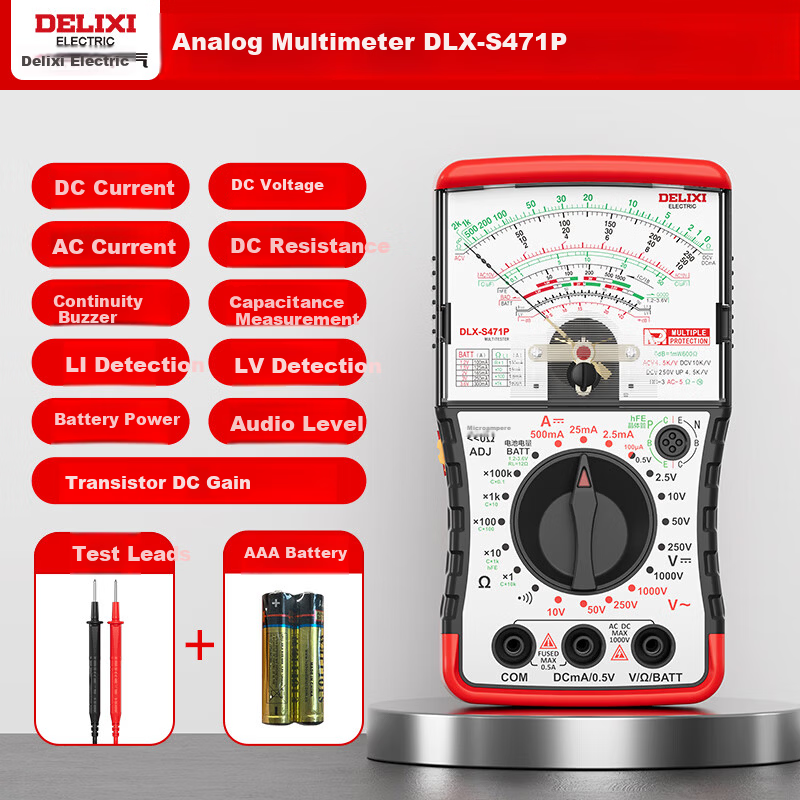

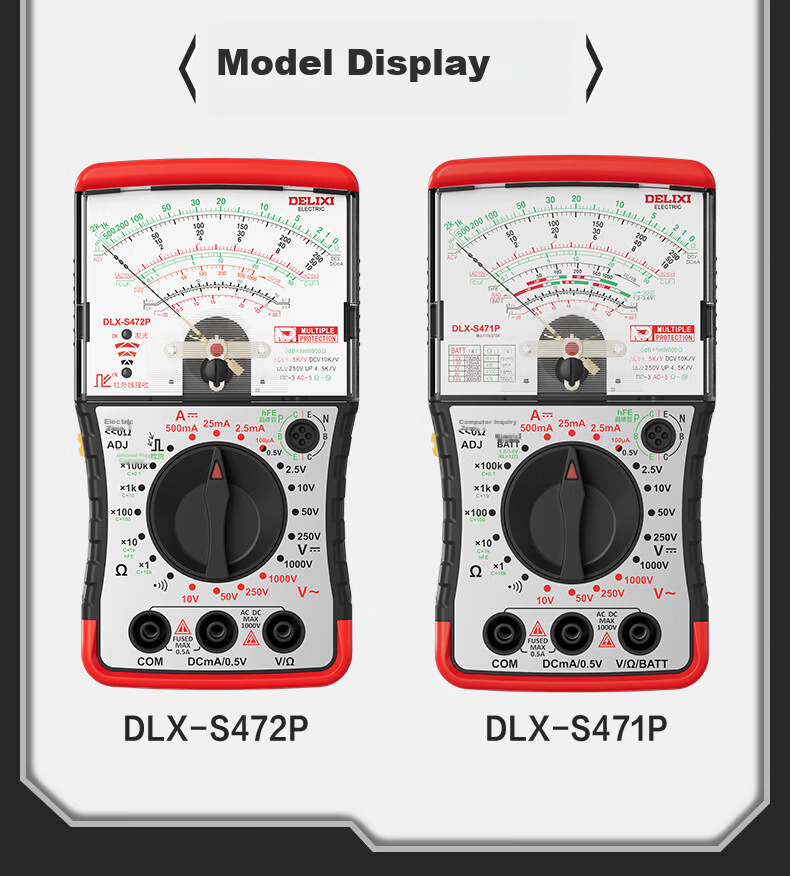

Model: DLX-S472P (also available DLX-S471P)
Product Type: Analog Pointer Multimeter
Dimensions: 151 × 82 × 40 mm
Weight: ≤ 205 g (excluding battery)

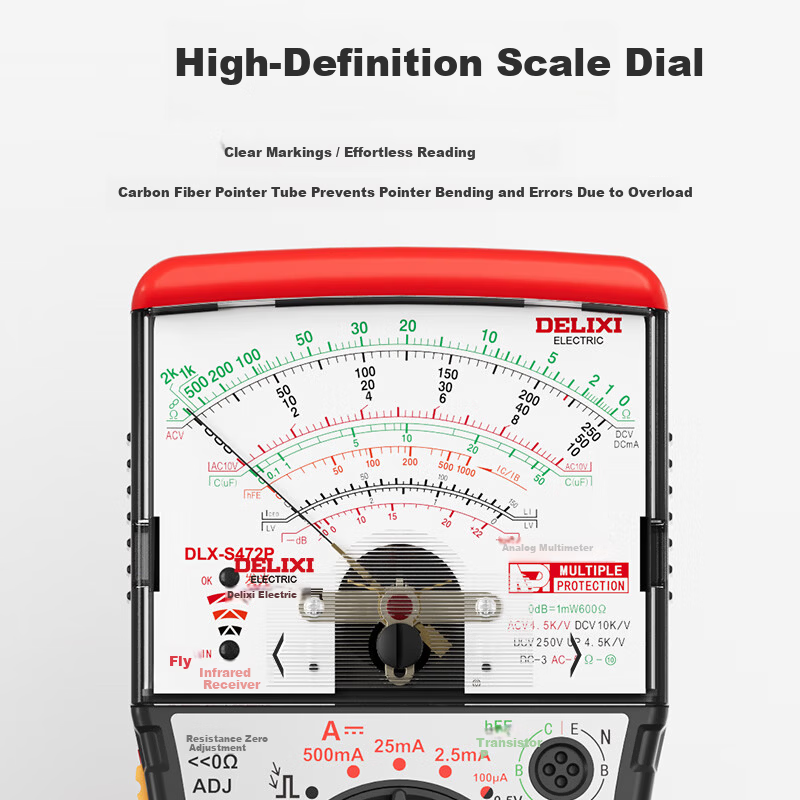

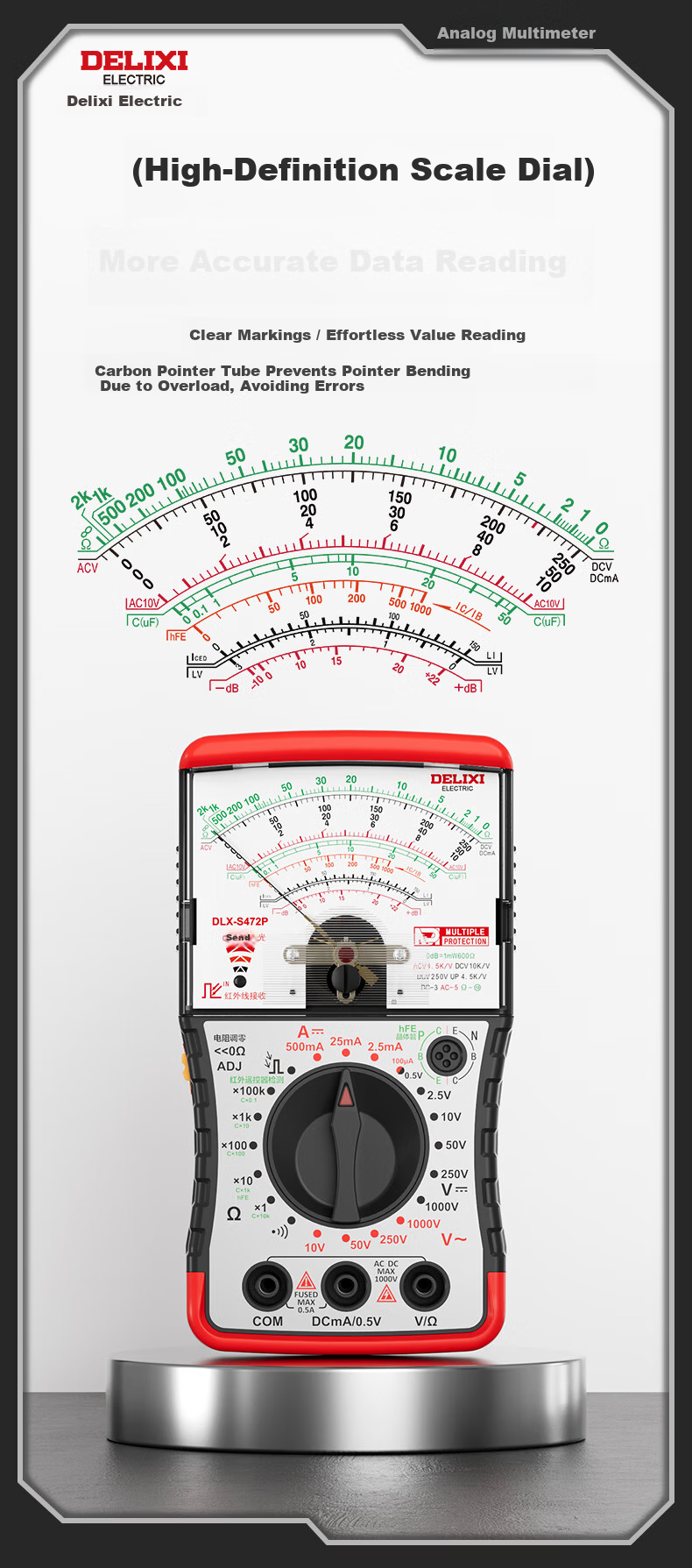

High-definition scale dial for accurate and effortless reading

Carbon fiber pointer needle to prevent overload-induced bending and measurement errors

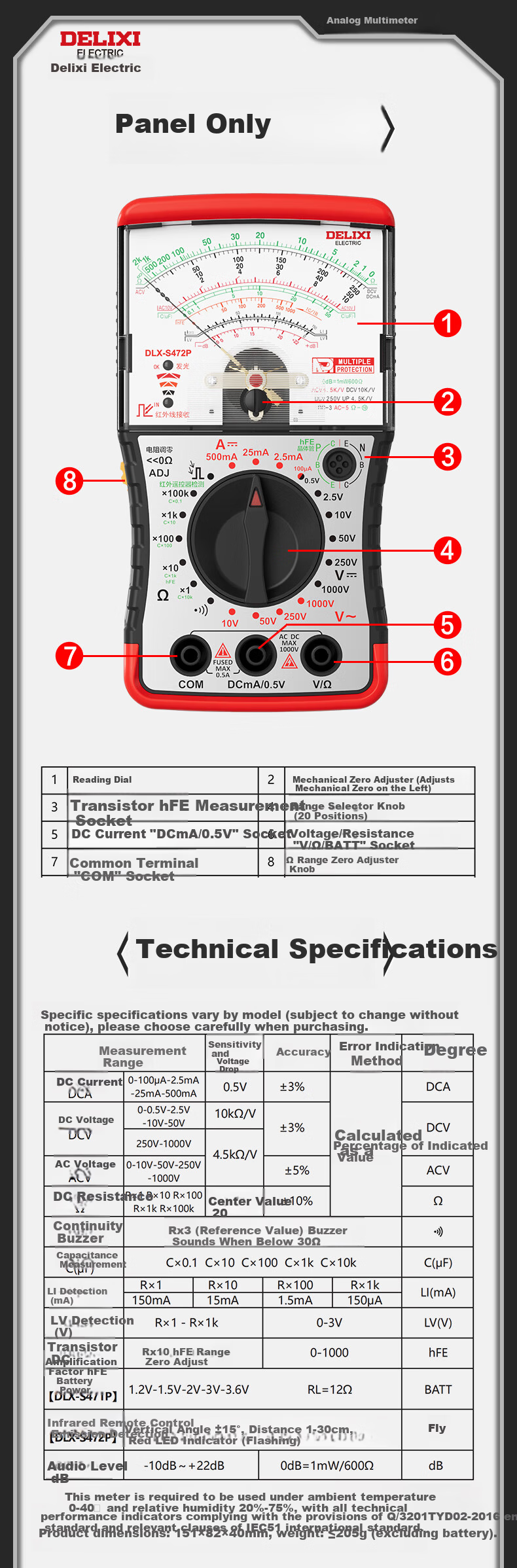

Mechanical zero adjustment knob (left side)

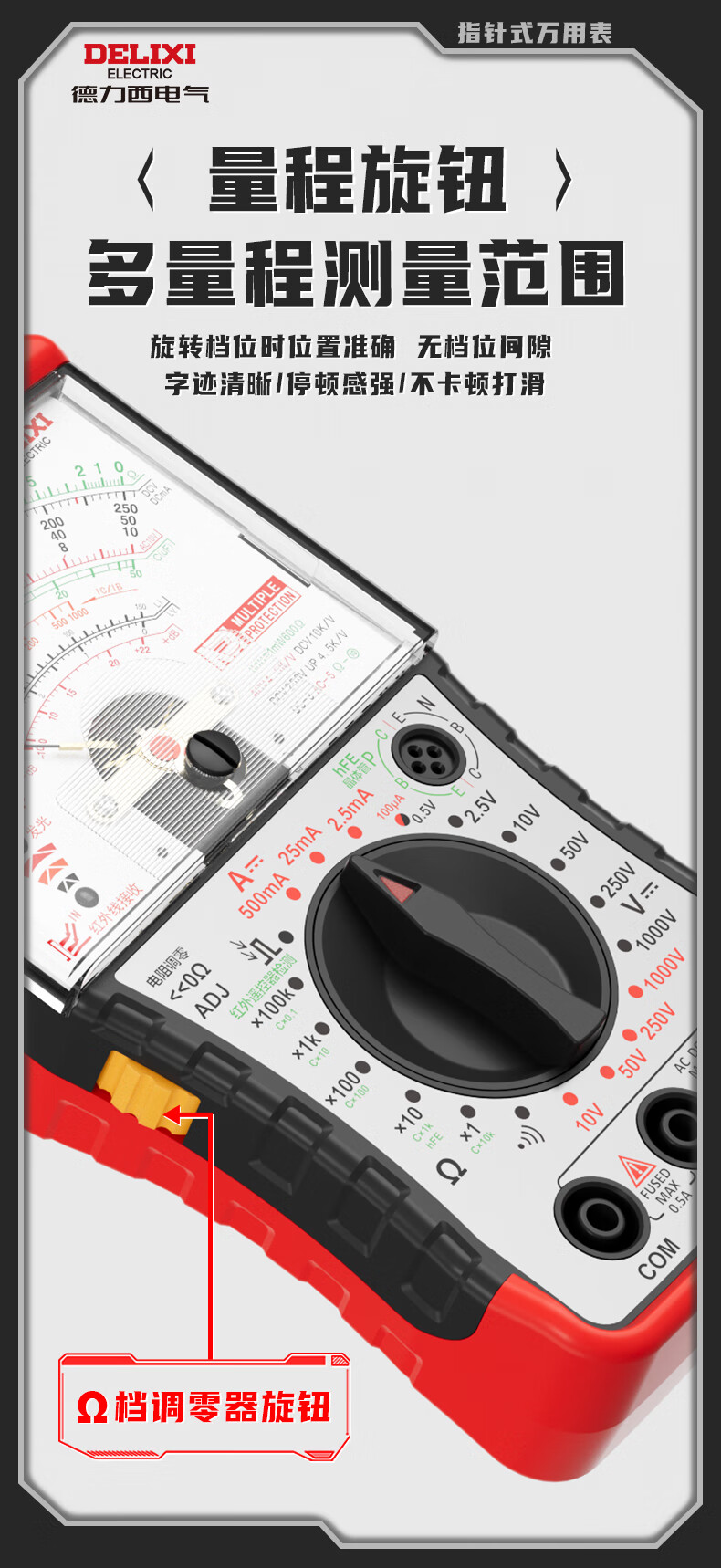

20-position rotary switch for function selection

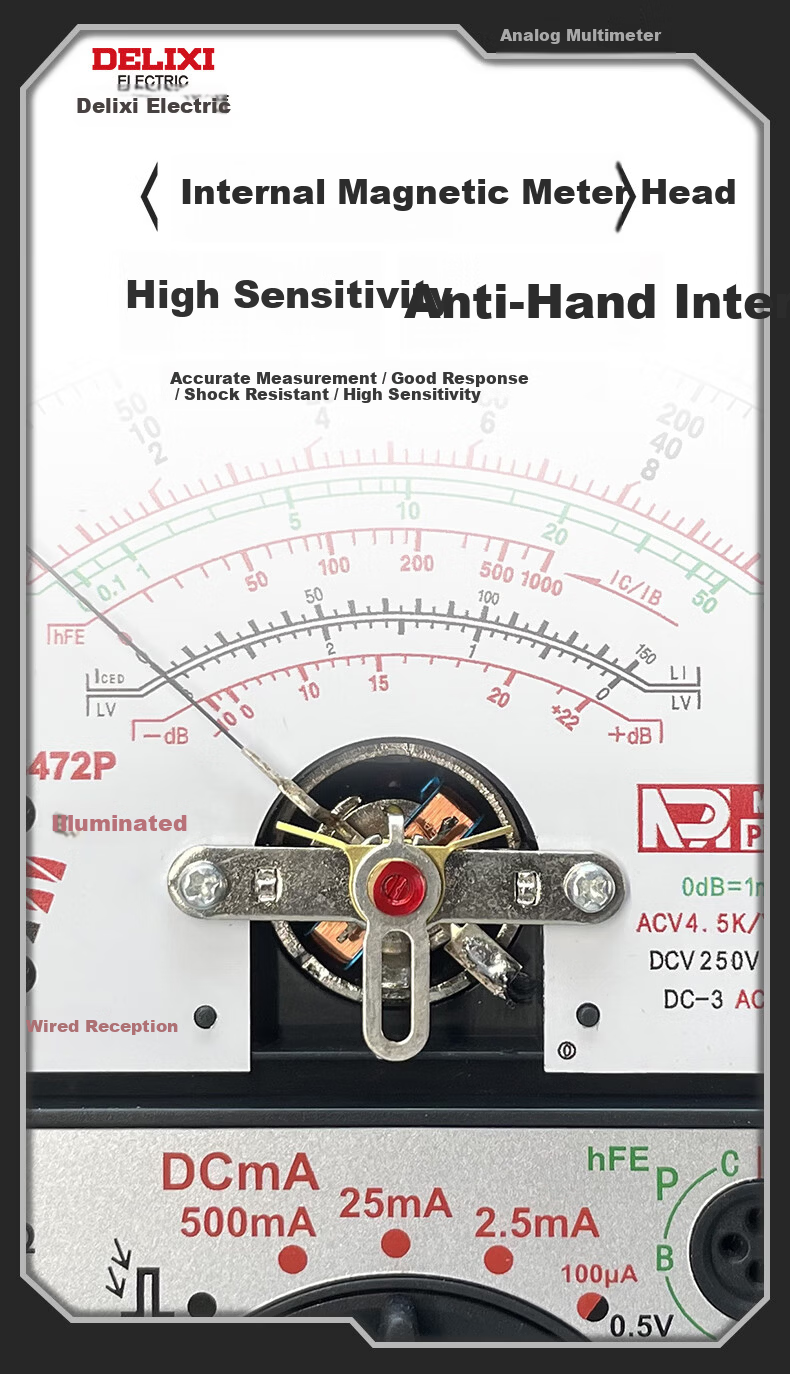

Internal magnetic meter head with high sensitivity and anti-interference capability

Additional details

Similar Products

In Stock

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

CHNTMultimeter

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

ZTW0103D Upgraded Version [LCD Backlight]

CN¥89.00

In Stock

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

CHNTMultimeter

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

ZTY0121A Standard Model [High-Definition Large Screen]

CN¥59.00

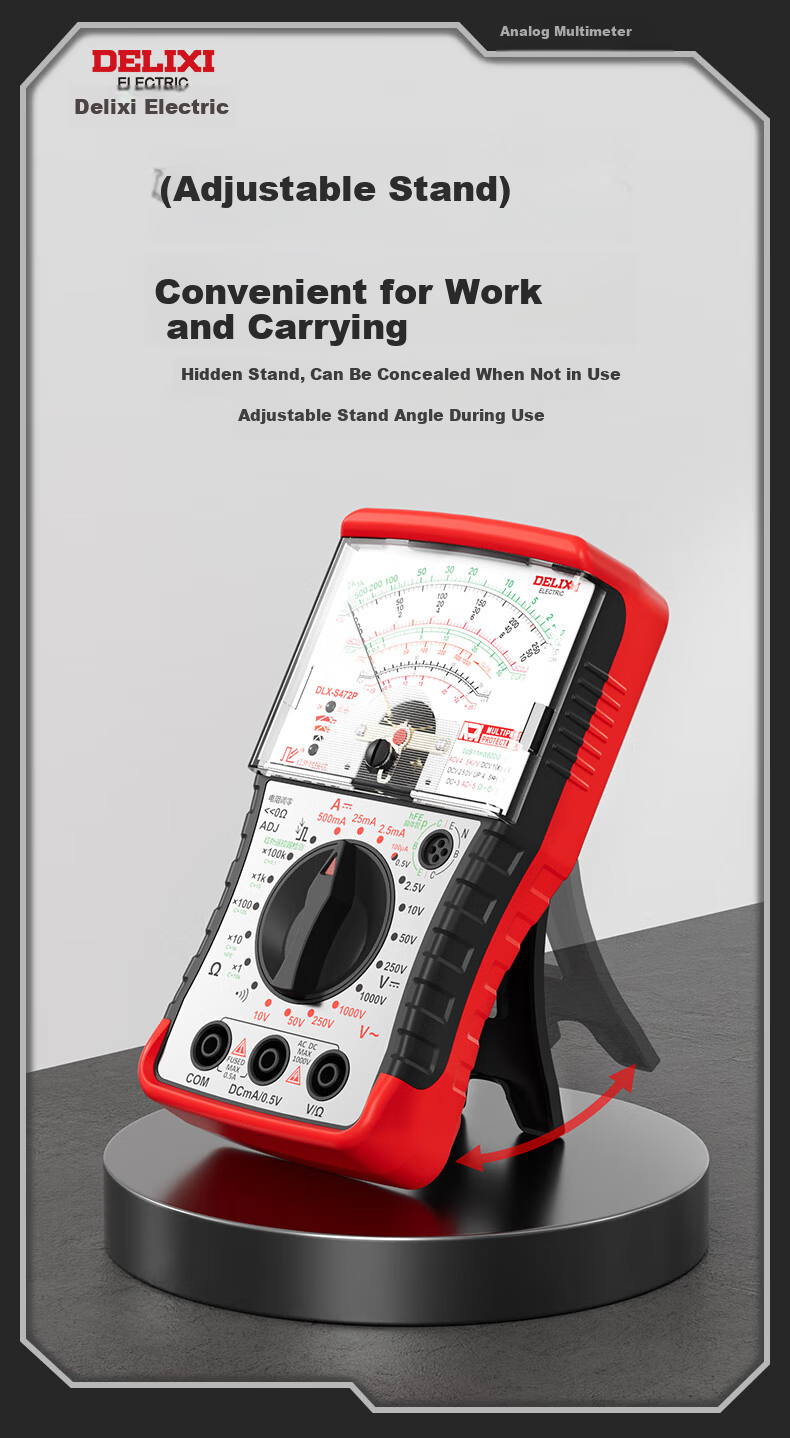

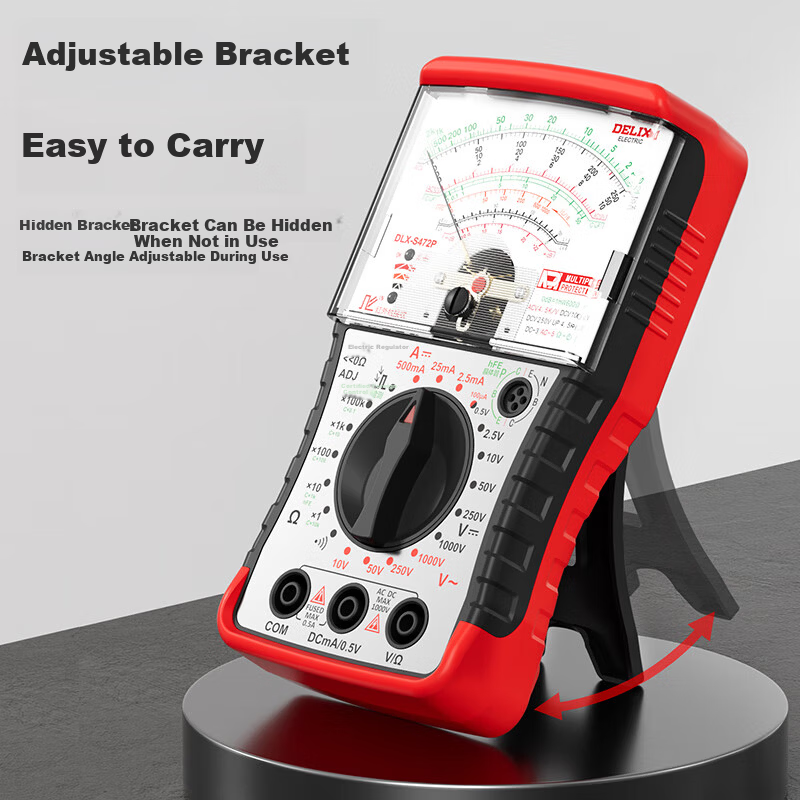

Adjustable stand: foldable and angle-adjustable for convenient operation and portability

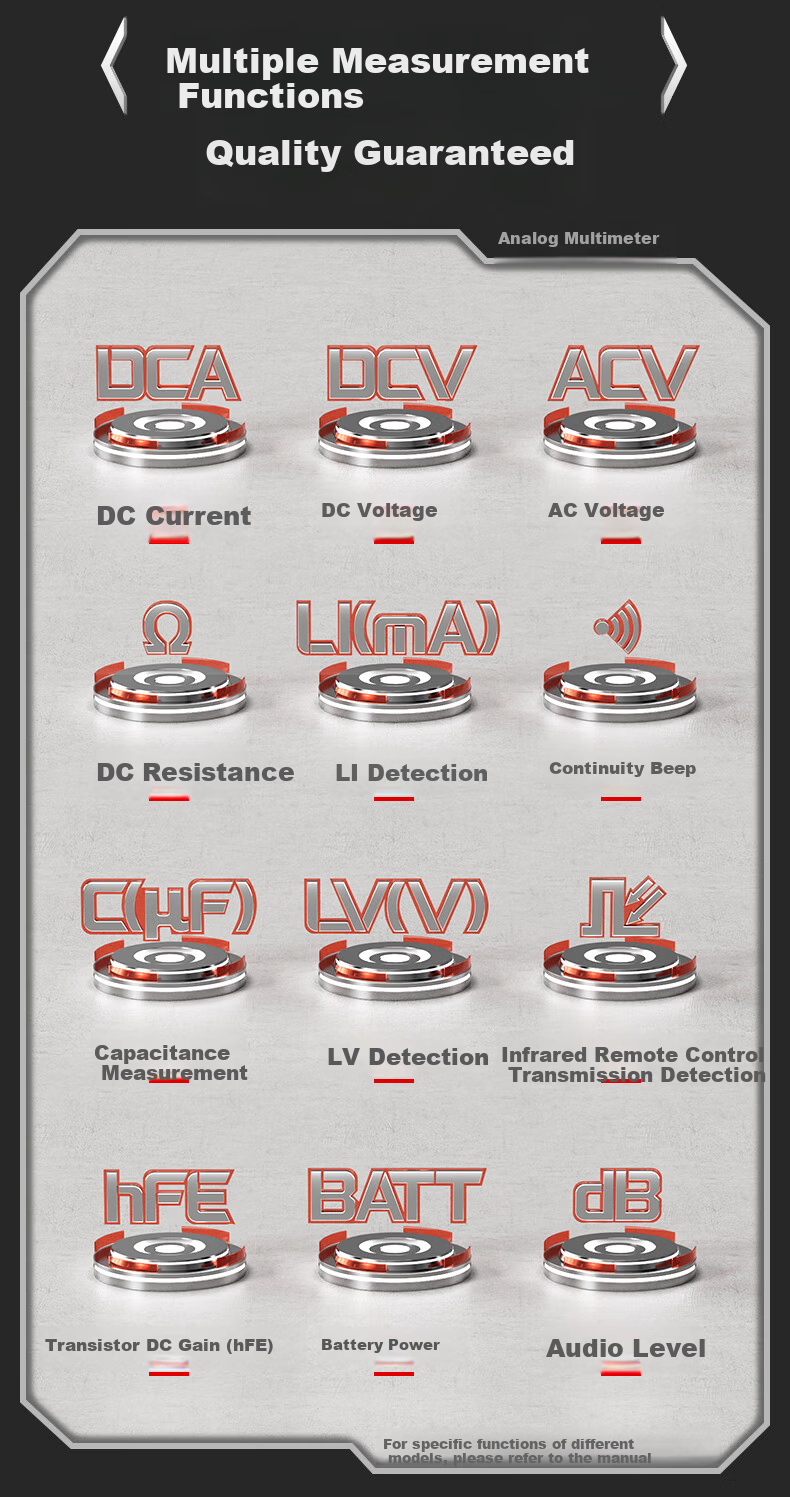

DC Current (DCA): 0–100μA to 500mA ranges, 0.5V voltage drop, ±3% accuracy

AC Current (ACI)

Additional details

DC Voltage (DCV): -10V to 1000V ranges, ±3% accuracy
AC Voltage (ACV): 0–10V to 1000V ranges, ±5% accuracy
Resistance (Ω): Rx1, Rx10, Rx100, Rx1k, Rx100k with ±10% accuracy

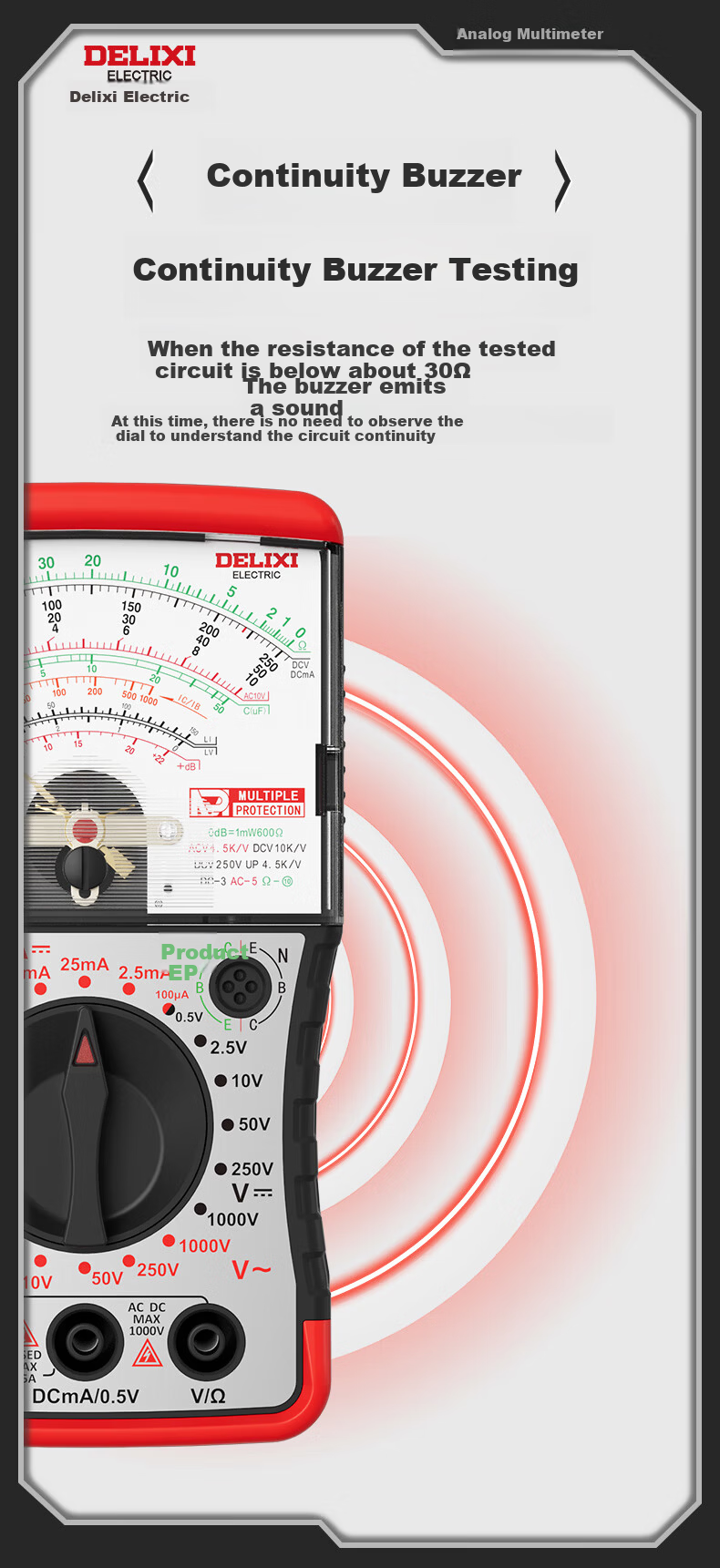

Continuity test with buzzer (audible beep when resistance < ~30Ω)

Additional details

Capacitance measurement: Cx0.1, Cx10, Cx100, Cx1k, Cx10k (μF)
Low current detection (LI): 150mA, 15mA, 1.5mA, 150μA ranges
Low voltage detection (LV): 0–3V range

Transistor hFE (DC current gain) measurement with zero adjustment

Additional details

Battery power test: 1.2V, 1.5V, 2V, 3V, 3.6V (RL=12Ω)

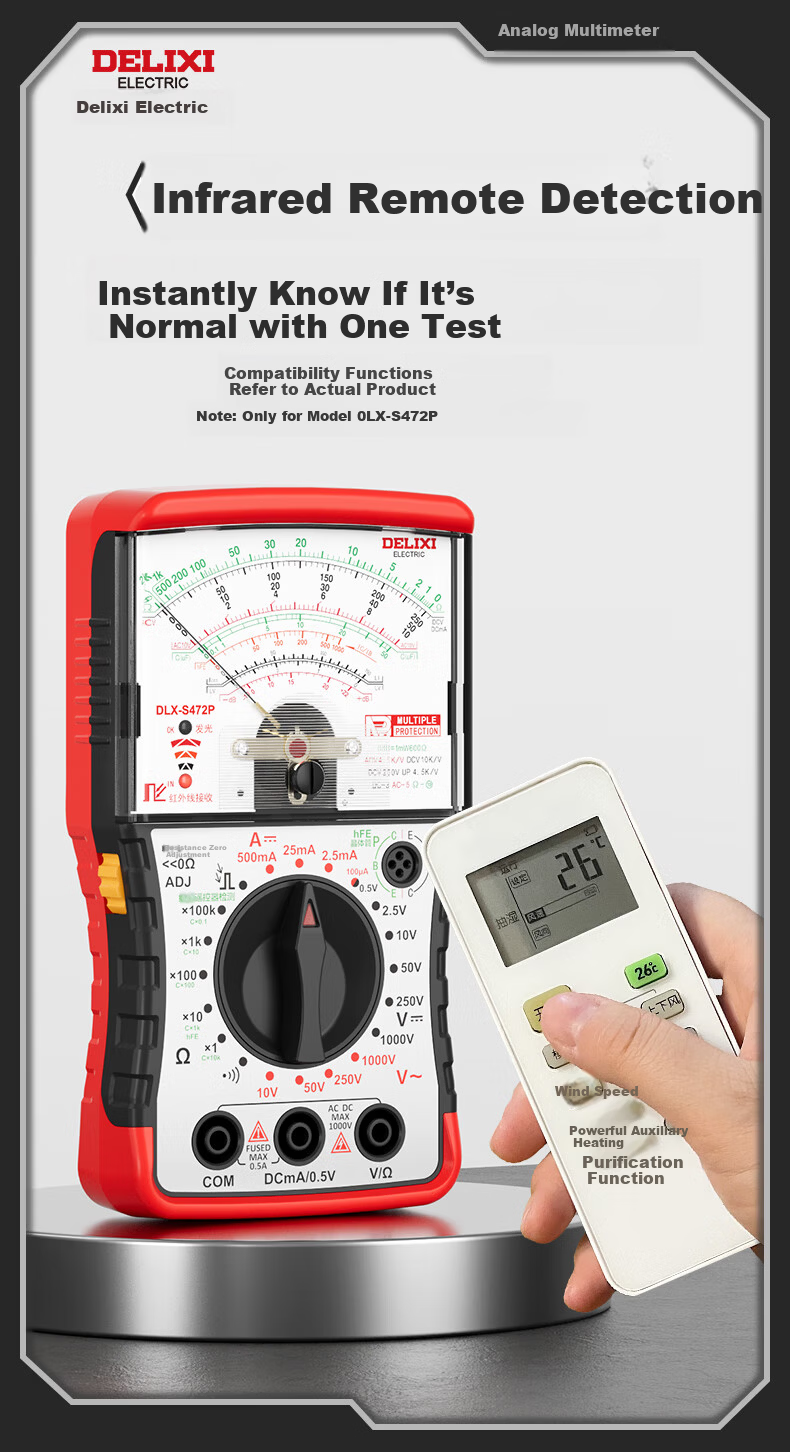

Infrared remote control emission detection (DLX-S472P only) with red LED indicator (±15° vertical angle, 1–30 cm distance)

Additional details

Audio level measurement: -10dB to +22dB (0dB = 1mW/600Ω)
Additional functions: diode test, adjustable zero, multiple protection features

Complies with Q/3201TYD02-2016 enterprise standard and IEC 51 international standards

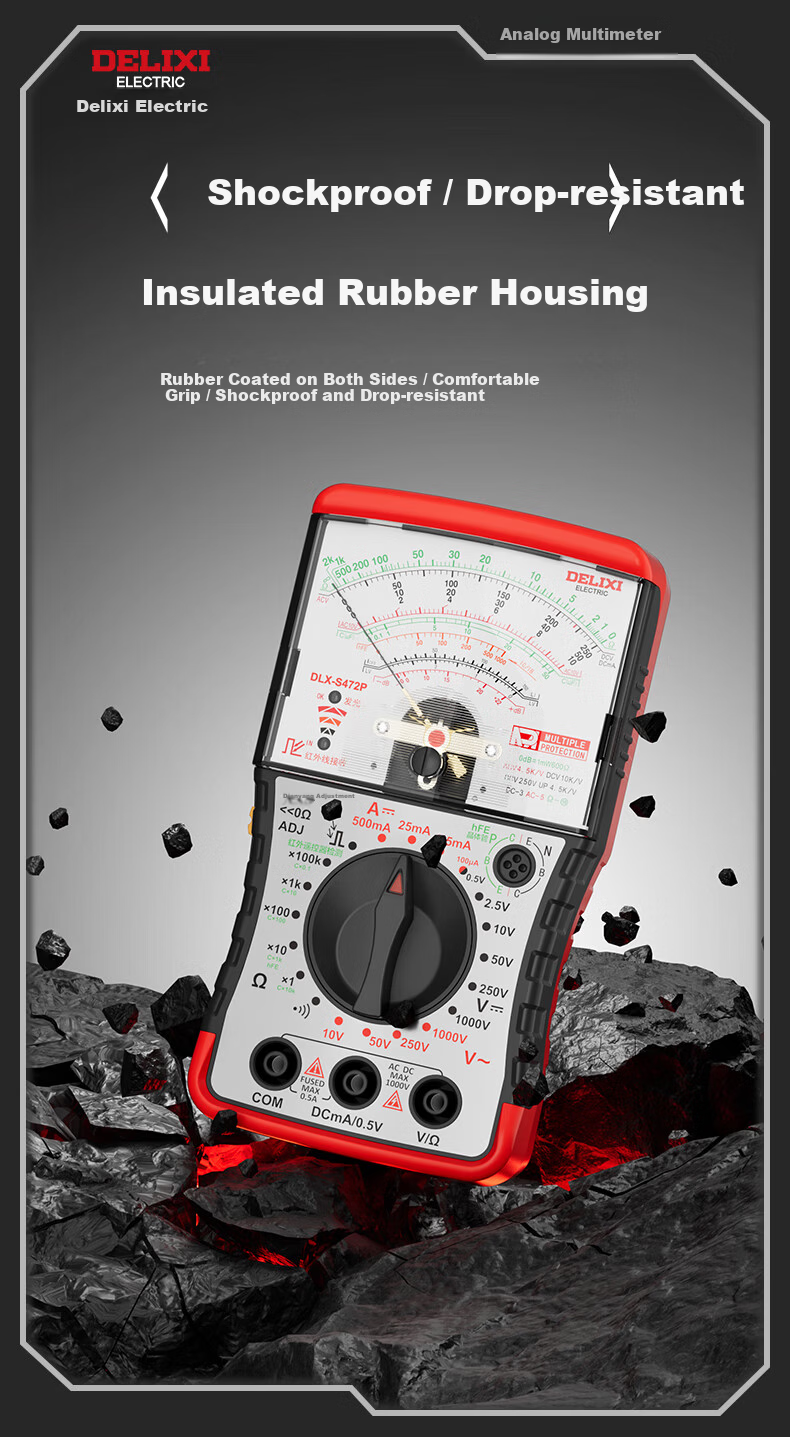

Shockproof and drop-resistant design

Insulated rubber outer shell with side rubber sleeves for comfortable grip and protection

Fused protection for current measurement (0.5A fuse)

DCmA/0.5V input

V/Ω/BATT input

Common (COM) terminal

Additional details

Adjustable sensitivity and range multipliers: x100k, x1k, x100, x10, etc.

Voltage drop method for DC current measurement

Clear and precise scale markings for various measurement ranges

Suitable for use in ambient temperature 0–40°C and relative humidity 20%–75%

Specific functions and technical parameters may vary by model. Please refer to the user manual for detailed information and proper usage instructions.
