FNIRSI Handheld Mini Digital Oscilloscope 2-in-1 Portable Signal Generator 1M Bandwidth DSO153

FNIRSI•Oscilloscope

FNIRSI Handheld Mini Digital Oscilloscope 2-in-1 Portable Signal Generator 1M Bandwidth DSO153

CN¥166.00

SKU: 100134795654

Status:Out of Stock

ID: 100134795654

Weight: 170.00 g

Dims:145x85x40 mm

Specifications

How it works: Handheld
Category: digital oscilloscope
Bandwidth: 0100MHz
Number of channels: single channel

Variants / Sale Attributes

Model: DSO153 standard configuration

Package Contents

Main unit *1, lanyard *1, crocodile clip probe *1, charging cable *1, user manual *1, packaging color box *1

Product Description

Product Specifications

Overview

Brand: FNIRSI

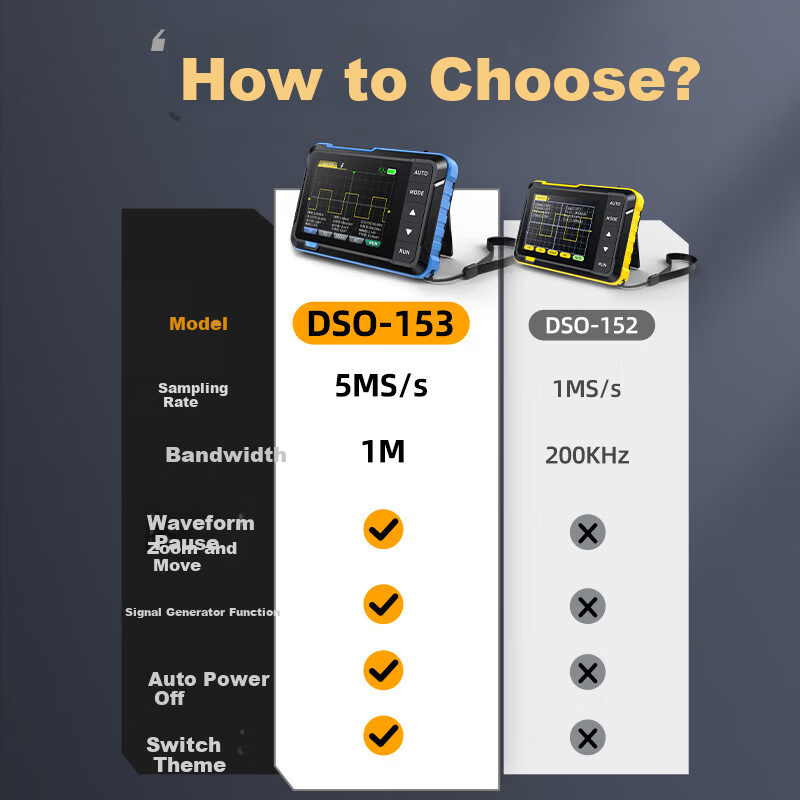

Models: DSO-152, DSO-153

Portable, compact, and lightweight handheld digital oscilloscopes

New upgraded power player with high cost-performance ratio

Intelligent overheat protection and automatic shutdown

Supports USB Type-C charging (5V/1A)

Firmware upgradeable

User-friendly interface with high sensitivity buttons

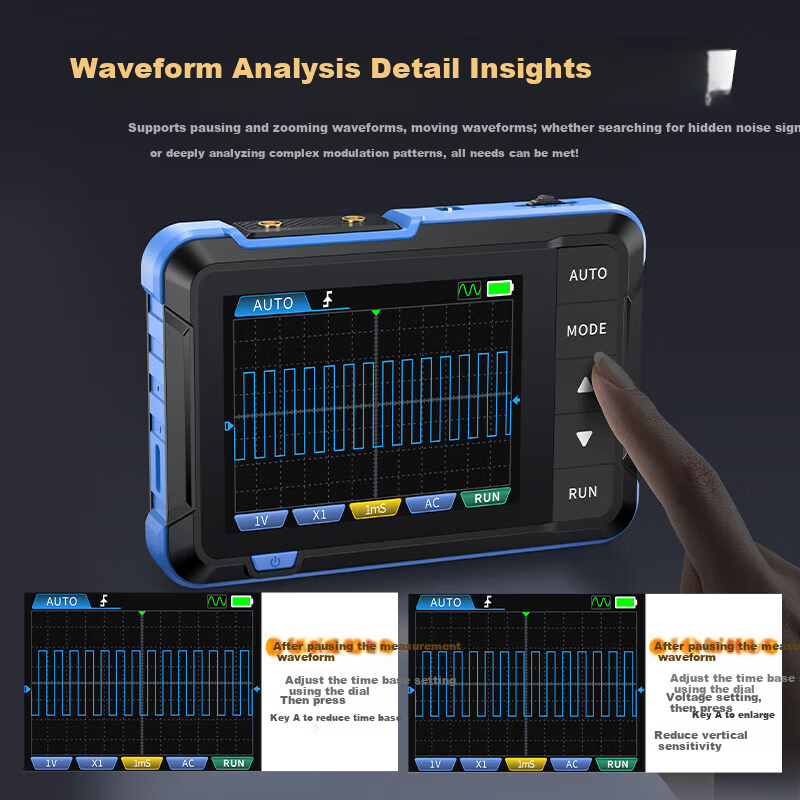

Waveform analysis with pause, zoom, and move functions

Additional details

Multiple trigger modes: Auto, Normal, Single

Supports AC/DC coupling

Additional details

Similar Products

In Stock

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

FNIRSIOscilloscope

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

digital oscilloscope

CN¥549.00

In Stock

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TEKTRONIXOscilloscope

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TBS1102X (Dual Channel 100MHz)

CN¥4,099.00

In Stock

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UNI-TOscilloscope

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UT-V23

CN¥179.90

Calibration square wave output

1 kHz frequency, 50% duty cycle, 3.3 V amplitude

Includes signal generator (DSO-153 only)

Suitable for maintenance, automotive repair, household appliance repair, research, teaching, and outdoor inspection

Additional details

Screen size: 2.8 inches
Resolution: 320 x 240 pixels (PPI)
Display modes: Waveform, measurement parameters
Sampling rate: 2.5 MS/s
Bandwidth: 200 kHz
Vertical sensitivity: 10 mV/div to 20 V/div (1-2-5 progression)
Time base range: 10 μs/div to 50 s/div (1-2-5 progression)
Voltage range: X1 ±40 V (Vpp 80 V), X10 ±400 V (Vpp 800 V)
Trigger edge: Rising and falling edge selectable
Battery capacity: 1000 mAh lithium battery
Dimensions: 99 x 68.3 x 19.5 mm
Weight: 100 g (approximate)
Coupling: AC/DC
Calibration square wave: 1 kHz, 50% duty cycle, 3.3 V amplitude
Sampling rate: 5 MS/s
Bandwidth: 1 MHz
Vertical sensitivity: 10 mV/div to 10 V/div
Time base range: 500 ns/div to 20 s/div
Voltage range: X1 ±40 V (Vpp 80 V), X10 ±400 V (Vpp 800 V)
Trigger edge: Rising and falling edge selectable
Battery capacity: 1000 mAh lithium battery
Dimensions: 99 x 68.3 x 19.5 mm
Weight: 100 g (approximate)
Coupling: AC/DC
Calibration square wave: 1 kHz, 50% duty cycle, 3.3 V amplitude
Frequency range: 0 to 10 kHz
Waveforms: Sine, square, triangle, half-wave, full-wave, positive and negative step waves, noise, exponential rise and fall, DC, multi-tone, sync pulse, pulse, Lorentz wave
Duty cycle: 0-100% (square and triangle waves)
Amplitude: 0.1 to 3.3 V
Output port: MCX connector
Frequency: 1 kHz (calibration square wave)
Duty cycle: 50%
Period: 1.00 ms
Positive pulse width: 500 μs
Negative pulse width: 500 μs
Peak-to-peak voltage: approx. 3.3 V
Maximum voltage: approx. 1.68 V
Minimum voltage: approx. 1.66 V
RMS voltage: approx. 1.65 V
Average voltage: approx. 10 mV

Rotary dial with left, OK, right buttons

AUTO button for automatic adjustment and trigger mode switching

MODE button for waveform and trigger edge selection

RUN button for start/stop waveform display and detailed parameter display

Reset hole

Charging indicator LED (red charging, green full)

Power on/off button

Supports theme switching

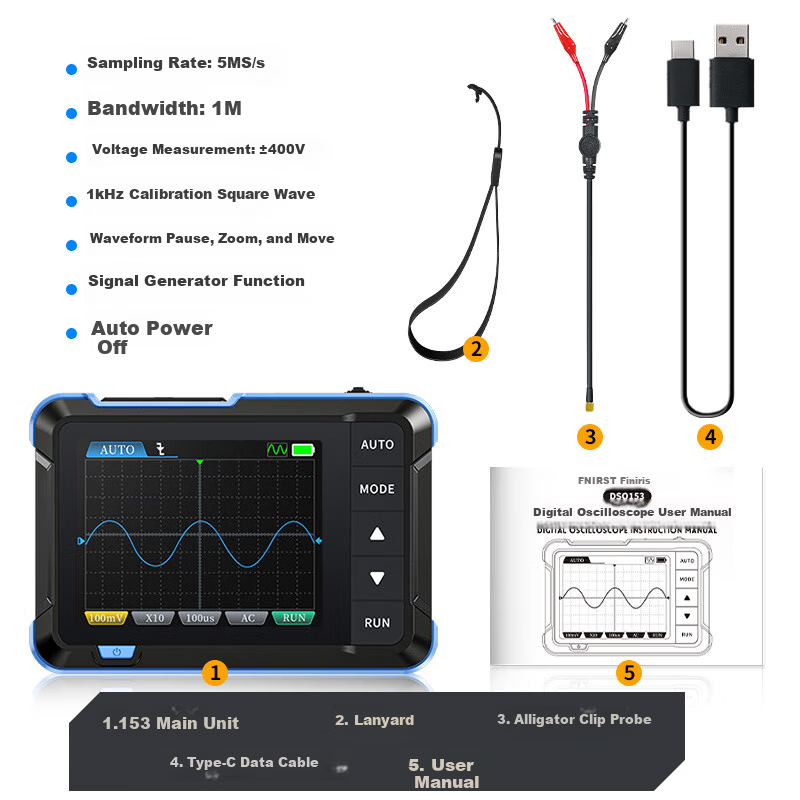

FNIRSI Mini Pocket Handheld Oscilloscope (DSO-152 or DSO-153)

Signal generator (DSO-153 only)

Crocodile clip probe

USB charging cable (Type-C)

User manual

Lanyard

Household electrical testing

Automotive repair diagnostics

Research and teaching tool

Outdoor maintenance and troubleshooting

Dimensions and weight are manually measured and may have slight deviations; actual product prevails.

Signal generator function is exclusive to DSO-153 model; please select accordingly when ordering.
