OAMLink Industrial Switch, 16 Ports, 100Mbps, Unmanaged, DIN Rail Mount, OAM-6000
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
OAMLink•Switch

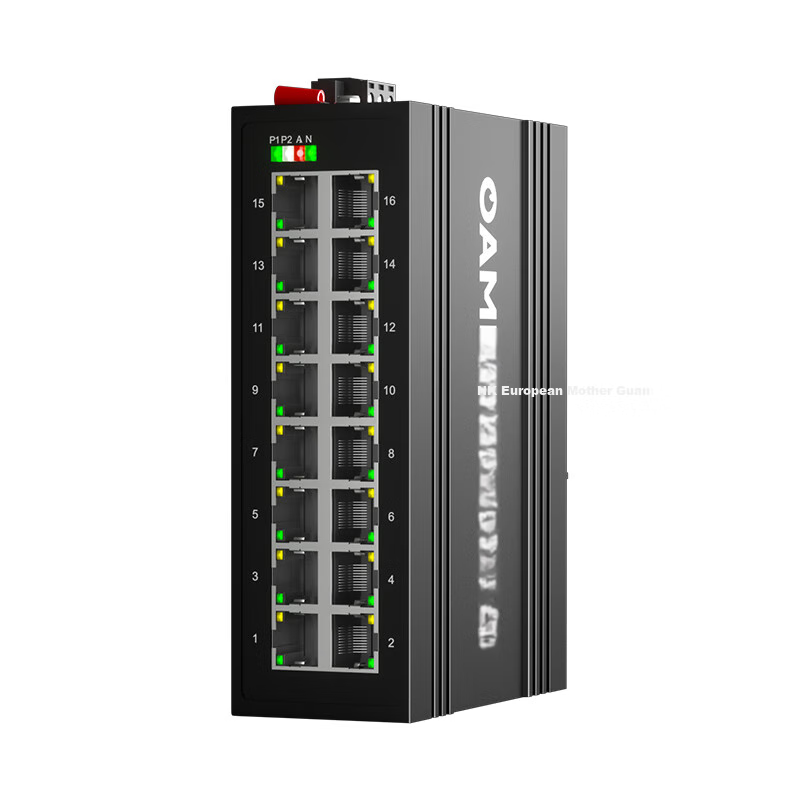

OAMLink Industrial Switch, 16 Ports, 100Mbps, Unmanaged, DIN Rail Mount, OAM-6000

CNÂ¥488.00
SKU: 100140697010
Status:In Stock (2)
ID: 100140581546
Weight: 520.00 g
Dims:190x162x65 mm

Specifications

Number of Ports
16 ports
Downlink Port Rate
100Mbps
Cooling method
Natural heat dissipation
Uplink port rate
100Mbps
Suitable Scenarios
Access switch
Port Type
Electrical port
Downlink Interface Type
Ethernet Switch
Power over Ethernet (PoE)
Non-POE power supply

Variants / Sale Attributes

Color: 16-Port 100Mbps OAM-6000

Package Contents

Industrial switch X1 User manual X1 Certificate of conformity X1

Product Description

Overview

Brand
OAMLink
Reminder
Industrial-grade equipment does not include a power adapter by default. If needed, it can be purchased separately.

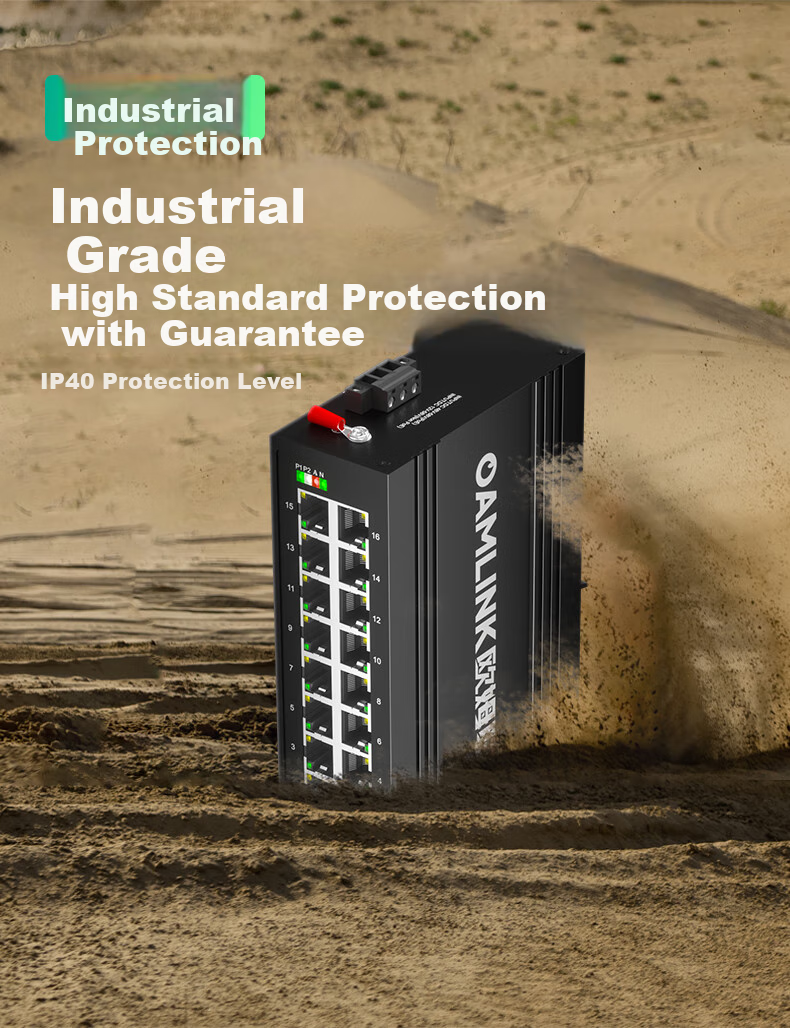

Industrial Protection
High standard IP40 protection ensures reliable industrial-grade protection.

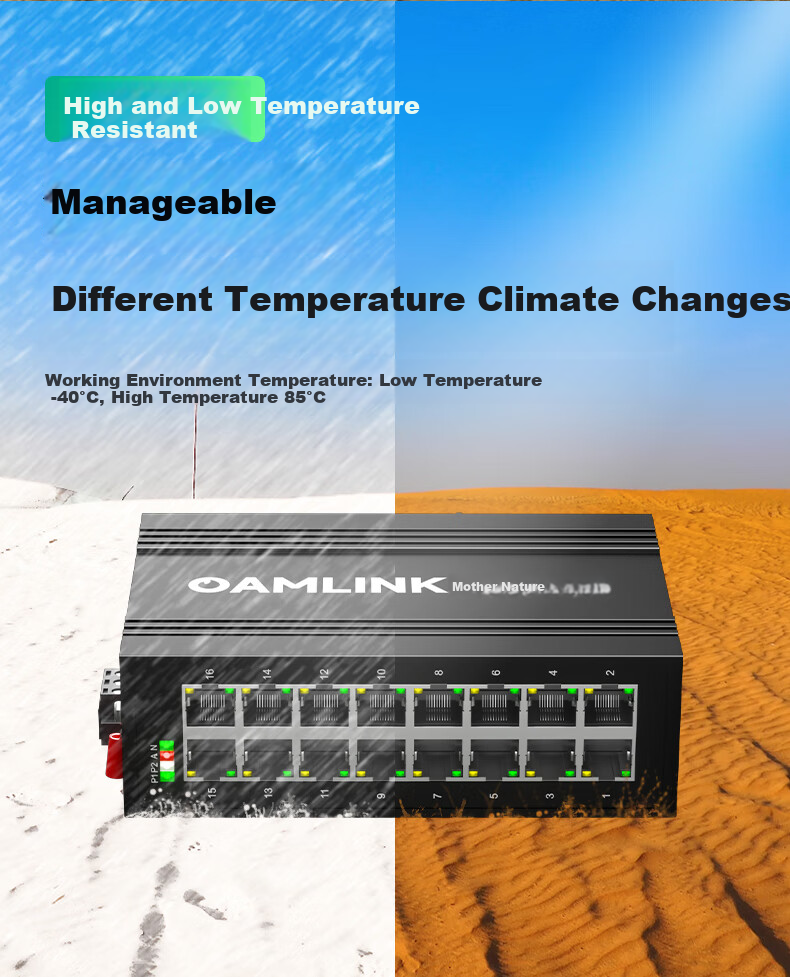

Temperature Resistance
Can withstand a wide range of temperatures from -40°C to 85°C.
Certifications
Certified by CCC/FCC/CE/MIIT and other relevant authorities.
Factory Testing
Undergoes 16 rigorous tests to ensure performance in industrial environments.

Similar Products

In Stock
Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch
Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CNÂ¥580.50

View
In Stock
Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10
SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CNÂ¥179.00

View
Set
Single product
Network Management Type
Non-managed
Cloud-managed switch
Cloud management not supported

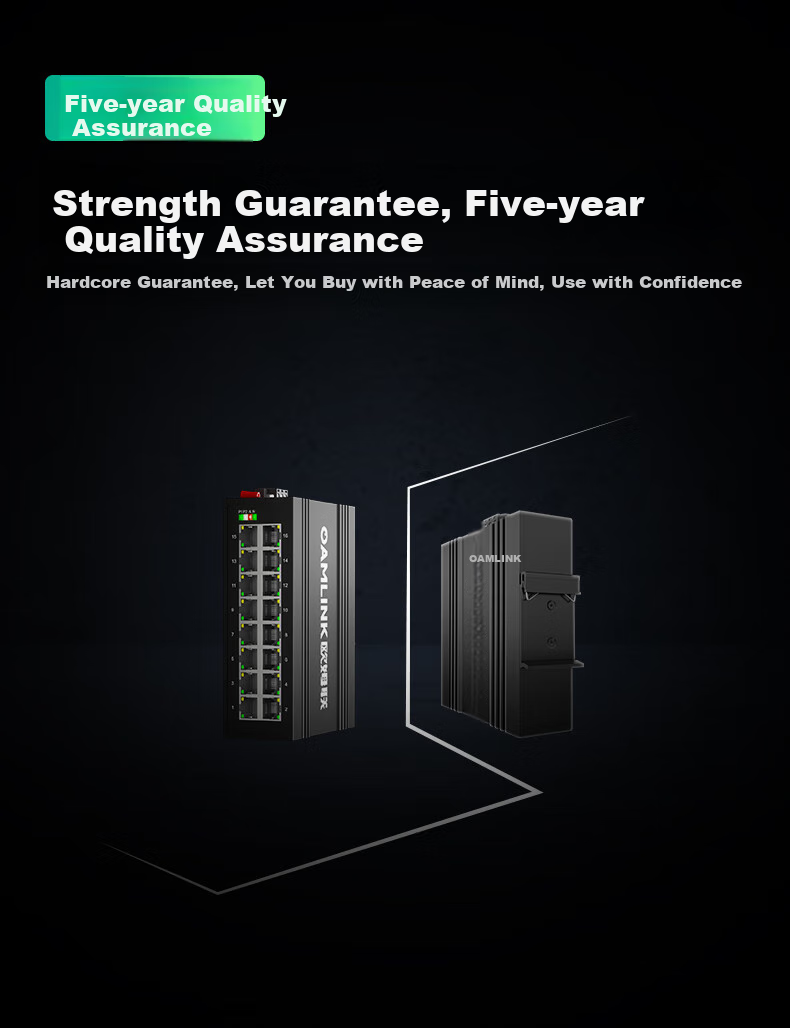

Warranty
Comes with a five-year quality guarantee.

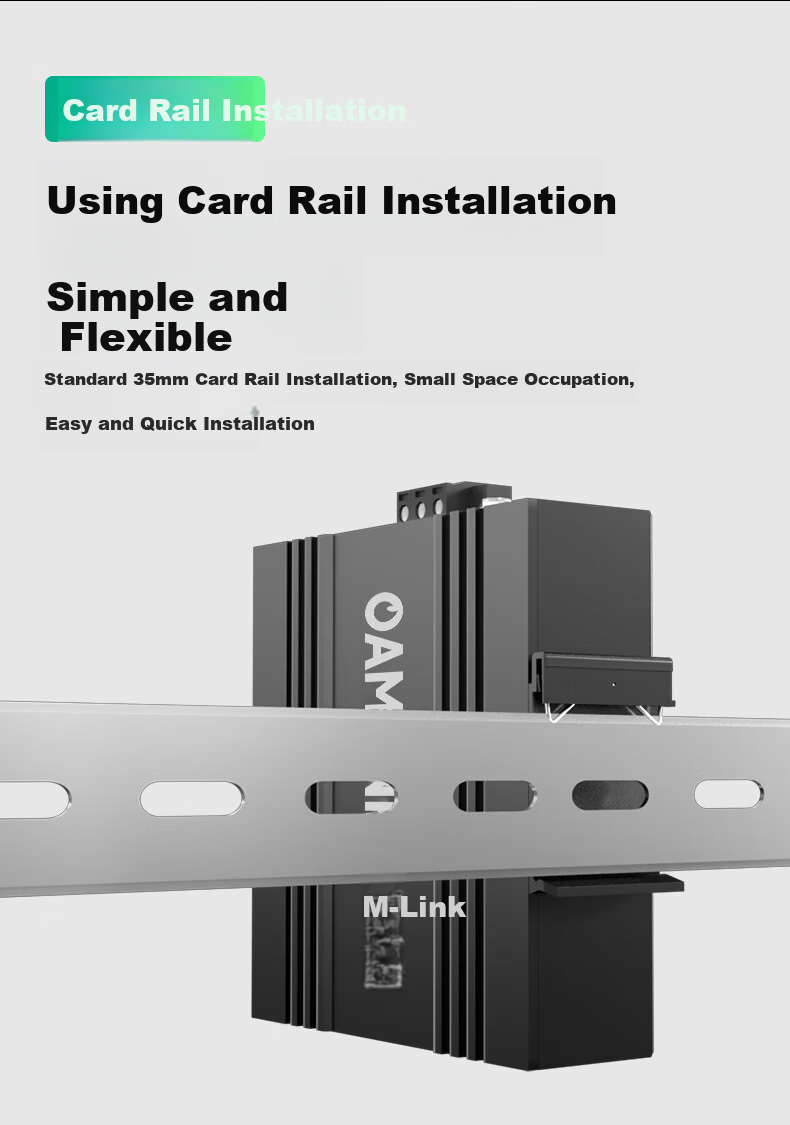

Installation
Features rail mounting for easy and flexible installation.

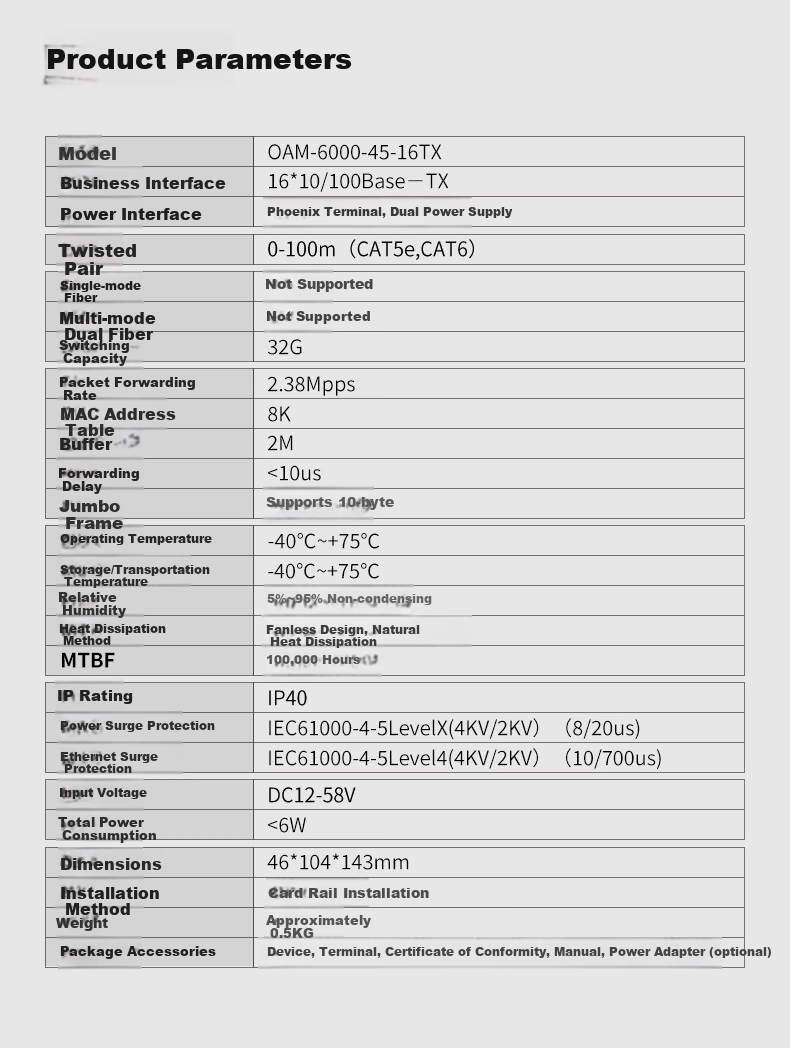

Product Model
OAM-6000-45-16TX
Interfaces
16 × 10/100Base-TX, Phoenix terminal for power input.
Switching Capacity
32 G, Forwarding Rate: 2.38Mpps
MAC Address Table
8K, Buffer: 2 M, Forwarding Delay: <10us
Operating Temperature
-40°C to +75°C, Storage/Transport Temperature: -40°C to +75°C
Humidity
5% to 95% non-condensing
Heat Dissipation
Fanless design for natural cooling, MTBF: 100,000 hours

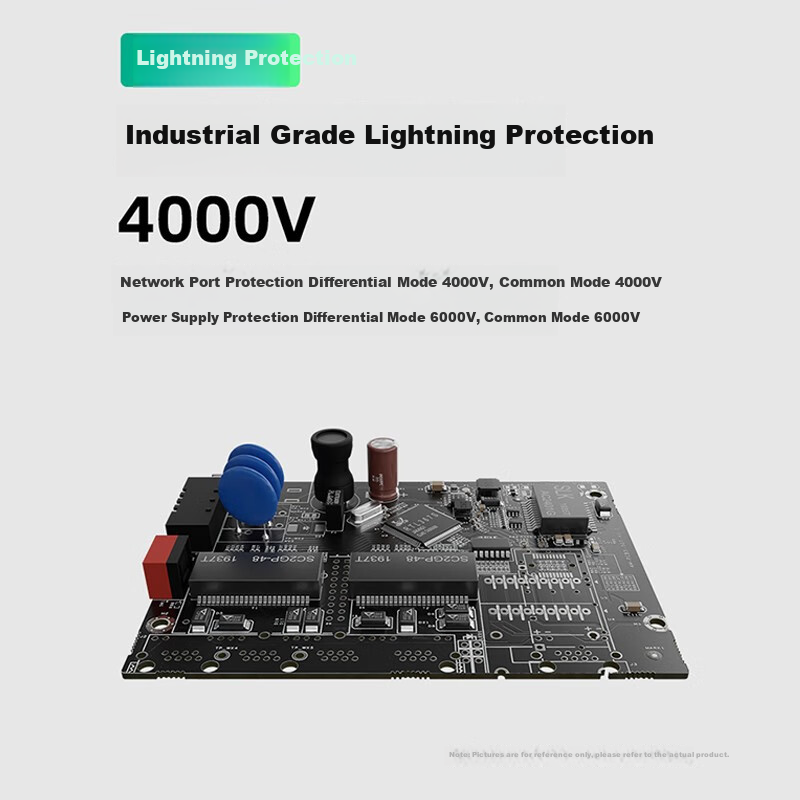

IP Rating
IP40, Surge Protection: IEC61000-4-5 Level X (4KV/2KV)

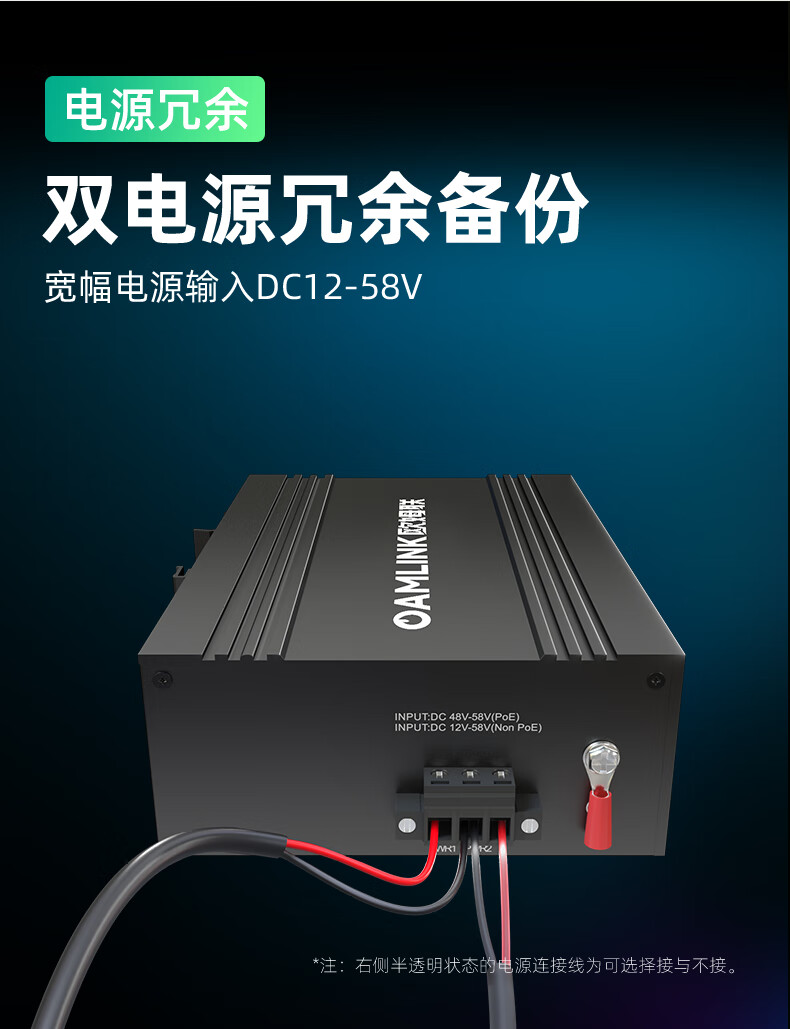

Power Input
DC12-58V, Power Consumption: <6W
Dimensions
46 × 104 × 143 mm, Weight: Approx. 0.5 KG
Package Contents
Device, terminal, certificate of compliance, user manual, power adapter (optional)
