Back to CatalogNedfon Universal Ceiling Exhaust Fan, Integrated Ceiling Ventilation Fan 300x300 Low Noise Ducted Ventilator BPT10-23A
Package Contents
One host, one manual
Product Description
Product Specifications
Overview
- Brand
- Nedfon
- Model
- BPT10-23A
- Product Type
- Ultra-thin Ventilation Fan for Integrated and Conventional Ceilings

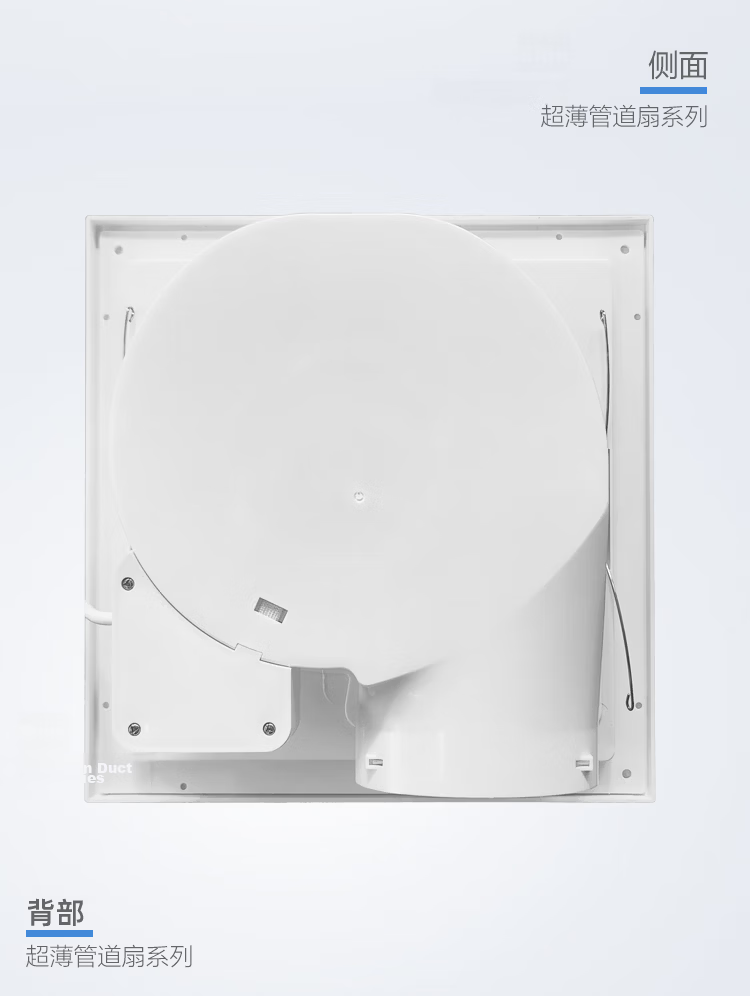

- Body Size
- 105 mm (thickness) x 254 mm x 300 mm
Installation Opening Size
| Item | Detail |
|---|
| Integrated Ceiling (Aluminum Panel) | 300 mm x 300 mm |
| Conventional Ceiling (Gypsum Board/Wood/PVC Strip/Honeycomb Panel) | 257 mm x 257 mm |
Similar Products
Out of Stock
Out of Stock
In Stock
Additional details
- Weight
- 1.8 kg
- Noise Level
- 40 dB
- Power
- 21 W
- Airflow Volume
- 150 m³/h
- Voltage/Frequency
- 220 V / 50 Hz
- Static Pressure
- 105 Pa
100mm x 1.5m Aluminum Foil Duct x1
Self-tapping Screws (20mm) x4
M3 Installation Nut Set x4
Integrated Ceiling Clips x4

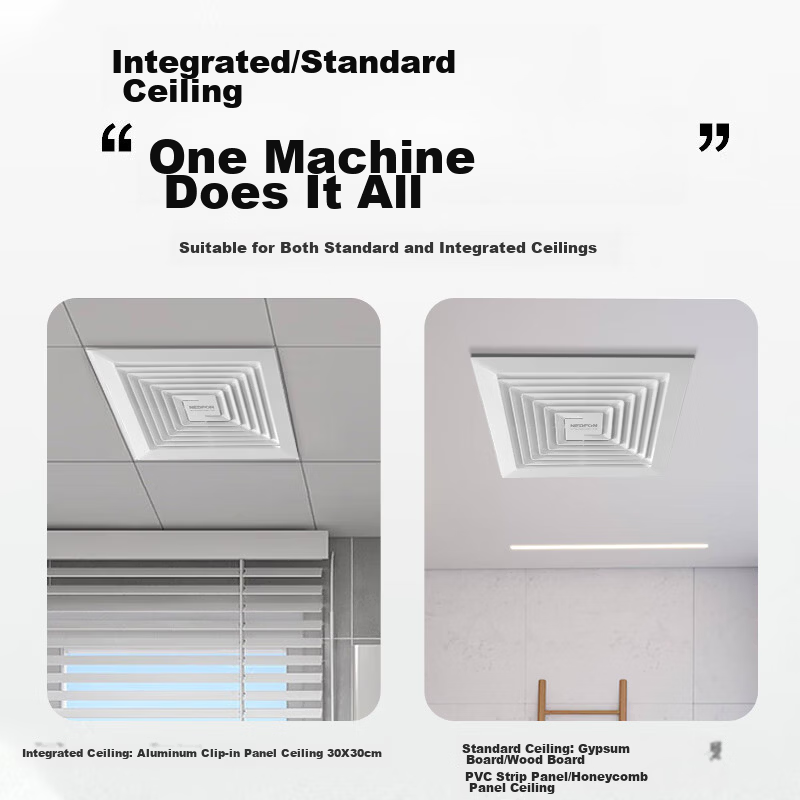

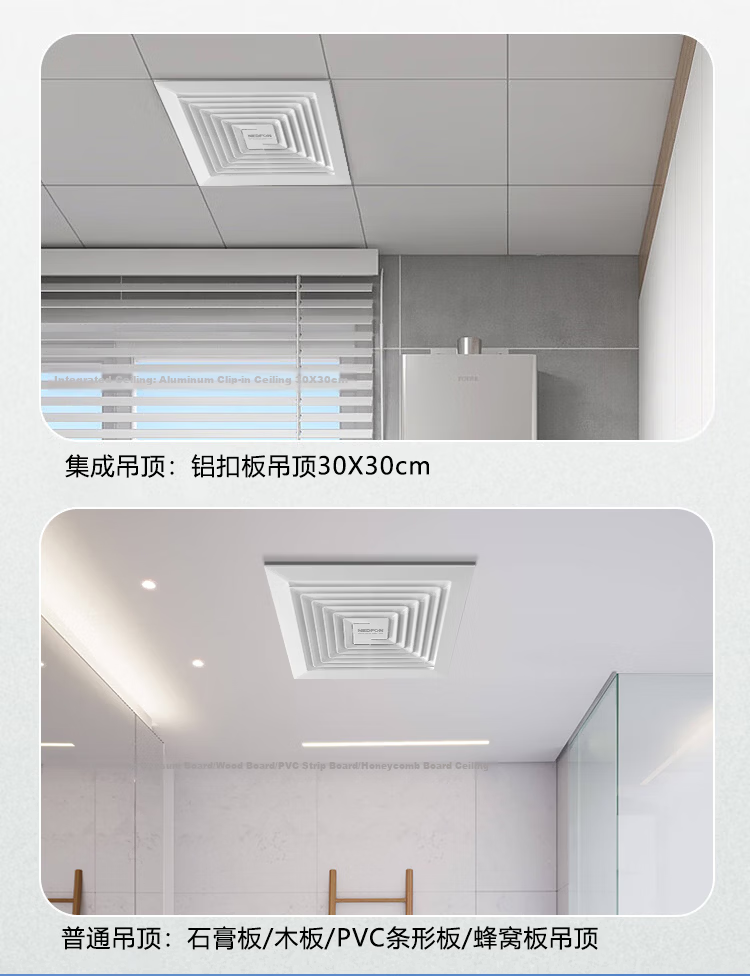

Suitable for both integrated ceilings (30x30cm aluminum panel) and conventional ceilings (gypsum board, wood, PVC strip, honeycomb panel)

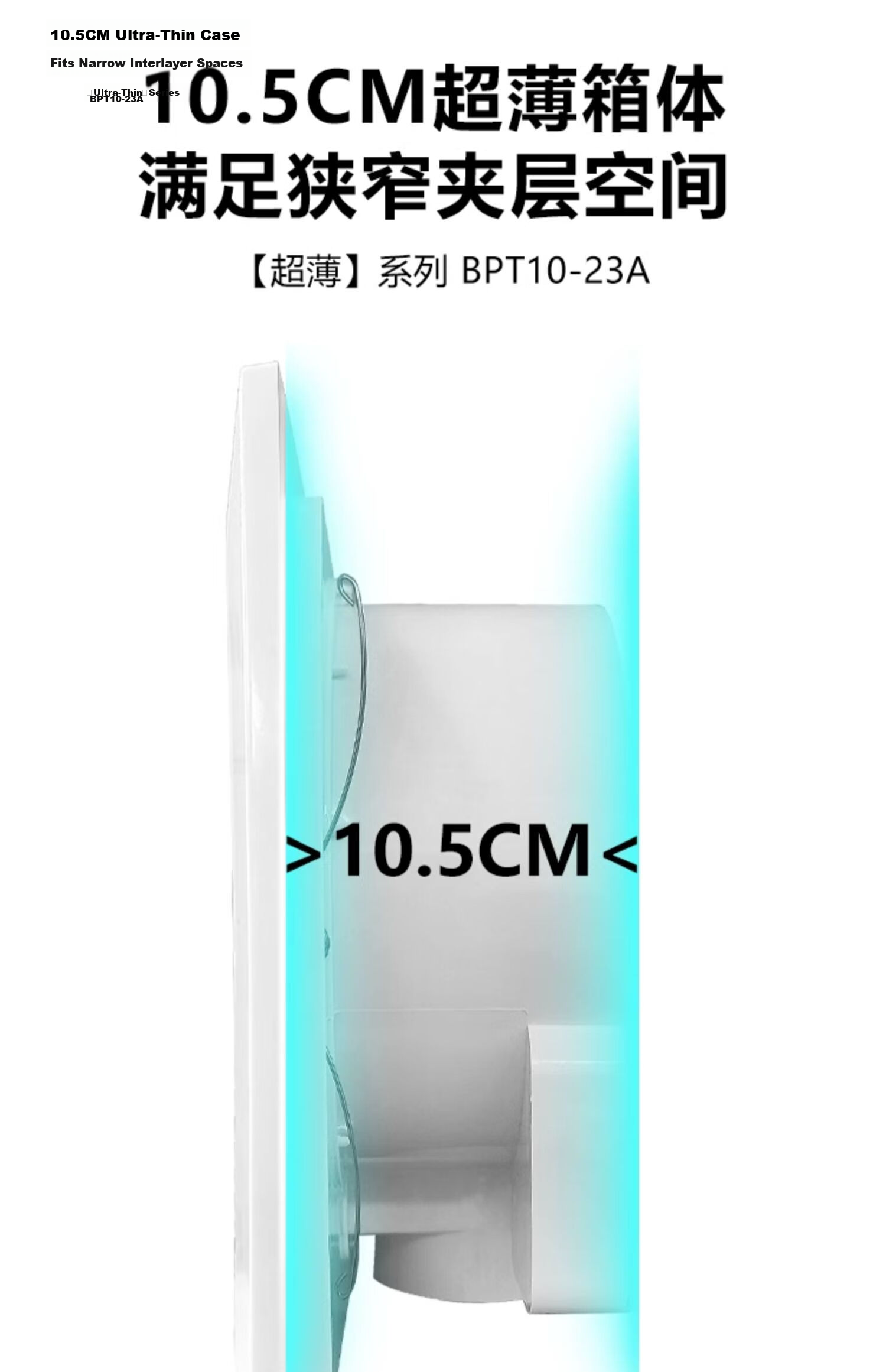

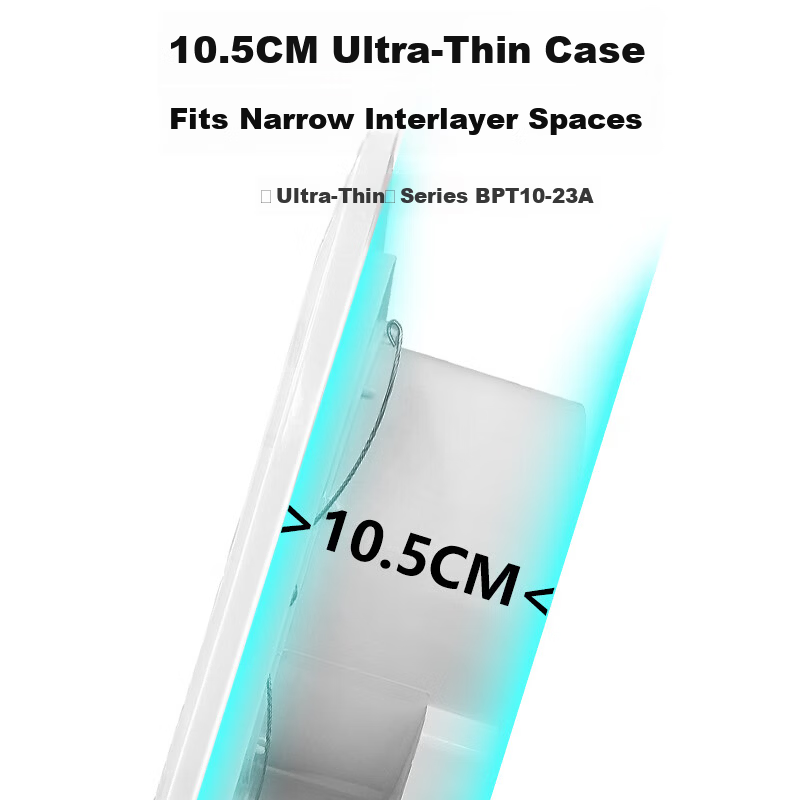

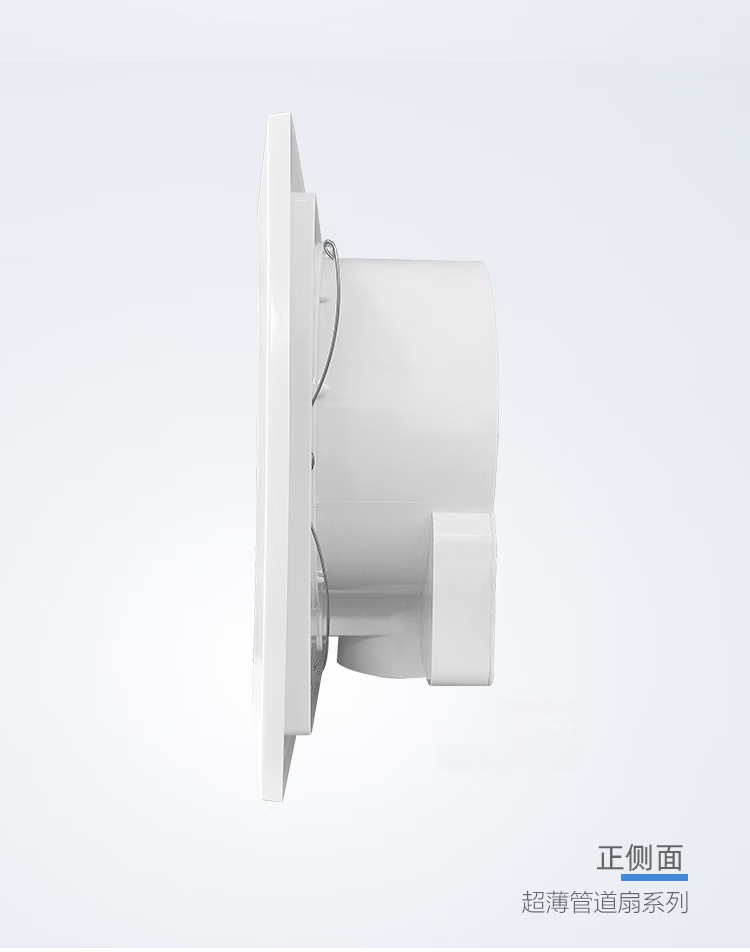

Ultra-thin body design (10.5 cm thickness) ideal for narrow ceiling spaces
High airflow (150 m³/h) for rapid ventilation and odor removal

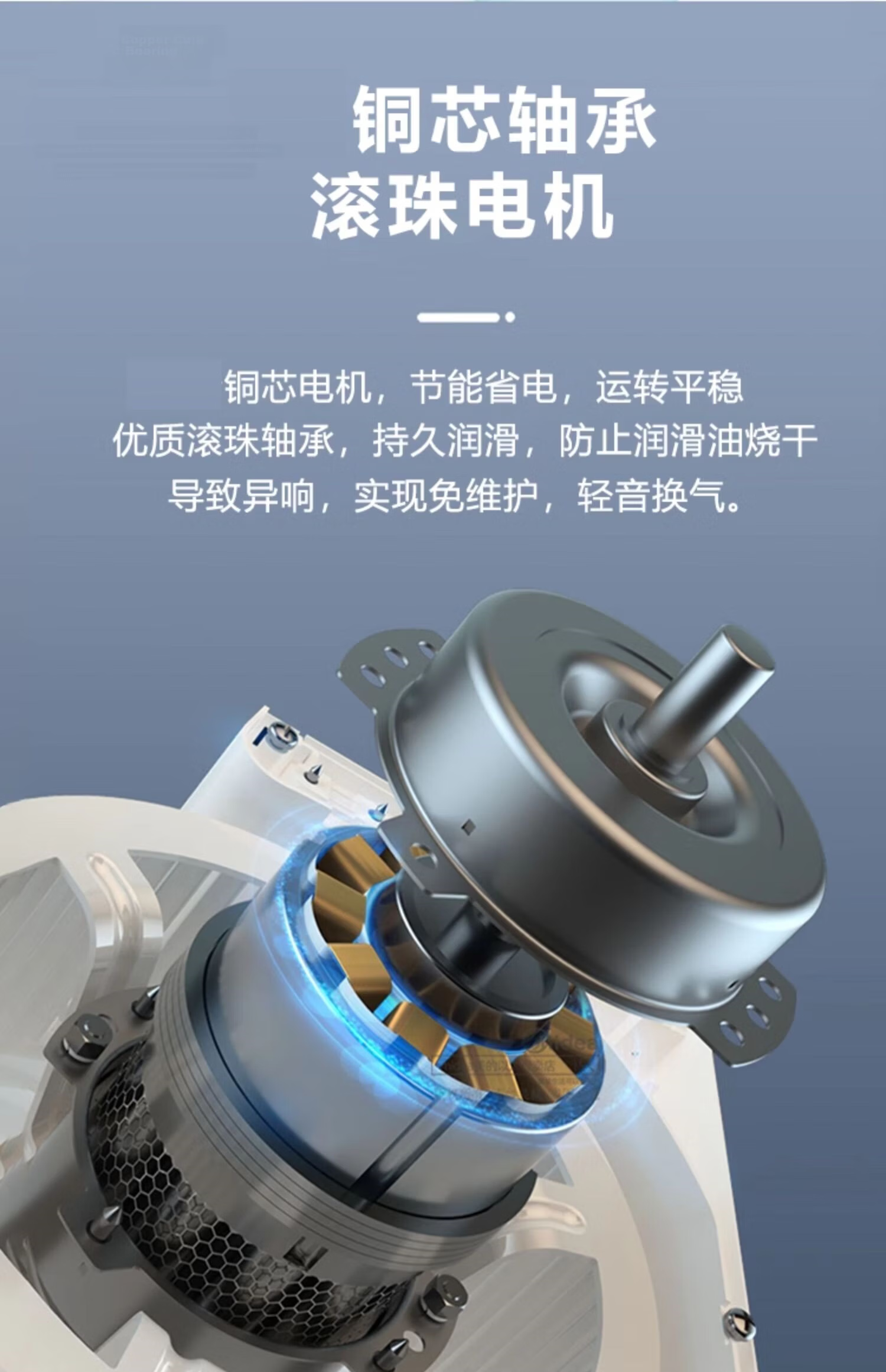

Copper core motor with ball bearings for energy efficiency, smooth operation, and low noise

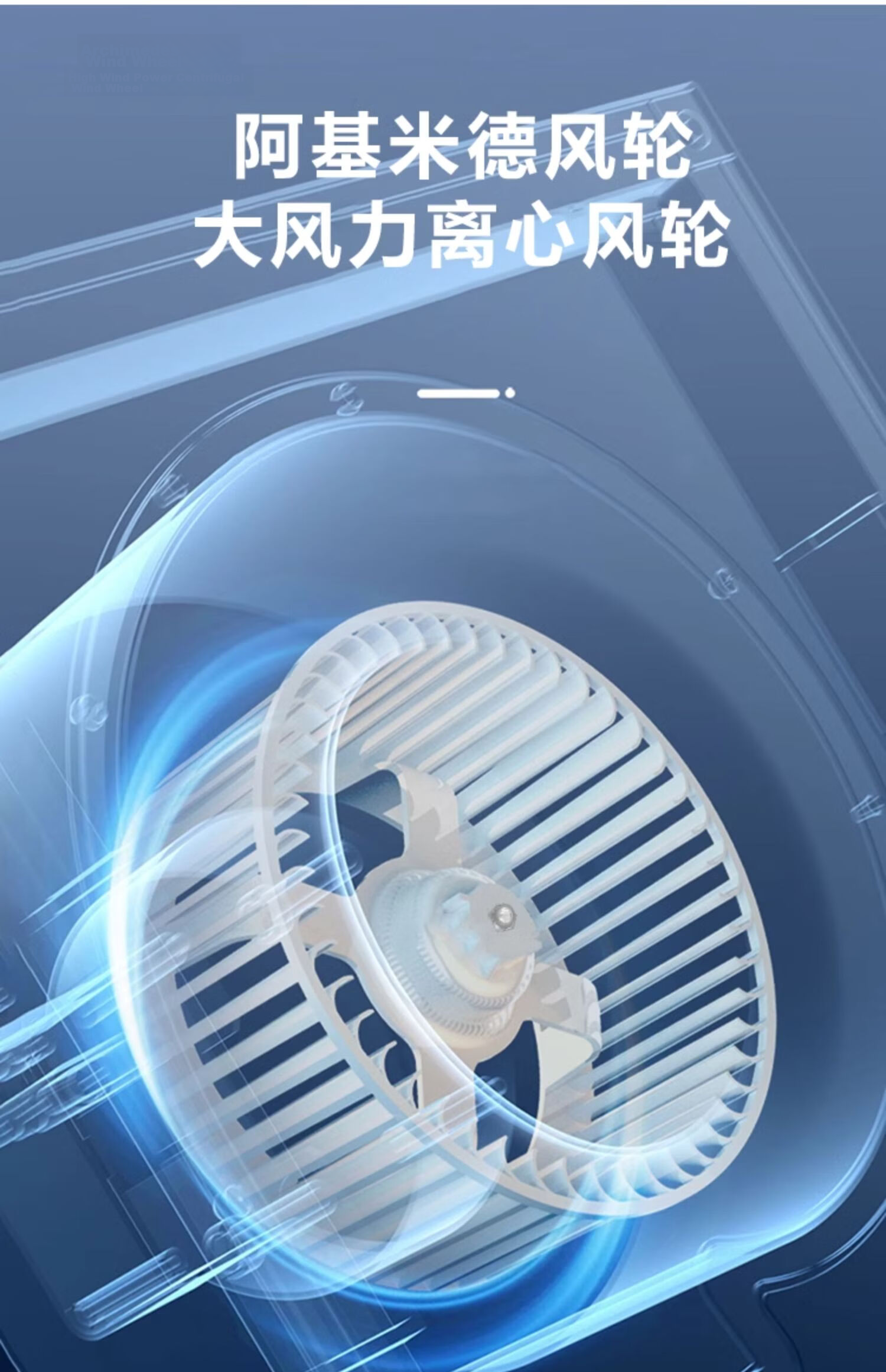

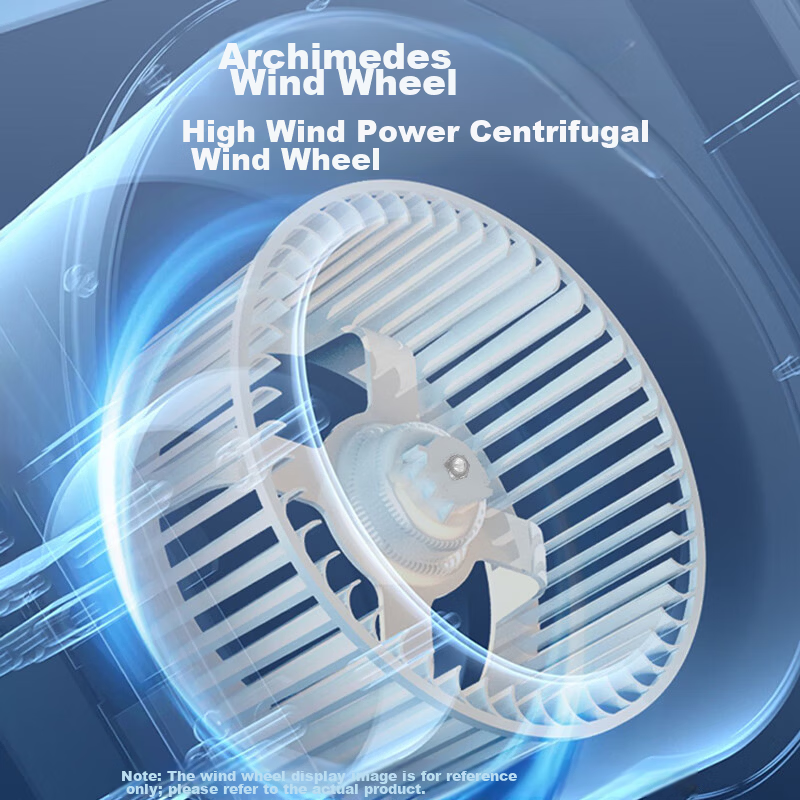

Archimedes centrifugal impeller for strong airflow

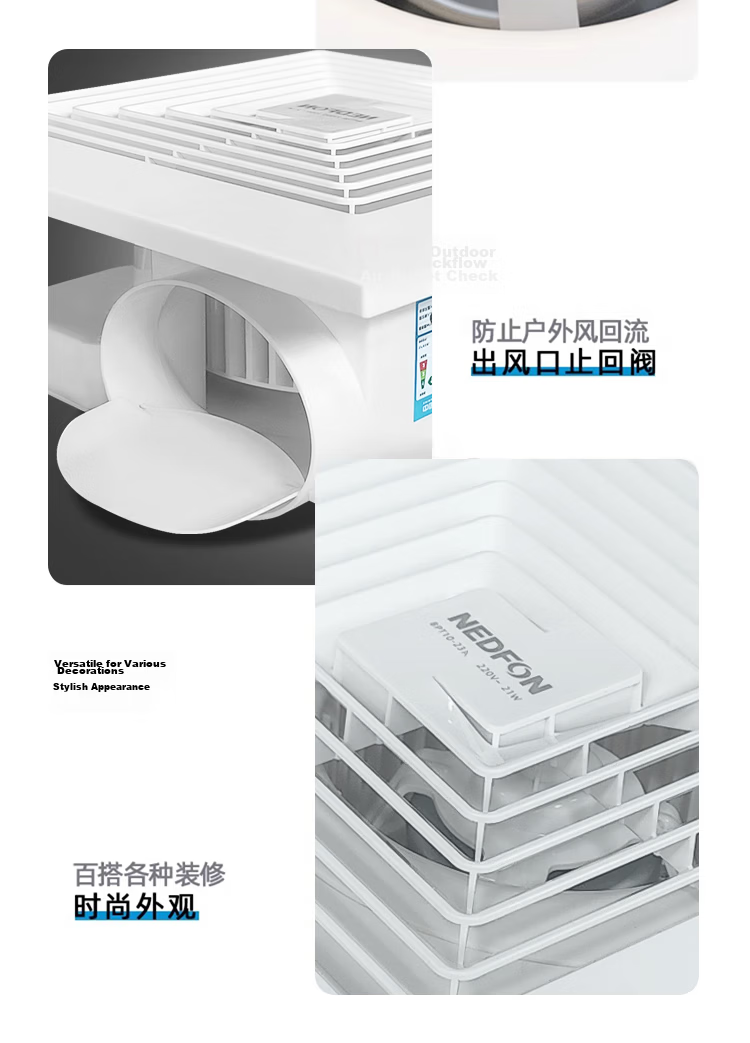

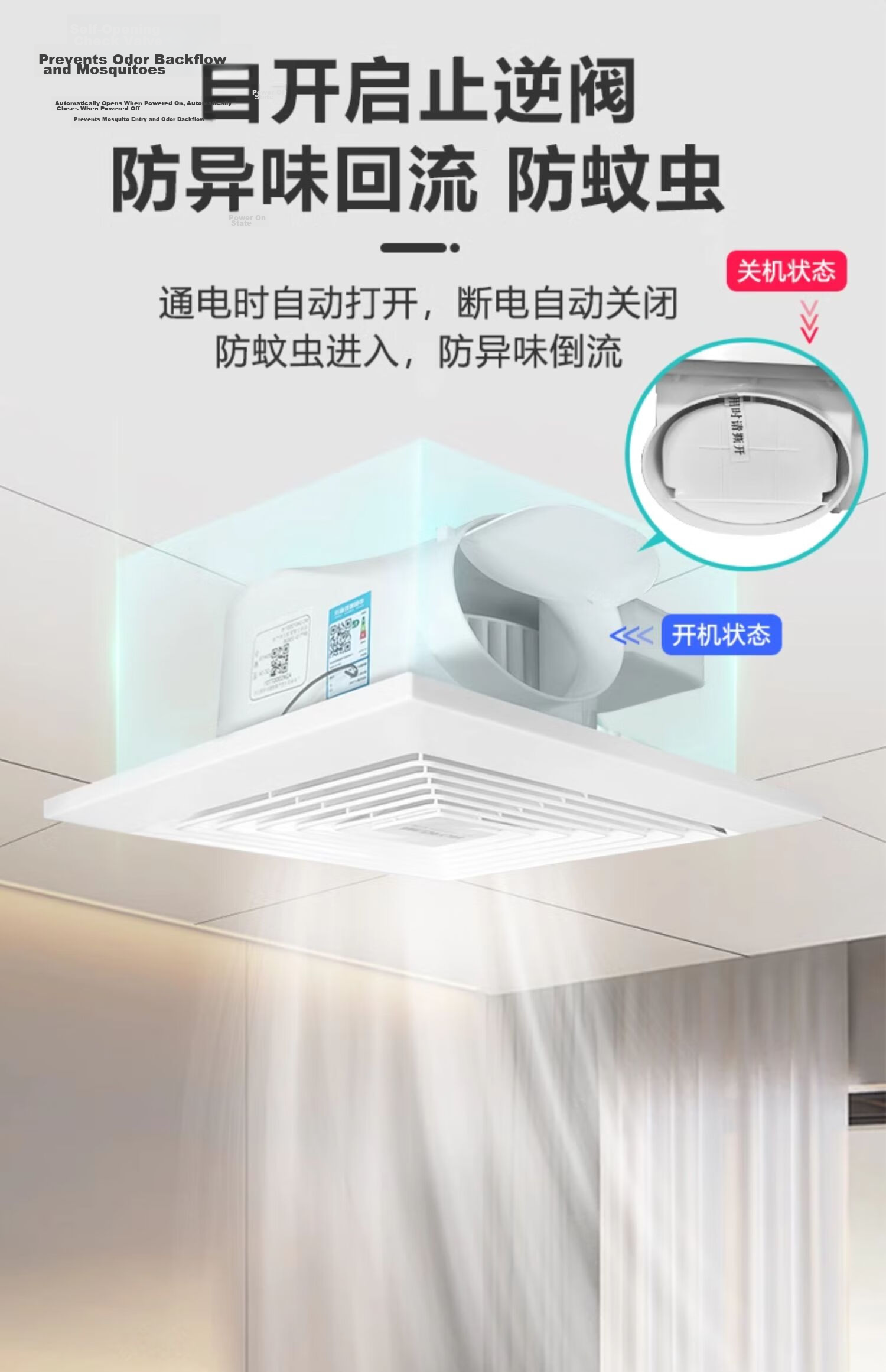

Self-opening backdraft damper prevents odor backflow and insect intrusion; automatically opens when powered on and closes when off

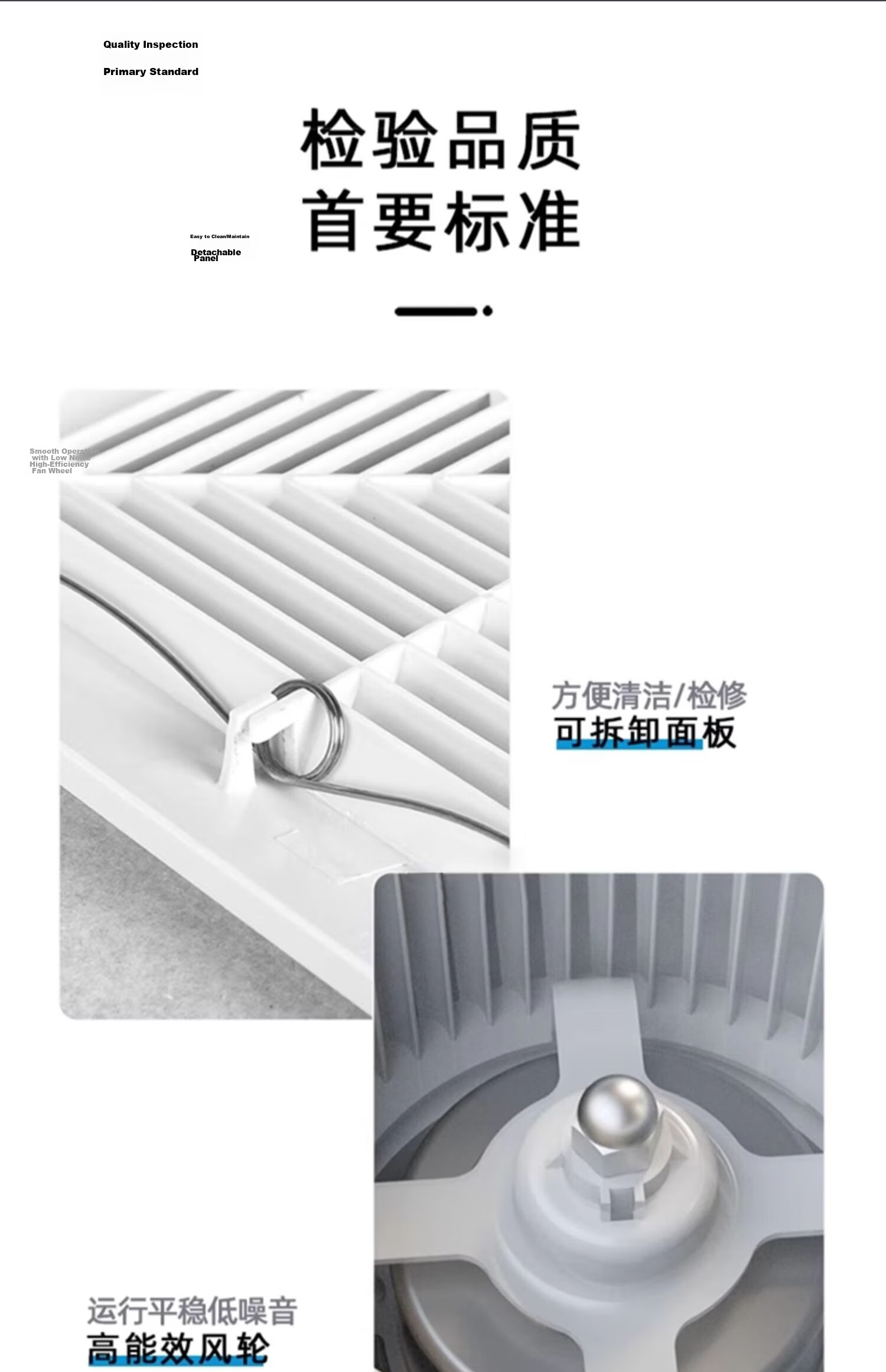

Detachable panel for easy cleaning and maintenance
Stylish appearance suitable for various interior designs
High-efficiency impeller and stable operation with low noise
Prevents outdoor wind backflow with built-in backdraft valve
1. Power Connection
- Connect power wires according to electrical schematic.
- Install a full-pole disconnect switch to control fan operation.
2. Installation for Conventional Ceilings
- Build a horizontal wooden frame on wooden joists (not included), ensuring at least 20mm clearance between fan top and ceiling.
- Frame must support at least five times the product weight.
- Position and orient the fan as shown in the installation diagram.
- Attach the fan body to the wooden frame using screws through the elongated holes.
- Secure the detachable panel by compressing the two springs and inserting into the fan body.

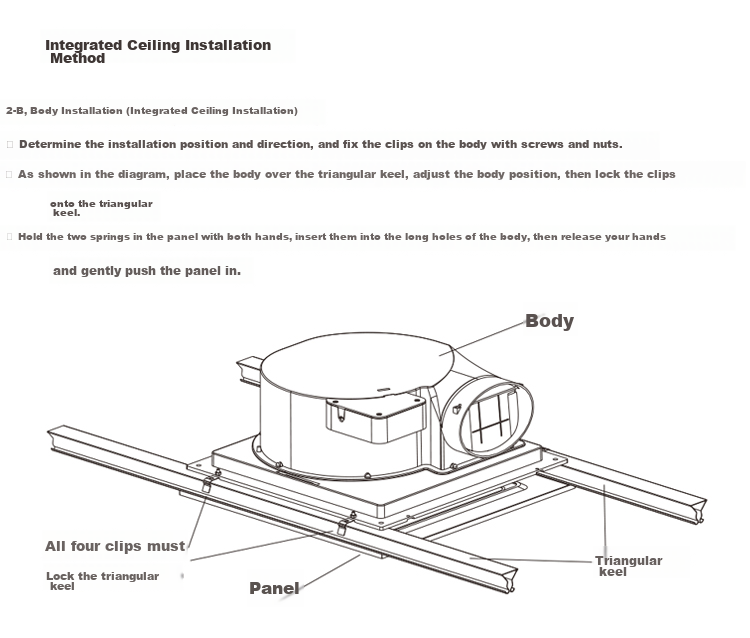

3. Installation for Integrated Ceilings
- Fix clips to the fan body using screws and nuts.
- Place the fan body onto triangular ceiling joists and lock clips to secure.
- Attach the panel by compressing the two springs and inserting into the fan body.

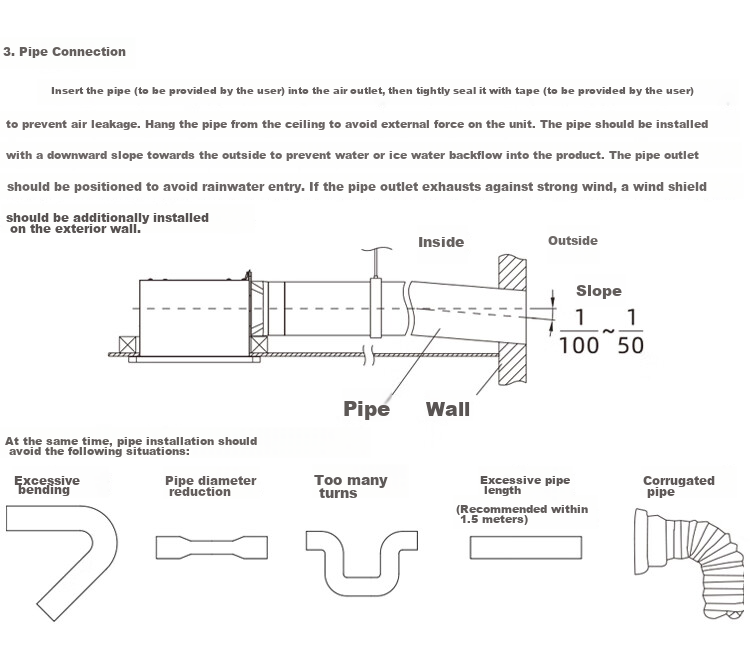

4. Duct Connection
- Attach duct (not included) to the outlet and seal tightly with tape (not included) to prevent air leakage.
- Suspend duct from ceiling to avoid stress on the fan body.
- Install duct with a slight downward slope towards the exterior to prevent water or ice backflow.
- Position duct outlet to avoid rainwater ingress; install wind shield on exterior wall if exposed to strong winds.
- Avoid excessive bends, diameter reduction, multiple turns, overly long ducts, and corrugated ducts; recommended duct length is within 1.5 meters.

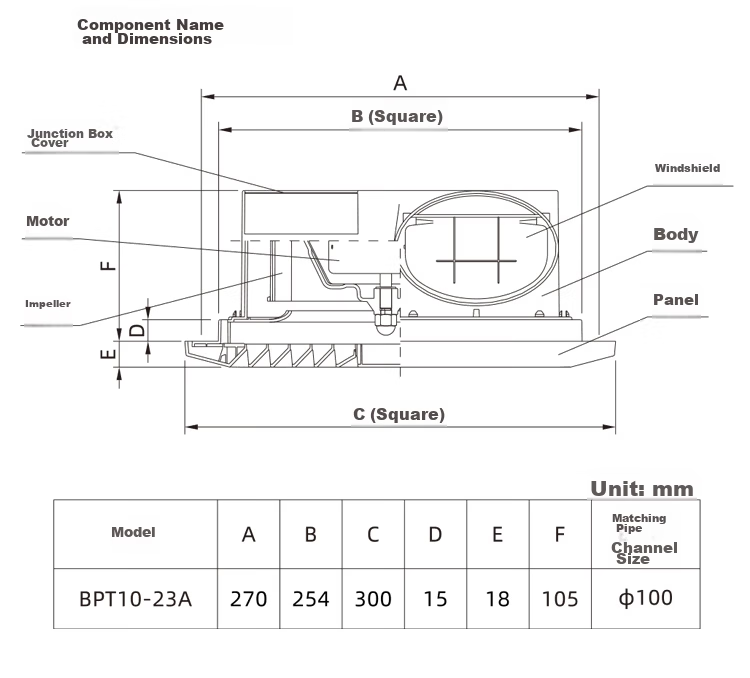

Additional details
- A
- 270
- B (Square)
- 254
- D
- 300
- E
- 15
- F
- 18
- Duct Size
- 105
Meets primary quality standards
Easy to clean and maintain with removable panel
Stable and quiet operation
High-efficiency impeller design
Backdraft damper prevents outdoor wind and odor backflow
Compatible with various interior styles
Ventilation fan unit BPT10-23A
Installation accessories as listed above
Aluminum foil duct and hose clamp
Wood frame and joists for conventional ceiling installation are not included and must be prepared by the installer.
In Stock
