Back to CatalogHIKMICRO Thermal Imager Mobile Infrared Thermal Camera HD Night Vision Temperature Measurement Inspection Leak Detection P20 V2
Specifications
- work shift
- Long wave
- Category
- Handheld
- Suitable Scenarios
- leak test, Power inspection, Outdoor, military, scientific research, firefighting, Industry, repair
Variants / Sale Attributes
Model: [Advanced Version] P20 V2 (512*384)

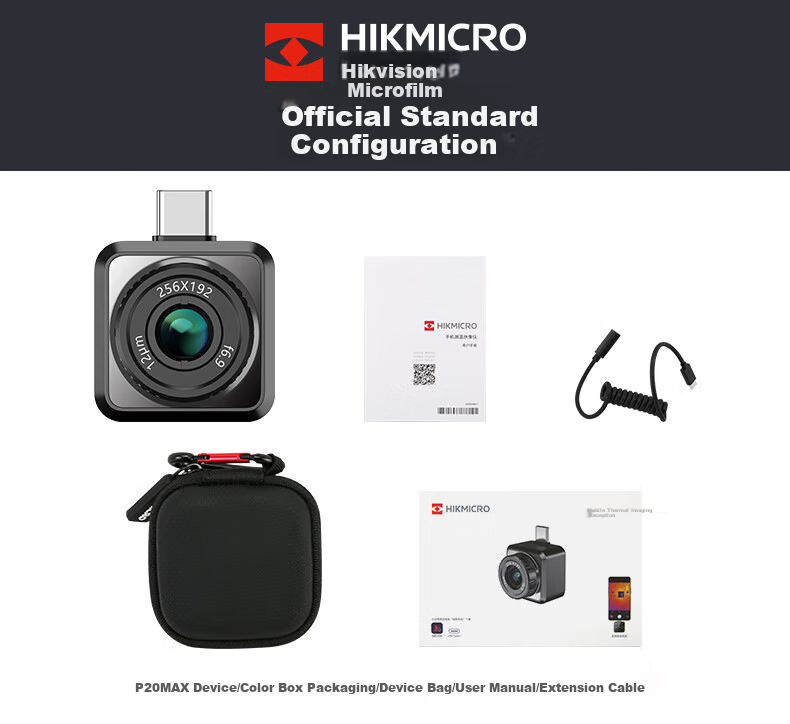

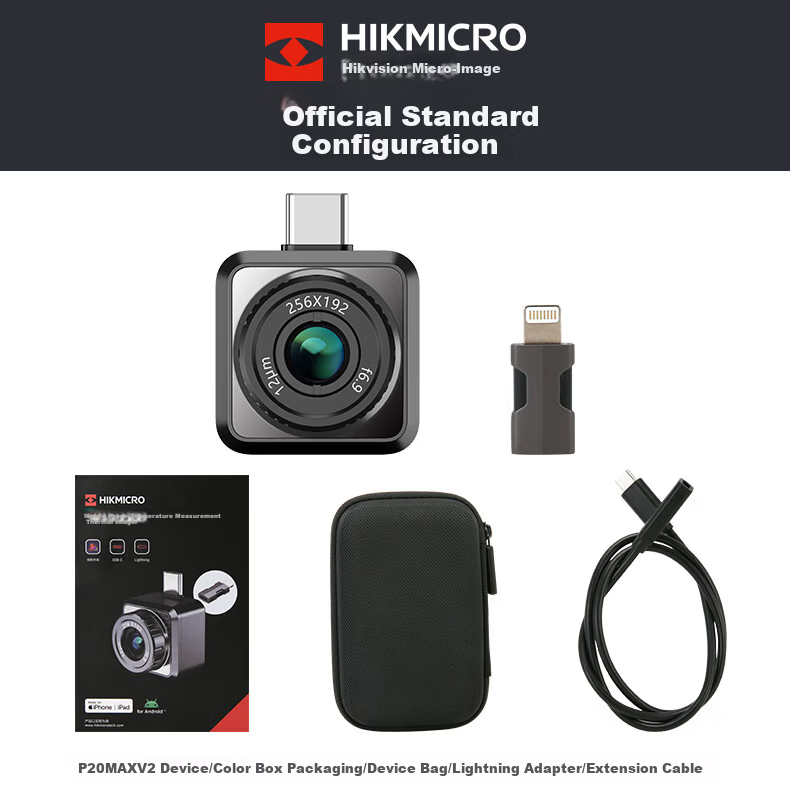

Package Contents

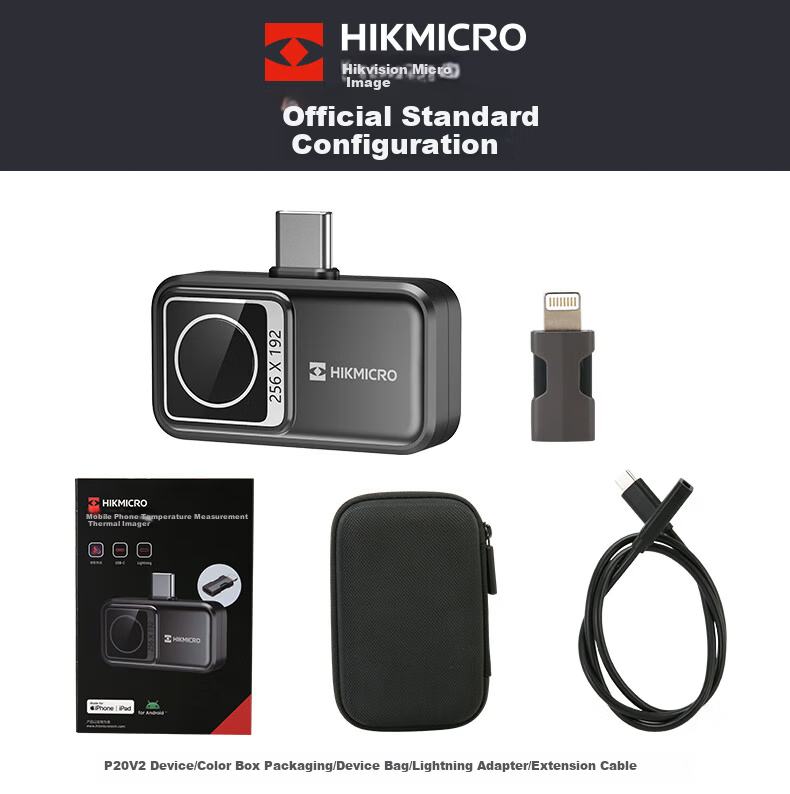

instrument, charger, warranty, manual
Product Description
Product Specifications
Overview
- Brand
- HIKMICRO
- Product Type
- Mobile Phone Thermal Imager
- Models
- P20 Max V2, P20 V2, P09

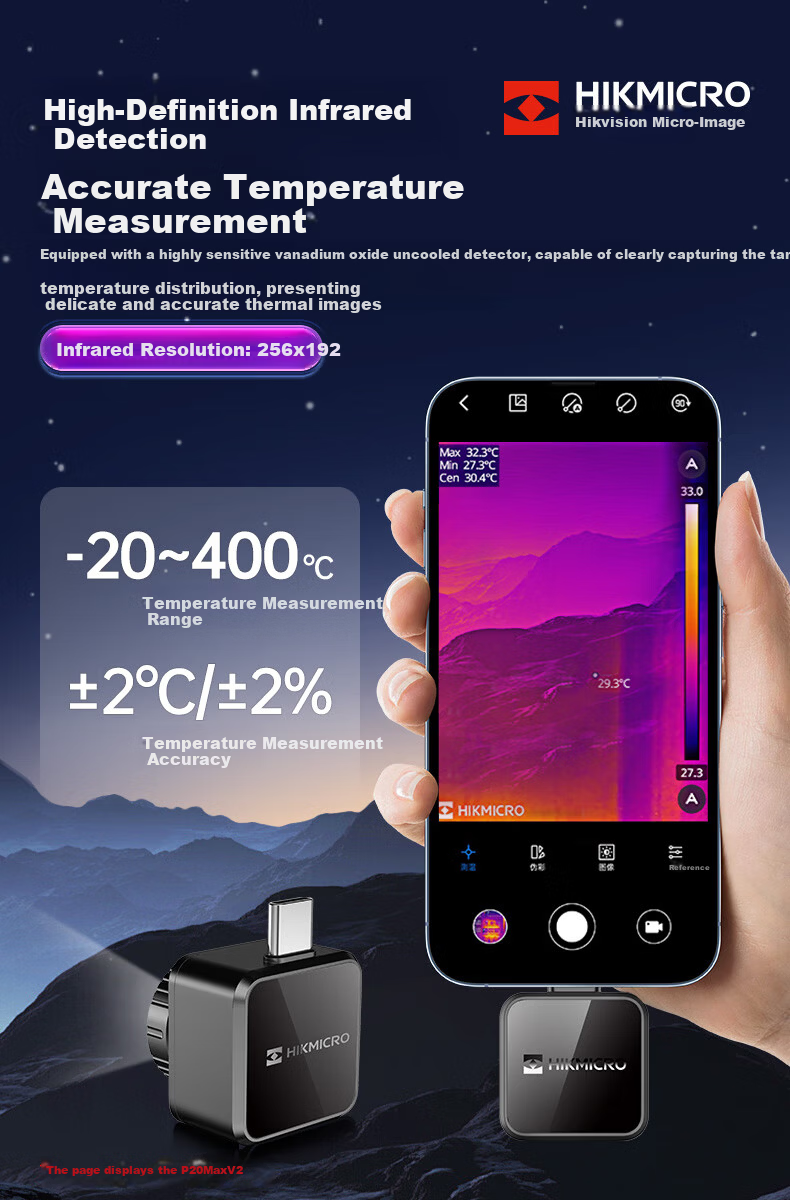

- Detector Type
- High-sensitivity Vanadium Oxide Uncooled Detector
- Thermal Resolution
- 256×192 (P20 Max V2, P20 V2), 96×96 (P09)
- Optional Resolution
- 512×384 (ISR Super Resolution mode)

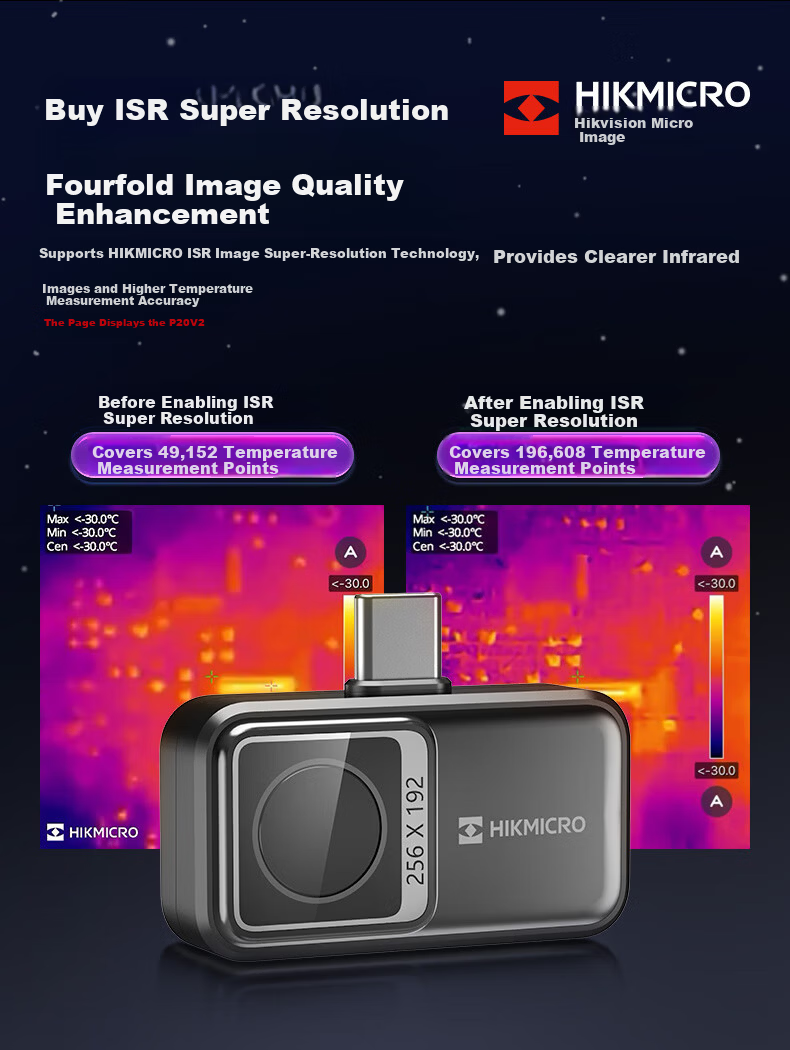

- ISR Super Resolution
- Supported on P20 V2 and P09 (P20 Max does not support)
Similar Products
In Stock
In Stock

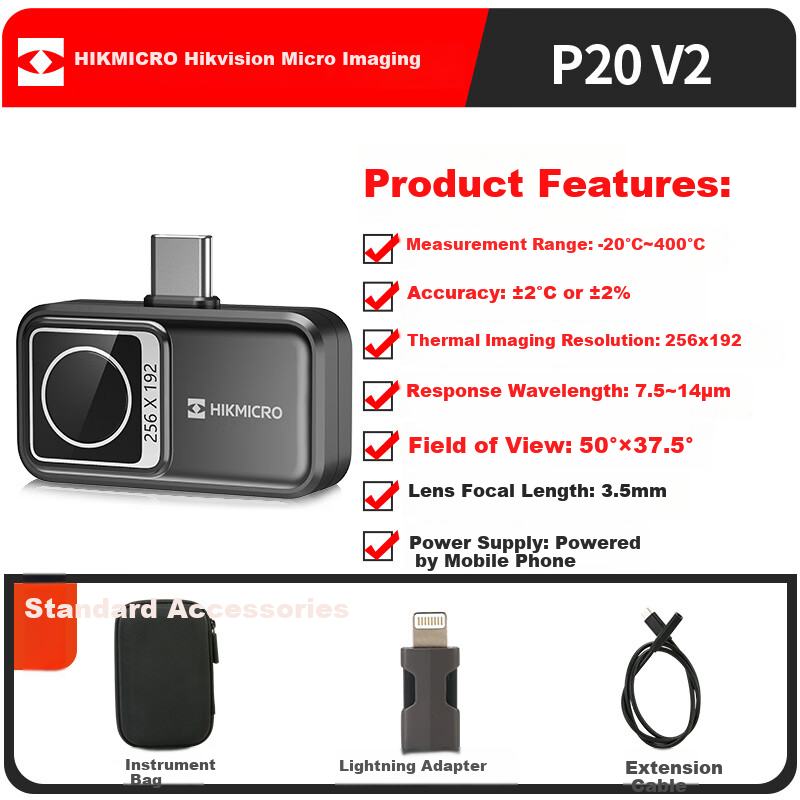

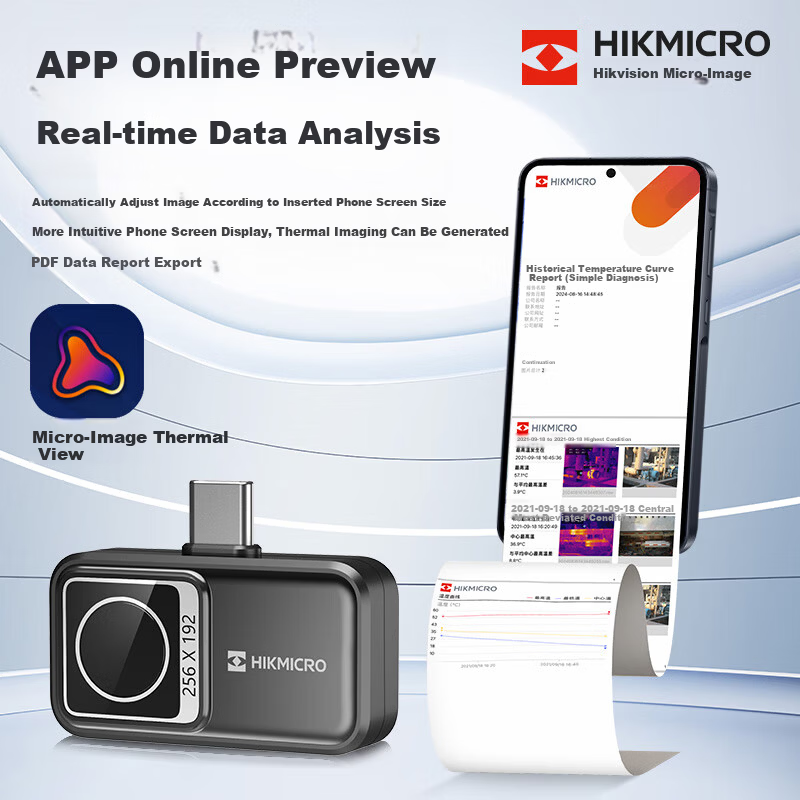

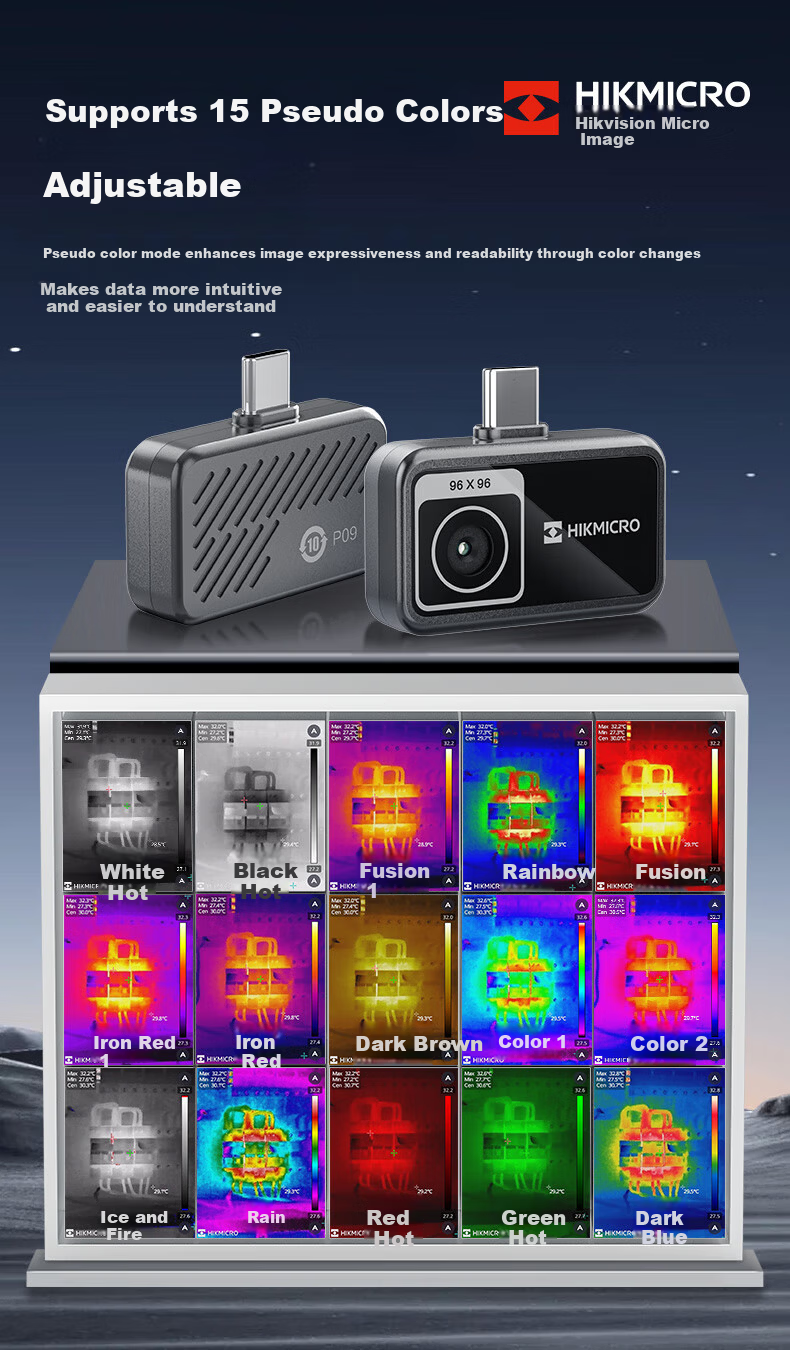

Thermal Sensitivity±2°C or ±2% Temperature Range-20°C to 400°C Temperature Accuracy±2°C or ±2% Measurement PointsUp to 196,608 points with ISR enabled; 49,152 points standard Measurement ModesCustomizable 3 points, 1 line, 3 boxes; automatic detection of max/min/center temperature points Temperature AlarmHigh and low temperature alarms supported (P20 Max does not support low temperature alarm) Image EnhancementHIKMICRO ISR image super-resolution technology for 4x image quality improvement Color Palettes15 selectable pseudo-color modes including White Hot, Black Hot, Fusion, Rainbow, Iron Red, Ice Fire, Rain, Red Hot, Green Hot, Deep Blue, etc. Image AdjustmentBrightness, sharpness, contrast adjustable Visual CameraVisible light camera integrated Image DisplayReal-time thermal image with temperature overlay, image rotation, zoom in/out Image OutputSupports photo and video capture; exportable PDF thermal analysis reports (PC software support for P20 Max V2 and P20 V2) CompatibilityAndroid and iOS systems; includes free Lightning adapter for Apple devices (except P20 Max) Plug and PlayInstant connection and measurement via mobile phone App SupportDedicated HIKMICRO thermal imaging app for real-time analysis and temperature rule configuration P20 Max V235 mm (height) × 26 mm (length) × 25 mm (width), lens diameter Φ20 mm P20 V231 mm (height) × 41 mm (length) × 11 mm (width) P0933 mm (height) × 41 mm (length) × 11 mm (width) Electrical power inspection

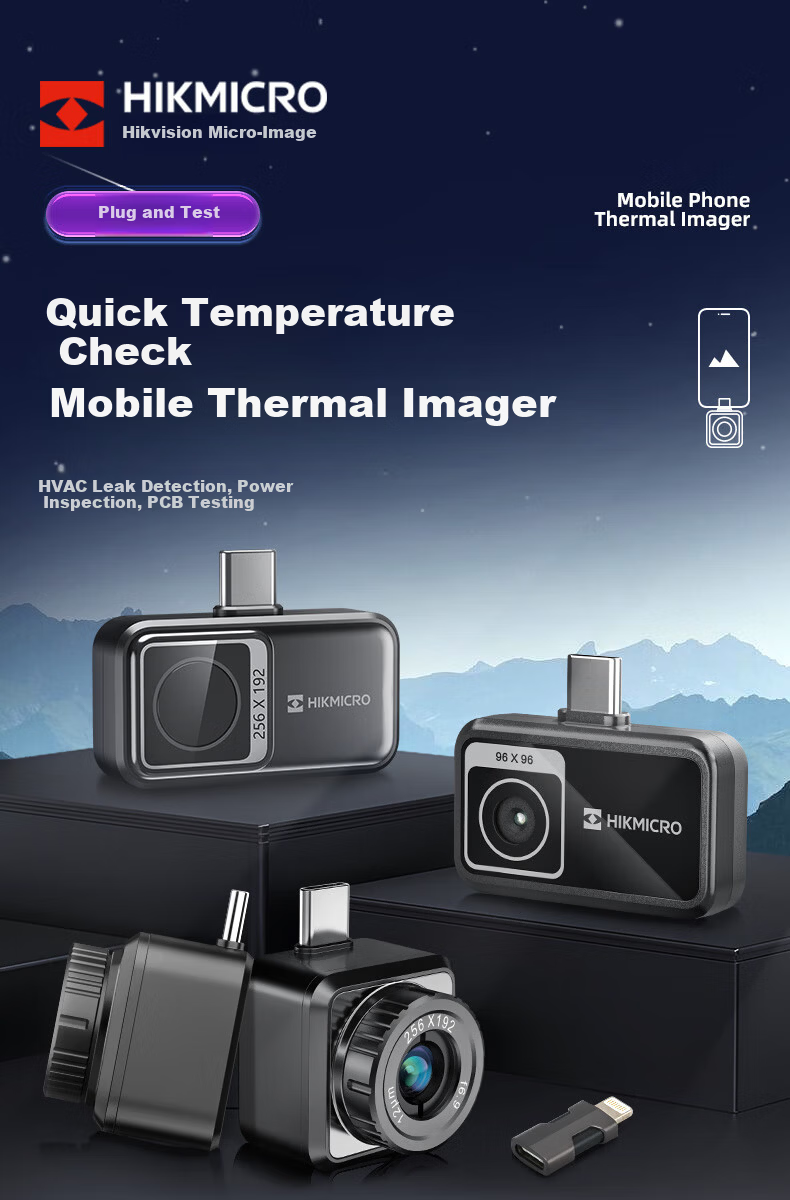

PCB and electronic component testing
Outdoor exploration and safety monitoring
Automotive repair and maintenance
Mechanical and pipeline leak detection

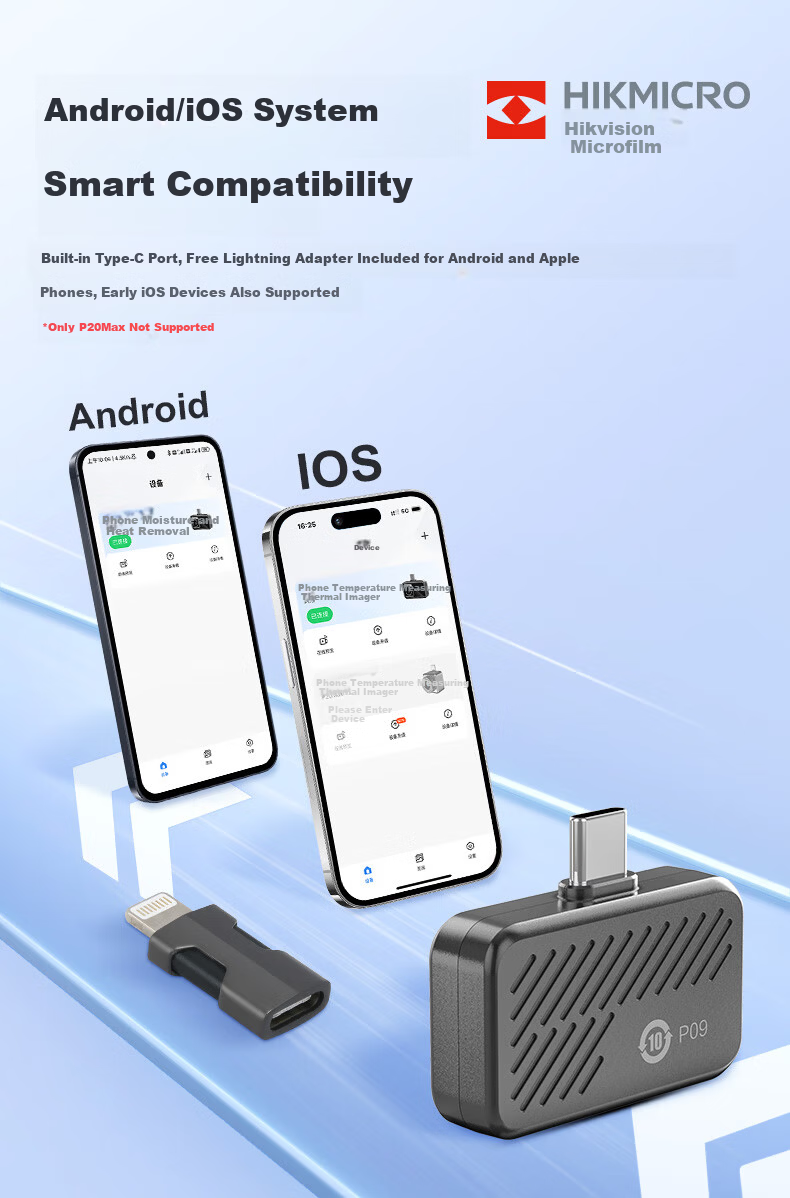

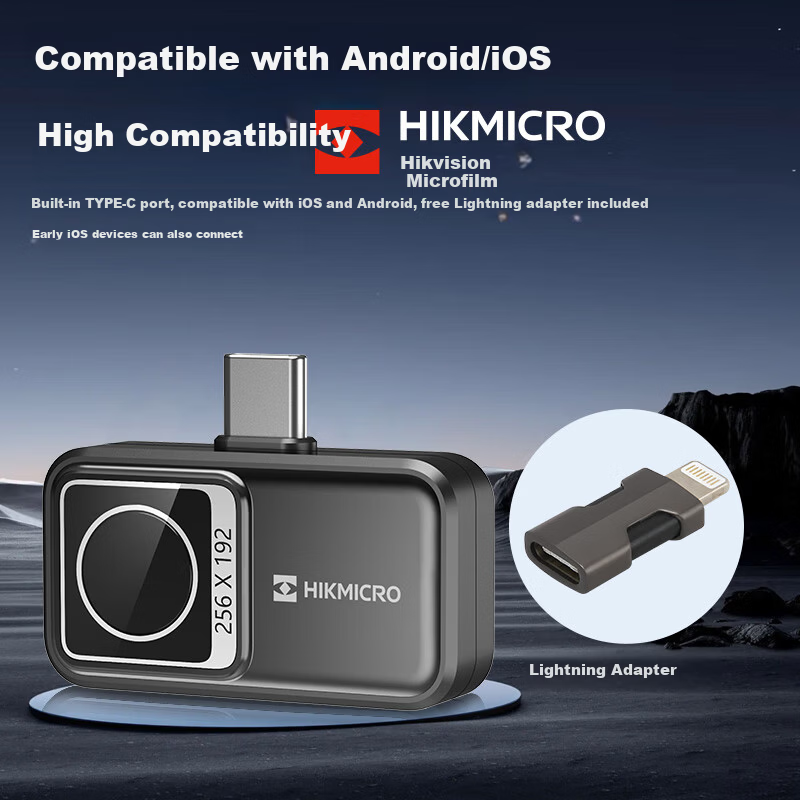

Lightning adapter (except P20 Max)

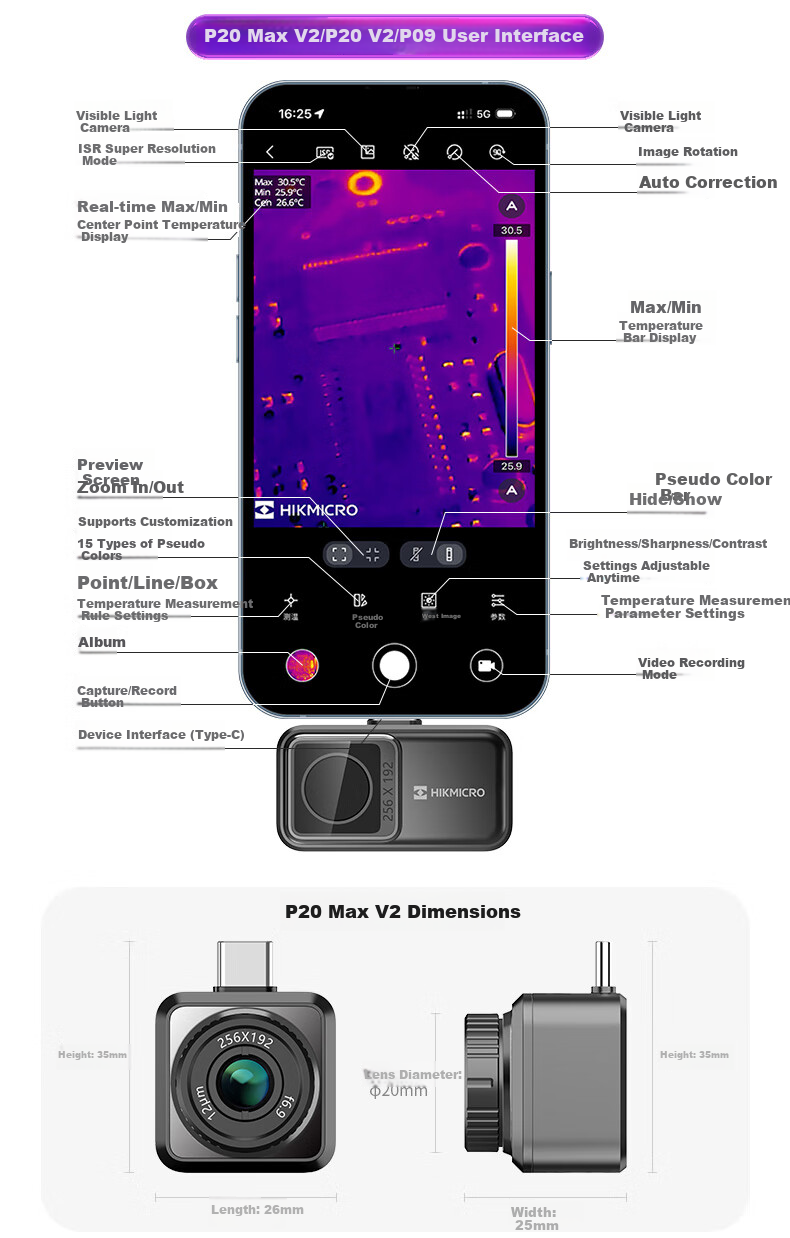

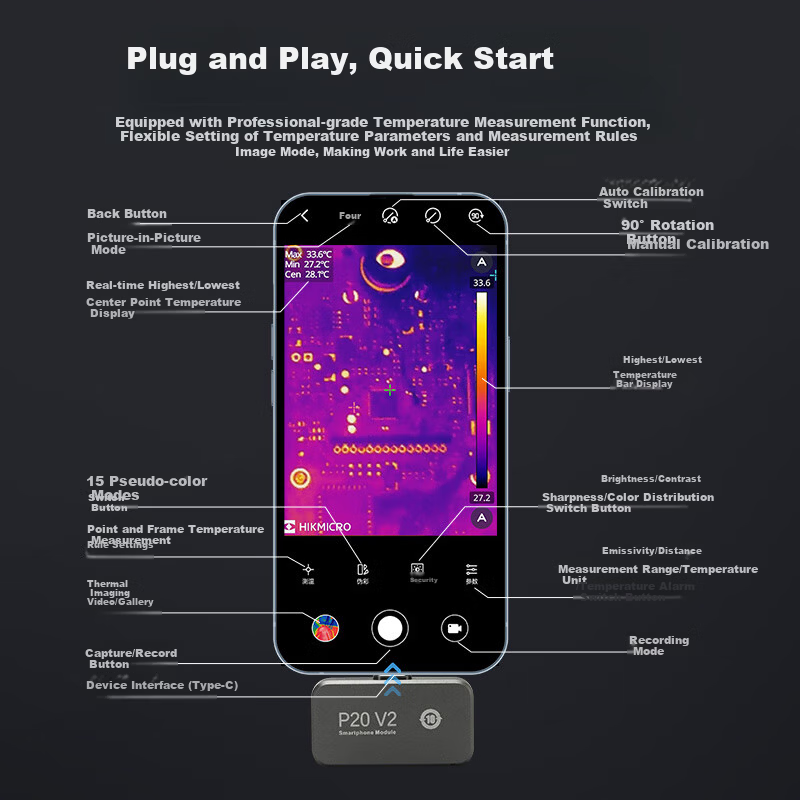

Real-time professional temperature analysis

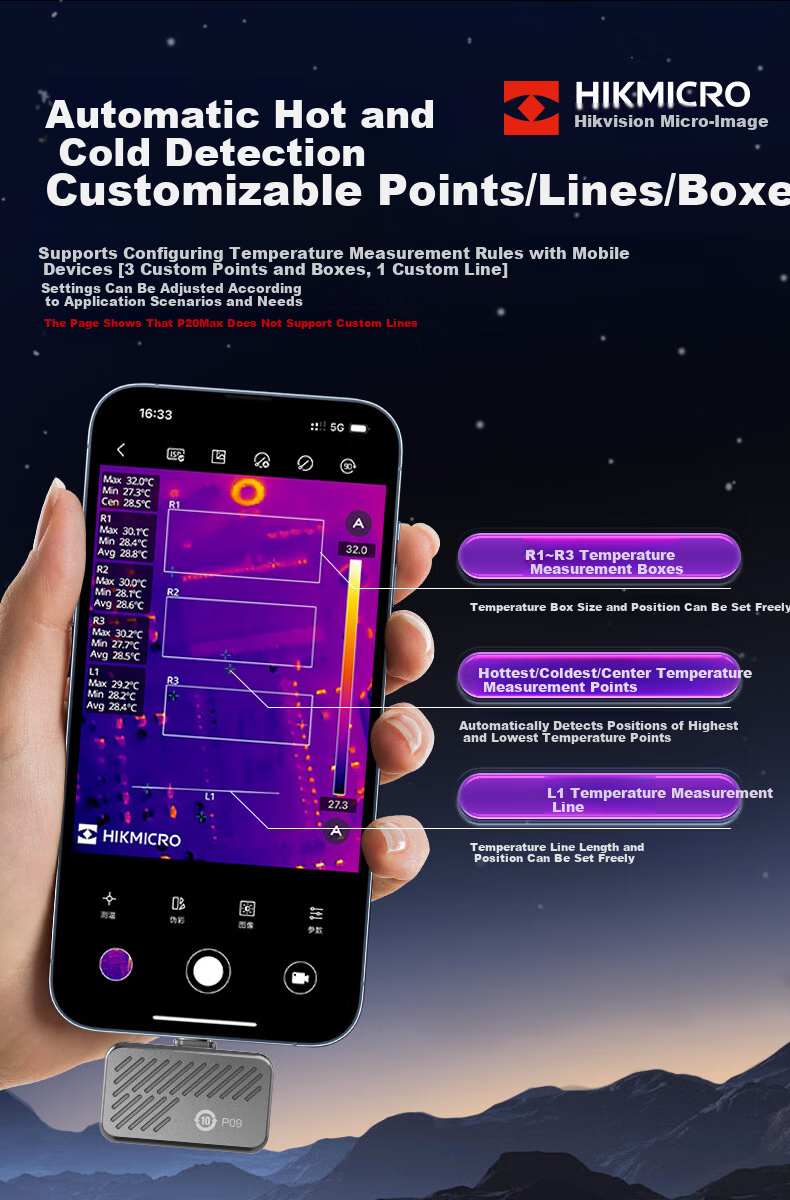

Customizable temperature measurement rules
Supports 3-point, 1-line, and 3-box temperature measurement configurations (P20 Max does not support custom line)
Automatic detection of hottest and coldest points

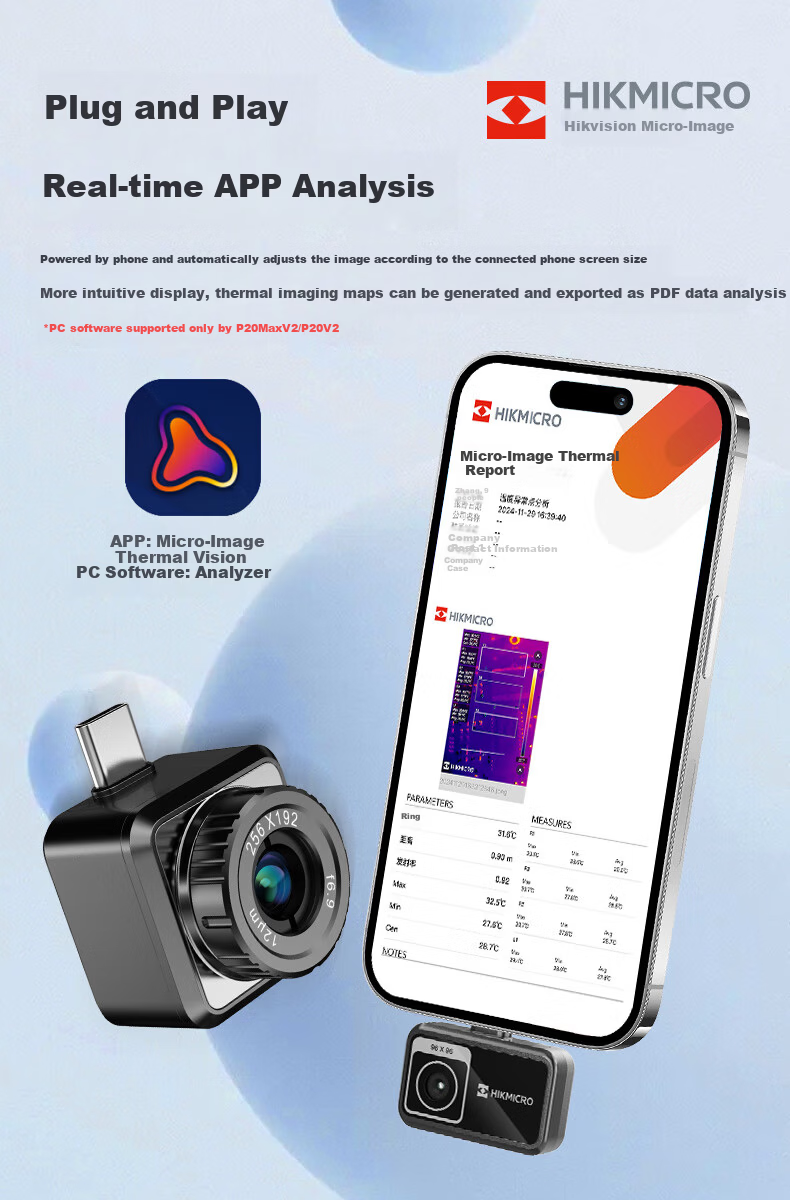

Supports PC software "Analyzer" for advanced data analysis (P20 Max V2 and P20 V2 only)

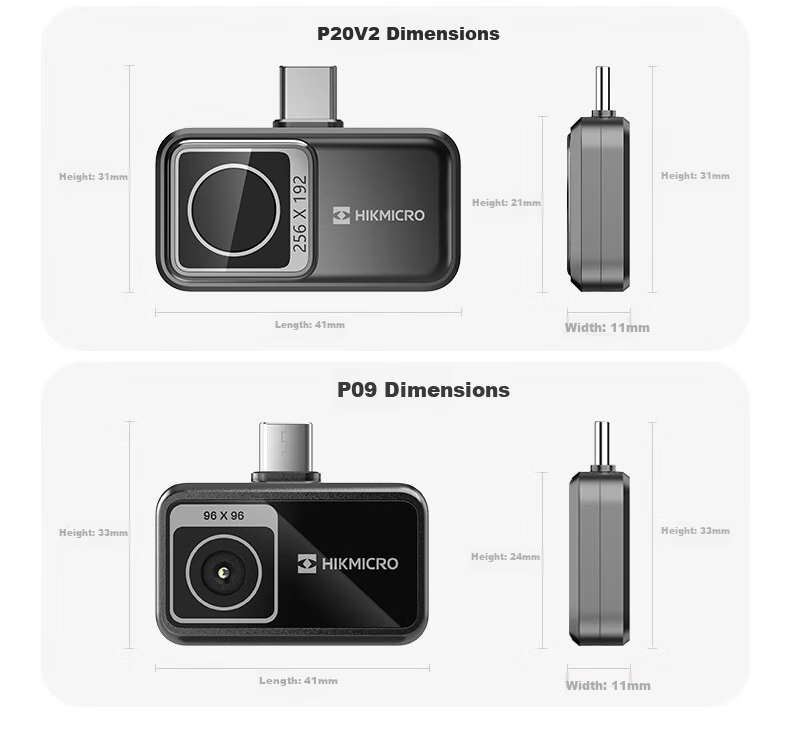

Small, portable design suitable for pocket carry
P20 Max model does not support ISR super resolution, custom line measurement, low temperature alarm, or Lightning adapter compatibility.
