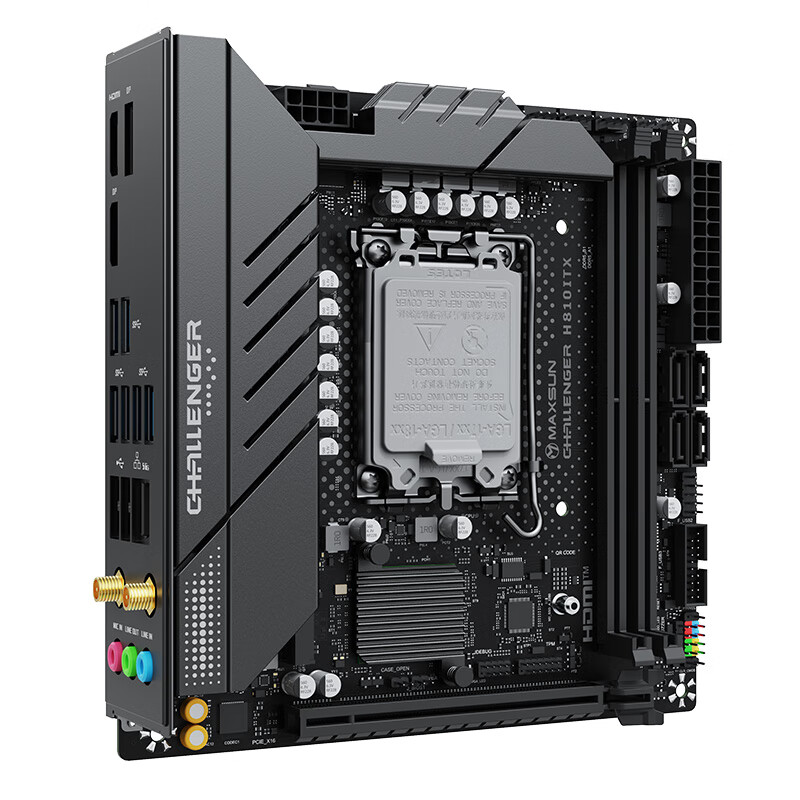

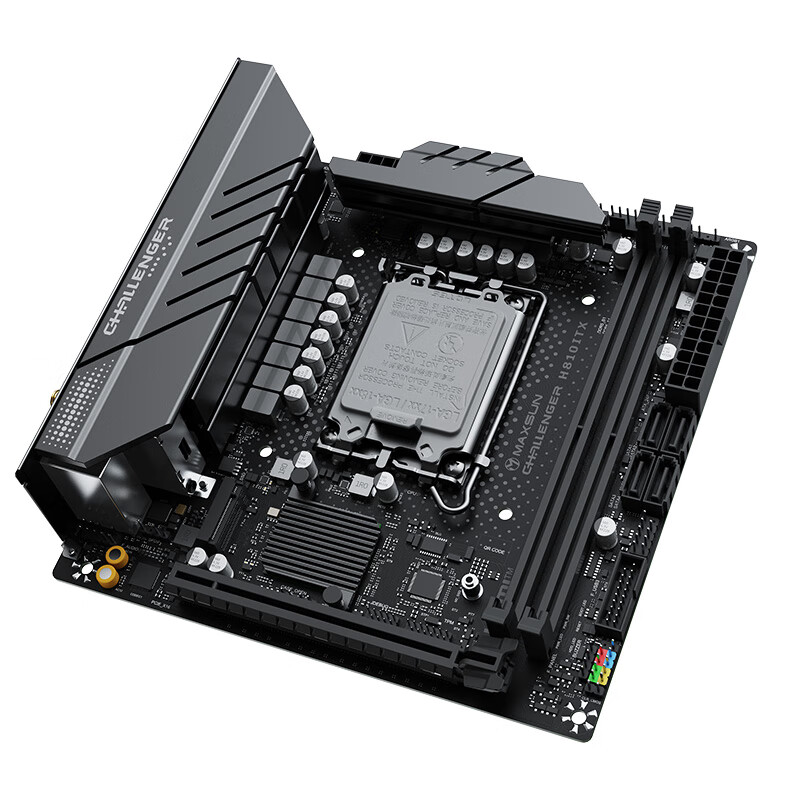

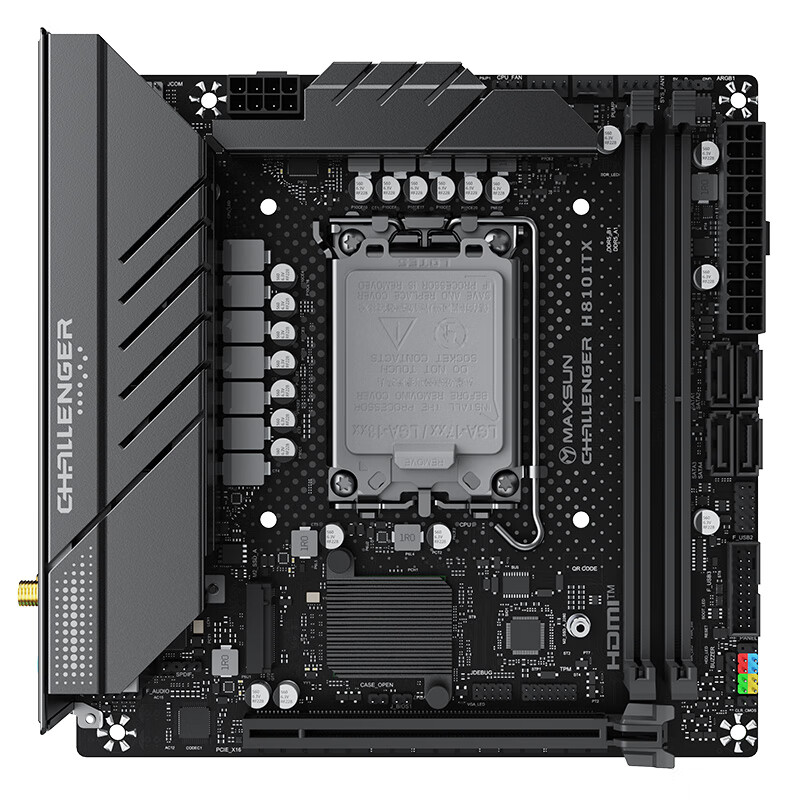

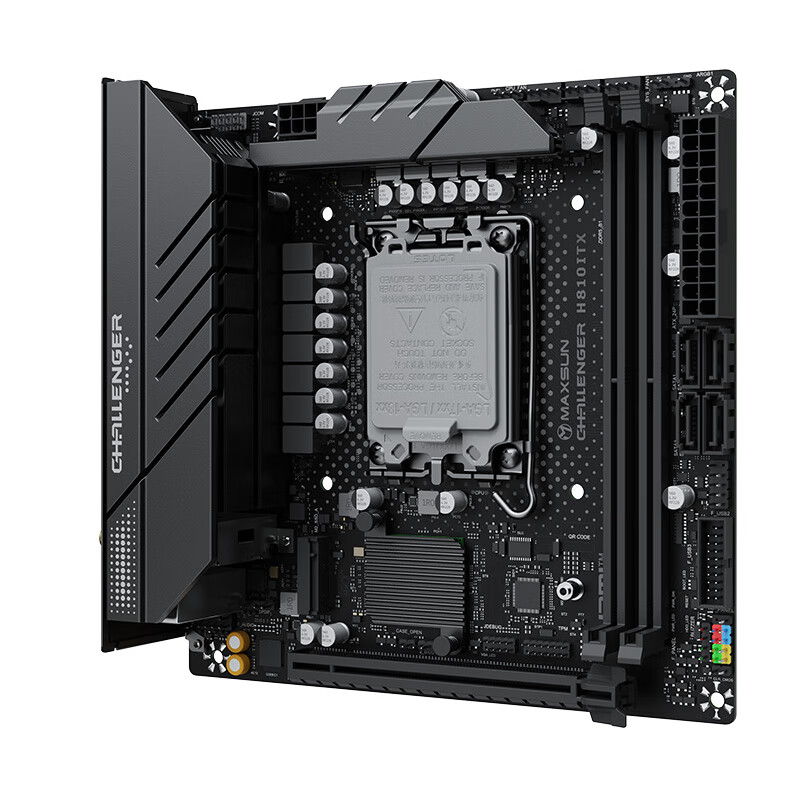

MAXSUN MS-Challenger H810ITX WIFI DDR5 CPU 245K/265KF Supported (Intel H810/LGA 1851) Motherboard

Supports XMP profiles

8+1+1 phase power supply

Equipped with RT3638A EPWM controller

Each phase uses 50A Dr.MOS for stable power delivery

1 x PCIe 5.0 x16 graphics slot

2 x M.2 slots (front and back), both supporting PCIe 4.0 x4/x2 modes and NVMe protocol, compatible with 2280 length SSDs

4 x SATA 6Gb/s ports

1 x HDMI 2.0 port supporting up to 4K @ 60Hz

2 x DisplayPort 1.4 ports supporting up to 4K @ 60Hz

1 x Intel I219V 1GbE Ethernet port

1 x Intel AX101 Wi-Fi 6 wireless card supporting Wi-Fi 6 and Bluetooth 5.2

Integrated Realtek ALC897 audio codec

1 x 24-pin ATX power connector

1 x 8-pin +12V CPU power connector

1 x 3-pin ARGB header

1 x COM port header (front panel)

1 x CLR_CMOS reset jumper

1 x 4-pin CPU fan header

1 x 4-pin water pump header

4 x 4-pin system fan headers

1 x TPM header

Stable power delivery with 8+1+1 phase 50A Dr.MOS design

Supports DDR5 high-speed memory with dual-channel technology

Dual PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs

PCIe 5.0 x16 graphics slot for next-generation GPUs

Integrated Wi-Fi 6 and Bluetooth 5.2 wireless connectivity

Distributed Debug Diagnostic LEDs for quick fault detection (CPU, DRAM, DDD, BOOT, VGA)

MAXSUN Sync lighting control software for customizable RGB lighting effects

User-friendly design for easy maintenance and troubleshooting
