Back to CatalogZebra ZD421T/CN Label Printer Thermal Adhesive Paper QR Code Thermal Transfer Barcode Printer GT800 Upgrade Model
Specifications
- Barcode Type
- Bar code, QR Code
- Category
- Label/Barcode Printer
- Port Type
- USB, Bluetooth
Variants / Sale Attributes
size: ZD421T (GT800 upgraded version) | Includes consumables
Package Contents
host*1, power cord*1, manual*1
Product Description
Product Specifications
Overview
- Brand
- ZEBRA
- Model
- ZD421T (Upgraded version of GT-800 and ZD420T series)
- Printer Type
- Desktop label printer
- Printing Method
- Thermal transfer and direct thermal
- Print Resolution
- 203 dpi (8 dots/mm) standard; optional 300 dpi (12 dots/mm); resolution can be changed on-site via accessory toolkit
- Print Speed
- Up to 4 inches per second (102 mm/s) at 300 dpi; up to 6 inches per second (152 mm/s) at 203 dpi
Similar Products
In Stock
Out of Stock

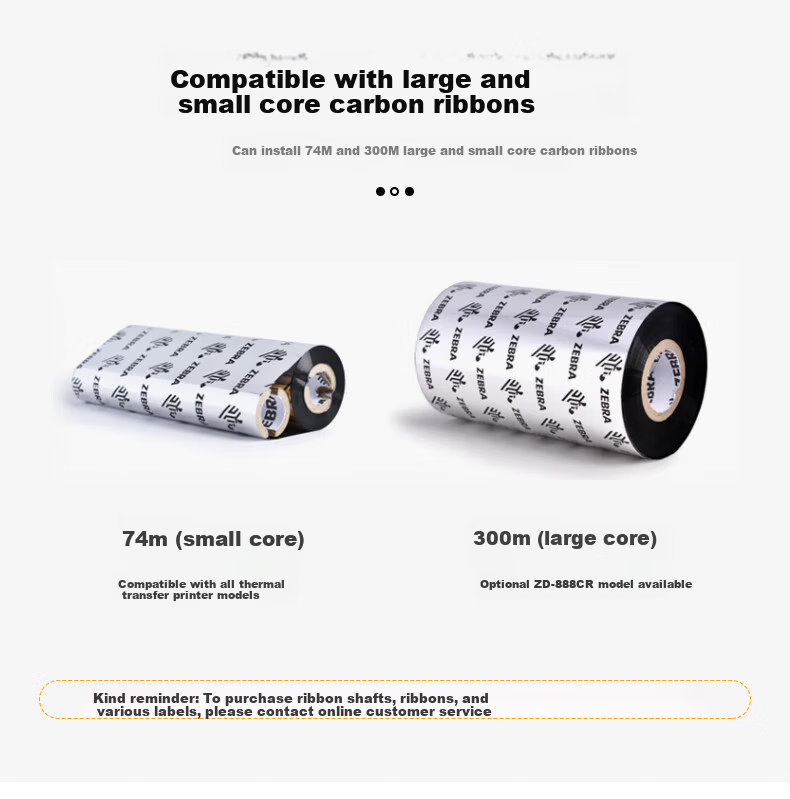

Maximum Print Length39.0 inches (991 mm) Memory512 MB Flash; 256 MB SDRAM (with factory-installed network options); 512 MB Flash; 128 MB SDRAM (without network options) Supported Programming LanguagesZPL, EPL, XML, ZBI Media Width0.585 inches (15 mm) to 4.65 inches (118 mm) Media Thickness0.003 inches (0.08 mm) minimum to 0.0075 inches (0.1905 mm) maximum Media TypesRoll-fed, fan-fold, die-cut, continuous with or without black mark, signage materials, continuous receipt paper, wristbands Maximum Media Roll Diameter5.00 inches (127 mm) Core Sizes Supported0.5 inch (12.7 mm) and 1.0 inch (25.4 mm) standard; optional adapters for 1.5 inch (38.1 mm), 2.0 inch (50.8 mm), and 3.0 inch (76.2 mm) Ribbon Width1.33 inches (33.8 mm) to 4.3 inches (109.2 mm) Ribbon Length984 feet (300 meters) standard; 244 feet (74 meters) optional Ribbon Core Diameter1 inch (25.4 mm) for 300 m ribbon; 0.5 inch (12.7 mm) for 74 m ribbon Ribbon to Media Ratio1:4 for 300 m ribbon; 1:1 for 74 m ribbon Full-width movable reflective/black mark sensor
Multi-position transmissive/gap sensor

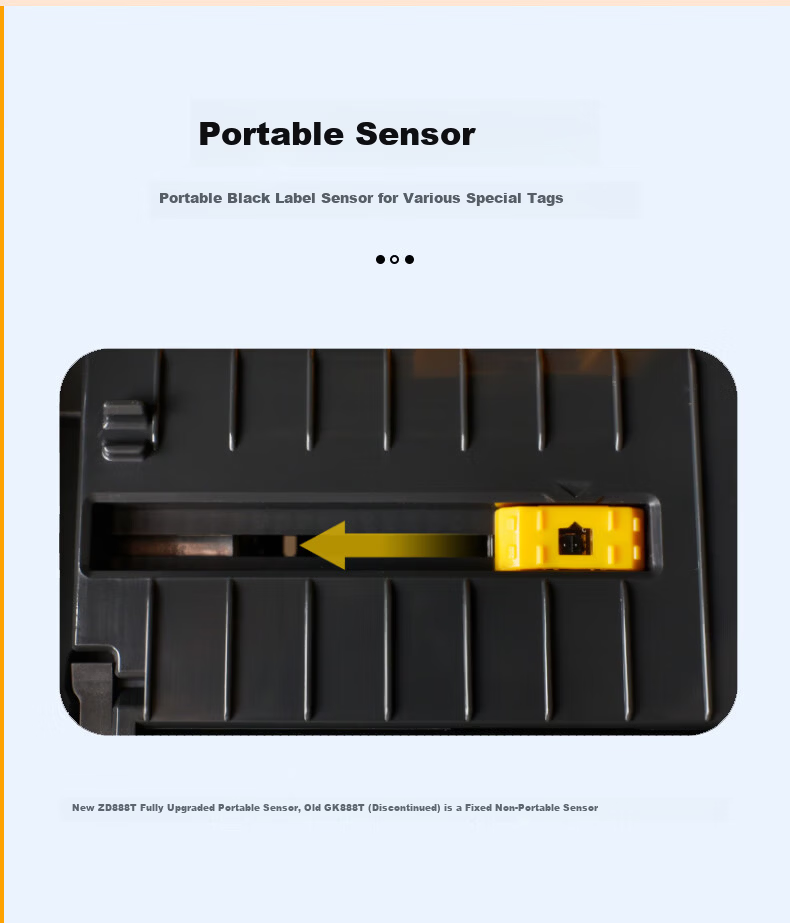

Movable sensors to accommodate various special labels
Additional details
- Standard
- USB 2.0, USB Host, Power port
- Optional
- Ethernet, Serial port, Bluetooth 4.1, Wi-Fi
Optional interfaces/modules must be factory-installed; contact customer service for configuration
Additional details
- Front-facing control buttons
- Power on/off, Feed, Pause, Cancel
- Five status indicator LEDs
- STATUS, PAUSE, DATA, SUPPLIES, NETWORK

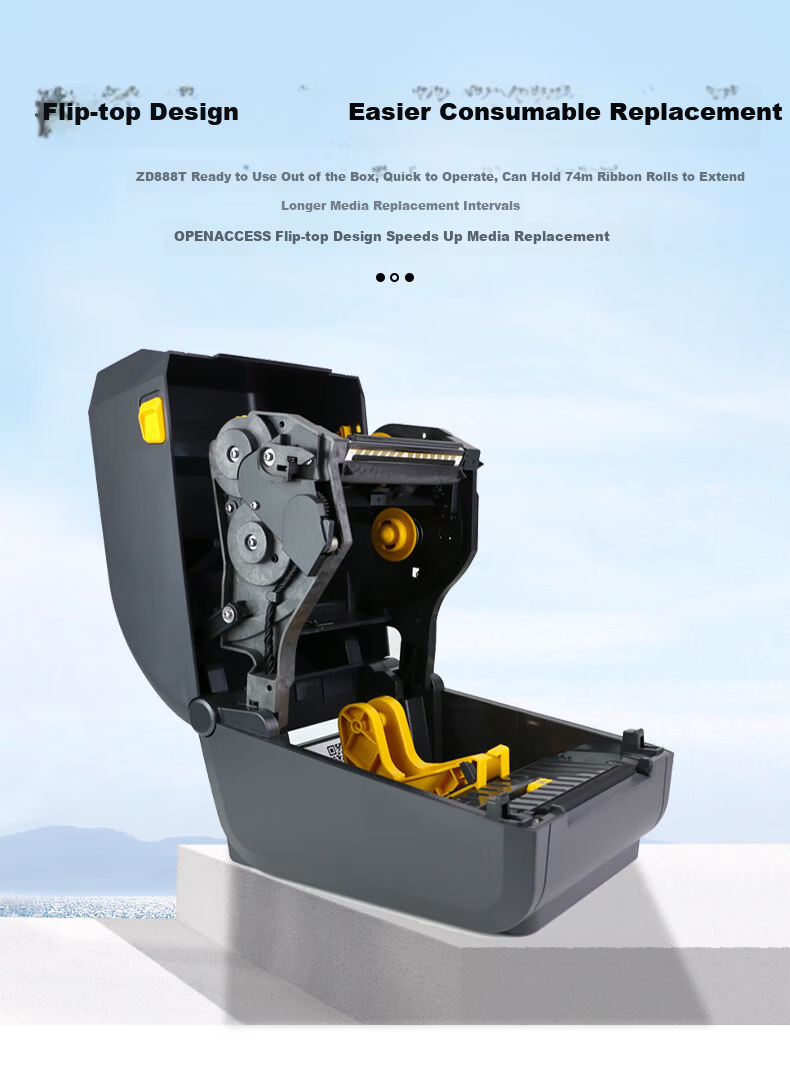

OpenACCESSâ„¢ design for easy media loading

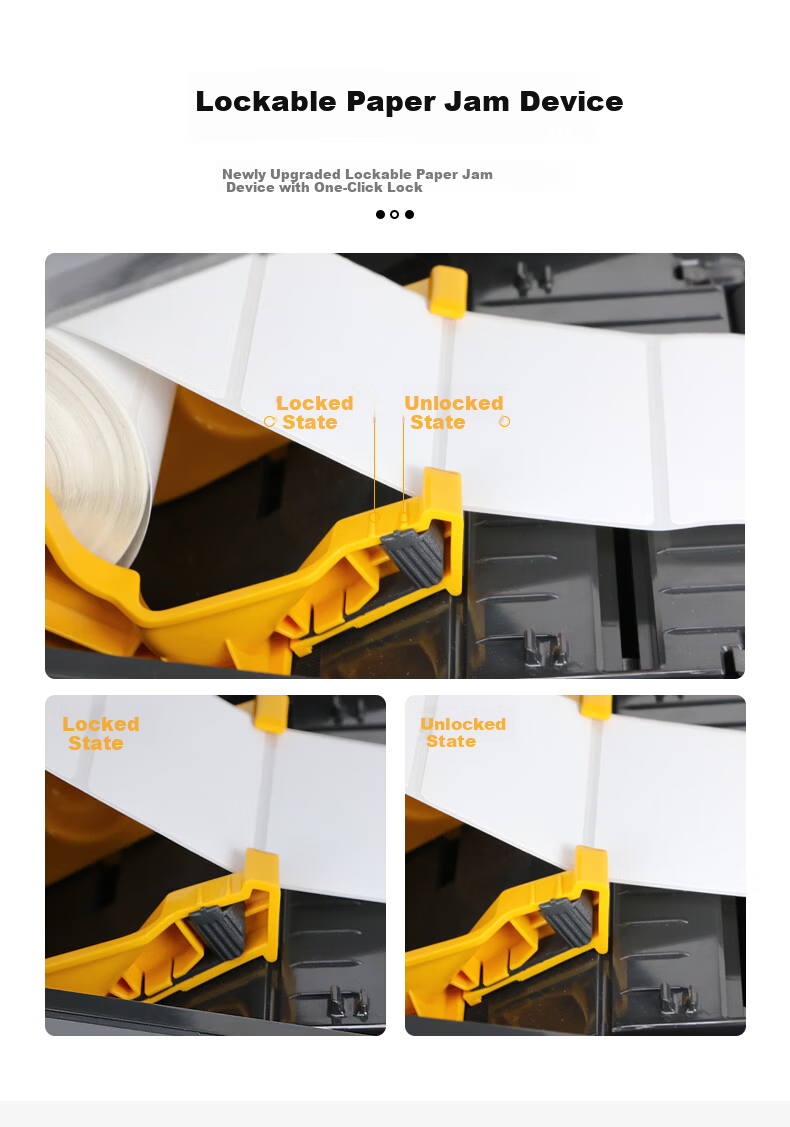

Lockable paper jam release with upgraded roller-style one-button lock mechanism
ZD421D (Direct Thermal)
| Item | Detail |
|---|
| Length | 8.69 inches (220.8 mm) |
| Width | 6.98 inches (177.5 mm) |
| Height | 5.93 inches (150.7 mm) |
| Weight | 3.6 lbs (1.6 kg) |
ZD421T (Thermal Transfer)
| Item | Detail |
|---|
| Length | 10.5 inches (267 mm) |
| Width | 8.0 inches (202 mm) |
| Height | 7.5 inches (192 mm) |
| Weight | 5.3 lbs (2.4 kg) |
Additional details
- Operating Temperature
- 40°F to 105°F (4.4°C to 41°C)
- Storage Temperature
- -40°F to 140°F (-40°C to 60°C)
- Operating Humidity
- 10% to 90% non-condensing
- Storage Humidity
- 5% to 95% non-condensing
Auto-sensing power supply (PFC compliant)
Additional details
- Input Voltage
- 100-240 VAC, 50-60 Hz
Supports ZEBRA LabelShop software (version 5.11.1619)
Compatible with TXT, Word, Excel, Access, and text documents
Supports 1D and 2D barcode printing
Supports various label formats including product tags, price tags, shipping labels, garment tags, jewelry tags, and care labels

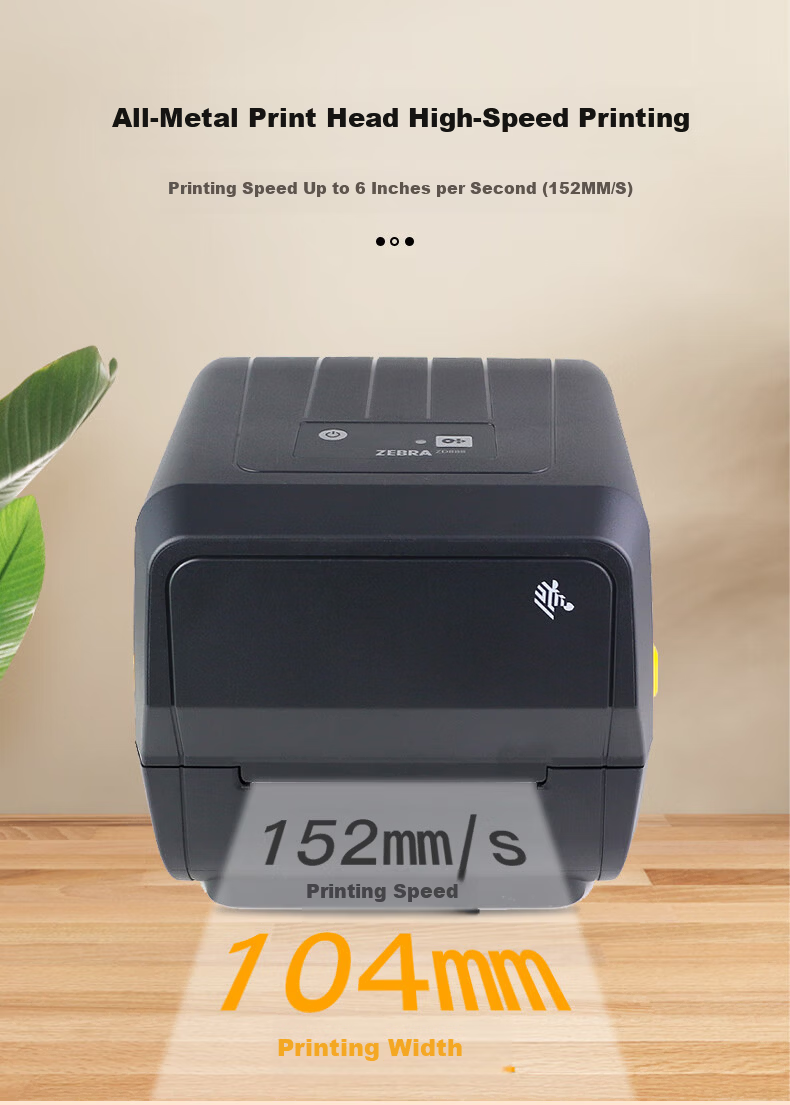

Full metal printhead for high-speed printing
Supports printing on various media including thermal paper, coated paper, matte silver PET, and more
Additional details
- Suitable for multiple industries
- express logistics, warehouse management, catering, apparel, healthcare, light industry
Lifetime technical support included
Comes with carbon ribbon, label paper, and editing software included
