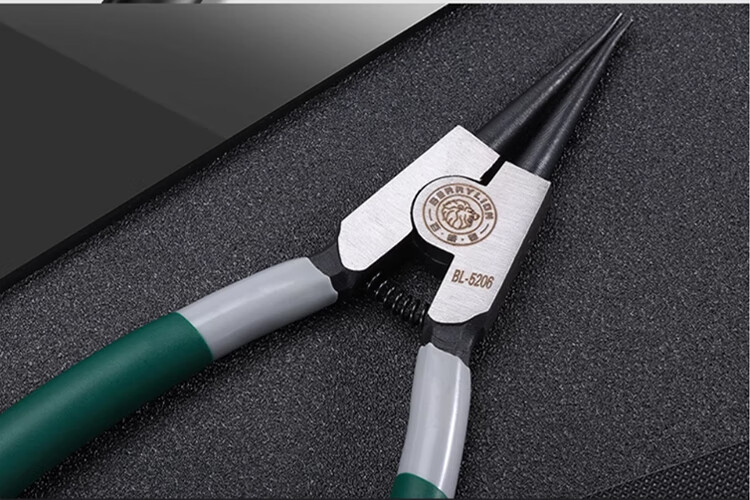

BERRYLION Japanese Style Snap Ring Pliers Set, Circlip Pliers, Opening and Expanding Spring Retaining Ring Pliers, 5-Inch 4-Piece Household Kit with Tool Bag

Precision forged tips with anti-slip design to prevent slipping during use

Internal circlip pliers (for grooves inside holes)

External circlip pliers (for grooves on shafts)

Smooth and polished plier body surface for corrosion resistance and aesthetics

Ergonomic handle design for comfortable grip and efficient operation

Suitable for installing and removing circlips in automotive repair, machinery manufacturing, and maintenance

Ideal for engine circlips, transmission circlips, precision components, steel ropes, and iron wires

Used for fixing bearings on shafts or inside holes

1. Adjust the plier tips to fully insert into the circlip groove.

2. Squeeze the handles to open the circlip diameter.

3. Place the circlip around the bearing or shaft.

4. Release the handles to secure the circlip in place.

5. For removal, first release the tension on the circlip before extracting.

| Size (inch) | Tip Diameter (mm) | Circlip Groove Diameter Range (mm) | Usage Range (mm) |

|-------------|-------------------|-----------------------------------|------------------|

| 5" | 1.2 | 1.2 – 1.6 | 3 – 15 |

| 6" | 1.6 | 1.6 – 2.1 | 6 – 15 |

| 6" | 2.0 | 2.1 – 2.3 | 10 – 40 |

| 8" | 2.2 | 2.3 – 2.7 | 12 – 65 |

| 8" | 2.2 | 2.3 – 2.7 | 32 – 80 |

| 13" | 3.0 | 3.1 – 3.4 | 40 – 120 |

Measurements are manual and may have slight deviations; actual product dimensions prevail.

Select circlip pliers according to the marked acceptable circlip diameter to avoid damage.

Two different usage methods exist; please refer to the usage diagram.

The plier tips are prone to overload; always release tension before removing the pliers.
