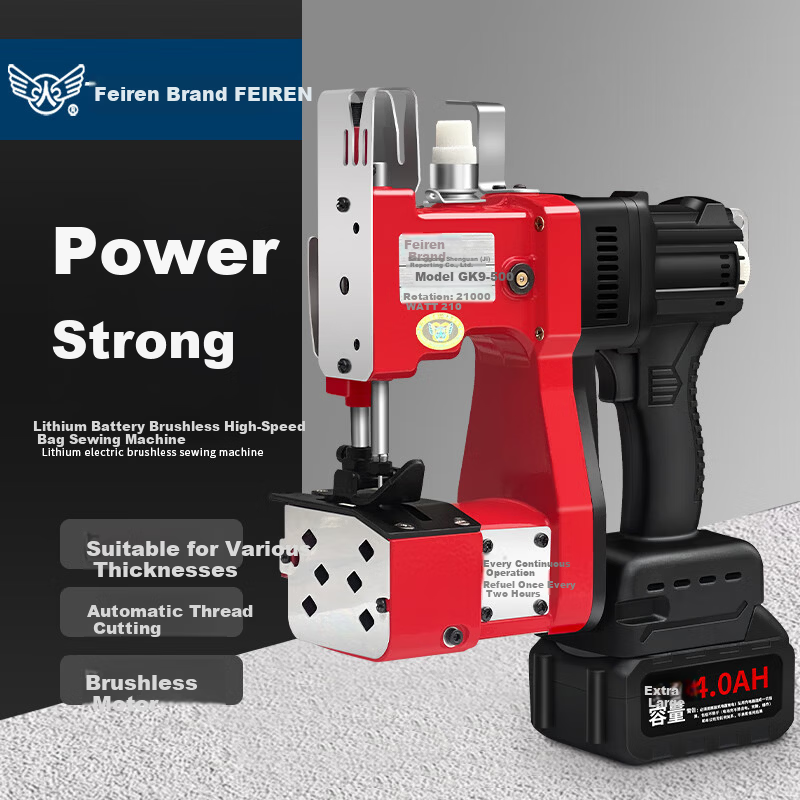

Back to CatalogFeiren GK9-500 Portable Brushless Sewing Bag Sealing Machine Small Woven Bag Sealer Packing Machine
Specifications
- How it works
- Charging
- Type
- Portable
Variants / Sale Attributes
Color: GK9500 Lithium Battery [Brushless Motor]
Package Contents
Packing machine *1, instruction manual *1, warranty card *1
Product Description

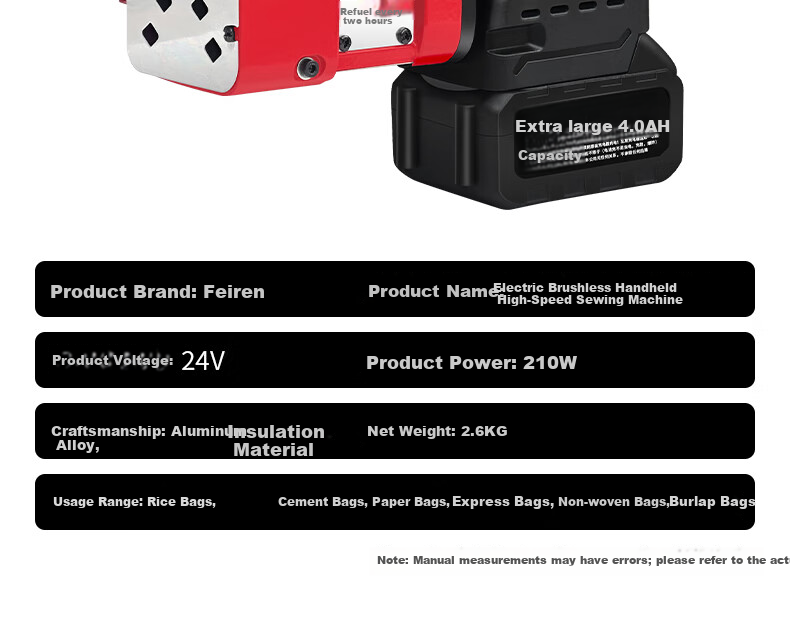

Product Specifications
Overview
- Brand
- Feiren ( FEIREN)
- Model
- GK9-500
- Type
- Brushless High-Speed Handheld Sewing Machine
- Motor
- Brushless motor, upgraded for longer lifespan
- Power
- 210W
- Voltage
- 24V
- Speed
- 21,000 RPM
- Battery Capacity

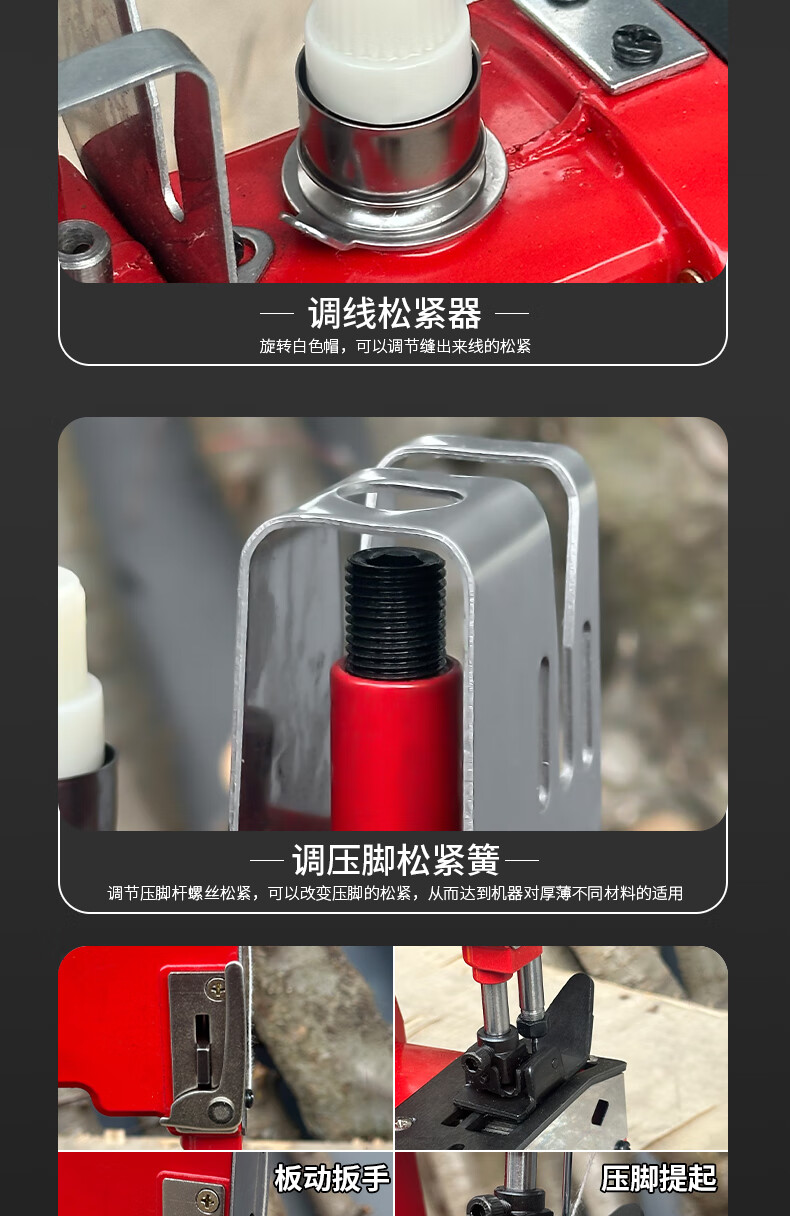

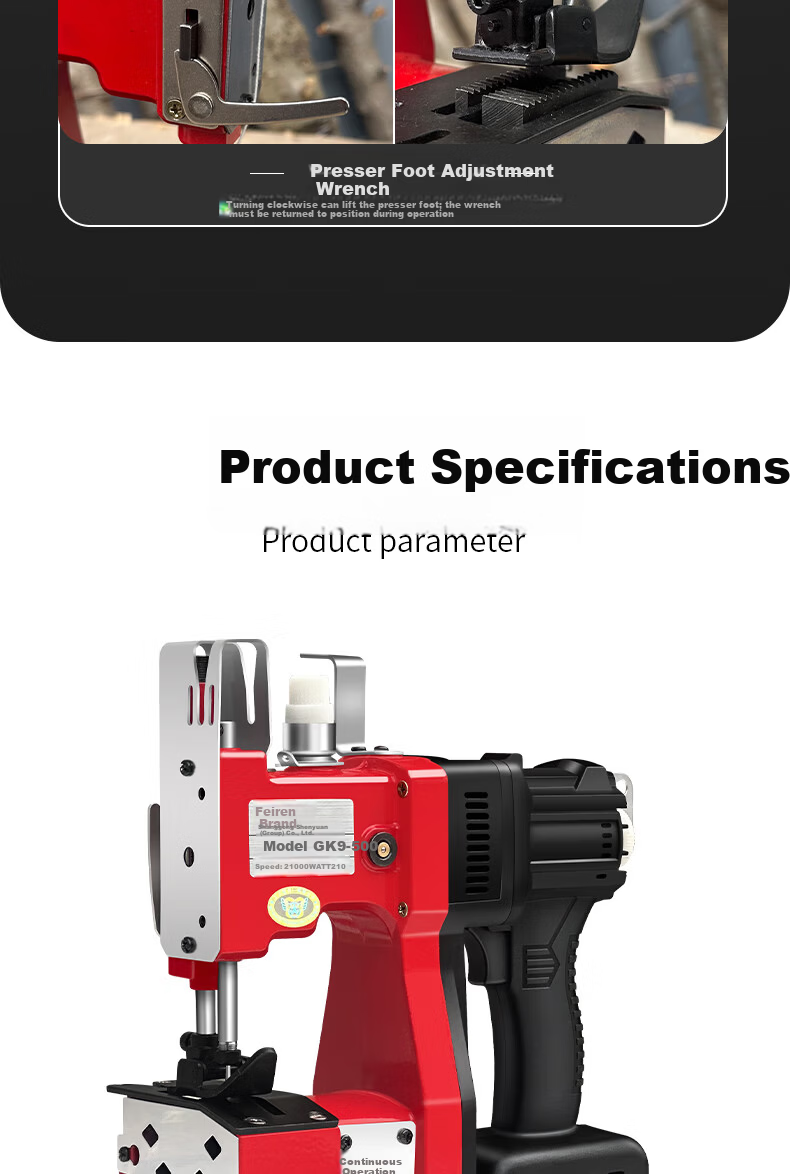

Weight2.6 kg (net weight) MaterialAluminum alloy body with insulating materials HandleErgonomically designed, comfortable grip with safety insulation, suitable for long-term use OperationHandheld, brushless motor ensures less fatigue and more comfort during use Usage ScopeSuitable for sewing rice bags, cement bags, paper bags, express bags, non-woven bags, burlap bags, and similar materials Adjustable presser foot with clockwise lever to lift and return during operation
Continuous operation recommended with oiling every two hours

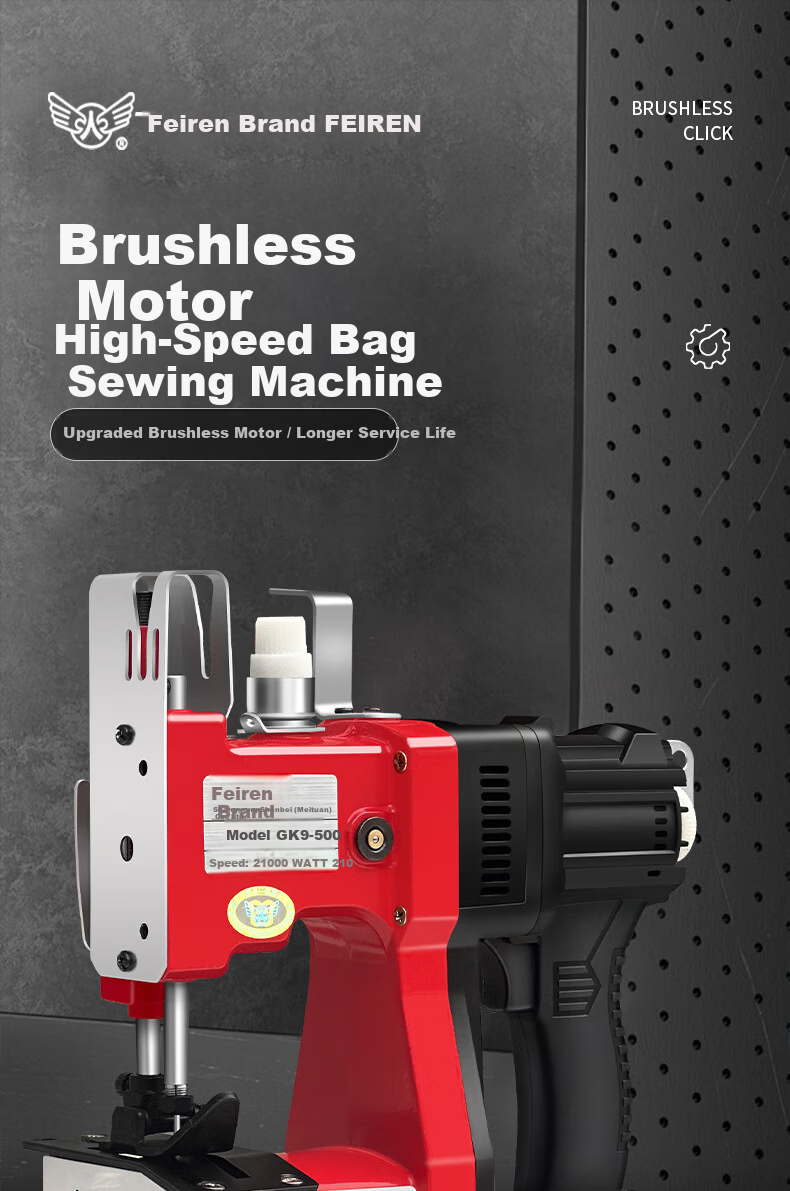

High-speed stitching with brushless motor technology

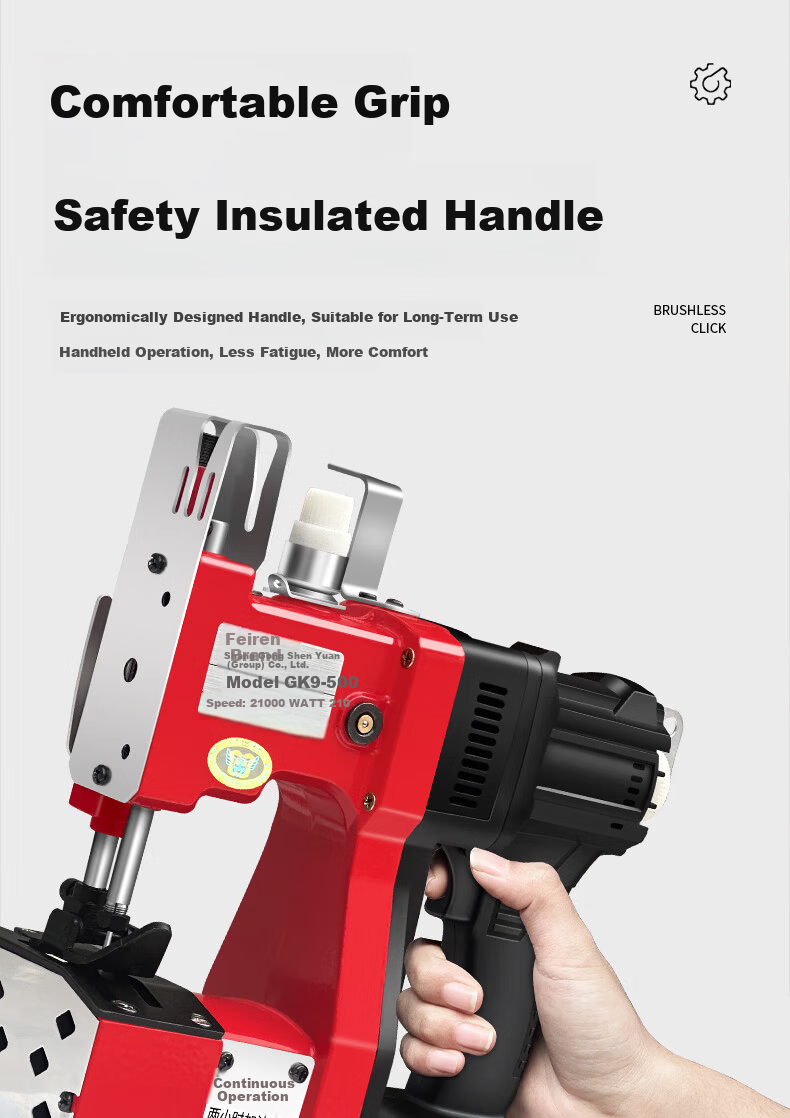

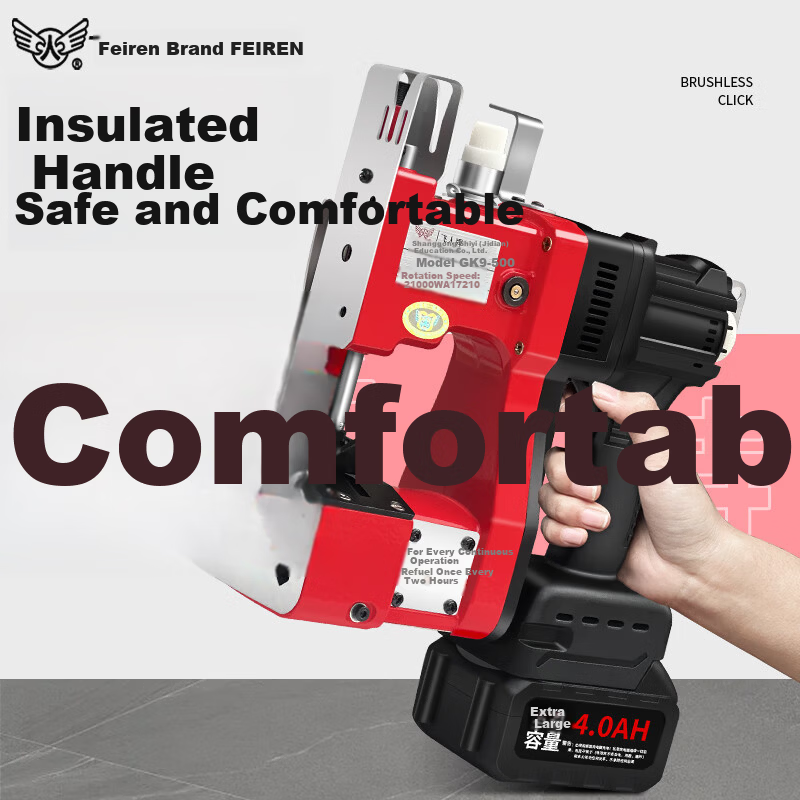

Comfortable and safe insulated handle design
1. Charging port must not contact any metal objects to avoid electric shock.
2. Do not use or charge in high temperature, corrosive, flammable, or explosive environments.
3. Charging must be supervised; avoid charging unattended or at night.
4. If unused for long periods, charge battery every 30 days to prevent deep discharge.
5. Use only the designated charger supplied with the machine.
Additional details
- 6. Optimal battery storage temperature
- 20-35°C.
7. Avoid short-circuiting battery terminals.
8. Do not disassemble the battery.
9. Keep battery away from high temperature, water, acids, or corrosive liquids.
10. Do not strike, step on, modify, or expose battery to direct sunlight or microwave/high-pressure environments.
Additional details
- 11. Lithium battery charging temperature range
- 0°C to 45°C; discharging temperature range: -20°C to 60°C.
12. Charging voltage must not exceed maximum; discharging voltage must not fall below minimum operating voltage.
13. Strictly prohibit fire or water exposure near lithium batteries.
Additional details
- Needle Breakage
- Caused by thick sewing, bent or misaligned needle, or loose presser foot/hook screws. Replace needle or tighten screws as needed.
- Skipped Stitches
- Caused by incorrect threading, poor thread tension, hook not catching thread, or incorrect needle installation. Check threading, replace hook or needle.
- Thread Breakage
- Caused by rough needle eye or groove, misaligned thread guide, or overly tight presser foot. Replace needle, adjust thread guide and presser foot tension.
- Motor Issues
- Non-operation or intermittent operation may be due to worn carbon brushes or faulty switch. Replace carbon brushes or repair switch.
- Feeding Problems
- Caused by dull presser foot surface, worn feed teeth, or improper feed height. Replace or adjust parts accordingly.
- Hook Not Moving
- Caused by worn or missing belt pulley key. Replace pulley and check key.
For additional issues or technical support, please contact Feiren customer service for professional assistance.
Manual measurements may have slight deviations; actual product shall prevail.
