Nanfang High-Precision 32x Auto-Level Indoor Elevation Road Height Difference Surveying Instrument

南方•Level gauge

Nanfang High-Precision 32x Auto-Level Indoor Elevation Road Height Difference Surveying Instrument

CN¥470.00

SKU: 100154760049

Status:Out of Stock

ID: 100154760049

Weight: 2390.00 g

Dims:308x229x225 mm

Specifications

precision: precision
Category: Automatic leveling water level instrument

Variants / Sale Attributes

Model: Southern Level Instrument Standalone + Manual

Package Contents

Level instrument main unit *1

Product Description

Product Specifications

Overview

Brand: SOUTH ()

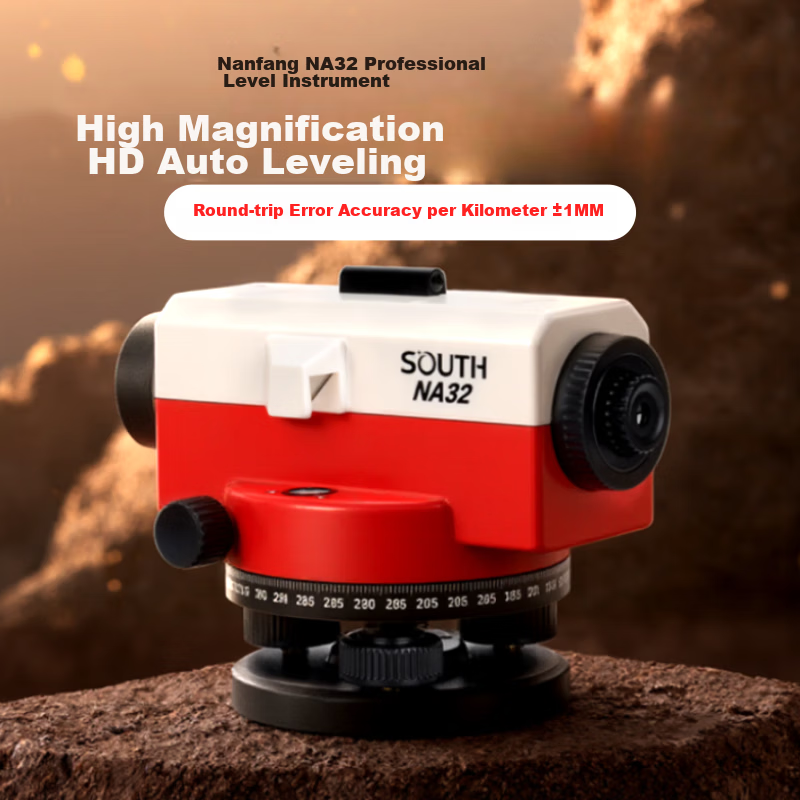

Model: NA32 Professional Level Instrument
High magnification and high definition: 32x magnification with 40 mm large aperture objective lens for clearer and brighter imaging.

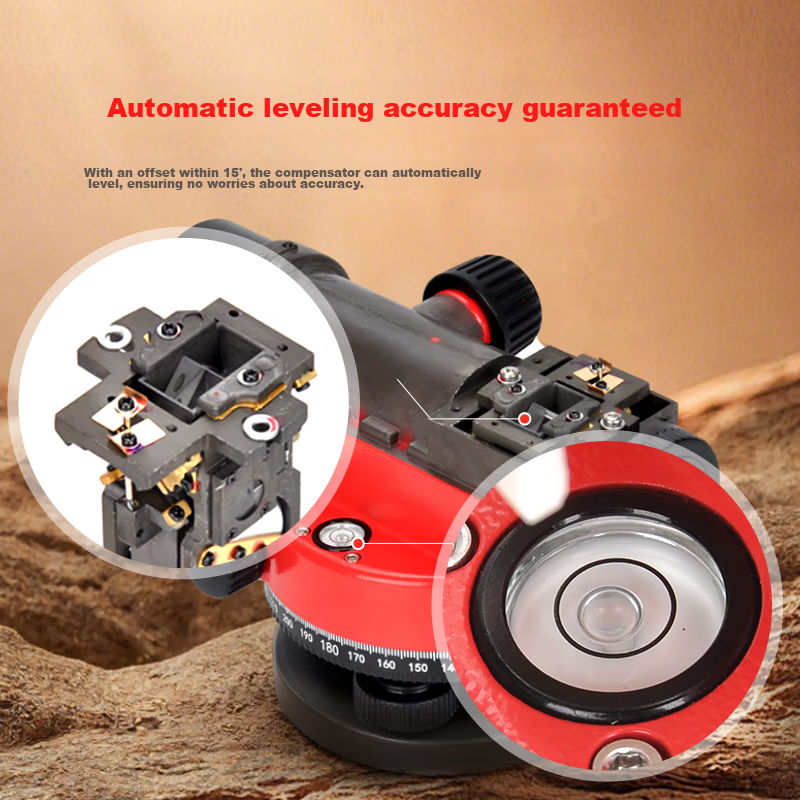

Automatic leveling: Copper air-damping compensator with ±15' automatic leveling ensures measurement stability and accuracy.

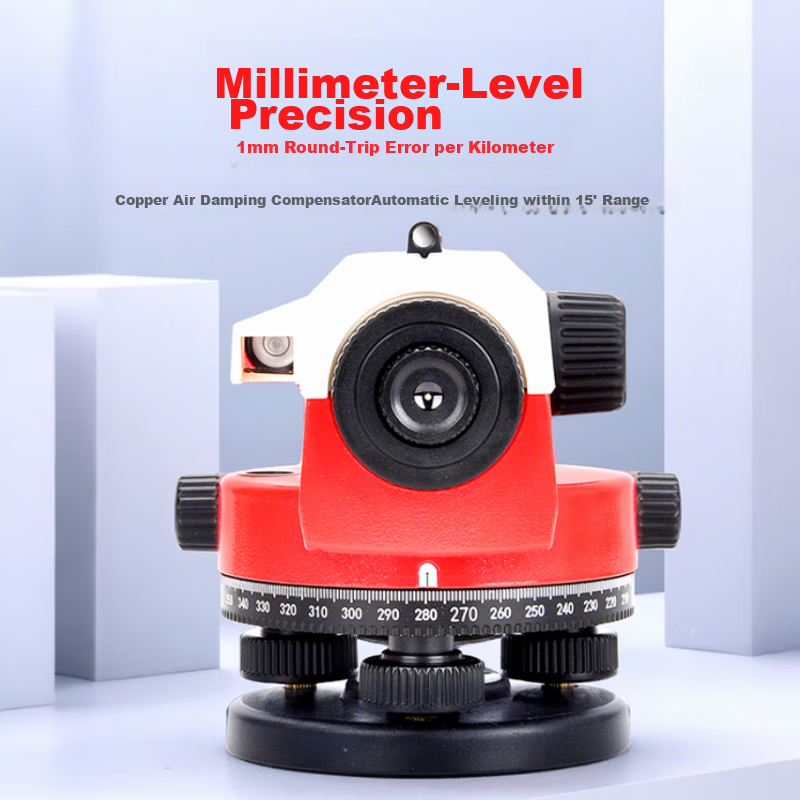

Measurement accuracy: Millimeter-level precision with a round-trip error of ±1 mm per kilometer.

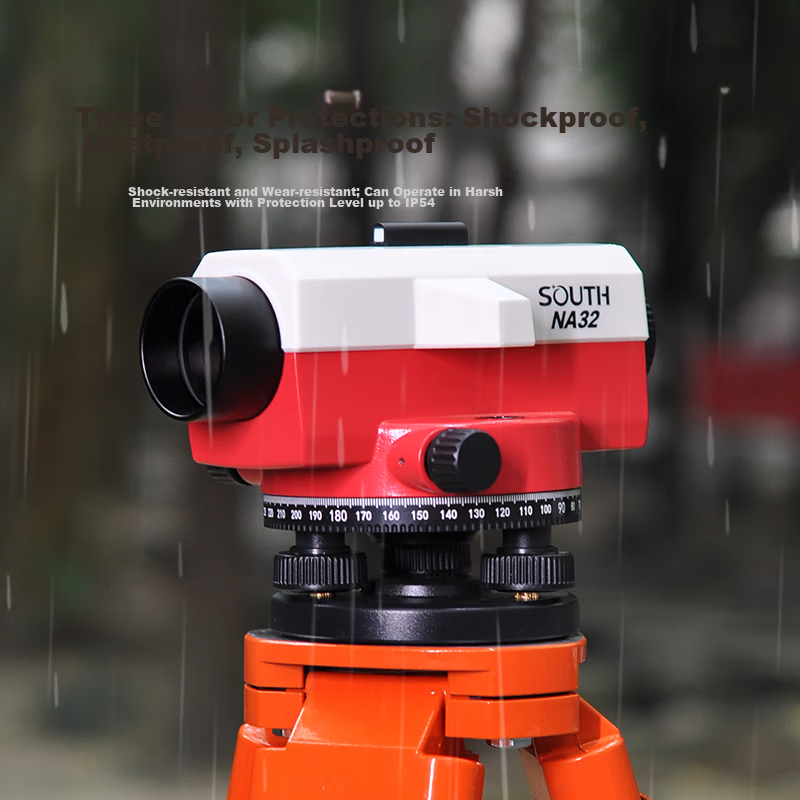

Durable construction: Metal housing with shockproof, dustproof, and splash-proof protection; IP54 rated for harsh environments.

Similar Products

In Stock

Level gauge

Nanfang Level High-Precision 32x Nanfang Surveying Automatic Leveling Height Difference Road Elevation Engineering Measurement Instrument

NA32 Host Standard Configuration

CN¥470.00

View

In Stock

SOUTHLevel gauge

SOUTH NL232 High-Precision 1mm Auto-Level Optical Outdoor Surveying Instrument

Flagship NC32 Level Instrument Main Unit Standard Configuration

CN¥550.00

View

Optical system

40 mm coated objective lens increases light intake and image clarity; erect image telescope with 120° field of view.

Dual 360° fine horizontal adjustments for precise targeting.

Clear crosshair reticle with adjustable eyepiece for easy alignment and data reading.

Three-point adjustment with copper coarse-thread foot screws for stable and corrosion-resistant setup.

Durable acrylic circular level vial with shock resistance; each vial individually calibrated.

Suitable for indoor and outdoor use.

After-sales service guaranteed.

Additional details

Magnification: 32x
Objective lens diameter: 40 mm
Field of view: 120°
Image: Erect
Multiplication constant / additive constant: 100 / 0
Circular level vial accuracy: 8/2 mm
Compensator type: X-type suspension wire air damping
Horizontal circle graduation: 360° or 400 gon
Instrument dimensions: 195 mm x 136 mm x 140 mm
Net weight: 1.4 kg
Measurement accuracy: ±1.0 mm per km round-trip error

1. Height difference measurement

Item	Detail
Place instrument between two leveling rods A and B.	—
Read middle crosshair on rod A as a.	—
Read middle crosshair on rod B as b.	—
Height difference h = a - b.	—

2. Distance measurement

Item	Detail
Aim at leveling rod, read spacing e between stadia hairs in cm.	—
Distance from instrument to rod equals e in meters.	—

3. Azimuth angle measurement

Item	Detail
Aim vertical stadia hair at target A, record angle α.	—
Rotate telescope to target B, record angle β.	—
Azimuth angle ZAOB = α - β.	—

Circular level vial calibration

Adjust foot screws to center vial bubble.
Rotate instrument 180°; bubble should remain centered.
If not, adjust foot screws and vial screws iteratively until bubble stays centered in all directions.

Horizontal angle calibration

Place instrument between rods A and B (~30-40m apart), record readings a and b.
Move instrument near rod A (~2m), record reading b2.
Calculate b' = a + (a - b).
If b2 ≠ b', adjust reticle using eyepiece reticle adjustment screws until readings match within ±3mm.
