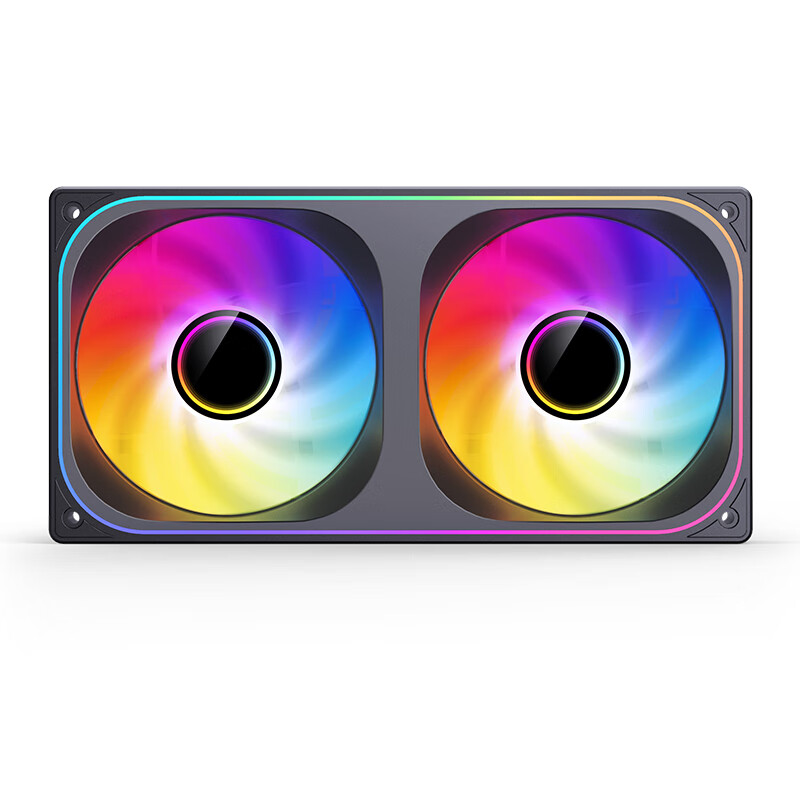

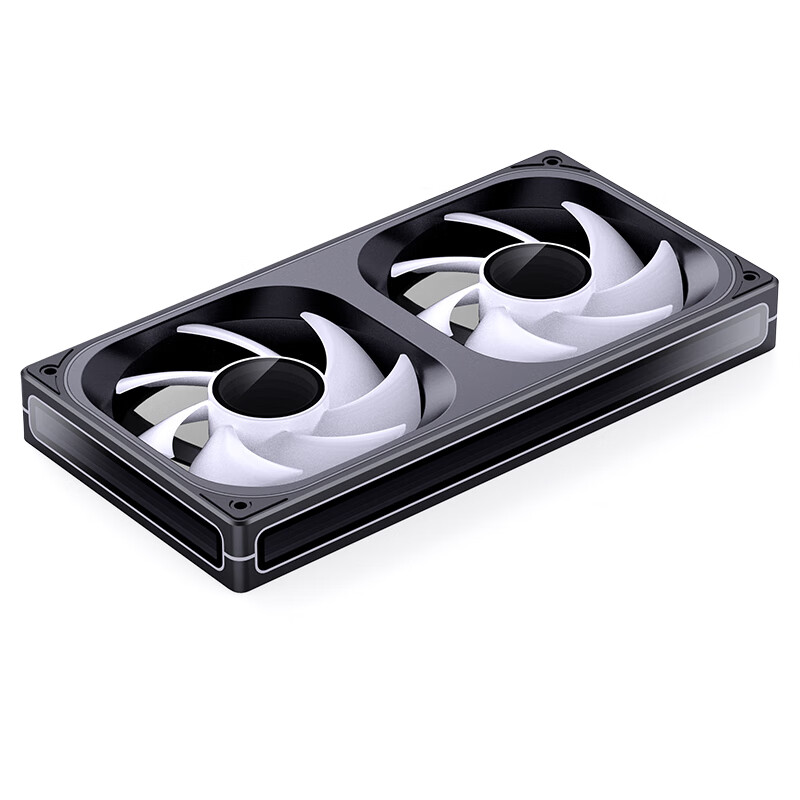

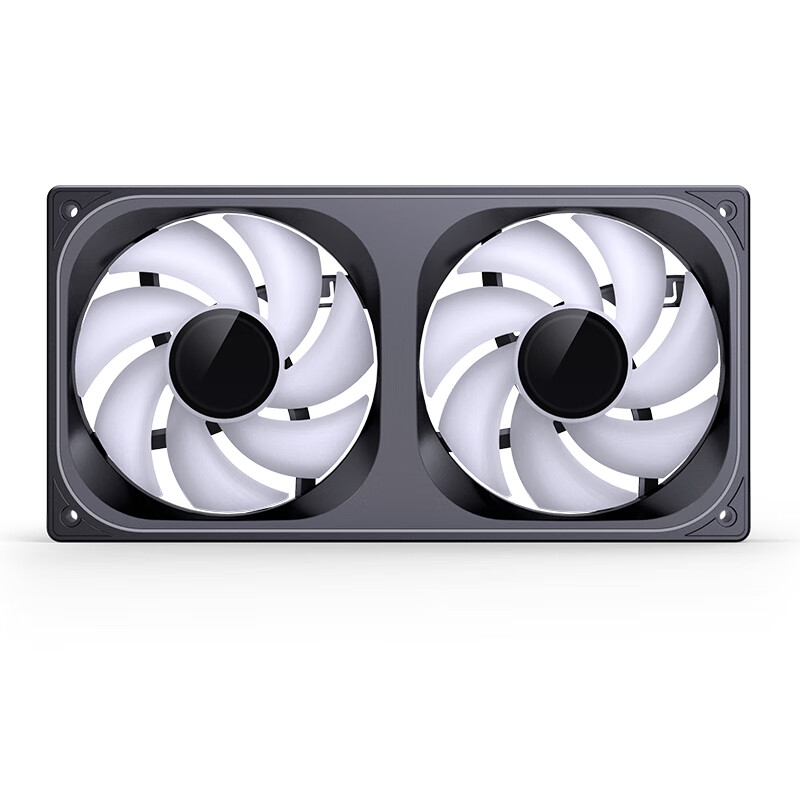

Back to CatalogJONSBO ZB-240B ARGB Black 12CM x2 Case Fans (Hub/All-Around Layered Mirror Lighting/2-Connected/PWM Male and Female Connectors)
Specifications
- Number of heat pipes
- No
- Lighting Effects
- ARGB
- Type
- chassis fan
Variants / Sale Attributes
Color: ZB240B ARGB version in black
Package Contents
Fan *1, screw pack *1
Product Description
Product Specifications
Overview
- Brand
- JONSBO
- Product Series
- ZB ARGB Infinity Mirror Fans
- ZB-120 Series
- ZB-120B (normal blade), ZB-120BR (reverse blade)
- ZB-240 Series
- ZB-240B (normal blade), ZB-240BR (reverse blade)
- ZB-360 Series
- ZB-360B (normal blade), ZB-360BR (reverse blade)

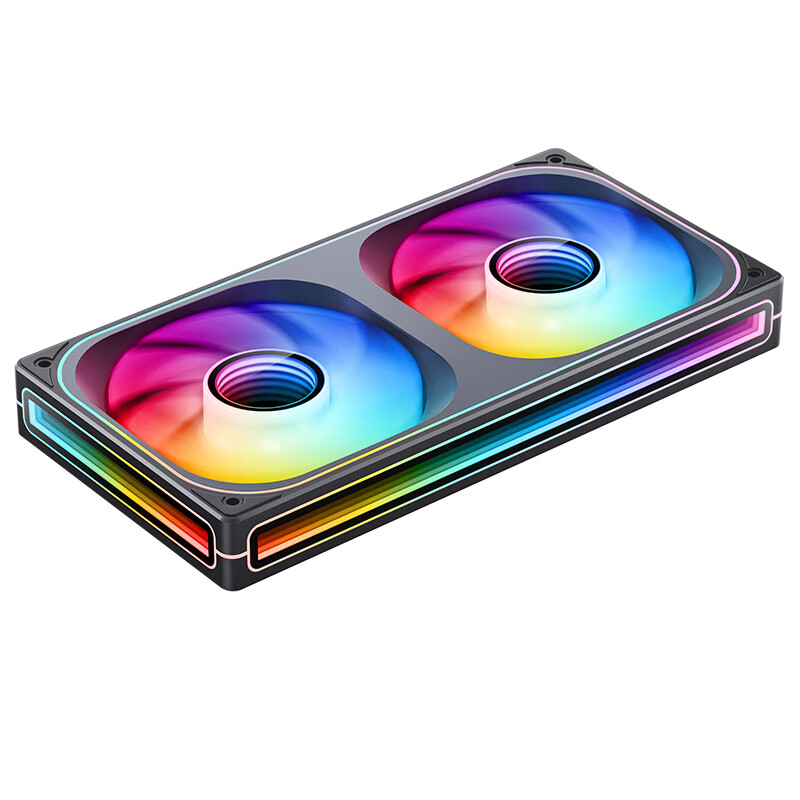

Four-sided integrated infinity mirror lighting effect with rich and synchronized ARGB illumination
Integrated structure for easy installation with 4 screws
One-line connection simplifies wiring and enhances case tidiness
Supports motherboard 5V ARGB synchronization via 3-pin 5V ARGB header or compatible controller
PWM control for quiet operation with fine-tuned noise and performance balance
Similar Products
Out of Stock
In Stock
Hydraulic bearing for long lifespan (≥20,000 hours at 25°C)
Multiple versions available with normal and reverse blade options
Additional details
- Lighting zones
- Surround with multiple LEDs plus parallel axis LEDs for enhanced effect
- 1. Model
- ZB-120 (120x120x28 mm)
Fan Speed
| Item | Detail |
|---|
| ZB-120B | 700-2400 ±10% RPM |
| ZB-120BR | 700-1800 ±10% RPM |
| Airflow | — |
| ZB-120B | 20.95-65.26 CFM |
| ZB-120BR | 18.75-47.71 CFM |
| Static Pressure | — |
| ZB-120B | 0.45-3.20 mmH2O |
| ZB-120BR | 0.33-1.66 mmH2O |
| Noise Level | — |
| ZB-120B | 20.3-36.6 dB(A) |
| ZB-120BR | 16.4-30.7 dB(A) |
| Rated Voltage | — |
| Fan | 12V DC |
| LED | 5V DC |
| Rated Current | — |
| Fan | 0.20A (B), 0.10A (BR) |
| LED | 0.71A (both) |
| Power Consumption | — |
| Fan | 2.40W (B), 1.20W (BR) |
| LED | 3.55W (both) |
| Bearing Type | Hydraulic Bearing |
| Lifespan | 220,000 hours (B), ≥20,000 hours (BR) at 25°C |
| Interface | PWM 4-pin (fan), ARGB 3-pin (LED) |
| LED Count | 32 LEDs around + 9 LEDs on axis (parallel) |
Additional details
- 2. Model
- ZB-240 (242x123x28 mm)
Fan Speed
| Item | Detail |
|---|
| ZB-240B | 700-2400 ±10% RPM |
| ZB-240BR | 700-1800 ±10% RPM |
| Airflow | — |
| ZB-240B | 20.95-65.26 CFM |
| ZB-240BR | 18.75-47.71 CFM |
| Static Pressure | — |
| ZB-240B | 0.45-3.20 mmH2O |
| ZB-240BR | 0.33-1.66 mmH2O |
| Noise Level | — |
| ZB-240B | 20.3-36.6 dB(A) |
| ZB-240BR | 16.4-30.7 dB(A) |
| Rated Voltage | — |
| Fan | 12V DC |
| LED | 5V DC |
| Rated Current | — |
| Fan | 0.37A (B), 0.16A (BR) |
| LED | 1.16A (both) |
| Power Consumption | — |
| Fan | 4.44W (B), 1.92W (BR) |
| LED | 5.80W (both) |
| Bearing Type | Hydraulic Bearing |
| Lifespan | ≥20,000 hours at 25°C |
| Interface | PWM 4-pin (fan), ARGB 3-pin (LED) |
| LED Count | 52 LEDs around + 18 LEDs on axis (parallel) |
Additional details
- 3. Model
- ZB-360 (362x123x28 mm)
Fan Speed
| Item | Detail |
|---|
| ZB-360B | 700-2400 ±10% RPM |
| ZB-360BR | 700-1800 ±10% RPM |
| Airflow | — |
| ZB-360B | 20.95-65.26 CFM |
| ZB-360BR | 18.75-47.71 CFM |
| Static Pressure | — |
| ZB-360B | 0.45-3.20 mmH2O |
| ZB-360BR | 0.33-1.66 mmH2O |
| Noise Level | — |
| ZB-360B | 20.3-36.6 dB(A) |
| ZB-360BR | 16.4-30.7 dB(A) |
| Rated Voltage | — |
| Fan | 12V DC |
| LED | 5V DC |
| Rated Current | — |
| Fan | 0.55A (B), 0.35A (BR) |
| LED | 1.35A (both) |
| Power Consumption | — |
| Fan | 6.60W (B), 4.20W (BR) |
| LED | 6.75W (both) |
| Bearing Type | Hydraulic Bearing |
| Lifespan | ≥20,000 hours at 25°C |
| Interface | PWM 4-pin (fan), ARGB 3-pin (LED) |
| LED Count | 68 LEDs around + 27 LEDs on axis (parallel) |
Integrated four-sided infinity mirror design provides 360° lighting visibility
Front and rear sides feature layered mirror lighting zones for full illumination effect
Supports motherboard ARGB synchronization with over 16 million colors
Quiet operation with PWM control and optimized blade design (normal and reverse blades)
Simplified installation with 4 screws and one-line motherboard connection
Compatible with ARGB controllers and motherboards supporting 3-pin 5V ARGB headers
ZA-360BR, FR-505W, TH-360 Black, CR-3000E Color Edition, CR-1400EARGB White
D300 White, D400 Black, V12 White
Various chassis including pillar-less curved glass sea-view desktop cases and MATX sea-view desktop cases
Please ensure motherboard or controller supports the corresponding LED count and specifications for optimal lighting performance.
