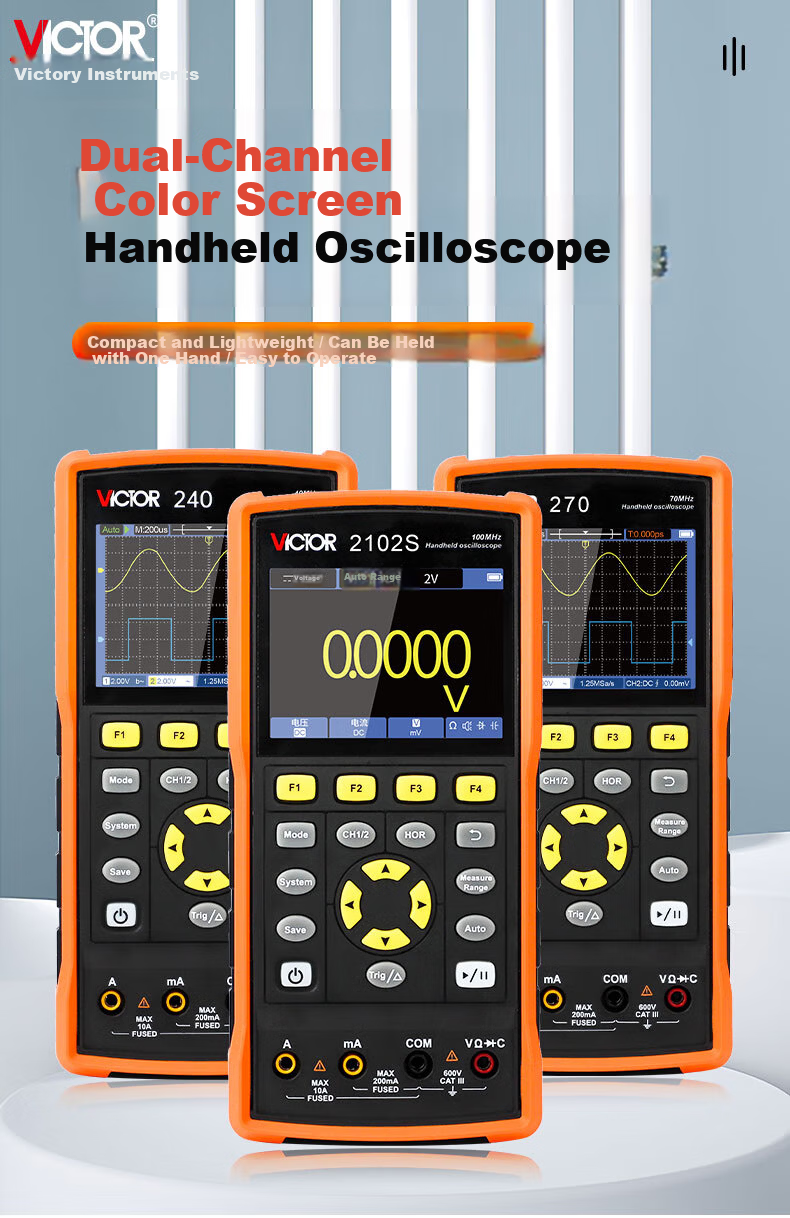

Back to CatalogVICTOR VC152S Handheld Digital Oscilloscope Portable Multimeter 3-in-1 Signal Generator Household Use
Specifications
- Number of channels
- Dual channel
- How it works
- Handheld
- Category
- digital oscilloscope
- Bandwidth
- 0100MHz
Variants / Sale Attributes
Model: VC152S (50MHz Bandwidth, High CostPerformance Ratio)
Package Contents
Power adapter, USB cable, alligator clip cable, test leads, probe calibration and blade adjustment, instruction manual
Product Description
Product Specifications
Overview
- Brand
- VICTOR
- Model
- VICTOR 152S

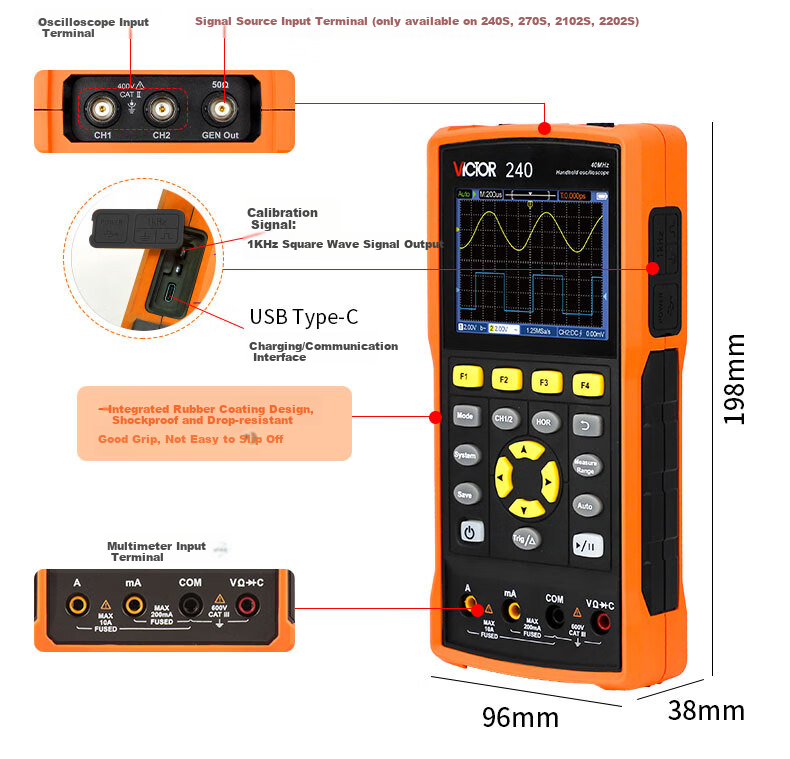

3-in-1 multifunction handheld instrument integrating Oscilloscope, Signal Generator, and Digital Multimeter
3.2-inch full-view color LCD display with 320×240 resolution
Intelligent overload protection (smart anti-burn)

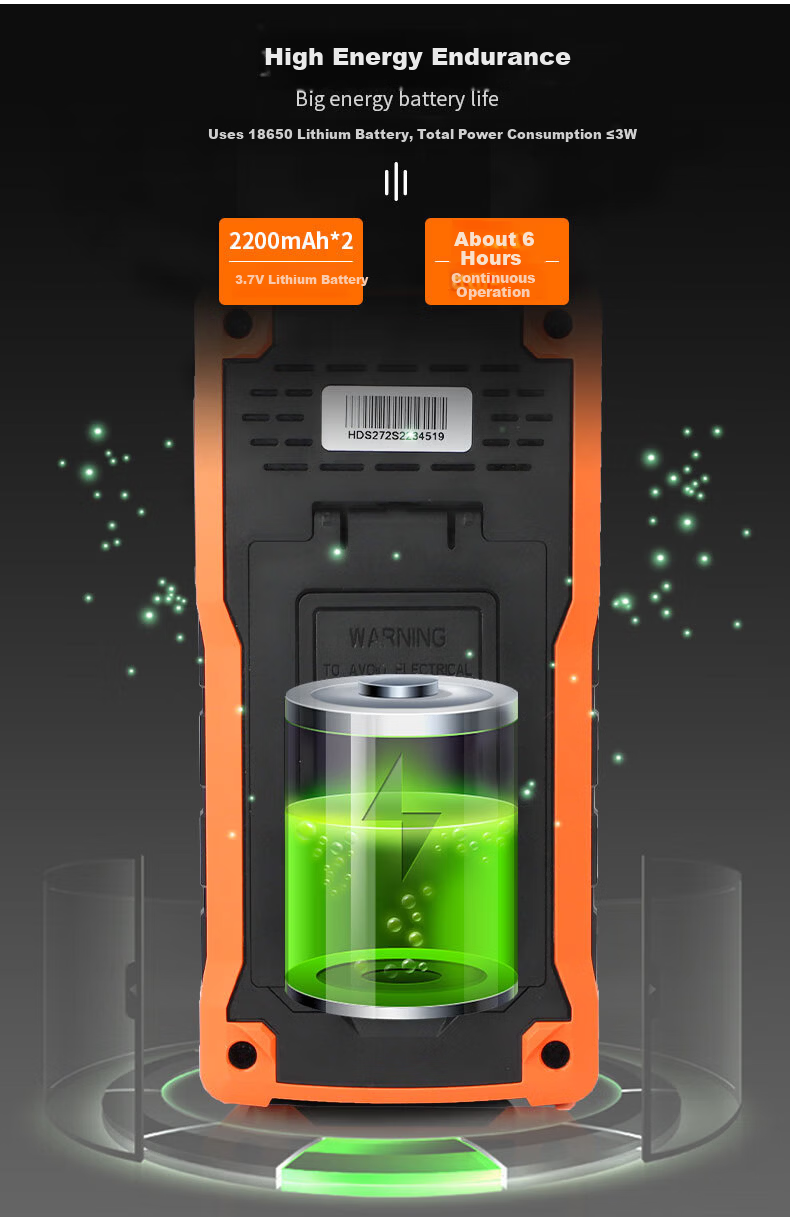

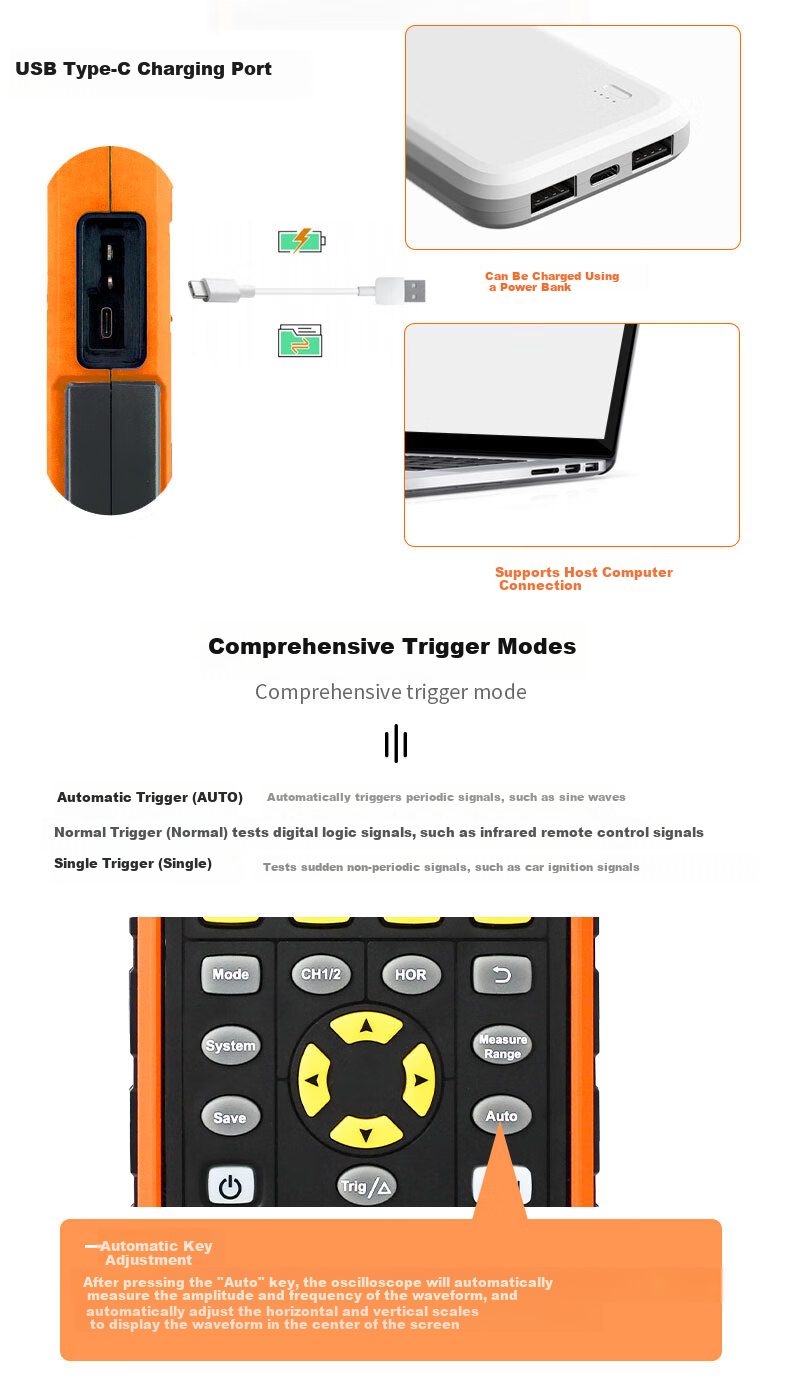

Built-in rechargeable 3.7V 2200mAh lithium battery with USB Type-C charging
Additional details
- Compact size
- 181 mm × 89 mm × 40 mm; Weight: approx. 380 g (without battery)
- Operating environment
- 0°C to 40°C, relative humidity <80%
- Bandwidth
Real-time sampling rateup to 200 MSa/s Maximum record length128 kBytes Maximum input voltagex1 attenuation <150 V, x10 attenuation <300 V (DC + AC peak) Display modesYT and XY modes Trigger modesAuto, Normal, Single Trigger typesEdge trigger with selectable source and slope Persistence (afterglow) mode for better signal capture

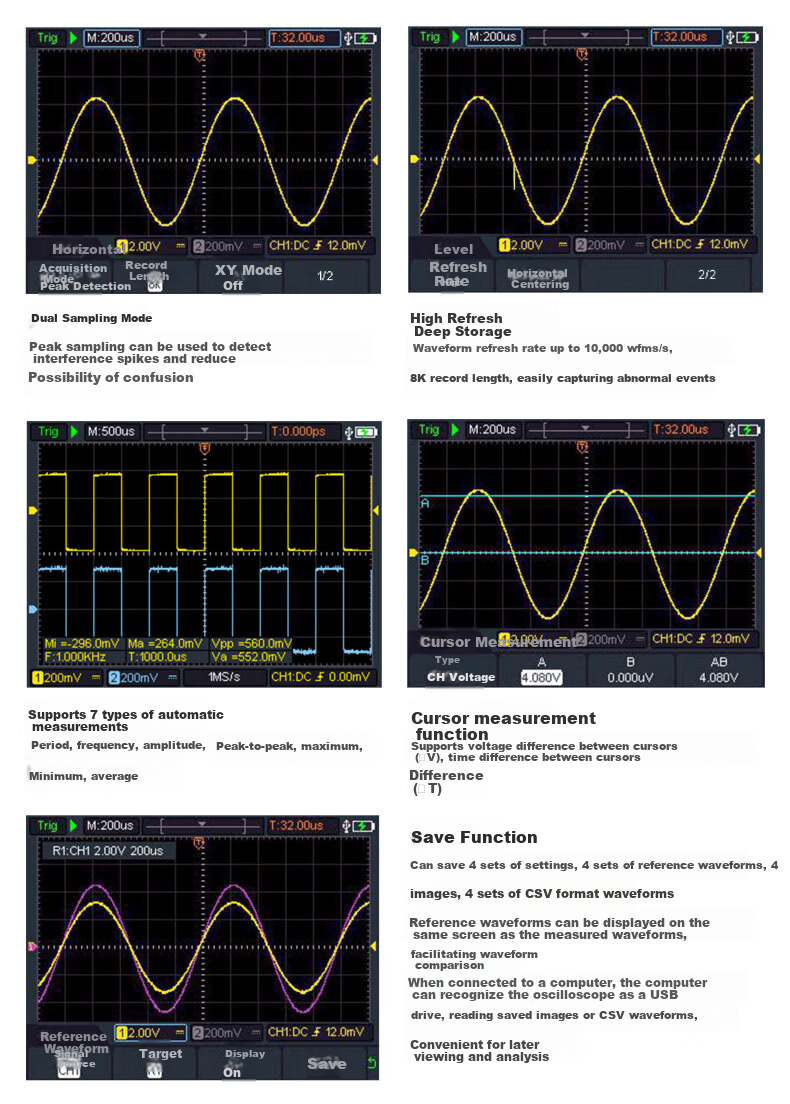

Cursor measurement function for amplitude, frequency, duty cycle
Automatic waveform measurement (amplitude, frequency, etc.)
Waveform storage and export capability
Waveform movement and voltage/time base adjustment
Additional details
- Probe compensation output
- 3 V / 1 kHz square wave
Auto measurement key for quick waveform parameter display
High-definition color LCD for clear and rich visual display
Additional details

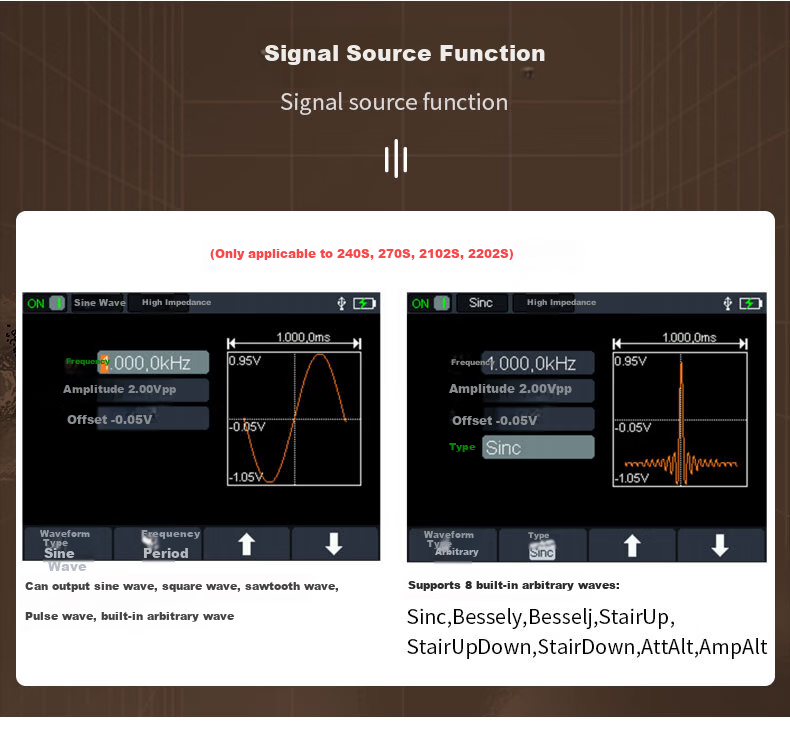

- Maximum output frequency
- 5 MHz
- Waveform types
- Sine, Square, Triangle, Half-wave rectified, Full-wave rectified, Sawtooth
- Real-time sampling rate
- 200 MSa/s
- Frequency resolution
- 1 Hz
- Waveform length
- 256 bytes
- Vertical resolution
- 8-bit
- Output impedance
- 50 Ω
- Output amplitude range
- 0.3 Vpp to 3 Vpp (varies by waveform)
Output connector compatible with oscilloscope input

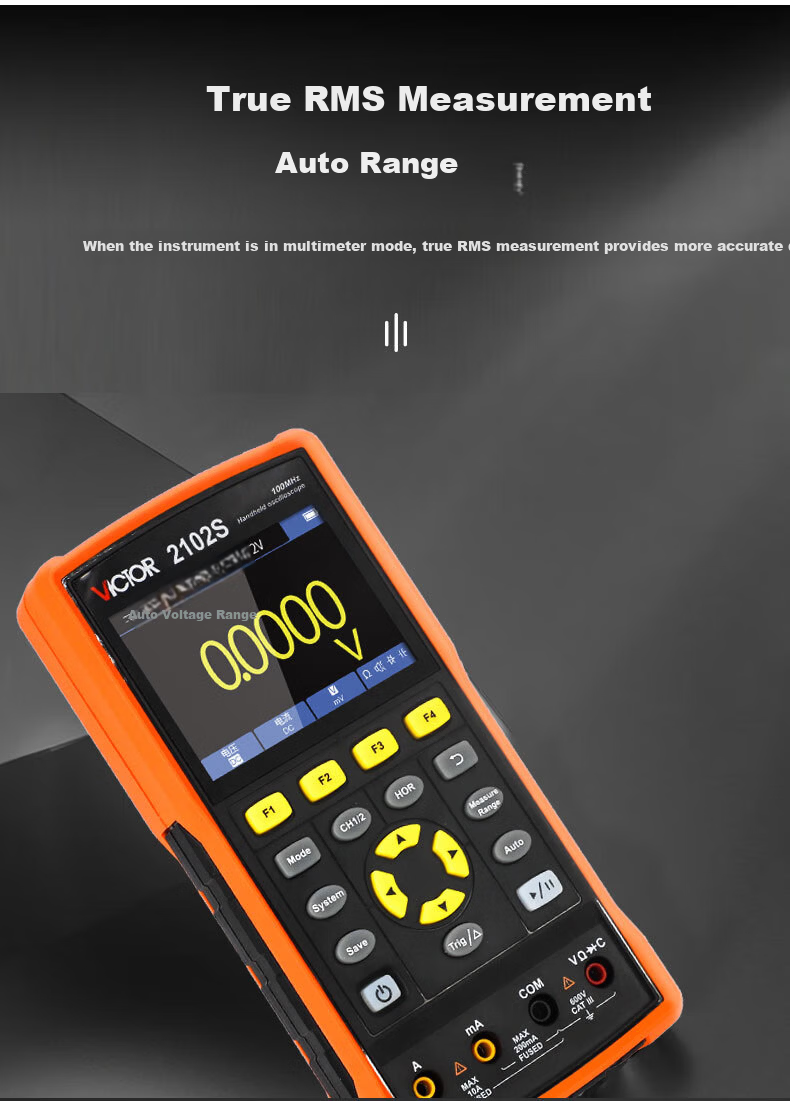

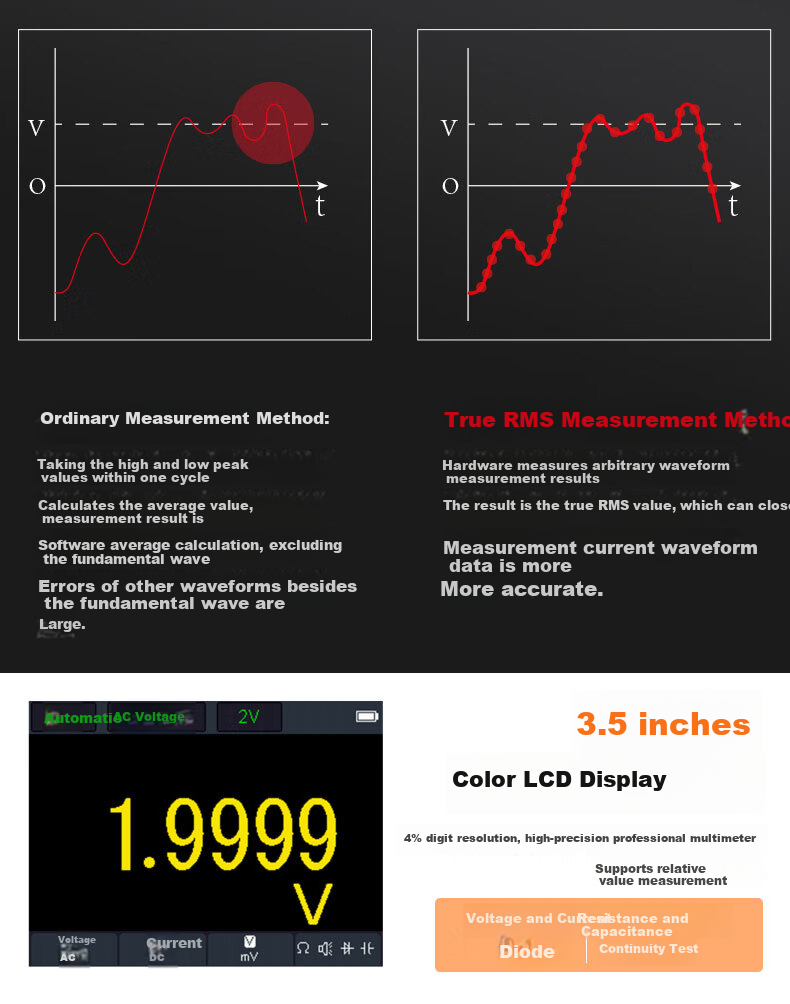

True RMS measurement with 4% color display
Additional details
- Measurement functions
- DC voltage, AC voltage, DC current, AC current, resistance, capacitance, continuity, diode test
- Display counts
- 25000 (capacitance up to 9999)
- Maximum input voltage
- AC 750 V, DC 1000 V
- Maximum input current
- AC 10 A, DC 10 A
Additional details
- Continuity buzzer threshold
- <50 Ω
Diode open-circuit voltage approx. 3.2 V
Additional details
- DC Voltage
- 25.000 mV / 250.00 mV / 2.5000 V / 25.000 V / 250.00 V / 1000.0 V; Accuracy: ±(0.05%+5) to ±(0.1%+10)
- AC Voltage
- 25.000 mV / 250.00 mV / 2.5000 V / 25.000 V / 250.00 V / 750.0 V; Accuracy: ±(0.1%+8) to ±(0.5%+10)
- DC Current
- 25.000 mA / 250.00 mA / 2.5000 A / 10.000 A; Accuracy: ±(0.5%+10)
- AC Current
- 25.000 mA / 250.00 mA / 2.5000 A / 10.000 A; Accuracy: ±(0.5%+10) to ±(0.8%+10)
- Resistance
- 250.00 Ω / 2.5000 kΩ / 25.000 kΩ / 250.00 kΩ / 2.5000 MΩ / 25.000 MΩ; Accuracy: ±(1.0%+10)
- Capacitance
- 9.999 nF / 99.99 nF / 999.9 nF / 9.999 μF / 99.99 μF / 999.9 μF / 9.999 mF / 99.99 mF; Accuracy: ±(2.0%+10)
- Frequency
- 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz; Accuracy: ±(0.1%+2)
One-key automatic measurement and adjustment for quick results
Data hold (HOLD) function
Language switch between Chinese and English
High precision measurement with X-Y mode
Multiple function keys and menu navigation for ease of use
Additional details
- Safety
- Built-in dual fuses for overload protection
Main unit (Oscilloscope + Multimeter + Signal Generator)
User manual and certificate of conformity
Alligator clip test leads
USB Type-C charging cable
Passive probe for oscilloscope
Test leads for multimeter
Accessories for signal generator
Additional details
- Patent number
- 202430623195.X
