Haibeisi Docking Station Base for Macmini M4 Expansion Dock Hard Drive Enclosure External Hard Drive Expansion Mini PC Thunderbolt 4/5 USB Expansion Desktop Stand Accessories

Length

127 mm

Circular hole diameter

106.8 mm

Width

138.5 mm

Thickness

3 mm (top), 16.4 mm (middle), 37 mm (stand height), 15.6 mm (other relevant dimension)

Multi-functional expansion dock combining hard drive enclosure, expansion dock, and stand

Supports internal M.2 NVMe SSD installation for fast storage expansion

Maximum SSD capacity up to 8TB

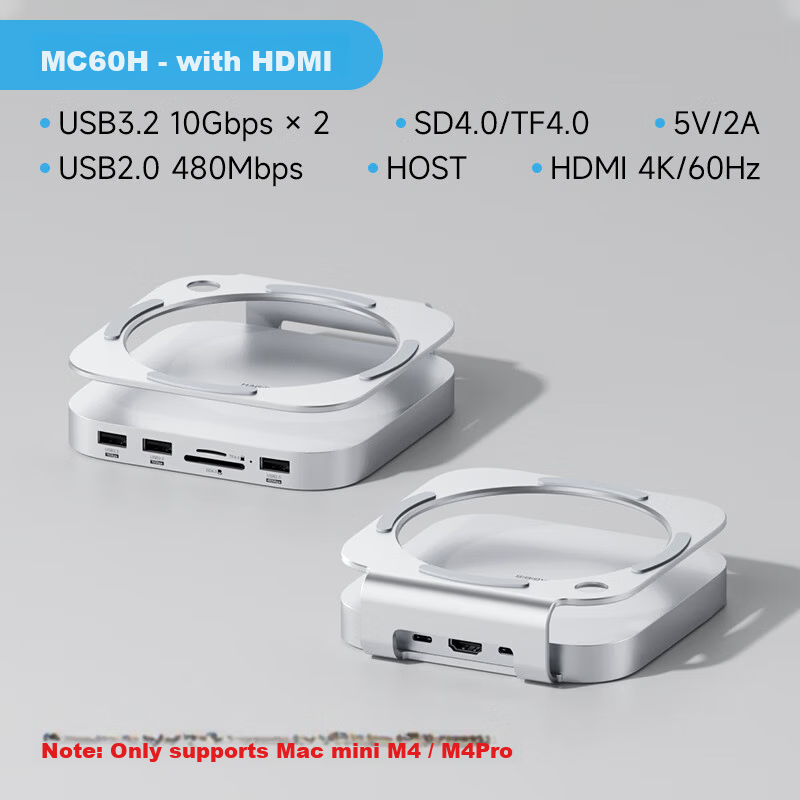

High-speed data transfer with USB 3.2 Gen 2 (10Gbps) and USB 2.0 (480Mbps) ports

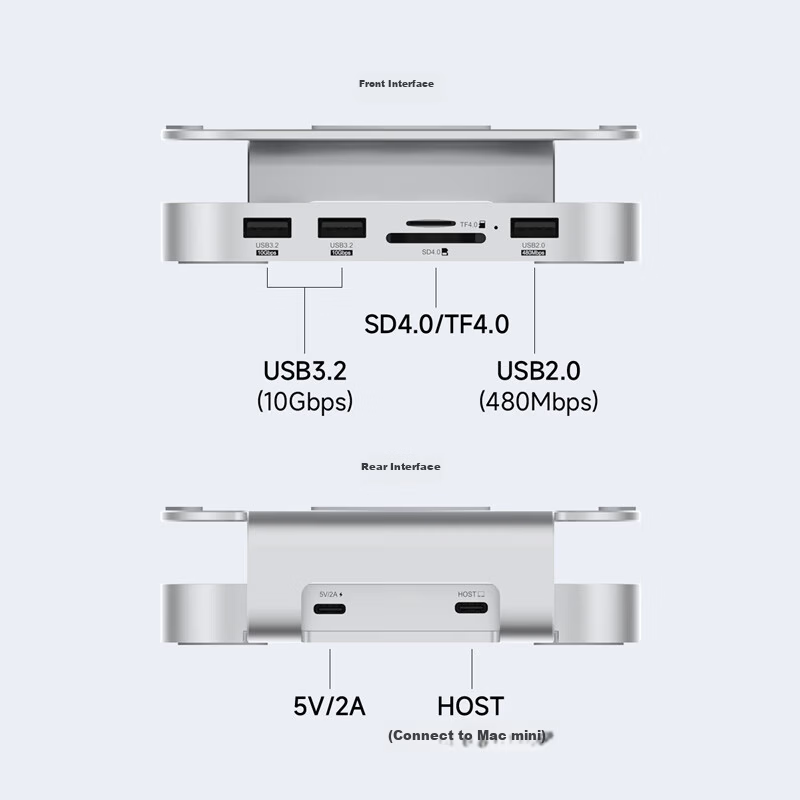

Supports SD 4.0 and TF 4.0 card readers on front interface

Rear interface includes 5V/2A power input and host connection for Mac mini

HDMI output supporting 4K@60Hz (available on select models)

AUX 3.5mm audio jack (available on select models)

Independent host SSD and host hub functionality (can be used standalone)

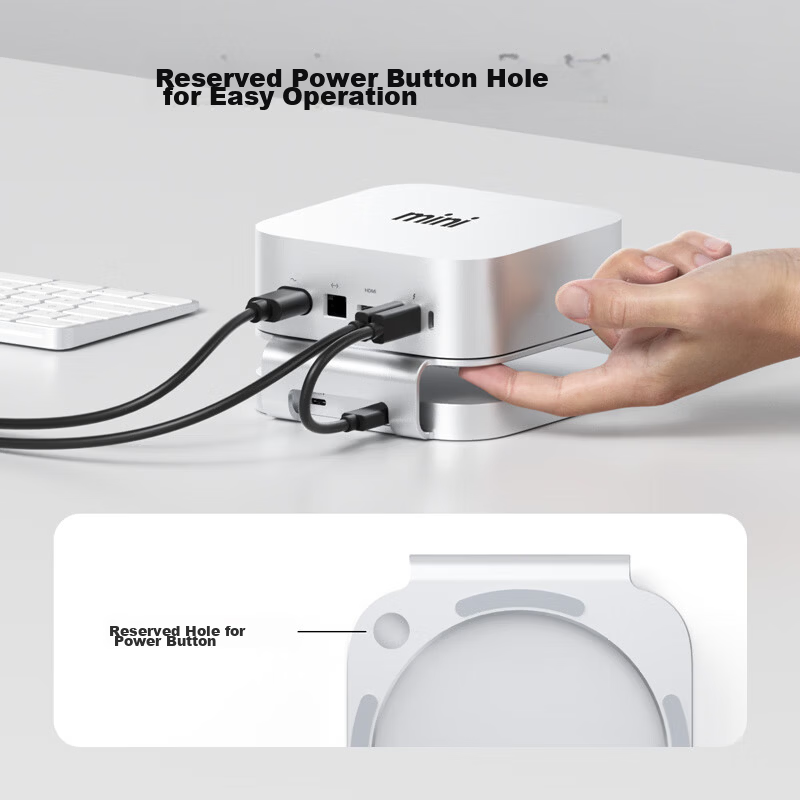

Power button hole reserved at bottom for easy Mac mini power on operation

Dual silicone pads (top and bottom) for anti-slip protection and device safety

Aluminum alloy middle section raised for ventilation and heat dissipation

Supports fast file transfer and multi-device connectivity to overcome interface limitations

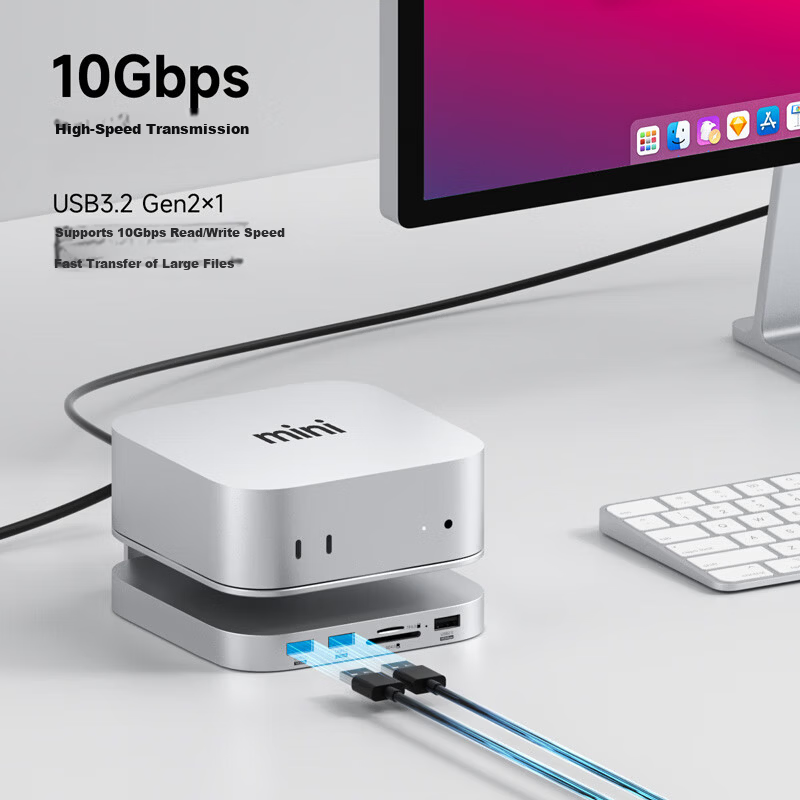

USB 3.2 Gen 2 port supports up to 10Gbps read/write speeds for large file transfers

M.2 SSD enclosure supports up to 40Gbps transfer speed on select models

Supplementary 5V power supply for stable operation

Type-C Expansion Dock

User Manual

Packaging Box

C to C Connection Cable

Screwdriver and Screws

Thermal Grease

C to C Power Supply Cable

Hagibis Type-C Expansion Dock is a versatile, high-performance accessory designed to perfectly complement Mac mini. It offers multiple configurations to meet diverse needs, combining storage expansion, multi-port connectivity, and ergonomic stand design with efficient heat dissipation and user-friendly operation.
