Casarte Wall-Mounted Pipeline Machine Stainless Steel Core Household Sideboard Water Dispenser Main Pipeline Stainless Steel 0 Silicone Odorless Under-Sink RO Machine High Flow Instant Heating Water P

Casarte•Wall-Mounted Pipeline Machine

Casarte Wall-Mounted Pipeline Machine Stainless Steel Core Household Sideboard Water Dispenser Main Pipeline Stainless Steel 0 Silicone Odorless Under-Sink RO Machine High Flow Instant Heating Water P

CN¥2,124.94

SKU: 100165112080

Status:In Stock (11)

ID: 100165112080

Weight: 6600.00 g

Dims:496x390x238 mm

Specifications

Installation: Wall-mounted

Variants / Sale Attributes

Shape: Jingang Core | Warm Type | Stainless Steel Water Tank

Package Contents

Water tray, one three-way connector, one L-shaped connector, five self-tapping screws, five expansion tubes, four meters of 3/8" PE pipe, four 1/4" pipe clamps, two 3/8" pipe clamps, one mounting bracket, instruction manual, and adapter.

Product Description

Product Specifications

Overview

Brand: Casarte
Model: CGRZ-GH1U1 (formerly CGR-GH1U1)

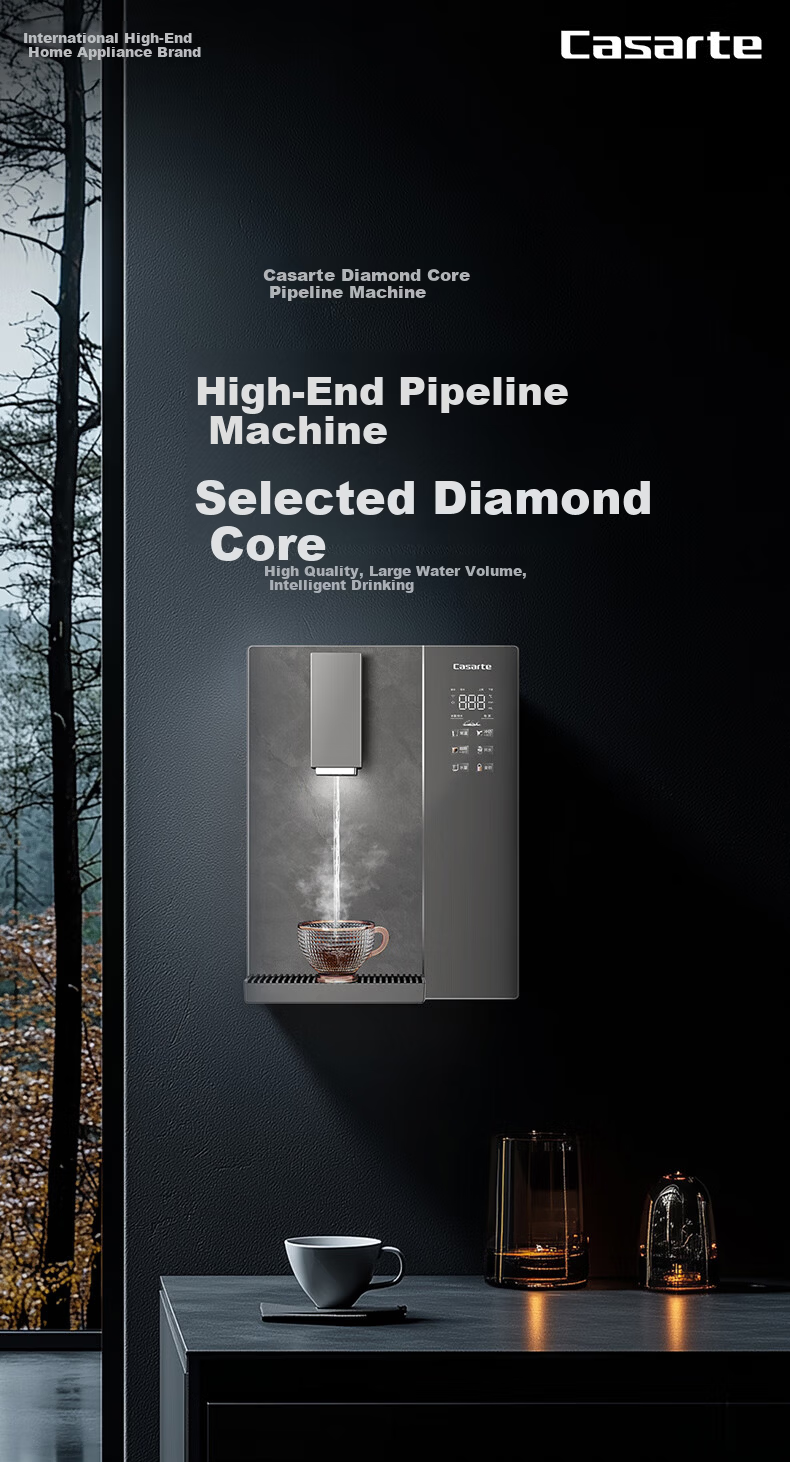

Type: High-end pipeline water dispenser with JinGang core waterway system

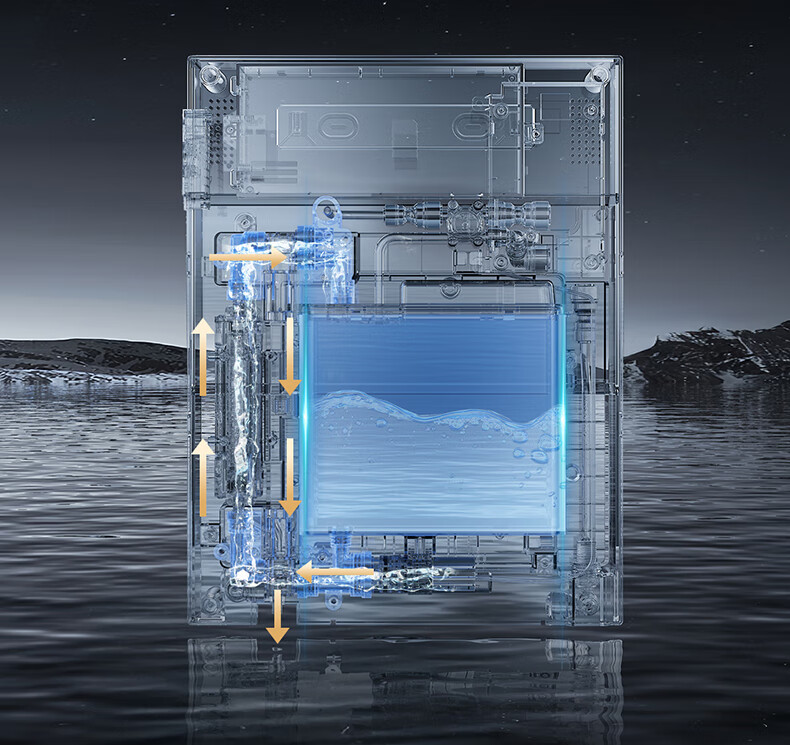

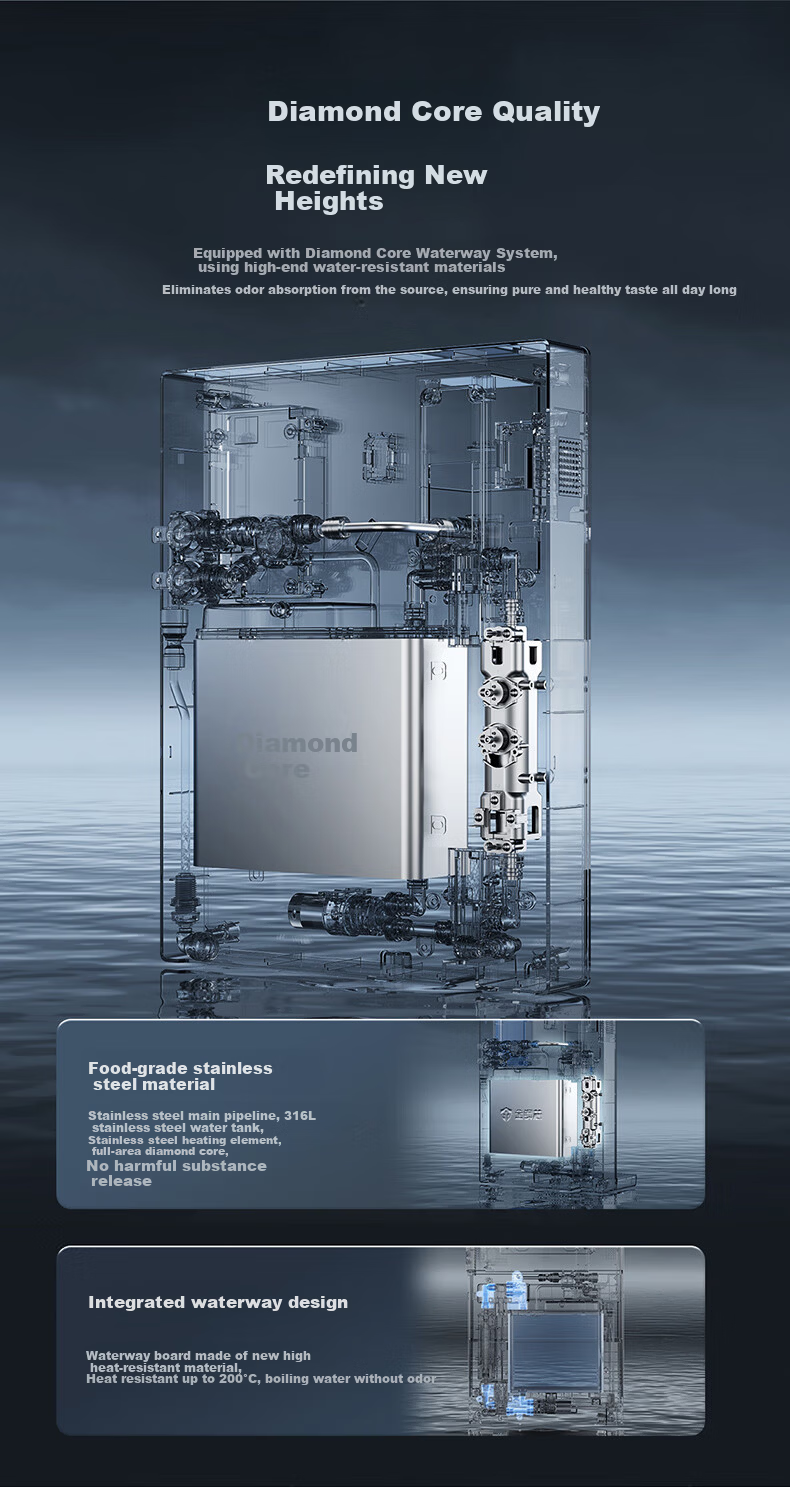

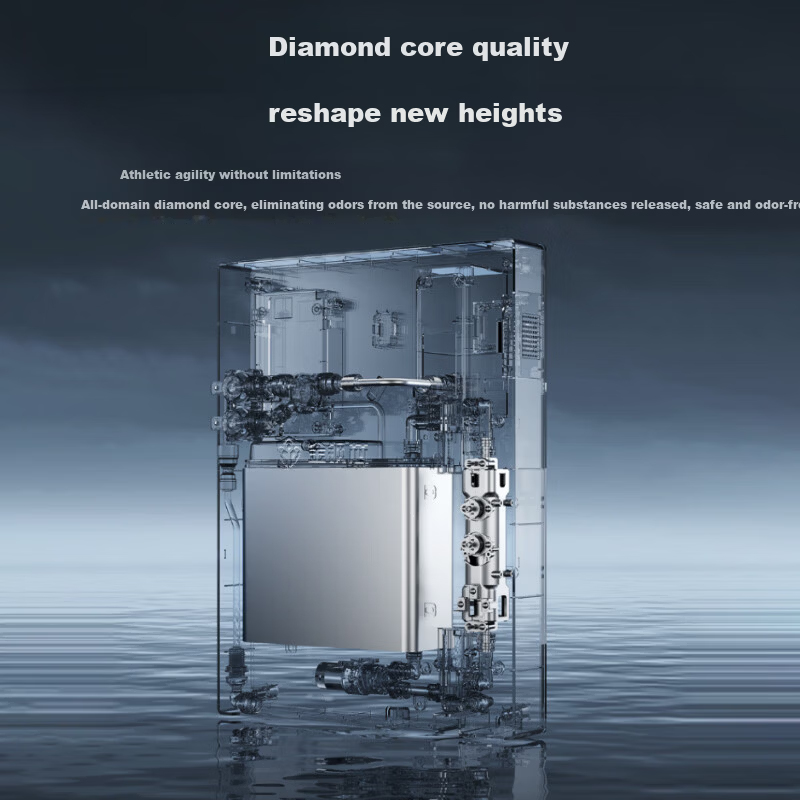

JinGang Core Waterway System: Food-grade stainless steel (316L) main waterway, water tank, and heating element; integrated waterway design with high heat resistance up to 200°C; eliminates odor absorption and harmful substance release; ensures pure and healthy water taste.

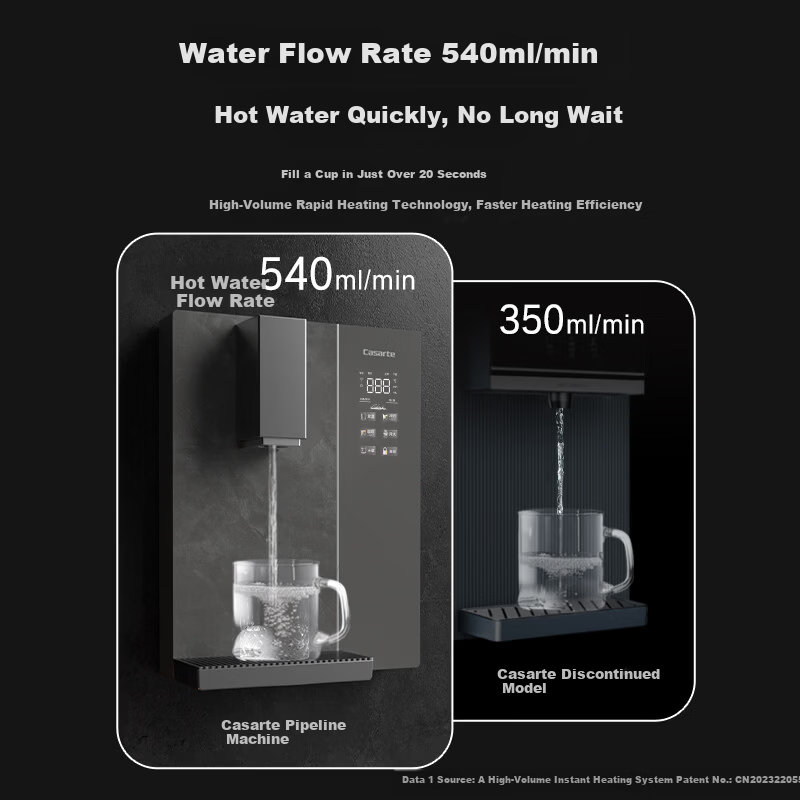

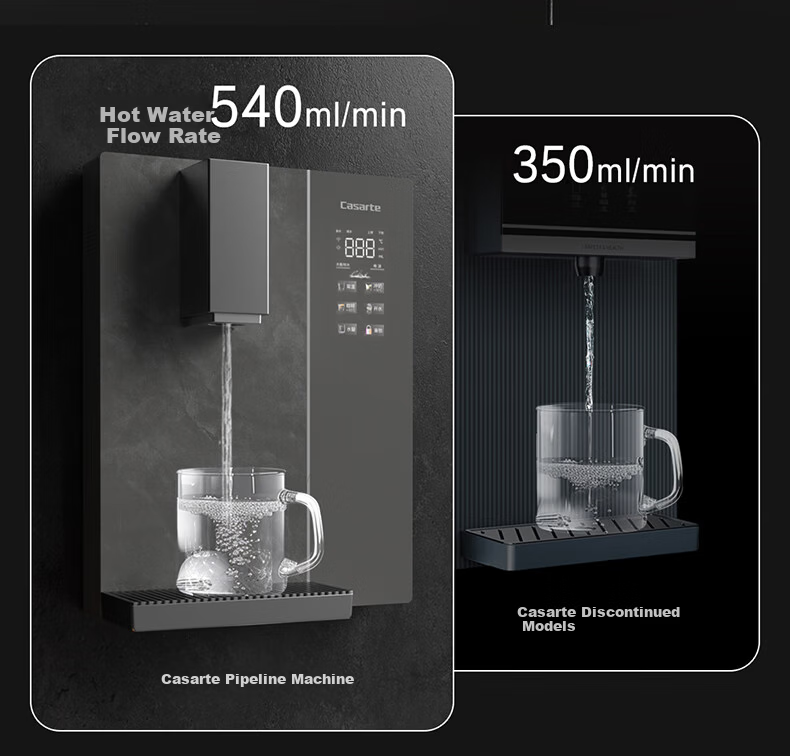

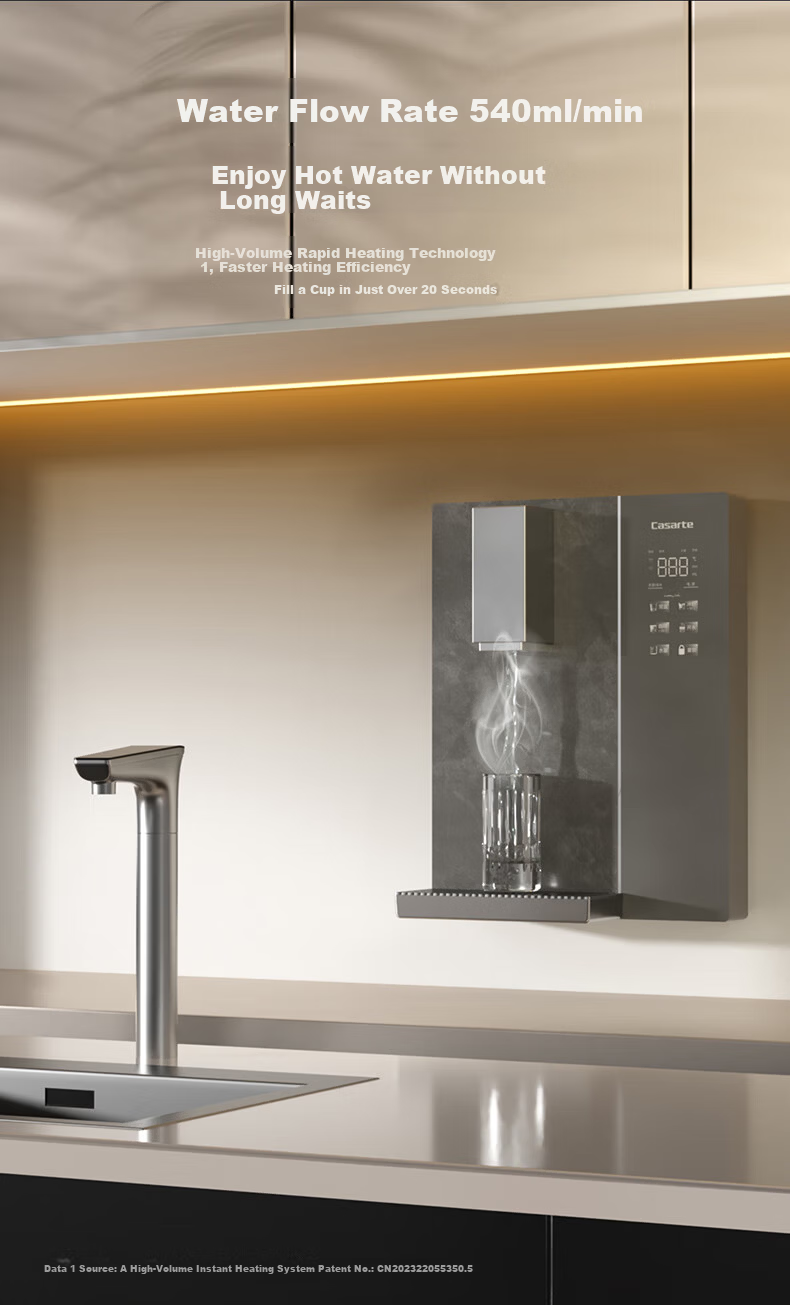

Water Flow Rate: Hot water flow rate 540 ml/min; large water volume rapid heating technology; heats a full cup (~150-300 ml) in Approx. 20 seconds.

Similar Products

In Stock

CASDONWall-Mounted Pipeline Machine

CASDON Wall-Mounted Pipeline Water Dispenser Household Direct Drinking Machine Refrigeration and Heating Integrated Water Cooler Ice Spring KG1Pro Yang Mi Edition

KG1Pro hot and cold | compatible with bottled water

CN¥2,299.51

View

In Stock

CASDONWall-Mounted Pipeline Machine

CASDON Wall-Mounted Direct Drinking Water Dispenser with Refrigeration And Heating Functions, Integrated Beverage Machine for Home Use, Sideboard Model KG1, Yang Mi's Choice

KG1 Ice Spring Series

CN¥2,099.00

View

In Stock

3MWall-Mounted Pipeline Machine

3M Instant Hot Water Dispenser, Water Purifier, Quick Heating, Smart Touch Control, Precise Water Output, Full Flow Rate, Wall-Mounted WHS200-BL

CN¥1,709.01

View

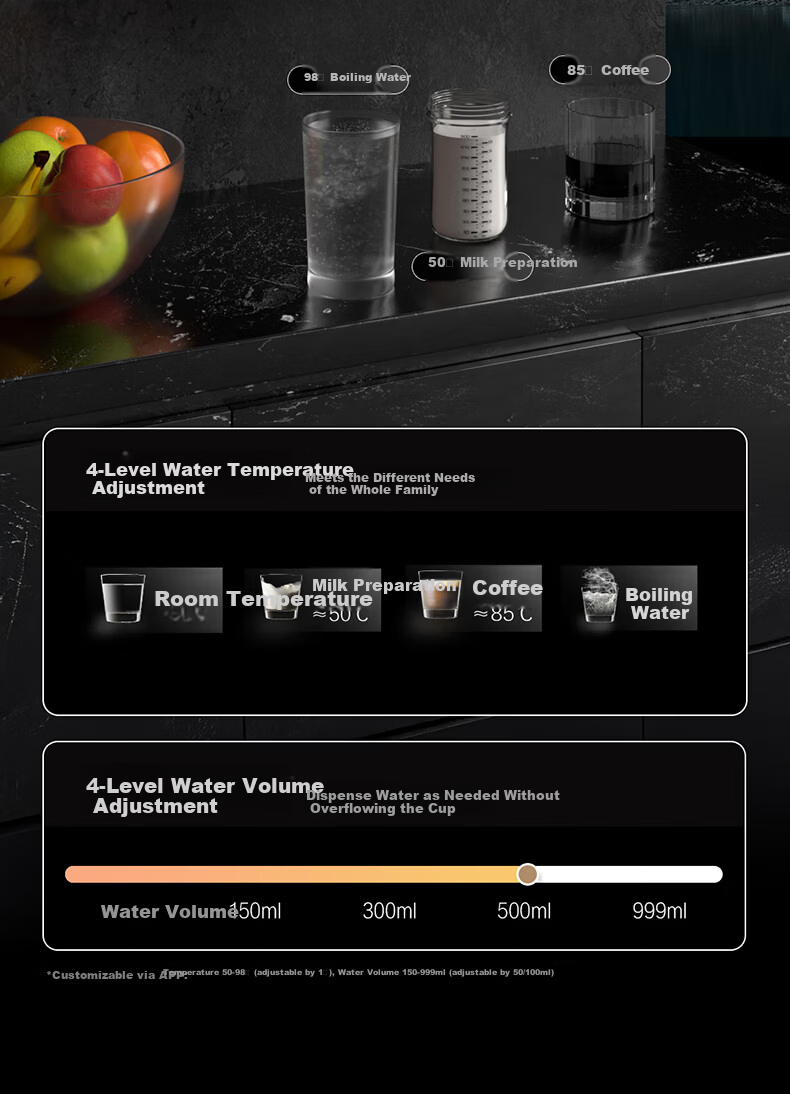

Temperature Settings

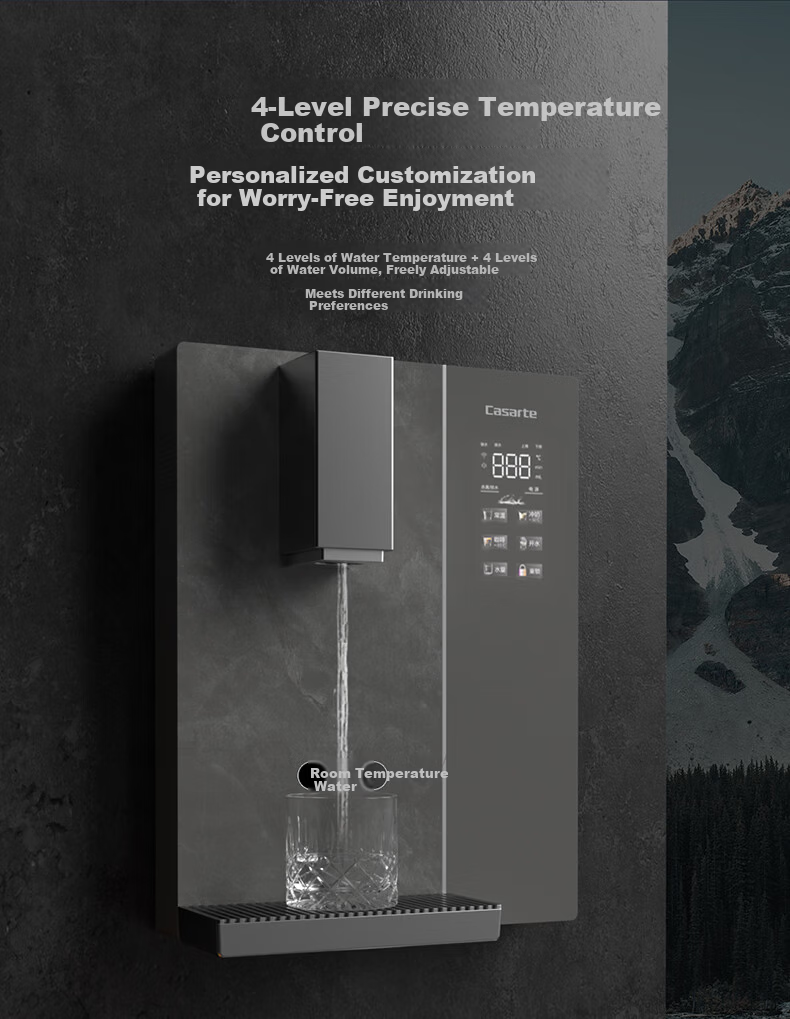

4 adjustable water temperatures (approx. 50°C, 85°C, 98°C, and room temperature) suitable for milk preparation, coffee, and boiling water.

Water Volume Settings

4 adjustable water volumes (150 ml, 300 ml, 500 ml, 999 ml); customizable via app with temperature adjustable from 50°C to 98°C in 1°C increments and water volume from 150 ml to 999 ml in 50/100 ml increments.

High-Temperature Physical Sterilization

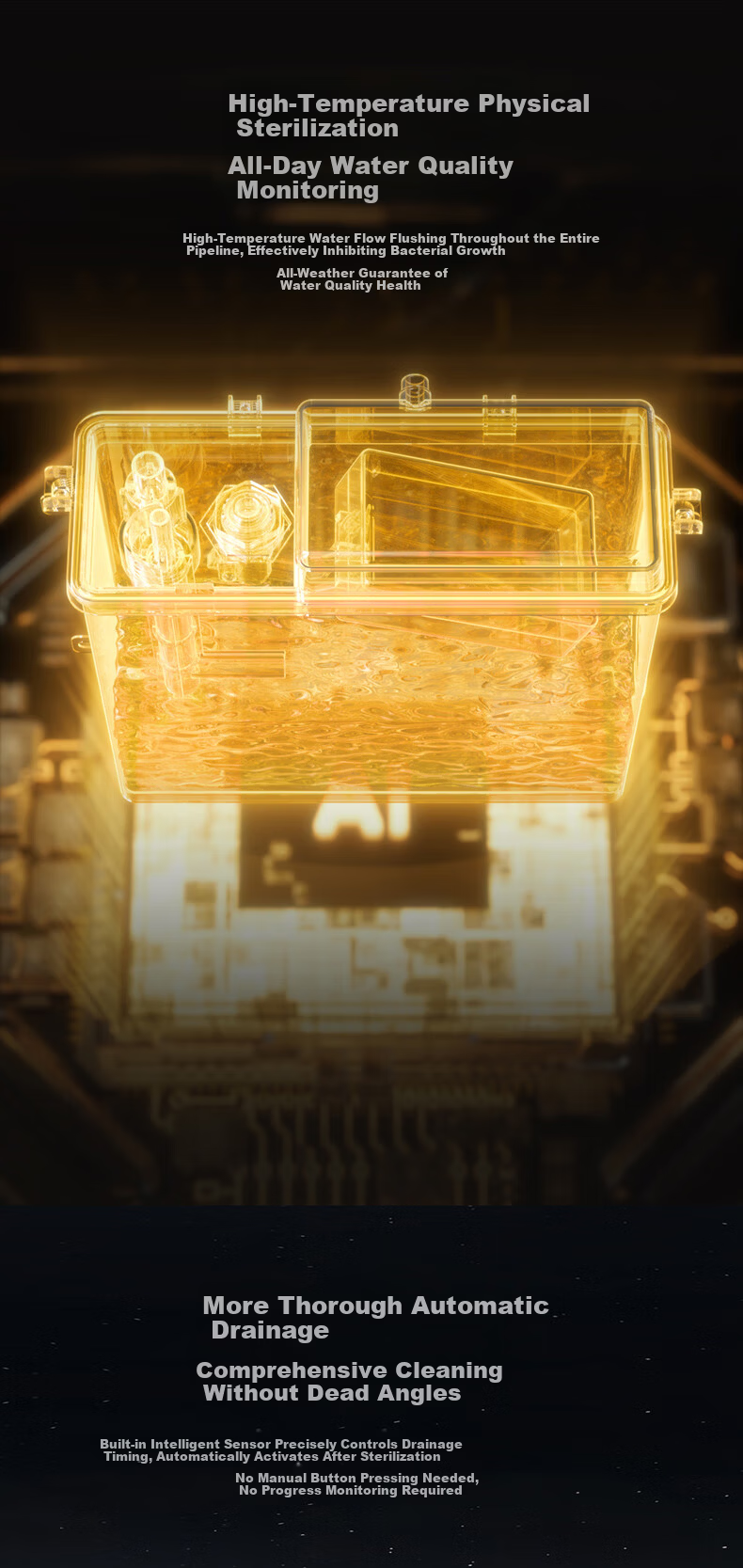

Full-pipeline high-temperature water flushing to inhibit bacterial growth; automatic drainage with intelligent sensors; efficient sterilization without manual intervention.

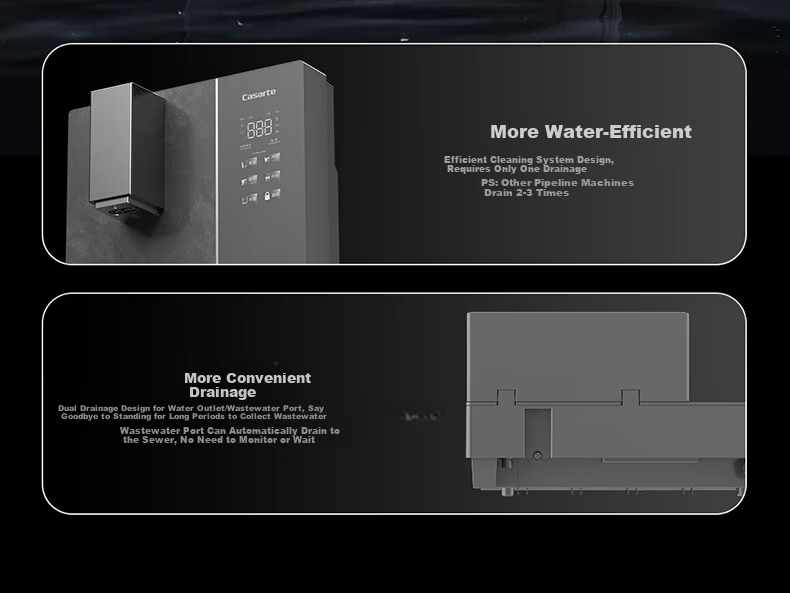

Dual Drainage Design

Separate water outlet and wastewater outlet; wastewater automatically drains to sewer, eliminating the need for manual supervision.

Safety Features

AI program self-check for leak prevention
Electronic and mechanical dual float sensors for precise water level monitoring
Anti-blocking solenoid valve
Water-electricity separation design
Built-in steam separator
Dry-boil protection with AI and reset thermostat.

Additional details

Adaptive Boiling Point: Automatically adjusts boiling temperature based on altitude for safe hot water in high-altitude areas.

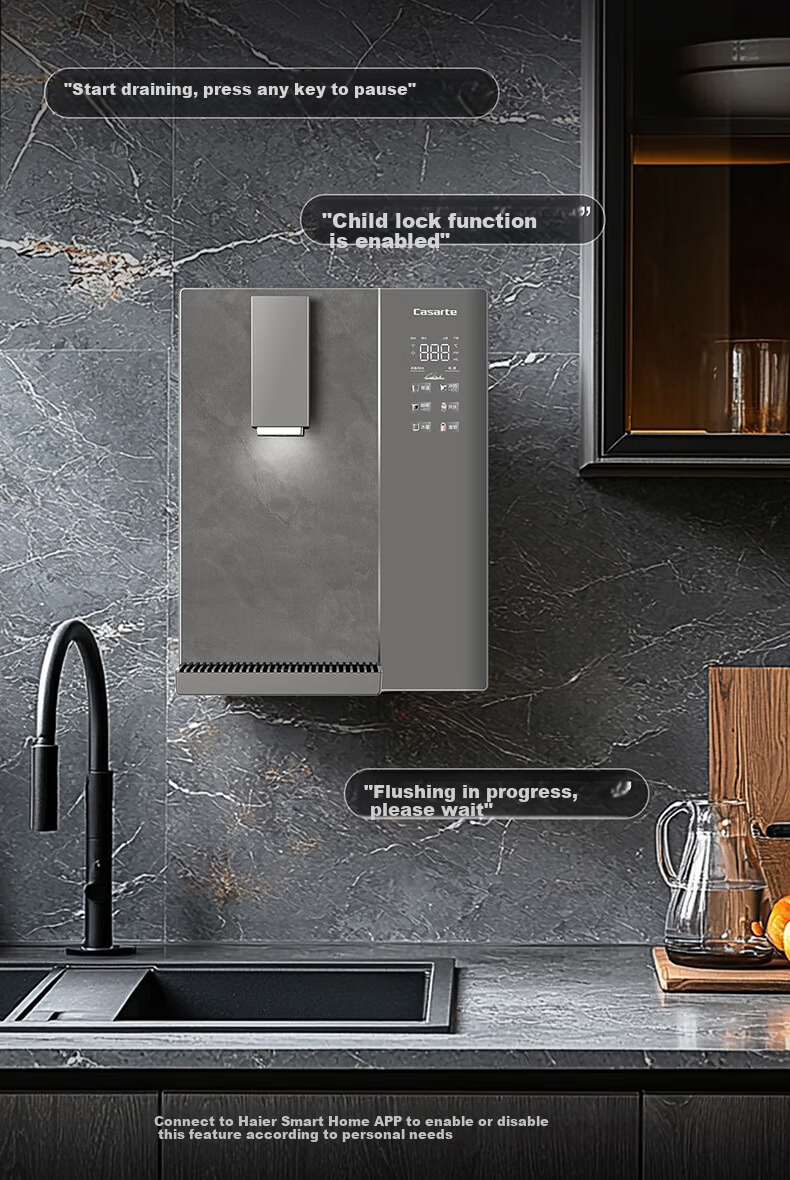

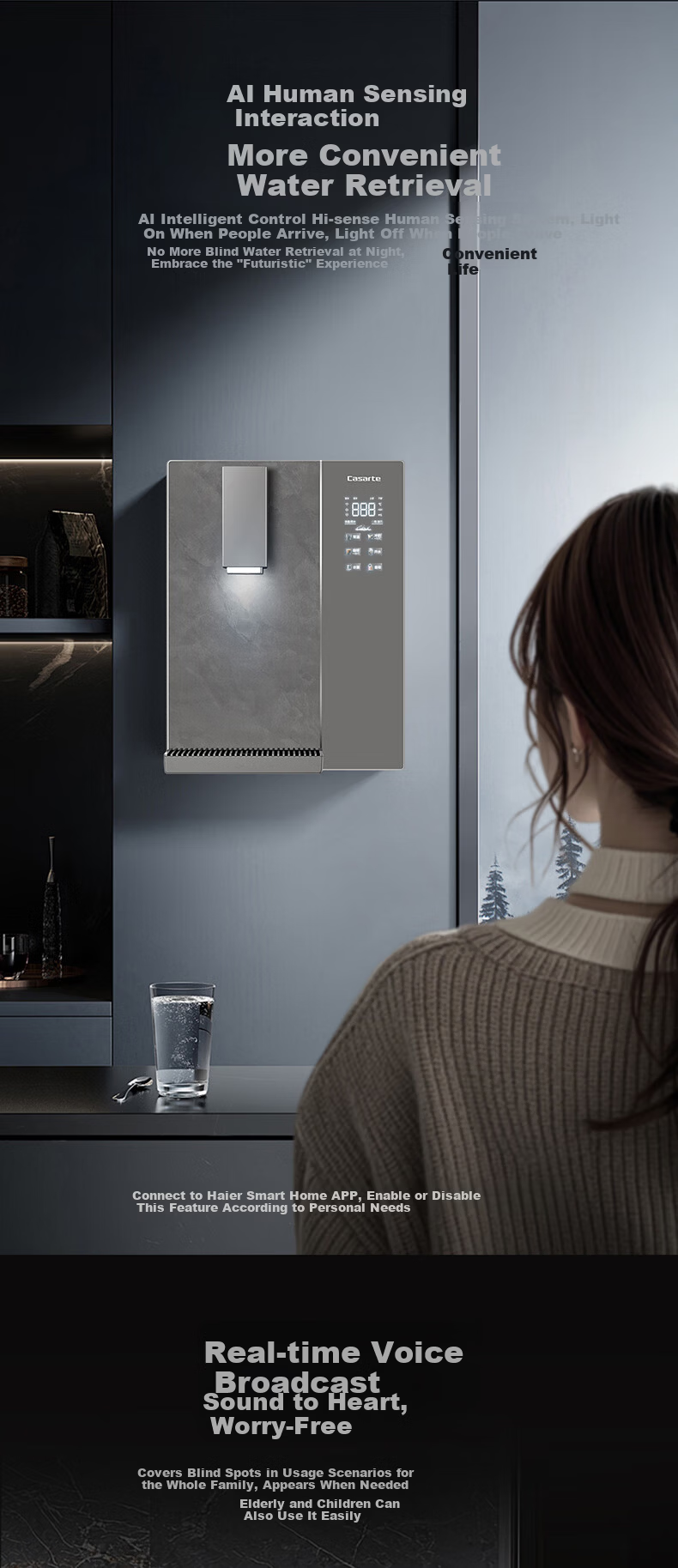

AI Human Sensing Interaction: Hi-sense system with motion-activated lighting; voice real-time broadcast for operation status; child lock function; app connectivity for feature customization.

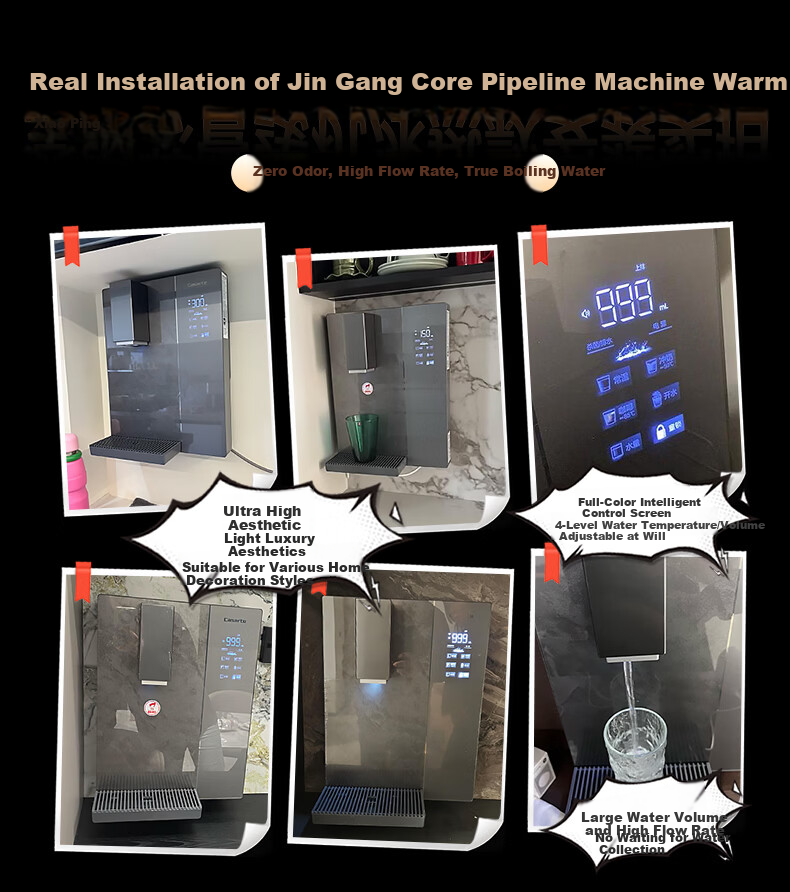

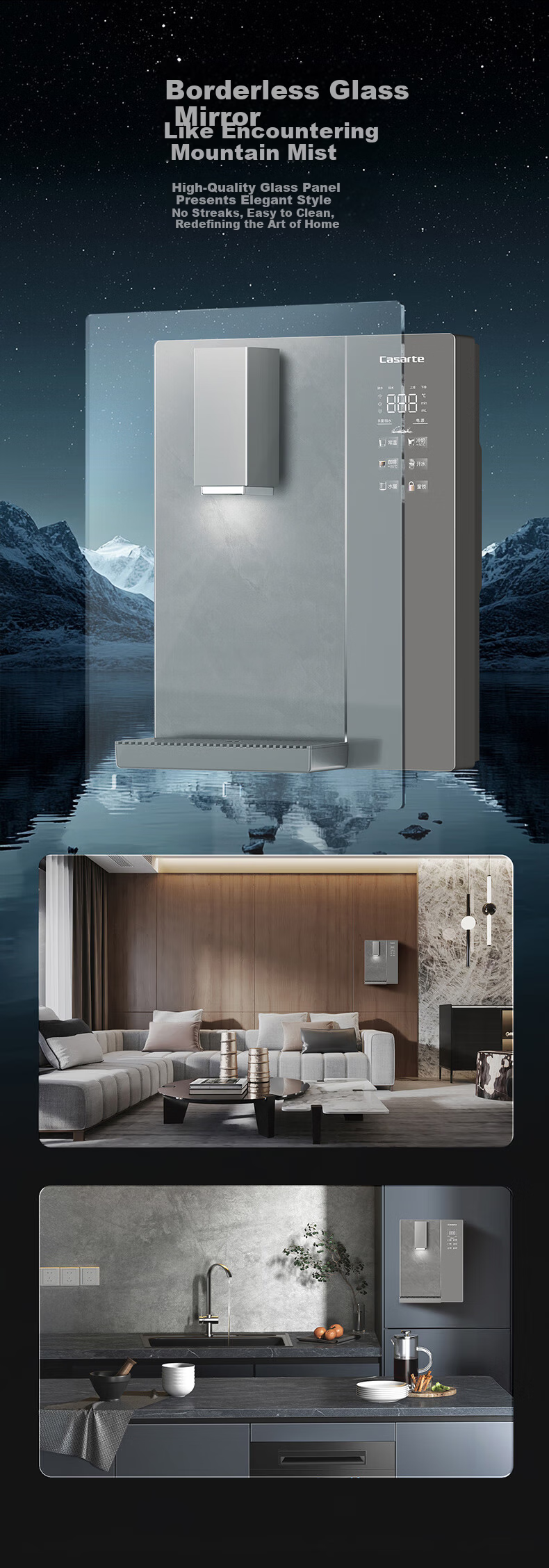

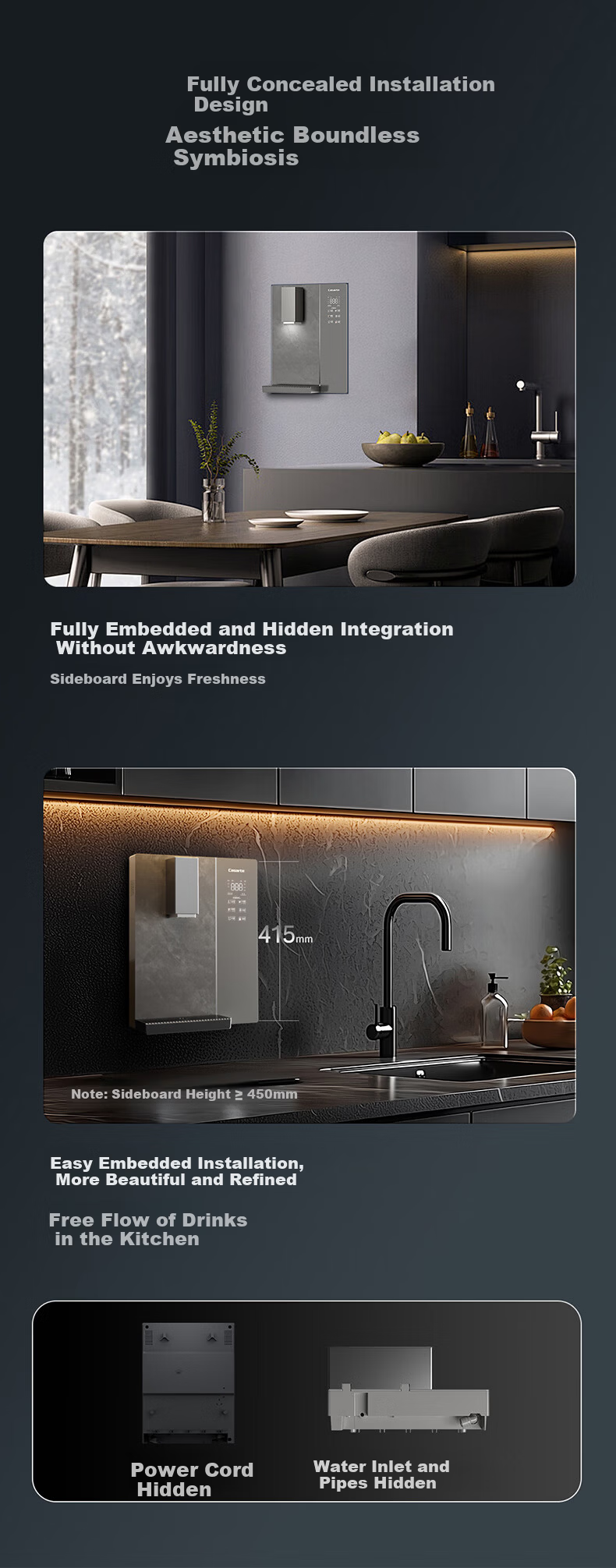

Design: Full-color intelligent control touchscreen; frameless glass mirror panel with easy cleaning and elegant aesthetics; fully concealed installation design suitable for various home decoration styles; hidden power cord and water inlet/outlet.
Installation Requirements: Compatible with RO water purifiers only; requires 220V~/50Hz, 10A power supply with reliable grounding; water pressure 0.1 MPa to 0.4 MPa; installation distance from water source and power outlet ≤1 meter; vertical pipe height ≤5 m; total horizontal + vertical pipe length ≤10 m.

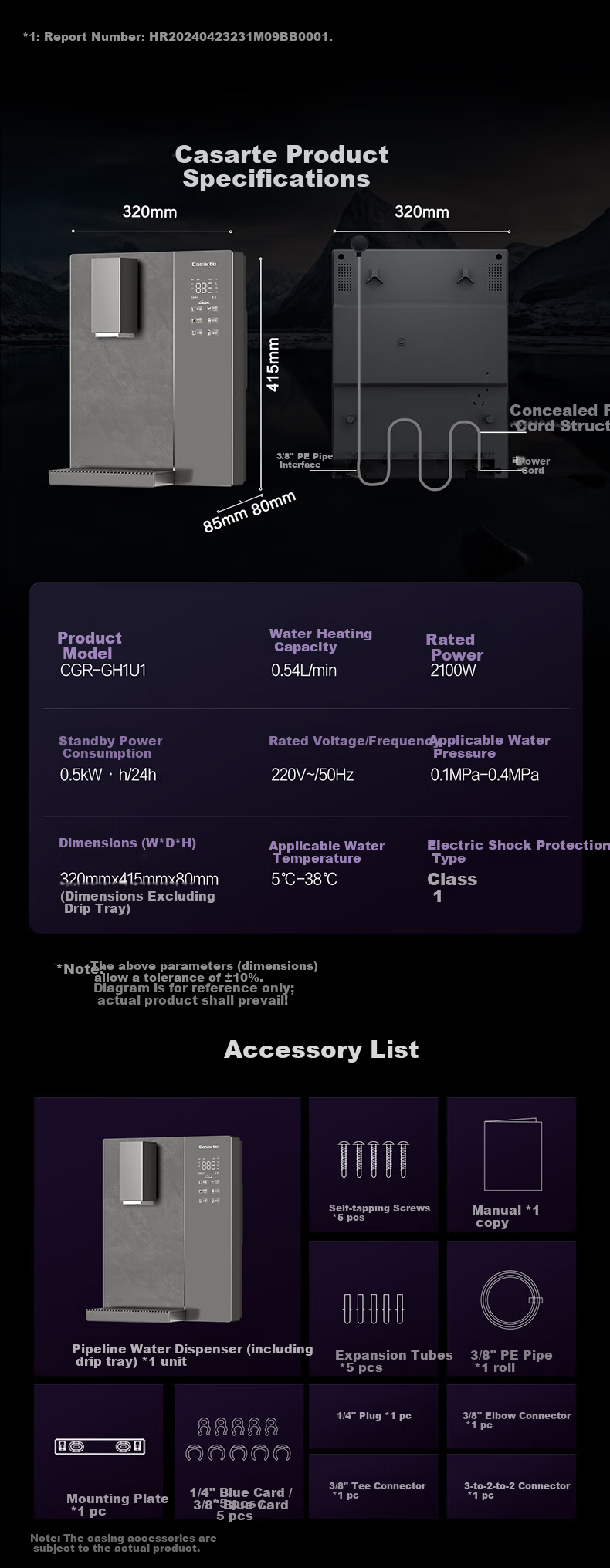

Dimensions (W x D x H): 320 mm x 415 mm x 80 mm (±10% tolerance, excluding drip tray)
Rated Power: 2100 W
Standby Power Consumption: 0.5 kWh/24h
Applicable Water Temperature: 5°C to 38°C
Protection Class: Class 1 (electric shock protection)
Accessories Included: Self-tapping screws (5 pcs), user manual (1), pipeline water dispenser with drip tray (1), expansion tubes (5), 3/8" PE pipe roll (1), 1/4" plug (1), 3/8" elbow joint (1), 2/4" blue card connectors, 3-way 3/8" connector (1), 3-to-2-to-2 connector (1), mounting bracket (1)

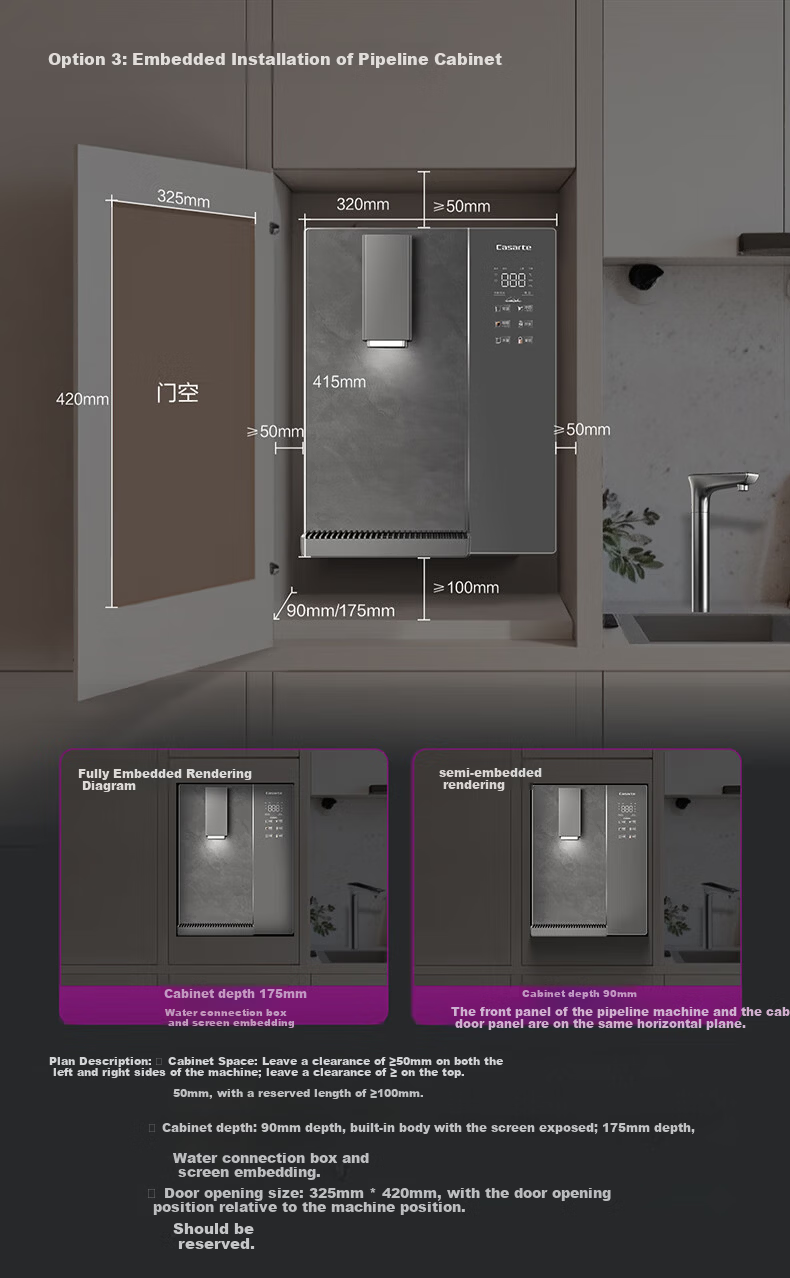

Installation Notes: Suitable for embedded installation in cabinets with minimum clearance of 50 mm on sides and top, and 100 mm at bottom; cabinet depth options 90 mm (semi-embedded, screen exposed) or 175 mm (fully embedded, screen and drip tray embedded); cabinet door opening size approx. 325 mm x 420 mm.

Large water volume instant heating system patent CN202322055350.5

Additional details

Report No.: HR20240423231M09BB0001

International high-end home appliance brand

Designed for odorless, fast-flowing true boiling water

Supports app control via Haier Smart Home APP

Voice prompts and AI interaction enhance user convenience

Energy-efficient cleaning system requiring only one drainage cycle compared to 2-3 cycles in other models

Suitable for various kitchen styles with luxury aesthetics and smart control

Product appearance, configuration, functions, performance, and quality standards remain unchanged despite model name update from CGR-GH1U1 to CGRZ-GH1U1. Specifications are subject to actual product.
