Back to CatalogLOBOROBOT Jetson AGX ORIN Developer YLB Kit Development Board 32GB Development Kit
Variants / Sale Attributes
Color: jetson agx orin YLB 32GB
Package Contents
Jetson AGX Orin Developer YLB Kit Standard Package (32G)
Product Description
Product Specifications

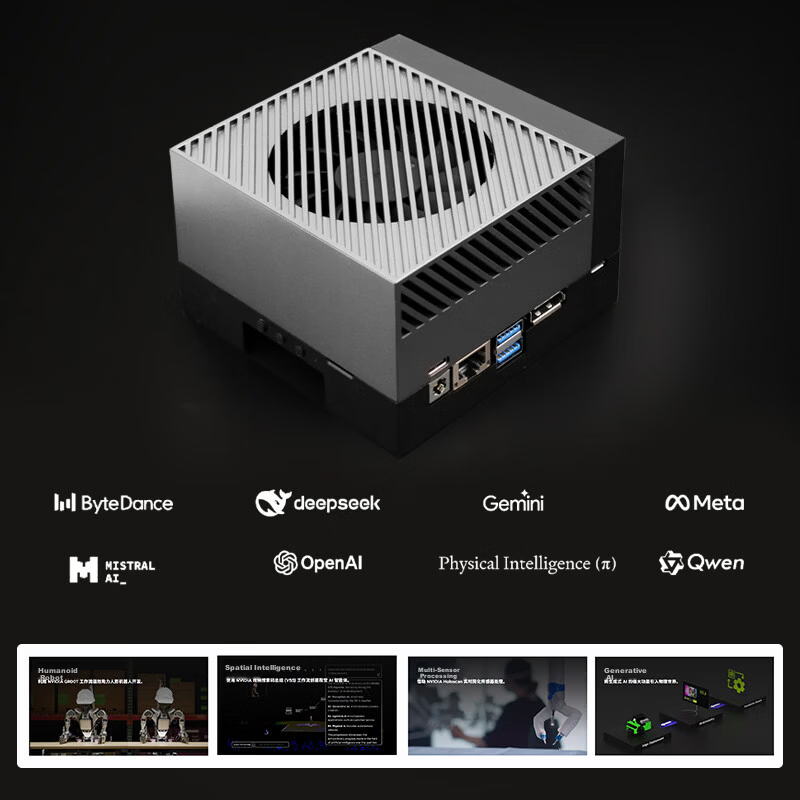

LOBOROBOT
ByteDance
deepseek
Gemini
mMeta
MISTRAL
SOpenAl
Physical Intelligence (π)
Qwen
AI_
Humanoid Robots
Spatial Intelligence
Multi-sensor Processing
Generative AI

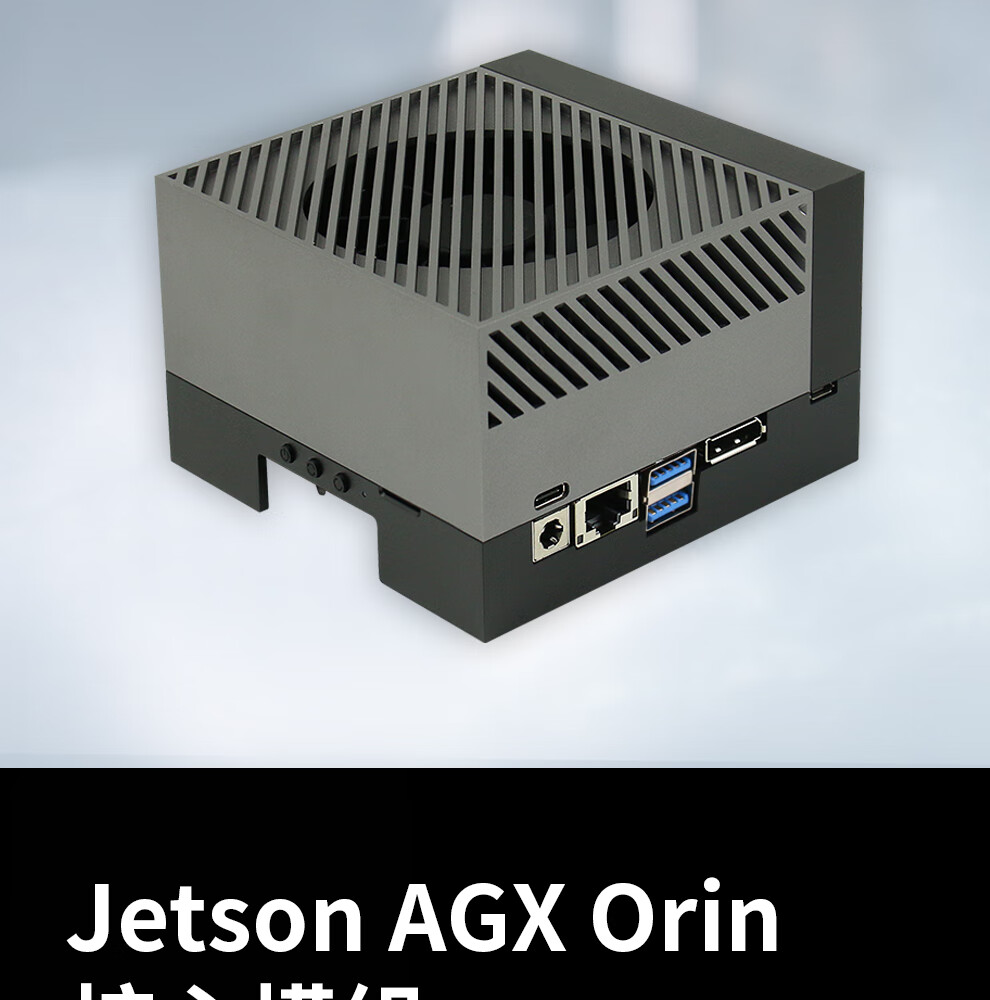

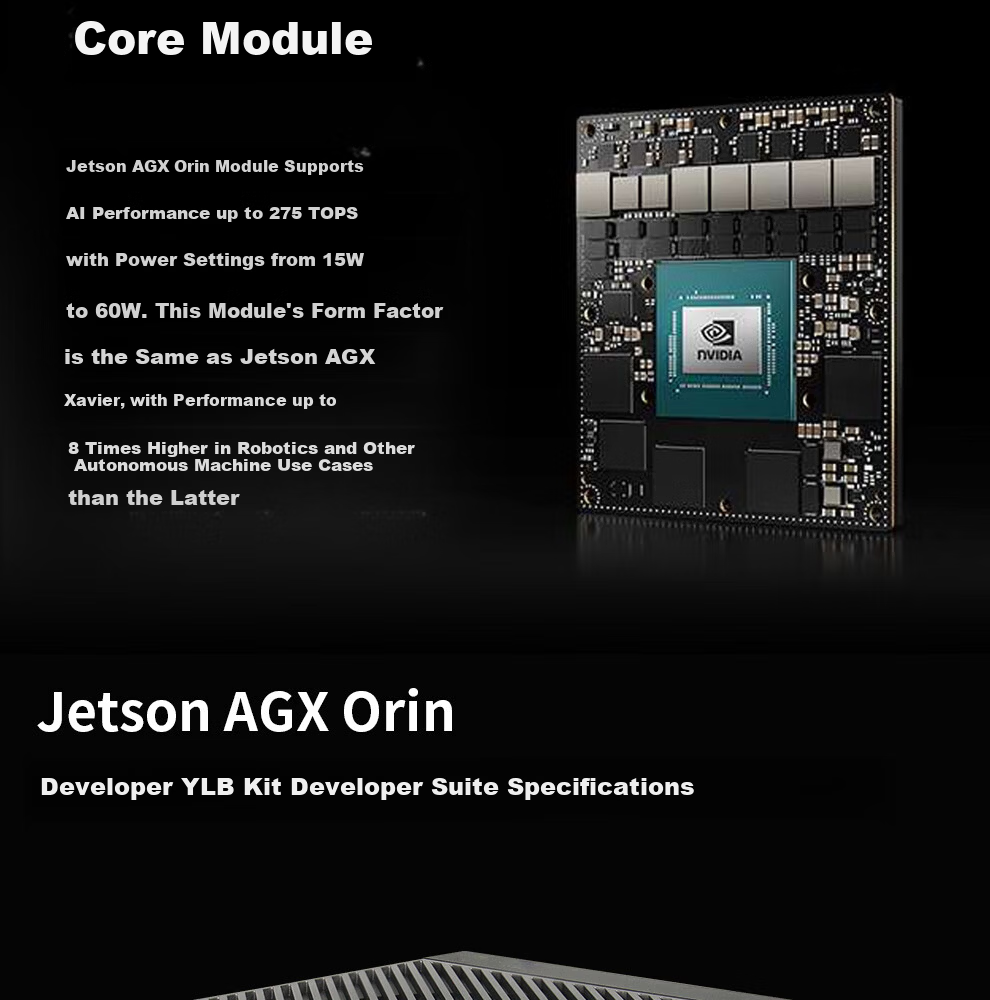

Jetson AGX Orin Module
Overview

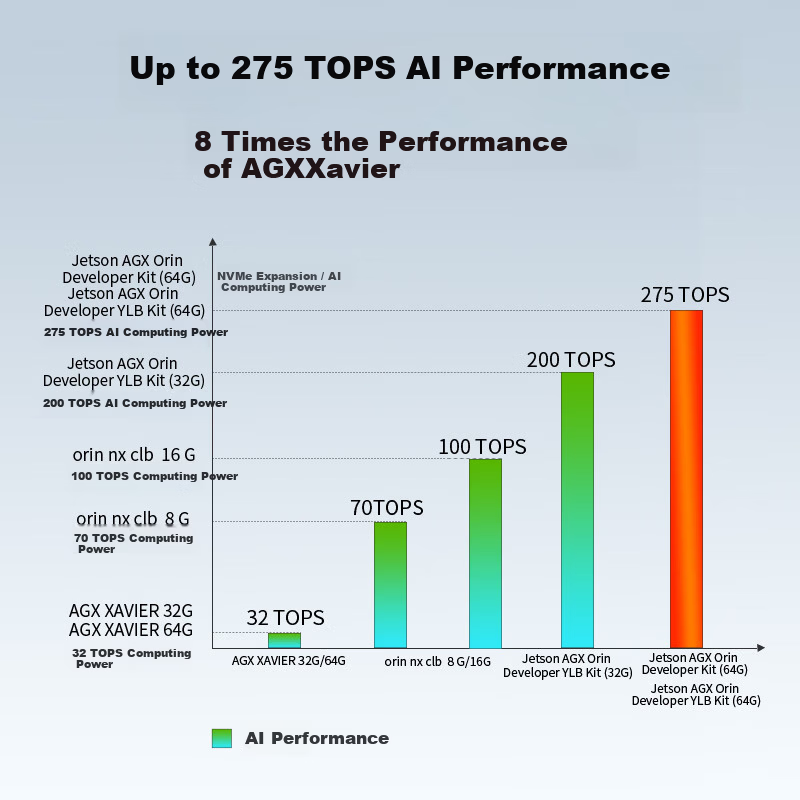

- AI Performance
- Up to 275 TOPS (8x NVIDIA Xavier)
- Power Consumption
- Configurable between 15W to 60W
- Form Factor
- Same as Jetson AGX Xavier (110 mm x 110 mm x 71.65 mm)
Similar Products
In Stock
Out of Stock
In Stock

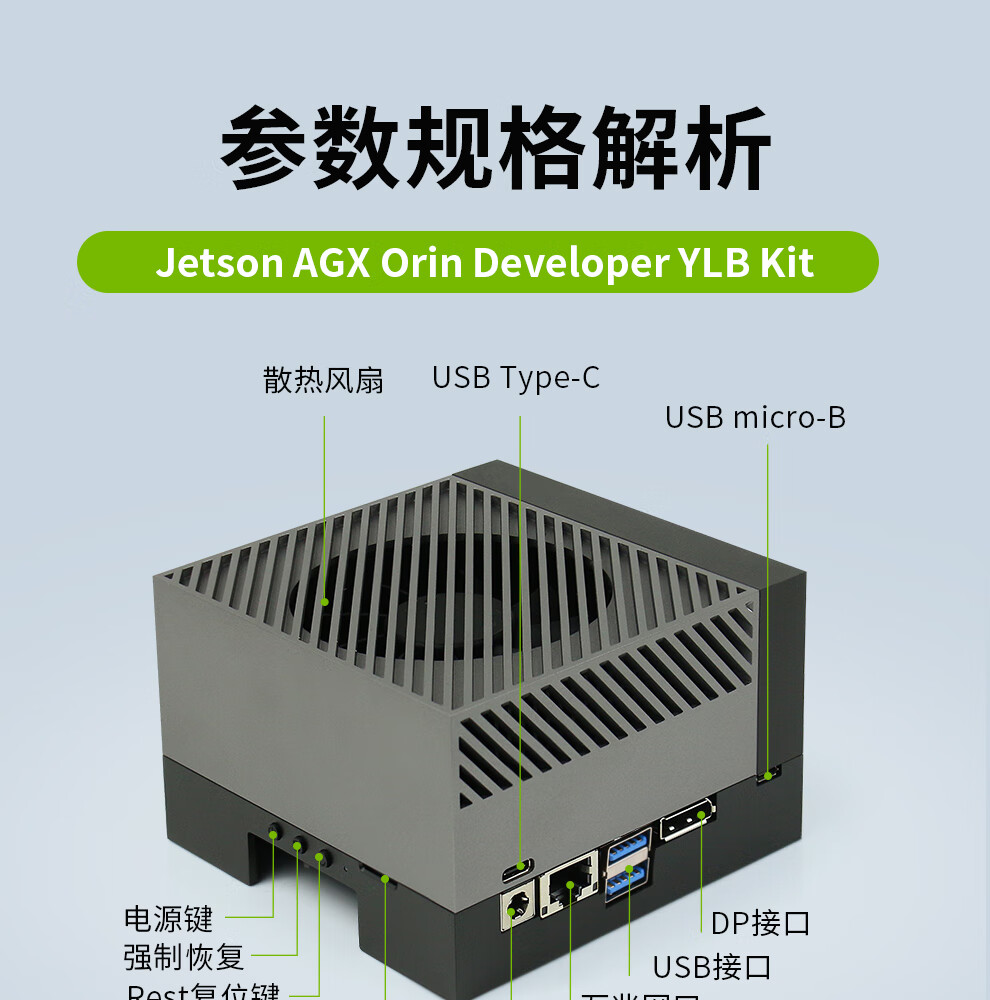

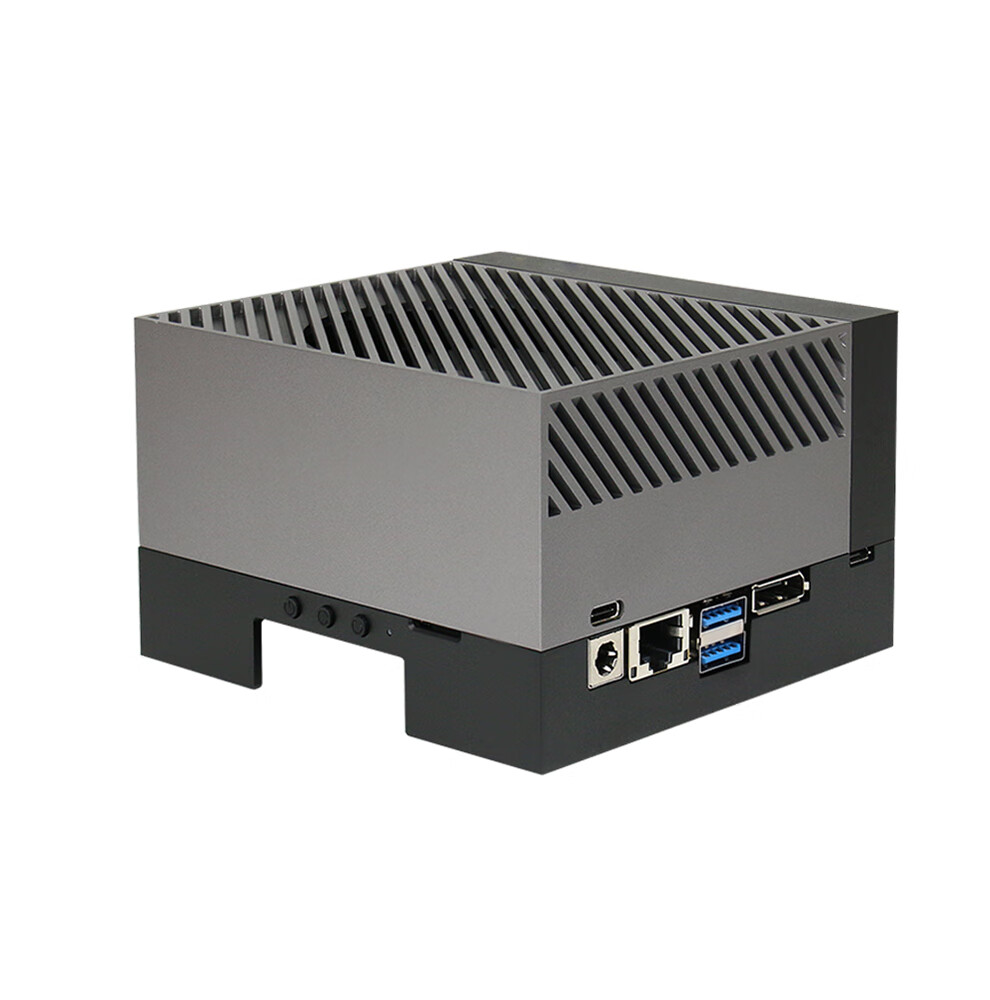

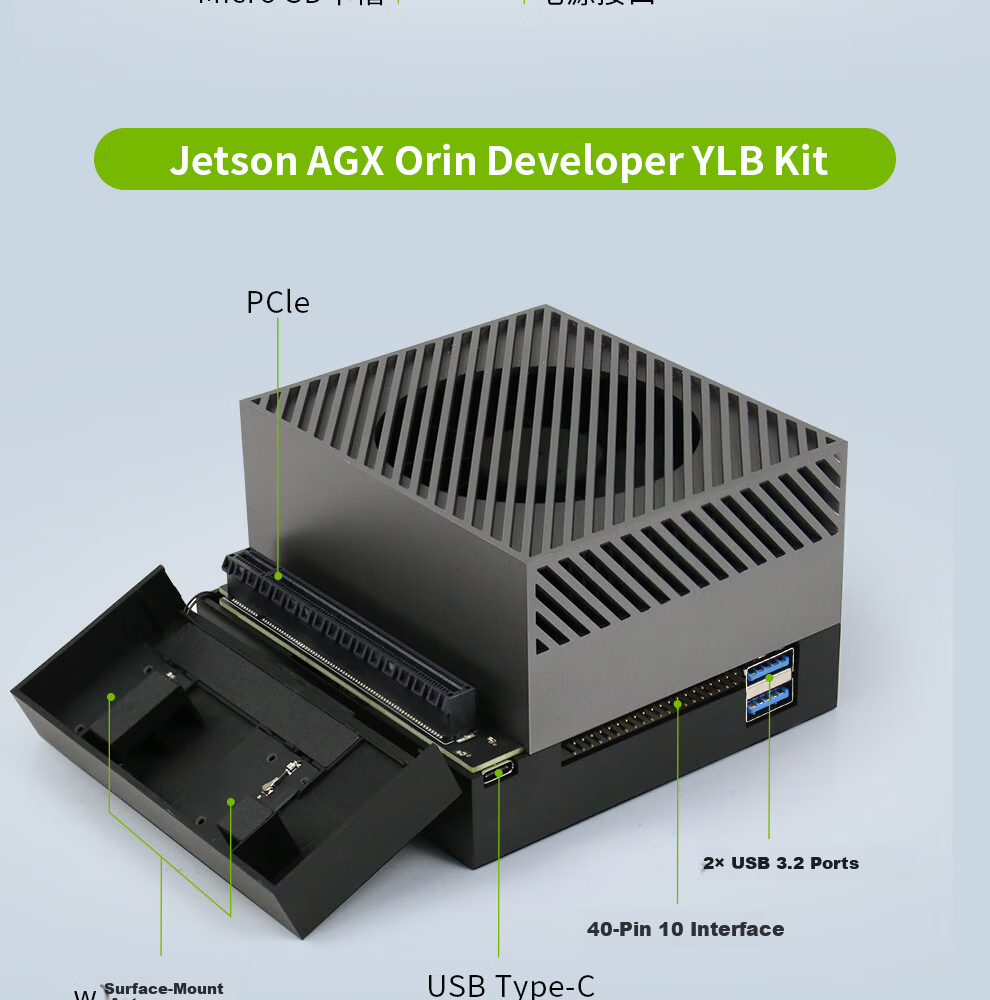

1. Jetson AGX Orin Developer YLB Kit
Additional details
- Variants
- 32GB and 64GB RAM options

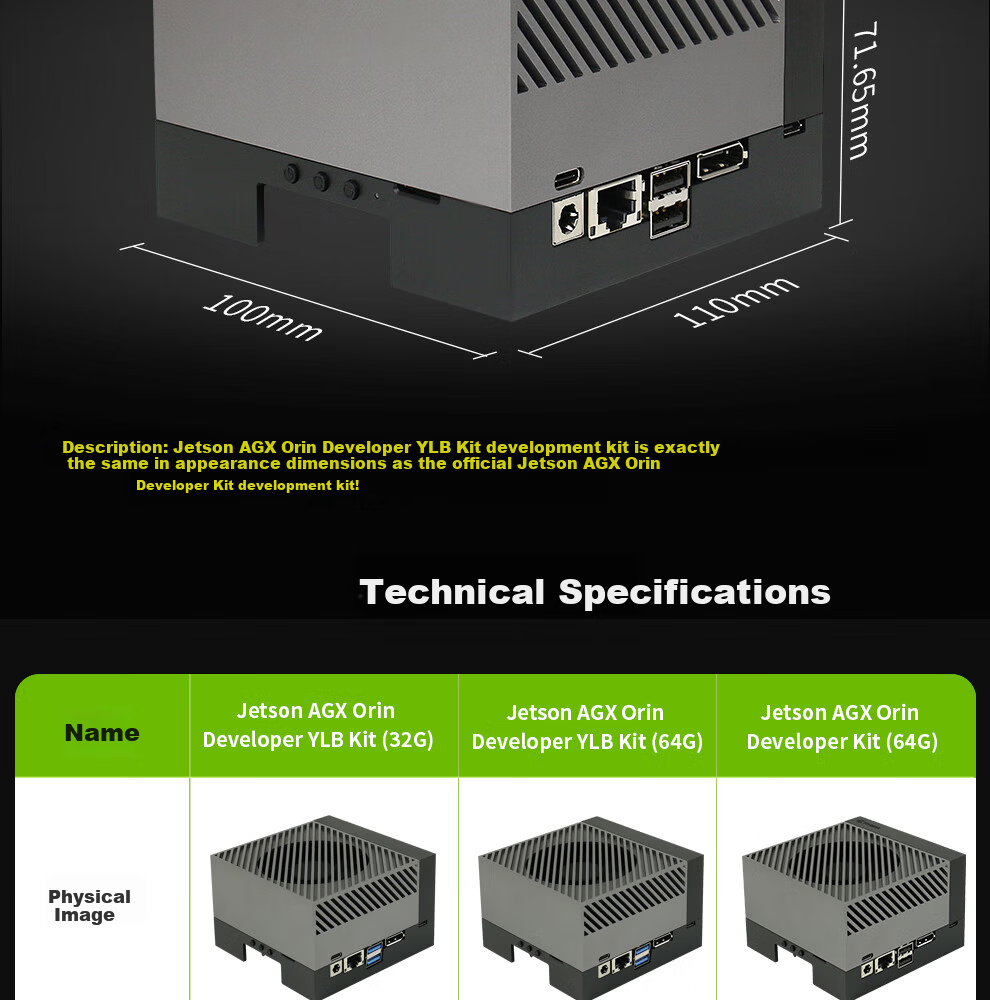

- Dimensions
- 110 mm x 110 mm x 71.65 mm
- Fully compatible in size and layout with official Jetson AGX Orin Developer Kit

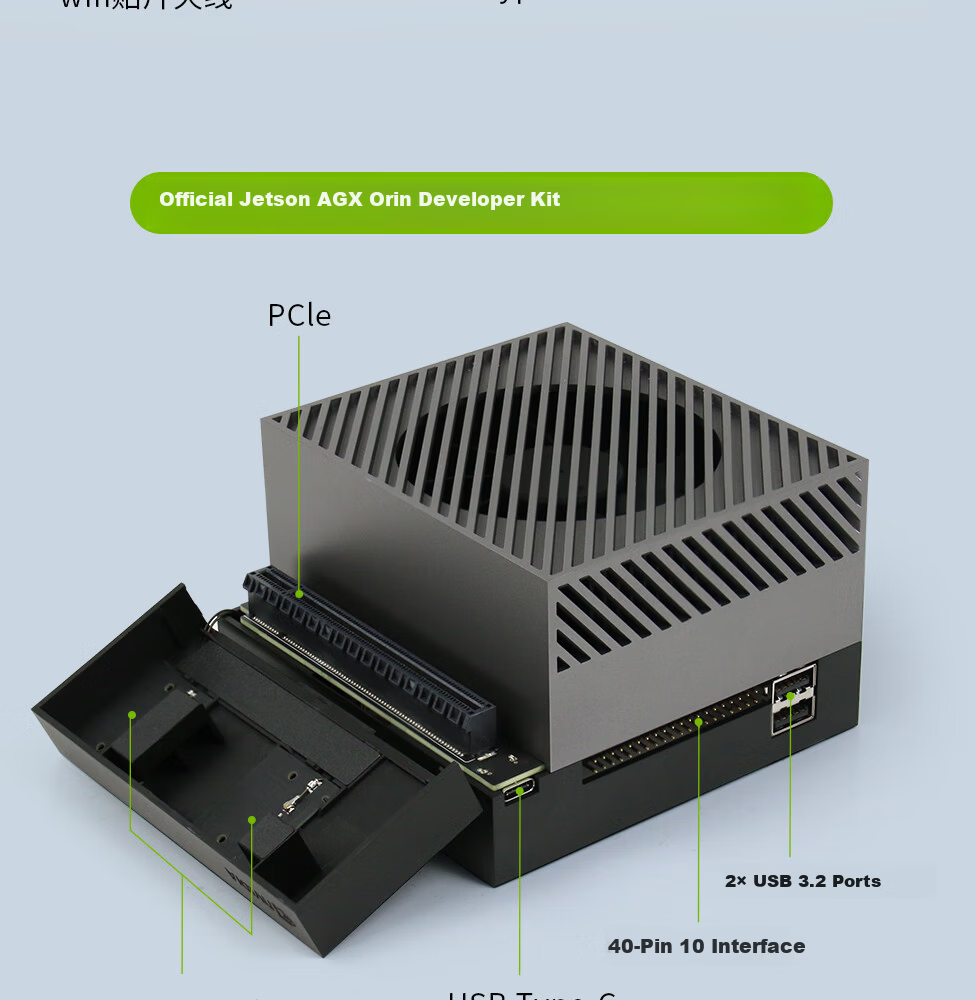

2. Official Jetson AGX Orin Developer Kit
- 64GB RAM standard version

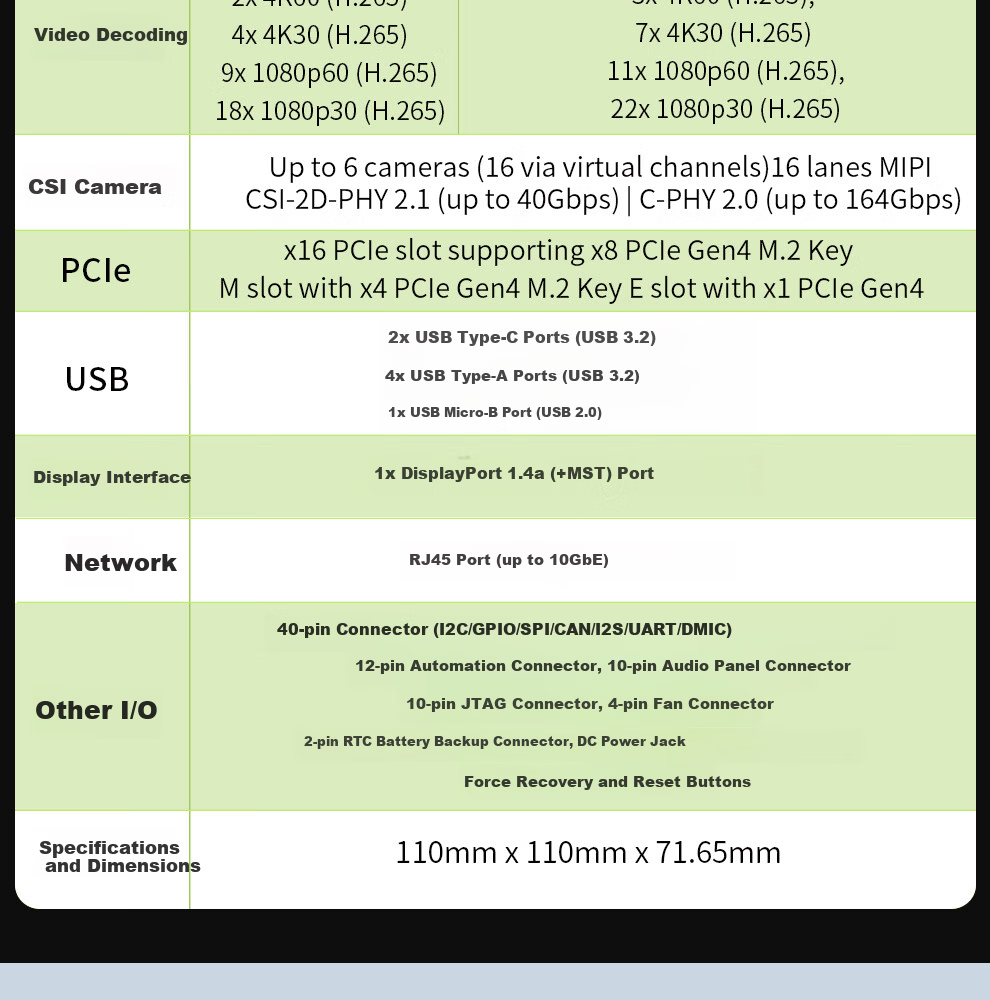

Video Decode Capabilities
| Item | Detail |
|---|
| Developer YLB Kit (32GB) | 4x 4K30 (H.265), 9x 1080p60 (H.265), 18x 1080p30 (H.265) |
| Developer YLB Kit (64GB) | 7x 4K30 (H.265), 11x 1080p60 (H.265), 22x 1080p30 (H.265) |
| Developer Kit (64GB) | 9x 1080p60 (H.265), 11x 1080p60 (H.265) |
Up to 6 cameras via 16 virtual channels
CSI-2 D-PHY 2.1 (up to 40 Gbps)
C-PHY 2.0 (up to 164 Gbps)

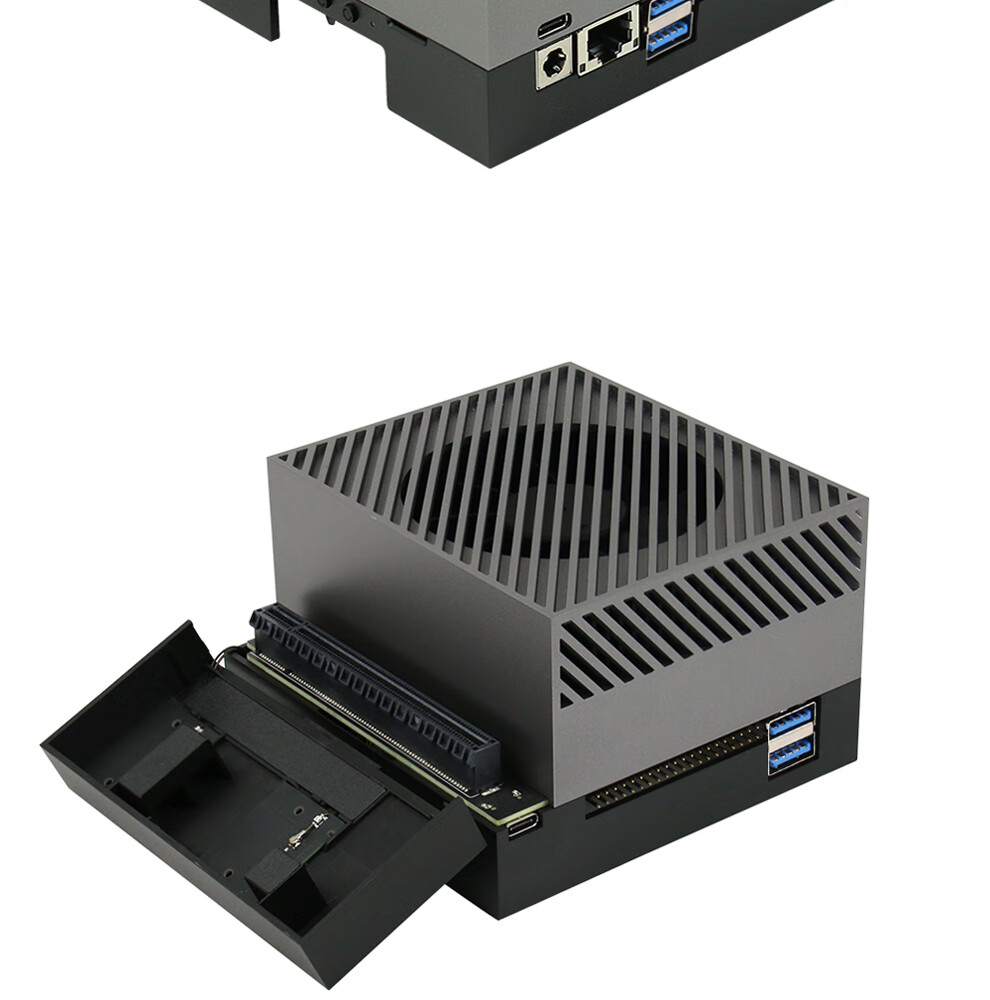

PCIe Slots
- x16 PCIe slot supporting x8 PCIe Gen4
- M.2 Key M slot with x4 PCIe Gen4
- M.2 Key E slot with x1 PCIe Gen4
USB Ports
- 2x USB Type-C (USB 3.2)
- 4x USB Type-A (USB 3.2)
- 1x USB Micro-B (USB 2.0)
Display Interface
- 1x DisplayPort 1.4a with MST support
Network
- RJ45 Ethernet port supporting up to 10 GbE
- 10 Gigabit network chip included

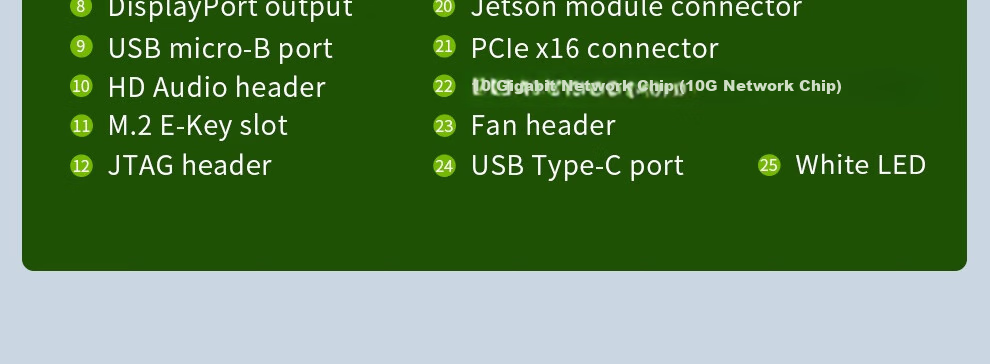

Other I/O
- 40-pin connector (I2C/GPIO/SPI/CAN/I2S/UART/DMIC)
- 12-pin automation connector
- 10-pin audio panel connector
- 10-pin JTAG connector
- 4-pin fan connector
- 2-pin RTC battery backup connector
- DC power jack
- Force recovery and reset buttons
HDMI to DisplayPort cable included in some kits
Switch on/off and boot selection buttons
JTAG interface for debugging
Jetson AGX Orin Developer Kit (64GB) standard package includes
- Official Jetson AGX Orin Developer Kit (64GB)
- Power adapters (UK, EU, US standards)
- Type-C data cable (with protocol support)
- User manual

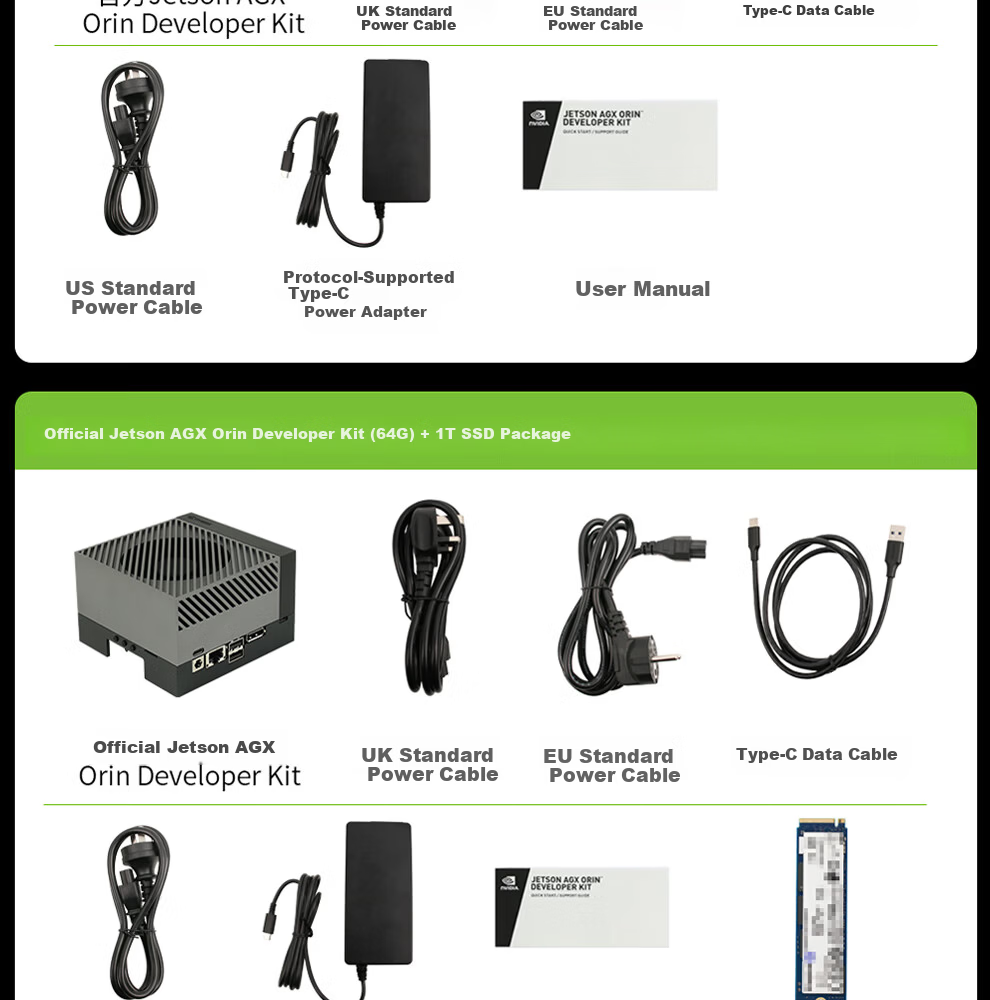

Jetson AGX Orin Developer Kit (64GB) + 1TB SSD package
- Includes 1TB SSD (brand unspecified)
- Same accessories as standard package

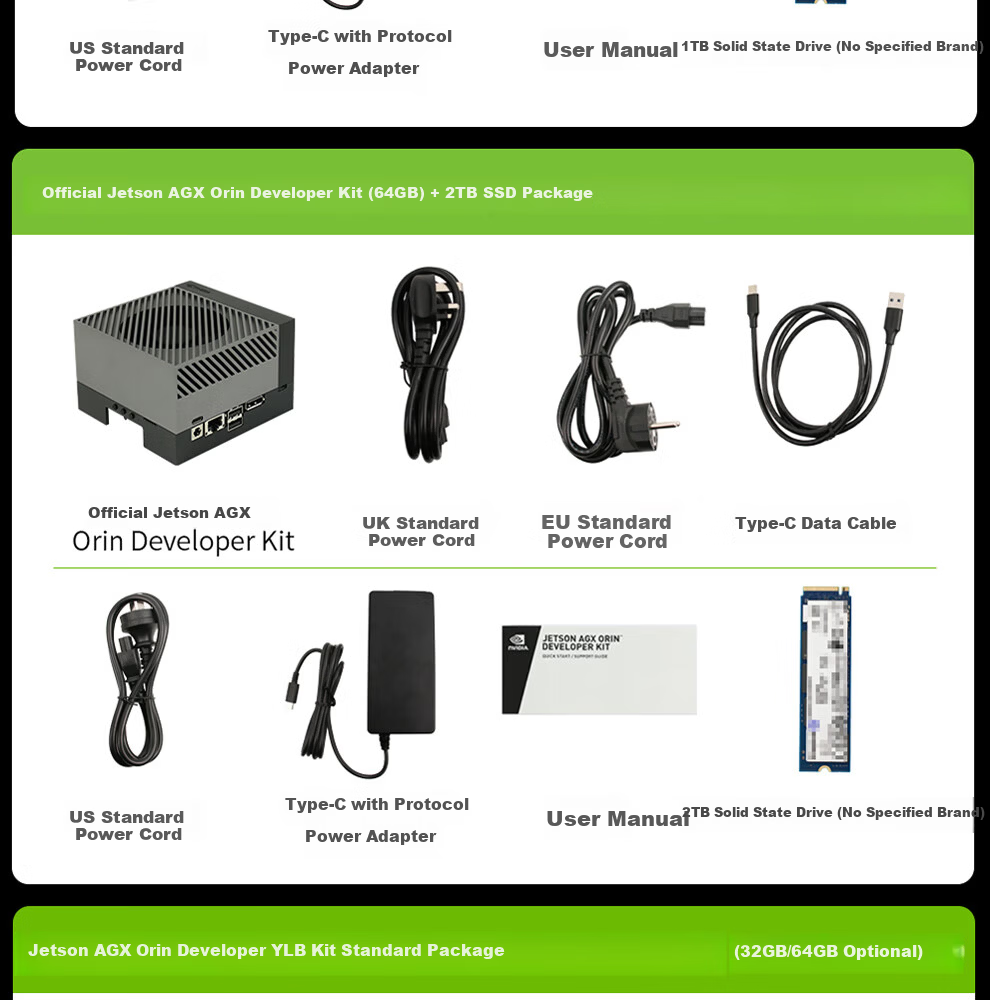

Jetson AGX Orin Developer Kit (64GB) + 2TB SSD package
- Includes 2TB SSD (brand unspecified)
- Same accessories as standard package

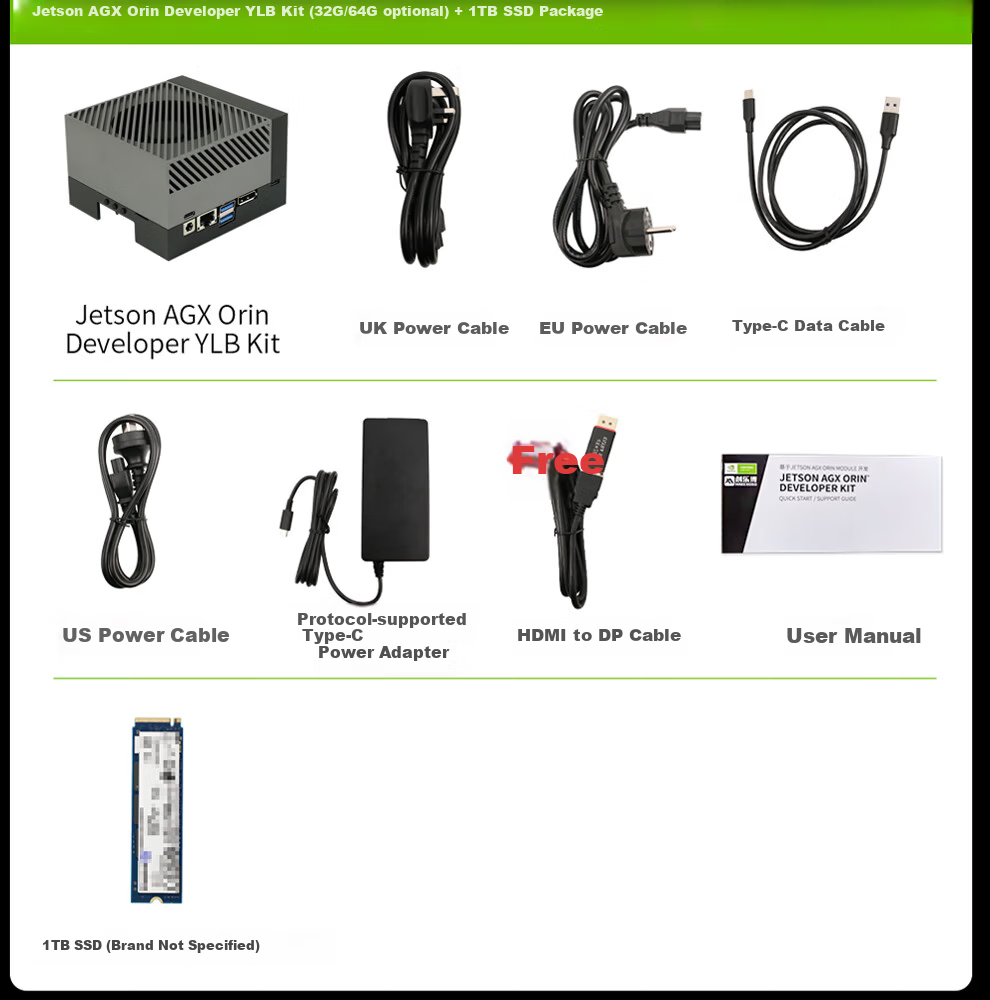

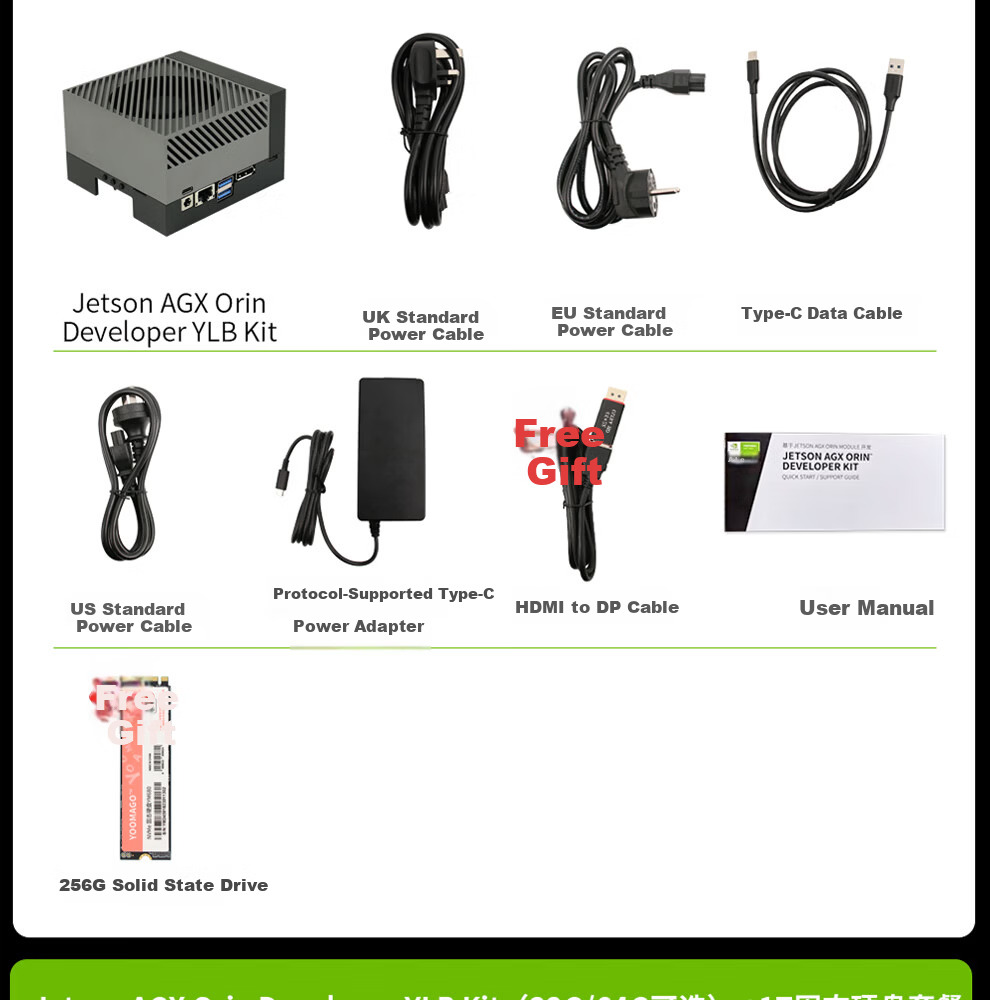

Jetson AGX Orin Developer YLB Kit (32GB/64GB) standard package
- Includes power adapters (UK, EU, US)
- Type-C data cable (with protocol support)
- HDMI to DP cable
- User manual
- Power adapter
- Optional 256GB or 1TB SSD (brand unspecified)

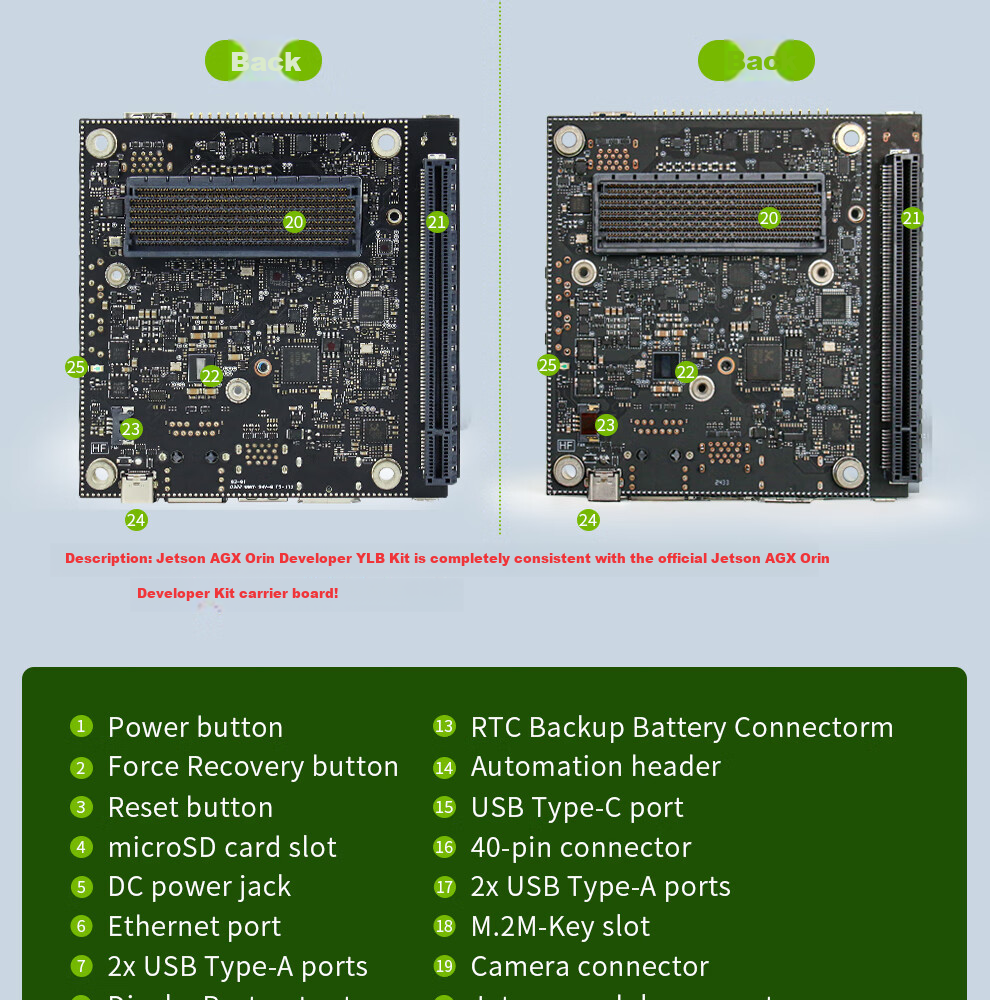

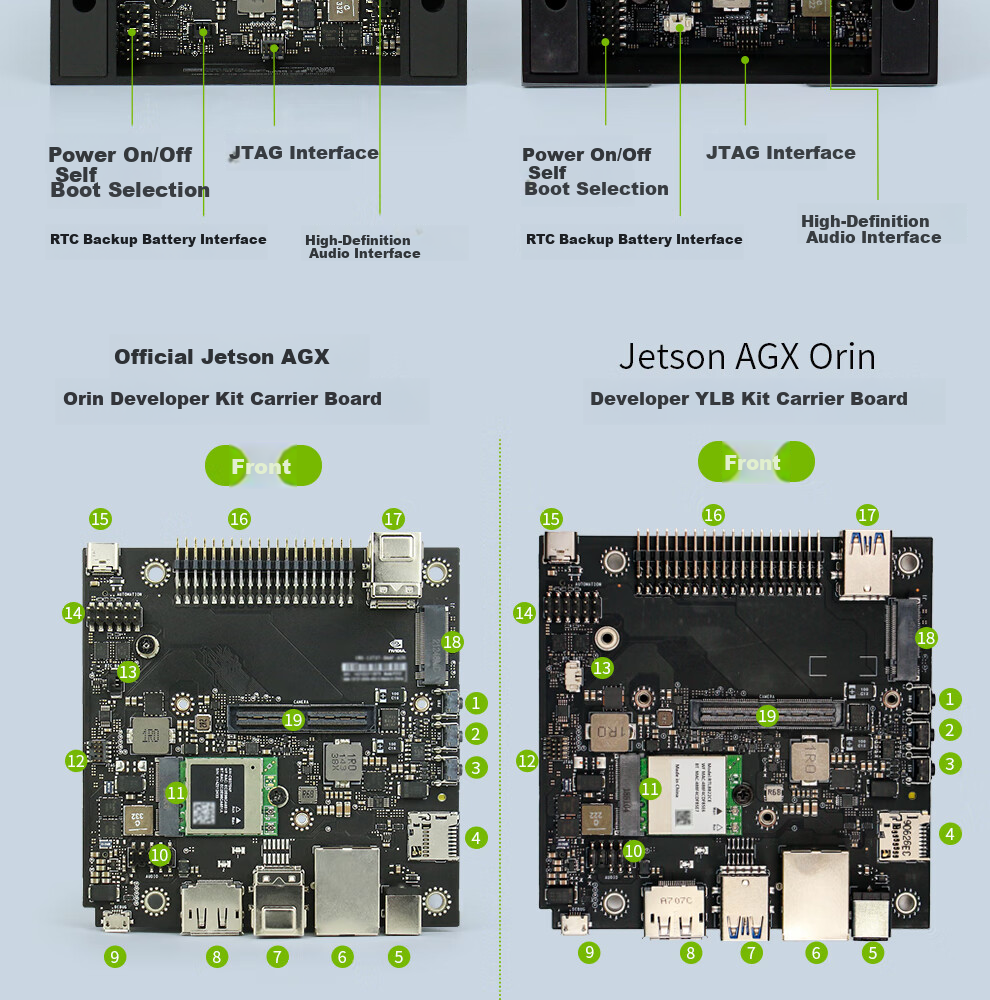

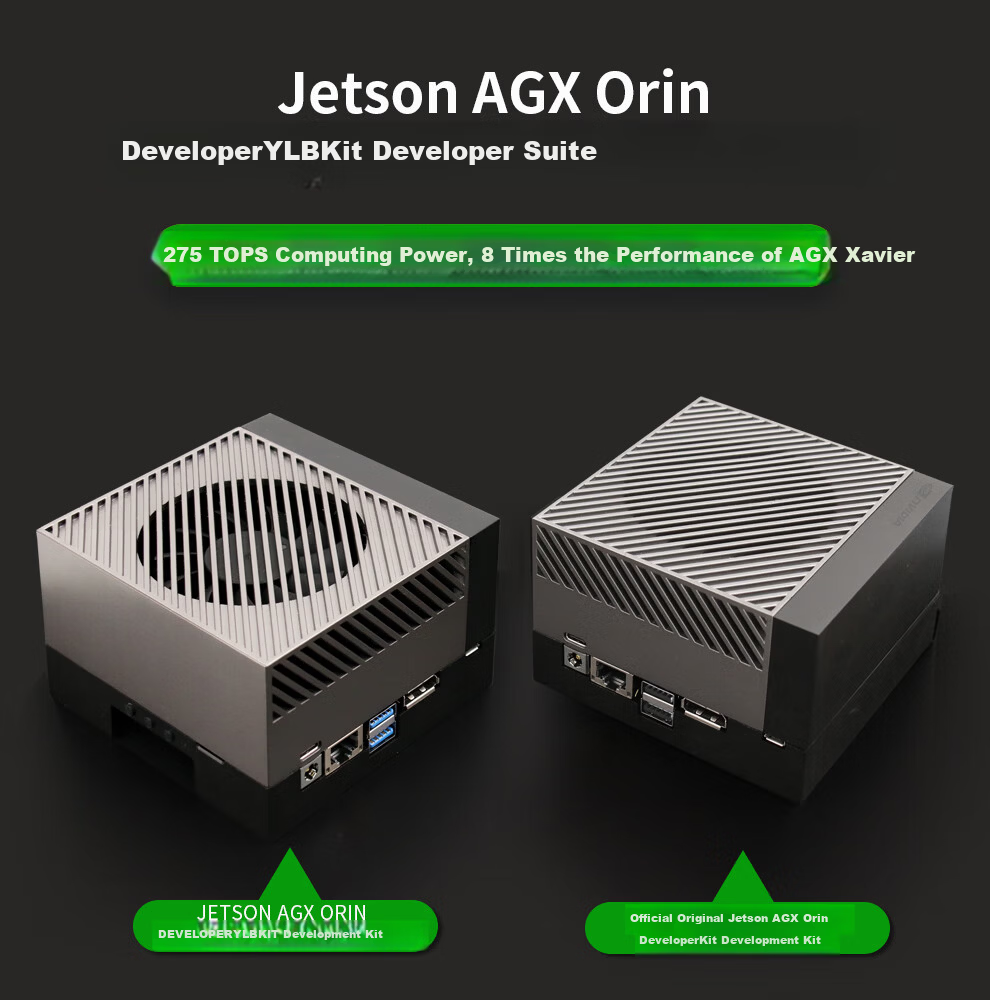

Jetson AGX Orin Developer YLB Kit is fully compatible in form factor and interface with the official Jetson AGX Orin Developer Kit.
The module delivers significantly higher AI performance suitable for robotics and autonomous applications.
