Back to CatalogZEBRA DS2208, One-Dimensional And Two-Dimensional Barcode Wired Scanner, WeChat Pay Cashier Scanner, Barcode Gun, DS2208 + Bracket
Specifications
- Decoding type
- Two-dimensional, One-dimensional, Composite code
- Battery capacity
- No battery capacity
- Wireless transmission distance
- Does not support wireless transmission
- Scanning media
- Paper, Screen, film
- Memory capacity
- No memory
- Transmission mode
- Wired
- Light source
- Image
- Resolution
Variants / Sale Attributes
Color: DS2208 Wired Standard Configuration (With Bracket)
型号: 【DS2208套装】免手持自动扫描
Package Contents

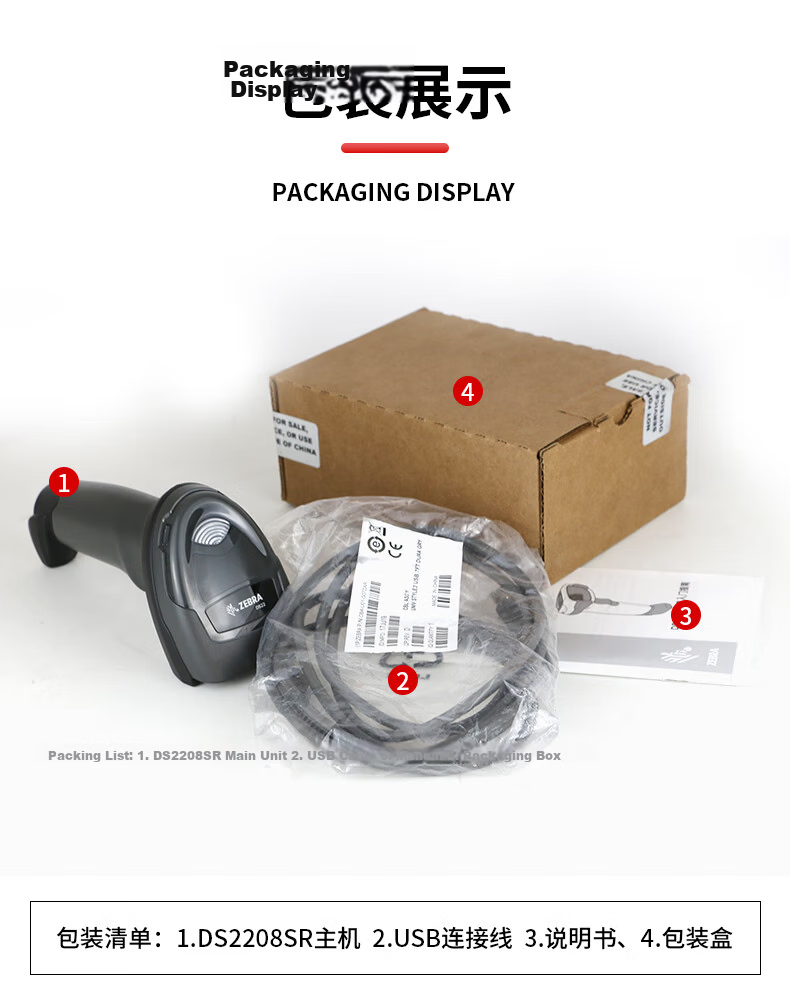

Official standard set
Product Description
Product Specifications
Overview
- Brand
- ZEBRA
- Models
- DS2208 (Wired), DS2278 (Wireless)
- DS2208

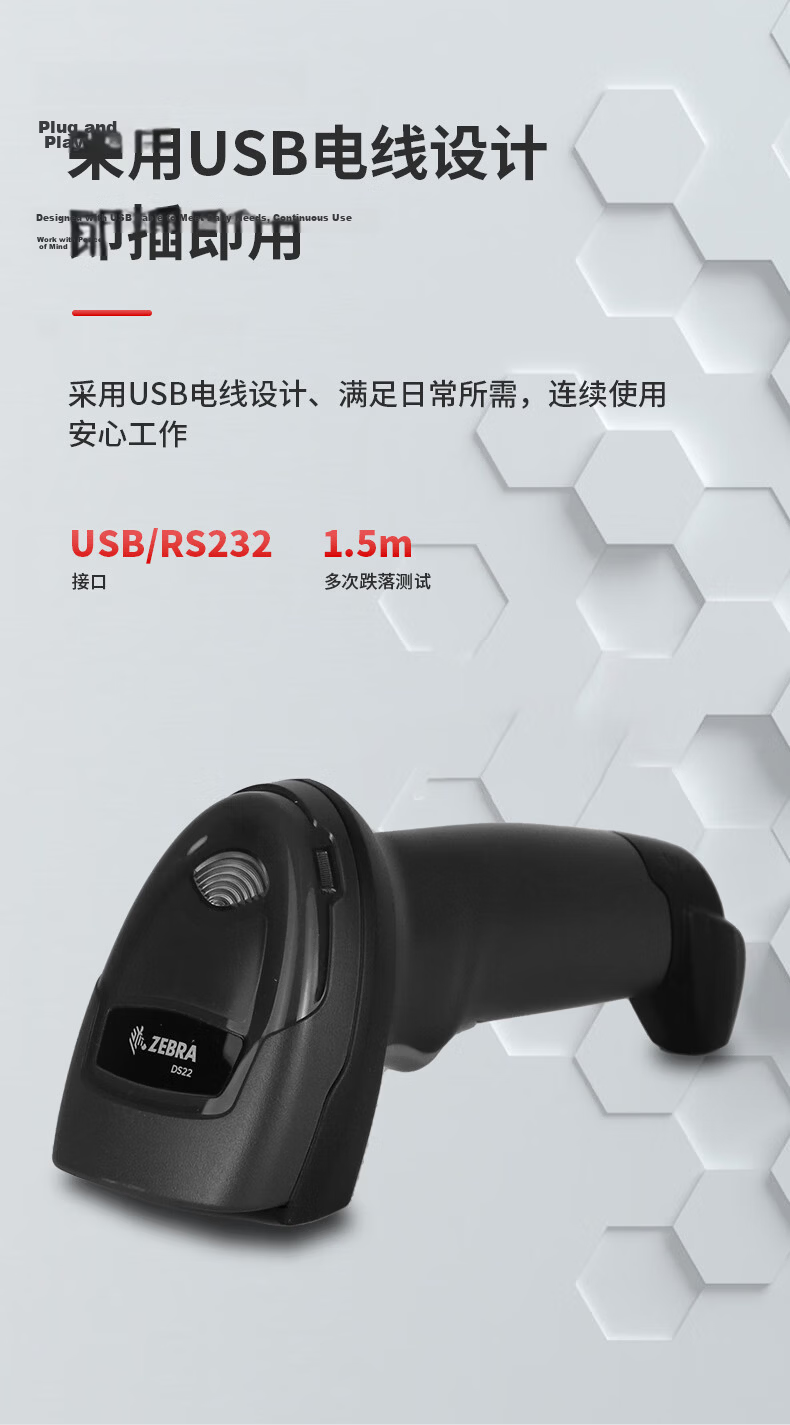

- Wired (USB/RS232)
- DS2278
- Wireless (Bluetooth 4.0 BLE)
1D barcodes (e.g., Code39, Code128, UPC)
2D barcodes (e.g., QR Code, PDF417, Data Matrix)
Supports damaged, dirty, colored, and irregular barcodes
Capable of reading paper and digital barcodes, including partially damaged and low contrast codes
Additional details

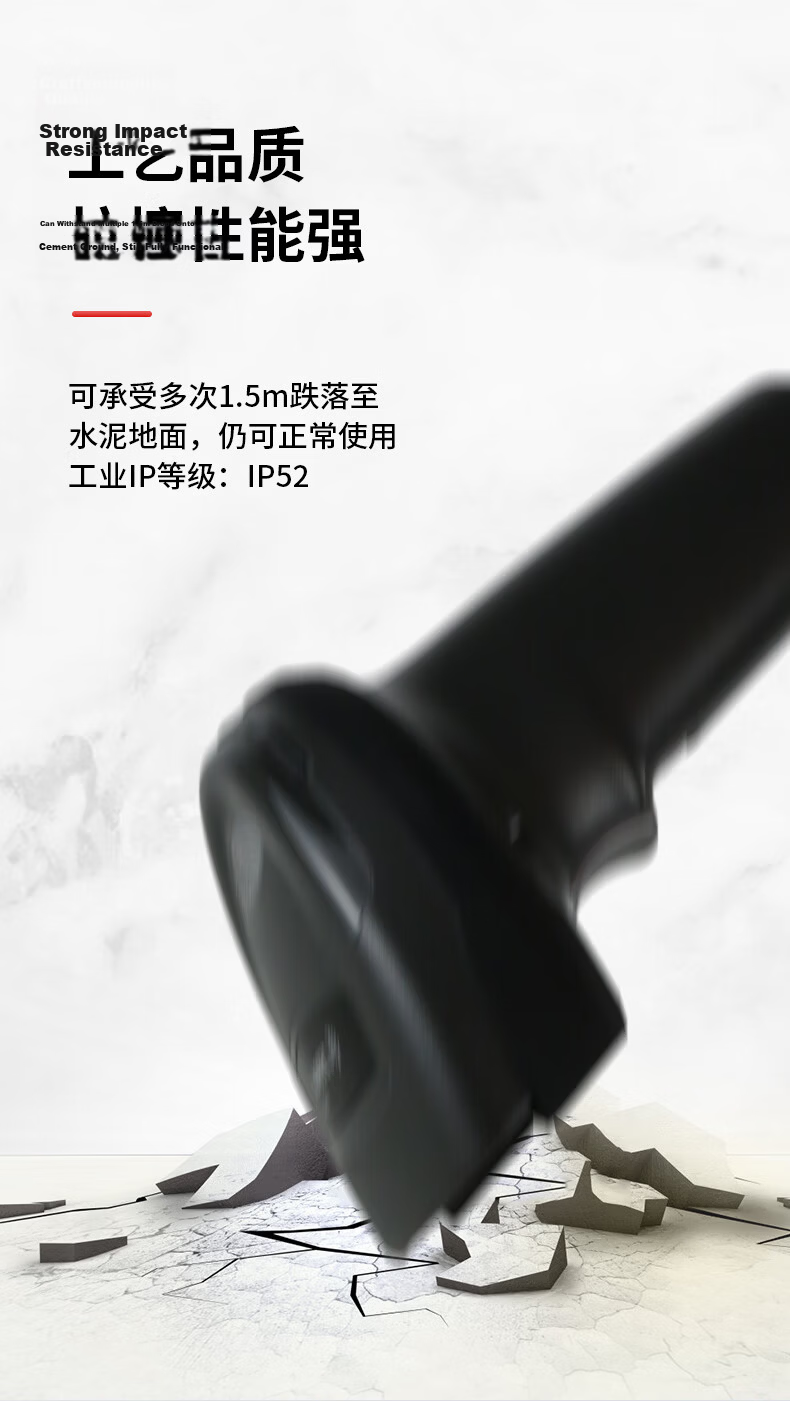

- Drop resistance
- Multiple drops from 1.5 meters (5 feet) onto concrete
Similar Products
Out of Stock
Out of Stock
No
Rolling resistanceWithstands 250 drops from 0.5 meters (1.5 feet) Industrial ratingIP52 (dust and water resistance) Electrostatic Discharge (ESD) protectionEN61000-4-2 standard, ±15KV air discharge, ±8KV contact discharge Operating temperature0°C to 50°C (32°F to 122°F) Storage temperature-40°C to 70°C (-40°F to 158°F) Humidity5% to 95% non-condensing Ambient light tolerance0 to 10,000 foot-candles (0 to 107,600 lux) Scan range varies by barcode type and density; examples
| Item | Detail |
|---|
| Code39 | Near 0.2 in (0.5 cm) to far 6.0 in (15.2 cm), 5 mil resolution |
| Code128 | Near 0.6 in (1.5 cm) to far 4.0 in (10.1 cm), 5 mil resolution |
| PDF417 | Near 0.8 in (2.0 cm) to far 5.7 in (14.5 cm), 6.7 mil resolution |
| UPC | Near 0.5 in (1.3 cm) to far 14.5 in (36.8 cm), 13 mil resolution |
| Data Matrix | Near 0.3 in (0.8 cm) to far 6.2 in (15.7 cm), 10 mil resolution |
| QR Code | Near 0 in (0 cm) to far 11 in (27.9 cm), 20 mil resolution |

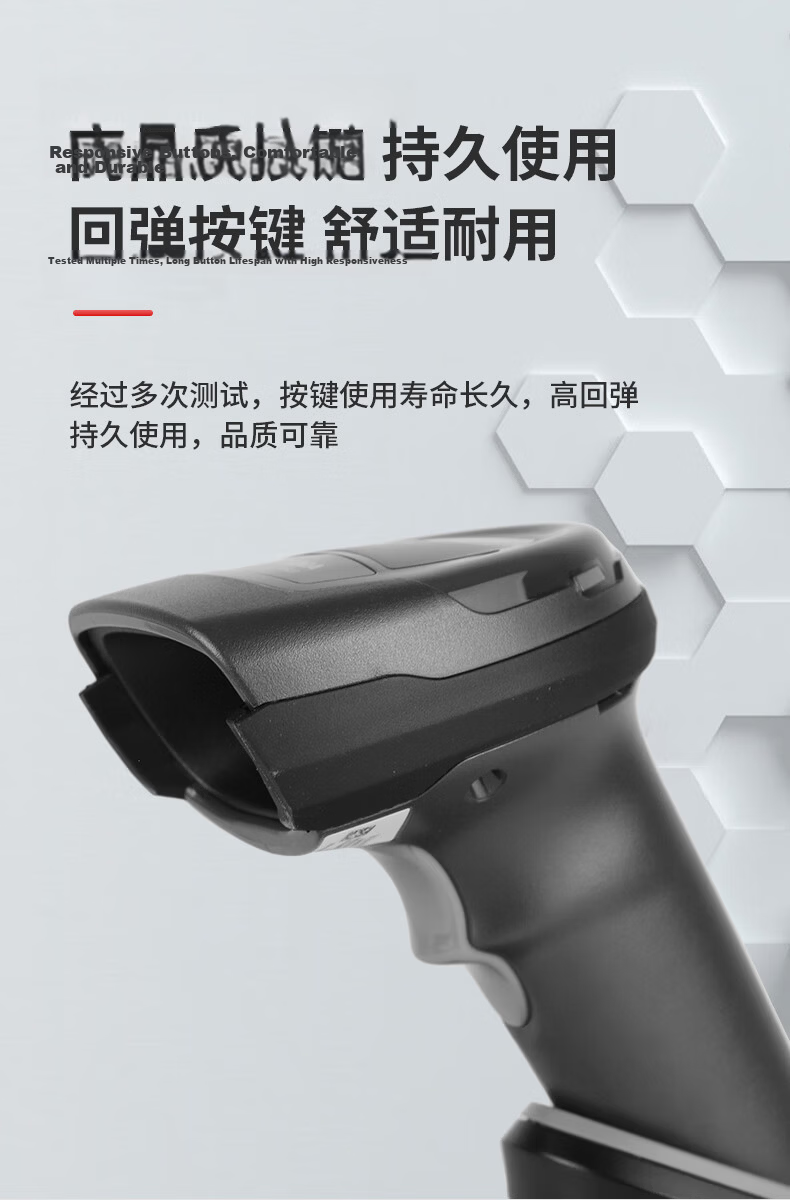

High-quality, durable keys with comfortable tactile feedback and long lifespan
User-friendly beeper for scan confirmation

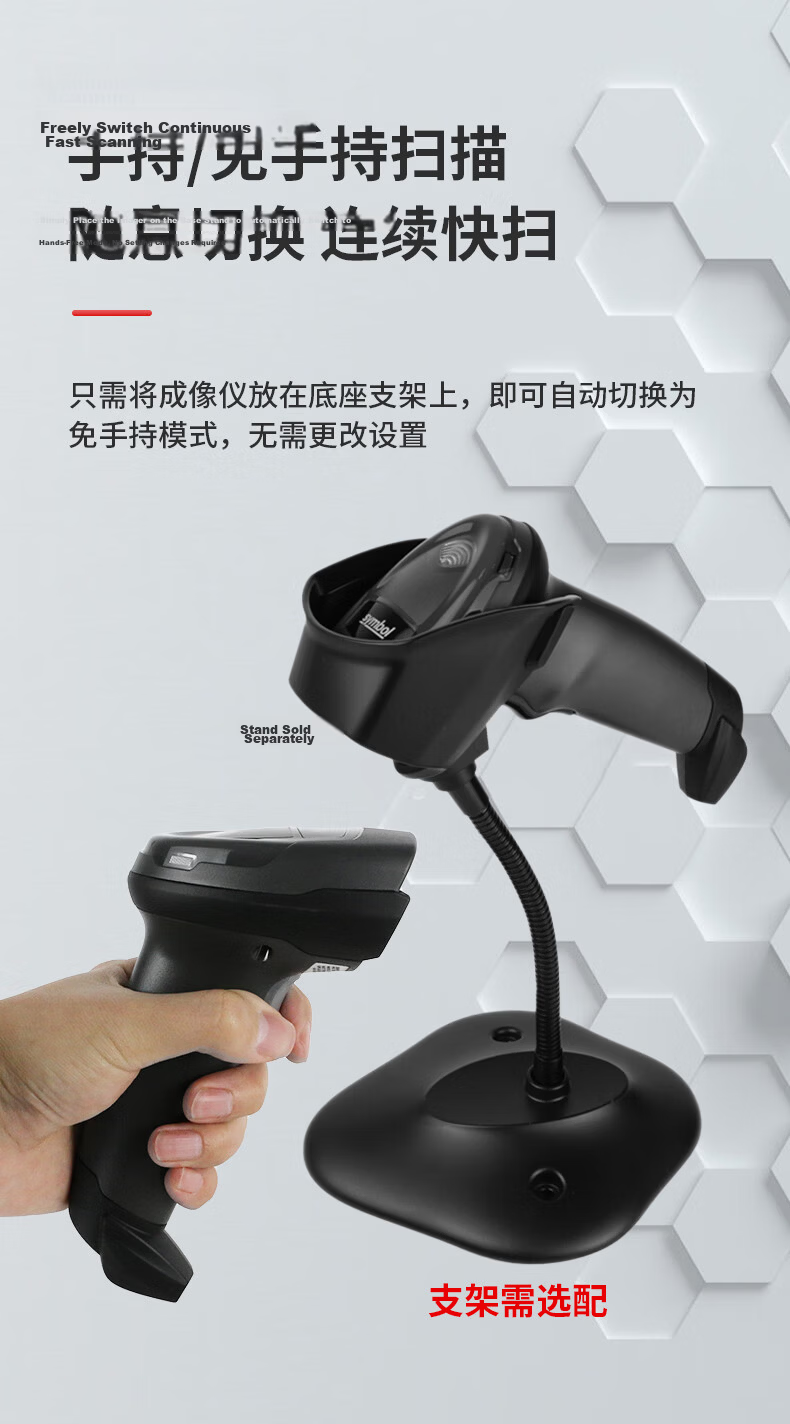

Supports handheld and hands-free modes; automatic switching when placed on optional stand
Additional details
- Battery type
- 2400mAh Lithium-ion
- Scan capacity per full charge
- Up to 110,000 scans (at 60 scans/min) or 50,000 scans (at 10 scans/min)
- Operating time per full charge
- Up to 84 hours
Charging time varies by method
| Item | Detail |
|---|
| Standard USB | 14 hours shift time, 17 hours full charge |
| BC1.2 USB | 14 hours shift time, 5 hours full charge |
| External 5V power | 14 hours shift time, 5 hours full charge |
| Micro USB | 14 hours shift time, 7 hours full charge |
| BC1.2 Micro USB | 14 hours shift time, 4 hours full charge |
Bluetooth 4.0 with BLE support
Additional details
- Outdoor line-of-sight range
- Minimum 10 meters (30 feet), maximum 100 meters (300 feet) depending on environment
Output power adjustable in 8 steps from 2.0 dBm
Compatible with major operating systems including Windows XP, 7, 8, 10
Supports various software and terminal systems
PRZM Intelligent Imaging Technology for fast and accurate decoding
DataCapture DNA software suite for device management, diagnostics, and scanning optimization
Supports scan-to-application control and remote management
Designed for continuous daily use with reliable performance in industrial environments
Additional details
- Customer Service
- 0519-81690699
- Product Code
- 8658300002
- Pricing
- 7.57 RMB per unit
