GENUIN Ceiling Duct Exhaust Fan 12 Inch BPT15-23C-1 Powerful Low Noise Ceiling Mounted High Airflow Ventilation Fan

High static pressure fan blades for stable airflow and low noise

Ceiling-mounted design with multiple panel options

3C certification ensuring quality and safety

Easy installation with detachable and easy-to-clean panels

Splash-proof and waterproof technology with electrical safety

Engineering-grade flame retardant materials

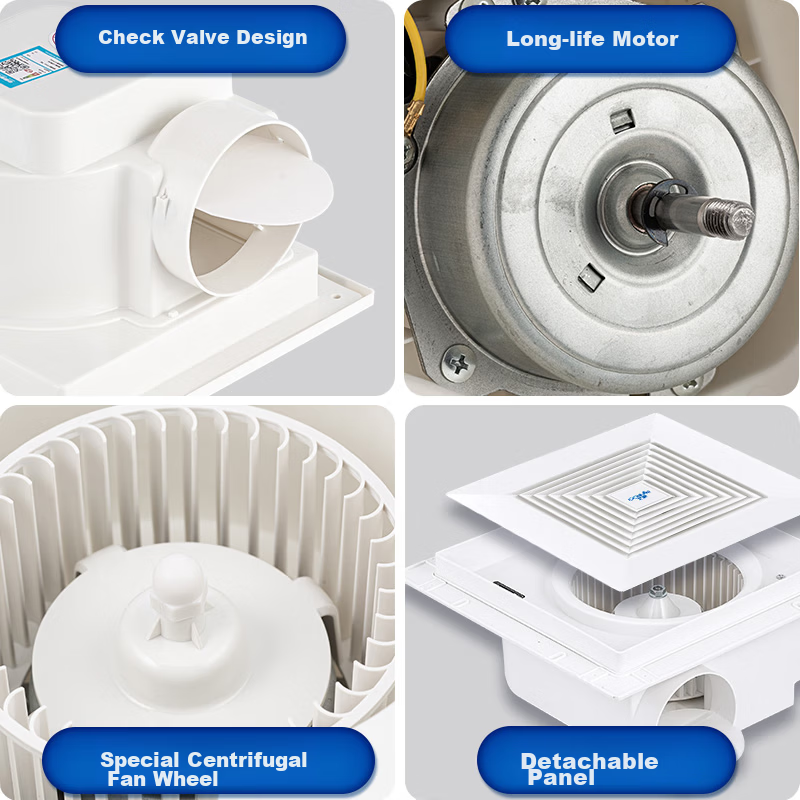

Backdraft damper design to prevent outdoor air backflow and insect entry

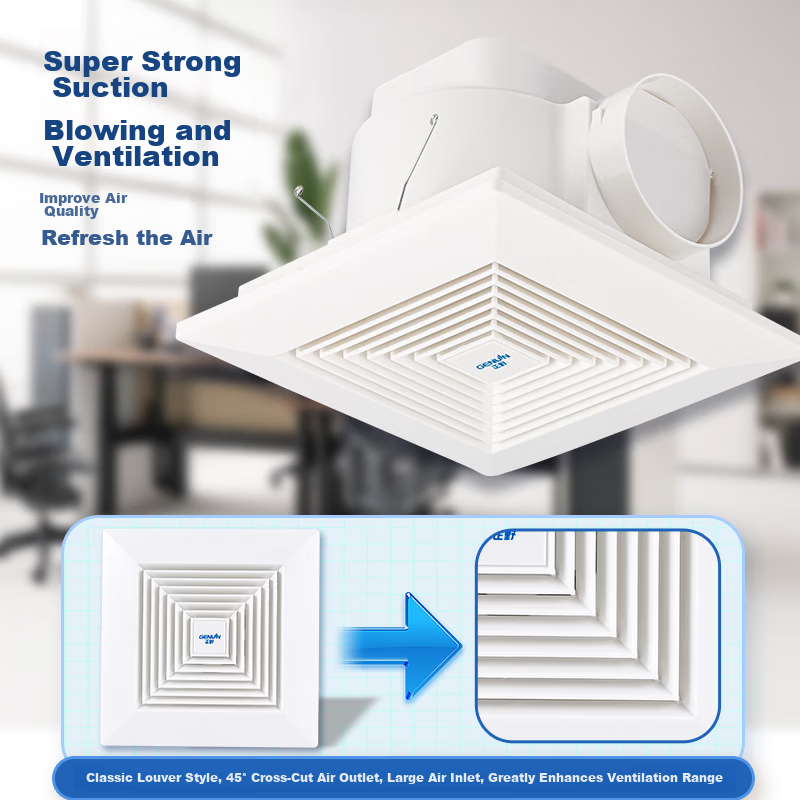

Classic louver panel with 45° horizontal cut air guide for enhanced ventilation coverage

High-performance multi-wing centrifugal impeller made of premium ABS material

Archimedean spiral air duct design combined with large impeller for high efficiency and airflow

Spring clips for secure panel attachment preventing loosening

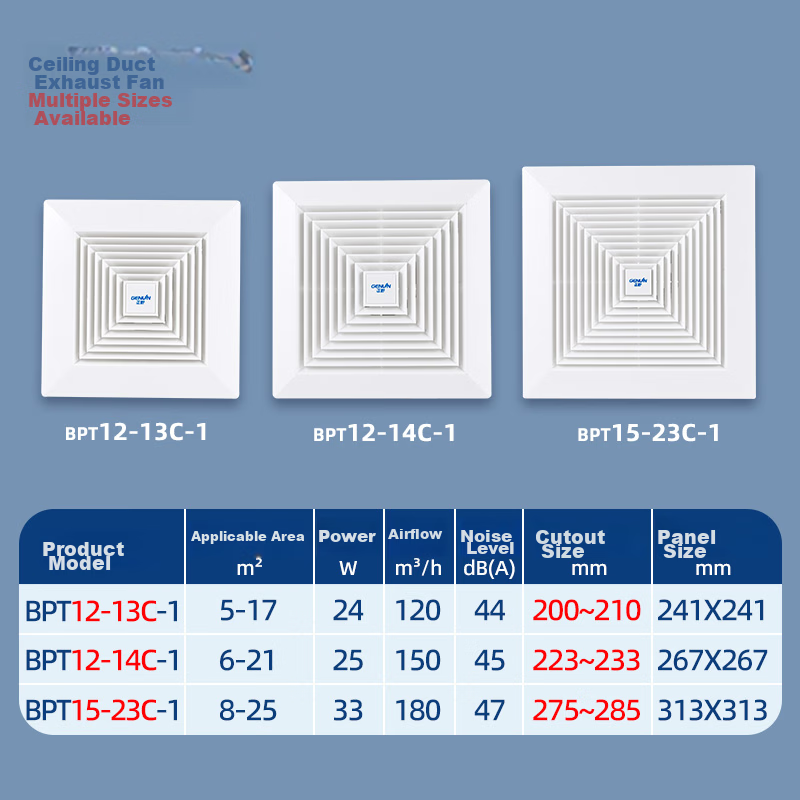

| Model | Applicable Area (m²) | Power (W) | Air Volume (m³/h) | Noise (dB(A)) | Opening Size (mm) | Panel Size (mm) |

|---------------|---------------------|-----------|-------------------|---------------|-------------------|-----------------|

| BPT12-13C-1 | 5 - 17 | 24 | 120 | 44 | 200 - 210 | 241 x 241 |

| BPT12-14C-1 | 6 - 21 | 25 | 150 | 45 | 223 - 233 | 267 x 267 |

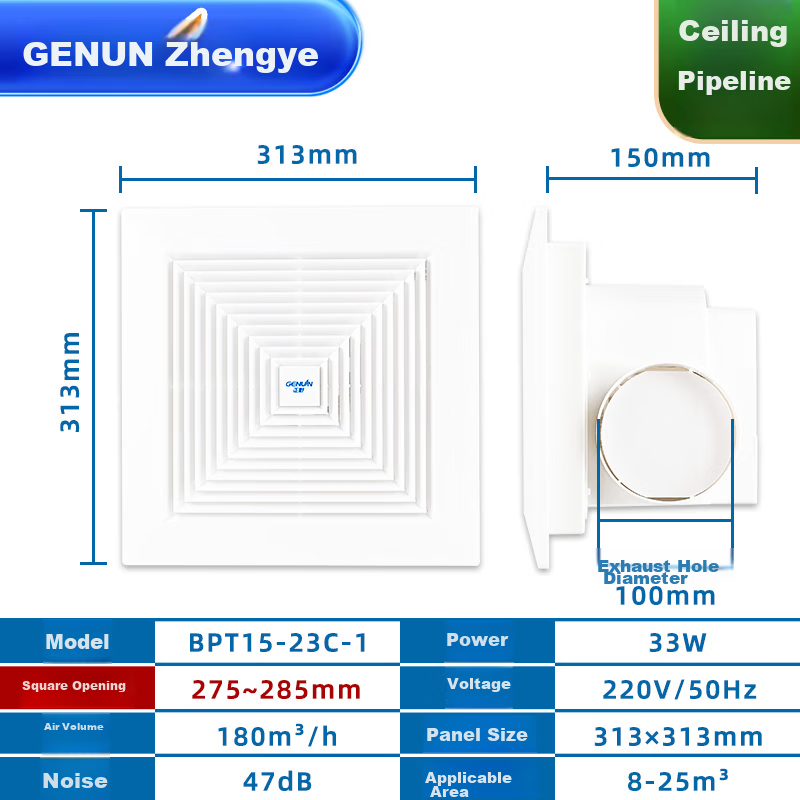

| BPT15-23C-1 | 8 - 25 | 33 | 180 | 47 | 275 - 285 | 313 x 313 |

1. Exhausts indoor stale air and moisture to the outside

2. Effectively reduces indoor carbon dioxide concentration

3. Supplies fresh air to increase oxygen content

Ensure the panel is tightly fitted against the fan without gaps

Avoid bending the duct pipe in prohibited shapes to maintain airflow efficiency

When installing in bathrooms, the exhaust pipe should be inclined downward about 10° to prevent backflow

The fan operates normally without abnormal noise when properly installed

Panels are detachable for easy cleaning and maintenance

Ideal for ceiling installation in residential and commercial spaces requiring efficient air exchange, odor removal, and moisture control.
