GENUIN Window Ventilation Fan 6-inch APC15X Powerful Low-Noise Exhaust Fan

|---------|-------------|-----------|----------------|---------------------|-------------------------------|-----------------|

| APC10X | 4 | 13 | 60 | 45 | 100~110 | 158 x 158 |

| APC15X | 6 | 20 | 180 | 48 | 150~160 | 215 x 215 |

| APC20X | 8 | 25 | 252 | 50 | 180~190 | 235 x 235 |

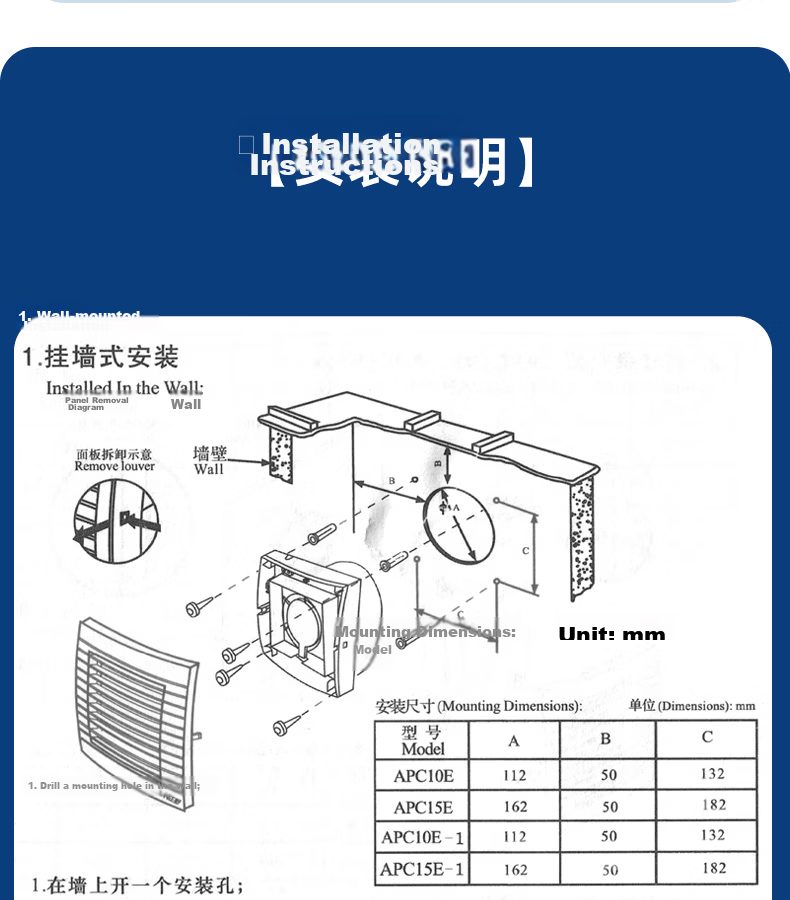

1. Drill an installation hole in the wall according to the specified diameter in the table above.

2. Remove the panel screws and pull out the panel following the indicated direction.

3. Unscrew the snap ring and insert the fan body into the installation hole.

4. Align the fan body screw holes and drill four fixing holes.

5. Secure the fan body with screws and reinstall the snap ring.

6. Reattach the panel and fix it with screws.

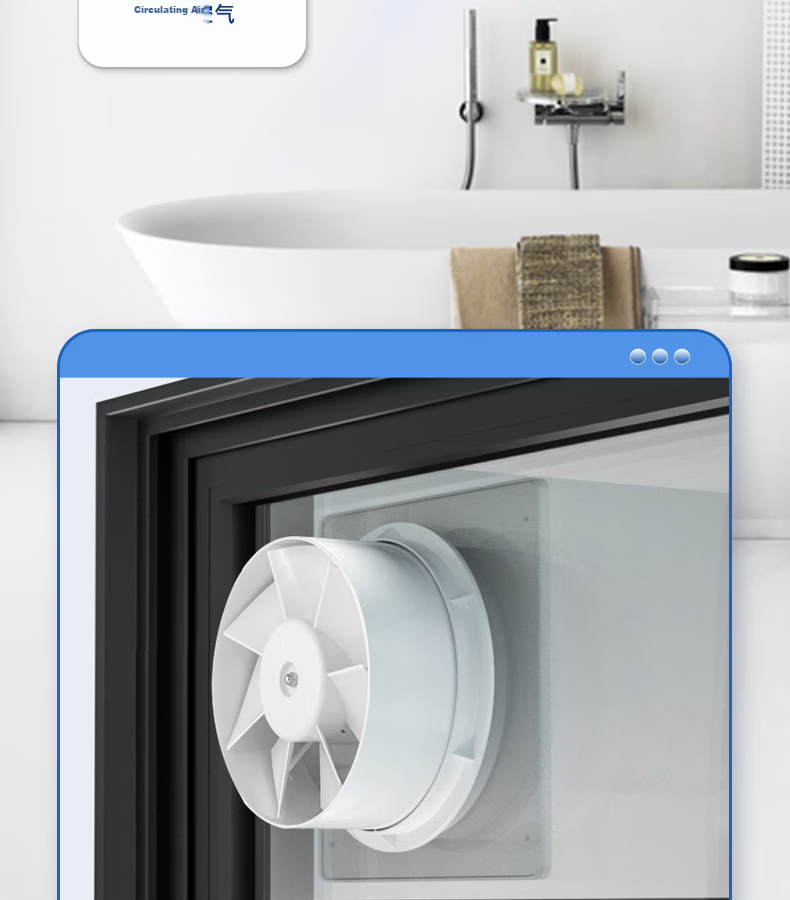

1. Drill an installation hole in the glass according to the specified diameter in the table above.

2. Remove the panel screws and pull out the panel.

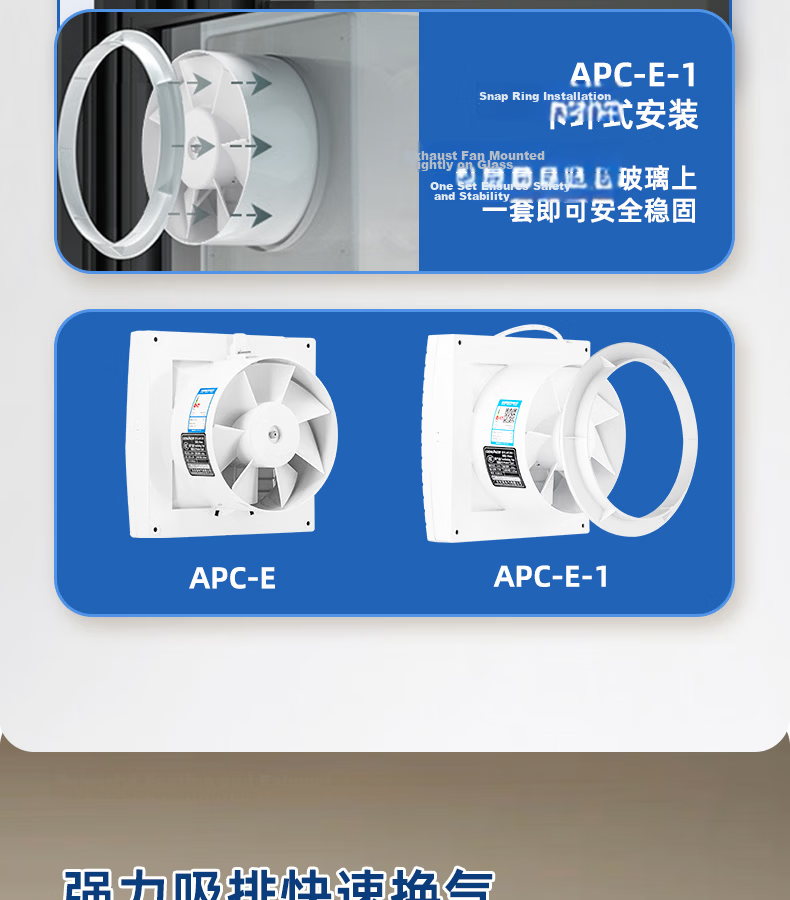

3. Unscrew the snap ring and insert the fan body into the hole from the opposite side of the glass.

4. Screw the snap ring tightly to secure the fan body.

5. Reattach the panel and fix it with screws.

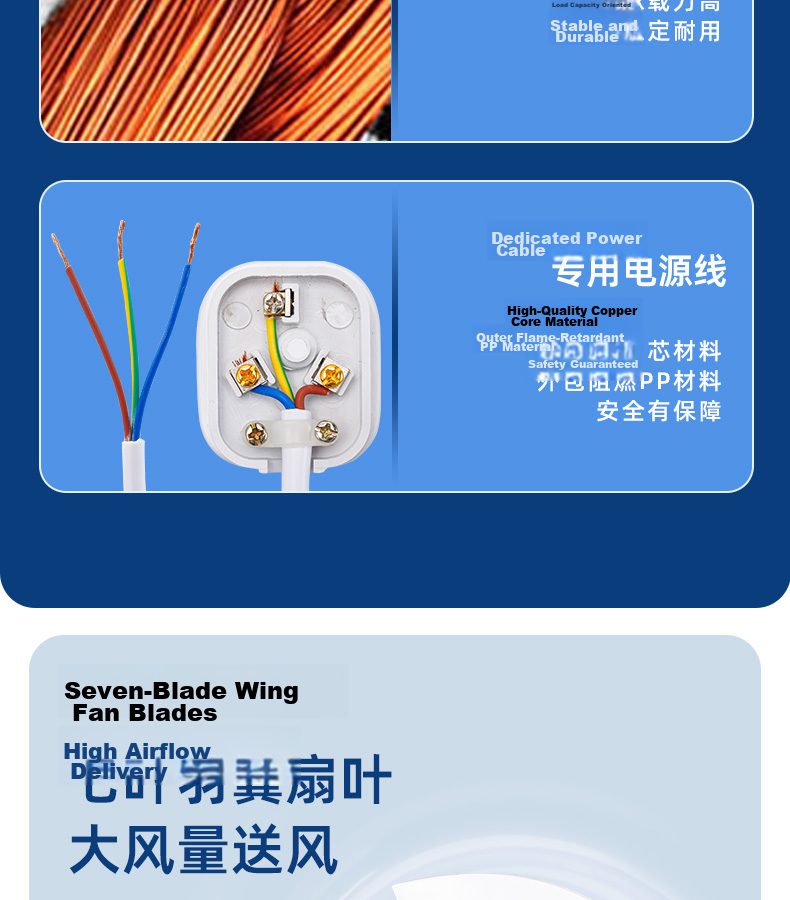

The original power cable length is approximately 30 cm without a plug.

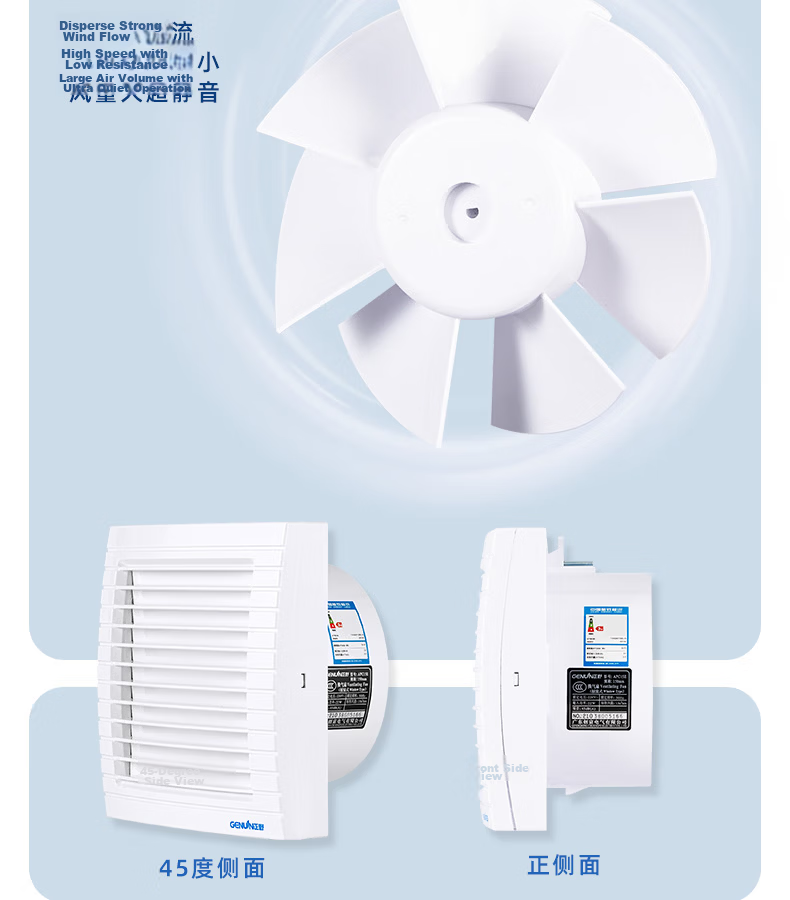

Side installation angle is 45 degrees or direct front-facing.

Models APC10X feature 7 blades; APC15X and APC20X feature 3 blades.
